M
M a s t e r E m o t i o n
ASTERSOUN
D
PH L5
V2
Made in Italy
Our Philosophy
Our philosophy is simple: we want to
produce amplifiers which stimulate the emotions
for those who enjoy music.
We believe that every piece of music played
through our amplifiers should arouse in the
listener the same emotions as the artist who
composed it and the musician who interpreted it.
We believe by using Master Sound amplifiers
that the listener will feel immersed in the music,
absorbed in the execution of the piece, enjoying,
in the most natural way, the details of the voices
and the instruments played
.
2
M a s t e r E m o t i o n
Mastersound story
Master Sound is an Italian
company which has produced, for the
past 18 years, class “A”, tube amplifiers.
Our most important priority is to
build equipment of the highest quality.
We give the highest attention to
quality in our design, our components,
and our construction.
Each part of our amplifier has
been hand built with passion and skill.
Our attention to detail will
guarantee years and years of trouble
free listening
.

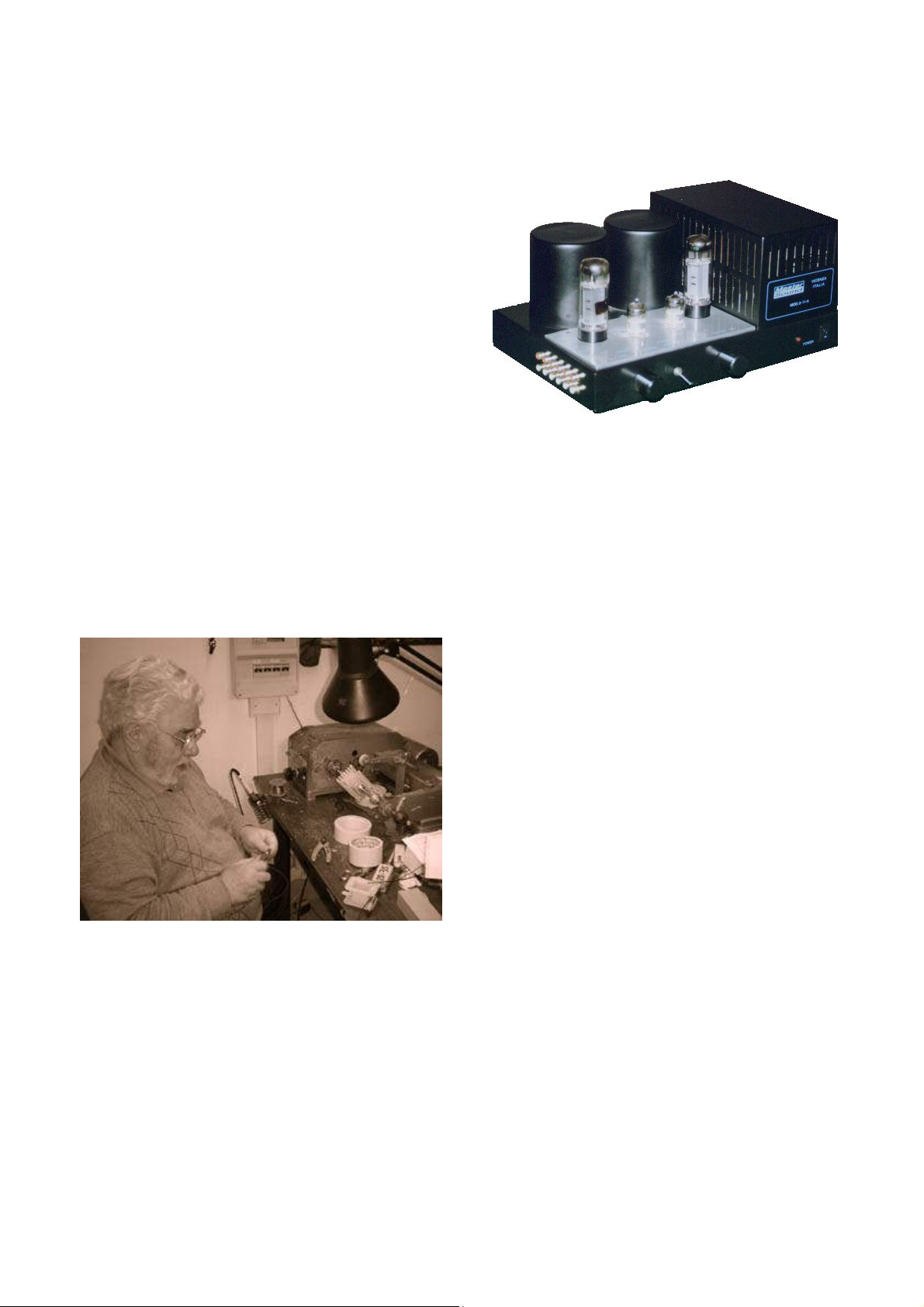

The first amplifier (1994)
Cesare Sanavio
We have carefully designed and
hand built all of the transformers.
We, at Master Sound, believe that the
output transformer is the heart of any
tube amplifier.
So, we have used our extensive
experience in transformer technology to
help create Master Sound’s greatest
achievement to date, the PHL5
-V2
M a s t e r E m o t i o n
3
Preamplifier
PH L5
V2
4
Congratulations on your choice!
M a s t e r E m o t i o n
Inside
The new version V2 has a small modification in the circuit that improves its
silence and make it a little faster than the previous version. Does not is a substantial
change, but another small step forward.
A new pre amplifier needs to be put on at low volume in order to perform at its
best the musicality and high definition of sound.
After a “training” period, You will have to play Your apparatus for at least ten
minutes before the circuits can entirely stabilize and reach the ideal temperature for
playing.
We therefore recommend that You follow our simple instructions to get the best
results in listening.
M a s t e r E m o t i o n
5
Rear panel
1. Holder containing a plug with incorporated fuse.
2. Four RCA out put with possibility of bi amplification.
3. Four input line connector.
4. One phono input for MM cartridge.
5. Connection for the recording –REC.
6. The serial number
6
M a s t e r E m o t i o n
Maintenance of the amplifier
Use gently a wet and soft cloth (buckskin) to clean Your amplifier and dry
immediately.
Never clean Your pre amplifier when hot or running.
Do not forget to take out the plugs before starting to clean the pre amplifier.
Last recommendations
Any change of interconnectors (cables, etc...) must be done with the pre amplifier
switched in the off position.
Never move or remove the pre amplifier when tubes are still hot.
Never install or remove tubes when the pre amplifier is still switched in the on
position.
M a s t e r E m o t i o n
7
Specifications
• Tube pre amplifier
• Banwidth: 1 Hz / 100 kHz – 0dB
• Tubes: 3 x ECC 82, 2 x ECC 83
• Input: 4 High level + 1 Input Phono MM
• Out-put: 2 + 1 rec
• Volume with Remote Control
• Dimensions: 42 x 12 x 39 cm.
• Weigth: 9 Kg.
Due to continuos progress in research and development, our products may present
different features oh those described.
Detail of gold trak
8
M a s t e r E m o t i o n
WARRANTY
Your pre amplifier, except the tubes, comes with a five years limited warranty
covering defects in material and craftsmanship. During the warranty period, repairs are
provided free of charge. Transportation costs and from the repair provider has to be
paid by the owner.
This warranty is void when:
1. the serial numbers have been removed
2. the screws fixed to the underside, have been removed
3. other kind of tubes different from the original have been used.
4. the amplifier has been operated without loudspeakers.
5. violent damage to the amplifier.
M a s t e r E m o t i o n
9
10
Email:
MASTER SOUND s.a.s.
Via Cima XII n. 14 - 36051 Creazzo (Vicenza) Italia
Tel. +39 0444 521733
info@mastersoundsas.it web site:www.mastersoundsas.it
