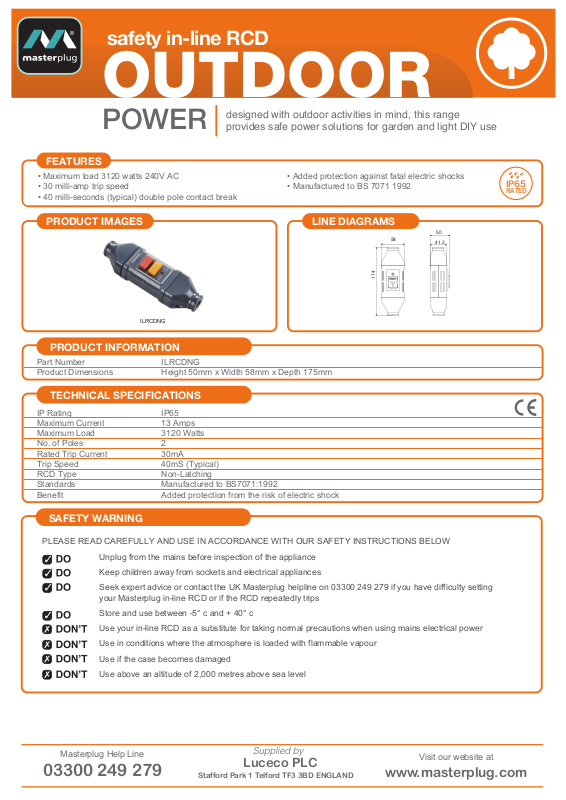

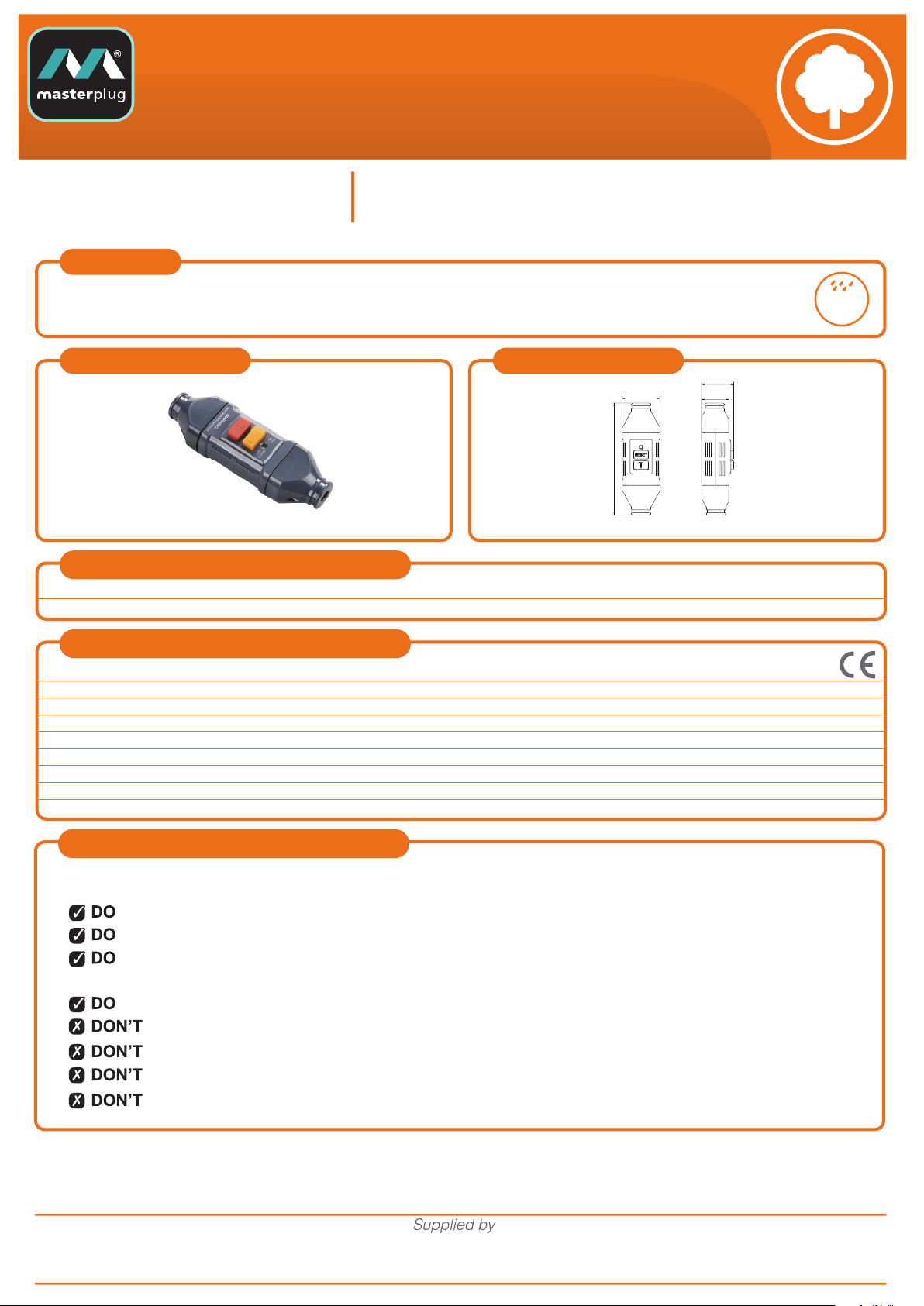

Page 1
safety in-line RCD
OUTDOOR
designed with outdoor activities in mind, this range
POWER
FEATURES
• Maximum load 3120 watts 240V AC
• 30 milli-amp trip speed
• 40 milli-seconds (typical) double pole contact break
provides safe power solutions for garden and light DIY use
• Added protection against fatal electric shocks
• Manufactured to BS 7071 1992
IP65
RATED
PRODUCT IMAGES LINE DIAGRAMS
ILRCDNG
PRODUCT INFORMATION
Part Number
Product Dimensions
ILRCDNG
Height 50mm x Width 58mm x Depth 175mm
TECHNICAL SPECIFICATIONS
IP Rating
Maximum Current
Maximum Load
No. of Poles
Rated Trip Current
Trip Speed
RCD Type
Standards
Benefit
IP65
13 Amps
3120 Watts
2
30mA
40mS (Typical)
Non-Latching
Manufactured to BS7071:1992
Added protection from the risk of electric shock
174
58
50
41.3
SAFETY WARNING
PLEASE READ CAREFULLY AND USE IN ACCORDANCE WITH OUR SAFETY INSTRUCTIONS BELOW
Unplug from the mains before inspection of the appliance
Keep children away from sockets and electrical appliances
Seek expert advice or contact the UK Masterplug helpline on 03300 249 279 if you have difficulty setting
your Masterplug in-line RCD or if the RCD repeatedly trips
Store and use between -5° c and + 40° c
Use your in-line RCD as a substitute for taking normal precautions when using mains electrical power
Use in conditions where the atmosphere is loaded with flammable vapour
Use if the case becomes damaged
Use above an altitude of 2,000 metres above sea level
Masterplug Help Line
03300 249 279
Luceco PLC
Stafford Park 1 Telford TF3 3BD ENGLAND
www.masterplug.com
Visit our website at
Page 2

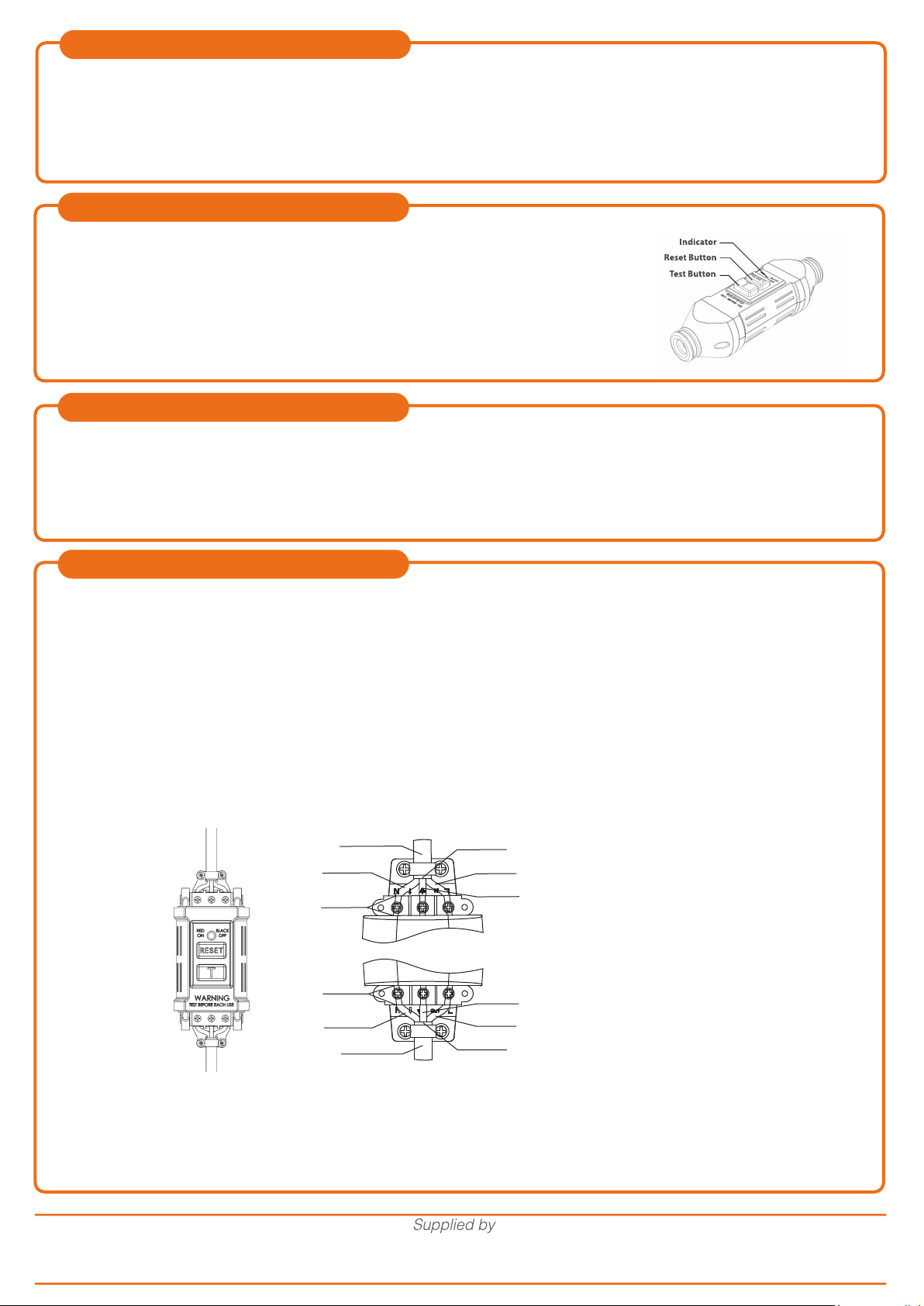

WHAT IS A SAFETY RCD?
Your Masterplug Safety in-line RCD continuously monitors the power supply to an electrical appliance and cuts off the power
within 40 milliseconds if an earth current fault is detected. This is fast enough to prevent a fatal electrical shock.
Electrical appliances can become dangerous if the wiring becomes loose, if they or their power cords become damaged or if
they get wet. Electrocution is also possible if fingers, wet hair or other conductive bodies enter the appliance. In all cases your
Masterplug safety in-line RCD will instantly cut off the electricity before you or a member of your family receive a potentially
fatal shock.
USER INSTRUCTIONS
STAGE 1
Insert plug into 13amp mains socket and switch on
STAGE 2
Press the RESET button -The RED indicator should appear
STAGE 3
Press the
TEST button - The RED indicator will disappear from the CLEAR window
DO NOT USE IF THE RED INDICATOR REMAINS
IN-LINE RCD
The in-line RCD has been designed to be for heavy duty applications. The water resistant casing of the unit is rated at IP 65.
To maintain the IP 65 weather proof rating of the device, plugs, sockets and connectors of an equivalent rating must be used.
The RCD is a Non-latching RCD type. This means when power to the RCD is disconnected, due to a power cut or switching
of the mains, the RCD will trip & have to be re-set when power returns. The RCD will need to be re-set before power returns
to the connected equipment. Ideal for power tools and garden equipment.
INSTALLATION INSTRUCTIONS
Before commencing any electrical work ensure the supply is switched off at the mains, either by switching off the consumer unit
or by removing the appropriate fuse.
The inline RCD is suitable for use with flexible cable -
• Ordinary duty, PVC or Rubber construction*
• 300/500V mains, 3-Core 1.25mm or 1.5mm
• Round profile
• To BS6500 or equivalent
* PVC insulated & sheathed, Harmonized Code: H05VV-F3 or Rubber insulated and sheathed, Harmonized Code: H05RR-F3.
1. For each end of the RCD remove the two screws securing the terminal cover. Disconnect the terminal end caps from the
main body, and push the cable through the seal.
2. Remove the two screws securing the cord grip and set aside
3. Prepare the cable as shown in the diagrams below.
SECURE CORD GRIP
DO NOT INVERT
STRIP LENGTH
12-15mm
STRIP LENGTH
6-8mm
6-8mm
STRIP LENGTH
12-15mm
STRIP LENGTH
DO NOT INVERT
SECURE CORD GRIP
CORD GRIP
STRIP LENGTH
12-15mm
GREEN YELLOW
9-12mm
9-12mm
GREEN YELLOW
12-15mm
STRIP LENGTH
CORD GRIP
4. Loosen the terminal screws and the insert the correct coloured wire into each terminal and tighten.
5. Replace the cord grip ensuring that it grips the outer sheath of the cable and tighten
6. Replace the terminal cover and tighten the two screws.
Masterplug Help Line
Luceco PLC
03300 249 279
Stafford Park 1 Telford TF3 3BD ENGLAND
www.masterplug.com
Visit our website at
