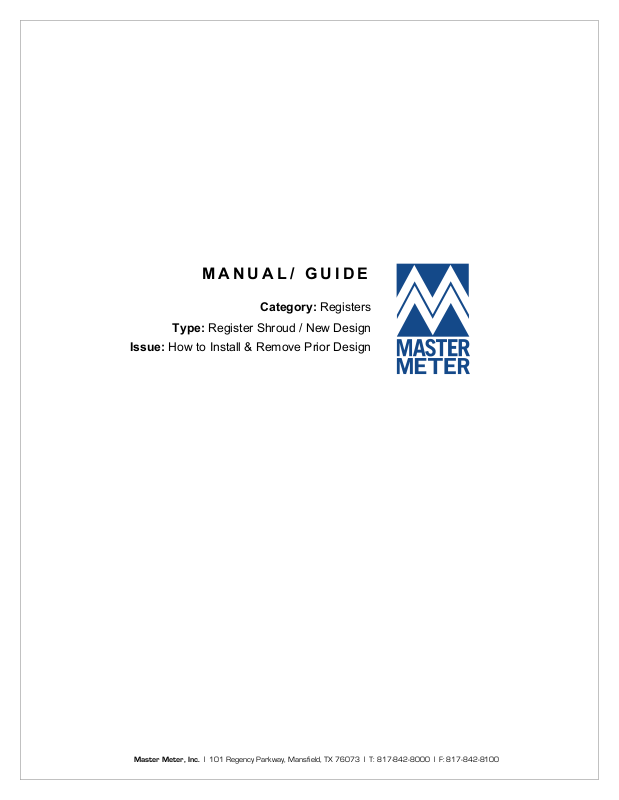

M ANUAL/ GUIDE
Category: Registers
Type: Register Shroud / New Design
Issue: How to Install & Remove Prior Design
Page 2
Page 2 of 4

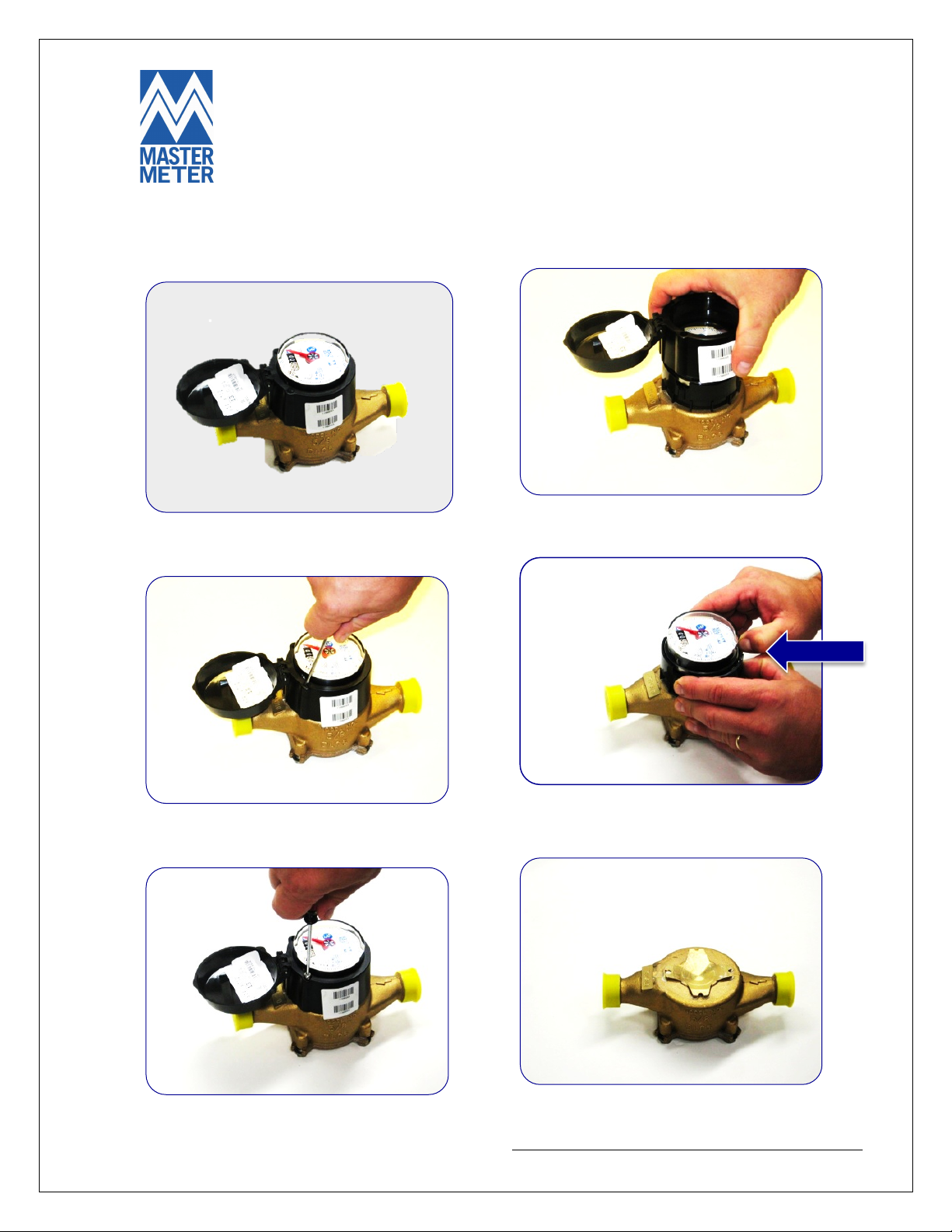

Removal of Old Register:
Step 1:
Old version of register & housing
Step 2:
Remove tamper seals with screwdriver or punch.
Step 3:
Unscrew Mounting Screws
Step 4:
Pull Cover Assembly Straight Up
Step 5:
Remove register shroud by opening gap and pulling off of body
.
Step 6:
Meter with register and housing removed
Page 3
Page 3 of 4

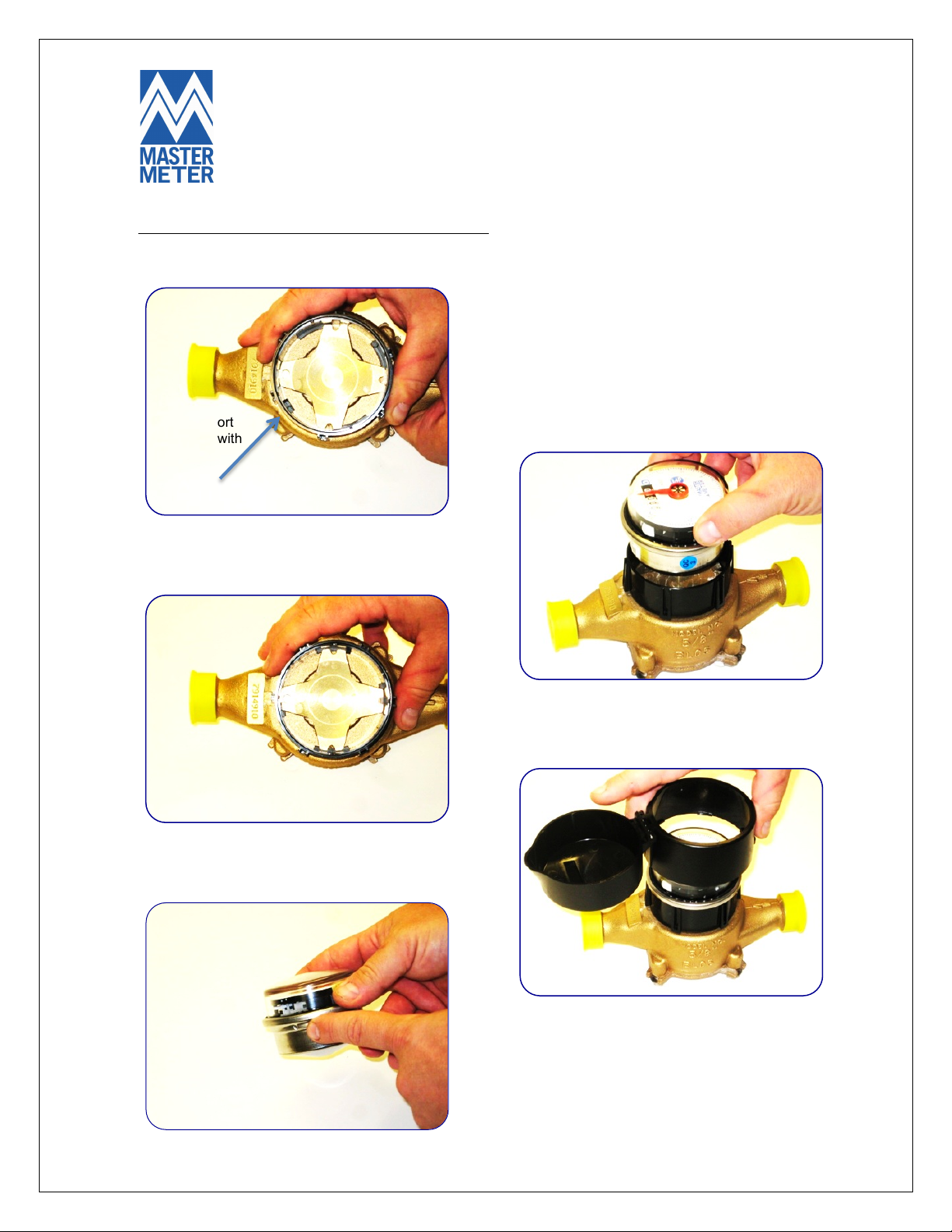

Installing New Shroud and Register:
Step 1:
Starting position of twist on register shroud
Step 2:
Twist clockwise until mechanical stop.
* Final position shown.
Step 3:
Note locating indentations on register base each 90
degrees.
Step 4:
Place register in shroud in preferred orientation.
Ensure indentation on register engage with tabs
on shroud, preventing rotation.
Step 5:
Place housing assembly onto the register
approximately 15 degrees shy of final position.
NOTE: Short
tab aligns with
calibration
port side
(downstream)
PORT
SIDE

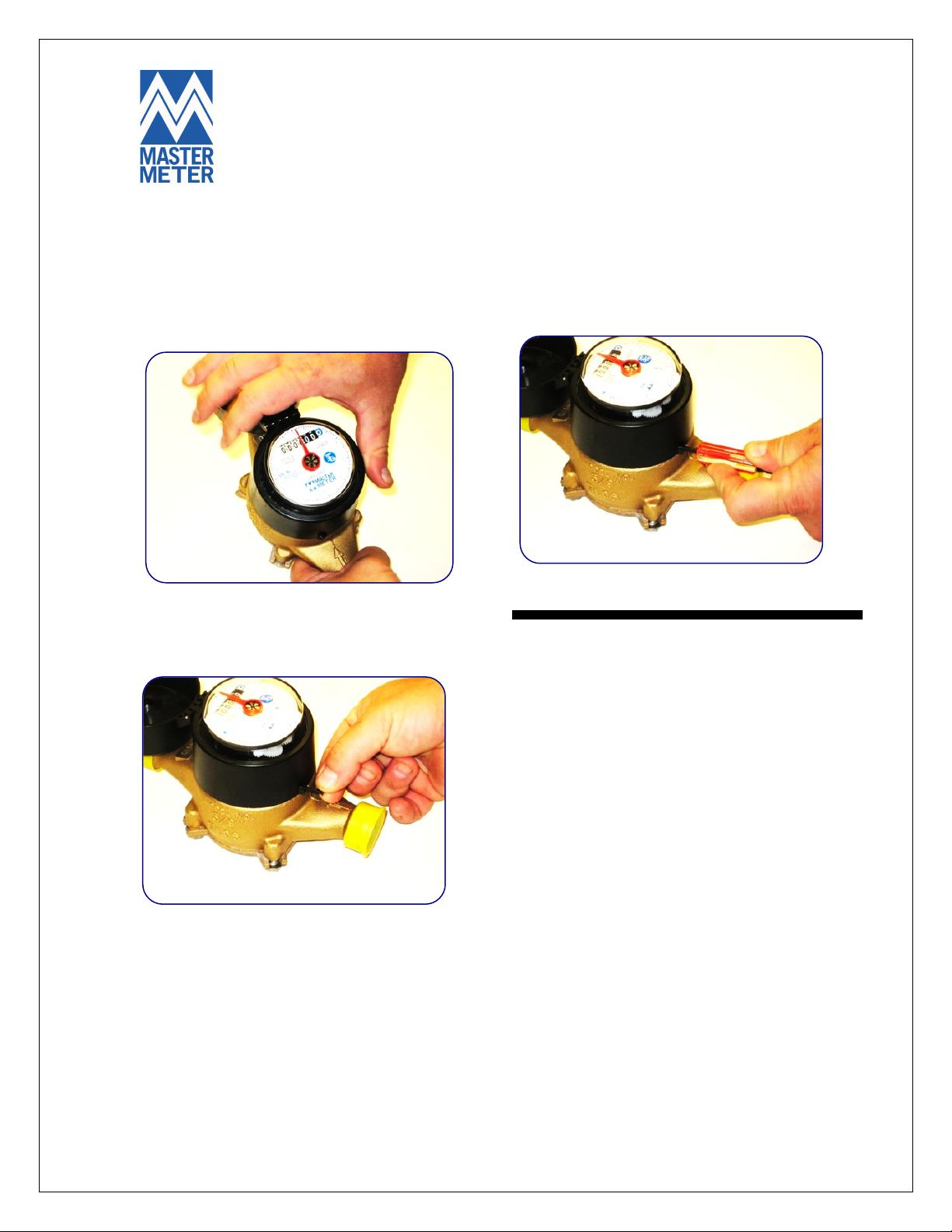

Page 4
Page 4 of 4
Step 6:
Twist housing assembly 15 degrees clockwise.
Use lid hinge (but not lid!) when twisting. The
holes for the stopper snap pin should be a little
past the midline when completed.
Step 7:
Insert stopper snap pin.
Step 8:
Use any available hard surface (in this case,
screwdriver handle) to push stopper snap pin
completely flush.
