R

PORTABLE GASOLINE

GENERATORS

OWNER’S OPERATION AND INSTALLATION MANUAL

Generator Models: HWI3000, MGH3000G, MGH3000, MGH3000PR, MGH4000C, MGH4000CI,

MGH5000D, MGH5000DI, MGH5000DIE, MGH6000D, MGH6000DI, MGH6500IE, and MGH10000A

IMPORTANT: Read and understand this manual before operating or servicing
generator. Improper use of generator can cause serious injury. Keep this
manual for future reference.

R

PORTABLE GASOLINE GENERATORS

SAFETY
INFORMATION

WARNINGS

IMPORTANT: Read this owner’s
manual and the engine owner’s
manual carefully. Become famil­iar with this generator before try­ing to operate or service it. Know
its uses, limitations, and any haz­ards involved. Improper use of
generator can cause severe in­jury or death from explosion, fire,
burns, electrical shock, or car­bon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Engine exhaust contains poisonous carbon
monoxide gas. Overexposure will cause loss
of consciousness and will lead to death. Use
only in well-vented areas. Make sure area
has plenty of free-moving, fresh, outside
air. Never run generator in an enclosed or
confined area. Never run generator inside
occupied building.

Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning re­semble the flu, with headaches, dizziness,
and nausea. If you have these signs, get
fresh air at once! Some people are more
affected by carbon monoxide than others.
These include pregnant women, persons
with heart or lung disease or anemia, those
under the influence of alcohol, and those at
high altitudes. Make certain you read and
understand all warnings. Keep this manual
for reference. It is your guide to safe and
proper operation of this generator.

Safety information appears throughout these
instructions. Pay close attention to them.
Below are definitions for the safety infor­mation listed throughout this manual.

DANGER: indicates a hazard which will
cause severe personal injury, death, or substan­tial property damage if you ignore warning

WARNING: indicates a hazard which can
cause severe personal injury, death, or substan­tial property damage if you ignore warning.

CAUTION: indicates a hazard which will
or can cause minor personal injury or prop­erty damage if you ignore warning.

.

1. Gasoline presents a hazard of fire or ex­plosion. Gasoline is flammable. Its va­por is explosive.

•Keep fuel out of children’s reach.

• Refuel generator in a well-vented

area. Do not fill fuel tank in the dark.
Do not refuel while engine is run­ning. Unhook all electrical loads and
shut off engine before refueling.

• Do not overfill fuel tank. Always al-

low room for fuel to expand. If you
overfill tank, fuel can overflow onto
hot generator. This can cause fire or
explosion. After refueling, tightly
close fuel tank cap.

• Do not spill fuel. Fuel or fuel vapor

may ignite. If fuel spills, make sure
area is dry before starting engine.

•Never smoke in refueling area. Never

allow open flames or sparks in area.

• Store fuel in approved container.

Store fuel in a well-vented area free
of open flames or sparks.

2. Guard against fire hazard. Keep opera­tion area well-vented. Keep generator
at least three feet away from any ob­ject. Do not place flammable objects
near generator.

• Do not use generator where flam-

mable vapors are present. Some va­pors are heavier than air. These va­pors settle in low-lying places.

• Do not use generator in enclosed

spaces. This includes motor home or
RV generator compartments.

3.

Guard against electric shock. Generator
produces high voltage. This high voltage
can cause severe electric shock. Only re­sponsible adults should use generator.

•Properly ground generator before

starting.

•Never let anyone operate or service

generator without proper instruc­tions.

•Avoid contact with live terminals or

bare wires.

• Do not use generator outdoors in rain

or snow.

• Do not use generator near standing

water or snow.

• Do not use if generator is wet or

damp.

• Do not use generator in highly con-

ductive areas. These areas include
metal decking and steelwork.

• Only use grounded extension cords.

• Do not use any worn or damaged
electric cords. Electric shock or dam­age to generator may result.

• Do not wear damp clothing or wet
shoes when using generator.

4. Guard against burns. Hot engine parts
can cause severe injury. Use caution and
remain alert when using generator.

•Keep children and animals away

from generator while it is running or
hot.

•Keep all covers and shields in place.

Keep them tightly secured.

•The muffler becomes very hot dur-

ing operation. The muffler remains
hot for a while after shutdown. Do
not touch muffler while it is hot. Do
not let muffler touch anything flam­mable. Let engine cool before trans­porting or storing.

5. Have standby installation to home or
building performed by a licensed elec­trician. Do not let anyone else wire into
a utility circuit. Personal injury, equip­ment damage, or damage to home could
occur.

6. Never connect generator to any exist­ing electrical circuits. The generator
output will back-feed into the utility
power line. This may electrocute a
power company line repair person.
Also, if generator is powering electri­cal circuits, the chance of an electrical
fire exists.

7. Battery gives off explosive gases. Keep
sparks, flames, and cigarettes away. Do
not remove or install battery cables
when engine is cranking or running.
Only service or use battery in a well­vented area.

8. Battery contains sulfuric acid. Battery
acid is poisonous if swallowed. Con­tact with skin or eyes may cause severe
burns. Do not tilt generator with bat­tery installed. Tilting could cause bat­tery acid to spill. Wear protective cloth­ing and face shield when servicing.
Keep out of children’s reach.

2

106813

OWNER’S MANUAL

SAFETY
INFORMATION

Continued

9.

Only a qualified electrical service per­son should service and repair generator.

• Generator produces high voltage.
Use extreme caution when working
on electrical parts.

•Always remove spark plug wire from
spark plug before servicing. This will
prevent accidental starting.

•

When working on generator, avoid hot
muffler, exhaust manifold, and engine
parts. Severe burns may occur.

• Do not work on generator when tired.

• Use only factory approved replace­ment parts.

10. Store generator in a well-vented area.
Make sure fuel tank is empty. Never
store with fuel in tank. Vapors may
reach an open flame or spark. Fire or
explosion may result.

11. Never operate generator

• if engine speed changes greatly

• if engine misfires often

• if powered items overheat

• if electrical output drops

• if it is sparking

• if it produces smoke or flames

• if it vibrates at high levels

• if it has a damaged receptacle

12. Keep generator and nearby areas clean.

•Keep generator free of oil, mud, and

other foreign matter.

• Remove anything that creates slip-

pery areas around generator.

• Remove oily rags and other items

that create fire hazards.

•Keep a fire extinguisher nearby.

Make sure it is rated ABC by the
NFPA. They are good for all uses.
Consult your local fire department.

•Keep fire extinguisher well main-

tained. Be familiar with its use.

13. Know how to stop engine quickly.
Know how to use all controls.

14. Prolonged exposure to loud noise can
cause hearing loss.

•When working around generator,

wear approved hearing protection.

• Remember neighbors when using

generator.

PRODUCT
IDENTIFICATION

Gas Cap/Fuel Gauge

Control
Panel

FUEL

F

120 Volt
Receptacle

Full Power

120 Volt
Receptacle
(GFCI)

120 Volt
Receptacle
(Duplex)

Run Lamp

Hour Meter

Choke
Lever

Fuel
Valve
Lever

Starter Grip

Engine

Selector Switch

1
2

0
V

O
L

T
S

R
E

S
E

T

T

E
S

T

F
U

L
L

P
O
W

E
R

120

ONLY

E
N

M
0
0

0
0

0

HO

0

0

5

UR

S

1/10

120/240 Volt
Receptacle

Circuit
Breaker

Engine ON/
OFF Switch

120
240V

120/240 VOLTS

RESET

RESET

Provision for
Auto-Idle Switch

Oil Dipstick

Gas Tank

L

E

U

F

F

Alternator

Roll Cage

Ground
Lug

106813

Figure 1 - Portable Generator (Model MGH4000C Shown)

3

R

PORTABLE GASOLINE GENERATORS

GENERAL
INFORMATION

Master portable generators are rugged and
compact. These generators use brushless
alternators for dependable, trouble-free ser­vice. Honda gasoline engines provide long
life under heavy use. Honda engines have
overhead valves (OHV). This provides high
performance with lower fuel consumption.
These engines are governed to maintain
engine speed of 3600 RPM under load. 3600
RPM engine speed provides 120/240V, 60
Hz power.

Additional Features

• Circuit breaker protection

• Spark-arresting muffler (except model
MGH10000A)

• Large fuel tank

• Oil alert system

• Electric starter (models MGH5000DIE,
MGH6500IE, and MGH10000A only)

• 15-Amp ground fault circuit interrupter
(GFCI) receptacle (Except HWI3000
Model)

UNPACKING

1. Remove generator from carton.

2. Remove any protective packaging ap-

plied to generator for shipment.

3. Check for loose or missing parts. Check

for shipping damage. If any parts are
missing or damaged, promptly inform
dealer where you bought generator.

4. Battery cables are supplied for models

MGH5000DIE, MGH6500IE, and
MGH10000A only. These cables are in
a separate bag inside generator carton.
You must install these cables to engine.
See Battery, page 8 for installation in­structions.

VENTILATION

DANGER: Use only in well­vented areas. Make sure area has
plenty of free-moving, fresh, out­side air. Never run generator in
an enclosed or confined area.
Never run generator inside occu­pied building. Engine exhaust
contains poisonous carbon mon­oxide gas. Overexposure will
cause loss of consciousness and
will lead to death.

This generator needs cooling air to run prop­erly. Never block free-flowing, cooling air
to generator. Overheating will occur with­out cooling air. This will damage the gen­erator. Keep generator at least three feet
away from any object.

DUST, DIRT, RAIN,
AND SNOW

WARNING: Do not use gen­erator outdoors in rain or snow.
Do not use generator near stand­ing water or snow. Do not use if
generator is wet or damp. Oper­ating generator in these condi­tions increases the risk of elec­trocution. Severe injury or death
can occur.

Do not use generator in extremely dusty or
dirty conditions. This will severely affect its
life. Keep generator clean. Do not allow
dust, dirt, rain, or snow to collect on it.
Protect generator from outdoor elements.

HIGH AND LOW
TEMPERATURE
OPERATION

Air temperature affects generator output.
Output drops 1% for each 10° temperature
rise above 60° F. Very low temperatures may
make the engine hard to start. See engine
owner’s manual for more information.

4

106813

OWNER’S MANUAL

SPECIFICATIONS

MGH4000C MGH5000DI

MGH5000D

MODEL HWI3000 MGH3000G MGH3000 MGH3000PR MGH4000CI MGH5000DIE

Electrical

Rated Wattage 2500 2500 2500 2500 4000 5000
Rated Amperage

120 V 20.8 20.8 20.8 20.8 33.3 41.7
240 V –– –– –– –– 16.7 20.8

Receptacle

120-V Duplex –– –– –– –– Yes Yes
120-V, 20-A Duplex Yes –– –– –– ––
120-V, 15-A GFCI No Yes Yes Yes Yes Yes
120-V Twist-Lock No No No No 30 Amp 30 Amp
120/240-V Twist-Lock No No No No 20 Amp 20 Amp
120-V Full-Power Switch No No No No Yes Yes
120/240-V, 50-A No No No No No No

General

Honda Engine H.P. 5.5 5.5 5.5 5.0 8 9
Honda Model GX160K1VX GX160K1VX GX160K1VX GC160VXA GX240K1VA GX270VA
Fuel Type Gasoline Gasoline Gasoline Gasoline Gasoline Gasoline
Fuel Tank Capacity 3.9 qt. 3.9 qt. 3.9 qt. 3.9 qt. 5 gal. 8 gal.
Oil Alert System Yes Yes Yes Yes Yes Yes
Start Method Recoil Recoil Recoil Recoil Recoil Recoil/Elec.
Weight (pounds) 85.5 85.5 85.5 84 139 173

* Single-phase, 1.0 power factor

MGH6000D

MODEL MGH6000DI MGH6500IE MGH10000A

Electrical

Rated Wattage 6000 6500 10,000
Rated Amperage

120 V 50 57 83.3
240 V 25 28.3 41.7

Receptacle

120-V Duplex Yes Yes Yes
120-V, 20-A Duplex –– –– ––
120-V, 15-A GFCI Yes Yes Yes
120-V Twist-Lock 30 Amp 30 Amp 30 Amp
120/240-V Twist-Lock 20 Amp 30 Amp 30 Amp
120-V Full-Power Switch Yes No No
120/240-V, 50-A No No Yes

General

Honda Engine H.P. 11 13 20
Honda Model GX340K1VA GX390K1VXE GX620VXA3
Fuel Type Gasoline Gasoline Gasoline
Fuel Tank Capacity 8 gal. 8 gal. 13 gal.
Oil Alert System Yes Yes Yes
Start Method Recoil Electric Electric
Weight (pounds) 191 247 350
* Single-phase, 1.0 power factor

Note:

Ratings apply to SAE standard
conditions. Reduce ratings 3 1/2% for
each 1000 feet above sea level and 1%
for each 10° Fahrenheit rise above 60°F.

106813

5

R

PORTABLE GASOLINE GENERATORS

GENERATOR
FEATURES

OIL ALERT SYSTEM

The oil alert system protects the engine from
low oil damage. This system automatically
shuts down the engine and prevents engine
restarting if the oil level falls too low.

Note:

When this happens, the engine switch
remains in the ON position. The oil alert
system is wired into the ON/OFF Switch.

If this system shuts down the engine, the
engine will not start until you add oil. Add
oil to engine (see Engine Oil, page 7).

Note:

Operate generator on a level surface.
If not level, the oil may flow away from the
oil level sensing device. This will cause the
oil alert system to shut down engine.

See engine owner’s manual for more
information.

Model
MGH3000PR

FULL POWER SELECTOR
SWITCH

All models except HWI3000, MGH3000G,
MGH3000, MGH3000PR, MGH6500IE,
and MGH10000A have a full power selector
switch on the control panel. The switch has
two positions: 120 VOLT ONLY, and 120/
240 VOLT.

120 VOLT ONLY: This position sends full
power to the 120V receptacles only. 240V
power is not available. Use this position
when powering 120V items only.

120/240 VOLT: This position sends full power
to the 120/240V receptacle. It also powers the
120V receptacles at reduced wattage capacity.

IMPORTANT:

selector switch while powering electrical
items. Unplug all items before moving switch.
Failure to do so can damage switch. Models
HWI3000, MGH3000G, MGH3000,
MGH3000PR, MGH6500IE, and
MGH10000A do not have this switch. These
models provide full power to all receptacles.

Do not move the full power

ELECTRIC START

(Models MGH5000DIE,
MGH6500IE, and MGH10000A)

Models MGH5000DIE, MGH6500IE, and
MGH10000A have electric starters. A bat­tery is not supplied with generator. You
must provide a 12-volt, 32-amp-hour bat­tery. For more battery information, see Bat-
tery, page 8.

GROUND FAULT CIRCUIT
INTERRUPTER RECEPTACLE

All models (Except HWI3000) have a 120­volt ground fault circuit interrupter (GFCI)
receptacle. The GFCI receptacle is on the
control panel or top cover of alternator (mod­els MGH3000G, MGH3000, and
MGH3000PR only). The GFCI protects you
against hazardous electrical shock caused when
your body becomes a path through which
electricity travels to reach ground. This could
happen when you touch an appliance or cord
that is ‘live’ through faulty mechanism, damp
or worn insulation, etc.

When protected by the GFCI, you may still
feel a shock, but the GFCI should cut it off
quickly. A person in normal health should
not receive serious injury.
very small children may still be affected.

Note:

Infants and

Models HWI3000,
MGH3000G, MGH3000,
MGH4000C, MGH4000CI,
MGH5000D, MGH5000DI,
MGH6000D, and
MGH6000DI

Models
MGH5000DIE,
MGH6500IE, and
MGH10000A

Figure 2 - Engine Switch Location

ENGINE SW

ON

OFF

HONDA

OFFONSTART

ENGINE SW

CIRCUIT
BREAKER

120 VOLT ONLY

Position

Figure 3 - Full Power Selector Switch

120/240 VOLT

Position

AUTO-IDLE SYSTEM

The Auto-Idle System allows the engine to
idle down or run at a slower speed when the
generator is not being used to supply power.
The Auto-idle system can be turned ON or
OFF by a rocker switch on the control panel.
When the switch is in the OFF position, the
engine runs at full speed all of the time. When
the switch is in the ON position, the engine
slows down to idle speed until an electrical
load is applied. When a load is applied to the
generator (an electrical item is plugged in and
turned on) the engine speeds up to the preset
speed required to produce the correct voltage.

IMPORTANT:

1 Amp is required to disengage the auto idle
solenoid and cause the engine to come up to
speed for correct voltage. Powering items at
reduced engine speed will damage genera­tor and powered items.

A minimum current load of

Test Procedure

Check the GFCI receptacle every month.
This insures it is working right.

1. Push black TEST button. Red RESET
button should pop out. This should trip
GFCI, resulting in no electrical power
at receptacle. Verify this by plugging
test lamp with good bulb into recep­tacle. If lamp does not work, GFCI re­ceptacle is good.

WARNING: If RESET button
does not pop out, do not use the
GFCI receptacle. Contact a quali­fied electrician for repairs.

6

106813

OWNER’S MANUAL

GENERATOR
FEATURES

Continued

2. If the GFCI receptacle tests okay, re­store power by pushing the RESET
button back in. The test lamp should
work at this time

. IMPORTANT:

must press the RESET button firmly
and fully. It should lock into place. If
the GFCI does not lock into place, do
not use receptacle. Contact a qualified
electrician for repairs.

RESET

TEST

Figure 4 - GFCI Receptacle

ENGINE CIRCUIT BREAKER

(Models MGH5000DIE,
MGH6500IE, and MGH10000A)

This circuit breaker, or fuse, protects the
battery charging circuit. A short circuit will
trip the circuit breaker. The circuit breaker
will also trip if you install battery wrong.
Push circuit breaker button to reset. On
Model MGH10000A, the fuse is located
inside of the Keyswitch box.

OFFONSTART

Engine Circuit
Breaker Button

Figure 5 - Engine Circuit Breaker

ENGINE SW

CIRCUIT
BREAKER

ON/push OFF

Yo u

RECEPTACLE CIRCUIT
BREAKER

The circuit breakers protect the receptacles
and alternator. Overloading generator will
trip circuit breaker. A short circuit in item
being powered will also trip breaker. If this
occurs, unplug electrical load from recep­tacle. Let circuit breaker cool down. Push
circuit breaker button to reset.

Electric motors need higher starting current.
They require up to three-times their rated
wattage to start. The starting current needed
may be too high. This can cause nuisance
circuit breaker tripping. To help prevent
this, start electric motors first. Connect ad­ditional items to generator after starting
motors. If this continues to happen, reduce
the total generator load.

Normal

Figure 6 - Receptacle Circuit Breaker
Button

Note:

20

Tripped

20

High ambient temperature will cause

nuisance tripping.

ENGINE OIL

We ship the generator without oil in the
engine crankcase. You must add oil before
starting engine. See engine owner’s manual
for specific oil type.

CHECKING OIL LEVEL AND
ADDING OIL

Follow steps below to check oil level. Make
sure engine is level and stopped.

1. Remove dipstick (see Figure 7). Wipe
dipstick clean.

2. Insert dipstick into oil filler neck. Do
not screw it in. Oil level should be at
top of filler neck. Oil should cover most
of dipstick. For Model MGH10000A
only, the oil should be between the two
dots on dipstick.

3. If level is low, fill to top of oil filler neck
(see Figure 7). For Model MGH10000A
only, fill to top dot on dipstick. Only use
oil recommended in engine owner’s
manual.

Note:

If oil level is too low, oil alert system
will shutdown engine and prevent engine
from restarting.

Oil Level
At Top Of
Filler Neck

Oil

Figure 7 - Checking Oil Level (Model
MGH4000C Shown)

Dipstick

FUEL

WARNING: Gasoline presents
a hazard of fire or explosion.
Gasoline is flammable. Its vapor
is explosive.

• Keep fuel out of children’s

reach.

•

Refuel generator in a well­vented area. Do not fill fuel tank
in the dark. Do not refuel while
engine is running. Unhook all
electrical loads and shut off
engine before refueling.

• Do not overfill fuel tank. Al-

ways allow room for fuel to
expand. If you overfill tank, fuel
can overflow onto hot engine.
This can cause fire or explo­sion. After refueling, tightly
close fuel tank cap.

• Do not spill fuel. Fuel or fuel

vapor may ignite. If fuel spills,
make sure area is dry before
starting engine.

• Never smoke in refueling area.

Never allow open flames or
sparks in area.

• Store fuel in approved con-

tainer. Store fuel in a well­vented area free of open flames
or sparks.

Use clean, fresh, unleaded gasoline. Use
gasoline with octane rating of 86 or higher.
Service station gasoline pumps should dis­play the octane rating. Using gasoline with
lower octane level could damage engine.
Avoid getting dirt, dust, or water in fuel
tank. Do not mix oil with gasoline.

See engine owner’s manual for more
information.

106813

7

R

PORTABLE GASOLINE GENERATORS

HANDLES AND
TOP COVER

(Model MGH10000A)

Follow the steps below to attach the handles
and top cover to Model MGH10000A:

1. Remove the two bolts, lock nuts, and
washers holding side panels to control
panel end of roll cage. Insert bolts with
washers through two holes in the
handle and then back through roll cage
and side screen panels (See Figure 8).
Tighten the lock nuts against the side
screen panels.

2. Place top cover on top of generator roll
cage with notch on control panel side.
Use four #8 sems screws provided to
attach cover to roll cage (See Figure 9).

Roll Cage

EL

FU

F

Washers

Bolts

Handle

Lock Nuts

BATTERY

(Models MGH5000DIE,
MGH6500IE, and MGH10000A)

WARNING: Battery gives off
explosive gases. Keep sparks,
flames, and cigarettes away. Do
not remove or install battery
cables when engine is cranking
or running. Only service or use
battery in a well-vented area.

WARNING: Battery contains
sulfuric acid. Contact with skin
or eyes may cause severe burns.
Do not tilt generator with battery
installed. Tilting could cause bat­tery acid to spill. Wear protective
clothing and face shield when
servicing. Keep out of children’s
reach.

• If battery acid gets on your

skin, wash with water.

• If battery acid gets in your eyes,

flush with water at least 15 min­utes. Call a doctor at once.
Battery acid is poisonous.

• If swallowed, drink large

amounts of water or milk. Fol­low with milk of magnesia or
vegetable oil. Call a doctor at
once.

Always wear safety glasses when working
with battery. Make sure battery terminals
are clean. Make sure cable connections are
tight.

Always shut down engine before removing
or attaching battery cables. Always remove
the negative (–) cable first. Always attach
negative (–) cable last.

INSTALLING BATTERY
CABLES TO ENGINE

1. Attach the red, positive (+) battery
cable to the starter solenoid on engine
(see Figure 10). The starter solenoid is
located directly above the starter on
Model MGH10000A. This cable is fac­tory installed.

CAUTION: Do not over tighten
positive terminal on starter sole­noid. Positive terminal could ro­tate and cut into negative termi­nal, causing a short.

2. Attach the black, negative (–) battery cable
to the engine block. Use the bolt, nut, and
two washers provided with the battery
cables. Use long mounting hole on oppo­site side of engine from starter solenoid.
Attach cable as shown in Figure 11.

Figure 8 – Attaching Handles to Roll Cage

SEMS Screws

Top Cover

L

E
U
F

F

SEMS
Screws

Figure 9 – Attaching Top Cover to Roll
Cage

CAUTION: If you remove bat­tery, insulate the red, positive (+)
battery cable terminal. Insulate
with electrical tape. Exposed ter­minal may spark when generator
runs.

IMPORTANT:

Make sure battery connec­tions are the correct polarity. Electric start
generators use negative ground, 12-volt DC
starting system.

Models MGH5000DIE, MGH6500IE, and
MGH10000A have an electric starter. A
battery is not supplied with generator. You
must provide a 12-volt, 32-amp-hour bat­tery. The positive and negative battery cables
are supplied with generator. You must in­stall these cables before mounting battery.

8

Starter
Solenoid

Red, Positive (+)
Battery Cable

Figure 10 - Connecting Red, Positive (+)
Battery Cable to Engine Starter Solenoid
(Model MGH6500IE Shown)

Black,
Negative (–)
Battery Cable

Figure 11 - Connecting Black, Negative (-)
Battery Cable to Engine Block (Model
MGH6500IE Shown)

106813

OWNER’S MANUAL

BATTERY

Continued

MOUNTING BATTERY TO
GENERATOR

1. Secure battery to generator by battery
hold-down system. This system con­sists of the battery mounting bracket,
hook bolts, and nut (see Figure 12).

Note:

Model MGH10000A battery is
located on opposite side as shown (see
Figure 13).

2. Locate the red, positive (+) battery
cable from starter solenoid. Connect it
to the positive (+) battery terminal (see
Figures 14 and 15).

3. Locate the black, negative (–) battery
cable attached to engine block. Connect
it to the negative (–) battery terminal
(see Figures 14 and 15).

4. Check battery before starting engine.
Make sure fluid levels are full. Make
sure battery is charged.

See engine owner’s manual for more
information.

Battery Mounting Bracket

Nut

F
U
L
L

P
O
W

E

R

1
2
0

O

N
L
Y

1
2
0
2
4
0

V

E
N

M
0
0

0

0

0

H

0

O

0

U

5

R

S

1
/
1

0

Figure 12 - Battery Hold-Down System
(Model MGH6500IE Shown)

Nut

L

E
U
F

F

Hook
Bolt

Figure 13 - Battery Hold-Down System
(Model MGH10000A Shown)

Battery

Hook Bolt

Battery
Mounting
Bracket

Battery

F
UL

L
P

O

W
E

R

120
O
NL

Y

120

240V

E
N

M
0
00

0

00

H

O

0

U

5

RS

1/

10

TO ENGINE
BLOCK

TO STARTER
SOLENOID

Figure 14 - Connecting Positive and
Negative Cables to Battery
(Model MGH6500IE Shown)

TO STARTER
SOLENOID

TO ENGINE

L

E
U
F

F

BLOCK

Figure 15 - Connecting Positive and
Negative Cables to Battery
(Model MGH10000A Shown)

EXTENSION
CORDS

Only use grounded extension cords. Be sure
to use extension cord with proper wire gauge
size. See chart below.

Recommended Minimum Wire
Gauges (AWG) for Extension
Cords

Ampere AWG for Length of

Load Cord in Feet

50' 100' 150'

2181818
3181818
4161616
5161616
6161614

8161412
10 16 14 12
12 14 14 12
14 14 12 10
16 12 12 10
20 10 10 8

GENERATOR
GROUNDING

WARNING: You must prop­erly earth-ground generator be­fore starting. This will help guard
against deadly electric shock.
Only use grounded plugs with
generator. Only use grounded ex­tension cords. Only use three­wire or double-insulated power
tools.

Grounding generator helps prevent electric
shock from a ground fault condition. Locate
ground lug on end of generator housing (see
Figure 16). Attach a #10 stranded-copper
ground wire to ground lug. Drive grounding
point into ground. Grounding point can be a
stake, grounding rod, or pipe. Grounding
point should be copper or brass. Attach
ground wire to grounding point. You must
supply the ground wire and grounding point.
These do not come with generator. Follow
the National Electrical Code and all state
and local codes. Consult your power com­pany or a licensed electrician.

WARNING: For a grounding
point, do not use metal pipe be­ing used to carry combustible
materials or gases.

L

FUE

F

Alternator

Figure 16 - Grounding Generator
(Model MGH4000C Shown)

Ground Lug

Copper or
Brass
Grounding
Point

Ground Wire

106813

9

R

PORTABLE GASOLINE GENERATORS

STANDBY
INSTALLATION TO
HOME OR
BUILDING

WARNING: Have standby in­stallation performed by a skilled,
licensed electrician. Do not let
anyone else wire into a utility
circuit. Personal injury, equip­ment damage, or damage to home
could occur.

IMPORTANT:

This generator will not
power your entire home. Most home utility
electric service is more than 60 amps. This
will exceed generator output. Only power
needed items during a power outage. Make
sure total wattage of electrical load does not
exceed rated wattage of generator.

You may need to use this generator as a
standby power source. During a power out­age, the generator will power selected items
in a building. Have generator and additional
wiring installed by a skilled, licensed elec­trician. This is not a do-it-yourself job. Fol­low all local codes.

WARNING: The electrician
must install a double-throw trans­fer switch. This isolates existing
electrical circuits from the utility
power line. If not isolated, gen­erator output will back-feed into
utility power line. This may elec­trocute a power company line
repair person.

DETERMINING
ELECTRICAL LOAD
FOR GENERATOR

You must decide what electrical load your
generator can power. Do this before using
generator. Use the following four-step
method. It will help you select a load that is
not too large. Make sure total wattage of all
electrical loads does not exceed rated watt­age of generator. For rated wattage of your
generator, see Specifications, page 5. Elec­tric motors present a special problem when
figuring load. Read Step 3 carefully.

1. Make two lists of items you want pow­ered by generator. List all motors and
motor powered appliances in one. List
all lights, small appliances, etc. in the
other. For standby service to home or
building, only include items you must
power.

2. Enter running watts of each item ex­cept motors. The light bulb or appliance
nameplate lists its wattage. Remember,
1KW = 1000 watts.

Note:

The name­plate may not list wattage. It may only
list volts and amps. The formula for
finding wattage is: Volts x Amps =
Watts. For example: An appliance
nameplate states 3 amps at 120 volts. 3
amps x 120 volts = 360 watts.

3. Electric motors present a special prob­lem. They require up to three-times
their rated wattage to start. Chart 2,
below, shows starting watts for differ-

ent size motors. For example: an elec­tric motor nameplate states 5 amps at
120 volts. 5 amps x 120 volts = 600
watts running. Multiply this figure by

3. This will show the starting watts
needed. 600 watts x 3 = 1800 watts to
start. When figuring the generator load
for motors, you must use the starting
watts figure. Do not use the running
watts figure.

Note:

Some motors re­quire nearly the same wattage to run as
to start. These items include saws,
drills, hair dryers, and food mixers. See
Chart 1 for typical appliance wattage
examples.

4. Add watts and starting watts of all
items. This total must not be larger than
the rated wattage of your generator. It
is a good idea to have up to 25% extra
capacity for future needs or extra
equipment.

Chart 1 - Typical Electric Appliance Wattages

Running Starting

Equipment Watts Watts

Light bulb (100W) 100 100
Radio 150 150
Fan 200 600
Television 400 400
Furnace fan

with blower 600 1800
Vacuum cleaner 600 750
Sump pump
Refrigerator/freezer 800 2400
6" Circular saw 800 1000
Floodlight 1000 1000

(1/3 hp)

(1/3 hp)

700 2100

Equipment Watts Watts

1/2" Drill 1000 1250
Toaster 1200 1200
Coffee maker 1200 1200
Skillet 1200 1200
14" Chain saw 1200 1500
Water well pump

(1/2 hp) 1000 3000

Hot plate/range

(per burner) 1500 1500
10" Table saw 2000 6000
Water heater

(storage-type)

Running Starting

5000 5000

Chart 2

Approximate Starting Watts*

Motor Approximate Universal Repulsion Split

HP Running Motors Induction Capacitor Phase

Rating Watts (small appliance) Motors Motors Motors

1/8 500 625 1100 1500 2250
1/4 700 875 1550 2100 3150
1/3 800 1000 1750 2400 3600
1/2 1100 1375 2400 3300 4950
3/4 1400 1750 3100 4200 x

1 1700 2125 3750 5100 x

1 1/2 2100 2625 4620 6300 x

2 2450 3075 5400 7350 x
3 3600 x 7900 10800 x

* – Always use starting watts, not running watts, when figuring correct electrical load.
x – Motors of higher horsepower are not generally used.

10

106813

OWNER’S MANUAL

OPERATION

GENERAL INFORMATION

This generator is not large enough to power
your entire home. Do not connect generator
to any existing electrical circuits. Plug items
directly into generator receptacles. Do not
exceed amperage rating of receptacles. Only
use grounded cords.

DANGER: Use only in well­vented areas. Make sure area has
plenty of free-moving, fresh, out­side air. Never run generator in
an enclosed or confined area.
Never run generator inside occu­pied building. Engine exhaust
contains poisonous carbon mon­oxide gas. Overexposure will
cause loss of consciousness and
will lead to death.

DANGER: Never connect gen­erator to any existing electrical
circuits. The generator output will
back-feed into the utility power
line. This may electrocute a power
company line repair person. Also,
if generator is powering electri­cal circuits, the chance of an elec­trical fire exists.

Note:

We supply the engine owner’s manual
with generator. Refer to that manual for
questions concerning engine operation.

Model MGH10000A also has a 120/240V,
50-amp receptacle (see Figure 17).

Model HWI3000 has only the 120V, 20­amp duplex receptacle.

Models MGH3000G, MGH3000 and
MGH3000PR have only the 120V, 15-amp
GFCI duplex receptacle.

120V, 15-Amp GFCI Duplex

120V, 15-Amp Duplex

120/240V, 20 or
30-Amp Twist-Lock

120 VOLTS

RESET

TEST

120

ONLY

120
240V

EN

M

0

00

00

H

0

O

05

U

R

S

1

/1

0

120V, 30-Amp
Twist-Lock

RESET

240 VO

LTS

RESET

RESET

RESET

POWER CORD AND PLUG
REQUIREMENTS

120V, 30-amp twist-lock receptacle

• NEMA L5-30P plug

• Three-wire, 30-amp cord
120/240V, 20 or 30-amp twist-lock

receptacle

• NEMA L14-20P (20-amp) or L14-30P
(30-amp) plug

•Four-wire, 20-amp or 30-amp cord

120/240V, 50-amp receptacle

• NEMA L14-50P

•Four-wire, 50-amp cord

R

E

SE

T

R

E

SE

T

USING RECEPTACLE

Note:

Do not exceed amperage rating of
receptacles. Exceeding rating will trip re­ceptacle circuit breaker.

Use receptacles properly. Improper use could
damage generator. Use only grounded exten­sion cords. Power only grounded or double­insulated items. Do not overload receptacles.
All generators (except models HWI3000,
MGH3000G, MGH3000, and MGH3000PR)
have the following receptacles (see Figure 17):

• 120V, 15-amp GFCI duplex receptacle

• 120V, 30-amp twist-lock receptacle

• 120/240V, 20 or 30-amp twist-lock

receptacle

• 120V, 15-amp duplex receptacle

106813

120/240V, 50-Amp

(Model MGH10000A only)

Figure 18 - Cord and Plug Configurations

Figure 17 - Receptacle Locations

Continued

11

R

PORTABLE GASOLINE GENERATORS

OPERATION

Continued

PRESTART

Operate generator on a firm, dry, and clean
surface. The surface must be level. Protect
generator from heavy dust, sand, dirt, rain,
or snow. Do not locate generator near stand­ing water and snow. Make sure area is well­vented.

WARNING: Only responsible

adults should use generator.
Never let anyone operate genera­tor without proper instructions.

Note:

If oil level is too low, oil alert system
will keep engine from starting (see Oil Alert
System, page 6). Make sure oil level is full
before starting. See Engine Oil, page 7.

Before starting the engine, disconnect all
electric loads from generator.

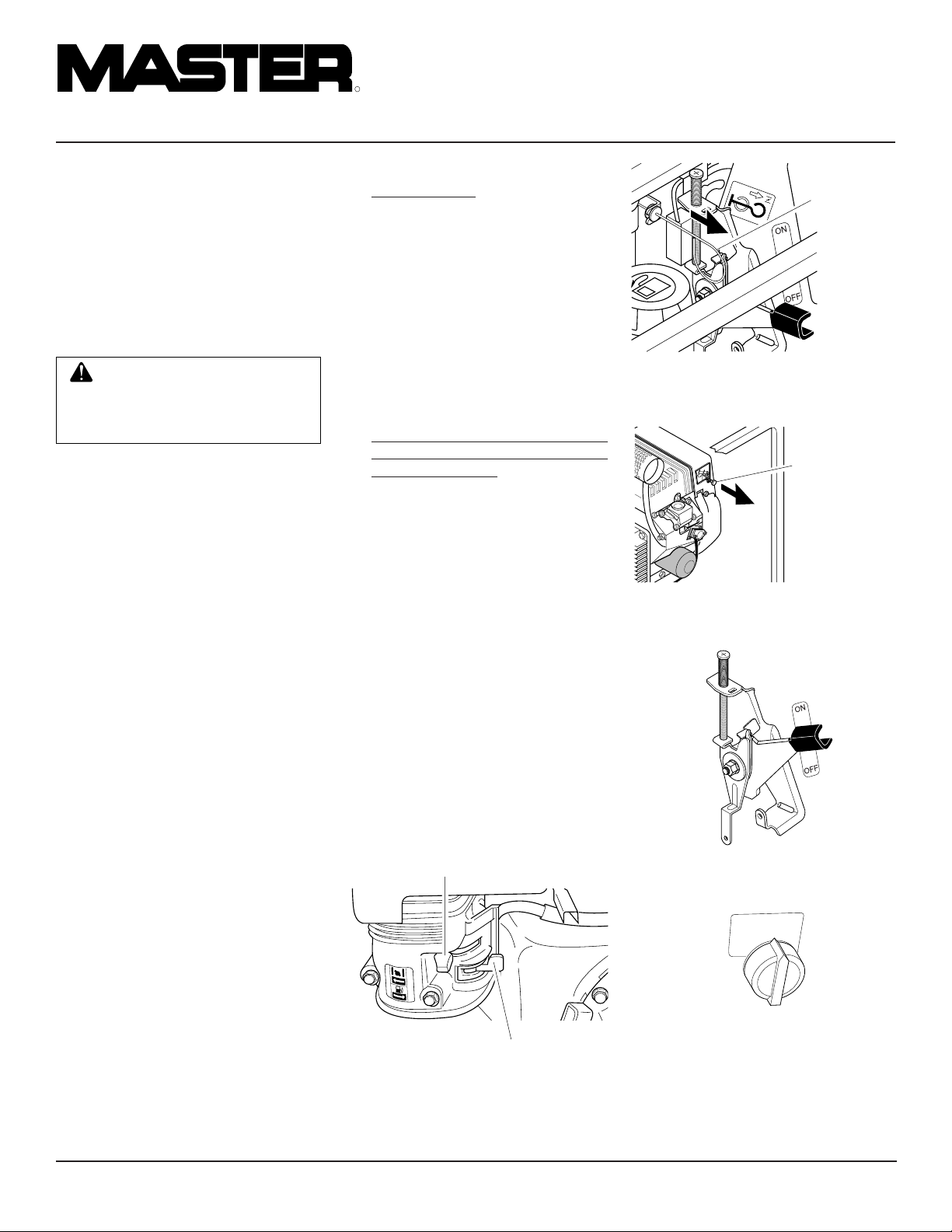

STARTING

IMPORTANT:

The throttle is locked in preset position. Do
not adjust throttle. Preset position lets en­gine run at 3600 RPM under load. The
engine must maintain 3600 RPM for gen­erator to create correct voltage. Running
engine at lower speeds will damage genera­tor and powered items.

IMPORTANT:

electrical loads connected. Start engine be­fore adding electrical loads.

1. Make sure gasoline tank is full. See

Fuel, page 7 for fuel information.

2. Move fuel valve lever to the ON posi-

tion except on Model MGH3000PR
(see Figure 19).

3. Move choke lever fully to the left for

all models except MGH3000PR or
MGH10000A (see Figure 19). Pull
choke rod out for Model MGH3000PR
(see Figure 20) or choke button out for
Model MGH10000A (see Figure 21).
This closes the choke.

Note:

if engine is warm or air temperature is
high.

The engine speed is preset.

Never start generator with

You may not need to close choke

4. Start the engine.
A. Recoil Starter
Move engine lever or turn engine

switch to the ON position (see Figures
22 and 23). Remove slack from starter
rope by lightly pulling starter grip.
Next, pull starter rope briskly.

IMPORTANT:

Do not let starter grip
snap back against engine. Return it gen­tly. This will prevent damage to starter.

Note:

If engine does not start, check
the oil in the crankcase. Add oil as nec­essary. Be sure engine is on a level sur­face. See Oil Alert System, page 6.

B. Electric Starter (Models
MGH5000DIE, MGH6500IE, and
MGH10000A Only)

Turn the engine switch to the START
position (see Figure 24, page 13). Hold
it there until engine starts. When en­gine starts, let switch return to the ON
position.

IMPORTANT:

Do not use electric
starter more than five seconds. Starter
motor damage may occur. If engine
fails to start, release the switch and wait
ten seconds. After ten seconds, try start­ing again.

Note:

If engine does not start, check
the oil in the crankcase. Add oil as nec­essary. Be sure engine is on a level sur­face. See Oil Alert System, page 6.

5. As engine warms up, slowly move
choke lever fully to the right (see Fig­ure 25, page 13). This opens the choke.
On Model MGH10000A, the choke
will automatically open.

Choke Lever (Closed Position)

Fuel Valve Lever (ON Position)

Figure 19 - Fuel Valve Lever On, Choke
Lever Closed (Model MGH4000C Shown)

Choke Rod
Pulled Out
(Closed
Position)

Figure 20 - Choke Rod Closed (Model
MGH3000PR Only)

Choke Button
Pulled Out
(Closed
Position)

Figure 21 - Choke Button Closed (Model
MGH10000A Only)

Figure 22 - Engine Lever In ON Position
(Model MGH3000PR Only)

ENGINE SW

ON

OFF

Figure 23 - Engine Switch In ON Position
(All Models Except MGH5000DIE,
MGH6500IE, MGH10000A, and
MGH3000PR)

12

106813

OPERATION

Continued

HONDA

OFFONSTART

Engine
Switch

Figure 24 - Engine Switch (Models
MGH5000DIE, MGH6500IE, and
MGH10000A Only)

Choke Lever (Open Position)

Figure 25 - Choke Lever Opened (Model
MGH6500IE Shown)

ENGINE SW

CIRCUIT
BREAKER

ON/push OFF

OWNER’S MANUAL

Note:

The 250 Volt/50 Amp receptacle
is not connected through the Auto-Idle
circuit. The Auto-Idle switch must be
turned off to get full power out of this
receptacle (see Figure 26).

6. The Auto-Idle system should be turned
OFF when generator is shut down.

Adjusting the Idle Speed

IMPORTANT:

• If the idle speed becomes too high.

• If the engine idle speed will not regulate (en-

gine idles and speeds up again and again).

1. Turn Auto-Idle switch OFF. Start en­gine. Allow engine to warm up with no
load for five minutes.

WARNING: Always set the idle
speed before turning on the Auto­Idle. If idle speed is not set, the
larger resistor on the control board
may become hot. Heat from the
resistor may damage the protec­tive coating on the control board.

Adjust the idle speed only:

8. Turn Auto-Idle switch ON. Make sure
solenoid is engaged. When engaged, the
punger is pulled back into the solenoid.

9. If the engine speed is too slow, the en­gine will want to "hunt" or speed up
and slow down repeatedly. When this
occurs, increase engine speed by adjust­ing throttle stop screw on carburetor
(refer to Carburetor Adjustment in
Honda Engine Manual).

10. Replace the engine linkage cover
(Models MGH4000CI, MGH5000DI,
MGH5000DIE, MGH6000DI, and
MGH6500IE).

Solenoid Mounting Bracket

E
N

G

I
N
E

O

F
F

M8 Nut

AUTO-IDLE OPERATION

IMPORTANT:

trical loads connected. Start engine before
adding electrical loads.

1. If engine is cold, turn the Auto-Idle
switch OFF (see Figure 26).

2. Start engine. Allow engine to warm up
with no load for five minutes.

3. Turn Auto-Idle switch ON. Engine will
slow to idle speed. Engine idle speed
is preset. Idle speed adjustment should
not be necessary.

4. Operate generator according to speci­fications outlined in owner's manual.

5. Engine will automatically increase to
normal operating speed when you plug
load into any generator outlet.

Never start engine with elec-

Auto-Idle Switch

120 VO

LTS

RESET
TEST

A
u
to

­Id

le

O

N

O
F

F

E

N

M
0
0
0

0

0

HOURS 1/10

0

0
5

R
E

S

2

E

4

T

0

V

O

L
T

S

R
E

S
E

T

R
E

S
E

T

R
E

S
E

T

2. Remove engine linkage cover (Models
MGH4000CI, MGH5000DI,
MGH5000DIE, MGH6000DI, and
MGH6500IE).

3. Push plunger into solenoid body to manu­ally engage solenoid and set idle speed.

4. Loosen the M8 nut that holds the sole­noid mounting bracket to the generator
(Models MGH4000CI, MGH5000DI,
MGH5000DIE, MGH6000DI, and
MGH6500IE. See Figure 27). Do not
loosen bolt that holds the solenoid
mounting bracket to the generator on
Model MGH10000A (see Figure 28).

5. Slowly pull solenoid bracket away from
engine (on Model MGH10000A this will
require bending the bracket slightly).

6. With a volt meter, check the no-load
output voltage at the 120-volt duplex
receptacle. At proper idle speed (2680
minimum RPM) the meter should read
50-60 volts. Lower settings will cause
the Auto-Idle to not operate properly.

7. After reaching proper idle speed,
tighten M8 nut to secure solenoid
mounting bracket (Models MGH4000CI,
MGH5000DI, MGH5000DIE,
MGH6000DI, and MGH6500IE (see
Figure 27).

Figure 27 - Solenoid Bracket Location,
Models MGH4000CI, MGH5000DI,
MGH5000DIE, MGH6000DI, and
MGH6500IE Only

Solenoid
Mounting
Bracket

Bolt

Figure 28 - Solenoid Bracket Location,
Model MGH10000A OnlyFigure 26 - Control Panel

106813

13

R

HONDA

OFFONSTART

ENGINE SW

CIRCUIT
BREAKER

ON/push OFF

PORTABLE GASOLINE GENERATORS

OPERATION

Continued

HIGH ALTITUDE OPERATION

This generator will not perform well at high
altitudes without proper adjustment. See
engine owner’s manual for details.

ADDING ELECTRICAL
LOADS

IMPORTANT:

Make sure total wattage of all electrical loads
does not exceed rated wattage of generator.
Overloading may shorten generator life. It
could also cause internal damage to genera­tor. Overloading will trip circuit breaker.

IMPORTANT:

MGH3000, MGH3000PR, MGH6500IE, and
MGH10000A) Keep full power selector switch
in the 120 VOLT ONLY position if only pow­ering 120V items. Only move switch to 120/
240 VOLT position if powering 240V items.

1. Check items to be powered. Their
nameplate lists their wattage ratings.

Note:

trical motors are misleading. They may
require up to three-times their rated watt­age to start. You must figure total electri­cal load wattage. Make sure total wattage
of all electrical loads does not exceed rated
wattage of generator. See Determining
Electrical Load For Generator, page 10.

2. Start engine. Let engine reach full
speed.

3. Connect electrical loads one at a time.
If the load consists of electric motors,
start them first. Always start the larg­est first. Start each motor individually.

DISCONNECTING ELECTRIC
LOADS

Remove electrical loads one at a time. Re­move voltage sensitive items first. Voltage
sensitive items include TVs, VCRs, and
other home electronic items.

Do not overload generator.

(All models except HWI3000,

The wattage ratings for some elec-

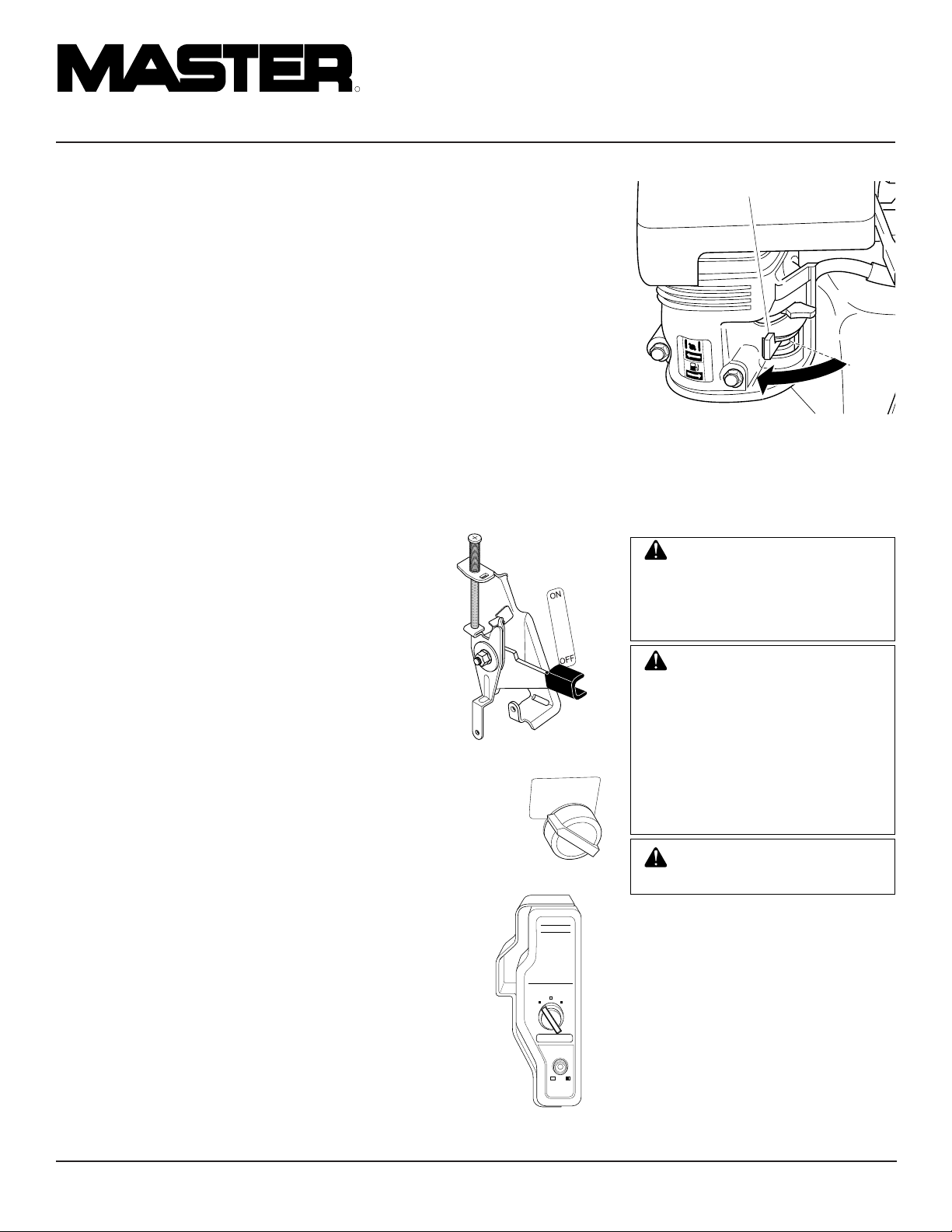

STOPPING ENGINE

IMPORTANT:

The throttle is locked in preset position. Do
not adjust throttle.

Follow the steps below to stop engine.

1. Remove all electrical loads from gen­erator (see Disconnecting Electrical
Loads). Remove electrical loads one at
a time.

2. Let engine run for two or three min­utes after removing electrical loads.
This lets engine cool slightly.

3. Turn engine switch to the OFF posi­tion (see Figure 29).

4. Turn fuel valve lever off except on
Model MGH3000PR. Do this by mov­ing valve lever fully to the left (see Fig­ure 30).

Model
MGH3000PR

Models HWI3000,
MGH3000G, MGH3000,
MGH4000C, MGH4000CI,
MGH5000D, MGH5000DI,
MGH6000D and
MGH6000DI

Models
MGH5000DIE,
MGH6500IE, and
MGH10000A

Figure 29 - Engine Switch In OFF Position

The engine speed is preset.

ENGINE SW

ON

OFF

14

Fuel Valve Lever
(Off Position)

Figure 30 - Fuel Valve Lever Off (Model
MGH6500IE Shown)

MAINTENANCE
AND REPAIRS

WARNING: Only a qualified
electrical service person should
service and repair the alternator
on this generator. Use only fac­tory approved replacement parts.

CAUTION: The engine speed
is preset. The throttle is locked in
preset position. Do not adjust
throttle. Preset position lets en­gine run at 3600 RPM under load.
The engine must maintain 3600
RPM for generator to create cor­rect voltage. Running engine at
lower speeds will damage gen­erator and powered items.

CAUTION: Shut off generator
before performing maintenance.

IMPORTANT:

servicing. Never turn generator upside down
or stand it on end to service.

Note:

We supply the engine owner’s manual

with generator. Refer to that manual for
questions concerning engine maintenance
and repairs.

Non-engine parts require little maintenance.
Keep generator clean. Use a damp cloth to
clean outside surfaces. Never use water to
clean generator. Water can cause damage to
internal parts. Use vacuum to clean air inlet
and outlet louvers of alternator.

Keep generator level when

106813

OWNER’S MANUAL

STORAGE

WARNING: Remove all fuel
from fuel tank before storing gen­erator. Store fuel in approved con­tainer. Store fuel in a well-vented
area free of open flames or sparks.

WARNING: The muffler be­comes very hot during operation.
The muffler remains hot for a
while after shutdown. Let engine
cool before storing.

IMPORTANT:

in storage. Never store generator upside
down or standing on end.

Note:

We supply the engine owner’s manual

with generator. Refer to that manual for
questions concerning engine storage.

Keep generator level while

TROUBLESHOOTING

Use a fuel additive, such as STA-BIL® or an
equivalent, when storing generator with fuel
in fuel tank. This will minimize fuel gum
deposits from forming in engine.

Cover and store generator in a clean, dry
place. Do not expose generator to extreme
high or low temperatures during storage.

SERVICING THE
ENGINE

Honda parts and services should be handled
by your nearest authorized engine service
firm. Check the yellow pages of your tele­phone directory under the listing:

Engines Gasoline, Honda

or visit:

www.honda-engines.com

or call Honda direct:

1-800-426-7701

TECHNICAL
SERVICE

You may have further questions about as­sembling, operating, or maintaining this
product. If so, you can visit our Technical
Service web site at
contact our Technical Service Department
at 1-800-858-8501 (English Only). You may
also write to:

DESA Specialty Products™
ATTN: Technical Service Specialty Products
P.O. Box 90004
Bowling Green, KY 42102-9004

When contacting DESA Specialty Prod­ucts™, have ready

•Your Name

•Your Address

•Your Phone Number

• Model Number of Product

• Serial Number

•Date of Purchase (Include copy of receipt
for written requests).

www.desatech.com or

Note:

For additional help, visit DESA

International’s technical service web site
at www.desatech.com.

OBSERVED PROBLEM

No voltage when starting generator with no
electrical load

Voltage is less than normal voltage with no
electrical load

Voltmeter reading more than 10% high with
no electrical load

Voltmeter reading correct with no electrical
load, but more than 10% low when electri­cal load is added

WARNING: Only a qualified electrical service person should service

and repair generator. Use only factory approved replacement parts.

Note:

See engine owner’s manual for engine troubleshooting.

POSSIBLE CAUSE

1. Defective capacitor

2. Winding short circuit or loose
connections

3. Defective rotor diode

4. Loss of residual magnetism

1. Engine speed too low

2. Defective rotor diode

3. Partial short circuit in winding

4. Defective capacitor

1. Engine speed too high

1. Defective rotor diode

2. Electrical load too high

3. Engine not running properly

REMEDY

1. Replace capacitor

2. Check resistance of coils (see Electri-
cal Component Specifications, page 16)

3. Replace both diodes on rotor

4. Apply 12-volt battery to capacitor ter­minals for 2-3 seconds

1. Set engine speed to 3720 RPM (62 Hz)
with no load

2. Replace both diodes on rotor

3. Check resistance of coils (see Electri-
cal Component Specifications, page 16)

4. Replace capacitor

1. Set engine speed to 3720 RPM (62 Hz)
with no load

1. Replace both diodes on rotor

2. Do not overload generator

3. Contact an authorized engine service
center

106813

www.desatech.com

15

R

PORTABLE GASOLINE GENERATORS

ELECTRICAL
COMPONENT
SPECIFICATIONS

Resistance in Ohms

Stator Stator Rotor Rotor Capacitor,

Main Auxiliary Primary Secondary MFD Diodes (2)

Model Winding * Winding ∆ Winding † Winding † 450 Volt 800 Volt

HWI3000 1.6 5.9 6.9 1.33 16 6 Amp
MGH3000G 1.95 5.2 6.79 1.31 16 6 Amp
MGH3000, MGH3000PR 1.6 5.9 6.9 1.33 16 6 Amp
MGH4000C, MGH4000CI 0.71 2.17 0.54 2.07 40 70 Amp
MGH5000D, MGH5000DI 0.54 1.38 0.61 2.29 50 70 Amp
MGH5000DIE 0.54 1.38 0.61 2.29 50 70 Amp
MGH6000D, MGH6000DI 0.37 1.01 0.68 2.57 60 70 Amp
MGH6500IE 0.28 0.78 0.77 2.9 70 70 Amp
MGH10000A 0.40 0.90 0.37 0.50 80 70 Amp

*

Connect T2 (green) and T3 (black). Measure resistance between T1 (red) and T4 (yellow).

∆

Resistance between brown and white leads.

†

Remove diodes to check resistance.

WIRING DIAGRAMS

Stator

L1

Black

T1 T3 T2 T4

110/120V

L1

Rotor Stator

D

T3

Green

T1

Red

T2

White

C

Brown

Black

L2

T4

L1

Auxiliary
Phase

Black

Main
Windings

Yellow

L2

L2

Yellow

Circuit
Breaker

Figure 31 - Wiring Diagram, Models HWI3000, MGH3000G, MGH3000, and MGH3000PR

20A

Yellow

Black

LINE

HOT

WHITE

GFCI

Receptacle
120V/15A
(MGH3000)

Receptacle
120V/20A
(HWI3000)

16

106813

WIRING DIAGRAMS

Continued

OWNER’S MANUAL

Capacitor

White

Green/Yellow

Circuit

T1

Breaker

Circuit

Breaker

Yellow

Black

Red

White

T1

25A

25A

T4

T4

120/240V 20A

Receptacle

T3

White

Black

T3

T2

Black

Green

Green

Red

Black

Red

T2

Black

Black

White

Main

Windings

Red

White

T1

Black

T2

Full Pwr
Selector

Switch

Hour
Meter

T3

Yellow

Red

Red

T4

Diode

Rotor

Black

White

120V, 15A

Receptacle

Duplex

Auxiliary

Phase

Diode

Figure 32 - Wiring Diagram, Models MGH4000C, MGH5000D, and MGH6000D

White

s

To Solenoid

1 s2

White

Black

Green

Red

Red

Black

Black

Black

White

White

Hour
Meter

T2

Full Pwr
Selector

Switch

Red

Red

Green/Yellow

120/240V 20A

Receptacle

•

Circuit

Breaker

T1

20A, 25A

or 30A

Circuit

Breaker

20A, 25A

or 30A

Black

•

Red

Yellow

T3

T4

Black

Black

White

120V, 15A

Receptacle

Duplex

Red

Stator

White

Brown

120V, 15A

Receptacle

Red

White

120V, 15A

Receptacle

GFCI

HOT

LINE

Green
Black

Green

White

GFCI

HOT

WHITE

LINE

Green

Black

Green

WHITE

L1

White

T1

110/120V

White

120V, 30A

Receptacle

Green

Stator

T2

T3

220/240V

110/120V

120V, 30A

Receptacle

Green

T4

L2

Circuit

Breaker

Breaker

Circuit

Breaker

20A

Circuit

Breaker

20A

20A

Circuit

20A

Capacitor

White

White

Main

Windings

T2

Red

T1

Black

T1

T4

T3

T2

Green

T3

Yellow

T4

Diode

Rotor

Auxiliary

Phase

Diode

White

Stator

Brown

T1

L1

110/120V

Stator

T2

220/240V

110/120V

Figure 34 - Wiring Diagram, Models MGH4000CI, MGH5000DI, MGH5000DIE, and MGH6000DI

106813

17

T3

T4

L2

Continued

R

PORTABLE GASOLINE GENERATORS

WIRING DIAGRAMS

Continued

Green/Yellow

White

Red

White

Switch

Circuit

Breaker

30A

Circuit

Breaker

30A

T1 T2T3T4

T4

Yellow

s

To Solenoid

1 s2

•

Capacitor

Figure 35 - Wiring Diagram, Model MGH6500IE

Auto-Idle

White
White

To
Auto-Idle
Solenoid

Control Board

S2

S1

T1-3

Solenoid

L1

L2

Red

Yellow

Capacitor

Red

Yellow

White

White

Circuit

Breaker

45A

Circuit

Breaker

T1 T2T3T4

45A

250V 50A

Receptacle

Red

Yellow

Black

Red

White

120/240V 30A

Receptacle

RedT1

T3

Black

Black

Green

Main

Windings

T2

Green

White

Black

T2

Green

Circuit

Breaker

30A

Circuit

Breaker

30A

T1

Red

T3

Black

Hour

Meter

Red

Main

Windings

T1

Black

Receptacle

Red

Wh

T4

White

T3

Yellow

250V 30A

White

Black

Diode

120V, 15A

Receptacle

Duplex

T4

Rotor

Diode

Diode

120V, 15A

Receptacle

Auxiliary

Phase

Rotor

Diode

Black Black

Hour Meter

Black

Stator

White

GFCI

HOT

WHITE

LINE

Black

Stator

White

Brown

WhiteWhite

White

Run
Light

Red
Black
White

T1 T2 T3 T4

L1

110/120V

Green

White

White

125V, 15A

Receptacle

220/240V

Stator

Black

120V, 15A

Receptacle

T2

Green

Stator

T1 T2 T3 T4

220/240V

L1

Green

110/120V

110/120V

GFCI 125V, 15A

Receptacle

Green

L2

110/120V

Black

Breaker

Breaker

Green

Black

WhiteWhite

Circuit

20A

Circuit

20A

L2

125V, 30A

Receptacle

Green

Black

Black

Black

Breaker

Circuit

Breaker

Circuit

20A

Black

20A

Figure 36 - Wiring Diagram, Model MGH10000A

18

106813

ILLUSTRATED

5

6

16

18

17

19

20

14

10

3

8

9

7

12

13

15

13

15

21

22

7

11

7

4

1b

2b

7

1a

2a

PARTS LIST

For Models HWI3000,
MGH3000G, MGH3000, and
MGH3000PR Alternator
Assembly

This list contains replaceable parts used in
your generator. When ordering parts, fol­low the instructions listed under Replace-
ment Parts on page 32 of this manual.

OWNER’S MANUAL

KEY PART
NO. NUMBER DESCRIPTION QTY.

099722-01 Alternator Assembly

(HWI3000)* 1

099722-02 Alternator Assembly

(MGH3000G, MGH3000,

and MGH3000PR)* 1
1a 099849-01 Top Cover (HWI3000) 1
1b 100074-01 Top Cover (MGH3000G,

MGH3000, and

2a 104201-01 120V, 20A Duplex

2b 100445-01 120V, 15A Duplex (GFCI)

3 22616009 Circuit Breaker, 20 Amp † 1
4 27002002S Capacitor 1

MGH3000PR) 1

Receptacle (HWI3000)† 1

Receptacle (MGH3000G,

MGH3000 and

MGH3000PR)† 1

5 26333000 Screw, M4 x 20 1
6 099863-01 Terminal Block 1
7 099701-01 Screw, M5 x 13 13
8 099848-01 End Plate 1

† Includes fastening hardware. * Includes reference numbers 1 through 22.
** Parts not available. Included in alternator assembly.

KEY PART
NO. NUMBER DESCRIPTION QTY.

9 17587000 Ground Lug 1
10 099891-01 Flanged Nut, 8mm 1
11 099861-01 Bottom Cover 1
12 099842-01 Draw Bolt 1
13 26310000 Screw, M6 x 16 4
14 27001005S Engine Flange 1
15 WLE-4 Lock Washer, 1/4" 4
16 ** Stator 1
17 27001002 Bearing 1
18 27001009S Diode 2
19 ** Rotor 1
20 27001006 Fan 1
21 26327006 Bolt, 5/16-24 x 5/8" 4
22 WLE-5 Lock Washer, 5/16" 4

PARTS AVAILABLE - NOT SHOWN

099866-03 Safety Information Decal 1
099866-04 Safety Information Decal 1
099867-02 Operation Decal 1

106813

19

R

PORTABLE GASOLINE GENERATORS

ILLUSTRATED
PARTS LIST

For Models MGH4000C,
MGH4000CI, MGH5000D,
MGH5000DI, MGH5000DIE,
MGH6000D, MGH6000DI,
MGH6500IE Alternator
Assembly

This list contains replaceable parts used
in your generator. When ordering parts,
follow the instructions listed under Re-
placement Parts on page 32 of this
manual.

8

1

9

7

6

5

2

PART NUMBER FOR MODEL

MGH5000D
KEY MGH4000C MGH5000DI MGH6000D
NO. MGH4000CI MGH5000DIE MGH6000DI MGH6500IE DESCRIPTION QTY.

099723-01 099723-02 099723-03 099723-04 Alternator Assembly 1
1 099844-01 099844-01 099844-01 099844-01 End Cover 1
2 099701-01 099701-01 099701-01 099701-01 Screw, M5 x 13 6
3 099760-01 099760-01 099760-01 099760-01 Bushing 1
4 099863-01 099863-01 —— —— Terminal Block (4-block) 1
5 099863-02 099863-02 099863-02 099863-02 Terminal Block (2-block) 1
6 17587000** 17587000** 17587000** 17587000** Ground Lug 1
7 M11084-26 M11084-26 M11084-26 M11084-26 Screw, #10-16 x 3/8" 1
8 099847-01 099847-02 099847-03 099847-04 Stator Bolt 4
9 WLE-5 WLE-5 WLE-5 WLE-5 Lock Washer, 5/16" 4
10 099843-01 099843-01 099843-01 099843-01 Bearing Housing 1
11 27004002S 27005003S 27006001S 27007004S Capacitor 1
12 —— —— 100054-01 100054-01 Terminal Post 4
13 * * * * Stator 1
14 27003002 27003002 27003002 27003002 Fan Bracket 1
15 27003015S** 27003015S** 27003015S** 27003015S** Screw, M8 x 20 4
16 099891-01 099891-01 099891-01 099891-01 Rotor Nut, Flanged 8mm 1
17 099892-01 099892-01 099892-01 099892-01 Foam Pad 1
18 099842-01 099842-02 099842-03 099842-04 Draw Bolt 1
19 27003003 27003003 27003003 27003003 Bearing 1
20 27003012S 27003012S 27003012S 27003012S Diode 2
21 * * * * Rotor 1
22 27003008 27003008 27003008 27003008 Fan 1
23 27003007S 27003007S 27003007S 27003007S Engine Flange 1
24 26322004** 26322004** 26322004** 26322004** Bolt, 3/8-16 x 5/8" 4
25 WLE-6** WLE-6** WLE-6** WLE-6** Lock Washer, 3/8" 4

* Part not available by itself. Must purchase Alternator Assembly.
**Available at your local hardware store.

10

12

4

17

3

9

15

20

19

14

13

11

18

16

23

25

24

22

21

20

106813

OWNER’S MANUAL

ILLUSTRATED
PARTS LIST

For Model MGH10000A
Alternator Assembly

This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 32 of this manual.

22

3

KEY PART
NO. DESCRIPTION

1 Stator * 1
2 Rotor * 1
3 Draw Bolt 103188-01 1
4 Fan 103191-01 1
5 Balancing Disc 103192-01 1
6 Lifting Eyes 103193-01 2
7 D.E. Bracket 103194-01 1
8 N.D.E. Bracket 103195-01 1
9 Mounting Bolts 099847-05 4
10 Nuts 099891-01 4
11 Top Box 103189-01 1
12 Screw and Washer 099701-01 6
13 Plastic Cap 103198-01 1
14 Bearing 103199-01 1
15 Borelly Washer 103200-01 1
16 Diode 27003012S 2
17 Terminal Block 103201-01 1
18 Capacitor 099845-02 1
19 Tie Wrap 103204-01 1
20 Foam Pad 099892-02 1
21 Capacitor Bracket 103202-01 1
22 Engine Flange 103190-01 1
23 Screw M8 x 20 ** 4
24 'O' Ring 103203-01 1
25 Washer WLE-5 2
26 Hex Head Nut 099891-01 1
† Alternator Assembly 102938-01 1

* Part not available by itself. Must purchase Alternator Assembly.
** Standard hardware item available from local hardware store.

19

18

17

21

12

23

25

4

2

11

6

16

9

7

NUMBER

20

8

15

5

1

QTY.

14

24

13

26

10

106813

21

R

PORTABLE GASOLINE GENERATORS

ILLUSTRATED
PARTS LIST

For Model MGH3000G
Alternator Assembly

This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 32 of this manual.

4

1

3

2

4

7

7

4

5

6

8

9

12

6

10

11

6

12

KEY PART
NO. NUMBER DESCRIPTION QTY.

1 099831-01 Handle (includes 2 spacers) 1
2 WLE-4 1/4" Lock Washer 2
3 099769-01 M6 x 35 Screw 2
4 NEC-5C 5/16-18 Nut 3
5 099754-01 Engine Spreader 1
6 13401000 Rubber Bumper 3
7 WP-5C 5/16" Flat Washer 2
8 19165004 5/16-18 x 1" Screw 1
9 04110002 5/16-18 x 11/2" Screw 1
10 099767-01 Isolator Spacer 1
11 21834000 5/16 x 11/2" Washer 1
12 19166004 5/16-18 x 2" Screw 2

Note:

Fuel tank is available from Engine Mfg. Co. only.

22

106813

ILLUSTRATED

OWNER’S MANUAL

PARTS LIST

For Models HWI3000, MGH3000,
and MGH3000PR Roll Cage

This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 32 of this manual.

1

3
4

2

5

8

5

4

3

3
4

6

4

3

3

7

4

6

3

3

3

4

5

9

4

7

3

106813

KEY PART
NO. NUMBER DESCRIPTION QTY.

1 105155-01 Roll Cage 1
2 099754-01 Engine Spreader 1
3 NEC-5C Lock Nut, 5/16-18 9
4 WP-5C Flat Washer, 5/16" 7
5 099853-02 Shock Mount 3
6 04110002 Screw, 5/16-18 x 11/2 2
7 14138000 Ground Strap 1
8 21834000 Washer, 5/16" x 11/2"1
9 100406-01 Bolt, 5/16-18 x 3/4" 1

23

R

PORTABLE GASOLINE GENERATORS

ILLUSTRATED
PARTS LIST

For Models MGH4000C,
MGH4000CI, MGH5000D,
MGH5000DI, MGH5000DIE,
MGH6000D, MGH6000DI,
and MGH6500IE
Fuel Tank and Roll Cage

11

16

13

16

11

5

15

26

25

11

17

16

16

23

16

17

11

16

13

9

20

18

16

11

19

21

11

13

16

11

10

12

3

2

27

6

7

7

6

8

22

14

23

23

14

10

28

24

29

FUEL

F

24

1

10

4

24

FUEL

F

1

2

10

24

29

24

24

28

9

106813

OWNER’S MANUAL

ILLUSTRATED

This list contains replaceable parts used in your generator. When ordering parts, follow the
instructions listed under Replacement Parts on page 32 of this manual.

PARTS LIST

For Models MGH4000C, MGH4000CI, MGH5000D, MGH5000DI,
MGH5000DIE, MGH6000D, MGH6000DI, MGH6500IE
Fuel Tank and Roll Cage

KEY MGH4000C MGH5000D MGH6000D
NO. MGH4000CI MGH5000DI MGH6000DI MGH6500IE DESCRIPTION QTY.

MGH5000DIE

1 25954000 25954001 25954001 25954001 Gas Cap/Fuel Gage 1
2 099832-01 107021-01 107021-01 107021-01 Gas Tank (with 90° fitting) 1
3 25978000 — — — Breather Assembly 1
4 HC4-8C — — — Screw, 1/4-20 x 1" 4
5 099701-01 099701-01 099701-01 099701-01 Screw, M5 x 10 1
6 19508001 19508001 19508001 19508001 Gas Line Clamp 2
7 25985005 25985005 25985005 25985005 Fuel Line 1
8 099743-01 099743-01 099743-01 099743-01 Fuel Filter 1
9 099752-02 106063-01 106063-01 106063-01 Roll Cage 1
10 103880-01 — — — Lock Nut, 1/4-20 5

— 103880-01 103880-01 103880-01 Lock Nut, 1/4-20 3

11 NEC-5C — — — Lock Nut, 5/16-18 8

— NEC-5C NEC-5C NEC-5C Lock Nut, 5/16-18 10
12 14138000 14138000 14138000 14138000 Ground Strap 1
13 099853-02 099853-02 099853-02 099853-02 Shock Mounts 3
14 WLE-5 WLE-5 WLE-5 WLE-5 Lock Washer, 5/16" 3
15 WLI-3 WLI-3 WLI-3 WLI-3 Lock Washer, #10 1
16 WP-5C — — — Flat Washer, 5/16" 9

— WP-5C WP-5C WP-5C Flat Washer, 5/16" 11
17 HC5-14C HC5-14C HC5-14C HC5-14C Bolt, 5/16-18 x 1
18 099756-01 099756-01 099756-01 099756-01 Engine Spreader 1
19 — 099750-01* — 099750-01 Hook Bolt, 5/16-18 2
20 — 099749-01* —
21 — NEC-5C* — NEC-5C Lock Nut, 5/16-18 2
22 100410-01 100410-01 100410-01 100410-01 Sems Screw, #8-18 x 1/2" 4
23 M10908-74 M10908-74 M10908-74 — Screw, 1/4-20 x 1/2" 3

— M10908-74* — M10908-74 Screw, 1/4-20 x 1/2" 2
24 WP-4C WP-4C WP-4C WP-4C Washer, 1/4" 4
25 099965-01 099965-01 099965-01 099965-01 Linkage Cover 1
26 WP-3C WP-3C WP-3C WP-3C Washer, #10 1
27 103676-01 103676-01 103676-01 103676-01 90° Fitting with barbs 1
28 — HC4-16C HC4-16C HC4-16C Bolt, 1/4-20 X 2" 2
29 — 107110-01 107110-01 107110-01 Spacer .25 X .500 2

099749-01 Battery Mounting Bracket

3

/4"2

1

099866-02 — — —

100003-01 100003-01 100003-01 — Operation Decal 1

— 100003-02* — 100003-02 Operation Decal 1

— 099873-01* — 099873-01 Battery Cable (Positive, Red) 1

— 099873-02* — 099873-02 Battery Cable (Negative, Black) 1

03175000 03175000 03175000 03175000 Fuel Line Grommet 3

* Only on MGH5000DIE electric start models

106813

PARTS AVAILABLE - NOT SHOWN

Safety Information Decal

25

1

R

PORTABLE GASOLINE GENERATORS

ILLUSTRATED
PARTS LIST

For Model MGH10000A Fuel
Tank and Roll Cage

33

24

22

10

35

9

9

23

37

10

25

36

10

30

31

32

10

37

9

28

29

26

36

2
37

10

25

20

21

19

20

18

19

21

10

18

10

13

27

37

12

10

9

16

17

15

FUEL

F

14

3

10

9

34

1

10

4

8

12

11

9

6

5

6

7

26

106813

OWNER’S MANUAL

ILLUSTRATED
PARTS LIST

For Model MGH10000A
Fuel Tank and Roll Cage

This list contains replaceable parts used in
your generator. When ordering parts, fol­low the instructions listed under Replace-
ment Parts on page 32 of this manual.

KEY PART
NO.

1 079503-25AA Gas Tank Assembly 1
2 105905-01 Roll Cage 1
3 105906-01 Axle Mount 1
4 102933-03 Axle 1
5 102932-01 Wheels 2
6 WP-16C Flat Washer, 1" 4
7 C4-12C Cotter Pin 2
8 100135-01 U-Bolt 2
9 NEC-5C Lock Nut, 5/16-18 22
10 WP-5C Flat Washer, 5/16" 30
11 103880-01 Lock Nut,1/4-20 4
12 WP-4C Flat Washer, 1/4" 8
13 097190-06 Gas Cap w/Fuel Gage 1
14 M51151-02 Fuel Line 1
15 M10990-3 Bushing 1
16 106988-01 Barbed Connector, 1/4" 1
17 25985008 Fuel Line 1
18 105035-01 Handle 2
19 103046-01 Grip 2
20 103057-01 Plug 2
21 H8C5-20C Bolt, 5/16-18 x 2.5" 4
22 099750-01 Bolt, J-Hook 5/16-18 2
23 099749-01 Battery Bracket 1
24 105908-01 Battery Mount 1
25 17529000 Shock Mount 3
26 102962-02 Spreader 1
27 H5C4-24C Bolt, 1/4-20 x 3" 4
28 26302006 Bolt, 1/2-10 x 1" 2
29 WLI-8 Internal Tooth Lockwasher 2
30 14138000 Ground Strap 1
31 M10908-74 Tapping Screw, 1/4-20 x .5" 1
32 WLE-5 External Tooth Lockwasher 1
33 106775-02 Side Panel 1
34 106775-01 Side Panel 1
35 106776-01 Top Cover 1
36 100410-01 Sems Screw, 8-18 8
37 HC5-14C Bolt, 5/16-18 x 1.75" 6

NUMBER

PARTS AVAILABLE - NOT SHOWN

099866-05 Safety Information Decal 1
100003-04 Operation Decal 1
099873-01 Battery Cable (Positive, Red) 1
099873-05 Battery Cable (Negative, Black) 1
HC4-6C Screw, 1/4-20 x .75" 2
105951-01 Muffler 1
106108-01 Muffler Hanger 1

DESCRIPTION QTY.

106813

27

R

PORTABLE GASOLINE GENERATORS

ILLUSTRATED
PARTS LIST

For Models MGH4000C,
MGH4000CI, MGH5000D,
MGH5000DI, MGH5000DIE,
MGH6000D, MGH6000DI, and
MGH6500IE Control Panel

This list contains replaceable parts used in
your generator. When ordering parts, fol­low the instructions listed under Replace-
ment Parts on page 32 of this manual.

1

Reset

120 Volt

Reset

ENM

00000005

HO

URS 1/10

9

2

2

5

3

RES

E

T

T

EST

4

7

F

U

L

L

P

1

2

O

0

ONL

W

E

R

Y

S

E

1

L

2

E

0

/2

C

T

4

0

O

V

R

1

2

0

/2

4

0

V

O

L

T

S

R

E

S

ET

R

E

S

ET

14

11

10

12

6

8

13

13

7

PART NUMBER FOR MODEL

MGH5000D
KEY MGH4000C MGH5000DI MGH6000D
NO. MGH4000CI MGH5000DIE MGH6000DI MGH6500IE DESCRIPTION QTY.

1 103349-01 103349-02 103349-03 103349-05 Control Panel 1
2 22616009 22616009 22616009 22616009 Circuit Breaker, 20 Amp * 2
3 099833-01 099833-01 099833-01 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 104202-01 104202-01 104202-01 104202-01 120V, 20A Duplex Receptacle * 1
5 100445-01 100445-01 100445-01 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
6 099956-01 099956-01 099956-01 — Full Power Selector Switch * 1
7 22616009 — — — Circuit Breaker, 20 Amp * 2

— 22616011 — — Circuit Breaker, 25 Amp * 2
— — 22616010 22616010 Circuit Breaker, 30 Amp * 2

8 099834-01 099834-01 099834-01 —

— — — 099835-01

120/240V, 20A Twist-Lock Receptacle *

120/240V, 30A Twist-Lock Receptacle *
9 101350-01 101350-01 101350-01 101350-01 Hour Meter 1
10 099760-01 099760-01 099760-01 099760-01 Bushing 1
11 100410-01 100410-01 100410-01 100410-01 Sems Screw, #8-18 x 1/2" 4
12 100149-01 100149-01 100149-01 100149-01 Control Box 1
13 22261000 22261000 22261000 22261000 U-Nut 8
14 099997-01 099997-01 099997-01 099997-01 Switch Plug 1
† 103348-01 103348-02 103348-03 — Control Panel Assembly 1
† 103348-05 103348-06 103348-07 103348-09 Control Panel Assembly - Auto Idle Models 1

∆ 100177-07 100177-07 100177-07 100177-07 Panel Schematic Decal 1

* Includes fastening hardware
∆ Not shown
† Includes reference numbers 1 through 13

1
1

28

106813

ILLUSTRATED
PARTS LIST

OWNER’S MANUAL

For Model MGH10000A Control
Panel

This list contains replaceable parts used in
your generator. When ordering parts, fol­low the instructions listed under Replace-
ment Parts on page 32 of this manual.

2

14

2

6

1

RESET

3

Reset

120 Volt

Reset

4

15

9

E

NM

00000005

H

OURS

1

/

1

0

10

TEST

Aut

o Idle

O

ff

O

n

Sel

e

c

t

o

r

200 V

Reset

Reset

13

16

11

12

7

5

5

12

p;

t

8

Reset

Reset

5

4

KEY PART
NO. NUMBER DESCRIPTION QTY.

1 103182-01 Control Panel 1
2 22616009 Circuit Breaker, 20 Amp 2
3 099833-01 120V, 30A Twist-Lock Receptacle 1
4 100410-01 Sems Screw, #8-18 x 1/2" 16
5 22261000 U-Nut 20
6 100445-01 20V, 15A Duplex (GFCI) Receptacle 1
7 103183-01 125/250V, 50A Receptacle 1
8 103184-01 Circuit Breaker, 45 Amp 2
9 26299000 Run Light 1
10 101350-01 Hour Meter 1
11 099834-01 120/240V, 20A Twist-Lock Receptacle 1
12 22616010 Circuit Breaker, 30 Amp 2
13 099760-01 Bushing 1
14 103185-01 Control Box 1
15 100366-01 Rocker Switch 1
16 104202-01 120V, 20A Duplex Receptacle 1
† 102927-01 Control Panel Assembly 1

∆ 100177-05 Panel Schematic Diagram 1
∆ 103257-01 Auto Idle PC Board Kit 1
∆ 103258-02 Solenoid Assembly Kit (With Bracket) 1

† Includes reference numbers 1 through 16
∆ Not shown

106813

29

R

PORTABLE GASOLINE GENERATORS

ILLUSTRATED
PARTS LIST

For Solenoid and Control Board
Assemblies and Mounting

12

10

13

6

14

7

8

10

11

9

8

Solenoid Assembly and Mounting

3

D

E

S

A

IN

T

E

R

N

A

S2

T

IO

N

S1

A

L

L1

L2

2

1

Control Board Assembly and Mounting

5

4

30

106813

ILLUSTRATED
PARTS LIST

For Solenoid and Control Board
Assemblies and Mounting

This list contains replaceable parts used in
your generator. When ordering parts, fol­low the instructions listed under Replace-
ment Parts on page 32 of this manual.

KEY PART
NO.

1 100105-01 Control Board Assembly 1
2 26499000 Hex Head Screw, 10-32 x 3/4" 4
3 100321-01 Nylon Spacer 4
4 WP-C3 Flat Washer, #10 4
5 26514000 Lock Nut, 10-32 4
6 100324-03 Solenoid Assembly (Includes

7 103812-01 Retaining Ring* 1
8 100755-02 Linkage Rod* 1

9 22822000 Roll Pin 1
10 102939-01 Solenoid Mounting Bracket* 1

11 103811-01 Nylon Washer* 1
12 100328-01 Bolt, M8 x 25mm
13 02407002 Flat Washer, 5/16"
14 100329-01 Lock Nut, M8

NUMBER

100755-01 Linkage Rod 1

100756-01 Solenoid Mounting Bracket 1

100320-01 Yellow Wire 1
100322-01 White Wire (with 2 Flags) 1
100322-02 White Wire (with 1 Flag and 1 Spade) 1
100366-01 Rocker Switch 1
100334-01 Auto-Idle Decal 1

OWNER’S MANUAL

DESCRIPTION QTY.

Plunger, Nut, and Lock Washer) 1

†

†

†

PARTS AVAILABLE NOT SHOWN

1
1
1

106813

* Model MGH10000A Only
† All Models Except MGH10000A

31

R

PORTABLE GASOLINE GENERATORS

REPLACEMENT
PARTS AND
ACCESSORIES

For original replacement parts and accesso­ries, contact your nearest Authorized Dealer
or Authorized Service Center for this prod­uct. If they can not supply the part or acces­sory, contact your nearest Parts Central listed
below. Each Authorized Dealer, Authorized
Service Center, and Parts Central is inde­pendently owned and operated.

See pages 19 through 31 for an Illustrated
Parts List.

If you need additional referral information,
contact our Technical Service Department
(see Technical Service, page 15).

In Canada call 1-800-561-3372 for parts
information.

Heavy-Duty Wheel Kit – PA2020
For Models MGH4000C,
MGH4000CI, MGH5000D,
MGH5000DI, MGH5000DIE,
MGH6000D, MGH6000DI,
MGH6500IE

Wheelbarrow-style wheel kit. Makes gen­erator easy for one person to move.

This kit includes:

• Large 12-inch wheels for easy rolling

•Powder coated tubing and plated hard­ware for long life

• Long handles with thick grips for greater
comfort and control

Complete installation instructions included.

Automatic Idle Kit – PA2010
For Models MGH4000C,
MGH5000D, MGH6000D, and
MGH6500IE

Automatically reduces engine speed when
no power is being used. Reduces fuel con­sumption and engine noise. Increases en­gine life.

Complete installation and operation instruc­tions included.

REPAIR SERVICE

Note:

Only use original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.

Each Authorized Service Center is indepen­dently owned and operated.

For additional Service Center or warranty
information, call 1-800-858-8501 or visit
our Technical Service web site at

www.desatech.com.

WARRANTY SERVICE

If product requires warranty service, return it
to nearest Authorized Service Center. You
must show proof of purchase. If faulty materi­als or workmanship caused damage, we will
repair or replace product without charge.

Note:

Normal wear, misuse, abuse, neglect, or acci­dental damage is not covered under warranty.

NON-WARRANTY SERVICE

If product requires service, return it to near­est Authorized Service Center. Repairs will
be billed to you at regular repair list prices.

PARTS CENTRALS

These Parts Centrals are privately owned
businesses. They have agreed to support our
customer’s needs by providing original re­placement parts and accessories.

Tool & Equipment

5 Manila Drive
Hamden, CT 06514-0322
203-248-7553
1-800-397-7553

Grainger Parts Operations

1657 Shermer Road
Northbrook, IL 60062-5362
708-498-5900
1-800-323-0620
www.grainger.com

Portable Heater Parts

342 North County Road 400 East
Valparaiso, IN 46383-9704
219-462-7441
1-800-362-6951
www.portableheaterparts.com
[e-mail]
[e-mail]

FBD

1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
[e-mail]

Master Part Distributors

1251 Mound Avenue NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
www.masterparts.net

Bowden Electric Motor Service

1681 S. Wesleyan Blvd.
Rocky Mount, NC 27803
252-446-4203

East Coast Energy

10 East Route 36
West Long Branch, NJ 07764-1501
1-800-755-8809

Laportes

2444 N 5th Street
Hartsville, SC 29550-7704
843-332-0191

MTA Distributors

555 Hickory Hills Blvd.
Nashville, TN 37189-9244
615-299-8777
1-800-264-0225

Industrial Hardware

4109 Bainbridge Blvd.
Chesapeake, VA 23324-1403
804-543-2232
1-800-788-0008
[e-mail]

Mills Lawn and Garden

928 Commonwealth Place
Virginia Beach, VA 23464
757-361-9293
www.mills-parts.com

Tuco Industrial Products

5223 180th Street SW
Suite 4A-1
Lynnwood, WA 98037-4506
425-743-9533
1-800-735-1268
www.tucoheat.com

32

106813

OWNER’S MANUAL

NOTES

_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________

106813

33

R

PORTABLE GASOLINE GENERATORS

NOTES

_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________

34

106813

OWNER’S MANUAL

NOTES

_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________

106813

35

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard
written warranty. We make no other warranty, expressed or implied.

FIVE-YEAR LIMITED WARRANTY

GASOLINE PORTABLE GENERATORS

DESA Specialty Products™ makes no warranty with respect to the engine and engine components not of its manufac­ture. They are subject to warranties of their manufacturers. Honda warrants the engine. See engine owner’s manual
for engine warranty information.

DESA Specialty Products™ warrants each generator, excluding engine, of its manufacture, to be free from defects in
material and workmanship for five years from the date of first purchase from an authorized dealer, provided that the
product has been properly installed, maintained, and operated in accordance with all applicable instructions. The bill
of sale or proof of purchase must be presented at the time a claim is made under this warranty.

This warranty is extended only to the original retail purchaser. This warranty covers only the parts and labor required
to restore this unit to its proper operating condition. Warranty parts must be obtained through factory authorized
dealers and service centers for this product. These dealers and service centers will provide original factory replace­ment parts. Failure to use original factory replacement parts voids this warranty.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that
fail or become damaged as a result of misuse, abuse, negligence, accident, lack of proper maintenance, alteration,
modification, tampering, contaminated fuels, repair using improper parts, or repair by anyone other than an authorized
dealer or service center. Routine maintenance is the responsibility of the owner. Travel, handling, transportation, and
incidental costs associated with warranty repairs are not reimbursable under this warranty and are the responsibility of
the owner.

To the full extent allowed by the law of the jurisdiction that governs the sale of the product, this express warranty
excludes any and all other expressed warranties and limits the duration of any and all implied warranties, including
warranties of merchantability and fitness for a particular purpose to five years from the date of first purchase, and DESA
Specialty Products’™ liability is hereby limited to the purchase price of the product and DESA Specialty Products™
shall not be liable for any other damages whatsoever including indirect, incidental, or consequential damages.

Some states do not allow limitation of how long an implied warranty lasts or an exclusion or limitation of incidental
or consequential damages, so the above limitation of damages may not apply to you.

This warranty provides the original purchaser with specific rights. For information regarding those rights, please
consult the applicable state laws.

Bowling Green, KY 42102-9004
www.desatech.com

106813-01

REV. F

08/04
