OWNER’S OPERATION AND INSTALLATION MANUAL

Generator Models: MGH8500AIE and MGH10000C

IMPORTANT: Read and understand this manual before operating or servicing generator. Improper use of generator can cause serious injury. Keep this manual for future reference.

PORTABLE GASOLINE GENERATORS

R

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual and the engine owner’s manual carefully. Become familiar with this generator before trying to operate or service it. Know its uses, limitations, and any hazards involved. Improper use of generator can cause severe injury or death from explosion, ﬁre, burns, electrical shock, or carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Engine exhaust contains poisonous carbon monoxide gas. Overexposure will cause loss of consciousness and will lead to death. Use only in well-vented areas. Make sure area has plenty of free-moving, fresh, outside air. Never run generator in an enclosed or conﬁned area. Never run generator inside occupied building.

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning re semble the ﬂu, with headaches, dizziness, and nausea. If you have these signs, get fresh air at once! Some people are more affected by carbon monoxide than others. These include pregnant women, persons with heart or lung disease or anemia, those under the inﬂuence of alcohol, and those at high altitudes. Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this generator.

Safety information appears throughout these instructions. Pay close attention to them. Below are deﬁnitions for the safety information listed throughout this manual.

DANGER: indicates a hazard which will cause severe personal injury, death, or substantial property damage if you ignore warning

WARNING: indicates a hazard which can cause severe personal injury, death, or substantial property damage if you ignore warning.

CAUTION: indicates a hazard which will or can cause minor personal injury or property damage if you ignore warning.

.

1. Gasoline presents a hazard of ﬁre or explosion. Gasoline is ﬂammable. Its vapor is explosive.

• Keep fuel out of children’s reach.

• Refuel generator in a well-vented

area. Do not ﬁll fuel tank in the dark. Do not refuel while engine is run ning. Unhook all electrical loads and shut off engine before refueling.

• Do not overﬁll fuel tank. Always al-

low room for fuel to expand. If you overﬁll tank, fuel can overﬂow onto hot generator. This can cause ﬁre or explosion. After refueling, tightly close fuel tank cap.

• Do not spill fuel. Fuel or fuel vapor

may ignite. If fuel spills, make sure area is dry before starting engine.

• Never smoke in refueling area. Never

allow open ﬂames or sparks in area.

• Store fuel in approved container.

Store fuel in a well-vented area free of open ﬂames or sparks.

2. Guard against ﬁre hazard. Keep operation area well-vented. Keep generator at least three feet away from any object. Do not place ﬂammable objects near generator.

• Do not use generator where ﬂam-

mable vapors are present. Some

-

vapors are heavier than air. These vapors settle in low-lying places.

• Do not use generator in enclosed

spaces. This includes motor home or RV generator compartments.

3.

Guard against electric shock. Generator produces high voltage. This high voltage can cause severe electric shock. Only responsible adults should use generator.

• Properly ground generator before

starting.

•

Never let anyone operate or service generator without proper instructions.

• Avoid contact with live terminals or

bare wires.

• Do not use generator outdoors in rain

or snow.

• Do not use generator near standing

water or snow.

• Do not use if generator is wet or

damp.

• Do not use generator in highly conductive areas. These areas include metal decking and steelwork.

• Only use grounded extension cords.

• Do not use any worn or damaged electric cords. Electric shock or dam-

-

age to generator may result.

• Do not wear damp clothing or wet shoes when using generator.

4. Guard against burns. Hot engine parts can cause severe injury. Use caution and remain alert when using generator.

• Keep children and animals away from

generator while it is running or hot.

• Keep all covers and shields in place.

Keep them tightly secured.

• The mufﬂer becomes very hot dur-

ing operation. The mufﬂer remains hot for a while after shutdown. Do not touch muffler while it is hot. Do not let mufﬂer touch anything ﬂammable. Let engine cool before transporting or storing.

5. Have standby installation to home or building performed by a licensed electrician. Do not let anyone else wire into a utility circuit. Personal injury, equipment damage, or damage to home could occur.

6. Never connect generator to any existing electrical circuits. The generator output will back-feed into the utility power line. This may electrocute a power company line repair person. Also, if generator is powering electrical circuits, the chance of an electrical ﬁre exists.

7. Battery gives off explosive gases. Keep sparks, ﬂames, and cigarettes away. Do not remove or install battery cables when engine is cranking or running. Only service or use battery in a wellvented area.

8. Battery contains sulfuric acid. Battery acid is poisonous if swallowed. Contact with skin or eyes may cause severe burns. Do not tilt generator with battery installed. Tilting could cause battery acid to spill. Wear protective clothing and face shield when servicing. Keep out of children’s reach.

2

117846

OWNER’S MANUAL

E

F

FU

EL

2

0

2

0

3

0

3

0

4

5

4

5

R

ES

E

T

E

ST

E

F

F U

E L

SAFETY INFORMATION

Continued

9.

Only a qualiﬁed electrical service person should service and repair generator.

• Generator produces high voltage. Use extreme caution when working on electrical parts.

• Always remove spark plug wire from spark plug before servicing. This will prevent accidental starting.

•

When working on generator, avoid hot mufﬂer, exhaust manifold, and engine parts. Severe burns may occur.

• Do not work on generator when tired.

• Use only factory approved replacement parts.

10. Store generator in a well-vented area. Make sure fuel tank is empty. Never store with fuel in tank. Vapors may reach an open ﬂame or spark. Fire or explosion may result.

11. Never operate generator

• if engine speed changes greatly

• if engine misﬁres often

• if powered items overheat

• if electrical output drops

• if it is sparking

• if it produces smoke or ﬂames

• if it vibrates at high levels

• if it has a damaged receptacle

12. Kee p generator and nearby areas clean.

• Keep generator free of oil, mud, and

other foreign matter.

• Remove anything that creates slip

pery areas around generator.

• Remove oily rags and other items

that create ﬁre hazards.

• Keep a fire extinguisher nearby.

Make sure it is rated ABC by the NFPA. They are good for all uses. Consult your local ﬁre department.

• Keep ﬁre extinguisher well main-

tained. Be familiar with its use.

13. Know how to stop engine quickly. Know how to use all controls.

14. Prolonged exposure to loud noise can cause hearing loss.

• When working around generator,

wear approved hearing protection.

• Remember neighbors when using

generator.

PRODUCT IDENTIFICATION

Control Panel

Ground Lug

Handles (2)

Alternator

Gas Cap/Fuel Gauge

Auto-Idle Switch

Oil Dipstick

Oil Filler Cap

Choke Lever

-

Engine

Engine ON/ OFF Switch

Figure 1 - Portable Generator - Model MGH10000C

Air Filter Housing

Oil Filter

Gas Tank

Wheels (2)

Roll Cage

120/240 Volt Receptacle

120/240 Volt, 50 Amp Receptacle

Circuit Breaker

Run Lamp

Hour Meter

120 Volt Receptacle (Duplex)

120 Volt Receptacle (GFCI)

120 Volt Receptacle

117846

3

PORTABLE GASOLINE GENERATORS

R

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

V

T

W

I

S

T

L

O

C

K

1

2

0

V

G

F

C

I

1

2

0

V

H

O

U

R

M

E

T

E

R

A

U

T

O

-

I

D

L

E

R

E

S

E

T

R

E

S

E

T

R

E

S

E

T

R

E

S

E

T

O

F

O

N

R

E

S

E

T

E

S

T

E

N

M

0

5

H

O

U

R

S

1

/

1

0

E

F

FUEL

PRODUCT IDENTIFICATION

(Continued)

Gas Tank

Gas Cap/Fuel Gauge

Ground Bolt

Alternator

120 Volt Receptacle (GFCI)

Hour Meter

Auto-Idle Switch

Control Panel

Figure 2 - Portable Generator - Model MGH8500AIE

GENERAL INFORMATION

Master portable generators are rugged and compact. These generators use brushless alternators for dependable, trouble-free ser vice. Honda gasoline engines provide long life under heavy use. Honda engines have overhead valves (OHV). This provides high performance with lower fuel consumption. These engines are governed to maintain engine speed of 3600 RPM under load. 3600 RPM engine speed provides 120/240V, 60 Hz power.

Additional Features

• Circuit breaker protection

• Large fuel tank

• Oil alert system

• Electric starter

• 15-Amp ground fault circuit interrupter

(GFCI) receptacle

UNPACKING

1. Remove generator from carton.

2. Remove any protective packaging applied to generator for shipment.

3. Check for loose or missing parts. Check

for shipping damage. If any parts are

missing or damaged, promptly inform dealer where you bought generator.

4. Battery cables are supplied and installed. See Battery, page 8 for battery installation instructions.

120/240 Volt Receptacle

Circuit Breaker

Roll Cage

4

Choke Lever

Oil Filter

120 Volt Receptacle

120 Volt Receptacle (Duplex)

VENTILATION

DANGER: Use only in wellvented areas. Make sure area has plenty of free-moving, fresh, outside air. Never run generator in an enclosed or conﬁned area. Never run generator inside occupied building. Engine exhaust con tains p o isonous carbon monoxide gas. Overexposure will cause loss of consciousness and will lead to death.

This generator needs cooling air to run properly. Never block free-ﬂowing, cooling air to generator. Overheating will occur without cooling air. This will damage the generator. Keep generator at least three feet away from any object.

DUST, DIRT, RAIN, AND SNOW

WARNING: Do not use generator outdoors in rain or snow. Do not use generator near standing water or snow. Do not use if generator is wet or damp. Operating generator in these conditions increases the risk of electrocution. Severe injury or death can occur.

Do not use generator in extremely dusty or dirty conditions. This will severely affect its life. Keep generator clean. Do not allow dust, dirt, rain, or snow to collect on it. Protect generator from outdoor elements.

HIGH AND LOW TEMPERATURE OPERATION

Air temperature affects generator output. Output drops 1% for each 10° temperature rise above 60° F. Very low temperatures may make the engine hard to start. See engine owner’s manual for more information.

117846

OWNER’S MANUAL

HONDA

OFFONSTART

ENGINE SW

SPECIFICATIONS GENERATOR

MODEL MGH10000C MGH8500AIE

Electrical

Rated Wattage .........................

Rated Amperage

120 V ....................................

240 V .................................... 41.7 ...............................35.4

Receptacle

120-V, 20-A Duplex .................... Yes ................................ Yes

120-V, 15-A GFCI ...................... Yes ................................ Yes

120-V Twist-Lock ...................

120/240-V Twist-Lock .............

120/240-V, 50-A ......................... Yes ................................. No

General

Honda Engine H.P. ......................

Honda Model ....................GX620K1VXE2 .............GX620K1VXE2

Fuel Type ............................... Gasoline ........................ Gasoline

Fuel Tank Capacity ..................

Oil Alert System ......................... Yes ................................ Yes

Auto-Idle .................................... Yes ................................ Yes

Hour Meter ................................. Yes ................................ Yes

Start Method .......................... Electric .......................... Electric

Weight (pounds) ........................

10,000 ............................8500

83.3 ...............................70.8

30 Amp ............................. Yes

20 .................................. 20

13 gal. ............................8 gal.

350 ................................ 325

FEATURES

OIL ALERT SYSTEM

The oil alert system protects the engine from low oil damage. This system automatically shuts down the engine and prevents engine restarting if the oil level falls too low.

Note: When this happens, the engine switch remains in the ON position. The oil alert system is wired into the ON/OFF Switch.

If this system shuts down the engine, the engine will not start until you add oil. Add oil to engine (see Engine Oil, page 7).

Note: Operate generator on a level surface. If not level, the oil may ﬂow away from the oil level sensing device. This will cause the oil alert system to shut down engine.

See engine owner’s manual for more information.

* Single-phase, 1.0 power factor

Note: Ratings apply to SAE standard conditions. Reduce ratings 3 each 1000 feet above sea level and 1% for each 10° Fahrenheit rise above 60°F.

1

/2% for

Figure 3 - Engine Switch Location

117846

5

PORTABLE GASOLINE GENERATORS

R

E

S

E

T

E

S

T

20

GENERATOR FEATURES

Continued

AUTO-IDLE SYSTEM

The Auto-Idle System allows the engine to idle down or run at a slower speed when the generator is not being used to supply power. The Auto-idle system can be turned ON or OFF by a rocker switch on the control panel. When the switch is in the OFF position, the engine runs at full speed all of the time. When the switch is in the ON position, the engine slows down to idle speed until an electrical load is applied. When a load is applied to the generator (an electrical item is plugged in and turned on) the engine speeds up to the preset speed required to produce the correct voltage.

IMPORTANT: A minimum current load of 1 Amp is required to disengage the auto idle solenoid and cause the engine to come up to speed for correct voltage. Powering items at reduced engine speed will damage generator and powered items.

ELECTRIC START

A battery is not supplied with generator. You must provide a 12-volt, 32-amp-hour battery. For more battery information, see Battery, page 8.

GROUND FAULT CIRCUIT INTERRUPTER RECEPTACLE

The GFCI receptacle is on the control panel. The GFCI protects you against hazardous electrical shock caused when your body becomes a path through which electricity travels to reach ground. This could happen when you touch an appliance or cord that is ‘live’ through faulty mechanism, damp or worn insulation, etc.

When protected by the GFCI, you may still feel a shock, but the GFCI should cut it off quickly. A person in normal health should not receive serious injury. Note: Infants and very small children may still be affected.

Test Procedure

Check the GFCI receptacle every month. This insures it is working right.

1. Push black TEST button. Red RESET button should pop out. This should trip GFCI, resulting in no electrical power at receptacle. Verify this by plugging test lamp with good bulb into receptacle. If lamp does not work, GFCI receptacle is good.

WARNING: If RESET button does not pop out, do not use the GFCI receptacle. Contact a qualiﬁed electrician for repairs.

2. If the GFCI receptacle tests okay, restore power by pushing the RESET button back in. The test lamp should work at this time. IMPORTANT: You must press the RESET button ﬁrmly and fully. It should lock into place. If the GFCI does not lock into place, do not use receptacle. Contact a qualiﬁed electrician for repairs.

ENGINE CIRCUIT BREAKER

This fuse protects the battery charging circuit. A short circuit will trip the break the fuse. The fuse will also break if you install battery wrong. Replace fuse if engine will not start. The fuse is located inside of the keyswitch box.

RECEPTACLE CIRCUIT BREAKER

The circuit breakers protect the receptacles and alternator. Overloading generator will trip circuit breaker. A short circuit in item being powered will also trip breaker. If this occurs, unplug electrical load from receptacle. Let circuit breaker cool down. Push circuit breaker button to reset.

Electric motors need higher starting current. They require up to three-times their rated wattage to start. The starting current needed may be too high. This can cause nuisance circuit breaker tripping. To help prevent this, start electric motors ﬁrst. Connect additional items to generator after starting motors. If this continues to happen, reduce the total generator load.

Normal

Figure 5 - Receptacle Circuit Breaker Button

Note: High ambient temperature will cause nuisance tripping.

Tripped

Figure 4 - GFCI Receptacle

6

117846

OWNER’S MANUAL

F

FUEL

F

FUEL

ENGINE OIL

We ship the generator without oil in the engine crankcase. You must add oil before starting engine. See engine owner’s manual for speciﬁc oil type.

CHECKING OIL LEVEL AND ADDING OIL

Follow steps below to check oil level. Make sure engine is level and stopped.

1. Remove dipstick (see Figure 6). Wipe dipstick clean.

2. Insert dipstick into oil ﬁller neck. Oil level should be between the two dots on dipstick.

3. If level is low, ﬁll to top dot on dipstick. Only use oil recommended in engine owner’s manual.

Note: If oil level is too low, oil alert system will shutdown engine and prevent engine from restarting.

Oil Fill Cap

Upper Limit

Lower Limit

Dip Stick

Figure 6 - Checking Oil Level (MGH8500AIE Shown)

FUEL

WARNING: Gasoline presents a hazard of ﬁre or explosion. Gasoline is ﬂammable. Its vapor is explosive.

• Keep fuel out of children’s

reach.

•

Refuel generator in a wellvented area. Do not ﬁll fuel tank in the dark. Do not refuel while engine is running. Unhook all electrical loads and shut off engine before refueling.

• Do not overﬁll fuel tank. Always

allow room for fuel to expand. If you overﬁll tank, fuel can overﬂow onto hot engine. This can cause ﬁre or explosion. After refueling, tightly close fuel tank cap.

• Do not spill fuel. Fuel or fuel

vapor may ignite. If fuel spills, make sure area is dry before starting engine.

• Never smoke in refueling area.

Never allow open ﬂames or sparks in area.

• Store fuel in approved contain-

er. Store fuel in a well-vented area free of open ﬂames or sparks.

Use clean, fresh, unleaded gasoline. Use gasoline with octane rating of 86 or higher. Service station gasoline pumps should dis play the octane rating. Using gasoline with lower octane level could damage engine. Avoid getting dirt, dust, or water in fuel tank. Do not mix oil with gasoline.

See engine owner’s manual for more information.

HANDLES AND TOP COVER

Follow the steps below to attach the handles and top cover to Model MGH10000C:

1. Remove the two bolts, lock nuts, and washers holding side panels to control panel end of roll cage. Insert bolts with washers through two holes in the handle and then back through roll cage and side screen panels (See Figure 7). Tighten the lock nuts against the side screen panels.

2. Place top cover on top of generator roll cage with notch on control panel side. Use four #8 sems screws provided to attach cover to roll cage (See Figure 8).

Roll Cage

Washers

Bolts

Handle

Figure 7 – Attaching Handles to Roll Cage

-

Top Cover

Lock Nuts

SEMS Screws

117846

SEMS Screws

Figure 8 – Attaching Top Cover to Roll Cage

7

PORTABLE GASOLINE GENERATORS

R

F

FUEL

F

FUEL

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

V

T

W

I

S

T

L

O

C

K

1

2

0

V

G

F

C

I

1

2

0

V

H

O

U

R

M

E

T

E

R

A

U

T

O

-

I

D

L

E

R

E

S

E

T

R

E

S

E

T

R

E

S

E

T

R

E

S

E

T

O

F

O

N

R

E

S

E

T

E

S

T

E

N

M

0

5

H

O

U

R

S

1

/

1

0

E

F

FUEL

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

V

T

W

I

S

T

L

O

C

K

1

2

0

V

G

F

C

I

1

2

0

V

H

O

U

R

M

E

T

E

R

E

S

E

T

E

S

T

E

N

M

0

5

0

E

F

FUEL

BATTERY

WARNING: Battery gives off explosive gases. Keep sparks, ﬂames, and cigarettes away. Do not remove or install battery cables when engine is cranking or running. Only service or use battery in a well-vented area.

WARNING: Battery contains sulfuric acid. Contact with skin or eyes may cause severe burns. Do not tilt generator with battery installed. Tilting could cause bat tery acid to spill. Wear protective clothing and face shield when servicing. Keep out of children’s reach.

• If battery acid gets on your skin,

wash with water.

• If battery acid gets in your eyes,

ﬂush with water at least 15 minutes. Call a doctor at once. Battery acid is poisonous.

•

If swallowed, d r i n k larg e amounts of water or milk. Follow with milk of magnesia or vegetable oil. Call a doctor at once.

CAUTION: If you remove battery, insulate the red, positive (+) battery cable terminal. Insulate with electrical tape. Exposed terminal may spark when generator runs.

IMPORTANT: Make sure battery connections are the correct polarity. Electric start generators use negative ground, 12-volt DC starting system.

A battery is not supplied with generator. A 12-volt, 32 Amp-Hour minimum, group U1, lug terminal battery is recommended. The positive and negative battery cables are supplied with generator. You must install these cables before mounting battery.

Always wear safety glasses when working with battery. Make sure battery terminals are clean. Make sure cable connections are tight.

Always shut down engine before removing or attaching battery cables. Always remove the negative (–) cable ﬁrst. Always attach negative (–) cable last.

MOUNTING BATTERY TO GENERATOR

1. Secure battery to generator using battery hold-down system. This system consists of the battery mounting bracket, hook bolts, and nuts (see Figures 9 and 10).

2. Locate the red, positive (+) battery cable from starter solenoid. Connect it

-

to the positive (+) battery terminal (see Figures 11 and 12).

3. Locate the black, negative (–) battery cable attached to engine block. Connect it to the negative (–) battery terminal (see Figures 11 and 12).

4. Check battery before starting engine. Make sure ﬂuid levels are full. Make sure battery is charged.

See engine owner’s manual for more information.

Nut

Battery Mounting Bracket

Battery

Hook Bolt

Figure 9 - MGH8500AIE - Battery HoldDown System (Alternator Removed for Clarity)

Nut

Hook Bolt

Figure 10 - MGH10000C - Battery HoldDown System

Battery Mounting Bracket

Battery

8

To Engine Block (–)

To Starter Solenoid (+)

Figure 11 - MGH8500AIE - Connecting Positive and Negative Cables to Battery (Alternator Removed for Clarity)

To Starter Solenoid

To Engine Block

Figure 12 - MGH10000C - Connecting Positive and Negative Cables to Battery

EXTENSION CORDS

Only use grounded extension cords. Be sure to use extension cord with proper wire gauge size. See chart below.

Recommended Minimum Wire Gauges (AWG) for Extension Cords

Ampere AWG for Length of

Load Cord in Feet

50' 100' 150'

2 18 18 18

3 18 18 18 4 16 16 16 5 16 16 16 6 16 16 14 8 16 14 12 10 16 14 12 12 14 14 12 14 14 12 10 16 12 12 10 20 10 10 8

117846

OWNER’S MANUAL

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

V

T

W

I

S

T

L

O

C

K

1

2

0

V

G

F

C

I

1

2

0

V

H

O

U

R

M

E

T

E

R

A

U

T

O

-

I

D

L

E

R

E

S

E

T

R

E

S

E

T

R

E

S

E

T

R

E

S

E

T

O

F

O

N

R

E

S

E

T

E

S

T

E

N

M

0

5

H

O

U

R

S

1

/1

0

E

F

FUEL

1

2

0

/

2

4

0

V

T

W

IS

T

L

O

C

K

1

2

0

V

T

W

I

S

T

L

O

C

K

1

2

0

V

O

L

T

A

G

E

O

U

R

M

E

T

E

R

1

2

0

+

2

4

0

E

F

FUEL

GENERATOR GROUNDING

WARNING: You must properly earth-ground generator before starting. This will help guard against deadly electric shock. Only use grounded plugs with generator. Only use grounded extension cords. Only use three-wire or double-insulated power tools.

Grounding generator helps prevent electric shock from a ground fault condition. Follow these steps to ground your generator:

1. Locate ground lug on generator housing (see Figure 13).

2. Loosen SEMS nut on ground lug. Note: Do not remove SEMS nut or set screw from ground lug.

3. Attach a spade connector to #10-8 stranded-copper ground wire. Place spade connector on ground bolt between flat washer and SEMS nut. Tighten SEMS nut (see Detail A, Figure 13).

4. Drive grounding point into ground. Note: Grounding point can be a stake, grounding rod, or pipe. Grounding point should be copper or brass.

5. Attach gro und wire to grou ndi ng point.

You must supply the ground wire and grounding point. These do not come with generator. Follow the National Electrical Code and all state and local codes. Consult your power company or a licensed electrician.

WARNING: For a grounding

point, do not use metal pipe be

ing used to carry combustible materials or gases.

Flat Washer

SEMS Nut

Ground Bolt

Spade Connector

Detail A

Ground Wire

Copper or Brass Grounding Point

Fig u r e 13 - Gr ounding Genera t or (MGH8500AIE Shown)

Alternator

STANDBY INSTALLATION TO HOME OR BUILDING

WARNING: Have standby installation performed by a skilled, licensed electrician. Do not let anyone else wire into a utility circuit. Personal injury, equipment damage, or damage to home could occur.

IMPORTANT: This generator will not power your entire home. Most home utility electric service is more than 60 amps. This will exceed generator output. Only power needed items during a power outage. Make sure total wattage of electrical load does not exceed rated wattage of generator.

You may need to use this generator as a standby power source. During a power out age, the generator will power selected items in a building. Have generator and additional wiring installed by a skilled, licensed electrician. This is not a do-it-yourself job. Follow all local codes.

WARNING: The electrician must install a double-throw transfer switch. This isolates ex isting electrical circuits from the utility power line. If not isolated, generator output will back-feed into utility power line. This may electrocute a power company line repair person.

-

117846

9

PORTABLE GASOLINE GENERATORS

R

DETERMINING ELECTRICAL LOAD FOR GENERATOR

You must decide what electrical load your generator can power. Do this before us ing generator. Use the following four-step method. It will help you select a load that is not too large. Make sure total wattage of all electrical loads does not exceed rated wattage of generator. For rated wattage of your generator, see Speciﬁcations, page 5. Electric motors present a special problem when ﬁguring load. Read Step 3 carefully.

1.

Make two lists of items you want powered by generator. List all motors and motor powered appliances in one. List all lights, small appliances, etc. in the other. For standby service to home or building, only include items you must power.

2. Enter running watts of each item except motors. The light bulb or appliance nameplate lists its wattage. Remember, 1KW = 1000 watts. Note: The nameplate may not list wattage. It may only list volts and amps. The formula for ﬁnding wattage is: Volts x Amps = Watts. For example: An appliance nameplate states 3 amps at 120 volts. 3 amps x 120 volts = 360 watts.

3. Electric motors present a special problem. They require up to three-times their rated wattage to start. Chart 2, below, shows starting watts for different size motors. For example: an electric motor nameplate states 5 amps at 120 volts. 5 amps x 120 volts = 600 watts running. Multiply this ﬁgure by 3. This will show the starting watts needed. 600 watts x 3 = 1800 watts to start. When ﬁguring the generator load for motors, you must use the starting watts ﬁgure. Do not use the running watts ﬁgure. Note: Some motors require nearly the same wattage to run as to start. These items include saws, drills, hair dryers, and food mixers. See Chart 1 for typical appliance wattage examples.

4.

Add watts and starting watts of all items. This total must not be larger than the rated wattage of your generator. It is a good idea to have up to 25% extra capacity for future needs or extra equipment.

Chart 1 - Typical Electric Appliance Wattages

Running Starting Equipment Watts Watts

Light bulb (100W) 100 100 Radio 150 150

-

Fan 200 600 Television 400 400 Furnace fan with blower 600 1800 Vacuum cleaner 600 750 Sump pump Refrigerator/freezer 800 2400 6" Circular saw 800 1000 Floodlight 1000 1000

(1/3 hp)

700 2100

Running Starting Equipment Watts Watts

1/2" Drill 1000 1250 Toaster 1200 1200 Coffee maker 1200 1200 Skillet 1200 1200 14" Chain saw 1200 1500 Water well pump (1/2 hp) 1000 3000 Hot plate/range (per burner) 1500 1500 10" Table saw 2000 6000 Water heater

(storage-type)

5000 5000

Chart 2

Approximate Starting Watts*

Motor Approximate Universal Repulsion Split HP Running Motors Induction Capacitor Phase Rating Watts (small appliance) Motors Motors Motors

1/8 500 625 1100 1500 2250

1/4 700 875 1550 2100 3150 1/3 800 1000 1750 2400 3600 1/2 1100 1375 2400 3300 4950 3/4 1400 1750 3100 4200 x 1 1700 2125 3750 5100 x 1 1/2 2100 2625 4620 6300 x 2 2450 3075 5400 7350 x 3 3600 x 7900 10800 x

* – Always use starting watts, not running watts, when ﬁguring correct electrical load. x – Motors of higher horsepower are not generally used.

10

117846

OWNER’S MANUAL

Reset

2

0

V

p

;t

Reset

120

Vo

lt

A

u

t

o

Id

l

e

2

0

V

p

;t

S

e

l

e

c

t

o

r

O

ff

O

n

RESE

T

TEST

E

N

M

0

5

HOURS

1

/10

120/240

V

TWISTLOCK

120/240V

TWISTLOCK

120V

TWISTLOCK

120V GFCI

120V

HOUR METER

AUT

O-IDLE

RESET

OFF

ON

R

E

S

E

T

E

S

T

E

N

M

00000005

HOURS 1/10

OPERATION

GENERAL INFORMATION

This generator is not large enough to power your entire home. Do not connect generator to any existing electrical circuits. Plug items directly into generator receptacles. Do not exceed amperage rating of receptacles. Only use grounded cords.

DANGER: Use only in wellvented areas. Make sure area has plenty of free-moving, fresh, outside air. Never run generator in an enclosed or conﬁned area. Never run generator inside occupied building. Engine exhaust con tains p o isonous carbon monoxide gas. Overexposure will cause loss of consciousness and will lead to death.

DANGER: Never connect generator to any existing electrical circuits. The generator output will back-feed into the utility power line. This may electrocute a power company line repair person. Also, if generator is powering electrical circuits, the chance of an electrical ﬁre exists.

Note: We supply the engine owner’s manual with generator. Refer to that manual for questions concerning engine operation.

120V, 15-Amp GFCI Duplex

120V, 20-Amp Duplex

120V, 30-Amp Twist-Lock

120/240V, 30 Amp Twist-Lock

120/240V, 20 Amp Twist-Lock

Fi g ure 14 - R e cepta cle Loca t ions (MGH8500AIE)

120V, 30-Amp Twist-Lock

120V, 15-Amp GFCI Duplex

120V, 20-Amp Duplex

120/240V, 30-Amp Twist-Lock

120/240V, 50-Amp

USING RECEPTACLE

Note: Do not exceed amperage rating of receptacles. Exceeding rating will trip receptacle circuit breaker.

Use receptacles properly. Improper use could damage generator. Use only grounded extension cords. Power only grounded or doubleinsulated items. Do not overload receptacles. The generators have the following receptacles (see Figure 16):

• 120V, 15-amp GFCI duplex receptacle

• 120V, 20-amp duplex receptacle

• 120V, 30-amp twist-lock receptacle

• 120/240V, 20-amp twist-lock receptacle

• 120/240V, 30-amp twist-lock receptacle

• 1 2 0/ 2 4 0 V, 5 0 - a m p r ec e p t a cl e

(MGH8500AIE only)

(MGH10000C only)

117846

Fi g ure 15 - R e cepta cle Loca t ions (MGH10000C)

11

Continued

PORTABLE GASOLINE GENERATORS

R

HONDA

OFFONSTART

ENGINE SW

2

0

2

0

3

0

3

0

4

5

4

5

R

ES

E

T

E

ST

E

F

F U

E L

OPERATION

Continued

POWER CORD AND PLUG REQUIREMENTS

120V, 30-amp twist-lock receptacle

• NEMA L5-30P plug

• Three-wire, 30-amp cord

12 0/240V, 20 or 30- a mp twist -lock receptacle

• NEMA L14-20P (20-amp) or L14-30P (30-amp) plug

• Four-wire, 20-amp or 30-amp cord

120/240V, 50-amp receptacle

• NEMA L14-50P

• Four-wire, 50-amp cord

MGH8500AIE Only

PRESTART

Operate generator on a ﬁrm, dry, and clean surface. The surface must be level. Protect generator from heavy dust, sand, dirt, rain, or snow. Do not locate generator near standing water and snow. Make sure area is well-vented.

WARNING: Only responsible adults should use generator. Never let anyone operate generator without proper instructions.

Note: If oil level is too low, oil alert system will keep engine from starting (see Oil Alert System, page 5). Make sure oil level is full before starting. See Engine Oil, page 7.

Before starting the engine, disconnect all electric loads from generator.

STARTING

IMPORTANT: The engine speed is preset. The throttle is locked in preset position. Do not adjust throttle. Preset position lets engine run at 3600 RPM under load. The engine must maintain 3600 RPM for generator to create correct voltage. Running engine at lower speeds will damage generator and powered items.

IMPORTANT: Never start generator with electrical loads connected. Start engine before adding electrical loads.

1. Make sure gasoline tank is full. See Fuel, page 7 for fuel information.

2. Pull choke button out (see Figure 17). This closes the choke.

Note: You may not need to close choke

if engine is warm or air temperature is high.

3. Start the engine.

Turn the engine switch to the START position (see Figure 18). Hold it there until engine starts. When engine starts, let switch return to the ON position.

IMPORTANT: Do not use electric

starter more than ﬁve seconds. Starter motor damage may occur. If engine fails to start, release the switch and wait ten seconds. After ten seconds, try starting again.

Note: If engine does not start, check

the oil in the crankcase. Add oil as necessary. Be sure engine is on a level surface. See Oil Alert System,

page 5.

4. As engine warms up, the choke will automatically open.

Choke Button Pulled Out (Closed Position)

Figure 17 - Choke Button Closed

Engine Switch

Figure 18 - Engine Switch

MGH10000C Only

Figure 16 - Cord and Plug Conﬁgurations

12

117846

OWNER’S MANUAL

Reset

120

Vo

lt

A u

t o

Id

l e

2

0

0 V

p

;t

S

e l e

c

t o

r

O

ff

O

n

RESE

T

TES

T

E

N M

0

0 0

0

0 0

0

5

HOURS

1/10

120/240

V

TWISTLOCK

120/240V

TWISTLOCK

120V

TWISTLOCK

120V GFCI

120V

HOUR METER

AUT

O

-IDLE

RESET

OFF

ON

R

E

S

E

T

E

S

T

E

N

M

00000005

HOURS 1/10

OPERATION

Continued

AUTO-IDLE OPERATION

IMPORTANT: Never start engine with electrical loads connected. Start engine before adding electrical loads.

1. If engine is cold, turn the Auto-Idle switch OFF (see Figure 19).

2. Start engine. Allow engine to warm up with no load for ﬁve minutes.

3. Turn Auto-Idle switch ON. Engine will slow to idle speed. Engine idle speed is preset. Idle speed adjustment should not be necessary.

4. Operate generator according to speciﬁcations outlined in owner's manual.

5. Engine will automatically increase to normal operating speed when you plug load into any generator outlet.

MGH8500AIE

Note: MGH10000C Only - The 250

Volt/50 Amp receptacle is not con nected through the Auto-Idle circuit. The Auto-Idle switch must be turned off to get full power out of this receptacle (see Figure 19).

6. The Auto-Idle system should be turned OFF when generator is shut down.

Adjusting the Idle Speed

IMPORTANT: Adjust the idle speed only:

• If the idle speed becomes too high.

• If the engine idle speed will not regulate (en-

gine idles and speeds up again and again).

1. Turn Auto-Idle switch OFF. Start engine. Allow engine to warm up with no load for ﬁve minutes.

WARNING: Always set the idle speed before turning on the AutoIdle. If idle speed is not set, the larger resistor on the control board may become hot. Heat from the resistor may damage the protective coating on the control board.

Solenoid Bracket

-

M7 Nuts

Auto-Idle Solenoid

Figure 20 - Solenoid Bracket Location (MGH10000C Shown)

Auto-Idle Switch

MGH10000C

Figure 19 - Control Panel

117846

2. Locate Auto-Idle solenoid. The AutoIdle solenoid is located between the alternator and the engine when viewed from the top of the generator (see Figure 20).

3. Loosen two M7 nuts.

4. Rotate solenoid (located under the solenoid bracket) left or right to adjust Auto-Idle speed (see Figure 20).

5. With a volt meter, check the no-load output voltage at the 120-volt duplex receptacle. At proper idle speed (3000 minimum RPM) the meter should read 50-60 volts. Lower settings will cause the Auto-Idle to not operate properly.

6. After reaching proper idle speed, tighten M7 nuts to secure solenoid to mounting bracket (see Figure 20).

13

PORTABLE GASOLINE GENERATORS

R

HONDA

OFFONSTART

ENGINE SW

OPERATION

Continued

HIGH ALTITUDE OPERATION

This generator will not perform well at high altitudes without proper adjustment. See engine owner’s manual for details.

ADDING ELECTRICAL LOADS

IMPORTANT: Do not overload generator. Make sure total wattage of all electrical loads does not exceed rated wattage of generator. Overloading may shorten generator life. It could also cause internal damage to generator. Overloading will trip circuit breaker.

1. Check items to be powered. Their nameplate lists their wattage ratings.

Note: The wattage ratings for some

electrical motors are misleading. They may require up to three-times their rated wattage to start. You must ﬁgure total electrical load wattage. Make sure total wattage of all electrical loads does not exceed rated wattage of generator. See Determining Electrical Load For Generator, page 10.

2. Start engine. Let engine reach full speed.

3. Connect electrical loads one at a time. If the load consists of electric motors, start them ﬁrst. Always start the largest ﬁrst. Start each motor individually.

DISCONNECTING ELECTRIC LOADS

Remove electrical loads one at a time. Remove voltage sensitive items ﬁrst. Voltage sensitive items include TVs, VCRs, and other home electronic items.

STOPPING ENGINE

IMPORTANT: The engine speed is preset. The throttle is locked in preset position. Do not adjust throttle.

Follow the steps below to stop engine.

1. Remove all electrical loads from generator (see Disconnecting Electrical Loads). Remove electrical loads one at a time.

2. Let engine run for two or three minutes after removing electrical loads. This lets engine cool slightly.

3. Turn engine switch to the OFF position (see Figure 21).

Figure 21 - Engine Switch In OFF Position

MAINTENANCE AND REPAIRS

WARNING: Only a qualiﬁed electrical service person should service and repair the alternator on this generator. Use only factory approved replacement parts.

CAUTION: The engine speed is preset. The throttle is locked in preset position. Do not adjust throttle. Preset position lets engine run at 3600 RPM under load. The engine must maintain 3600 RPM for generator to create correct voltage. Running engine at lower speeds will damage generator and powered items.

CAUTION: Shut off generator before performing maintenance.

IMPORTANT: Keep generator level when servicing. Never turn generator upside down or stand it on end to service.

Note: We supply the engine owner’s manual with generator. Refer to that manual for questions concerning engine maintenance and repairs.

Non-engine parts require little maintenance. Keep generator clean. Use a damp cloth to clean outside surfaces. Never use water to clean generator. Water can cause damage to internal parts. Use vacuum to clean air inlet and outlet louvers of alternator.

14

117846

STORAGE

WARNING: Remove all fuel from fuel tank before storing generator. Store fuel in approved container. Store fuel in a well-vented area free of open ﬂames or sparks.

WARNING: The mufﬂer becomes very hot during operation. The mufﬂer remains hot for a while after shutdown. Let engine cool before storing.

IMPORTANT: Keep generator level while in storage. Never store generator upside down or standing on end.

Note: We supply the engine owner’s manual with generator. Refer to that manual for questions concerning engine storage.

TROUBLESHOOTING

OWNER’S MANUAL

®

Use a fuel additive, such as STA-BIL equivalent, when storing generator with fuel in fuel tank. This will minimize fuel gum deposits from forming in engine.

Cover and store generator in a clean, dry place. Do not expose generator to extreme high or low temperatures during storage.

SERVICING THE ENGINE

Honda parts and services should be handled by your nearest authorized engine service ﬁrm. Check the yellow pages of your telephone directory under the listing:

Engines Gasoline, Honda

or visit:

www.honda-engines.com

or call Honda direct:

1-800-426-7701

or an

TECHNICAL SERVICE

You may have further questions about assembling, operating, or maintaining this product. If so, you can visit our Technical Service web site at contact our Technical Service Department at 1-800-858-8501 (English Only). You may also write to:

DESA Specialty Products™ ATTN: Technical Service Specialty Products P.O. Box 90004 Bowling Green, KY 42102-9004

When contacting DESA Specialty Products™, have ready

• Your Name

• Your Address

• Your Phone Number

• Model Number of Product

• Serial Number

• Date of Purchase (Include copy of receipt for written requests).

www.desatech.com or

Note: For additional help, visit DESA International’s technical service web site at www.desatech.com.

OBSERVED PROBLEM

No voltage when starting generator with no electrical load

Voltage is less than normal voltage with no electrical load

Voltmeter reading more than 10% high with no electrical load

Voltmeter reading correct with no electrical load, but more than 10% low when electrical load is added

WARNING: Only a qualiﬁed electrical service person should service

and repair generator. Use only factory approved replacement parts.

Note: See engine owner’s manual for engine troubleshooting.

POSSIBLE CAUSE

1. Defective capacitor

2. W i nd i ng s h o rt c i r c u i t o r l o o se connections

3. Defective rotor diode

4. Loss of residual magnetism

1. Engine speed too low

2. Defective rotor diode

3. Partial short circuit in winding

4. Defective capacitor

1. Engine speed too high

1. Defective rotor diode

2. Electrical load too high

3. Engine not running properly

REMEDY

1. Replace capacitor

2. Check resistance of coils (see Electrical

Component Speciﬁcations,

3. Replace both diodes on rotor

4. Apply 12-volt battery to capacitor terminals for 2-3 seconds

1. Set engine speed to 3720 RPM (62 Hz) with no load

2. Replace both diodes on rotor

3. Check resistance of coils (see Electrical Component Speciﬁcations, page 16)

4. Replace capacitor

1. Set engine speed to 3720 RPM (62 Hz) with no load

1. Replace both diodes on rotor

2. Do not overload generator

3. Contact an authorized engine service center

page 16)

117846

www.desatech.com

15

PORTABLE GASOLINE GENERATORS

R

250V 30A

Receptacle

250V 50A

Receptacle

125V, 15A

Receptacle

GFCI 125V, 15A

Receptacle

125V, 30A

Receptacle

Circuit

Breaker

20A

Circuit

Breaker

20A

Green

Black

Black White

Black

Red

Black

Black Black

Black

Gray

Blue

White

Green

Black

Red

Yellow

Auto-Idle

Control Board

Yellow

WhiteWhite

White

Circuit

Breaker

30A

Circuit

Breaker

30A

Circuit

Breaker

45A

Circuit

Breaker

45A

Green

T2

Green

Black

Red

White

Main

Windings

T1

T3

T4

Wh

T1 T2T3T4

Rotor

Diode

Stator

Capacitor

White

Run

Light

Hour Meter

Gr

een

P2

P5

P5-2

P5-4

P5-1

P5-3

P1

P4

P3

To

Auto-Idle

Solenoid

To

Power Supply

On Engine

Stator

110/120V

T1 T2 T3 T4

L2

L1

110/120V

220/240V

ELECTRICAL COMPONENT SPECIFICATIONS

Resistance in Ohms

Stator Stator Rotor Capacitor, Main Auxiliary Primary MFD Diodes (2)

Model Winding * Winding

MGH8500AIE 0.41 .098 7.81 45 8 Amp MGH10000C 0.33 0.71 8.53 60 8 Amp

*

Connect T2 (green) and T3 (black). Measure resistance between T1 (red) and T4 (yellow).

Δ

Resistance between brown and white leads.

†

Remove diodes to check resistance.

WIRING DIAGRAMS

Δ Winding † 450 Volt 800 Volt

Figure 22 - Wiring Diagram, Model MGH10000C

16

117846

Red

Ye

llow

Green/Y

ellow

Gr

n/

Ylw

Gr

n/

Ylw

Grn/ Ylw

Green/ Ye

llow

Green/ Yellow

Green/Yellow

Green/ Yellow

To Roll CageTo

Alternator

Ground

Blue

Red

Black

Gray

Blk

Black

Red

Green

120/240V

20A/30A

Receptacle

120/240V

20A/30A

Receptacle

120V

, 30A

Receptacle

120V

, 15A

Receptacle

120V

, 20A

Receptacle

White

Wht

White

Au

t

o-Idle

Auto-Idle

Control Board

P2P5P1 P4 P3

Circuit

Break

er

20A

Circuit

Break

er

20A

Circuit

Break

er

45A

Circuit

Break

er

45A

T2

T1

T3

T4

T1

T2

T3

T4

Rotor

Diode

Green

Red

Blac

k

Blue

Stator

110/120V

T1

T2

T3

T4

L2

L1

110/120V

220/240V

A

uxiliar

y

Phase

Stator

White

Bro

wn

Capacitor

White

Main

Windings

GFCI

LI

N

E

W

H

IT

E

H

O

T

Duplex

Hour Meter

Gray

Blue

P5-2

P5-4

P5-1

P5-3

To Auto-Idle Solenoid

To

Po

wer Supply

On Engine

WIRING DIAGRAMS

(Continued)

OWNER’S MANUAL

Figure 23 - Wiring Diagram, Model MGH8500AIE

117846

17

PORTABLE GASOLINE GENERATORS

R

120/240V

TWISTLOCK

120/240

V

TWISTLOCK

120V

TWISTLOCK

120V GFCI

120V

HOUR METE

R

AUT

O

-IDLE

RESET

RESE

T

RESET

RESE

T

OFF

ON

R

E

S

E

T

E

S

T

E

N

M

0

5

H

O

U

R

S

1

/1

0

E

F

FU

E

L

U

n

le

a

d

e

d

G

a

s

o

lin

e

O

n

ly

SAFETY

INFORM

AT

IO

N

17

8

15

10

12

11

13

11

12

16

14

15

16

9

14

15

1

2

14

3

4

6

5

7

9

14

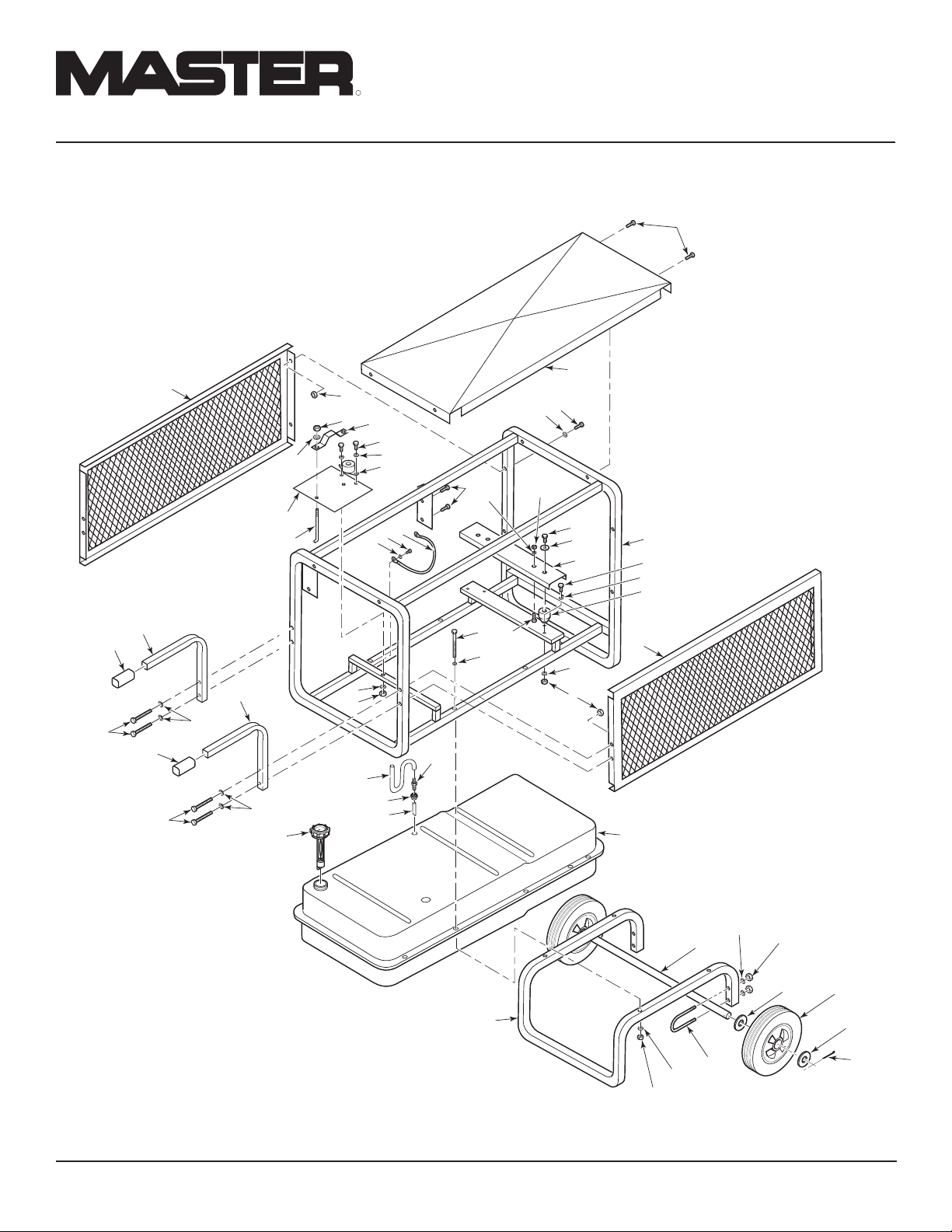

ILLUSTRATED PARTS LIST

For Model MGH8500AIE Fuel Tank and Roll Cage

18

117846

ILLUSTRATED PARTS LIST

For Model MGH8500AIE Fuel Tank and Roll Cage

This list contains replaceable parts used in your generator. When ordering parts, follow the instructions listed under

Parts

on page 25 of this manual.

Replacement

OWNER’S MANUAL

KEY NO.

1 25954002 Gas Cap/Fuel Gage 1 2 114720-01 Gas Tank (with 90° ﬁtting) 1 3 114787-01 Screw, 1/4"-28 x 3/4" 4 4 WP-4C Washer, 1/4" 4 5 19508001 Gas Line Clamp 2 6 25985008 Fuel Line 1 7 114714-03 Heat Shield 1 8 115398-01 Roll Cage 1 9 M10908-27 Screw #10-32 x 1/2" 8 10 116169-01 Spacer 1 11 * Bolt, 5/16"-18 x 1/2" 2 12 WLE-5 Lock Washer, 5/16" 2 13 103289-01 Shock Mount 1 14 NEC-5C Lock Nut, 5/16"-18 4 15 WP-5C Flat Washer, 5/16" 3 16 103289-02 Shock Mounts 2 17 114721-04 Control Panel Assembly 1

PART NUMBER DESCRIPTION QTY.

PARTS AVAILABLE - NOT SHOWN

100003-07 Operation Decal 1 099873-07 Battery Cable (Positive, Red) 1 099873-02 Battery Cable (Negative, Black) 1 * 5/16"-18 x 1/2" Grounding

Bolt 1 * 5/16" Flat Washer 1 * 5/16" SEMS Nut 1

117846

* Available at any hardware store.

19

PORTABLE GASOLINE GENERATORS

R

23

20

29

36

26

10

20

28

12

10

16

27

2

20

10

25

10

9

35

1

7

3

6

5

6

9

10

4

9

10

36

9

24

22

8

12

11

25

20

10

21

19

18

32

9

31

34

30

33

18

FUEL

F

17

10

9

15

14

13

ILLUSTRATED PARTS LIST

For Model MGH10000C Fuel Tank and Roll Cage

20

117846

OWNER’S MANUAL

ILLUSTRATED PARTS LIST

For Model MGH10000C Fuel Tank and Roll Cage

This list contains replaceable parts used in your generator. When ordering parts, follow the instructions listed under

Parts

on page 25 of this manual.

Replacement

KEY NO.

1 079503-25AA Gas Tank Assembly 1 2 105905-02 Roll Cage 1 3 105906-01 Axle Mount 1 4 102933-03 Axle 1 5 102932-02 Wheels, Pneumatic 2 6 WP-16C Flat Washer, 1" 4 7 C4-12C Cotter Pin 2 8 100135-01 U-Bolt 2 9 NEC-5C Lock Nut, 5/16-18 22 10 WP-5C Flat Washer, 5/16" 30 11 103880-01 Lock Nut,1/4-20 4 12 WP-4C Flat Washer, 1/4" 8 13 097190-06 Gas Cap w/Fuel Gage 1 14 M51151-02 Fuel Line 1 15 M10990-3 Bushing 1 16 106988-01 Barbed Connector, 1/4" 1 17 25985008 Fuel Line 1 18 105035-01 Handle 2 19 115045-01 Grip 2 20 HC5-14C Bolt, 5/16-18 x 1.75" 12 21 H8C5-20C Bolt, 5/16-18 x 2.5" 4 22 099750-01 Bolt, J-Hook 5/16-18 2 23 099749-01 Battery Bracket 1 24 105908-01 Battery Mount 1 25 17529000 Shock Mount 3 26 102962-02 Spreader 1 27 H5C4-24C Bolt, 1/4-20 x 3" 4 28 26302006 Bolt, 1/2-10 x 1" 2 29 WLI-8 Internal Tooth Lockwasher 2 30 14138000 Ground Strap 1 31 M10908-74 Tapping Screw, 1/4-20 x .5" 1 32 WLE-5 External Tooth Lockwasher 1 33 106775-02 Side Panel 1 34 106775-01 Side Panel 1 35 106776-01 Top Cover 1 36 100410-01 Sems Screw, 8-18 8

PART NUMBER

DESCRIPTION QTY.

117846

PARTS AVAILABLE - NOT SHOWN

099866-05 Safety Information Decal 1 100003-04 Operation Decal 1 099873-01 Battery Cable (Positive, Red) 1 099873-05 Battery Cable (Negative, Black) 1 HC4-6C Screw, 1/4-20 x .75" 2 115399-01 Mufﬂer 1 106108-01 Mufﬂer Hanger 1

21

PORTABLE GASOLINE GENERATORS

R

P5

P2

P1

P4

P3

120/240V

TWISTLOCK

120V

TWISTLOCK

120V GFCI

120V

HOUR METER

AUT

O-IDLE

RESET

OFF

ON

120/240V

TWISTLOCK

RESET

TEST

ENM

00000005

H O

U R

S

1/10

1

14

16

9

13

12

10

11

15

5

4

3

6

2

8

7

ILLUSTRATED PARTS LIST

For Model MGH8500AIE Control Panel

This list contains replaceable parts used in your generator. When ordering parts, follow the instructions listed under Replacement Parts on page 25 of this manual.

KEY NO.

PART NUMBER DESCRIPTION QTY.

1 114738-03 Control Panel 1 2 22616009 Circuit Breaker, 20 Amp * 2 3 099833-01 120V, 30A Twist-Lock Receptacle * 1 4 104202-01 120V, 20A Duplex Receptacle * 1 5 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1 6 099835-01

120/240V, 30A Twist-Lock Receptacle *

1 7 103184-01 Circuit Breaker, 45 Amp * 2 8 099834-01 9 101350-01 Hour Meter 1 10 099760-02 Bushing 1 11 114722-01 Enclosure 1 12 116475-01 Plastite Pan Head Screw 6 13 100366-01 Rocker Switch 1 14 116549-01 Auto-Idle Control Board 1 15 116678-01 Auto-Idle Wiring Harness 1 16 114785-01 Locking Circuit Board Supports 4 † 114721-04 Control Panel Assembly 1 ‡ 114963-03 Panel Schematic Decal 1

* Includes fastening hardware ‡ Not shown † Includes reference numbers 1 through 14

120/240V, 20A Twist-Lock Receptacle *

1

22

117846

Reset

120

Vo

lt

A

u

t o

Id

l e

2

0

V p

; t

S

e

l e

c

t o

r

O

ff

O

n

P 4

P

3

P 2

P 5

P 1

RESE

T

TES

T

E

N

M 0 0

0 0

0

0 5

HOURS

1/1

0

7

5

10

19

13

5

17

15

6

3

16

4

11

18

2

8

12

2

9

1

4

14

ILLUSTRATED

PARTS LIST

For Model MGH10000C

Control Panel

This list contains replaceable parts used in

your generator. When ordering parts, follow

the instructions listed under

Parts

on page 25 of this manual.

Replacement

OWNER’S MANUAL

KEY NO.

PART NUMBER

DESCRIPTION QTY.

1 103182-01 Control Panel 1 2 22616009 Circuit Breaker, 20 Amp 2 3 099833-01 120V, 30A Twist-Lock Receptacle 1 4 100410-01 Sems Screw, #8-18 x 1/2" 16 5 22261000 U-Nut 20 6 100445-01 20V, 15A Duplex (GFCI) Receptacle 1 7 103183-01 125/250V, 50A Receptacle 1 8 103184-01 Circuit Breaker, 45 Amp 2

117846

9 26299000 Run Light 1 10 101350-01 Hour Meter 1 11 099835-01 120/240V, 30A Twist-Lock Receptacle 1 12 22616010 Circuit Breaker, 30 Amp 2

23

13 099760-01 Bushing 1 14 103185-01 Control Box 1 15 100366-01 Rocker Switch 1 16 104202-01 120V, 20A Duplex Receptacle 1 17 116549-01 Auto-Idle Control Board 1 18 114785-01 Locking Circuit Board Supports 4 19 116678-01 Auto-Idle Wiring Harness 1 † 102927-02 Control Panel Assembly 1 ‡ 100177-08 Panel Schematic Diagram 1

† Includes reference numbers 1 through 16

‡ Not shown

PORTABLE GASOLINE GENERATORS

R

1

2

3

6

5

4

8

9

10

7

11

12

15

16

17

13

14

ILLUSTRATED

PARTS LIST

For Models MGH8500AIE

and MGH10000C Alternator

Assembly

This list contains replaceable parts used in

your generator. When ordering parts, follow

the instructions listed under

Parts on page 25 of this manual.

Replacement

KEY NO.

MGH8500AIE MGH10000C

PART NUMBER

DESCRIPTION QTY.

114285-03 114285-03 Alternator Assembly 1 1 115243-01 115243-01 Top Cover, Alternator 1 2 M10908-27 M10908-27 Screw, 10-32 x 1/2" 4 3 115244-01 115244-01 End Cover, Alternator 1 4 115247-01 115247-01 End Cap, Shaft 1 5 115246-01 115246-01 Flange Nut, 8mm 1 6 115245-02 115245-02 Draw Bolt, Alternator 1 7 * * Stator, Alternator 1 8 115255-02 115255-03 Capacitor 1 9 115308-01 115308-01 Hex Head Taptite, 8mm Screw 4 10 WLE-5 WLE-5 Lock Washer, 5/16" 4 11 115315-01 115315-01 Bearing 1 12 115316-01 115316-01 Diode 2 13 * * Rotor, Alternator 1 14 115317-01 115317-01 Fan 1 15 ** ** Bolt, 3/8"-16 x 5/8" 4 16 ** ** Lock Washer, 3/8" 4 17 115242-01 115242-01 Flange, Alternator 1

* Part not available by itself. Must purchase Alternator Assembly. ** Available at any hardware store.

24

117846

OWNER’S MANUAL

REPLACEMENT PARTS AND ACCESSORIES

For original replacement parts and accessories, contact your nearest Authorized Dealer or Authorized Service Center for this product. If they can not supply the part or accessory, contact your nearest Parts Central listed below. Each Authorized Dealer, Authorized Service Center, and Parts Central is independently owned and operated.

See pages 18 through 24 for an Illustrated Parts List.

If you need additional referral information, contact our Technical Service Department (see Technical Service, page 15).

In Canada call 1-800-561-3372 for parts information.

Heavy-Duty Wheel Kit – PA2022 (MGH8500AIE Only)

Wheelbarrow-style wheel kit. Makes generator easy for one person to move.

This kit includes:

• Large 12-inch wheels for easy rolling

• Powder coated tubing and plated hard ware for long life

• Long handles with thick grips for greater comfort and control

Complete installation instructions in cluded.

REPAIR SERVICE

Note: Only use original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

Each Authorized Service Center is indepen dently owned and operated.

For additional Service Center or warranty information, call 1-800-858-8501 or visit our Technical Service web site at

desatech.com.

WARRANTY SERVICE

If product requires warranty service, return it to nearest Authorized Service Center. You must show proof of purchase. If faulty materials or workmanship caused damage, we will repair or replace product without charge. Note: Normal wear, misuse, abuse, neglect, or accidental damage is not covered under warranty.

NON-WARRANTY SERVICE

If product requires service, return it to nearest Authorized Service Center. Repairs will be billed to you at regular repair list prices.

PARTS CENTRALS

These Parts Centrals are privately owned

businesses. They have agreed to support

our customer’s needs by providing original replacement parts and accessories.

Tool & Equipment

-

5 Manila Drive Hamden, CT 06514-0322 203-248-7553 1-800-397-7553

Grainger Parts Operations

1657 Shermer Road Northbrook, IL 60062-5362 708-498-5900 1-800-323-0620 www.grainger.com

Portable Heater Parts

342 North County Road 400 East Valparaiso, IN 46383-9704 219-462-7441 1-800-362-6951 www.portableheaterparts.com sales@portableheaterparts.com techservice@portableheaterparts.com

www.

FBD

1349 Adams Street Bowling Green, KY 42103-3414 270-846-1199 1-800-654-8534 franktalk@aol.com

-

Master Part Distributors

1251 Mound Avenue NW Grand Rapids, MI 49504-2672 616-791-0505 1-800-446-1446 www.masterparts.net

Bowden Electric Motor Service

1681 S. Wesleyan Blvd. Rocky Mount, NC 27803 252-446-4203

East Coast Energy

10 East Route 36 West Long Branch, NJ 07764-1501 1-800-755-8809

Laportes

2444 N 5th Street Hartsville, SC 29550-7704 843-332-0191

MTA Distributors

555 Hickory Hills Blvd. Nashville, TN 37189-9244 615-299-8777 1-800-264-0225

Industrial Hardware

4109 Bainbridge Blvd. Chesapeake, VA 23324-1403 804-543-2232 1-800-788-0008 catatem@erols.com

Mills Lawn and Garden

928 Commonwealth Place Virginia Beach, VA 23464 757-361-9293 www.mills-parts.com

Tuco Industrial Products

5223 180th Street SW Suite 4A-1 Lynnwood, WA 98037-4506 425-743-9533 1-800-735-1268 www.tucoheat.com

117846

25

PORTABLE GASOLINE GENERATORS

R

NOTES

________________________________________________________________________________________________

26

117846

OWNER’S MANUAL

NOTES

________________________________________________________________________________________________

117846

27

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these speciﬁcations at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

FIVE-YEAR LIMITED WARRANTY

GASOLINE PORTABLE GENERATORS

DESA Specialty Products™ makes no warranty with respect to the engine and engine components not of its manufacture. They are subject to warranties of their manufacturers. Honda warrants the engine. See engine owner’s manual for engine warranty information.

DESA Specialty Products™ warrants each generator, excluding engine, of its manufacture, to be free from defects in material and workmanship for ﬁve years from the date of ﬁrst purchase from an authorized dealer, provided that the product has been properly installed, maintained, and operated in accordance with all applicable instructions. The bill of sale or proof of purchase must be presented at the time a claim is made under this warranty.

This warranty is extended only to the original retail purchaser. This warranty covers only the parts and labor required to restore this unit to its proper operating condition. Warranty parts must be obtained through factory authorized dealers and service centers for this product. These dealers and service centers will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, abuse, negligence, accident, lack of proper maintenance, alteration, modiﬁcation, tampering, contaminated fuels, repair using improper parts, or repair by anyone other than an authorized dealer or service center. Routine maintenance is the responsibility of the owner. Travel, handling, transportation, and incidental costs associated with warranty repairs are not reimbursable under this warranty and are the responsibility of the owner.

To the full extent allowed by the law of the jurisdiction that governs the sale of the product, this express warranty excludes any and all other expressed warranties and limits the duration of any and all implied warranties, including warranties of merchantability and ﬁtness for a particular purpose to five years from the date of ﬁrst purchase, and DESA Specialty Products’™ liability is hereby limited to the purchase price of the product and DESA Specialty Products™ shall not be liable for any other damages whatsoever including indirect, incidental, or consequential damages.

Some states do not allow limitation of how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation of damages may not apply to you.

This warranty provides the original purchaser with speciﬁc rights. For information regarding those rights, please con sult the applicable state laws.

-

Bowling Green, KY 42102-9004

www.desatech.com

117846-01

REV. B

11/05

Master Lock MGH8500AIE, MGH10000C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
