Master Lock ATS 211 User Manual

The Chamberlain Group, Inc. A DUCHOSSOIS ENTERPRISE

845 Larch Avenue, Elmhurst, Illinois 60126

As of date of manufacture, meets all ANSI/UL 325 Safety Standards and requirements for residential and commercial applications.

OWNER'S MANUAL

MODEL ATS 211

COMMERCIAL DOOR OPENER

For Residential and Light Duty Commercial Use

Install on Sectional Doors Only

L O

W H I

L

G

O

H



O H I

DOWN

G

FORCE

H



UP

Includes Lift-Master

FORCE

"Protector System"

Please read this manual and the enclosed safety materials carefully!

Fasten the manual near the garage door after installation.

Periodic checks and adjustment of the opener are required to ensure safe operation.

The model number label is located on the operator cover.

CONTENTS PAGE

A review of safety alert symbols..............................2

You'll need tools ......................................................3

Illustration of door installation .................................4

Opener carton inventory..........................................5

Hardware inventory .................................................5

Assembly Section – Pages 6 - 7

Fasten the rail to the opener..................................6

Attach the chain to the sprocket............................6

Install the rail support bracket................................6

Tighten the chain...................................................7

Installation Section – Pages 8 - 20

Installation instruction warnings.............................7

Determine the header bracket location..................8

Install the header bracket......................................9

Attach the rail to the header bracket....................10

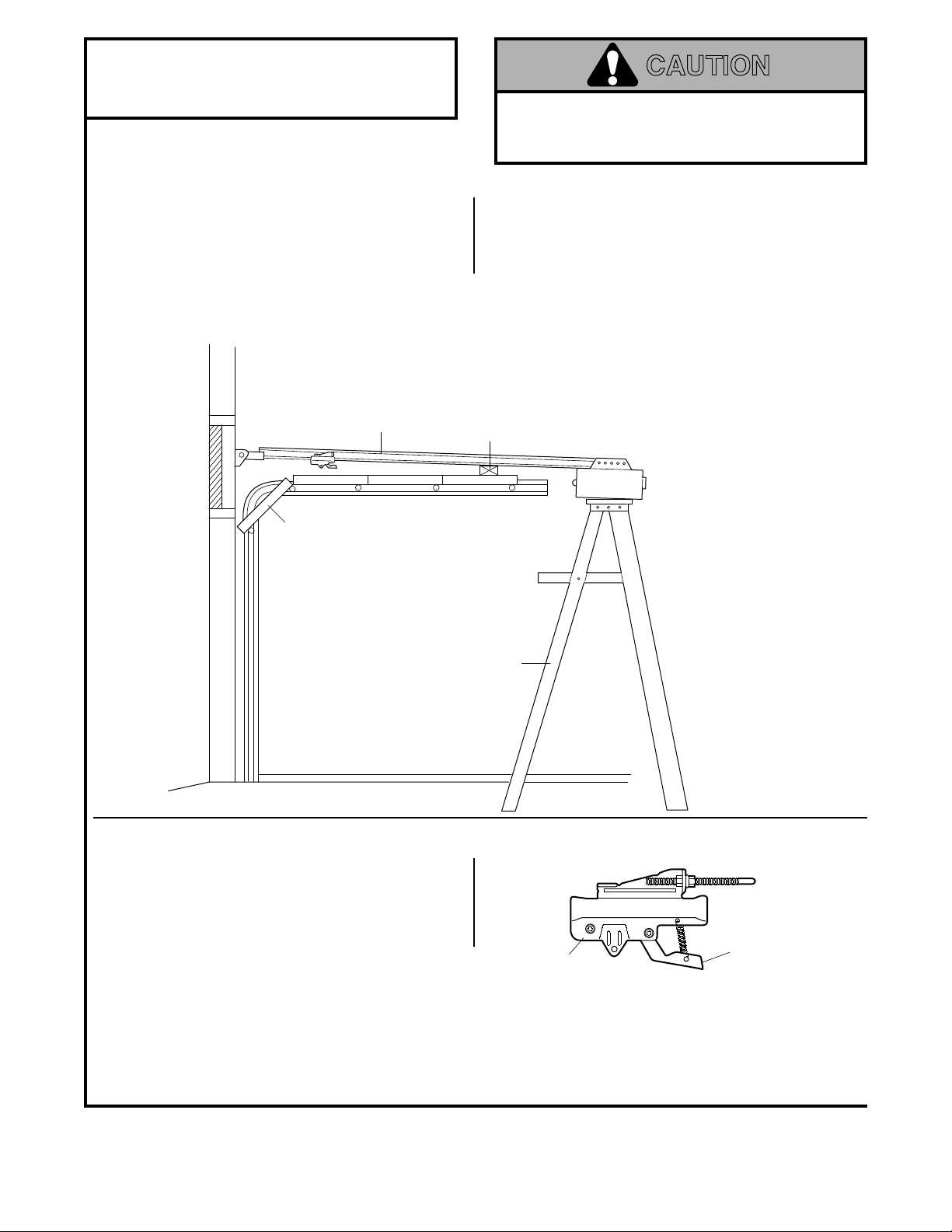

Position the opener..............................................11

Hang the opener..................................................12

Install the door control.........................................13

Install the light......................................................14

Attach manual release handle.............................14

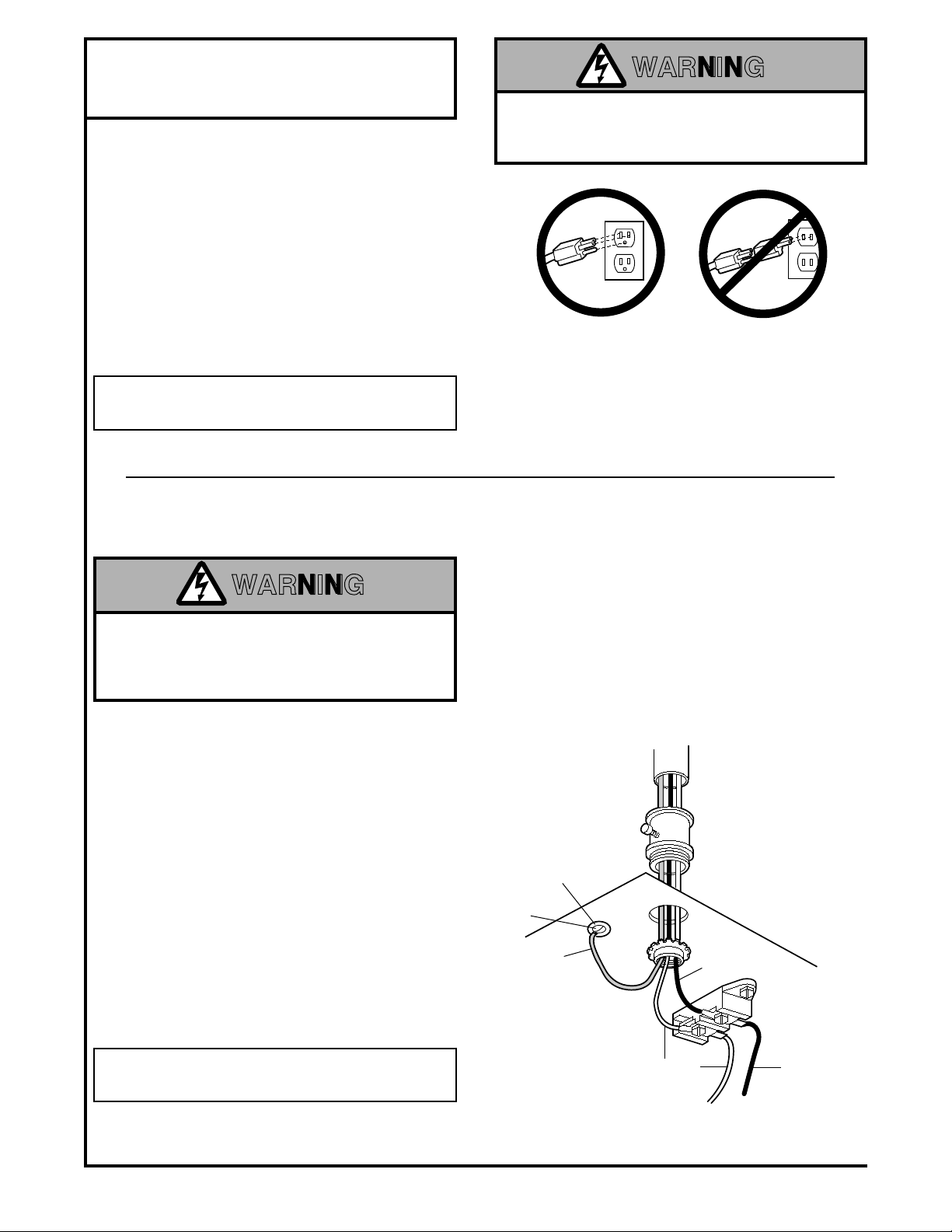

Electrical requirements ........................................15

CONTENTS PAGE

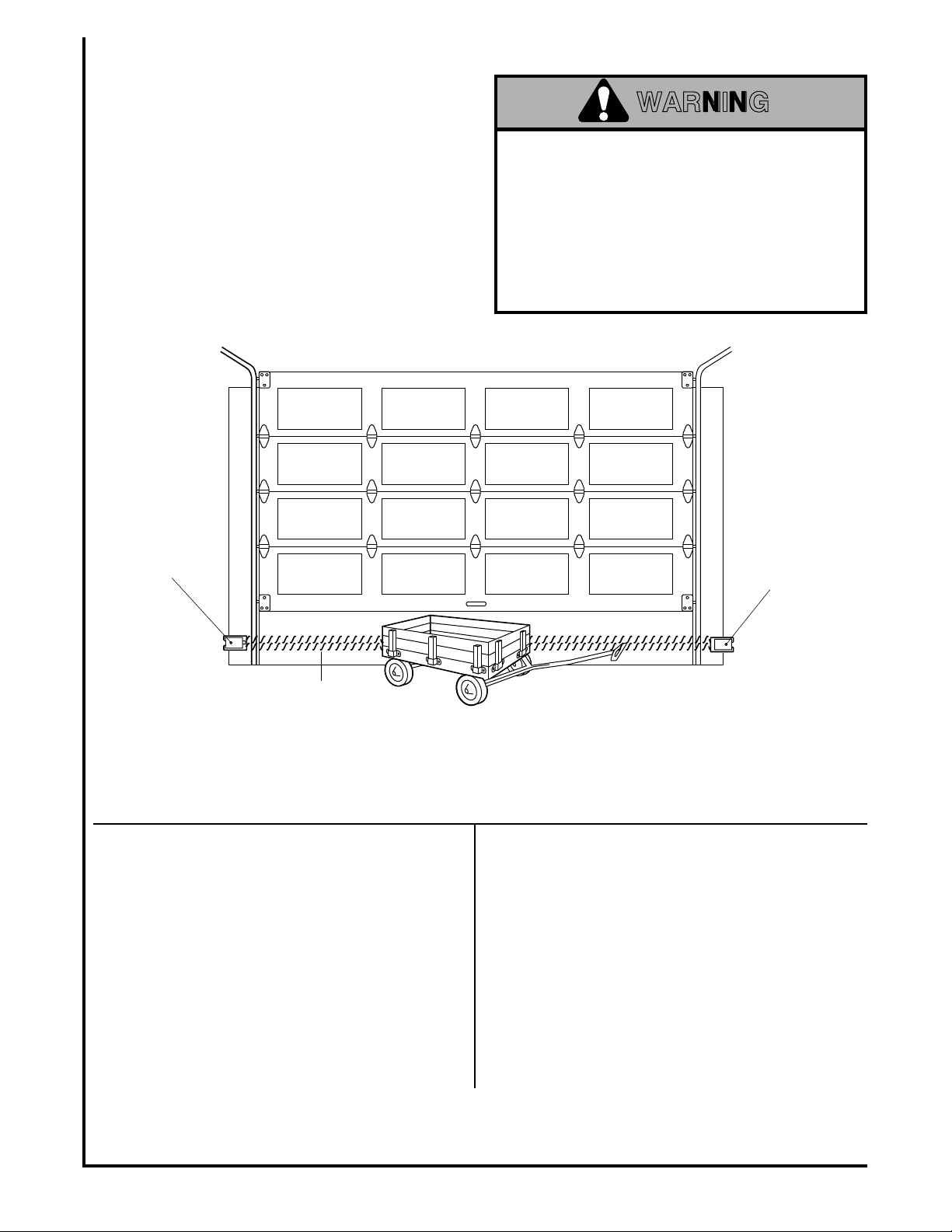

Safety reversing sensor information ....................16

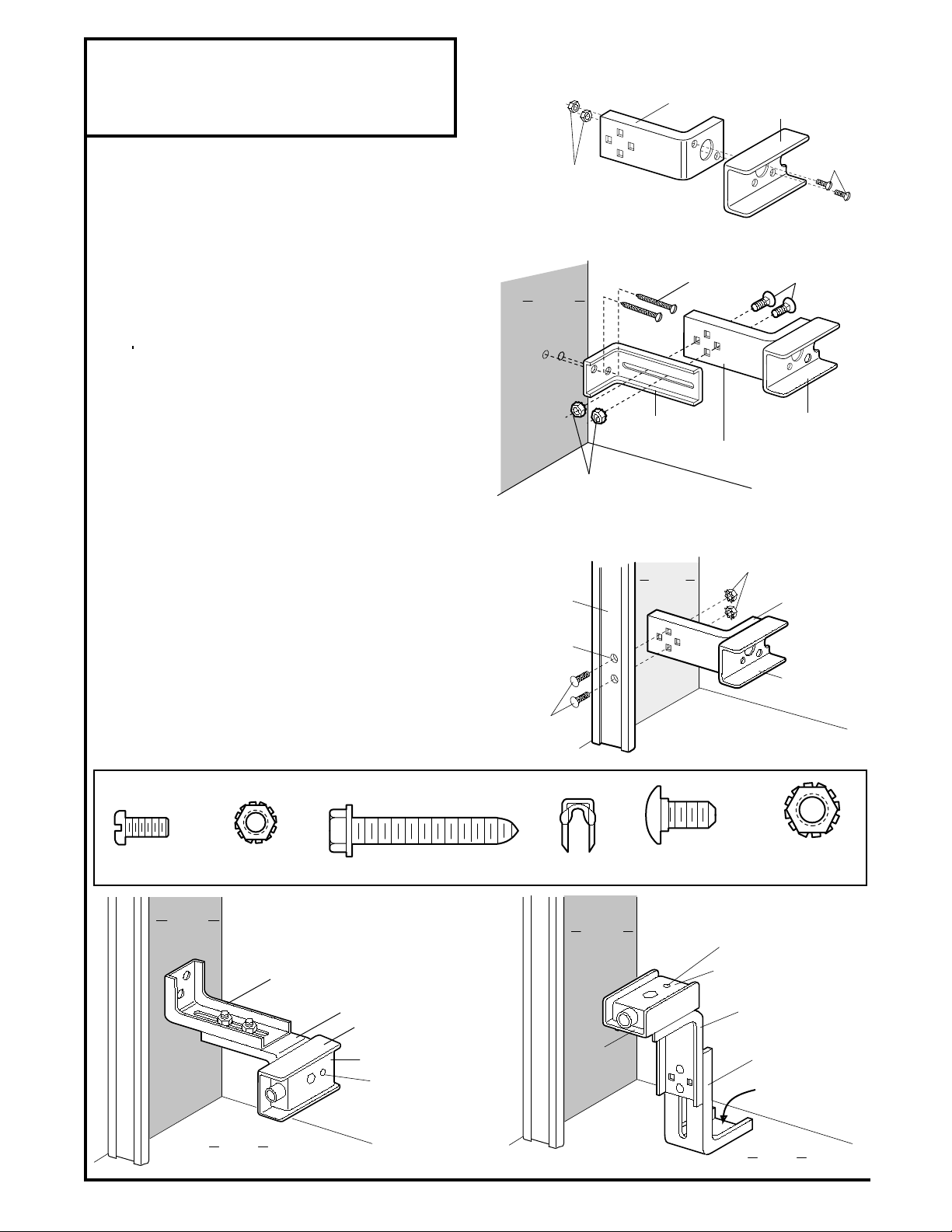

Install the safety reversing sensor ..................17,18

Fasten the door bracket and plate ......................19

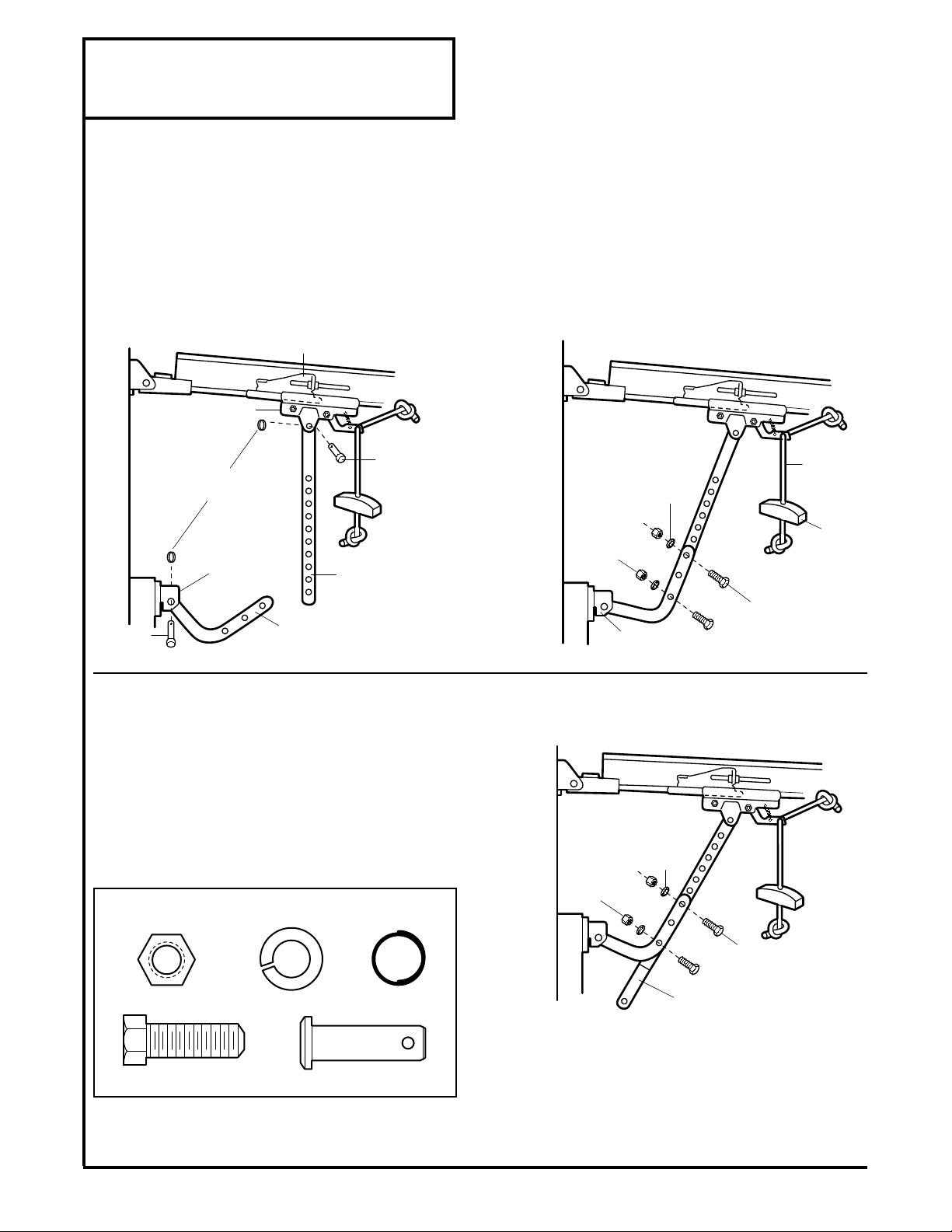

Connect the door arm to the trolley......................20

Adjustment Section – Pages 21 - 23

Travel limit adjustments.......................................21

Force adjustments ...............................................22

Test the safety reversing sensor..........................23

Test the safety reverse system............................23

Operation safety instructions .................................24

Care of your opener...............................................24

Maintenance schedule...........................................24

Operation of your opener.......................................25

Having a problem?............................................26,27

Repair parts, rail assembly ....................................28

Repair parts, installation ........................................28

Repair parts, opener assembly..............................29

Accessories............................................................30

Index......................................................................31

How to order repair parts.......................................32

Warranty ................................................................32

Start by reviewing these important safety alert symbols

When you see these safety symbols on the following pages, they will alert you to the possibility of

serious injuries or death

come from something mechanical or from electric shock.

WARNING

if you do not comply with the corresponding instructions. The hazard may

Read the instructions carefully.

WARNING

Mechanical Electrical

When you see this safety symbol on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the corresponding instructions.

Read the instructions carefully.

CAUTION

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the safety instructions contained in this manual.

You'll Need Tools

During assembly , installation and adjustment of the opener, instructions will call for hand tools shown below.

Carpenter's

Level

Drill

Stepladder

1/2" and 7/16" Sockets

and Wrench

Tape Measure

3/16", 5/16" and 

WARNING

Ropes left on a garage door could cause someone to become entangled and killed.

Remove all ropes connected to the door before installing and operating the opener.

WARNING

5/32" Drill Bits

Pencil

Hack Saw

Wire Cutters

Claw Hammer

Pliers

Screwdriver

Adjustable End Wrench

CAUTION

To avoid damage to the garage door and opener, disable locks before installing and operating the opener. Use a wood screw or nail to hold locks in the "open" (unlocked) position.

Operation at other than 120V 60 Hz will cause opener malfunction and damage.

This product is for use on sectional garage doors only.

Serious personal injury could result from the use of this product on onepiece garage doors.

Before you begin, complete the following test to make sure your door is balanced and is not sticking or binding. Identify the type and height of your door, any special conditions that exist, and any additional materials that may be required by referring to the lists on page 4.

• Lift the door about halfway as shown. Release the door. It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding or sticking.

An unbalanced garage door might not reverse when required and someone under the door could be seriously injured or killed.

If your garage door binds, sticks or is out of balance, call for professional garage door service.

Garage doors, door springs, cables, pulleys, brackets and their hardware, are under extreme tension and can cause serious injury or death.

Do not try to loosen, move or adjust them

yourself!

Before you begin, survey your garage area. Do any of the following conditions apply to you?

FINISHED CEILING

Support bracket &

fastening hardware

is required.

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 19 for details.

Header Wall

— — — — — — — —

Slack in chain tension

is normal when

garage door is closed.

Extension Spring

Torsion Spring

See page 12.

Door Center

Floor must be level

across width of door

Safety Reversing Sensor

Based on your particular requirements, there are several installation steps which might call for materials and/or hardware not included in the carton.

• Step 1, page 8 - Look at the wall or ceiling above the garage door. The header bracket

must

securely fastened to structural supports.

• Step 5, page 12 - Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware may be required.

• Safety reversing sensor, page 16 - Depending upon garage construction, wood blocks may need to be fastened to mounting locations before sensors are installed.

• Step 10, page 17 - Alternate floor mounting of the safety reversing sensor will require hardware not provided.

• Step 11, page 19 - Do you have a steel, aluminum, fiberglass or glass panel door? If so, horizontal and vertical reinforcement is required.

• Look at the garage door where it meets the floor. It must close on the floor all the way across. Otherwise, the safety reverse system may not work properly. See page 23. Floor or door should be repaired.

• If your door is more than 7 feet high, see longer rails available on page 30.

Access Door

Safety

Reversing

Sensor

Closed Position

Chain Pulley

Header Bracket

Header

Wall

Garage

Door

Bracket

Chain

Garage

Door

Spring

Door Bracket

Trolley

Straight

Door

Arm

Curved

Door Arm

Rail

Manual

Release

Rope & Handle

• The opener can be installed within 2 feet to the left or right of the door center if there is a torsion spring or center bearing plate in the way of the header bracket or door bracket area. If your door has extension springs, the opener

must

be installed in the center of

the door. See pages 8 and 19.

Do you have an access door in addition to the garage door? If not, Model 1702 Outside Quick Release is required. See page 30.

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Opener Carton Inventory

Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and installation is listed below.

CEILING MOUNT ONLY

Header Bracket with

Mounting Hardware

(Rail Support Bracket)

"C" Wrap (2)

Lighted Door

Control Button

Rail Support

Bracket

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

Door Bracket Plate

Door Bracket

Chain

Clevis Pin and Fastener

Styrofoam

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

Safety Reversing Sensor (2)

(1) Sending Eye - (1) Receiving Eye

Straight

Door Arm

Trolley

Chain

Pulley Bracket

Assembly Hardware

5/16"-18x1/2" Washered Screw, (2)

(Mounted in Opener) 1/4"-20x5/8" Hex Screw (2) 1/4"-20x5/8" Lock Washer (2) #8-32x3/8" Screw (1) 5/16"-18x1/2" Washered Screw (2)

Rail

Safety Labels

and

Literature

Hardware Inventory

Installation Hardware

Hex Screw 5/16"-18x7/8" (4) Nut 5/16"-18 (6) Lock Washer 5/16" (6) Rail Grease Lag Screw 5/16"-18x1-7/8" (4) Screw 6ABx1-1/2" (2) Handle Ring Fastener (3) Carriage Bolt 5/16"-18x2-1/2" (2) Insulated Staples (10) Dry Wall Anchors (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1" (2) Rope

Curved Door Arm

2 -Conductor Bell Wire

White & White/Red

2 -Conductor Bell Wire

with Connector (2 rolls)

White & White/Black

Hardware for Safety Reversing Sensor

Lag Screw 1/4x1-1/2" (4) Carriage Bolt 1/4"-20x1/2" (4) Lock Nut 1/4"-20 (4) Wing Nut (2) Hex Screw 1/4-20x1-1/2" (2) Screw #10-32x3/8" (4) Lock Nut #10x32 (4) Insulated Staples (20)

Assembly Section: Pages 6 – 7

Assembly Step 1

Attach the Rail to the Opener

• Place the opener on packing material to protect

the cover.

• Remove the (2) 5/16"-18x1/2" washered screws

mounted in the top of the opener.

• Align rail at an angle with opener so one hole in

rail and opener line up.

• Thread one of the washered screws part way in.

Use only these screws!

will cause serious damage to door opener.

• Cut tape from rail, chain and styrofoam.

• REMOVE STYROFOAM.

Use of any other screws

WARNING

Use only those screws mounted in the top of the opener. Any other screws will cause serious damage to the opener.



USE ONLY THIS

TYPE AND SIZE 

SCREW

Rail

Chain

Washered Screw

5/16"-18x1/2"

Rail

Hole

Opener

Styrofoam

Packaging



Assembly Step 2

Attach the Chain to the Sprocket & Install the Rail Support Bracket

• Guide the chain over chain spreader and opener

sprocket. If necessary, loosen the outer nut on the trolley to obtain more chain slack. Insert the second washered screw.

screw previously removed from opener.

• Tighten both screws securely through the rail into

the opener as shown.

Washered Screw

USE ONLY THIS

TYPE AND SIZE 

SCREW

CAUTION! Use only the

5/16"-18x1/2"

Chain

Spreader

Sprocket

Hardware Shown Actual Size

Hex Screw

1/4"-20x5/8" (2)

Washered Screw 5/16"-18x1/2" (4)

Lock Washer (2)

Screw

#8-32x3/8" (1)

• Position the rail support bracket on the opener.

• Attach the bracket to the rail with 1/4"-20x5/8" hex screws and lock washers.

• Attach the bracket to the opener by inserting a 5/16"-18x1/2" washered screw through a hole in each opener side flange and a matching hole in the bracket. Complete the connection by inserting the #8-32x3/8" screw through the opener back flange and the hole in rail support.

1/4"-20x5/8" Hex Screws

with Lock Washers

5/16"-18x1/2"

Washered Screw

#8-32x3/8"

Screw

5/16"-18x1/2"

Washered Screw

Chain

Opener

Rail Support

Bracket

Opener

Opener

Back Flange

Opener

Side Flange

Assembly Step 3

Tighten the Chain

Outer Nut

• Spin the inner nut and lock washer down the threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown. As you turn the nut, keep the chain

from twisting.

• When the chain is approximately 1/2" above the base of the rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is either too loose or too tight.

When installation is complete, you may notice some chain droop with the door closed. This is normal. If the chain returns to the position shown when the door is open,

do not re-adjust the chain.

To Tighten Outer Nut

Trolley

You have now finished assembling your garage door opener.

Lock

Washer

Inner Nut

To Tighten

Inner Nut

Chain

1/2"

Base of rail

IMPORTANT INSTALLATION INSTRUCTIONS

WARNING

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS

2. Install only on a properly balanced garage door.

severe injury or death.

by a qualified service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Repairs to cables, spring assemblies and other hardware must be made

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the manual release handle mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the control button and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

An improperly balanced door could result in

8. Upon completion of the installation, the door must reverse when it comes in contact with a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose clothing can be caught in the mechanism of the garage door or the opener.

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall

2x4 Structural

Supports

Installation Section: Pages 8 – 20

Installation Step 1

Determine Header Bracket Location

WARNING

If the header bracket is not rigidly fastened to a structural support on the header wall or ceiling, the safety reverse system may not work properly (see page 23).

not reverse when required, and could cause serious injury or death.

The garage door springs, cables, pulleys, brackets and their hardware are under extreme tension.

Do not attempt to loosen, move or adjust them yourself. Serious personal injury or death could result.

service.

• Close the door and mark the inside vertical centerline of the garage door.

• Extend the line onto the header wall above the door.

Remember, you can fasten the header bracket within 2 feet to the left or right of the door center a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (refer to page 9) when clearance is minimal.

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown here.

The door might

Call for garage door

only

• Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" above the high point. This height will provide travel clearance for the top edge of the door.

Proceed to Step 2, page 9.

Door

Ceiling

Header

Wall

Highest Point

of Travel

Track

Mounting Header Bracket to WALL

Installation Step 2

Install the Header Bracket

Fasten the Header Bracket to the Wall

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements.

• Center the bracket on the vertical guideline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

Vertical

Header

Wall

2x4

Structural

Support

Highest

Point of Travel

(of Garage Door)

CEILING MOUNT ONLY

Header Bracket

Center

Line

Garage

Vertical

Center Line

Door

5/16"x18x1-7/8"

Door

Spring

• Mark either set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

Wall

Mounting Holes

Lag Screws

CEILING MOUNT ONLY

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

Optional Wall

Mounting Holes

Hardware Shown Actual Size

Lag Screw

5/16"-18x1-7/8"

Fasten the Header Bracket to the Ceiling

• Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

Ceiling Mounting Holes

CEILING MOUNT ONLY

Finished

Ceiling

Vertical

Center Line

Header Bracket

6" Maximum

Door

Spring

Garage

Door

Lag Screws

5/16"x18x1-7/8"

Header

Wall

Vertical

Center Line

Installation Step 3

Attach the Rail to the Header Bracket

Header Wall

Header Bracket

Chain Pulley

Bracket

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

If the door spring is in the way you'll need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the chain pulley bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Ring Fastener

Rail

Header Bracket

Garage

Door

Hardware Shown Actual Size

Clevis Pin

5/16"x2-3/4 "

Chain Pulley

Bracket

Rail

Temporary

Support

Clevis Pin

5/16" x 2-3/4"

Ring Fastener

Installation Step 4

Position the Opener

CAUTION

To prevent damage to steel, aluminum, fiberglass or glass panel doors, do not rest the opener on the door without using a 2x4.

A 2x4 laid flat is convenient for setting an ideal door-to-rail distance.

• Raise the opener onto a stepladder.

Rail

Door

You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

2x4

• If the top panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect the inner and outer sections. The trolley can remain disconnected until Step 12 is completed.

Stepladder

Trolley

Release Arm

Trolley

Installation Step 5

Lag Screws

5/16"x1-7/8"

Bracket

(Not Supplied)

FINISHED CEILING

Hidden Support

(Not Supplied) 5/16"-18x7/8" Screw 5/16" Lock Washer 5/16"-18 Nut

5/16"-18x7/8" Screw 5/16" Lock Washer 5/16"-18 Nut

Hang the Opener

Two representative installations are shown. Yours may be different. Hanging brackets should

be angled, Figure 1, to provide rigid support. On finished ceilings, Figure 2, attach a sturdy metal bracket to structural supports in ceiling before installing the opener. The bracket and fastening hardware are not supplied.

• Measure the distance from to the structural support.

• Cut both pieces of the hanging bracket to required lengths.

• Drill 3/16" pilot holes in the structural supports.

• Attach one end of each bracket to a support with 5/16"x1-7/8" lag screws.

• Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex screws, lock washers and nuts.

• Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

• Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

each

side of the opener

WARNING

The opener could fall and injure someone if it is not properly secured.

securely to structural supports of the garage.

Figure 1

Measure Distance

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Fasten the opener

Structural

Supports

Lag Screws

5/16"x1-7/8"

RAIL GREASE

NO. 83A4

Grease the top and underside of the rail surface where the trolley slides. A tube of grease is supplied.

Hardware Shown Actual Size

Lag Screw

5/16"-18x1-7/8"

Hex Screw

5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

Figure 2

Installation Step 6

WARNING

Install the Door Control

• Strip 1/4" of insulation from one end of the bell wire; connect the wire to the two screw terminals on the back of the Door Control by color, white to 2, and white/red to 1.

• Locate the door control within sight of the door at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware. Fasten the Door Control Button securely with 6ABx1-1/2" screws. If installing into drywall, drill 5/32" holes and use the anchors provided.

• Run the bell wire up the wall and across the ceiling to the opener. Use insulated staples to secure the wire in several places. Be careful not to pierce the wire with a staple, thereby resulting in a short.

• Receiver terminal screws and the antenna are located on the back panel of the opener. Position the antenna wire as shown.

• Then connect the bell wire by color to the opener terminal screws: white to 2 and white/red to 1.

• Remember to affix the User Safety Instruction

label to the wall near the door control, and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

If the label adhesive will not adhere to your garage wall surface (or becomes loose with time), use tacks to secure the label alongside the door control. Page 25 explains how to operate the opener using the door control.

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could close and cause serious injury or death.

Install the Door Control (or any additional push buttons) out of the reach of children and away from all moving parts of the door and door hardware,

but where the garage door is visible.

Do not allow children to operate the push button(s) or the remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly adjusted, you can see it clearly, and there are no obstructions to door travel.

Do NOT connect the power and operate the opener at this time.

full

open

position but will not return to the

position until the sensor beam is

The trolley will travel to the

connected and properly aligned. See Safety Reversing Sensor Instructions

beginnning on page 16.

Outside Keylock Accessory Connections

To opener terminal screws:

white to 2 and white/red to 1

Hardware Shown Actual Size

WHT

-2

RED

-1

2-Conductor

Bell Wire

Lighted

Door Control

Terminal Screws

Lighted

Door Control

Button

2-Conductor

Bell Wire

Dry Wall Anchors

6ABx1-1/2" Screw

Lighted Door Control Button

Back Panel

of Opener

TO PROGRAM RECEIVER CODE FOR EACH REMOTE CONTROL

1. Press and HOLD remote control transmitter push button.

2. Press receiver code button. The opener light will flash once.

3. Release transmnitter button. Opener has learned code.

TO ERASE ALL RECEIVER CODES

1. Press and HOLD receiver code button. Green indicator light alongside will turn ON.

2. When light turns OFF (about 6 seconds) ALL codes are erased from opener memory.

Insulated Staples

Opener

Terminal

Screws

2 3

WARNING: To reduce the risk of severe injury

This device complies

or death by entrapment, when adjusting either

with FCC Rules Part

the force or limits of travel controls ensure that

15. Operation of this the door reverses on a 1 inch object (or a 2 x 4

device is subject to the

board laid flat). See instructions for proper

following conditions:

adjustment procedure.

1. This device may

AVERTISSEMENT: Pour réduire les risques de

not cause harmful

blessures mortelles par happement, après tout

interference. 2. This

réglage de la force de déclenchement ou des

device must accept

seuils de fin de course s'assurer que le sens de la course s'inverse lorsque la porte entre en

any interference

contact avec un object de 13 mm (1 po) de

that may be received,

hauteur (ou un madrier de 2 x 4 de section, à

including interference

plat) posé sur le sol. Effectuer les reglages

that may cause

selon les procédures décrites dans la notice.

undesired operation.

Sears Roebuck & Co. Sears Canada Inc., Toronto Assembled in Mexico - Assemblé du Mexique

PAT. #RE29,525; 4,750,201; 4,806,930 Other Patents Pending.

PART NO: Nº DE PIÈCE:

D.O.C. CERT. NO.

M.D.C. CERT. NO.

Antenna

DATE:

132C2105-1

Installation Step 7

Install the Light

• Install a 75 watt maximum light bulb in the socket. The light will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the light will turn OFF.

• If the bulb burns out prematurely due to vibration, replace with a "Garage Door Opener" bulb.

75 Watt Max.

Light Bulb

Opener

Installation Step 8

Attach the Manual Release Rope and Handle

Trolley

Rope

NOTICE

Overhand

Knot

Trolley

Release Arm

Manual

Release Handle

Overhand

Knot

WARNING

Do not use the red handle to pull the door open or closed.

untied and you could fall.

release only to disengage the trolley and, if possible, only when the door is closed.

If the door is open when the handle is pulled, the door could close inadvertently if it is not properly balanced.

• Thread one end of the rope through the hole in the

top of the red handle so "NOTICE" reads right side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above the floor. Secure with an overhand knot.

If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

The rope knot could become

Use the manual

Installation Step 9

Electrical Requirements

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will type outlet.

If the plug doesn't fit into the outlet you have, contact a qualified electrician to install the proper outlet.

only

fit into a grounding

WARNING

To prevent electrocution or fire,

and wiring must be in compliance with local electrical and building codes.

Right

installation

Wrong

To avoid installation difficulties,

do not run the opener at this time.

• Do not change the plug in any way.

• Do not use a 2-wire adapter.

• Do not use an extension cord.

If permanent wiring is required by your local code, refer to the following procedure:

WARNING

To prevent electrocution, remove power from the garage door opener you plan to use for the permanent connection.

To make a permanent connection through the 7/8" diameter hole in the top of the opener (according to local code):

• Remove the opener cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw.

grounded.

• Reinstall the cover.

and

from the circuit

The opener must be

Green

Ground

Screw

Ground Wire

Permanent wiring

connection

Ground Tab

Black

Wire

To avoid installation difficulties,

do not run the opener at this time.

White Wire

Black

Wire

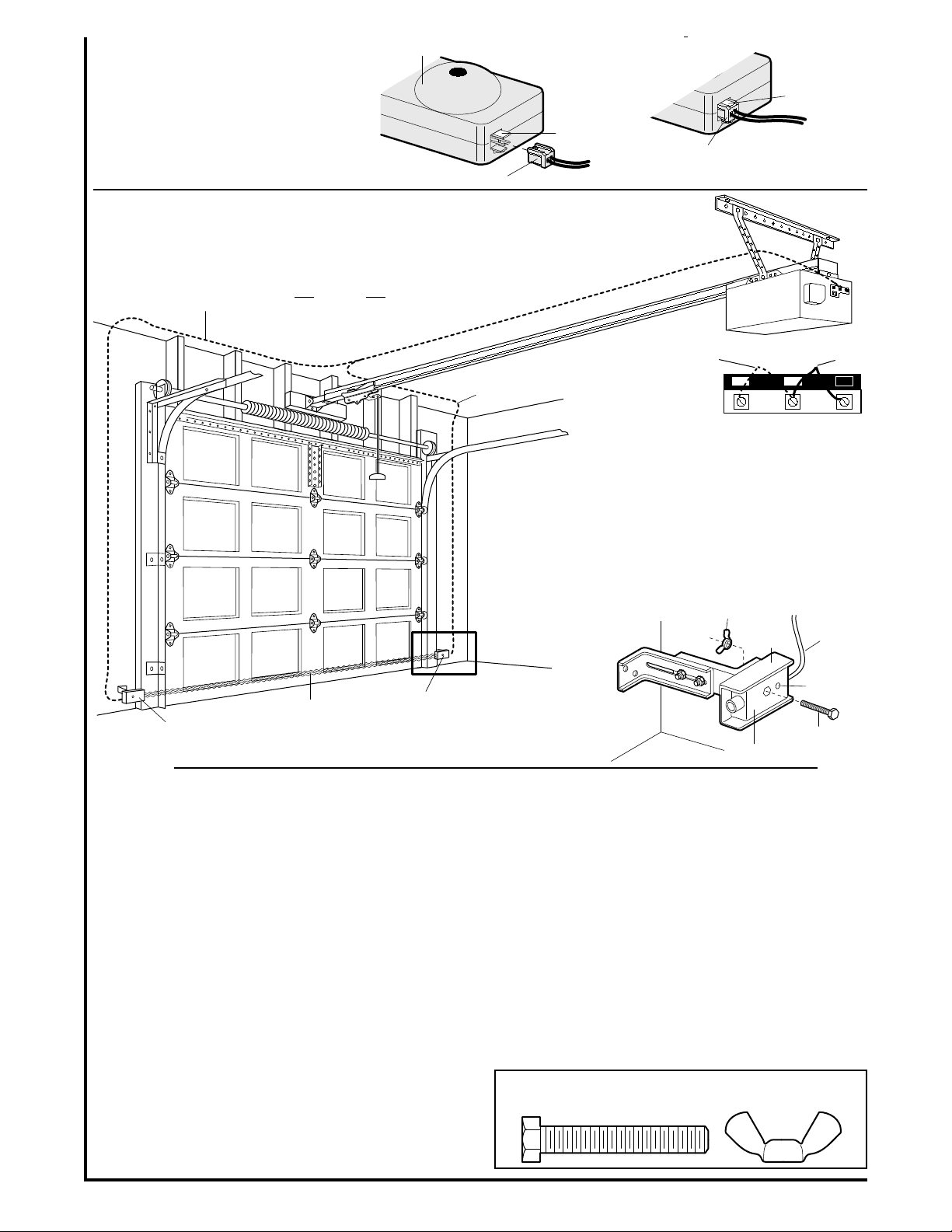

Information you'll need before you begin the installation of the safety reversing sensor.

The safety reversing sensor

must

be connected and aligned correctly before the garage door opener will move in the down direction. This is a required safety device and cannot be disabled.

— Left Side of Garage —

WARNING

Without a properly working safety reversing sensor, persons (particularly children) could be killed by a closing garage door.

follow all instructions. To protect small children, install the safety

reversing sensor so that the beam will be no higher than 4-6" above the garage floor.

Disconnect power to the garage door opener before installing the safety reversing sensor.

— Right Side of Garage —

Read and

Sensor

Unit

Invisible Light Beam

Protection Area

Figure 1:

Facing the door from inside the garage

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to the receiving eye. The units can be installed on either side of the garage door as long as the sun never shines directly into the receiving eye lens.

Look at the label on the connector end of each case to identify the sensors.

The brackets must be connected and fastened so that the sending and receiving eyes face each other as shown in Figure 1.

If an obstruction breaks the light beam while the garage door is closing, the door will stop and reverse to full open position and the opener lights will flash for 5 seconds.

Sensor

Unit

The brackets

must

be securely fastened to a solid surface such as the studs on either side of the door, or add a piece of wood at each location if installing in masonry construction.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) can interrupt the beam while the door is closing. If it does, use a piece of wood to build out each sensor mounting location to the minimum depth required for light beam clearance.

Installation Step 10

Install the Safety Reversing Sensor (Receiving and Sending Eyes)

Figures 2, 3 and 4 show recommended assembly of

wall

bracket(s) and "C" wrap based on the of the sensors on each side of the garage door as shown on page 16, or on the

garage door tracks

themselves. Figure 5 shows variations which may fit your

installation requirements better. Make sure the wraps

and brackets are aligned so the sensors will face each other across the garage door.

• Fasten the "C" wraps to the mounting brackets

having square holes, using the hardware shown in Figure 2.

WALL INSTALLATION ONLY

• Connect each assembly to a slotted bracket, using the hardware shown in Figure 3. Note alignment of

brackets for left and right sides of the door.

• Finger tighten the lock nuts.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on both sides of the garage door, 4"-6" above the floor (but not exceeding 6"). See Warning on page 16.

• Attach bracket assemblies with 1/4"x1-1/2" lag screws as shown in Figure 3.

• Adjust right and left side bracket assemblies to the same distance out from mounting surface. Make sure all door hardware obstructions are cleared. Tighten the nuts securely.

DOOR TRACK INSTALLATION ONLY

• Discard slotted bracket. Drill 3/8" holes in each track and fasten securely with hardware as shown in Figure 4. See Warning on page 16 regarding height of sensor beam.

installation

Figure 2

Garage WALL or DOOR TRACK Installation

Lock Nuts

Figure 3

Inside

Garage

Wall

Figure 4

Garage

Door Track

Drill 3/8"

Holes

1/4-20x1/2"

Carriage Bolts



Mounting Bracket

With Square Holes



#10-32

Garage WALL Installation

1/4x1-1/2"

Lag Screws

 

Mounting Bracket

with Slot

Mounting Bracket

with Square Holes

1/4"-20

Lock Nuts

1/4-20x1/2" Carriage Bolts

Garage DOOR Track Installation

Inside

Garage

Wall

1/4 " Lock Nuts

"C" Wrap

#10-32x3/8"

Screws

(with square shoulder)

"C" Wrap

Mounting Bracket

with Square Holes

"C" Shaped

Wrap

#10-32x3/8"

Screw

Inside

Garage

Wall

#10x32

Lock Nut



Alternate Wall Mount

Mounting

Bracket

with Slot

Mounting Bracket

with Square Holes

Garage

Floor

Hardware Shown Actual Size

1/4x1-1/2"

Lag Screw

Figure 5

"C" Wrap

Sensor

Indicator Light

Staples

"C" Wrap

Inside

Garage

Wall

1/4"-20x1/2"

Carriage Bolts



Alternate Floor Mount

Indicator Light

Sensor

Mounting Bracket

with Square Holes

Mounting

Bracket

with Slot

Attach with

concrete anchors

(not provided)

Garage

Floor

1/4"-20

Lock Nut



• Insert the wire connector into each

sensor and push until you hear a click (Figure 6). The white tab on the sensor should be flush with the back of the connector.

Safety Sensor

Wire Connector

Figure 6

Tab should be flush with back of connector

White Tab

Push connector in until you hear a click

Bell Wire

Finished

Ceiling

Figure 7

Bell Wire

Connect Wire to

Opener Terminals

Wall Control Connections

(dotted line)

OPENER TERMINAL SCREWS

Sensor

Connections

2 3

• Center each sensor unit in a "C" wrap with lenses

pointing toward each other across the door.

• Secure sensors with the hardware shown. Finger tighten the wing nut on the for final adjustment. Securely tighten the

eye

wing nut.

receiving eye

Wing Nut

"C" Wrap

to allow

sending

Wire

Sensor

Invisible Light Beam

Protection Area

• Run paired wires from both sensors to the opener. Use insulated staples to secure wire to wall and ceiling.

• Strip 1/4" of insulation from each set of wires. Separate white and white/black wires sufficiently to connect to the opener terminal screws: white to 2 and white/black to 3.

• Plug in the opener. Green indicator lights in both the sending and receiving eyes will

glow steadily

wiring connections and alignment are correct.

If the indicator light is

off

in the

receiving eye

(and the invisible light beam path is not obstructed), alignment is required.

• Loosen the receiving eye wing nut to allow slight

rotation of unit. Adjust sensor vertically and horizontally until the green indicator light

with a steady light

• When indicator lights are

glowing steadily

glows

in both

units, tighten the wing nut in the receiving eye unit.

Indicator Light

1/4-20x1-1/2"

Sensor

Hex Bolt

Trouble Shooting

1. If the

sending eye

steadily

indicator light does not

after installation, check for:

glow

• Electric power to the opener.

• A short in the white or white/black wires. These can occur under staples or at screw terminal connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2. If the sending eye indicator light

glows steadily

but

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

Hardware Shown Actual Size

1/4-20x1-1/2"

Hex Bolt



Wing Nut

Vertical

Guideline

Door

Bracket

Nut

5/16"-18

Carriage Bolt

5/16"-18x2-1/2"

Lock Washer

5/16"

Vertical

Guideline

Door

Bracket

Location

Header Bracket

Door

Bracket

Door Bracket

Plate

Inside Edge

of Door or

Reinforcement Board

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel, doors with glass panel, etc).

Vertical

Reinforcement

Installation Step 11

CAUTION

Fasten Door Bracket & Plate

To prevent damage to steel, aluminum, fiberglass or glass panel doors, always reinforce the inside of the door both vertically and horizontally with an angle iron.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a "U"-shaped support. The best solution is to check with your garage door manufacturer for an opener installation, door reinforcement kit.

Figure 1

• Center the door bracket on the previously marked vertical guideline used for the header bracket installation.

• Position the bracket on the face of the door within the following limits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes. Secure the bracket as shown in Figure 1 if there is vertical reinforcement.

If your installation doesn't require vertical reinforcement but does need top and bottom fastening holes for the door bracket, position the door plate over the door bracket as shown in Figure 2. Fasten securely with hardware shown in Figure 1.

Hardware Shown Actual Size

Nut 5/16"-18

Lockwasher 5/16"

Carriage Bolt

5/16"-18x2-1/2"

Figure 2

Installation Step 12

Connect Door Arm to Trolley

Make sure garage door is fully closed. Pull the manual release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2” as shown in Figures 1, 2 and 3.

Figure 1:

• Fasten straight door arm section to outer trolley

with a clevis pin. Secure the connection with a ring fastener.

• Fasten curved section to the door bracket in the same way as shown.

Inner Trolley

Outer Trolley

Clevis

Straight

Figure 1 Figure 2

Clevis Pin

Ring 

Fastener

Door

Bracket

Door Arm

Curved

Door Arm

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Door Bracket

Rope

Manual

Release

Handle

Hole Alignment Alternative

Figure 3:

• If holes in curved arm are

arm, disconnect straight arm. Cut about 6" from the solid end. Reconnect to trolley with

down

as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with screws, lock washers and nuts.

Hardware Shown Actual Size

Nut 5/16"-18

Hex Screw

5/16"-18x7/8"

Proceed to Adjustment Step 1, page 21. Trolley will re-engage automatically when the opener is operated.

above

Lockwasher 5/16"

holes in straight

cut end

Ring Fastener

Clevis Pin

5/16" x1"

Nuts

5/16"-18

Lock

Washers

5/16"

5/16"-18x7/8"

Cut This End

Screws

Figure 3

Adjustment Section: Pages 21 – 23

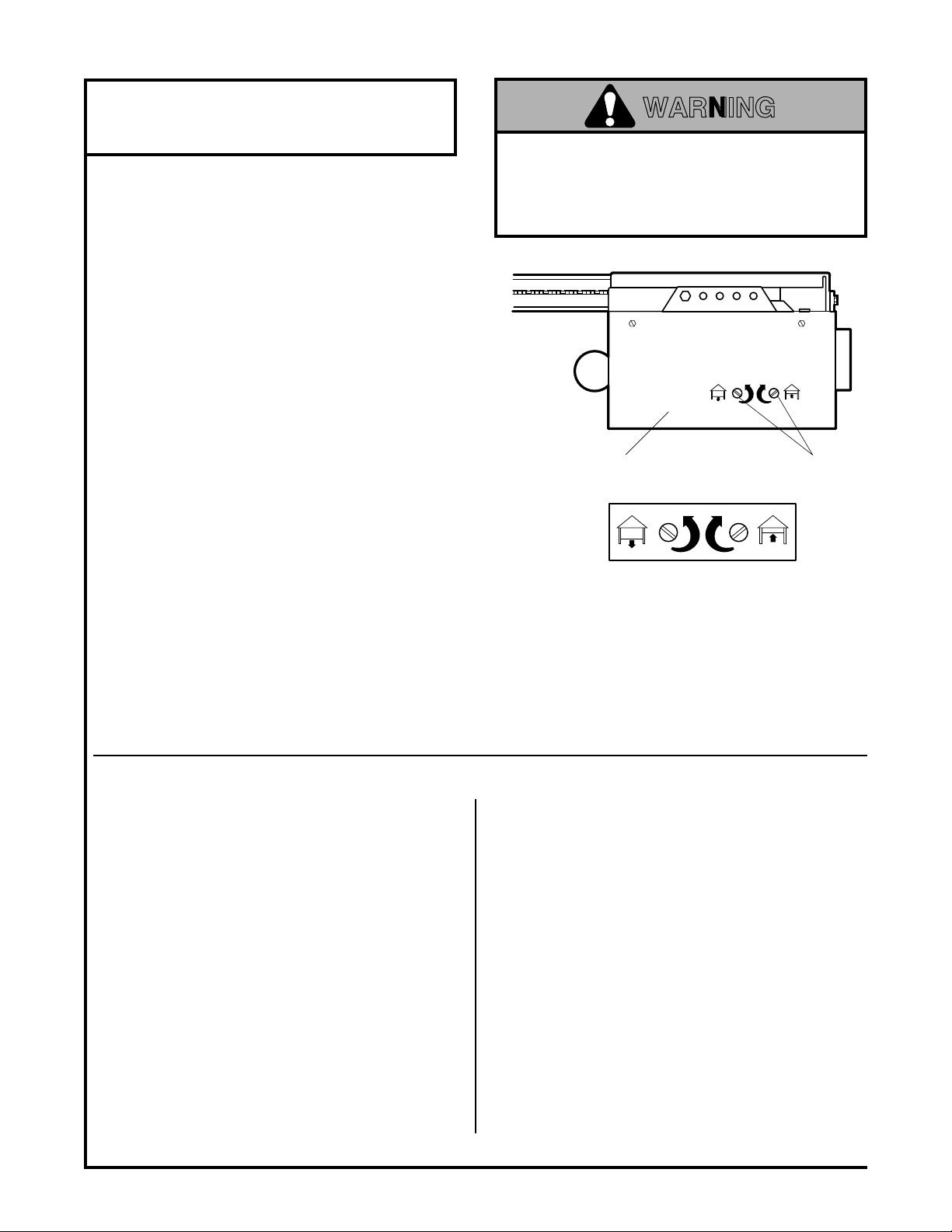

Adjustment Step 1

Adjust the UP and DOWN Limits

Limit adjustment settings regulate the points at which the door will

The door will interferes with door travel. The door will the

down

direction if anything interferes with the

door travel (including binding or unbalanced doors). To operate the opener, press the Door Control push

button. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary.

stop

when moving up or down.

in the

direction if anything

reverse

WARNING

Improper adjustment of the travel limits could interfere with the proper operation of the safety reverse system. See page 23.

might not reverse when required and could seriously injure or kill someone under it.

Left Side

Panel

The door

Limit

Adjustment

Screws

Adjustment Label

Adjustment procedures are outlined below. Run the opener through a complete travel cycle after each adjustment.

Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to Adjustment Step 2. Use a screwdriver to make limit adjustments.

When to Adjust the Limits

If the door does not but opens

Increase screw clockwise. One turn equals 2" of travel.

If door does not open at least 5 feet: Adjust the UP (open) force as explained in Adjustment Step 2.

If the door does not

Increase adjustment screw counterclockwise. One turn equals 2" of travel.

If door still won't close completely, try lengthening the door arm. (See page 20.)

If you have adjusted the door arm to the maximum length and the door still will not close completely, lower the header bracket. See Installation Steps 1 and 2, pages 8 and 9.

at least

travel. Turn the UP limit adjustment

down

open completely

five feet

close completely

travel. Turn the DOWN limit

If the opener

Decrease adjustment screw clockwise. One turn equals 2" of travel.

If the door there is no visible interference to travel cycle

If the opener lights are flashing, the Safety Reversing Sensor is obstructed. Remove the obstruction.

Test the door for binding: Pull the manual release handle. Manually open and close the door. If the door is binding, call for garage door service. If the door is not binding or unbalanced, adjust the DOWN (close) force. See Adjustment Step 2.

reverses

down

travel. Turn the DOWN limit

reverses

in fully closed position

when closing and

Adjustment Step 2

Adjust the Force

Force adjustment controls are located on the back panel of the opener. Force adjustment settings regulate the amount of power required to open and close the door.

The door will interferes with its travel. The door will

down

direction if anything interferes with its travel

(including binding or unbalanced doors). If the forces are set too light, door travel may be

interrupted by direction and conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is 260 degrees, about 3/4 of a complete turn. Do not force controls beyond that point. Turn force adjustment controls with a screwdriver.

stop

in the updirection if anything

nuisance reversals

stops

in the

direction. Weather

reverse

down

in the

WARNING

Too much force on the door will interfere with the proper operation of the safety reverse system. See page 23.

reverse properly when required and could seriously injure or kill someone under it.

not increase the force beyond what is required to close the door. Do not use the force adjustments to compensate for a binding or sticking garage door.

The door might not

Force Adjustment

Controls

TO PROGRAM RECEIVER CODE FOR EACH REMOTE CONTROL

1. Press and HOLD remote control transmitter push button.

2. Press receiver code button. The opener light will flash once.

3. Release transmnitter button. Opener has learned code.

TO ERASE ALL RECEIVER CODES

1. Press and HOLD receiver code button. Green indicator light alongside will turn ON.

2. When light turns OFF (about 6 seconds) ALL codes are erased from opener memory.

This device complies with FCC Rules Part

15. Operation of this device is subject to the following conditions:

1. This device may not cause harmful interference. 2. This device must accept any interference that may be received, including interference that may cause undesired operation.

Sears Roebuck & Co. Sears Canada Inc., Toronto Assembled in Mexico - Assemblé du Mexique

PAT. #RE29,525; 4,750,201; 4,806,930 Other Patents Pending.

WARNING: To reduce the risk of severe injury or death by entrapment, when adjusting either the force or limits of travel controls ensure that the door reverses on a 1 inch object (or a 2 x 4 board laid flat). See instructions for proper adjustment procedure.

AVERTISSEMENT: Pour réduire les risques de

blessures mortelles par happement, après tout réglage de la force de déclenchement ou des seuils de fin de course s'assurer que le sens de la course s'inverse lorsque la porte entre en contact avec un object de 13 mm (1 po) de hauteur (ou un madrier de 2 x 4 de section, à plat) posé sur le sol. Effectuer les reglages selon les procédures décrites dans la notice.

PART NO: Nº DE PIÈCE:

D.O.C. CERT. NO.

M.D.C. CERT. NO.

DATE:

132C2105-1

Adjustment Label

When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse. If the door is hard to hold or doesn't reverse, decrease the DOWN (close) force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn't stop, decrease UP (open) force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door stops easily. After each adjustment, run the opener through a complete travel cycle.

Back Panel of Opener

If the door doesn't open

at least

5 feet

Increase UP (Open) force by turning the control clockwise. Make 10 degree turn adjustments until door opens completely. Re-adjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

If the door

reverses

during the down (close) cycle

and the opener lights aren't flashing

Increase DOWN (close) force by turning the control clockwise. Make 10 degree turn adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle.

Adjustment Step 3

Test The Safety Reversing Sensor

• Press the Door Control push button to open the door.

• Place the opener carton in the path of the door.

• Press the Door Control push button to close the door.

The door will not move more than an inch,

and the opener light(s) will flash.

The garage door opener will not close from a remote control transmitter if the indicator light in either sensor is that the sensor is misaligned or obstructed).

The garage door can be closed by pressing and holding the Door Control push button until down travel is completed.

Professional service is required if the opener closes the door when the safety reversing sensor is obstructed.

off

(alerting you to the fact

WARNING

Without a properly working safety reversing sensor, persons (particularly children) could be seriously injured or killed by a closing garage door.

Safety Reversing Sensor

Repeat this test once a month.

Safety Reversing Sensor

Adjustment Step 4

Test the Safety Reverse System

Test:

• Place a 2x4 laid flat on the floor, centered under the garage door.

• Operate the door in the down direction. The door

must

reverse on striking the obstruction.

Adjustment:

If the door far enough in the down direction.

• Increase the DOWN limit by turning the DOWN limit adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

Make sure limit adjustments do not force the door arm beyond a straight up and down position. See the illustration on page 20.

• When the door reverses on the 2x4, remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated adjustment attempts, call for professional garage door service.

stops

on the obstruction, it is not traveling

WARNING

Failure to test and adjust the safety reverse system may result in serious injury or death from a closing garage door.

once a month and adjust as needed.

GARAGE DOOR

2x4 Laid Flat

Repeat this test

Important safety check

Repeat Adjustment Steps 1, 2 and 4 after:

• Each adjustment of door arm length, force controls or limit controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to play with the opener. Keep a remote control in a location inaccessible to children.

3. Operate opener only when the door is in full view and free from any obstruction. Keep the door in sight until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

4. Check safety reversal system monthly. See page 23. The garage door with a 2x4 board laid flat on the floor. If an adjustment is made to either the force or the limit of travel, both adjustments may be needed and the safety reversal system must be checked.

to properly adjust the opener may result in severe injury or death.

5. If possible, use the manual release only when the door is in a closed position. Caution should be taken whenever the disconnect cord is actuated with the door open.

cause the door to fall rapidly, causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY BALANCED. See page 3.

result in severe injury or death.

Repairs to cables, spring assemblies and other hardware must be

An improperly balanced door could

made by a qualified person.

7. Disconnect the electric power from the garage door opener before making any repairs or removing the covers.

8. SAVE THESE INSTRUCTIONS.

MUST

reverse on contact

Failure

Weak or broken springs may

Do not exceed 8 complete cycles of door operation per hour in commercial applications.

Care of Your Opener

Limit and Force Adjustment Control

Force ControlsLimit Controls

Adjustment Label

(Located on the left side panel)



Adjustment Label

(Located on the back panel)

Weather conditions may cause some minor changes in door operation requiring some readjustments, particularly during the first year of operation.

Pages 21 and 22 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (page 23) after any adjustment of limits or force.

Once a Month

• Manually operate door. If it is unbalanced or

binding, call for professional garage door service.

• Check to be sure door opens and closes fully.

Adjust limits and/or force if necessary. (See pages 21 and 22.)

• Repeat the safety reverse test. Make any necessary adjustments. (See page 23.)

Twice a Year

• Check chain tension. Adjust if necessary.

Once a Year

• Oil door rollers, bearings and hinges.

The opener does not require additional lubrication.

Do not grease the door tracks.

Maintenance Schedule

Operation of Your Opener

WARNING

Weak or broken springs could allow an open door to fall (either rapidly or unexpectedly), resulting in serious injury, death or property damage.

rope and handle closed.

If possible, use the manual release

only

when the door is fully

Activate the opener with any of the following devices:

1. The Door Control. Hold push button down until

the door starts to move.

2. A Remote Control Transmitter. Hold push button down until the door starts to move.

3. The Outside Keylock or Keyless Entry Accessories.

When the opener is activated:

1. If open, the door will close. If closed, the door will open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. With the safety reversing sensor installed and correctly aligned, the garage door will reverse in the closing cycle when the invisible beam is broken. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is not aligned correctly, the door won't close from a remote control transmitter. You can close the door with the Door Control, however, if you press and

hold

the push button until down travel is complete. If you release the push button too soon, the door will

The opener light will

blink for 5 seconds

reverse.

when the

safety reversing sensor is obstructed. The opener light will turn on under the following

conditions: When the opener is initially plugged in; when the power is interrupted and when the opener is activated. It will turn off automatically after 4-1/2 minutes. Bulb size is 75 watts maximum.

To open the door manually:

The door should be fully closed if possible. Pull down sharply on the red manual release handle and lift the door manually. To reconnect the door to the opener, press the Door Control push button.

Trolley

Release Arm

Trolley

Manual Release

Handle (Pull Down)

NOTICE

Manual disconnect position

The lockout feature prevents the trolley from

reconnecting automatically. Pull the manual release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary. To disengage the lockout feature, pull the manual release handle straight down. The trolley will reconnect on the next UP or DOWN operation.

Trolley

Release Arm

Trolley

Manual Release

Handle (Pull Down)

NOTICE

Lockout position

Having a Problem?

Situation Probable Cause & Solution

The opener doesn't operate from either the Door Control or a remote control:

Opener operates from a remote control, but not from Door Control:

A remote control has short range:

1. Have you disabled all door locks? Review installation instruction warnings on page 7.

2. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

3. Repeated operation may have tripped the overload protector in the motor. Wait 15 minutes. Try again.

4. Is there a build-up of ice or snow under the door? The door may be frozen to the ground. Remove any restriction.

5. Remove the bell wire from the opener terminal screws. Short the red and white terminals by touching both terminals at the same time with a piece of metal (screwdriver or coin). If the opener runs, check for a faulty wire connection at the door control or a short under the staples.

1. Are the wiring connections correct? Review Step 6, page 13.

1. Check the battery test light. If the light is dim, change the battery.

2. Change the location of the remote control in the car.

3. A metal door, foil-backed insulation or metal garage siding will reduce the transmission range.

4. Check to be sure the antenna on the back panel of opener extends fully downward.

Install Antenna Kit, Part No. 41A3504, to increase range.

Opener noise is disturbing in living quarters of home:

The garage door opens and closes by itself:

The door doesn't open completely:

The door doesn't close completely:

1. If operational noise is a problem because of proximity of the opener to the living quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to eliminate the "sounding board effect" and is easy to install.

1. Check to be sure that a remote control push button is not stuck in the "down" position.

2. Remove the bell wire from the Door Control terminals and operate from a remote control only. If this solves the problem, the Door Control is faulty (replace), or there is an intermittent short on the wire between the Door Control and the opener.

1. Is something obstructing the door?

2. If door opens at least 5 feet, the travel limits may need to be increased. One turn equals 2 inches of travel. See page 21.

Repeat the safety reverse test after the adjustment is complete.

3. If the door has been working properly but now doesn't open all the way, increase the

up force.

Repeat the safety reverse test after the adjustment is complete.

1. Is something obstructing the door?

2. Review travel limits adjustment procedures on page 21.

Repeat the safety reverse test after any adjustment of door arm length, close force or down limit.

See page 22.

Having a Problem?

Situation Probable Cause & Solution

(continued)

The door opens but won't close:

The door reverses for no apparent reason and opener light doesn't blink:

The door reverses for no apparent reason and opener light blinks for 5 seconds after reversing:

The opener light

1. Check the safety reversing sensor. If the sensor lights do not glow, see page 18.

1. Is something obstructing the door? Pull the red manual release handle. Operate the door manually. If it is unbalanced or binding, call a garage door serviceman to correct the problem.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review force adjustment procedures on page 22.

Repeat the safety reverse test after the adjustment is complete.

4. If door reverses in the

Repeat safety reverse test after the adjustment is complete. The need for occasional adjustment of the force and limit settings is normal. Weather conditions in particular can affect door travel.

1. Check the safety reversing sensor. Remove the obstruction or align the receiving

eye. See page 18.

. . . doesn't turn on:

1. Replace the light bulb (75 watts maximum). Use a "garage door opener bulb" if standard bulb burns out prematurely due to vibration. Vibration may be caused by loose end panel. Retighten the screws.

. . . doesn't turn off:

1. There may be a defective ground at the ceiling or wall receptacle. The unit must be grounded.

fully closed

position, decrease the travel limits (page 21).

The opener strains or maximum force is needed to operate door:

The opener motor hums briefly, then won't work:

The opener won't operate due to power failure:

1. The door may be out of balance or the springs are broken. Close the door and use the manual release rope and handle to disconnect the trolley. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely by its springs. If it does not, disconnect the opener and call a garage door serviceman to correct the problem.

operate the opener.

1. The garage door springs are broken. See above.

2. The trolley may be jammed into the stop bolts. Pull or push on the door while the motor is humming to release the jammed condition. Re-adjust the door limits (page

21) to prevent over-travel.

Repeat the safety reverse test after the adjustment is complete.

3. If the problem occurs on the first operation of the opener, door may be locked.

Disable the door lock

out of phase. Remove the chain; cycle the motor to the down position. Observe the drive sprocket. When it turns in a clockwise direction and stops in the down position, re-install the chain.

Repeat the safety reverse test after the adjustment is complete.

1. Use the manual release rope and handle to disconnect the trolley. The door can be opened and closed manually. When the power is restored, press the Door Control push button and trolley will automatically reconnect (unless trolley is in lockout position. See page 25.)

2. The Outside Quick Release accessory (for use on garages with no service door) disconnects the trolley from outside the garage in case of power failure.

. If the chain was removed and reinstalled, the motor may be

Do not increase the force to

The chain droops or sags:

1. It is normal for the chain to droop slightly in the closed door position. Use the manual release rope and handle to disconnect the trolley. If the chain returns to the normal height when the trolley is disengaged and the door reverses on a 2x4, no adjustments are needed (see page 7).

RAIL GREASE

NO. 83A4

Rail Assembly Parts

Repair Parts

KEY PART NO. NO. DESCRIPTION

1 1A995 Master link kit 2 41A2780 Chain pulley bracket 3 41A3489 Complete trolley assembly 4 CD1008 8 Foot Rail Assembly

CD1010 10 Foot Rail Assembly CD1012 12 Foot Rail Assembly

5 83A4 Rail grease

Installation Parts

NOTICE

KEY PART NO. NO. DESCRIPTION

1 41A4166 Door control push button 2 217A238 2-conductor bell wire, white & white/red 3 41A2828 Manual rope & handle assembly 4 12B374 Door bracket 5 12B380 Door bracket plate 6 41A4353 Header bracket w/clevis pin & fastener 7 41A4373 Safety sensor kit

8 41B4115 2-conductor wire with connector

9 178B34 Straight door arm section 10 178B35 Curved door arm section 11 12B483 C Wrap bracket

12 12B484 Square hole mounting bracket 13 12B485 Slotted mounting bracket

(receiving and sending eye only) (2 rolls) white & white/black

NOT SHOWN

41A3535 Installation hardware bag (includes

hardware listed on page 5).

41A4116 Safety sensor hardware 114A1648 Owner's manual

CEILING MOUNT ONLY

Opener Assembly Parts

Repair Parts

Grey

Wire

Yellow

Wire

(Down)

Contact

Brown

Wire

Drive Gear

Center Limit

Contact

KEY PART NO. NO. DESCRIPTION

1 41D4478 Rail support bracket assembly kit 2 144B18 Pulley (Chain) 3 41C4470 Gear and sprocket assy.

4 41A2817 Drive/worm gear kit w/grease 5 143D146 Front end panel

6 175B88M Light socket 7 30B432 Capacitor 8 12A461 Capacitor bracket 9 41A3150 Terminal block with screws

LIMIT SWITCH ASSY.

(Up)

Contact

Complete with:

Spring washer Thrust washer Retaining washer Bearing plate Roll pins (2) Drive gear and worm gear Helical gear w/retainer and grease Sprocket shaft plate with screws

Roll pins (2)

KEY PART NO. NO. DESCRIPTION

10 41D4509 Replacement motor & bracket

11 41A4475 Cover 12 41A2818 Helical gear & retainer w/grease 13 41D3452 Limit switch assembly 14 41C4398 RPM sensor assembly 15 41C4246 Wire harness assembly w/plug 16 41A2826 Shaft bearing kit 17 41A2822 Interruptor cup assembly 18 41A4252-7A Receiver logic board assembly

41A2825 Opener assembly hardware kit

assembly Complete with: Motor, worm, bracket, bearing assembly

Complete with: Logic board, end panel with all labels

NOT SHOWN

(includes screws not designated by a number in illustration).

Accessories Available for your Opener

Model 1702

Model 60

Model CD1008

Model CD1010

Outside Quick Release:

Required

for a garage with NO

access door.

Outside Keylock:

Opens the garage door automatically from outside when remote control is not handy.

8 foot Complete Rail and Chain Assembly:

To allow an 8 foot door to open fully.

10 foot Complete Rail: and Chain Assembly

To allow a 10 foot door to open fully.

Model 81LM "Smart" Remote Control:

Includes visor clip.

Model 61LM Single-Function Standard Size

Remote Control:

Includes visor clip.

Model 62LM 2-Channel Remote Control:

Includes visor clip.

Model 63LM

Multi-Function Standard Size Remote Control:

Includes visor clip.

Model CD1012

12 foot Complete Rail: and Chain Assembly

To allow a 12 foot door to open fully.

Model 66LM

Keyless Entry:

Enables homeowner to operate garage door opener from outside by entering code on specially designed keyboard.

Model 57LM Multi-Function Door

Control Panel:

LOCK

LIGHT

Provides a Lock Feature which prevents operation of garage door opener from portable remotes and a Light Feature for constant light.

Model 64LM

180C139

41A3504

Coaxial

Cable

Multi-Function Mini Remote Control:

With key ring & Velcro fastening strip.

NEMA 1 Push Button

Heavy Duty Door Control Push Button (one button).

Antenna Extender Kit:

If the metal environment in which the operator has been installed causes short radio control range, install Antenna Extender Kit, Part No. 41A3504.

Index

Access Door/Outside Quick Release Accessory................................................................................................4

Chain Tension....................................................................................................................................................4, 7

Electrical Safety Warnings........................................................................................................................2, 15, 24

Garage Door

Testing for balance, binding and sticking.......................................................................................3, 21, 22, 24, 27

Determining high point of travel:............................................................................................................................8

Disabling existing locks......................................................................................................................................3, 7

Force Controls

Adjustment procedures.....................................................................................................................................22

Problems that might require force adjustments..........................................................................................26, 27

Safety warnings..........................................................................................................................................22, 24

Door hardware.........................................................................................................................3, 4, 7, 8, 13, 24, 25

Maintenance Instruction Label.........................................................................................................................7, 13

Reinforcement requirements ...........................................................................................................................4, 19

Removing all ropes............................................................................................................................................3, 7

Possible door damage.........................................................................................................................3, 11, 19, 25

Travel Limits

Adjustment Procedures ....................................................................................................................................21

Problems that might require Limit adjustments...........................................................................................26, 27

Safety Warnings .........................................................................................................................................21, 24

Manual Release Rope & Handle

Lockout Feature..................................................................................................................................................25

Manual Disconnect.............................................................................................................................................25

Safety Warnings .................................................................................................................................7, 12, 24, 25

Opener Terminals

Door Control Connections ..................................................................................................................................13

Safety Reversing Sensor Connections...............................................................................................................18

Outside Keylock Accessory Connections...........................................................................................................13

Operational Noise

Sprocket noise......................................................................................................................................................7

Vibration noise (isolator kit) ................................................................................................................................26

Safety Reverse Test Procedure..........................................................................................................................23

Testing required............................................................................................................................7, 23, 24, 26, 27

Safety Reverse System Problems

Securing header bracket to wall .......................................................................................................................8, 9

Adjusting travel limits..........................................................................................................................................21

Applying excessive force on the door.................................................................................................................22

Buckling or uneven floor.....................................................................................................................................23

Safety Warnings.................................................................2, 6, 7, 8, 11, 12, 13, 14, 15, 16, 19, 21, 22, 23, 24, 25

User Instruction Label for garage wall ..........................................................................................................7, 13

HOW TO ORDER

LIFT-MASTER SERVICE

IS ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS

NEAR AS YOUR TELEPHONE SIX DAYS A WEEK.

SIMPLY DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

HOURS: 7:00 A.M. TO 3:30 P.M.

(Mountain Std. Time)

MONDAY through SATURDAY

For professional installation, parts and service,

contact your local LIFT-MASTER/ CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.

REPAIR PARTS

Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Parts and Service Department

2106 N. Forbes Boulevard

Tucson, Arizona 85745

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-9131

LIFT-MASTER GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY

The Chamberlain/Lift-Master warrants to the first retail purchaser of this product that it will be free from any defect in materials and/or workmanship for a period of twelve full months from the date of purchase. The product must be used in complete accordance with LiftMaster's instructions for installation, operation and care.

LIMITED WARRANTY ON MOTOR

Model ATS 211: The motor is warranteed to be free from any defect in materials and/or workmanship for a period of 12 full months

(1 year) from the date of purchase. This warranty does not cover non-defect damage, damage caused by unreasonable use (including abuse, failure to provide

reasonable and necessary maintenance, or any alterations to the product), labor charges for dismantling or reinstalling of a repaired or replaced unit or replacement batteries.

If, during the warranty period, the product appears as though it may be defective, CALL OUR TOLL FREE SERVICE NUMBER BEFORE DISMANTLING IT (1-800-528-9131). If the product is then alleged to be defective, please send it pre-paid and insured to our Service Center to obtain warranty repair. You will be advised of shipping instructions when you call the number listed above.

Please be sure to include a brief description of the problem and a dated proof-of-purchase receipt with any product that is returned for warranty repair.

Product under warranty, which upon receipt by Chamberlain/Lift-Master is determined to be defective in materials and/or workmanship, will be repaired or replaced (Chamberlain's option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory rebuild parts at Chamberlain's option.

THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. SOME STATES MAY NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

All claims for consequential or incidental damages for breach of this warranty are excluded and in no event shall manufacturer's liability for breach of warranty, negligence, strict liability or breach of contract exceed the cost of the product covered herein, but the purchaser is entitled to the remedies expressly provided in this policy. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

No representative or person is authorized to assume for us any other liability in connection with the sale of this product. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Master Lock ATS 211 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

OWNER'S MANUAL

CONTENTS PAGE

You'll Need Tools

Opener Carton Inventory

Hardware Inventory

Assembly Section: Pages 6 – 7

Attach the Rail to the Opener

Tighten the Chain

IMPORTANT INSTALLATION INSTRUCTIONS

Installation Section: Pages 8 – 20

Determine Header Bracket Location

Install the Header Bracket

Attach the Rail to the Header Bracket

Position the Opener

Hang the Opener

Install the Door Control

Install the Light

Electrical Requirements

Fasten Door Bracket & Plate

Connect Door Arm to Trolley

Adjustment Section: Pages 21 – 23

Adjust the UP and DOWN Limits

Adjust the Force

Test The Safety Reversing Sensor

Test the Safety Reverse System

IMPORTANT SAFETY INSTRUCTIONS

Care of Your Opener

Operation of Your Opener

Having a Problem?

Repair Parts

Installation Parts

Opener Assembly Parts

Accessories Available for your Opener

Index
