USER MANUAL
SERIES
THANK YOU FOR YOUR PURCHASE!
SERIES
1
INDEX
Unpacking & Inspection..................................................................Page 2
Production Dimensions....................................................................Page 3
Safety Information...........................................................................Page 4
Operation........................................................................................Page 5
Settings...........................................................................................Page 6
DMX Diagram..................................................................................Page 7
Warranty Information.......................................................................Page 8
UNPACKING & INSPECTION
SERIES
2
Upon receiving your Prodigy or Prodigy Plus, promptly open the package and carefully
remove contents to verify all components are accounted for and have been shipped and
handled with care. If any parts are damaged or missing, notify your Master FX dealer.
Packing list includes, but is not limited to:
• (1) Prodigy or Prodigy+ Unit
• (1) Neutrik PowerCon TRUE1 Power Cable
• (1) 4 Liter Container
• (1) Quick Connect Hose Set Up
• (1) Mounting Bracket (optional)
• (1) Wireless Remote (optional)
• (1) Wired Remote (optional)
DIMENSIONS & OVERVIEW
SERIES
3
Quick Connect Hose
Handle
Output Nozzle
Mounting Bracket
10 in
9⁄ in
Handle
19⁄ in
213⁄4 in
7in
93⁄4 in
DMX In/Out
Rocker Power Switch
Neutrik PowerCon
TRUE1
DMX (3 Pin) In/Out
DMX (5 pin) In/Out
Rocker Power Switch
Neutrik PowerCon
TRUE1
Remote
Control Input
15 Amp Breaker
Remote
Control Input
15 Amp Breaker
Quick Connect Hose
Output Nozzle
Mounting Bracket
SAFETY
SERIES
4
Please read the following information very carefully before operating your machine. This article
contains important details regarding set up, usage, and maintenance. Failure to abide by all warning
labels and instructions may result in personal harm, machine malfunction, and a void in warranty.
Persons with asthma or allergic sensitiviy may experience irritation, discomfort, or other allergic
symptoms when exposed to articially produced fog. Please allow sufcent air circulation
around machine at all times.
Prior to connecting power to your Prodigy, verify the machine’s operating voltage matches your
provided voltage, failure to do so may cause internal damage and a void in warranty.
Once unit is properly powered and operating, beware of hot surface. Do not set items on top of
the machine and avoid contact with output nozzle. Always disconnect power when not in use.
6in
Operate only in a well ventilated area and never leave unit unattended. Fog may set off re
alarms if not properly ventilated. Please allow at least 6 inches of space around unit to avoid
overheating.
Keep the unit dry and away from any moisture and ammables.
Only use Master FX Fog Fluids. Use of any other uids will result in a voided warranty. Always
use caution when pouring uid and avoid any contact with hands and eyes. If contact occurs
rinse thoroughly. If you experience irritation seek medical advice.
Refer to SDS for proper handling.
If machine is not working properly, promptly stop use and contact your Master FX dealer. Repair
and service is to be done only by authorized technicians. Failure to comply will result in a
voided warranty.
OPERATIONS
SERIES
5
1.) Place the Prodigy on a at surface with at least 6 inches of open space around machine to allow for
proper cooling. To avoid machine damage, remove 4 liter container before lling. Use Master FX uids
only (Visit MasterFX.com to explore various types of densities and hang times). Once full, return container
to machine and use quick connect to attach hose. Next, connect the Neutrik Powercon TRUE1 to proper
power supply. To determine suitable power requirements, please refer to the power ratings label on the
back of your machine.

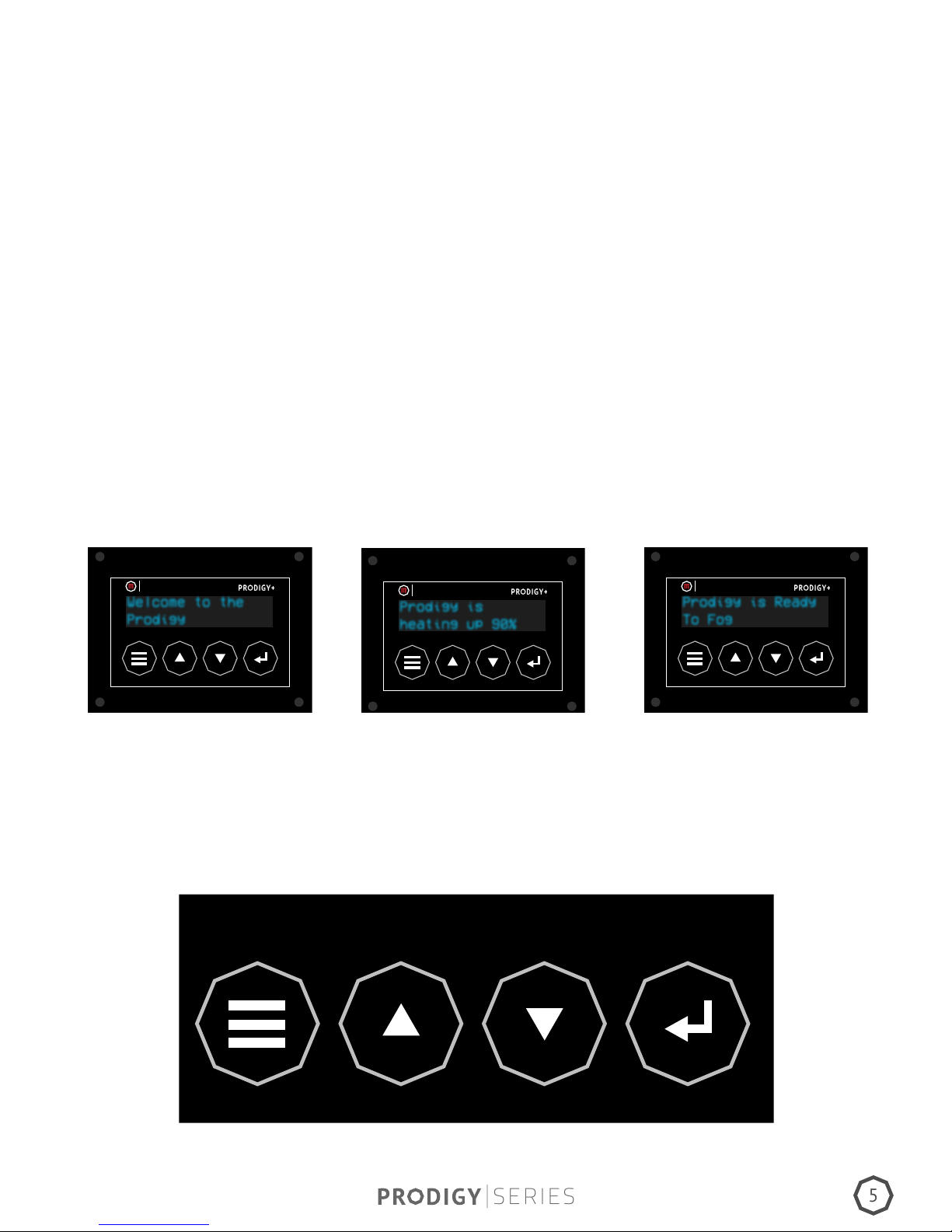

2.) Using the rocker switch, turn power to “on”. The OLED screen will read “Welcome to the Prodigy”
(A) and the heat up process will begin. Please allow 5-7 minutes for the machine to reach operating
temperature before proceeding, your progress will be available by percentage on control screen (B). When
the screen reads “Prodigy is Ready to Fog” (C), you are ready to begin.
A B C
MASTER FX
Welcome to the
Prodigy
TIMER
MASTER FX
Prodigy is
heating up 90%
TIMER
MASTER FX
Prodigy is Ready
To Fog
TIMER
3.) Before proceeding, it is important to understand what each button and setting does. Please see the
diagram below for button layout. To open settings, hit the menu button, scroll using the Up/Down arrows,
and save your setting by pressing enter.
MENU
UP DOWN
ENTER
TIMER
SERIES
6
MASTER FX
Waiting Time Set
360 Sec
TIMER
MASTER FX
Timer Fog Output
100 %
TIMER
MASTER FX
Fog Time Set
360 Sec
TIMER
SETTINGS
Waiting Time Set: The interval of time between each fog output while using timer
operation. Time allowed ranges between 1 - 360 seconds.
Timer Fog Output: The intensity of the fog output while using timer operation.
Percent allowed ranges between 1-100%.
Fogging Time Set: The duration of fog output while using timer operation.
Duration allowed ranges between 1-120 seconds.
MASTER FX
Run Previous
Setting On
TIMER
MASTER FX
Fog Output
100 %
TIMER
MASTER FX
Fog Output
Continuous Mode
TIMER
Run Previous Setting: The Prodigys are equipped with a memory that saves your
settings even after power down. To save your settings for next use, simply select
“on”.
Fog Output: The intensity of fog when under manual operation. To initiate and
end fog manually, simply press enter button to start and stop. While machine
is running, you may control the output. Fog will be on continuous output until
heating process is required again.
Continuous Mode: Constant fog output with no intervals. To achieve this, turn the
Fog Output to one notch above 100%.
SETTINGS / DMX DIAGRAM
SERIES
7
MASTER FX
Fluid Sensor Set
TIMER
MASTER FX
Uh Oh!
Empty FLuid Tank
TIMER
MASTER FX
DMX512
Address: 1
TIMER
Fluid Sensor Set: When active, the uid sensor stops operation and prompts a
On
message if your uid tank runs empty (A). To rid this message you must rell the
uid, then press and hold the enter button for 3 seconds (B) to enter purge mode
(C). When nished, you are ready for operation.
A B C
MASTER FX
Hold Enter
To Start Pump
TIMER
DMX512: The Prodigy Series is equipped with DMX operation and utilizes one
channel. Simply set the address for your external DMX controller to control fogger.
(see below for DMX pin layout)
MASTER FX
Purge Mode
TIMER
Ground
1 2
3
Data +
Data -
1
2
3
4
5
Unused
Unused
8
SERIES
WARRANTY TERMS
*Please Visit MasterFX.com/Warranty to Register your Prodigy or Prodigy +
Master FX reserves the right to alter the following terms and conditions if contingencies develop which were not
apparent at the time of sale.
The warranty is valid to the original purchaser only and covers all internal components and required labor for
the rst 3 years from date of purchase. Master FX and approved dealers will still perform repairs and regular
maintenance outside of the 3 year warranty at the owner’s expense. Timeline of repair is at the discresion of
Master FX and approved dealers. All repairs must have an RA (Return Authorization) number clearly noted on the
box prior to returning for service, any packages without an RA will not be accepted. To schedule repairs and receive
a RA, please email info@masterfx.com or call 877.578.6577. The customer is responsible for any shipping cost that
may incur.
Insignicant deviations of the regular production quality does not guarantee repair or replacement rights.
Moreover, the warranty does not cover faults or defects caused by misuse or negligence; e.g. improper ventilation,
dropping machine, exposure to moisture, etc. The use of any uids other than Master FX Fog Fluids is strictly
prohibited, failure to comply will void warranty. Moreover, tampering with the internals and modications will also
void warranty. All service is to be done by Master FX authorized technicians only. Master FX is not liable for repair
delays due to re, strikes, or causes beyond our control.
How to Get Service
To inquire about repairs, email info@masterfx.com or call 877.578.6577
