Master & Dynamic MW65 User Manual

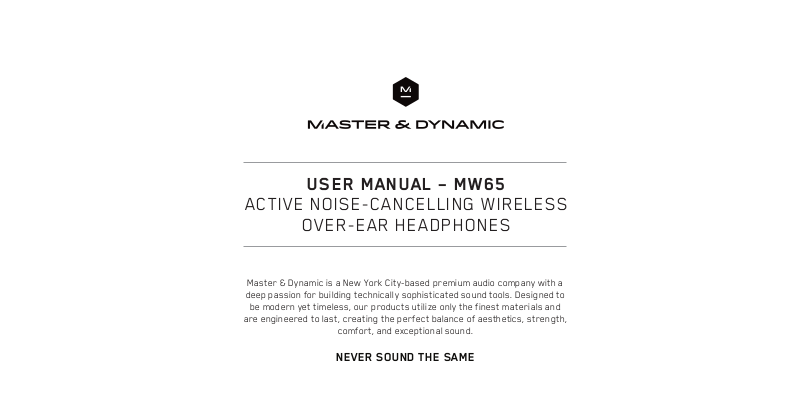

USER MANUAL – MW65

ACTIVE NOISE-CANCELLING WIRELESS

OVER-EAR HEADPHONES

Master & Dynamic is a New York City-based premium audio company with a

deep passion for building technically sophisticated sound tools. Designed to

be modern yet timeless, our products utilize only the finest materials and

are engineered to last, creating the perfect balance of aesthetics, strength,

comfort, and exceptional sound.

NEVER SOUND THE SAME

OVERVIEW

1. Premium Leather Headphone
Band with Lambskin Interior

2. Replaceable Memory Foam
Ear Pads with Lambskin Covering

3. Forged Aluminum Components

4. 3.5mm Passive Audio Input

1

5

2

3

9/10

7

8

6 4

5. Stainless Steel Adjustment Arm

SPECS

DIMENSIONS

165mm x 190mm x 66mm

WEIGHT
250g / 8.8oz

®

BLUETOOTH PROFILE

Bluetooth® 4.2 with AptX

®

6. USB-C Input

7. Active Noise-Cancelling Button

8. Dual Microphones

9. Get Help on-the-go from your

Google Assistant

10. Headphone Controls
(See Page 4 for Details)

IMPEDENCE

32 Ohms

DRIVERS
40mm Beryllium
High-Performance Drivers

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 2

ADJUSTABILITY, FIT AND COMFORT

• Rotates for comfort around neck

• Adjust to find optimal fit.

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 3

FUNCTIONS

Pairing Indicator

Bluetooth Pairing Switch

Vol +

LONG PRESS:

receive your

Google Assistant

notifications

Battery Level
Indicator

High

Med

Low

Power On

Power Off

Active Noise Canceling
(ANC) Button

PRESS to switch
between modes

Headphone Audio Input

Play/Pause

Answer/End Call

2X: Skip Forward

3X: Skip Back

LONG PRESS:

Google Assistant /

Voice Assistant

Vol -

LONG PRESS:

Stop Google

USB-C

Charging

Fully Charged

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 4

TURN ON

• Silde to ON position.

At startup battery status is displayed (LOW/MED/HIGH)

CHARGE

• To charge, plug in the USB-C Connector and connect to a

USB-C port (or USB-A port using the included adaptor)

PAIRING

Step 1

Hold in position for 2 or
more seconds, white light
will pulse when headphone
is in pairing mode. Release.

Pairing

Step 2

Access Bluetooth settings
on your source device.
Locate “M&D MW65 and
connect. A solid light
indicates you are connected.

Connected

• A solid orange light indicates charging and a solid

green light indicates a full charge when the USB cable
is connected.

Charging Fully Charged

NOTE: cannot listen
while charging

Pairing to 2 or More Devices

Enter pairing mode and connect to device 1. Enter pairing mode again
and device 1 will disconnect. Connect to device 2 and turn headphone off.
Turn headphone on and headphone will automatically connect to device
1 and 2 simultaneously. Pause one device and play from the other to
swap headphone connection.

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 5

PASSIVE AUDIO MODE

ACTIVE NOISE-CANCELING (ANC) MODES

• Plug 3.5mm audio plug into headphone audio input

to engage passive (wired) audio

• Headphones power off when audio cable is plugged in

• Audio will work even if battery is depleted

• Microphone is disabled during passive mode

1.25m Standard 3.5mm Cable

The MW65 features 2 Active Noise-Cancelling (ANC) modes for clear,
expansive sound in any environment.

High - Airplanes, City Streets etc.

Low - Lower noise or windy environment

Off - No noise-canceling needed

Press ANC Button to Switch between Modes

Get help on-the-go from your Google Assistant. Your MW65 is optimized
for the Google Assistant out of the box.

ANDROID DEVICE: You’ll get a notification to begin the setup process after
you connect your MW65 via Bluetooth.

iOS DEVICE: Make sure your MW65 is connected to your Bluetooth device.
Download and open the Google Assistant app, tap the icon, and follow
the on-screen instructions.

OTHER VOICE ASSISTANTS: To use your device’s native voice assistant,
turn on HANDS FREE MODE by holding the ANC + PLAY/PAUSE buttons for
5 seconds. Repeat to switch back to GOOGLE ASSISTANT MODE.

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 6

ACCESSORIES REPLACING EAR PADS

Airplane Adapter

USB Adapter

Headphone Pouch

• To remove ear pads: gently pull the earpads from the top. The snaps

USB-C Chargign Cable

1.25m Standard 3.5mm Cable

will release.

• To re-attach ear pads: hook the 2 catches into the slots at the bottom of

the earcup. Gently push the earpad against the earcup, ensuring all the
snaps are secured

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 7

MAINTENANCE + TROUBLESHOOTING

Clean ear pads and headphones with soft, slightly damp cloth. Do not soak,
submerge or allow moisture to enter near the drivers or cable jacks. Ear pads
and cables can be purchased if they are worn out at: www.masterdynamic.com

Do not drop, sit on, or allow the headphones to be exposed to water, moisture,
or temperature extremes.

It is recommended that you return your headphones to their storage case when not
in use. To avoid damage, do not store other items in the canvas case along with
your headphones. CAUTION: Incorrectly rotating or over-rotating the earcups can
damage the headphones.

Temperature Range: operate and store this product within the temperature range
of -4°F to 113°F (-20°C to 45°C) only. Charge the battery where the temperature is
between 41°F and 104°F (5°C and 40°C) only.

FACTORY RESET

Press the ACTIVE NOISE-CANCELLING (ANC) button + slide the BLUETOOTH

®

PAIRING
switch to position for 5 seconds. LED lights will flash red/white 4x. The
headphones will then be reset.

The headphones and device do not pair:

1. Make sure the headphones are not connected to the charger. Cycle power

switch off and on.

2. Turn the Bluetooth® off, then on again on the source device.

3. Turn off the Bluetooth® feature on any other device that is paired with

the headphones.

4. Slide switch to and hold until white light flashes.

5. Make sure “M&D MW65" is selected in the Bluetooth

®

device list

No audio or poor audio quality from a connected Bluetooth® device:

Move the device closer to the headphones, physical objects between the
headphone and the source may obstruct the signal.
Try another music application or try another track.
Try a different audio device.

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 8

PREVENTION OF NOISE-INDUCED HEARING LOSS

NIHL is a preventable condition caused by both one-time and extended exposure to
excessive decibel (dB) levels. This harm to sensitive inner ear structures is
irreversible and people of all ages can be affected. Damage can happen in a single
event or gradually over time. One-time exposure to sounds louder than 110
decibels and extended exposure to sounds over 85 decibels can cause harm.
Indicators of NIHL include hearing loss and tinnitus, a condition of sensing
constant ringing, buzzing or roaring. The NIDCD (National Institute on Deafness
and Other Communication Disorders) offers this simple rule of thumb: avoid sound
exposure that is “too loud, too close or too long.” Here are some general
references to sound levels that occur in everyday life: refrigerator humming (45
dB); normal conversation (60 dB); city traffic (85 dB); motorcycles (95 dB); an MP3
player at full volume (105 dB); sirens (120 dB); firecrackers (150 dB).

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 9

WARRANTY + CUSTOMER SERVICE

Master & Dynamic guarantees this product against defects in materials or
workmanship for a period of two years from the date of original purchase on our
website or from an authorized Master & Dynamic retailer or reseller. As an
exception to this warranty period, batteries are guaranteed for proper
functioning without performance deterioration, for a period of one year from the
date of original purchase. If returned within the warranty period, Master &
Dynamic will at its discretion either repair the defective product or replace it with
a repaired or refurbished product of identical specifications as the returned
product. This limited warranty is in lieu of all other warranties, expressed or
implied, including, but not limited to, any implied warranty of merchantability or
fitness for a particular purpose. Master & Dynamic shall have no liability of any
kind for any direct, indirect, incidental or consequential damages or expenses that
arise from the use of this product. Master & Dynamic’s warranty does not cover
normal wear and tear, blown drivers, cut cords, bent jacks, torn headbands, loss
or theft. Parts subject to wear and tear such as ear pads and cables, will be
replaced only in case of malfunctioning due to material or manufacturing defects,
and only once during the warranty period of your product. You will void your
warranty if you disassemble your headphones or expose them to excessive
moisture. If you believe your product is defective within the warranty period,
please contact us at [e-mail]. Please include your product’s
serial number, proof of purchase, telephone number and full return shipping
address in your message to us. Conditional to serial number, proof of purchase,
and warranty validity, you will be issued a return authorization and instructions
for return shipment. Please note that the dispatch of a replacement product will
only take place after our receipt of the defective product.

For questions regarding your product’s warranty, please contact
Master & Dynamic Support at [e-mail].

MW65 Active Noise-Cancelling Wireless Over-Ear HeaphonesUSER MANUAL 10
