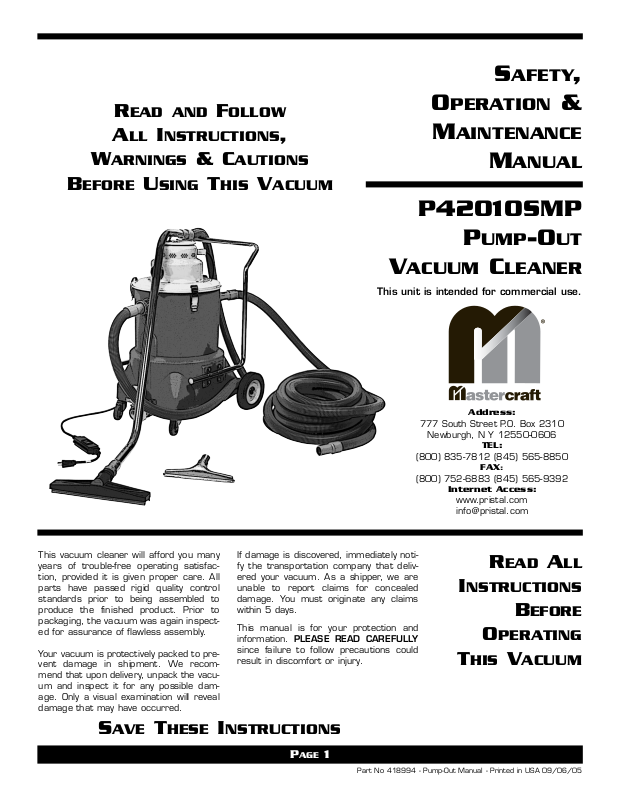

Page 1
READ AND FOLLOW
ALL INSTRUCTIONS,
ARNINGS & CAUTIONS
W
BEFORE USING THIS VACUUM
SAFETY,
PERATION &
O
AINTENANCE
M
MANUAL
P42010SMP
UMP-OUT
P
VACUUM CLEANER
This unit is intended for commercial use.
This vacuum cleaner will afford you many
years of trouble-free operating satisfaction, provided it is given proper care. All
parts have passed rigid quality control
standards prior to being assembled to
produce the finished product. Prior to
packaging, the vacuum was again inspected for assurance of flawless assembly.
Your vacuum is protectively packed to prevent damage in shipment. We recommend that upon delivery, unpack the vacuum and inspect it for any possible damage. Only a visual examination will reveal
damage that may have occurred.
If damage is discovered, immediately notify the transportation company that delivered your vacuum. As a shipper, we are
unable to report claims for concealed
damage. You must originate any claims
within 5 days.
This manual is for your protection and
information. PLEASE READ CAREFULLY
since failure to follow precautions could
result in discomfort or injury.
Address:
777 South Street P.O. Box 2310
Newburgh, N Y 12550-0606
TEL:
(800) 835-7812 (845) 565-8850
FAX:
(800) 752-6883 (845) 565-9392
Internet Access:
www.pristal.com
info@pristal.com
READ ALL
INSTRUCTIONS
BEFORE
OPERATING
THIS VACUUM
SAVE THESE INSTRUCTIONS
PAGE 1
Part No 418994 - Pump-Out Manual - Printed in USA 09/06/05
Page 2
IMPORTANT
ARNING:
W
SAFETY
INSTRUCTIONS
To Reduce the Risk of Fire, Electric Shock or Injury:
Wet Vacuums
To avoid electric shock DO NOT expose to rain.
Store Indoors
When using this electric vacuum, basic precautions should always be followed,
including the following:
1. DO NOT leave the vacuum when
plugged in. Unplug it from the outlet when
not in use and before servicing.
2. This is NOT a toy. Close attention is
necessary when used around or near children.
3. Use only as described in this safety
manual. Use only the manufacturer’s recommended attachments and accessories.
4. DO NOT use this vacuum with damaged cord or plug. If the vacuum is not
working as it should, because it has been
dropped, damaged, left outdoors or
dropped into water, contact an authorized
service center or factory.
5. DO NOT pull the vacuum by the cord,
use cord as a handle, close a door on the
cord or pull cord around sharp edges and
corners. DO NOT run vacuum over the
cord. Keep cord away from heated surfaces.
6 DO NOT unplug the vacuum by pulling
on the cord. To unplug, grasp the plug,
not the cord.
7. DO NOT handle the vacuum plug or
vacuum with wet hands.
8. DO NOT put any objects into openings.
DO NOT use with any openings blocked;
keep free of dust, lint, hair, and anything
that may reduce air flow.
10. DO NOT pick up anything that is
smoking or burning such as cigarettes,
matches, or hot ashes.
11. DO NOT use without wet adaptor.
12. Turn OFF all the controls before
unplugging.
13. Use extra care when cleaning on
stairs.
14. DO NOT use this vacuum to pick up
flammable or combustible liquids such as
gasoline or use in areas where they may
be present.
15. DO NOT use where anesthetics or
oxygen are used.
16. Replace damaged or worn parts
immediately with genuine original equipment parts to maintain safety and to protect your limited warranty.
17. DO NOT use an extension cord unless
absolutely necessary. If an extension cord
is used, then wire size must be #14
gauge or larger and should not exceed 50
feet in length. The extension cord must be
three-wire type to insure GROUNDING
protection.
This vacuum must be connected to a
properly grounded outlet only. See grounding instructions (Page 3).
9. Keep hair, loose clothing, fingers, and
all parts of body away from openings and
moving parts.
SAVE THESE INSTRUCTIONS
Page 2
Page 3
DANGER:
Improper use of the grounding plug can result in a
risk of electric shock.
GROUNDING
INSTRUCTIONS
Electrical equipment must be grounded. If
it should mal-function or breakdown,
grounding provides a path of least resistance for electrical current to reduce the
risk of electric shock. This vacuum is
equipped with a cord having an equipmentgrounding conductor and grounding plug.
The plug must be inserted into an appropriate outlet that is properly installed and
This electric equipment is for use on a
nominal 120 volt circuit, and has a grounded plug that looks like the plug illustrated in
(Fig A). A temporary adaptor that looks like
the adaptor illustrated in (Fig B & C) may
be used to connect this plug to a 2-pole
receptacle as shown in (Fig B) if a properly grounded outlet is not available.
grounded in accordance with all local
codes and ordinances.
If repair or replacement of the cord or plug
is necessary, DO NOT connect the grounded wire to either flat blade terminal. The
wire with insulation having an outer surface that is green with or without yellow
stripes is the grounding wire.
GROUNDING
METHODS
The temporary adaptor should be used
only until a properly grounded outlet (Fig A)
can be installed by a qualified electrician.
The green color rigid ear, lug or the like
extending from the adaptor must be connected to a permanent ground such as a
properly grounded outlet box cover.
Whenever the adaptor is used, it must be
held in place by a metal screw (Fig C).
WARNING:
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service person if you are in
doubt as to whether the outlet is properly grounded.
DO NOT modify the plug provided with the equipment. If it will not fit the
outlet,have a proper outlet installed by a qualified electrician.
Note: In Canada, the use of a temporary adaptor is not permitted by the
Canadian Electrical Code.
Treat this vacuum as you would any other
high grade precision made product.
Dropping, unreasonable bumping across
thresholds and other misuses may result
in a damaged unit which will not be covered by warranty.
When not in use, the power cord should
be wrapped around the motor head for
storage.
Read this manual completely before operating the vacuum. It is important to follow
instructions in this manual to prevent the
possibility of injury or damage to the user
and/or vacuum.
PAGE 3
CARE OF THE
V
ACUUM
Page 4
LIRE TOULES LES
INSTRUCTIONS
AVANT DE FAIRE
FONCTIONNER
AVERTISSEMENT:
Pour reduire les risques d'incendie, de choc electrique
ou de blessure:
POUR APPAREIL SEC
POUR APPAREIL HUMIDE
Pour réduire les risques de choc électrique, ne pas exposer
à la pluie et garder l'aspiraleur à l'intérieur.
L'utilisation d'un appareil électrique demande certaines précautions:
1. Ne pas laisser l'appareil sans surveil-
lance lorsqu'il est branché. Débrancher
lorsque l'appareil n'est pas utilise ét
avant l'entretien.
2. Ne pas permettre aux enfants de
jouer avec l'appareil.Une attention particulière est nécessaire lorsque l'appareil est utilisé par des enfants ou à
proximité de ces derniers.
3. N'utiliser que conformément à cette
notice avec les accessoires recommandés par le fabricant.
4. Ne pas utiliser si le cordon ou la
fiche est endommagé. Retourner l'appareil à un atelier de réparation s'il ne
fonctionne pas bien, s'il est tombé ou
s'il a été endommagé, oublié à l'extérieur ou immergé.
5. Ne pas débrancher en tirant sur le
cordon. Tirer plutôt la fiche.
6. Ne pas toucher la fiche ou l'appareil
lorsque vos mains sont humides.
INSTRUCTIONS
VISANT LA
MISE À LA
7. Ne pas tirer, soulever ou traîner l'appareil par le cordon. Ne pas utiliser le
cordon comme une poignée, le coincer
dans l'embrasure d'une porte ou l'appuyer contre des arêtes vives ou des
coins. Ne pas faire rouler l'appareil sur
le cordon. Garder le cordon à l'écarte
des surfaces chaudes.
8. N'insérer aucun objet dans les
ouvertures. Ne pas utiliser l'appareil
lorsqu'une ouverture est bloquée.
S'assurer que de la poussière, de la
peluche, des cheveux ou d'autres
matières ne réduisent pas le débit d'air.
9. Maintenir les cheveux, les vêtements
amples, les doigtet toutes les parties
du corps à l'écart des ouvertures et
des pièces mobiles.
10. Ne pas apsirer de matières en
combusion ou qui dégagent de la
fumée, comme des cigarettes, des
allumettes ou des cendres chaudes.
Cet appareil doit être mis à la terre. En
cas dé défaillance ou de panne
éventuelles, la mise à la terre fournit au
courant un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d'un cor-
11. Ne pas utiliser l'appareil si le sac à
poussière ou le filtre n'est pas en place.
12. Mettre toutes les commandes à la
position ARRET avant dé debrancher
l'appareil.
13. User de prudence lors du nettoyage des escaliers.
14. Ne pas aspirer des liquides inflammables ou combustibles, comme de
l'essence, et ne pas faire fonctionner
dans des endroits où peuvent se trouver de tels liquides.
15. Toujours mettre l’interruptuer de
l’appariel à la position ARRET avant de
brancher ou de débrancher la brosse à
moteur.
16. Ne brancher qu'à une prise de
courant avec mise àla terre. Voir les
instructions visant la mise à la terre.
don muni d'un conducteur de terre et
d'une fiche avec broche de terre. La
fiche doit être branchée dans une prise
appropriée correctement instalée et
mise à la terre conformément aux règlements et ordonnances municipaux.
ERRE
T
Cet appareil est destiné à un circuit de 120V et est muni
d'une fiche de mise à la terre semblable à celle illustrée
par le croquis A de la figure "A". S'assurer que l'appareil
est branché à une prise de courant ayant la même configuration que la fiche. Aucun adaptatteur ne devrait être
utilisé avec cet appareil.
Un conducteur de terre mal raccordé
peut entraîner un risque de choc électrique. Consulter un électricien ou un
technicien d'entretien qualifié si vous
n'êtes pas certain que la prise soit cor-
CONSERVER CES INSTRUCTIONS
PAGE 4
AVERTISSEMENT:
rectement mise à la terre. Ne pas modifier la fiche fournie avec l'appareil-si elle
ne peut être inséreé dans la prise, faire
installer une prise adéquate par un
électricien qualifié.
Page 5
Rear Gate Valve
ASSEMBLY
Vacuum Tank Inlet
15 Ft Vacuum Hose
5 Ft Metal Wand
Front Gate Valve
Line Cord w/GFI
14” Squeegee Tool
1) Remove the vacuum and hoses
packed inside the carton.
2) Unlatch the holdown clamps, lift off
motor head and carefully set aside.
3) Remove the tools from inside the
vacuum tank.
4) Install the strainer sack over the inlet
nozzle on the inside of the vacuum tank
and tighten draw string.
5) Replace the motor head and engage
the holdown clamps.
Note: For picking up deep water drop free end of the vacuum hose into water. When removing water
from a floor select the wand and squeegee or gulper tool. (See Page 7 for installation.)
25 Ft
Discharge
Hose
12” Gulper Tool
6) Ensure that the front gate valve on
the tank is completely closed (Plunger
should be in the down position).
7) Ensure that the rear gate valve on
the tank is open half way. This is the
optiumum setting and will regulate the
discharge rate of the tank.
Note: If the discharge rate exceeds the
intake rate, the pump will continuously
cycle ON and OFF and shorten the life of
the pump.
8) Connect the 15 foot vacuum hose to
the front inlet of the vacuum tank.
INSTRUCTIONS
CAUTION:
Exercise caution when
handling the motor head.
Dropping the motor head
may cause permanent
damage to internal
9) Connect on end of the 50 foot drain
hose to the rear gate valve and place
the other end into a suitable drain.
10) Prime pump by filling the bottom
of the recovery tank with minimum of
3 inches of water to cover the injection
holes located at the bottom of the
pump.
11) Replace motor head on the vacuum
tank and secure with the holdown
clamps.
1) Plug the motor head’s power cord into
a standard 120V outlet, and plump’s
power cord into the convenience outlet in
the motor head.
2) Turn ON the main switch located on the
motor head and the Pump-Out vacuum is
now operational.
Note: When first turned ON only the vacuum motor will be activated. When water
level in the tank reaches required height,
the pump’s float switch will be activated
and begin pumping.
The pump will shut OFF when water level
lowers to a point that deactivates the float
switch.
CAUTION:
The float switch is set at the factory to ensure proper operation and so that the
pump will maintain it’s required priming. Changing this setting could result in seri-
ous damage to the pump and void any warranty.
1) Drain the vacuum tank by opening the
front drain valve and tipping the vacuum
forward.
2) Close the gate valve and rinse the inside
of the tank with fresh water.
3) Repeat step one.
4) Empty the pump by removing the motor
head assembly, turn ON the motor head
and activate the pump by lifting the pump
float up by hand.
CAUTION
DO NOT run in the mode for more
than 20 seconds.
PAGE 5
OPERATION
INSTRUCTIONS
M
AINTENANCE
NSTRUCTIONS
I
Page 6
11/
4
HP MOTOR HEAD
REPLACEMENT PARTS LIST
___________________________________
Ref Parts Description Qty Part
No No
___________________________________
1 Switch 1 324140
2 Purse Lock 1 365483
3 Convenience Outlet 1 312495
4 Strain Relief 1 434299
5 50 Ft Power Cord w/GFI 1 313149
6 #10-24 Hex Nut w/Lkwhr 3 331201
7 #10=24 X
8 Dome Assembly 1 320137
9 Flat Gasket 2 378607
10 Motor Holdown 1 396559
11 Circle Gasket 2 306975
12 Yellow Wire Connector 2 350648
13 120 Volt, 1
14 Cover Assembly w/Float Assy 1 430943
15 Float Cage Assembly 1 430935
16 Black Vinyl Screw Protector 4 420271
17 Float Ball w/Hex Nut 1 378003
18 Plate Gasket 1 374644
19 Red Vinyl Screw Protector 6 341649
20 Ground Spring 1 307440
21 10-24 Hex Lockwasher 4 313815
22 #10 Int Tooth Lockwasher 3 364037
23 #12-14 X
24 Nylon Spacer - .37 X .215 1 332186
25 Dome Cover w/Handle 1 363057
28 Flat Washer 4 322169
___________________________________
3
/4" Screw 1 337315
1
/4HP Motor 1 337757
1
/2" Screw 6 314595
SUMP PUMP
REPLACEMENT
PARTS LIST
Page 6
___________________________________
Ref Part Description Qty Part
No No
___________________________________
55 11/2" PVC Coupler Fitting 1 434477
56 90° Fitting w/Clamps 1 431176
57 2" X 63/4" Plastic Tube 1 435015
4
58 11/
59 11/2" Fitting w/Couplers 1 431206
60 Discharge Tube Assembly 1 425023
61
62
63 Float Switch Bracket 1 431168
64
65 5" Pump Clamp 1 435066
66 Pump Bracket 2 431141
" Plastic Check Valve 1 330884
1
/4X 20 Nylok Nut 4 431192
1
/
3
/4HP, 115 Volt Sump Pump 1 434612
4
- 20
1
2
" Rd Screw 1 328154
/
___________________________________
Page 7
_________________________________
Ref Parts Description Qty Part
No No
_________________________________
30 Chrome Push Handle 1 315524
31 11/2" Hose Barb 1 350664
32 Rear Gate Valve 1 434469
33 Gate Valve Gasket 3 307602
34 Holdown Clamps 3 358312
1
35
36 Spring Washer 2 374059
37 8" Wheels 2 369004
38 "X" Washer 2 368997
39 Hub Cap 2 319317
40
41 Handle Brackets 4 314080
42 Plastic Caster Sockets 2 371750
43 3" Swivel Casters 2 314056
44 Front Gate Valve Assy 1 318442
45 Gate Valve Guard 1 314064
46 Large Nut 1 306789
47 Inlet Connector 1 318809
48 20 Gallon Poly Tank 1 431036
49 Strainer Sack 1 308773
50 Inlet Deflector 1 434973
51 Grommet 1 435058
52 Plug 1 435260
53
54 Aluminum Spacer 2 306762
/4- 20 X 3/4" Screw 2 431133
1
/4- 20 X 1/2" Screw 10 360848
1
/4" Flat Washer 2 431214
_________________________________
TANK ASSEMBLY
REPLACEMENT PARTS LIST
Tool &
Hose
Installation
The hose and swivel connector are preassembled at the factory.
TOOLS, HOSES AND INSTALLATION
1) Line up the slots in the swivel connector with the retaining rivets on the tank
inlet.
2) Insert swivel connector and twist
clockwise until rivets reset against slot
end.
3) Slide free end of hose onto the
grooved end of the hose.
Replacement Parts List
_________________________________
Ref Parts Description Qty Part
No No
_________________________________
111/
211/2" X 15 Ft Vacuum Hose 1 344699
3 16" Squeegee Tool 1 414158
4 12" Gulper Tool 1 335371
5 5 Ft Double Bend Wand 1 363480
_________________________________
2
4) To attach tool to wand, turn wand nut
counterclockwise approximately four
complete turns.
5) Insert the tool into wand and coupling. While holding the tool in place,
turn nut clockwise until wand nut is fully
locked.
" X 50 Ft Discharge Hose 1 344729
PAGE 7
Page 8
TROUBLE SHOOTING GUIDE
Always disconnect power cord before servicing vacuum.
PROBLEM: Loss of Vacuum.
CAUSE: SOLUTION:
1. Vacuum is running but no suction. 1. Float assembly gasket is missing or worn out.
2. Front gate valve is open or clogged. 2. Close gate valve or remove debris and close gate valve.
3. Clogged hose or wand. 3. Remove obstruction, try reversing hose,
4. Vacuum tank is damaged. 4. Replace vacuum tank.
5. Loose or broken fan or motor not working. 5. Contact manufacturer or authorized service center.
6. Float cage ball is hung up. 6. Check float cage ball, freeup and clean if necessary.
PROBLEM: Motor is not running.
CAUSE: SOLUTION:
1. Defective or broken switch. 1. Contact manufacturer or authorized service center.
2. Defective motor or power cord. 2. Contact manufacturer or authorized service center.
3. Blown fuse or tripped circuit breaker. 3. Replace fuse, reset circuit breaker or check GFI breaker
4. Carbon brushes worn. 4. Replace carbon brushes.
5. Debris in the fan housing. 5. Remove vacuum motor and clean out debris from fan.
CAUTION:
Install or replace.
on power core and reset.
PROBLEM: Water blowing from vacuum when running.
CAUSE: SOLUTION:
1. Float ball is filled with water or damaged. 1. Empty ball or replace if damaged.
2. Float valve gasket is worn. 2. Replace gasket.
3. Foamy liquid is being picked up. 3. Add defoamer to tank.
4. Vacuum tank full, not discharging solution. 4. Gate valve is closed or clogged. Open gate valve and
remove debris if necessary.
PROBLEM: Pump not discharging while running.
CAUSE: SOLUTION:
1. Drain hose or discharge gate valve clogged. 1. Unclog drain hose or discharge gate valve.
2. Discharge gate valve is closed. 2, Open discharge gate valve.
3. Foamy liquid is being picked up. 3. Add defoamer to tank.
4. Check valve on discharge assembly. 4. Unclog or replace if damaged.
PROBLEM: Pump will not run.
CAUSE: SOLUTION:
1. No power at motor head convenience outlet. 1. Tu rn ON motor head.
2. Defective power cord, plug or receptacle. 2. Contact manufacturer or authorized service center.
3. Pump impeller clogged. 3. Clean out debris.
4. Float hung up mechanically. 4. Free up float.
5. Internal mechanical or electrical trouble. 5. Contact manufacturer or authorized service center.
Repairs should only be performed by an authorized service center.
Part No 418994 - Pump-Out Vacuum - Printed in USA 09/06/05
WARNING:
PAGE 8
Loading...
