PN 249246 P4511HVAF-R - Printed in USA 7/8/10
READ & FOLLOW ALL
INSTRUCTIONS, WARNINGS & CAUTIONS
BEFORE USING THIS VACUUM
PAGE 1
SAVE THESE INSTRUCTIONS
PLEASE READ
CAREFULLY
BEFORE
OPERATION
This vacuum will afford you many years of
trouble-free operating satisfaction, provided
it is given proper care. All parts have passed
rigid quality control standards prior to their
being assembled to produce the finished
product. Prior to packaging, your vacuum
was again inspected for assurance of flawless assembly.
This vacuum is protectively packed to prevent
damage in shipment. We recommend that
upon delivery, unpack the unit and inspect it
for any possible damage. Only a visual examination will reveal damage that may have
occurred.
If damage is discovered, immediately notify
the transportation company that delivered
your vacuum. As a shipper, we are unable to
report any claim for damage. You must originate any claim within 5 days.
This manual is for you protection and information. PLEASE READ CAREFULLY since
failure to follow precautions could result in
discomfort or injury. Read this manual completely before operating this vacuum. It is
important to follow the instructions in the
manual to prevent the possibility of injury or
damage to the user and/or machine.
Treat your vacuum cleaner as you would any
other high grade precision made product.
Dropping, unreasonable bumping across
thresholds and other misuses may result in
a damaged unit that will not be covered by
warranty.
SAFETY,
O
PERATION
MANUAL
W
/PARTS
LIST
P4511HVAF-R
H
AZARDOUS WASTE
D
RY VACUUM
CLEANER
This unit is intended for commercial use.
Page 2
P4511HVAF-R
E
LECTRIC
IMPORTANT SAFETY
INSTRUCTIONS
To Reduce the Risk of Fire, Electric Shock or Injury:
Electric shock could occur if used on wet surfaces.
DO NOT expose to rain. Store indoors.
When using this vacuum basic precautions should always
be followed, including the following:
1) DO NOT leave the vacuum when
plugged in. Unplug from the outlet when
not in use and before servicing.
2) To avoid electric shock, DO NOT
expose to rain. Store indoors. DO NOT
use on wet surfaces.
3) This is NOT a toy. Close attention is
necessary when used around or near
children.
4) Use only as described in this safety
manual. Use only manufacturer's recommended attachments and accessories.
5) DO NOT use this vacuum with damaged cord or plug. If the vacuum is not
working as it should, because it has
been dropped, damaged, left outdoors
or dropped into water, contact an
authorized service center or factory.
6) DO NOT unplug the vacuum by pulling
on the cord. To unplug, grasp the plug,
not the cord.
7) DO NOT handle the vacuum plug
with wet hands.
8) DO NOT pull or carry by the cord, use
cord as a handle, close a door on cord
or pull cord around sharp edges and corners. DO NOT run vacuum over cord.
Keep cord away from heated surfaces.
9) Keep hair, loose clothing, fingers, and
all parts of body away from openings
and moving parts.
10) Use extra care when cleaning on
stairs.
11) DO NOT put any objects into openings. DO NOT use with any opening
blocked; keep free of dust, lint, hair and
anything that may reduce air flow.
12) DO NOT pick up anything that is
burning or smoking, such as cigarettes,
matches, or hot ashes.
13) DO NOT use without 2-ply disposable paper filter bag, 2-ply intermediate
filter and HEPA filter in place.
14) Turn OFF all controls before unplug-
ging
15) DO NOT use the vacuum to pick up
flammable or combustible liquids such
as gasoline or use in areas where they
may be present.
16) DO NOT use where anesthetics or
oxygen is used.
17) DO NOT use an extension cord
unless absolutely necessary. If an extension cord is used, then wire size must
be #14 or larger and should not exceed
50 feet in length. The extension cord
must be a three-wire type to insure
GROUNDING protection.
18) Replace damaged or worn parts
immediately with genuine original equipment parts to maintain safety and to
protect your limited warranty.
This vacuum must be connected to a
properly grounded outlet only. (See
grounded instructions). When not in use
the power cord should be wrapped
around the motor head for storage.
PAGE 2
WARNING:
This vacuum has been specifically designed
to clean up hazardous dust. Special filters
reduce the incidence of airborne dust that
would be created by other methods of
cleaning.
During the removal of hazardous dust,
DO NOT sweep, scoop, shovel or in any
manner handle other than by vacuuming.
DO NOT at any time attempt to remove,
substitute, bypass or by any other means
change the filters in the vacuum.
Use only manufacturer’s approved vacuum
filters and filters bags.
Before attempting to use or before cleaning
with this vacuum, be sure that you fully
understand the instructions for setting up
or cleaning/changing filters.
Any health hazards associated with use of
this vacuum in conjunction with the removal
of hazardous material has not been investigated by Underwriters Laboratories, Inc.
INTENDED
USE OF THE
VACUUM
Page 3
GROUNDING
INSTRUCTIONS
Improper use of the grounding plug can result
in a risk of electric shock.
Electrical equipment must be grounded. If
it should malfunction or breakdown,
grounding provides a path of least resistance for electrical current to reduce the
risk of electric shock. This vacuum is
equipped with a cord having an equipmentgrounding conductor and grounding plug.
The plug must be inserted into an appropriate outlet that is properly installed and
grounded in accordance with all local
codes and ordinances.
If repair or replacement of the cord or plug
is necessary, DO NOT connect grounded
wire to either flat blade terminal. The wire
with insulation having an outer surface that
is green with or without yellow stripes is
the grounding wire.
G
ROUNDING
M
ETHODS

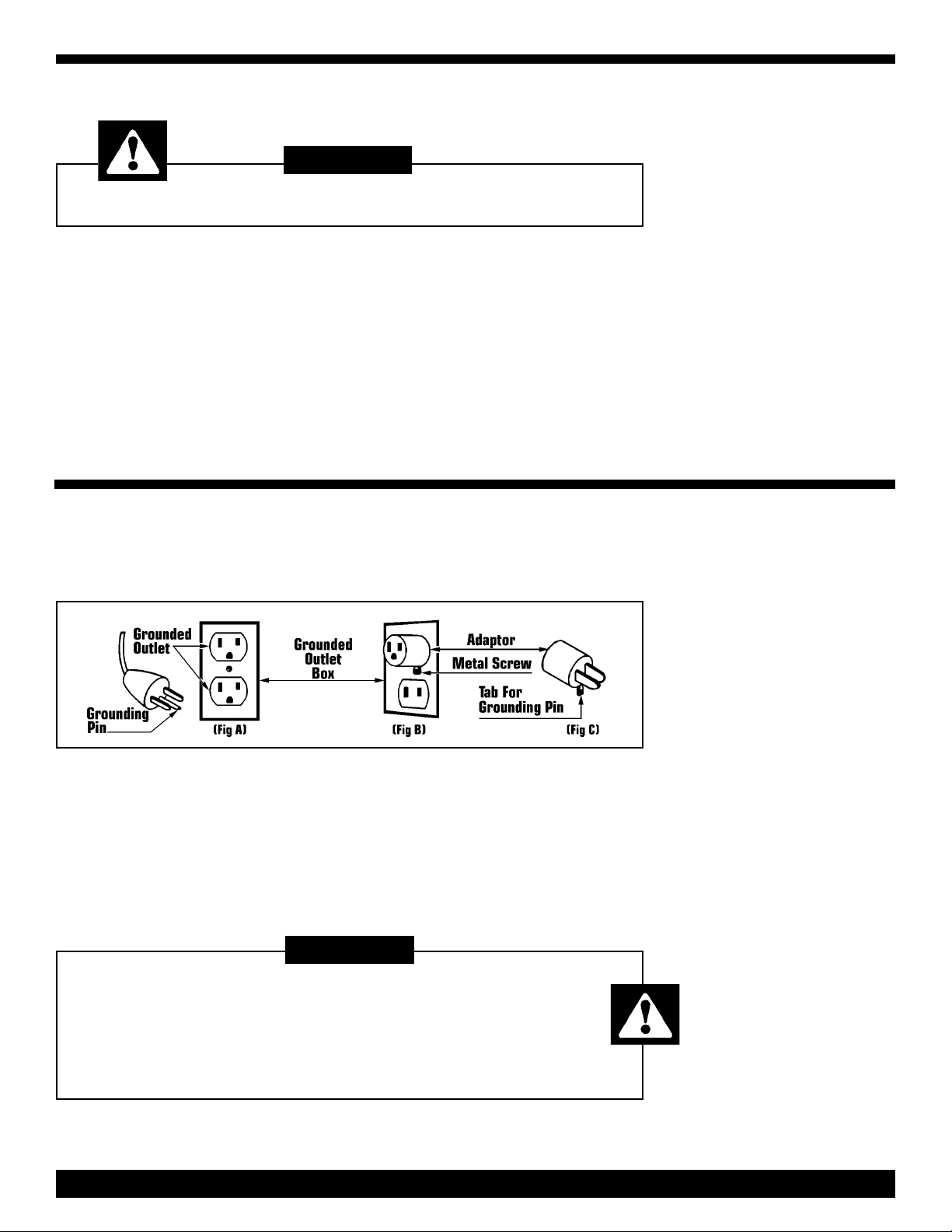

This electric equipment is for use on a
nominal 120 volt circuit, and has a
grounded plug that looks like the plug
illustrated in (Fig A). A temporary adaptor
that looks like the adaptor illustrated in
(Fig B & C) may be used to connect this
plug to a 2-pole receptacle as shown in
(Fig B) if a properly grounded outlet is not
available.
The temporary adaptor should be used
only until a properly grounded outlet (Fig
A) can be installed by a qualified electrician. The green color rigid ear, lug or the
like extending from the adaptor must be
connected to a permanent ground such
as a properly grounded outlet box cover.
Whenever the adaptor is used, it must be
held in place by a metal screw. (Fig C).
Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet is properly grounded.
DO NOT modify the plug provided with the equipment. If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
Note: In Canada, the use of a temporary adaptor is not permitted
by the Canadian Electrical Code.
PAGE 3
DANGER:
WARNING:
Page 4
This hazardous waste vacuum has special filters installed. The disposable paper bag filter
contains the bulk of all debris and protects
remaining filters from excess dirt.
The intermediate filter is a very fine nonwoven filter that extends the life of the
expensive High-Efficiency Particulate Air
(HEPA) filter.

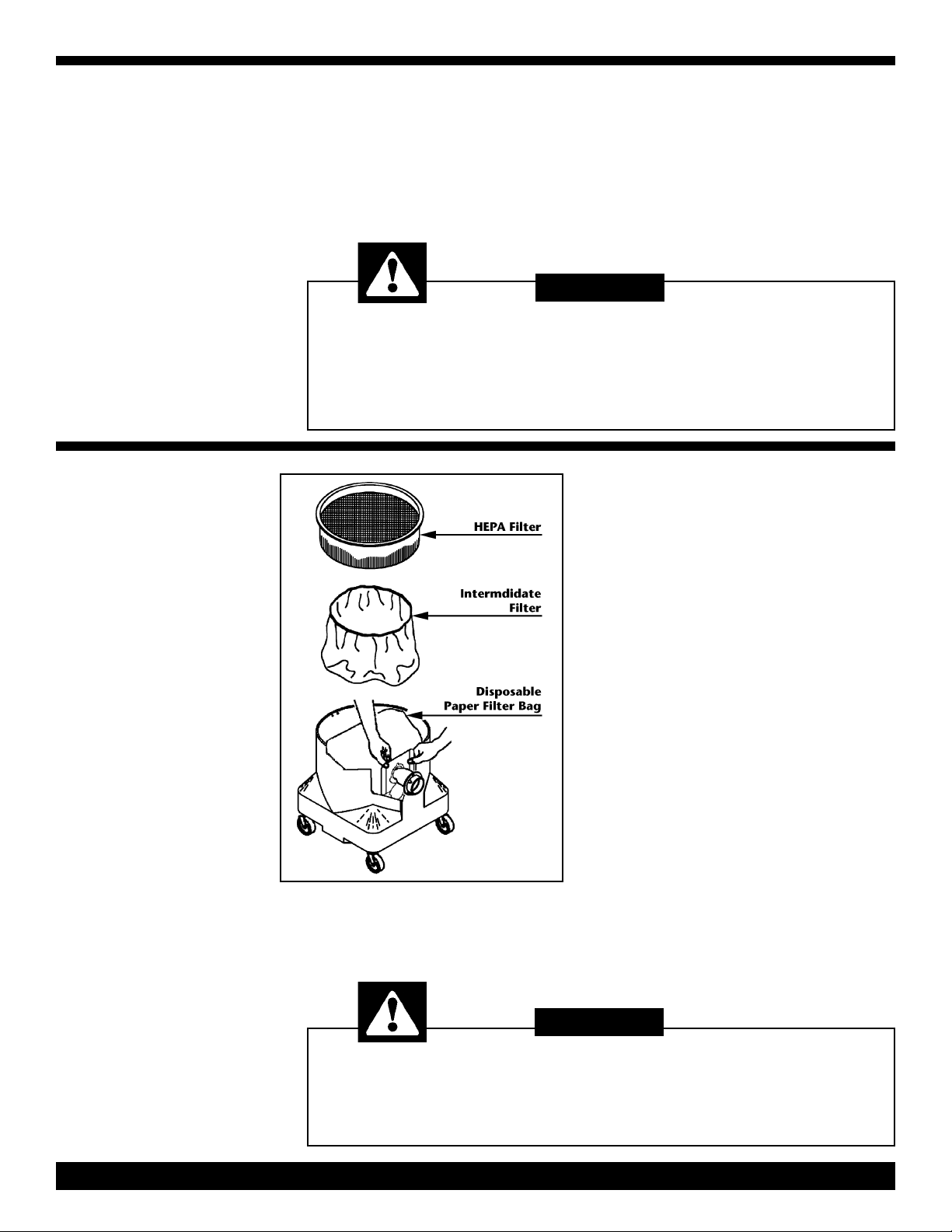

1) Disengage clamps that hold motor head
to the tank. Carefully set aside.
2) Remove HEPA filter and intermediate
filter. Set aside.
3) Install a new disposable paper filter bag
by taking hold of the free ends of cardboard
attached to the paper bag. Pull the cardboard forward over inlet fitting so that the
cardboard is as close to the tank wall as
possible.
4) Place the intermediate filter in position on
top of the tank. Fold the edge over the outside of tank, overlapping approximately one
inch.
5) Insert the HEPA filter, being careful not to
move the intermediate filter. The filter’s sealing gasket must sit evenly on the tank rim so
an air tight seal will be obtained.
6) Replace motor head assembly on top of
HEPA filter seated in the top of the tank.
Hazardous materials must be disposed of properly. NEVER throw
contaminated debris in your usual trash receptacle. Place debris in a
OSHA approved poly bag or container marked with HAZARDOUS MATERIAL
warning and dispose in accordance with your
local Hazardous Waste Regulations.
To insure a snug fit, make sure that the area around the lid and top
edge of the vinyl sealing gasket is free of dirt and other foreign matter.
NEVER operate the vacuum cleaner without a HEPA filter and
2-ply disposable paper bag in place and NEVER, NEVER without the
intermediate filter in position. Motor damage, lose of operating efficiency
and re-circulation of hazardous material into the work area will take place.
UNPACKING
& CASTER
INSTALLATION
Remove the vacuum, hose and wand from
the shipping carton. Disengage the clamps on
the tank and carefully remove the motor
head, filter assembly, tools and casters
packed inside the vacuum tank. To install the
casters, turn the tank upside down and press
casters into the plastic sockets until bottom
of stem fits flush against the plastic sockets.
Reinstall the filters and reassemble vacuum
following the instructions below.
DO NOT use this unit until the owner’s manual has been read. Improper use could
cause damage to the vacuum or the special
filters employed.
INSTALLATION
OF FILTERS
CAUTION:
PAGE 4
CAUTION:
Page 5

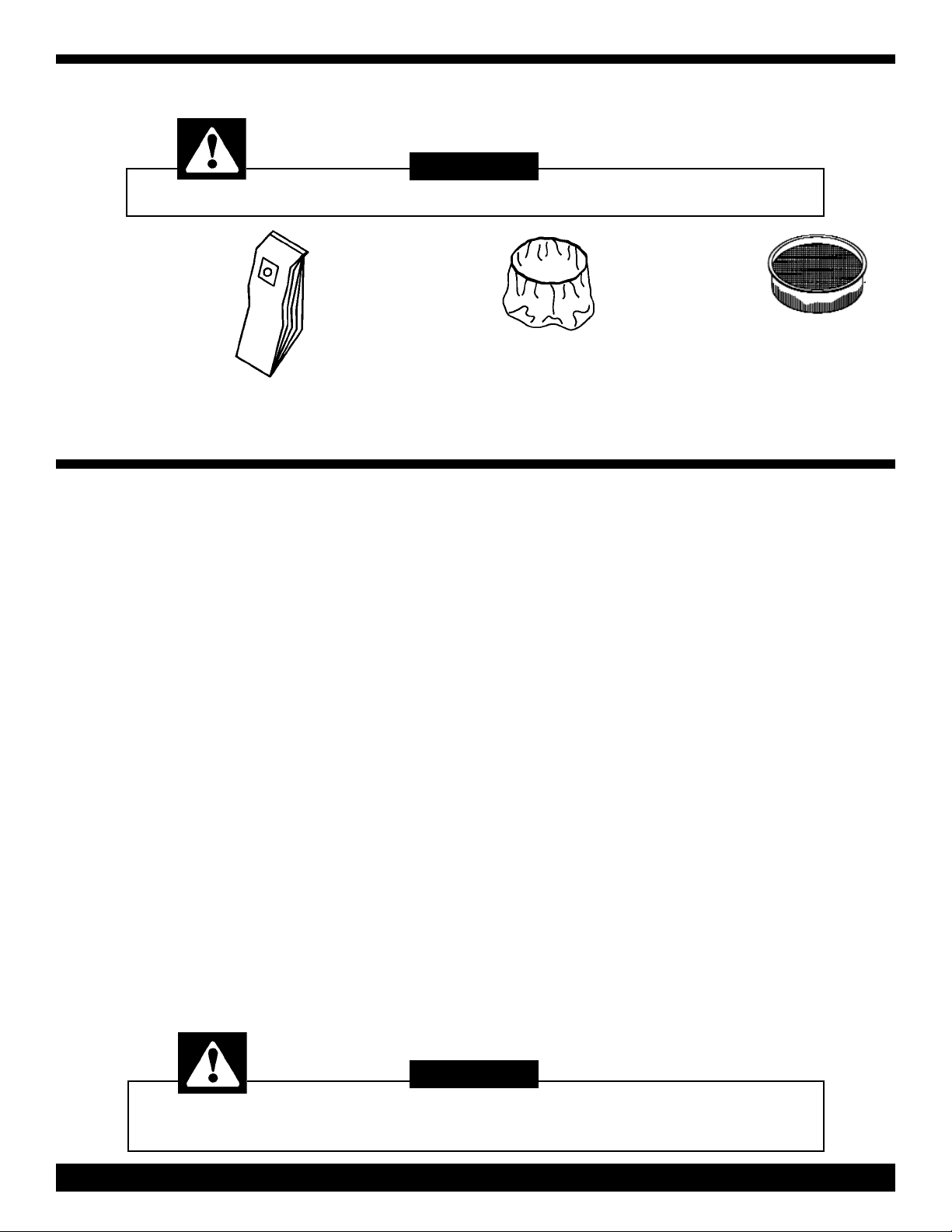

Always unplug the vacuum from the power source before changing filters.
Disposable Paper Filter
Bag:
1) Carefully and slowly remove the
motor head, HEPA filter and intermediate filter. Set aside.
2) Using a damp cloth, wipe down all
exposed surfaces inside of tank and set
cloth down. DO NOT discard cloth.
3) Lay the vacuum tank on its side with
inlet on top, carefully and slowly push
cardboard off air inlet tube.
4) Remove paper backing from sealing
flap located over cardboard collar. Press
sealing flap firmly over the opening to
prevent spill back of recovered materials.
5) Slowly and very carefully lift the 2-ply
disposable paper filter bag out of tank,
using care not to puncture the bag with
inlet.
6) Wipe off any surface that has not
been previously wiped with the damp
cloth including the entire inside of tank.
7) Place the disposable paper filter bag
and damp cloth in a OSHA approved poly
bag, dispose of it in accordance with the
local Hazardous Waste Regulations.
Intermediate Filter:
1) Remove motor head. Using a damp
cloth wipe down all exposed surfaces on
underside and carefully set aside. Put
wiping cloth down, DO NOT discard.
2) Remove the HEPA filter cautiously as
not to damage or puncture paper media
used in the filter. Set aside.
3) Remove intermediate filter and dispose of it along with the wiping cloth in
a OSHA approved poly bag.
4) Install a new intermediate filter, insert
HEPA filter, replace motor head and
engage clamps.
HEPA Filter:
1) Remove motor head. Using a damp
cloth wipe down all exposed surfaces on
the underside and carefully set aside.
Put wiping cloth down, DO NOT discard.
2) Remove HEPA filter cautiously and
dispose of it along with the intermediate
filter, disposable filter bag and wiping
cloth in a OSHA approved poly bag.
3) Install a new disposable filter bag,
intermediate filter and, insert a new
HEPA filter, replace motor head and
engage holddown clamps.
(See page 4 for Filter Installation
Instructions)
PROCEDURES FOR REMOVING
CONTAMINATED FILTERS &
C
LEANING A CONTAMINATED TANK
Disposable
Paper Filter
Bags
When the
disposable paper filter
bag is
3
/4full, it MUST
be replaced. Excessive over filling of this
bag makes it difficult to remove from the
vacuum tank and can result in breakage
and spills.
Intermediate
Filter
The intermediate filter should be
replaced with every fifth change of paper
bag and whenever there is damage or a
visible collection of debris on the outside
of the filter.
14” HEPA
Filter
Replace the HEPA filter when loss of
vacuum continues to occur after you
have checked for an obstructions in the
hose or wand. Also, install a new
disposable paper bag and intermediate
filter.
For the benefit of your health, always wear gloves and an OSHA approved face mask for
use with asbestos any time you are operating or cleaning this vacuum cleaner.
PAGE 5
CAUTION:
CAUTION:
W
HEN TO
CHANGE FILTERS
Page 6
__________________________________
Ref Part Description Qty Part
No No
__________________________________
1 Pop Rivet 9 374733
2 Holdown Clamp 3 358312
3 Steel Washer 9 303909
4 Plastic Caster Socket 4 371750
52
1
/2” Swivel Caster 4 307408
6 Inlet Fitting 1 325406
7 Complete Tank Assembly 1 257893
__________________________________
Page 6

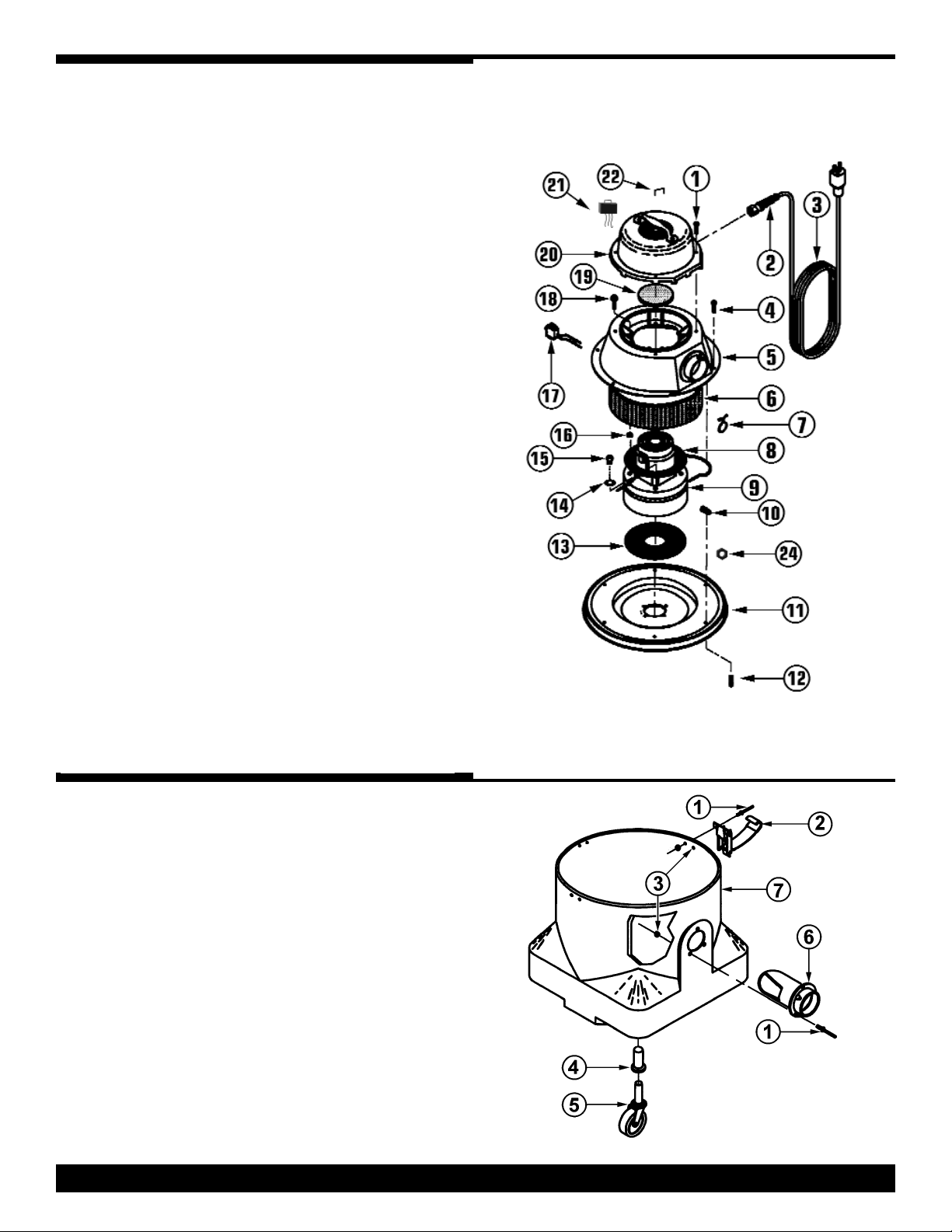

TANK
ASSEMBLY
REPLACEMENT PARTS LIST
ELECTRIC MOTOR HEAD
R
EPLACEMENT
P
ARTS LIST
__________________________________
Ref Part Description Qty Part
No No
__________________________________
Complete Motor Head Assy 1 257877
1 #8 X 1" Screw 4 394270
2 Strain Relief 1 443379
3 50 Ft Yellow Line Cord 1 318647
4 Screw 6 314595
5 Lower Dome Assembly 1 394610
6 Silencing Liner 1 302368
7 Purse Lock 1 365491
8 Upper Motor Gasket 1 378607
9 1 HP By-Pass Motor 1 337757
10 Orange Wire Nut 3 398985
11 14" Cover 1 320110
12 Screw Protector 6 341649
13 Lower Motor Gasket 1 364630
14 #12 Int Tooth Lockwasher 1 364037
15 #10 Ground Screw 1 393258
16 Spacer 4 361054
17 Rocker Switch 1 393754A
18 #10 Hex Screw 4 368385
19 Silencing Disc 1 396028
20 Upper Dome Assembly 1 258474
21 Receptacle 1 341746
22 Receptacle Clip 1 341932
23 Orange Wire Nut 2 350648
__________________________________
Page 7
__________________________________
Ref Part Description Part
No No
__________________________________
1 14” HEPA Filter 441554
2 Intermediate Filter
(2/Pk) 430692
3 Paper Filter Bag
(5/Pk) 384453
__________________________________
Page 7
FILTER REPLACEMENT
PARTS LIST
OPTIONAL
TOOL KITS
AND
ASSEMBLY
INSTRUCTIONS

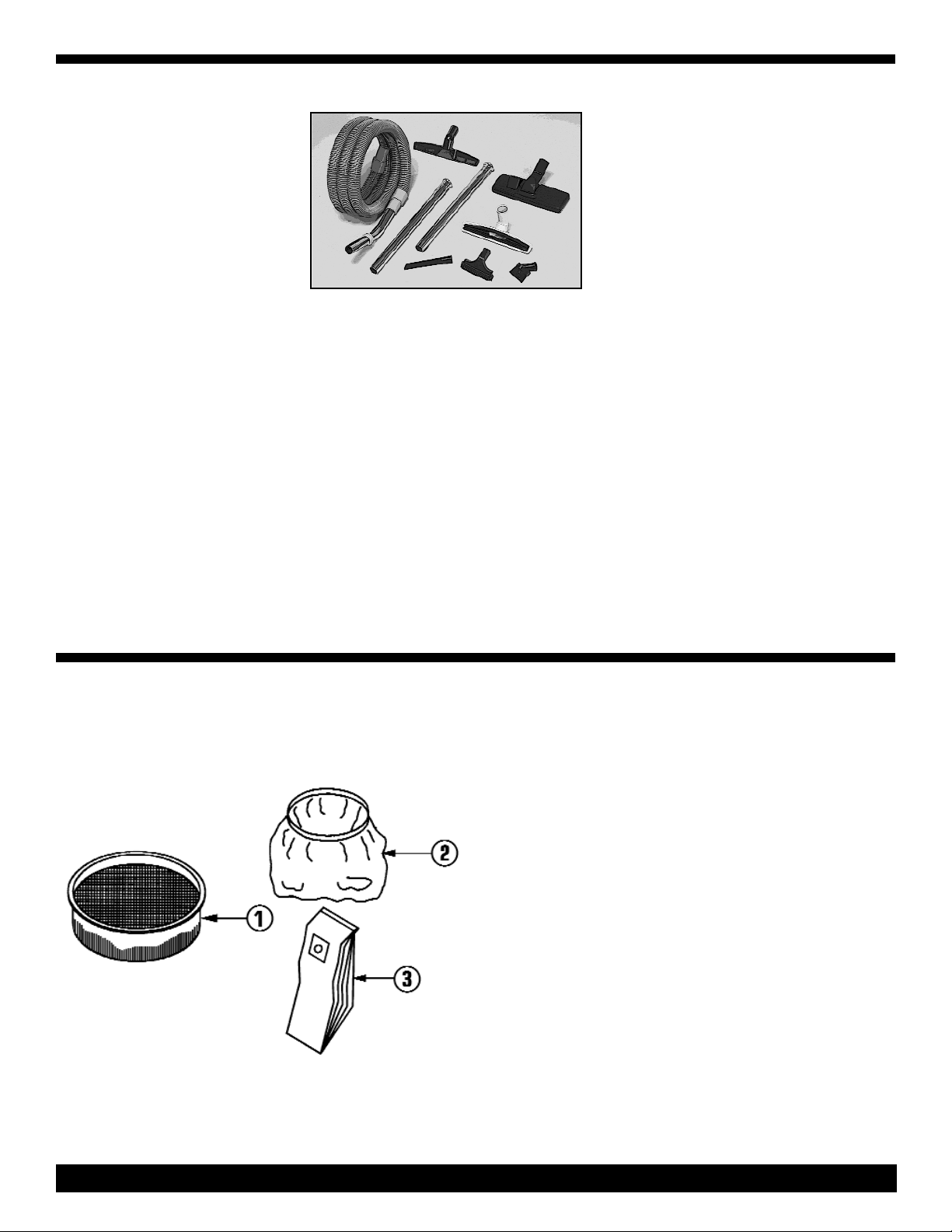

11/4" DRY TOOL KIT
10 Ft Hose; 2 Pc Straight Wand;
Curved Metal Wand; 3-Way Carpet Tool;
Upholstery Tool; Floor & Wall Brush;
11” Crevice Tool; Dusting Brush
1
1
/4" Hose Connector (N/S)
Hose & Swivel
Connector
The hose and swivel connector are pre-assembled at
the factory. To attach the swivel connector to intake fitting on vacuum tank:
1) Line up swivel connector slots with retaining rivets
on the intake.
2) Insert swivel connector and twist clockwise until
rivets reset against slot end.
11/4" Tool Kit Assembly
Wand Assembly: Both sections are exactly the same.
Slide the tapered end of one section into the slotted end
of the other wand section.
Attach Hose: Slide curved elbow on hose into wand end
with slots on the side.
Install Tool: Insert tool into the tapered end of the wand.
Page 8
TROUBLE
SHOOTING
GUIDE
PROBLEM: Loss of Vacuum.
Possible Cause: Possible Solution:
1. Full paper disposable filter bag. 1. Replace disposable paper filter bag.
2. Dry filter assembly clogged. 2. Clean cloth filter.
3. Clogged hose or wand. 3. Remove obstruction.
4. Tank rim damaged. 4. Replace tank.
5. Loose or broken fan. 5. Contact manufacturer or service center.
6. Motor not working. 6. Contact manufacturer or service center.
7. Gasket worn. 7. Replace gasket.
PROBLEM: Motor is not running.
Possible Cause: Possible Solution:
1. Broken switch or motor defective. 1. Contact manufacturer or service center
2. Power cord defective. 2. Contact manufacturer or service center.
3. Blown fuse or tripped circuit breaker. 3. Replace fuse or reset circuit breaker.
PROBLEM: Dust blowing from vac when running.
Possible Cause: Possible Solution:
1. Full or torn disposable paper filter bag. 1. Replace disposable filter bag.
2. Paper filter bag not installed properly 2. Reinstall or replace disposable
or off inlet tube. paper filter.
PN 249246 P4511HVAF-R - Printed in USA 7/8/10
PAGE 8
777 South Street P.O. Box 2310
Newburgh, NY 12550-0606
TEL:(800) 835-7812 (845) 565-8850
FAX:(800) 752-6883 (845) 565-9392
mastercraftusa.com
techsupport@mastercraftusa.com
Loading...
