1000 / 1500 / 2000 RPM
BURNISHERS
SAFETY,
READ & FOLLOW ALL INSTRUCTIONS,
PERATION
O
&
MAINTENANCE
MANUAL
WARNINGS & CAUTIONS
BEFORE USING THIS BURNISHER
This burnisher will afford you many years of
trouble free operating satisfaction if it is
given proper care. All parts have passed
rigid quality control standards before being
assembled to produce the finished product.
Prior to packaging, the units again inspected for assurance of flawless assembly.
Your burnisher was protectively packed to
prevent damage in shipment. We recommend that upon delivery, remove the unit
from its carton and carefully inspect it for
any possible damage in transit.
SAVE THESE INSTRUCTIONS
If damage is discovered, immediately notify
the transportation company that delivered
your burnisher. As a shipper, we are
unable to act upon any claim for concealed
damage. You must originate any claim
within 5 days of delivery.
These instructions are for your protection
and information. PLEASE READ CAREFUL-
LY ! Failure to follow these precautions could
result in injury or discomfort.
AGE 1
P
Burnisher Manual - PN 344249 - Printed in USA 05/12/06
READ ALL
INSTRUCTIONS
BEFORE
OPERATING
IMPORTANT
SAFETY
NSTRUCTIONS
I
WARNING:
To reduce the risk of fire, electric shock or injury:
When using an electric burnisher, basic precautions should
always be following, including the following:
1) DO NOT leave burnisher plugged in
when not in use. Unplug from outlet when
not in use and before servicing.
2) Electric shock could occur if exposed to
rain. Store indoors.
3) This is NOT a toy. Close attention is necessary when used around or near children.
4) Use only as described in this manual.
Use only manufacturer's recommended
attachments.
5) DO NOT use with damaged cord plug.
When burnisher is not working as it should
because it has been dropped, damaged,
left outdoors, or dropped into water, contact the manufacturer or authorized service center.
6) DO NOT pull or carry by the cord, use
power cord as a handle, close a door on
cord, or pull cord around sharp edges or
corners. DO NOT run burnisher over cord.
Keep cord away from heated surfaces.
7) DO NOT handle the burnisher plug with
wet hands.
8) DO NOT unplug by pulling on the cord.
To unplug, grasp the plug, not the power
cord.
9) DO NOT put any objects into motor
openings.
10) Keep hair, loose clothing, fingers and
all parts of body away from moving parts.
11) DO NOT operate where oxygen or
anesthetics are used.
12) DO NOT use around flammable or combustible liquids such as gasoline or use in
areas where they may be present.
13) DO NOT use an extension cord unless
absolutely necessary. If an extension cord
is used, then wire size must be #14 gauge
or thicker and should not exceed 50 feet in
length. Extension cord must be three-wire
type to insure grounding protection.
14) Replace damaged or worn parts
immediately with genuine original equipment parts to maintain safety and to protect your limited warranty.
GROUNDING
SAFETY
NSTRUCTIONS
I
DANGER:
Improper use of the grounding plug can result in a risk
of electric shock.
This burnisher must be grounded. If it
should malfunction or breakdown, grounding provides a path of least resistance for
electrical current to reduce the risk of electric shock. The burnisher is equipped with
a cord having an equipment-grounded plug.
The plug must be inserted into an appropriate outlet that is properly installed and
grounded in accordance with all local
codes and ordinances
PAGE 2
If repair or replacement of the cord or plug
is necessary, DO NOT connect the grounding wire to either flat blade terminal. The
wire with insulation having an outer surface
that is green with or without yellow stripes
is the grounding wire.
GROUNDING
METHODS
This burnisher is for use on a nominal 120
volt circuit, and has a grounding plug that
looks like the plug illustrated in (Fig A). A temporary adaptor that looks like the adaptor
illustrated in (Fig B & C) may be used to connect the plug to a 2-pole receptacle as
shown in (Fig A) if a properly grounded outlet
is not available.
The temporary adaptor should be used only
until a properly grounded outlet (Fig A)can be
installed by a qualified electrician. The green
color rigid ear, lug, or the like extending from
the adaptor must be connected to a permanent ground such as a properly grounded
outlet box cover. Whenever the adaptor is
used, it must be held in place by the metal
screw (Fig C).
WARNING:
Improper connection of the equipment-grounding conductor can result in a risk of
electrical shock. Check with a qualified electrician or service person if you are in
doubt as to whether the outlet is properly grounded.
DO NOT modify the plug provided with the burnisher. If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
WARNING:
To avoid fire, DO NO use with a flammable or combustible
liquid to clean a floor.
This burnisher can be used in conjunction
with any of the ultra high speed chemical systems. It is mandatory, however, that the floor
be prepared as directed by the chemical
manufacturer. This will eliminate a possibility
of damage to floor due to the burnishers high
speed.
The burnisher is pre-set at the factory for
use with a 1" thick buffing pad
The rougher hair surface is preferred for
high luster floor finishing.

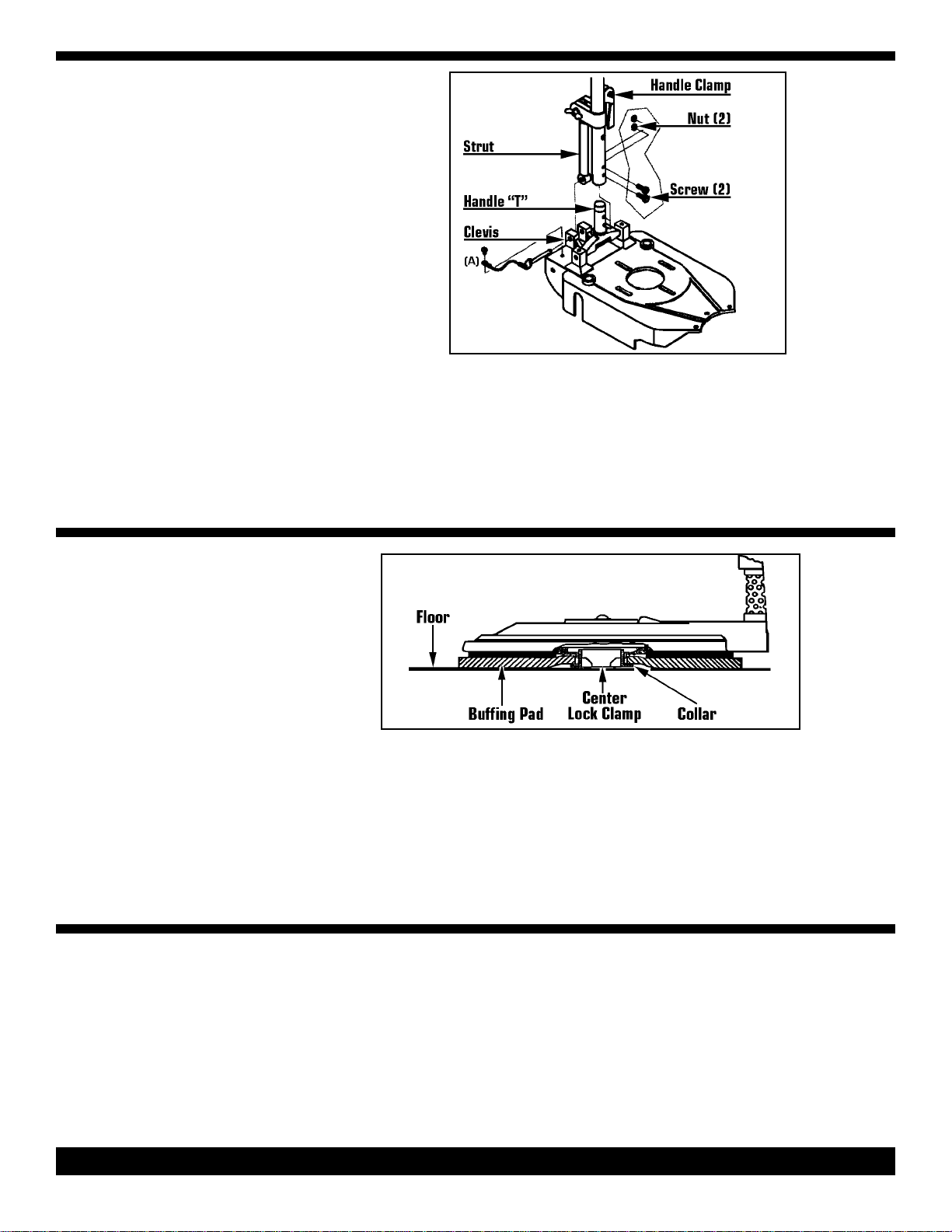

1. Before operating this burnisher, check to
see that the buffing pad is properly centered
on driver and that center pad lock is tight on
pad.
2. When operating the burnisher it MUST
be kept moving, as holding machine stationary while running will result in damage to
floor and floor finish.
(1 shpd w/unit).
3. Begin operating the burnisher at the closest point to your electrical outlet and work
away from the outlet. This will prevent running over the electric cord.
4. Never leave burnisher resting on buffing
pad for an extended period of time. This will
cause buffing pad to lose its normal shape,
causing wobbling or vibration and pad must
be replaced. Also, replace pad if glazed,
clogged, torn or shredded.
5. The rear wheels on the 1500 RPM and
2000 RPM burnishers are factory-set for
low amp rating and high luster burnishing
with buffing pad. See instruction sheet.
6. A carbon brush wear indicator warning
light is located on the motor canopy. When
lit, motor carbon brushes must be replaced
within 20 hours running time to prevent
damage to motor. See instruction sheet.
NOTE:
In Canada, the use of a
temporary adaptor is not
permitted by the
Canadian Electrical Code.
OPERATING
INSTRUCTIONS
CAUTION:
This burnisher is NOT a low speed floor machine.
DO NOT use the burnisher for stripping or sanding of floors.
PAGE 3
ARE AND
®
C
AINTENANCE
M
This burnisher requires limited maintenance
for proper operation and years of service.
1) After each use, wipe off all of the polished
and painted areas with a clean cloth.
3) Unplug burnisher and check power cord
for and breaks in the wire. Breaks will most
likely occur near the plug or switch. Any
breaks should be repaired or replaced
immediately.
TROUBLE
SHOOTING
GUIDE
2) Check all bolts and screws at the switch
box, handle and wheels. Tighten if they are
loose and replace any that are broken.
4) When the burnisher is not in use, remove
buffing pad, unplug power cord and wrap it
around the cord hooks. Store in a dry area.
PROBLEM: Not polishing floor to high luster.
POSSIBLE CAUSE: POSSIBLE SOLUTION:
1) Improperly prepared floor or 1) Refinish floor.
floor needs refinishing.
2) Buffing pad is flattened from 2) Replace with new 1" buffing pad.
unit sitting on pad.
3) Hard glazed surface on pad. 3) Replace with new 1" buffing pad.
4) Pad used on wet surface or 4) Replace with new 1" buffing pad.
clogged with dirt.
5) Pad too thin. 5) Replace with new 1" buffing pad.
6) Burnisher out of adjustment, 6) Have a certified technician adjust rear wheels.
rear wheels shifted.
PROBLEM: pulling to one side or skipping sideways.
POSSIBLE CAUSE: POSSIBLE SOLUTION:
1) Buffing pad too thick for 1) Replace with 1" buffing pad.
machine setting.
2) Rear wheels are out of adjustment. 2) Have a certified technician adjust rear wheels.
PROBLEM: Machine not running.
POSSIBLE CAUSE: POSSIBLE SOLUTION
1) Defective power cord. 1) Contact Manufacturer or Service Center.
2) Defective switch. 2) Contact Manufacturer or Service Center.
3) Defective motor. 3) Contact Manufacturer or Service Center.
4) Motor unplugged from handle cord. 4) Plug motor lead into handle cord receptacles.
777 South Street, P.O. Box 2310, Newburgh, NY 12550-0606
Burnisher Manual - Part No 344249 Rev A - Printed in USA 05/12/06
TEL: (800) 835-7812 W (845) 565-8850
FAX: (800) 752-6883 W (845) 565-9392
Internet Access:
www.mastercraftusa.com W sales@mastercraftusa.com
PAGE 4
The 2000 RPM burnisher should
only be used for high luster burnishing on floors that have a minimum of
four (4) coats of floor finish. this will
eliminate the possibility of damage to
the floor due to the high speed of the
burnisher.
2000 RPM
URNISHER
B
OPERATING
INSTRUCTIONS
This unit is intended for commercial use.
OPERATION INSTRUCTIONS
Begin operating this burnisher at the
closest point to your electrical outlet,
working away from the outlet. This will
prevent running over the electric cord.
Operate the burnisher in a straight-line
path and avoid continuous operation in
one spot.
If burnisher wobbles, vibrates or pulls,
follow these instructions:
1) Never leave burnisher resting on floor
pad overnight. This will cause the pad to
lose its normal shape, causing wobbling
and vibration. Check pad for unevenness
and change is necessary.
2) Before turning burnisher on, run tip
of finger between outside of pad and
floor. The outer ring face should be in
full contact with the floor in order for
high speed buffing to be most effective.
If necessary change pad.
3) If necessary adjust front and rear
wheels:
Pad pressure becomes more critical
with a 2000 RPM burnisher. If excessive current draw is permitted, either a
blown circuit breaker or motor damage
will occur.
Front Caster Adjustment:
1) To increase pad pressure as well as
amperage draw "Lower" front caster
adjustment.
2) To reduce the pad pressure as well
as amperage draw "Raise" front caster
adjustment.
Proper pad adjustment is best achieved
by lowering front caster until the warning light located in the switch box activates. Then raise the front caster slowly until the warning light shuts OFF.
The rear wheels are adjusted and
locked in place at the factory to assure
proper alignment. The pre-set adjustment is based on the floor pad supplied
with this burnisher. To adjust for normal
pad wear follow instructions for Front
Caster Adjustment.
The rear wheel position should ONLY be
reset by a certified technician. To reset
rear wheels:
1) Attach floor pad.
2) Unlock rear wheel set screw using a
3/32" allen wrench and "Raise" all
three adjustment knobs until the buffing
pad is positioned 5/8" off the floor,
around the pad perimeter.
3) Lock rear wheel set screws.
4) It may be necessary to adjust pad
pressure. Follow the Front Caster
Adjustment Instructions.
First Warning System is located on the
control box face. When the red warning
light comes ON do the following.
1) Raise front knob slowly until light is
OUT. If the light fails to go OUT, see step
2.
2) Turn pad over or install a clean pad.
Second Warning System is a carbon
brush wear indicator light located on the
motor canopy. Instructions read a follows:
When lamp is lit, Motor Carbon Brush
MUST be replaced within 20 hours of
service to prevent damage to the motor.
Carbon Brushes Part Nos:
Imperial Motor: Part No 386790 (4)
Ohio Motor*: Part No 380083 (3) &
316954 (1)
Burnishers with Ohio Motors have "X" after
*
the serial number.
Note: After replacing the second set of carbon brushes, the commutator of the armature
may need to be undercut and the mica slotted.
This should be done by an experienced motor
repair shop.
PAGE 1
WARNING
LIGHT SYSTEM
Part No 344338 Rev D - Printed in USA 05/12/06
HANDLE
ASSEMBLY
INSTRUCTIONS
This burnishers is shipped without the
handle attached to the chassis. Handle
hardware kit (#372811) contains the
necessary parts to attach the handle to
the burnisher.
LOOR PAD
F
INSTALLATION
The floor pad packed with this burnisher
MUST BE attached to pad driver before
operating the unit.
DO NOT OPERATE the burnisher pad
driver without the pad securely in place
to avoid damage to the floor and/or
burnisher.
1) Remove burnisher chassis and handle assembly for the carton.
2) Using screws #353272 and nuts
#354791, insert one screw into each
hole and secure with nuts on opposite
side of handle tube. DO NOT over-tighten nuts, this will deform the handle
tube.
To Install Pad:
1) Remove center cut-out from the
floor pad
2) Tilt burnisher back on rear wheel
and unscrew center lock clamp pad
retainer by turning counterclockwise in
"OPEN" position.
3) Slide the handle assembly over han-
dle "T" on the chassis making sure the
line cord is towards back of burnisher
and loosen handle clamp.
4) Remove speed- pin (A) from clevis.
Line up strut with clevis and insert
speed-pin (A) thru clevis and strut.
3) Center pad on center lock clamp or
collar with hair side down for optimum
finish.
4) Secure the pad to pad driver by turning the center lock clamp clockwise in
the "CLOSE" position until it is locked in
position.
CARE AND
M
AINTENANCE
1. After each use, wipe off all polished
and painted areas with a clean cloth.
2. Check all bolts and screws at the
switch box, handle and wheels. Tighten
if they are loose and replace any that
are broken.
PAGE 2
3. Unplug burnisher and check power
cord for any breaks in the wire. Breaks
will most likely occur near the plug or
switch. Any breaks should be repaired
or replaced immediately.
4. When the burnisher is not in use,
remove buffing pad, unplug power cord
and wrap it around the cord hook.
Store in a dry area.
Loading...
