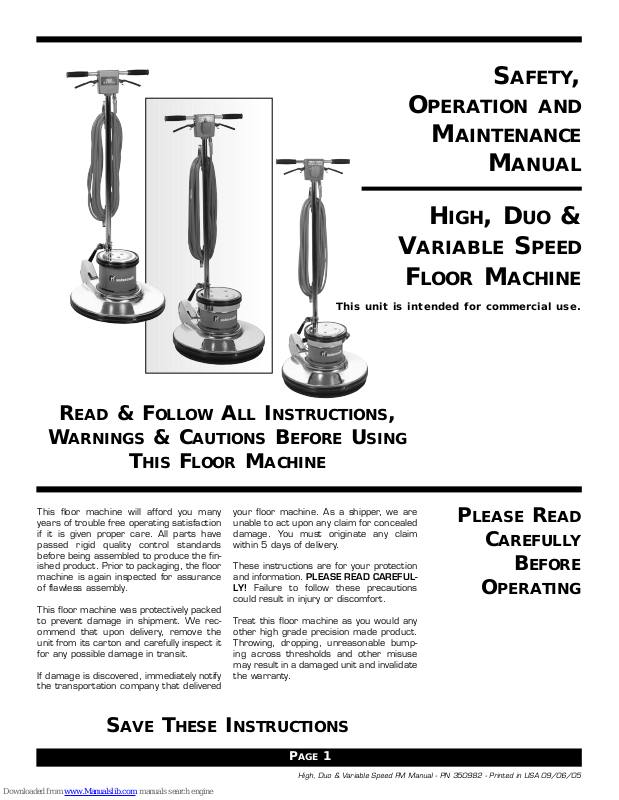

Page 1
SAFETY,
PERATION AND
O
MAINTENANCE
MANUAL
HIGH, DUO &
VARIABLE SPEED
FLOOR MACHINE
This unit is intended for commercial use.
READ & FOLLOW ALL INSTRUCTIONS,
ARNINGS & CAUTIONS BEFORE USING
W
THIS FLOOR MACHINE
This floor machine will afford you many
years of trouble free operating satisfaction
if it is given proper care. All parts have
passed rigid quality control standards
before being assembled to produce the finished product. Prior to packaging, the floor
machine is again inspected for assurance
of flawless assembly.
This floor machine was protectively packed
to prevent damage in shipment. We recommend that upon delivery, remove the
unit from its carton and carefully inspect it
for any possible damage in transit.
If damage is discovered, immediately notify
the transportation company that delivered
your floor machine. As a shipper, we are
unable to act upon any claim for concealed
damage. You must originate any claim
within 5 days of delivery.
These instructions are for your protection
and information. PLEASE READ CAREFUL-
LY! Failure to follow these precautions
could result in injury or discomfort.
Treat this floor machine as you would any
other high grade precision made product.
Throwing, dropping, unreasonable bumping across thresholds and other misuse
may result in a damaged unit and invalidate
the warranty.
PLEASE READ
CAREFULLY
BEFORE
OPERATING
SAVE THESE INSTRUCTIONS
PAGE 1
High, Duo & Variable Speed FM Manual - PN 350982 - Printed in USA 09/06/05
Page 2
IMPORTANT
SAFETY
INSTRUCTIONS
When using this floor machine, basic precautions should always be followed, including the following:
WARNING:
To reduce the risk of fire, electric shock or injury;
Read all instructions before using this floor machine.
1) DO NOT leave this machine plugged in
when not in use. Unplug from outlet when
not in use and/or before servicing.
2) Electric shock could occur if exposed to
rain. Store indoors.
3) This is NOT a toy. Close attention is necessary when used around or near children.
4) Use only as described in this manual.
Use only manufacturer's recommended
attachments.
5) DO NOT use with damaged cord plug. If
the floor machine is not working as it
should because it has been dropped, damaged, left outdoors, or dropped into water,
contact the manufacturer or authorized
service center.
This floor machine must be grounded. If it
GROUNDING
INSTRUCTIONS
should malfunction or breakdown, grounding
provides a path of least resistance for electrical current to reduce the risk of electric shock.
This machine is equipped with a cord having an
equipment-grounded plug. The plug must be
inserted into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances
6) DO NOT pull or carry by cord, use
power cord as a handle, close a door on
cord, or pull cord around sharp edges or
corners. DO NOT run floor machine over
the cord. Keep cord away from heated surfaces.
7) DO NOT handle the plug or operate with
wet hands.
8) DO NOT put any object into the motor
openings.
9) DO NOT unplug by pulling on cord. To
unplug, grasp the plug, not the power cord.
10) Keep hair, loose clothing, fingers and
all parts of body away from moving parts.
11) DO NOT operate where oxygen or
anesthetics are used.
12) DO NOT use around flammable or
combustible liquids such as gasoline or use
in areas where they may be present.
13) DO NOT use an extension cord unless
absolutely necessary. If an extension cord is
used, then wire size must be #14 gauge or
thicker and should not exceed 50 feet in
length. Use only a 3 wire grounded extension cord to ensure grounding protection.
14) Replace damaged or worn parts
immediately with genuine original equipment parts to maintain safety and protect
your limited warranty.
If repair or replacement of the cord or plug is
necessary, DO NOT connect the grounding
wire to either flat blade terminal. The wire
with insulation having an outer surface that is
green with or without yellow stripes is the
grounding wire.
GROUNDING
METHODS
DANGER:
Improper use of the
grounding plug can
result in a risk of
electrical shock.
Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified
electrician or service person if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the
plug provided with the burnisher. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
NOTE: In Canada, the use of a temporary adaptor is not permitted by the Canadian Electrical Code.

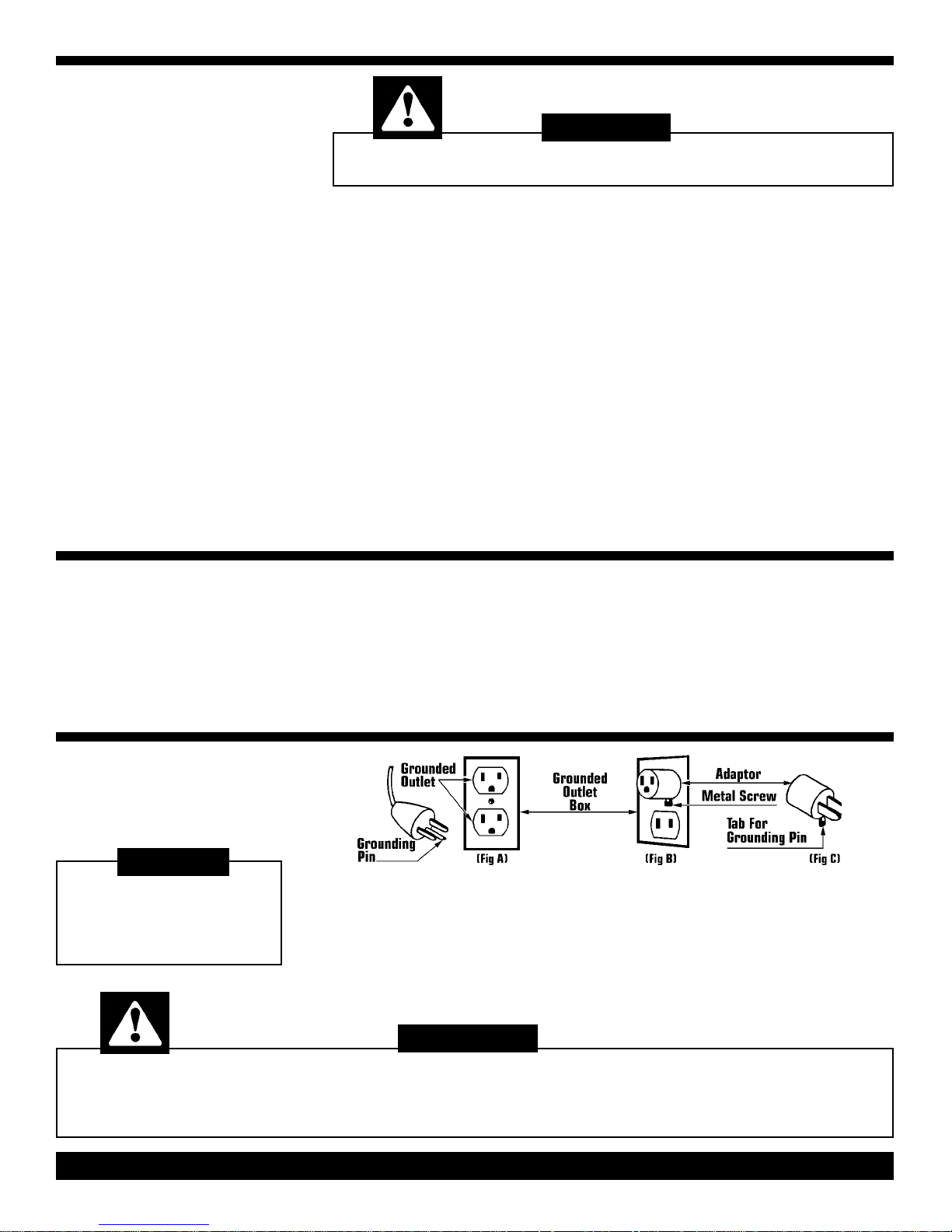

This floor machine is for use on a nominal
120 volt circuit, and has a grounding plug
that looks like the plug illustrated in (Fig A). A
temporary adaptor that looks like the adaptor
illustrated in (Fig B & C) may be used to connect the plug to a 2-pole receptacle as shown
in (Fig A) if a properly grounded outlet is not
available.
The temporary adaptor should be used only
until a properly grounded outlet (Fig A) can be
installed by a qualified electrician. The green
color rigid ear, lug, or like extending from the
adaptor must be connected to a permanent
ground such as a properly grounded outlet box
cover. Whenever the adaptor is used, it must
be held in place by the metal screw (Fig C).
WARNING:
PAGE 2
Page 3

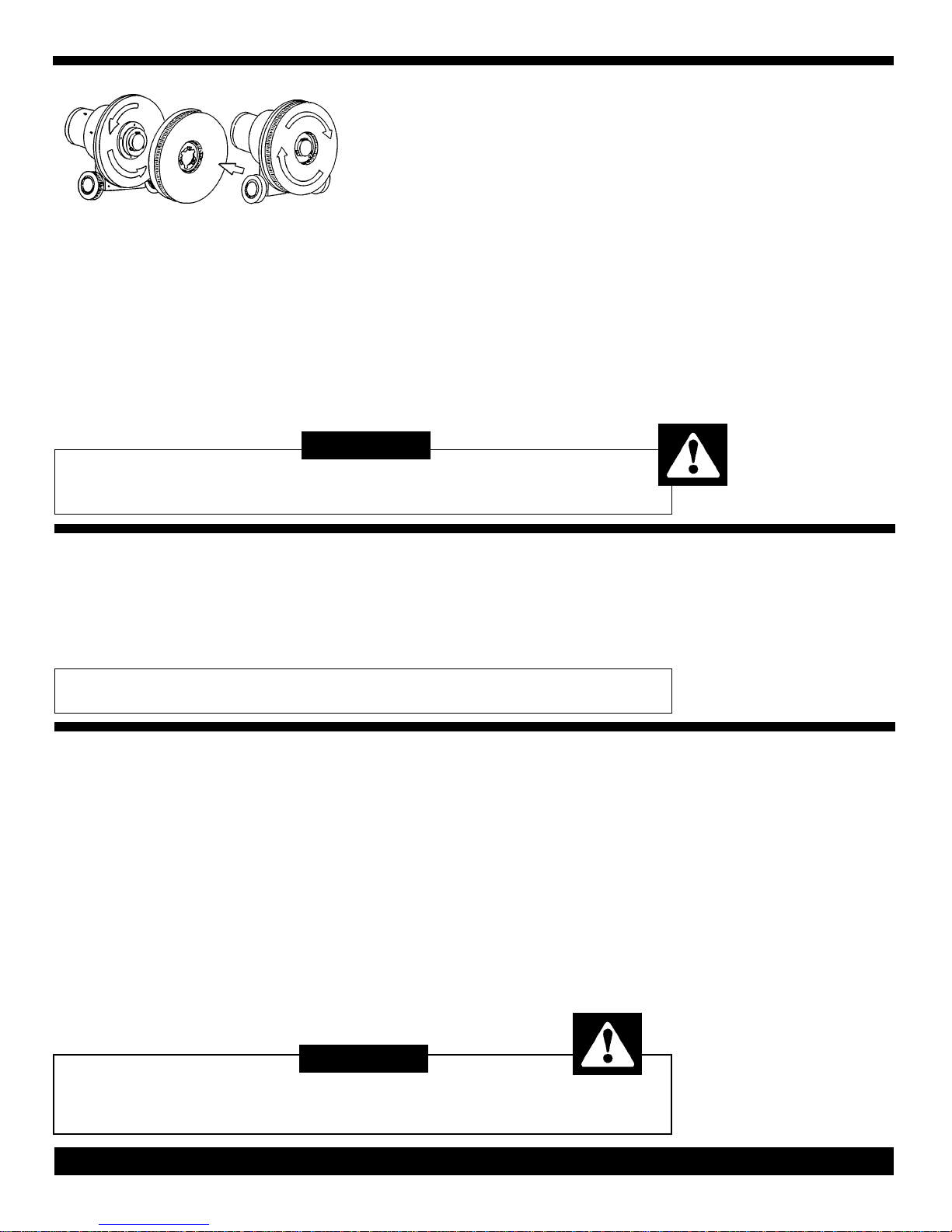

Brush/Pad Installation:
1) Unplug the power cable and LOCK handle
in upright position.
2) Tilt the machine back until the handle is
laying on the floor and underside of the
machine is fully exposed.
The machine is designed for may different
floor cleaning applications. It is important to
select the correct brush or floor pad depending upon the type of cleaning operation you
are doing.
When using floor pads, to achieve the best
results use clean pads and change them as
they load up.
The brush/pad surface should by flat and
level on the floor.
3) Holding the pad driver/brush in both
hands straddling the motor with your back to
the handle, bend over and fit the three slots
of the clutch plate over the three lugs of the
drive plate.
4) Turn brush counterclockwise as far as it will
go. It is now seated and ready for operation
Brush/Pad Removal:
Disengage clutch plate slots from drive plate
lugs by turning clockwise.
CAUTION:
DO NOT leave a plugged in floor machine unattended. Always
unplug machine before leaving to prevent accidental startup.
RUSH/
B
PAD DRIVER
INSTALLATION
The handle adjustment is controlled by a
clamping lever located at the rear of the
machine at the base of the handle tube.
1) To release, pull up on the clamping lever
and pull back on the handle to a comfortable
operating position.
Never turn this floor machine ON
with handle locked in the upright position.
This floor machine is designed to move from
side to side. Begin operating this machine at
the closest possible point to an electrical outlet and work away from the outlet. This will
prevent running over the electrical cord.
Setup for operation:
1) Install pad driver/brush and plug in power
cable.
2) Adjust handle to a comfortable operating
position and lock clamping lever in place.
3) Place your hands on the handle grips and
squeeze trigger locks beneath grips to activate the motor and start the brush operating.
2) Step down firmly on the clamping lever
and lock handle place.
Note: When transporting or attaching pad
driver/brush, handle must LOCKED in the
upright position.
To begin operating:
1) To move unit right, slowly apply slight
upward pressure. As the handle is raised
higher, the faster it will move to the right.
2) To move unit left, slowly apply slight pressure downward. As the handle is lower, the
faster it will move to the left.
3) To move unit forward or backward, keep
brush/pad surface flat on the floor and push
or pull machine in the direction required.
4) To stop the machine, release triggers.
ANDLE
H
ADJUSTMENT
OPERATING
INSTRUCTIONS
DO NOT operate this machine without brush or pad driver and pad in place.
Never attempt to lock brush/pad driver on floor machine by positioning
(JUMPING) running floor machine on unattached brush/pad drive.
CAUTION:
PAGE 3
Page 4
FLOOR
MACHINE
MAINTENANCE
CAUTION:
Disconnect plug from wall before leaving the floor machine
unattended to prevent accidental startup.
TROUBLE
SHOOTING
GUIDE
1) After each use, wipe off all of polished
and painted areas with a clean cloth.
2) Always remove the pad driver/brush
when the machine is not in operation, and
hang on a peg or lay flat on its back.
3) NEVER store pad driver/brush with the
bristles down. This will ruin the balance of
the brush and cause machine to wobble.
4) With floor machine unplugged, check
power cord for any breaks in the wire.
Breaks will most likely occur near the plug
or switch. Any breaks should be repaired
or replaced immediately.
5) When machine is not in use, remove pad
driver/brush, wrap power cord around cord
hooks and store in a dry area.
6) If the machine wobbles or vibrates:
A) Adjust by turning pad or brush 1/
turn, then reinstall on machine.
B) Inspect the pad driver/brush for
warpage or out of round. Lay floor
machine down on handle with pad driver/brush in place. With machine running, observe if pad driver/brush
appears to wobble or is out of round.
Replace if this problem occurs.
You are not required to lubricate this
machine. Lubricant has been applied and
permanently sealed at the factory.
PROBLEM: Motor won’t run.
CAUSE SOLUTION
1. Blown fuse or tripped circuit 1. Replace fuse or reset circuit breaker
breaker. at wall panel.
2. Defective switch. 2. Replace switch.
3. Defective power cord. 3. Replace power cord.
3
PROBLEM: Floor machine runs slow.
ADDRESS:
777 South Street
Newburgh, N Y 12550-0606
TEL:
(800)835-7812
(845)565-8850
FAX:
(800)752-6883
(845)565-9392
INTERNET ADDRESS:
www.mastercraftusa.com
techsupport@mastercraftusa.com
High, Duo & Variable Speed FM Manual - PN 350982 Printed in USA 09/06/05
PROBLEM: Noisy machine.
CAUSE SOLUTION
1. Low line voltage. 1. If voltage is under recommended minimum,
check size of wiring from the main switch.
If okay, contact the power company.
2. Pad loaded, heavily soiled. 2. Clean or replace pad.
CAUSE SOLUTION
1. Defective motor or gear box. 1. Contact the manufacturer or
authorized service center.
WARNING:
Always disconnect power cable from electrical outlet when
working on the machine.
PAGE 4
Page 5
DUAL SPEED
The Dual Speed Floor Machine
operates at 190 RPM for polishing or scrubbing and at 320 RPM
for spray buffing floors.
It is designed to be used with a
pad driver and pad, polish brush
or scrub brush on bare floors.
Begin operating the Dual Speed Floor
Machine at the closest point to your
electrical outlet and work away from
the outlet. This will prevent running over
the electric cord.
Always remove brush or pad driver
when machine is not in operation. Hung
brush on a wall peg or laid flat on its
back.
NEVER store the brush with bristles
down. This will ruin the balance of the
brush which will cause machine to
wobble.
If machine wobbles, vibrates or
pulls, follow theses instructions.
A. Never let machine set on brush,
pad driver or insta-lock when not in
use. A few minutes with machine setting idle on brush will cause bristles to
lose their normal shape, causing
uneven operation.
B. If wobble continues, adjust by turning brush
machine.
1
/3turn and reinstall on
FLOOR MACHINE
OPERATION
INSTRUCTIONS
(190 - 320 RPM)
PERATION
O
INSTRUCTIONS
Inspect brush for warped or
out of round block:
A. Lay the machine down on the han-
dle with brush in place. With unit running, observe if brush appears to
wobble or is out of round. This is the
main reason for wobble or vibration
and if it occurs brush must be
replaced.
1) After each use, wipe off all of polished and painted areas with a clean
cloth.
2) Check cord for any breaks in the
wire. Breaks will most likely occur near
the plug or switch. Any breaks should
be repaired or replaced immediately.
3) When machine is not in use, remove
brush or pad driver, wrap power cord
around cord hooks and store machine
in a dry area.
Part No 344362 - Dual Speed Operating Instructions - Printed in USA 08/02/04
MAINTENANCE
Loading...
