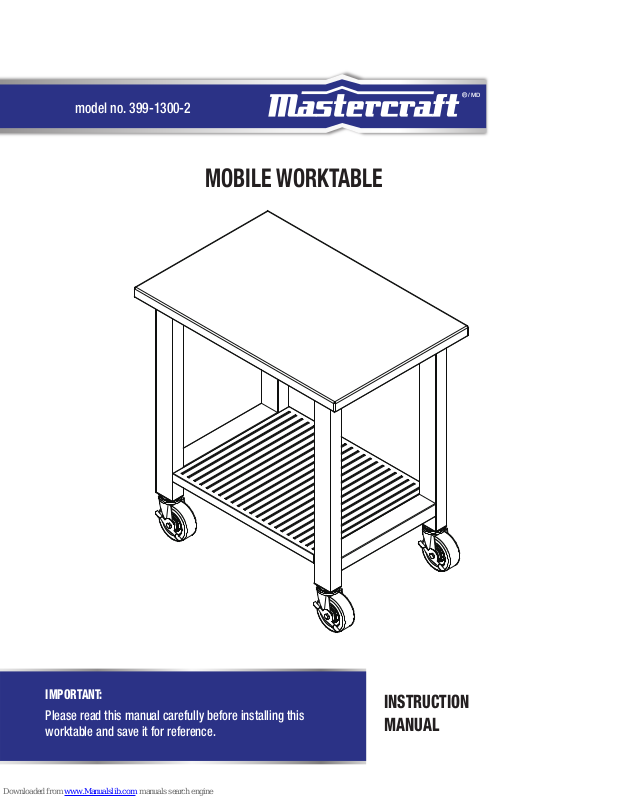

MasterCraft 399-1300-2 Instruction Manual
model no. 399-1300-2
Please read this manual carefully before installing this
worktable and save it for reference.
IMPORTANT:
MD
MOBILE WORKTABLE
INSTRUCTION
MANUAL
2
TABLE OF CONTENTS
model no. 399-1300-2 contact us 1-866-221-8146
NOTE:
If any parts are missing or damaged, or if you have any questions,
please call our toll-free helpline at 1-866-221-8146.
3Safety Guidelines
Parts List
4
5
Assembly Instructions
8
Warranty
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.
SAFETY GUIDELINES
3
MD
SAFETY GUIDELINES
• The worktable should be positioned on a level surface.
• This worktable is intended for indoor use only.
• Check all nuts and bolts periodically and tighten them, if required.
• Use a slightly damp, soft cloth to clean the worktable.
• Do not stand on worktable and do not use it as a scaffold.
• Do not exceed the maximum load of 340 lb (154.2 kg).
• Any assembly or maintenance of the worktable must be carried out by adults only.
• Do not assemble or move the worktable without necessary manpower.
• Do not exceed the following weight limits for this product.
Solid Wood Top: 220 lb (99.8 kg)
Steel Bottom Shelf: 120 lb (54. 4 kg)
PARTS LIST
4
model no. 399-1300-2 contact us 1-866-221-8146
Wood top
Bottom shelf
Leg
Castor with brake
M4 x 10L screw
M4 washer
M6 x 15L
M6 lock washer
L-bracket
1
14
3
5
12
27
50
59
47
8
32
32
8
1
1
2
4
8
M4 x 10L
14
27
M4
50
59
M6M6 x 15L
Qty.
Description
No. Qty.DescriptionNo.
PARTS LIST
1
47
59
3
12
14
27
50
5
NOTE:
The product does not include cross-head screwdriver and wrench.
Wrench
25
21
Cross-head Screwdriver
50
59
Screw holes face inward
Step 1: Install L-bracket (47)
Step 2: Install Leg Piece (5)
• Assemble the worktable on a clean, level surface.
•
Remove all items from the packaging box and ensure that all parts listed on page 4 are included.
•
When installing parts that have more than one screw, tighten all screws by hand before tightening
them with the screwdriver.
Attach 4 L-brackets (47) to 1 leg piece (5) using 8 screws
(50) and 8 lock washers (59) as shown. Repeat with the
other leg.
NOTE: Do not fully tighten the screws. This will help you
make any adjustments in alignment.
Attach both leg pieces (5) to the wood top (1) using 16
screws (50) and 16 lock washers (59).
NOTE: Make sure the top of the legs are attached to top,
and the screw hole side of the legs to the wood
top. The screw hole side of the legs are facing inward.
Do not fully tighten the screws. This will help you
make any adjustments in alignment.
5
59
ASSEMBLY INSTRUCTIONS
5
MD
