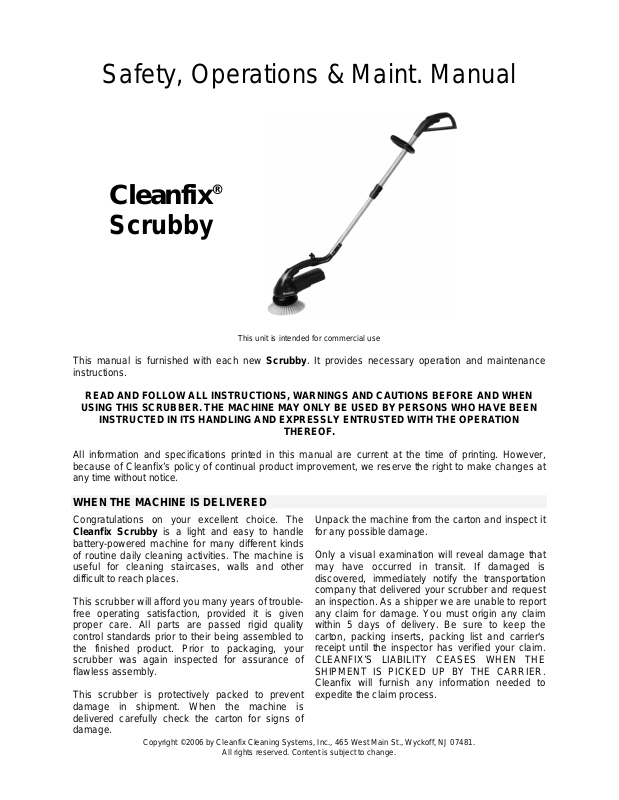

Safety, Operations & Maint. Manual
Cleanfix
Scrubby
®
This manual is furnished with each new Scrubby. It provides necessary operation and maintenance
instructions.
READ AND FOLLOW ALL INSTRUCTIONS, WARNINGS AND CAUTIONS BEFORE AND WHEN
USING THIS SCRUBBER. THE MACHINE MAY ONLY BE USED BY PERSONS WHO HAVE BEEN
INSTRUCTED IN ITS HANDLING AND EXPRESSLY ENTRUSTED WITH THE OPERATION
All information and specifications printed in this manual are current at the time of printing. However,
because of Cleanfix’s policy of continual product improvement, we reserve the right to make changes at
any time without notice.
WHEN THE MACHINE IS DELIVERED
Congratulations on your excellent choice. The
Cleanfix Scrubby is a light and easy to handle
battery-powered machine for many different kinds
of routine daily cleaning activities. The machine is
useful for cleaning staircases, walls and other
difficult to reach places.
This scrubber will afford you many years of troublefree operating satisfaction, provided it is given
proper care. All parts are passed rigid quality
control standards prior to their being assembled to
the finished product. Prior to packaging, your
scrubber was again inspected for assurance of
flawless assembly.
This scrubber is protectively packed to prevent
damage in shipment. When the machine is
delivered carefully check the carton for signs of
damage.
This unit is intended for commercial use
THEREOF.
Unpack the machine from the carton and inspect it
for any possible damage.
Only a visual examination will reveal damage that
may have occurred in transit. If damaged is
discovered, immediately notify the transportation
company that delivered your scrubber and request
an inspection. As a shipper we are unable to report
any claim for damage. You must origin any claim
within 5 days of delivery. Be sure to keep the
carton, packing inserts, packing list and carrier's
receipt until the inspector has verified your claim.
CLEANFIX’S LIABILITY CEASES WHEN THE
SHIPMENT IS PICKED UP BY THE CARRIER.
Cleanfix will furnish any information needed to
expedite the claim process.
GENERAL PRECAUTIONS
FAILURE TO FOLLOW PRECAUTIONS AND WARNINGS MAY CAUSE SERIOUS INJURY TO
THE OPERATOR AND CAUSE DAMAGE TO MACHINE, WHICH CAN VOID WARRANTY.
TO REDUCE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: READ ALL INSTRUCTIONS
BEFORE AND WHEN USING THIS SCRUBBER.
• This is NOT a toy. Close attention is necessary
when used around or near children.
To Avoid Electric Shock, Do Not Expose to Rain. Store Indoors.
WARNING
• Keep hair, loose clothing, fingers and all parts
of body away from openings and moving parts.
• Use only as described in this safety/operations
manual. Use only manufacturer’s
recommended attachments and accessories.
• Do not use this scrubber with damaged cable.
If the scrubber is not working as it should,
because it has been dropped, damaged, left
outdoors or dropped into water, contact
authorized service center or factory.
• Do not handle the plug of the scrubber with
wet hands.
• Store scrubber indoors in a dry area. Do not
• Any manner of working that represents a safety
hazard must be refrained from.
• Do not use where anesthetics or oxygen is
used.
• Replace damaged or worn parts immediately
with genuine original equipment parts to
maintain safety and to protect your limited
warranty.
• Do not pressure-wash the scrubber, as it may
cause a short circuit, damage to components
and/or operator injury.
expose to freezing temperatures.
• Do not put any objects into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair and anything that may reduce air
flow.
CLEANING CHEMICALS AND HAZARDOUS DUST/LIQUID
• Attention must be paid to the manufacturer’s safety instructions when using cleaning and care
chemicals. Wear safety glasses and clothing if necessary.
• The danger of using easily flammable, toxic, health-damaging, caustic or irritating substances is
expressly pointed out.
• Do not use the scrubber for surfaces that can release dust and liquids that are hazardous to health.
GENERAL SAFETY INSTRUCTIONS FOR BATTERY-OPERATED MACHINES
• Observe the safety and accident prevention
regulations pertaining to the handling and
installation of batteries.
• Observe the operating and handling
instructions of the battery manufacturer.
• Before charging, check the battery cable
and the charger cable and replace them if
necessary.
• Smoking is strictly prohibited when
charging batteries.
Safety, Operation and Maintenance Manual for Cleanfix Scrubby; Version 1.0
• Avoid open flames, flying sparks and
glowing objects.
• Fire prevention equipment must be easy to
access.
• Drinking and eating is prohibited in rooms
where charging takes place.
• Wash hands thoroughly immediately after
working on the batteries.
• Risk of short ciruit or fire! Do not place
metal objects on the batteries.
2
CARE OF SCRUBBER
This scrubber is designed to be safe when used to
perform cleaning functions as specified. Should
damage occur to electrical parts, the unit should
NOT be used until the damage is repaired by the
manufacturer of an authorized service center. This
will avoid further damage to the scrubber or injury
to the user.
SAVE THESE INSTRUCTIONS!

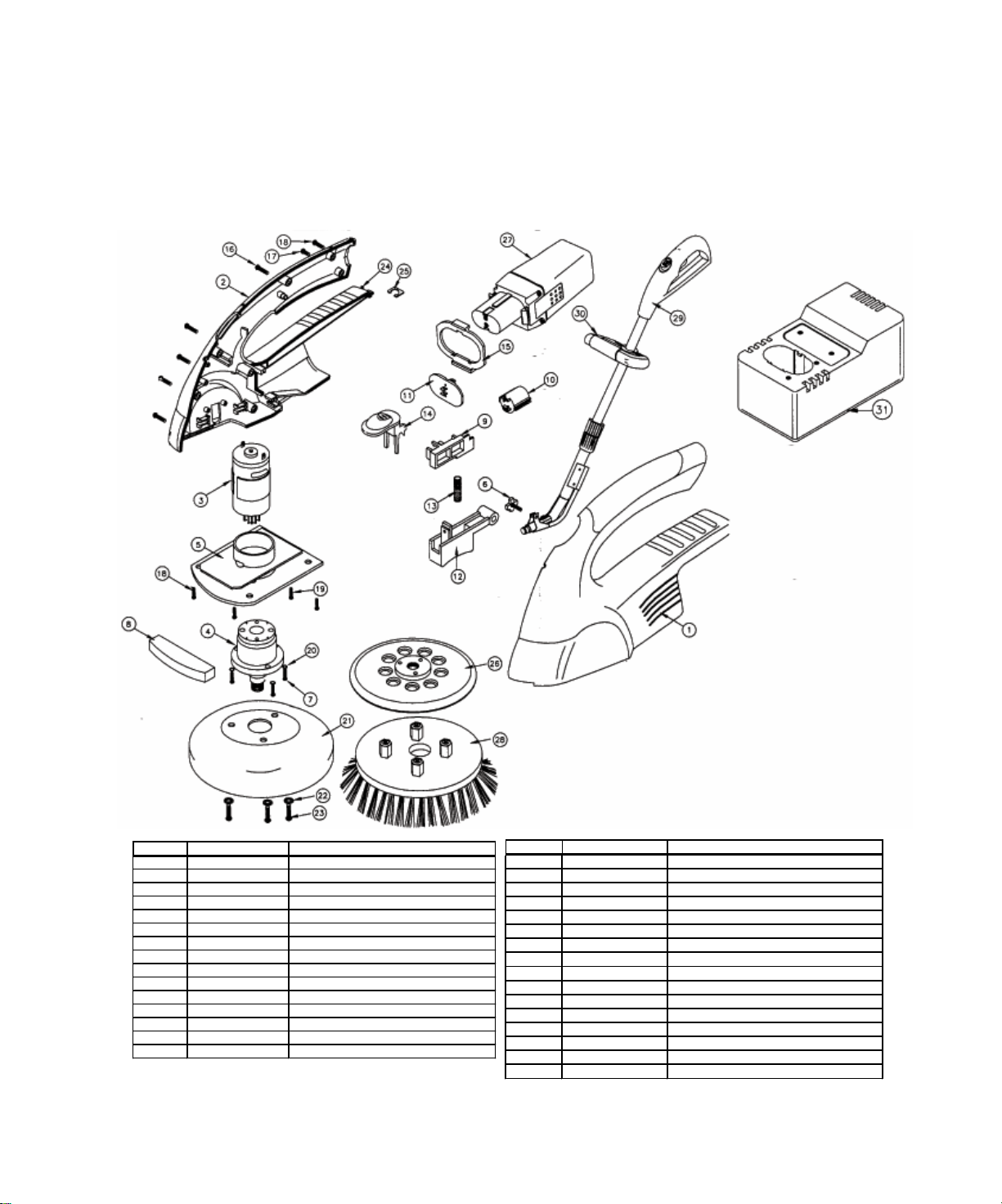

PARTS & ACCESSORIES
• The disk connected to the motor and the
on/off switch on the handle of the plastic
molding are standard
• Reversible telescope handle, including the
adjustable grip.
• Battery, NiCd 9,6 V 1900 mAh.
• Quick battery charger 120 V
BEFORE USING THE SCRUBBER
These instructions are for your protection and
information.
PLEASE READ CAREFULLY! Failure to follow
instructions or precautions could result in injury or
damage to the user and/or the scrubber.
• Nylon brush (several models, different
degrees of coarseness, suitable for several
purposes, available)
• Nylon pads (different degrees of
coarseness available)
• Microfiber pad
• Solution dispenser.
1. Check that voltage of power source is the
same as battery charger. (120 V)
2. Charging of the battery is only permitted in
dry areas.
3. Put the plug of the charger in the wall
socket and place battery in the charger.
4. Use only battery chargers which are
approved by your dealer.
5. When the green light shows, battery is
charged and is ready for use.
6. Remove battery from charger and insert
into the special opening of the machine
head.
7. Press battery firmly down till bottom. The
catches on the battery take care of bringing
the battery into the right position inside the
machine.
8. Place the brush with nipples up in the holes
of the drive disk on the bottom of the motor.
9. If the nylon brush loses its shape it can be
straightened by immersing the brush in hot
water for 30 seconds. The brush will regain
its original shape.
10. Working with pads, they should be placed
as central as possible on the driving disk
and directly attached to the Velcro.
11. The right working position, depending on
the job, will be obtained by fixing the
telescope handle on the correct length,
using the plastic turn lock.
12. Use the screw buttons, to fix the adjustable
handle in the preferred position.
13. Check that the machine is in proper
condition.
14. Remove obstacles, such as furniture etc.
from the area to be cleaned. Large pieces
can be removed to opposite end of the
room from where you start cleaning.
15. All covers, hoods and lids must be correctly
attached and closed. Make sure all
switches are in the OFF position.
Reversible telescopic handle
16. Place the telescopic handle in the opening
of the handle at the motor part and press
firmly until the fixing button on the
connector comes up. Tighten the fixing bold
on the iron support slightly.
17. Before removing the handle, first loosen the
fixing bolt on the iron support slightly. Push
the button on the connector of the handle
and pull to remove while holding the button.
DURING OPERATION
With telescopic handle, when right handed:
• Take the adjustable grip into the left hand.
• Take the top handle with on/off switch in the right hand.
• Pull the trigger switch and keep this pulled during use. After the switch is released, motor stops
instantly.
As hand held unit without the telescopic handle.
• Take the motor part by the plastic grip on top in the right hand.
• The motor part of the Cleanfix Scrubby has a standard safety lock on top of the grip, which blocks
the use of trigger switch.
• Push the safety lock with your thumb forward, before using the trigger switch. When motor is running
the safety lock can be released.
• The motor starts running as soon as the trigger switch has been pulled. If the trigger switch is
continuously pulled it keeps the motor running. After the switch is released, the motor stops instantly.
AFTER USING THE SCRUBBER
• Remove brush or pad from the machine and clean thoroughly.
• Brush to be stored with bristle up to avoid damage to brush shape.
INSTRUCTIONS FOR BATTERIES
When battery is low
• Remove the battery from your Cleanfix Scrubby by pressing on the tabs on both sides of the
battery and pulling the battery out of the motor part.
• Plug the quick battery charger into the wall socket. The indicator light is green.
• Place battery into charger. The red light indicates charging.
• If you have trouble getting a red light for charging, insert battery to the charger and remove again
within 15 seconds.
• This resets the safety zone on the battery.
Safety instructions for battery and machine
• Never use charger in wet or moist
environments!
• Prevent damage to electric cables, caused
by sharp edges or objects. In case the
power cable is damaged, charger should be
taken to an authorized repair shop by
manufacturer. Changing cables require
special tools and spare parts.
• Never destroy worn-out batteries by burning.
They may explode!
• In case liquid from battery contacts skin,
proceed as following:
1. Wash the contacted skin with
water and soap
2. Neutralize the battery liquid with
vinegar or juice of lemon (acid)
3. If battery liquid contacts the eyes,
at one rinse eyes with clean water
for at least 10 minutes.
• Only carry out work on batteries
according to battery manufacturer’s
instructions.
• Wear safety glasses and clothing when
working on batteries.
• Observe the accident prevention rules
and regulations.
• Smoking is strictly prohibited.
• Keep battery away from open flames,
glowing objects and sparks, otherwise
there is a danger of explosion and fire.
• Immediately rinse any acid splashed
into eyes or onto skin out or off with
plenty of clean water. Then immediately
consult a doctor.
• Wash out clothing contaminated with
acid with water.
• Avoid short circuits! Explosion and fire
hazard!
4. Contact a doctor immediately.
Safety, Operation and Maintenance Manual for Cleanfix Scrubby; Version 1.0
4
INSTRUCTIONS FOR BATTERIES (cont.)
• WARNING! Metal parts in the battery
cells are always live. Therefore, do not
put/store objects or tools on the battery.
• Electrolyte is extremely caustic. Contact
with the electrolyte is not possible during
normal operation.
• In the event of destruction of the casing
• Batteries filled with acid must not be
handled by children.
• Use only approved lifting and transport
equipment.
• Lifting hooks must not cause damage to
cells, connectors or connection
cords/cables
of batteries, the bound electrolyte
released is just as caustic as the liquid
electrolyte.
Charging
WARNING!
Only use chargers approved by Cleanfix for charging.
Attention! Worn-out batteries can damage environment, should be taken to a centre for hazardous
waste disposal and not mixed to normal refuse collections and disposal.
Under extreme circumstances, little liquid might extend from battery. This does not necessarily
indicate failure or damage.
Care
• The battery is to be kept clean and dry
at all times in order to avoid leak
currents and sparking.
• For cleaning, remove batteries, wear
safety glasses and protective clothing.
Select the place of installation so that
dirty water produced during cleaning is
• The cell plugs must not be unscrewed.
• The plastic parts of the batteries may
only be cleaned with water or cleaning
cloths soaked in water without additives.
After cleaning, the surface of the
batteries is to be dried (compressed air,
cleaning cloth).
channeled to a suitable waste water
treatment plant.
Storage
• If batteries are taken out of service for
any length of time, they are to be stored
fully charged in a frost-free room.
• Due to the batteries’ spontaneous
discharging, recharging needs to be
done at regular intervals.
Faults
If faults are found, the customer service staff must be informed promptly.
Disposal
Old batteries showing recycling symbols are re-usable commercial goods and must be channeled to
the recycling process.
All other batteries are to be disposed of as hazardous waste in accordance with existing regulations.
Warranty
Failure to comply with the operating & handling instructions, carrying out repairs using non-original
spare parts and attempts to carry out the repairs by the user lead to a loss of the right to make claims
under the warranty.
Safety, Operation and Maintenance Manual for Cleanfix Scrubby; Version 1.0
5
MAINTENANCE AND REPAIR
•
Only do maintenance work described in
this manual.
•
Always use original spare parts.
•
WARNING! Do not make any technical
Always contact authorized service
•
center or factory for other maintenance
and repair work.
alterations to scrubber. This can put
your safety at risk and will cease the
warranty.
OTHER WARNINGS
Service and repairs should only be performed by an authorized service center.
WARNING
• Though the Cleanfix Scrubby is protected against penetration of liquid, only driving disk and not
motor nor battery are allowed to get into contact with water.
• The Cleanfix Scrubby has a splashguard. Depending on the job however, wearing eye and face
protection are recommended to protect against direct contact with cleaning agents during operation.
• Working on stairs or platforms, observe all appropriate safety regulations. Consider torque caused by
machine.
• Ensure that loose clothing or other material does not become entangled in rotating parts of the
Cleanfix Scrubby.
TECHNICAL INFORMATION
• Battery 9,6 V NiCd 1900 mAh
• Quick battery charger 120 V – charging time 60 minutes
• Operational time with single battery, aprox. 1,5 hr
• Drive disk / brush speed 350 rpm
• Brush body and bristle made of nylon
• Drive disk fits 6 to 6.5 inches pads.
• Cleanfix Scrubby, including battery, weights 6 lbs. only
• Battery, quick battery charger and Cleanfix Scrubby have CE approval.
Safety, Operation and Maintenance Manual for Cleanfix Scrubby; Version 1.0
6
New Machine Warranty
1. Limited Warranty. These terms and conditions of the New
Machine Warranty are a material part of the agreement
between Buyer and Cleanfix Cleaning Systems Inc., a New
Jersey-based corporation (hereinafter “Cleanfix”), and
supersede warranty terms and conditions in documentation
submitted by Buyer to Cleanfix. Cleanfix warrants new
machines of its manufacture against defects in material and
workmanship under normal use and service to the original enduser purchaser. No person, agent, representative or distributor
is authorized to give any warranties on behalf of Cleanfix, or to
assume any other liability for Cleanfix in connection with any
Cleanfix machine. Cleanfix reserves the right to make changes
to its equipment without notice. The warranty coverage is
subject to the conditions below.
2. Registration of Warranty. The warranty commences on the
date of purchase by the original end-user from an authorized
Cleanfix distributor or agent, subject to proof of purchase. The
warranty commences latest, however, after six (6) months of
the purchase date by the authorized distributor or agent of
Cleanfix. Any new Cleanfix machine must be registered
immediately with Cleanfix by the original end-user customer by
fully completing and returning the warranty registration form to
Cleanfix. If proof of purchase cannot be identified through a
completed and returned warranty registration form, the warranty
commences from the date of sale to the authorized Cleanfix
distributor.
3. Warranty Coverage. Subject to conditions outlined below,
Cleanfix warrants rotationally molded PE housings and tanks on
all of its machines to be free from defects in material and
workmanship, under normal use and service for ten (10) years
to the original end-user.
Subject to conditions outlined below, Cleanfix warrants
fiberglass housings and tanks on all of its machines to be free
from defects in material and workmanship, under normal use
and service for three (3) years to the original end-user.
Under this warranty Cleanfix warrants the performance of nonpolyethylene and non-fiberglass components to be free from
defects and workmanship for up to one (1) year to the original
end-user. Parts replaced or repaired under this warranty are
warranted for the remainder of the original warranty period.
(See table below)
Rotationally molded PE housings and tanks 10 years
Fiberglass housings and tanks 3 years
Vacuum motors, brush motors, pump motors,
boards and electronics
Battery and battery charger* 1 year
* The 1 year period warranty commences with the purchase date by the
authorized distributor or agent of Cleanfix.
Service labor charges are covered for up to one (1) year from
the date of purchase through an authorized Cleanfix service
provider. A total maximum of one (1) hour travel time - equal to
one (1) hour labor rate - is covered for large machines, namely
Falcon, Raven, Eagle and larger for 90 days. No coverage is
extended for diagnosis time.
4. Product Exceptions and Exclusions. ALL vacuum cleaners
and air movers are warranted for one (1) year. No warranty is
extended for wear items, accessories and attachments
including, but not limited to, belts, brushes, pad holders,
capacitors, carbon brushes, wheels, casters, glides, clutches,
cords, filters, filter bags, gaskets, hoses, rectifiers, switches,
float switches, valves, squeegees, bearings, pulleys, relays,
actuating cables, wheels, tires, vacuum cleaner attachments.
All rights reserved. Content is subject to change without notice. Version 5.1.
1 year
Copyright ©2007 Cleanfix Cleaning Systems Inc.
The purchaser is assured that meticulous care has been
exercised in the selection, assembling and testing of these parts
and components before shipping. No warranty is extended for
machine finish, labels and other cosmetic parts or features.
5. Stated Warranties. Stated warranties are in lieu of all other
warranties, expressed or implied. Any statutory implied
warranties, including any warranty of merchantability or fitness
for a particular purpose, are expressly limited to the duration of
the written warranty. Cleanfix will not be liable for any other
damages, including but not limited to incidental, indirect or
special consequential damages arising out of or in connection
with the furnishing, performance, use or inability to use the
machine, including damages to persons or property. This
remedy shall be the exclusive remedy of the buyer. The
warranty is limited to the warranty.
6. Warranty is null and void for the following.
• Damage, defects, malfunction or other failures caused by
not using the electric current indicated on the spec plate,
including the use of improper extension cords.
• Damage or defect caused by accident, misuse, neglect,
abuse, fire etc., including use of incompatible or corrosive
chemicals or overloading of capacity.
• Failure caused by lack of proper maintenance and care,
including proper machine clean-up after use, proper
charging procedures for batteries.
• Failure caused by loss, damage or removal of protective
components, including, but not limited to, filters and filter
screens, tank covers and lids, skirts and bumpers, float
shut-off assemblies.
• Freezing of any water or chemical related components
(this will void all warranties on water or chemical related
components, internal or external, of the product).
• Deposits and buildup in any water or chemical related
systems due to hardness in water (this will void all
warranties on affected systems).
• Any design alterations, adjustments and/or repairs
performed on the equipment by an organization not
authorized or specified by Cleanfix.
• Use of any parts not approved by Cleanfix, including, but
not limited to, batteries, battery charger, filter bags, belts,
electric components, motors.
• Use of machine for a purpose other than which it was
designed and intended, and use of machine in excess of
design duration.
• Damage in transit.
7. Warranty Claim Procedure. If a difficulty develops during
the specified warranty period, contact the authorized Cleanfix
distributor/partner from whom the machine was originally
purchased. Do not return any products to Cleanfix unless
explicitly authorized by Cleanfix. Cleanfix may elect to require
the return of the machine or component(s) to validate the claim.
Any defective machine or component to be returned must be
shipped freight pre-paid to an authorized Cleanfix
distributor/service center.
Cleanfix will provide and charge
shipping and handling, to the original purchaser through an
authorized service center. If the part is returned within 30 days
and is found defective, the purchaser will be credited for the
cost of the replacement part including shipping and handling.
8. Term. This warranty is valid for all products sold after
January 1, 2006. A product sold before that date will be covered
by the limited warranty in effect at the date of sale to the original
purchaser.
for replacement parts, including
Parts List
r
r
r
Cleanfix® Scrubby
This unit is intended for commercial use
Item# Part#
1185.001
2185.002
3185.003
4185.004
5185.005
6185.006
7185.007
8185.008
9185.009
10 185.010
11 185.011
12 185.012
13 185.013
14 185.014
15 185.015
Description
Support housing
Cover housing
Johnson DC motor HG583-LG-63738
Gear box assy.
Gear box br a cket
Cross scr ew knob
M/C screw
Foam rubbe
On/Off slide switch
Contact plate holder (fo r ha n d le)
Contact plate holder (batt e ry)
On/Off switch knob
Spring (for on/off switch)
Safety switch knob
Power pack guiding plate
Item# Part#
16 185.016
17 185.017
18 185.018
19 185.019
20 185.020
21 185.021
22 185.022
23 185.023
24 185.024
25 185.025
26 185.026
27 B-2AHNI
28 185.059
29 185.029
30 185.030
31 BCH-1SCR
Version March 2007
All information and specifications printed in this parts list are current at the time of printing.
However, because of Cleanfix’s policy of continual product improvement, we reserve the right to
make changes at any time without notice.
Description
S/T screw 3.5x18
S/T screw 3.5x10
S/T screw 3.5x12
Screw
Spring washer M3.0
Brush cove
Overlapping toothed lock washe
MC screw 5x10
S/T screw 2.0x10
U-shape clip
Rubber backing pad assy.
Standard Batter y , 1,9 AhNi-Cd
#Scrub brush standard, nyl on , 6 "
Handle bar assy.
Additional handle assy.
Battery quick charger for Scrubby
Loading...
