Page 1
model no. 058-9807-2
OPERATING
MANUAL
IMPORTANT:
For your own safety, read and follow all of the Safety Guidelines
and Operating Instructions before operating this air-powered
gravity-feed spray gun. Keep this manual for future reference.
AIR-POWERED
GRAVITY-FEED SPRAY GUN KIT
Page 2
3
TABLE OF CONTENTS
TABLE OF CONTENTS
TECHNICAL SPECIFICATIONS
SAFETY GUIDELINES

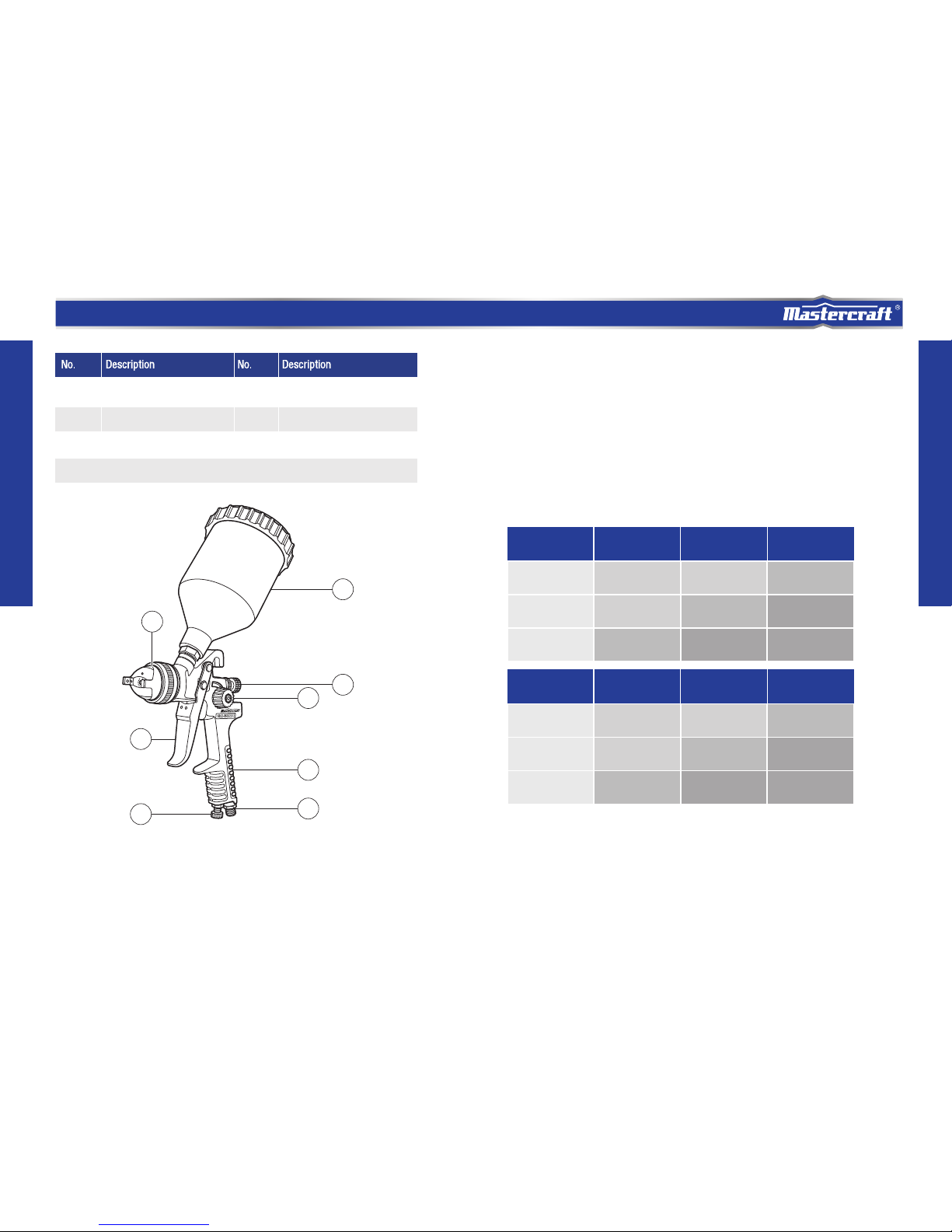

KEY PARTS DIAGRAM
TECHNICAL INFORMATION
OPERATING INSTRUCTIONS

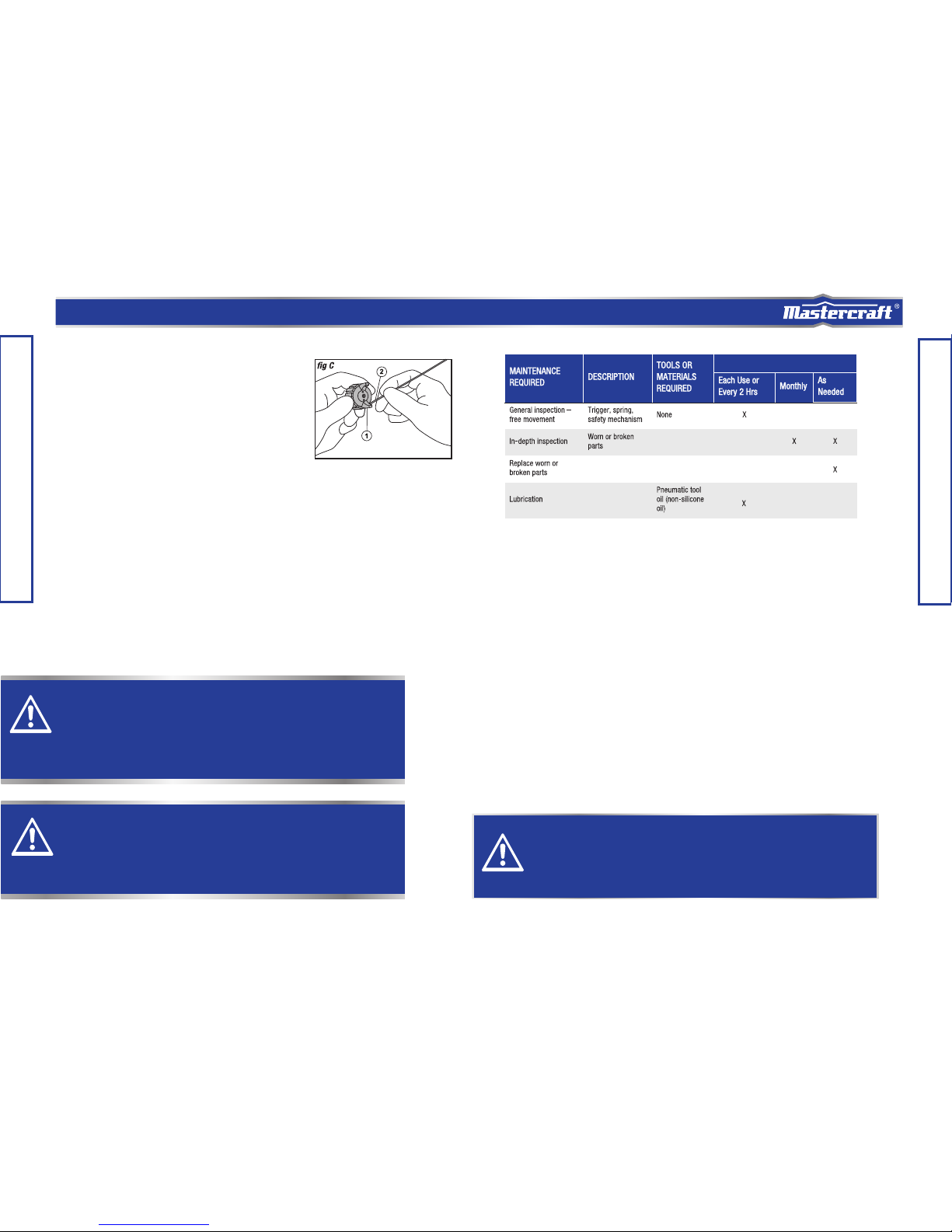

MAINTENANCE
TROUBLESHOOTING

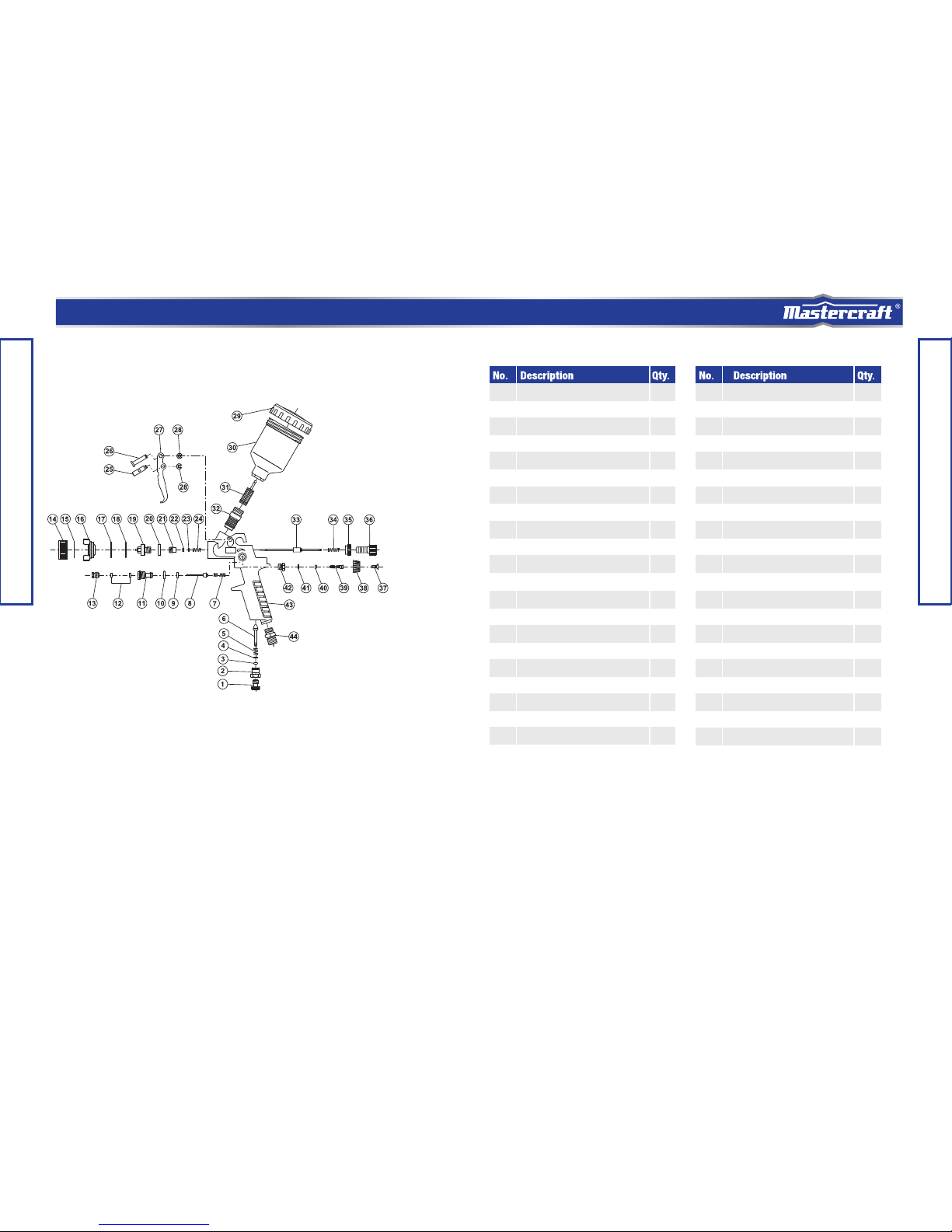

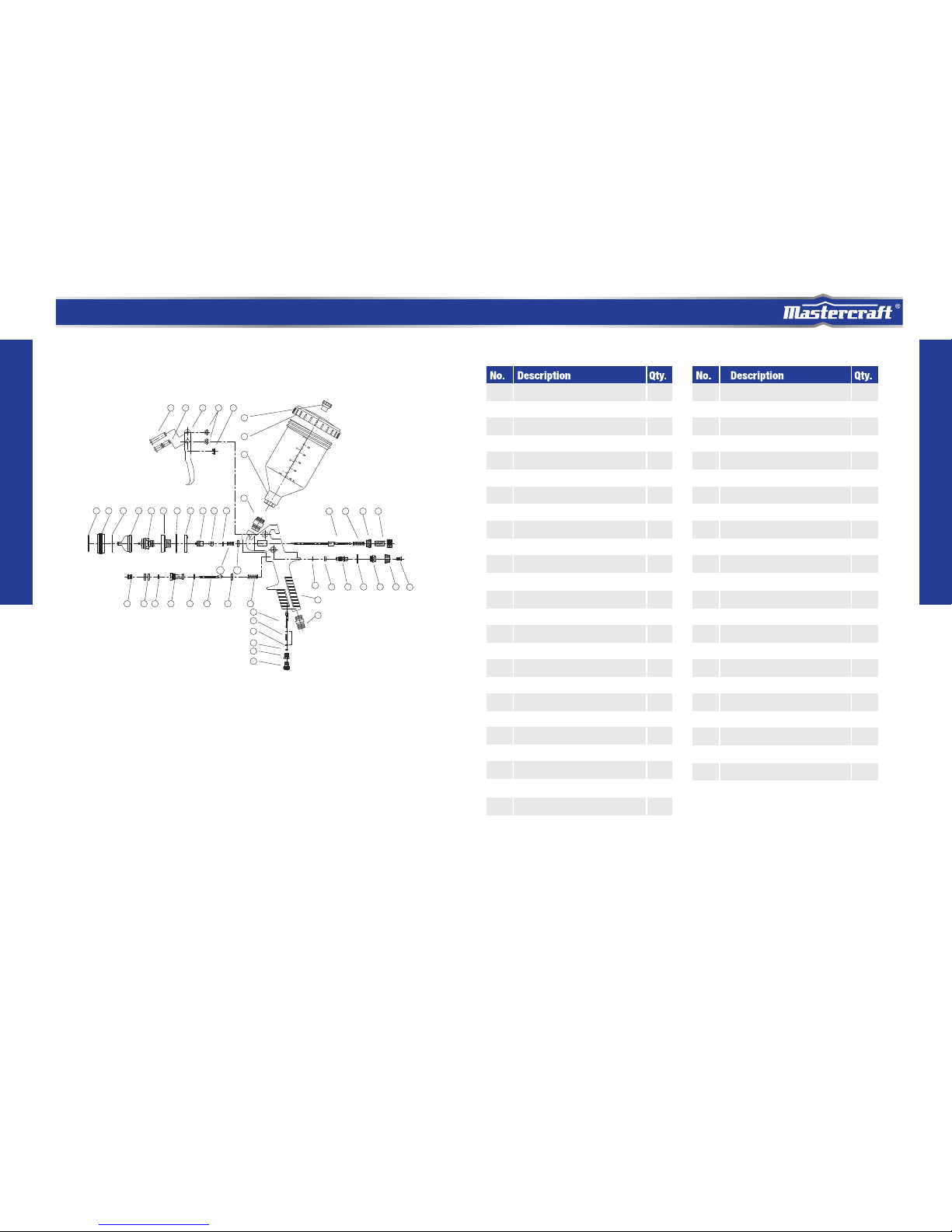

EXPLODED VIEW
PARTS LIST
WARRANTY
4
5
10
11
13
19
22
24
25
28
Page 3
54
SAFETY GUIDELINES
TECHNICAL SPECIFICATIONS
model no. 058-9807-2 | contact us 1-800-689-9928
TECHNICAL SPECIFICATIONS
These precautions are intended for the personal safety of the user and others working with the
user. Please take time to read and understand them.
Make sure you read and understand this manual before using this tool. Make sure other users
read and understand this manual before they use the tool.
SAFETY GUIDELINES
PERSONAL SAFETY
Potential hazard that will result in serious
injury or death.
Potential hazard that could result in
serious injury or death.
Potential hazard that may result in
injury or damage to equipment.
Note: The word “Note” is used to inform the readers of something
they need to know about the tool.
WARNING!
CAUTION!
DANGER!
This manual contains information that relates to PROTECTING PERSONAL SAFETY and
PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and
understand it thoroughly before using the product. The symbols listed below are used to
indicate this information.
FLUID DELIVERY
NOZZLE
AIR HOSE REQUIRED
PAINT VISCOSITY
CFM REQUIREMENT
AIR INLET
PAINT CAPACITY
NORMAL AIR PRESSURE
WEIGHT
MAXIMUM MATERIAL TEMPERATUER
Gravity
1.4 mm & 1.7 mm
3/8" (9.5 mm)
Water–based paint
3.4 CFM @ 40 PSI
1/4"-18 NPT
0.6 L
29-50 PSI (2.0-3.5 bar)
1 lb 9 oz (0.65 kg)
50 ℃（122℉）
CF: Cubic Feet (the volumetric flow rate of air corrected to standardized
conditions of temperature and pressure).
NPT: National Pipe Thread.
FLUID DELIVERY
NOZZLE
AIR HOSE REQUIRED
PAINT VISCOSITY
CFM REQUIREMENT
AIR INLET
PAINT CAPACITY
NORMAL AIR PRESSURE
WEIGHT
MAXIMUM MATERIAL TEMPERATUER
Gravity
1.0 mm
3/8" (9.5 mm)
Water–based paint
1.4 CFM @ 40 PSI
1/4"-18 NPT
0.12 L
40-58 PSI (2.75-4.0 bar)
11 oz (0.32 kg)
50 ℃（122℉）
Page 4
76
model no. 058-9807-2 | contact us 1-800-689-9928
Do not use oxygen or any other combustible or bottled
gas to power air-powered tools. Failure to observe this
warning can cause explosion and serious personal
injury or death. Use only compressed air to power
air-powered tools. Use a minimum of 25' (7.6 m) of
hose to connect the tool to only compressor. Failure to
comply will result in serious injury or death.
Risk of inhalation: Never directly inhale the air produced by the
compressor.
Risk of electric shock: Do not expose a compressor to rain.
Store it indoors. Disconnect the compressor from the power
source before servicing. The compressor must be grounded.
Do not use grounding adaptors.
Risk of personal injury: Do not direct compressed air from the air hose
towards the user or other people or animal.
Risk of burns: The pump and the manifold generate high temperatures. In
order to avoid burns or other injuries, do not touch the pump, the manifold,
or the transfer tube while the compressor is running. Allow the parts to cool
down before handling or servicing. Keep children and pets away from the
compressor at all times.
Risk of bursting: Do not adjust the pressure switch or safety valve for any
reason. They have been preset at the factory for this compressor’s maximum
pressure. Tampering with the pressure switch or the safety valve may cause
personal injury or property damage.
Risk of bursting: Make sure the regulator is adjusted
so that the compressor outlet pressure is set lower
than the maximum operating pressure of the tool.
Before starting the compressor, pull the ring on the
safety valve to make sure the valve moves freely.
Drain water from the tank after each use. Do not weld
nor repair the tank. Relieve all pressure in the hose
before removing or attaching accessories.
SAFETY GUIDELINES
SAFETY GUIDELINES
SAFETY GUIDELINES
Potential hazard that will result in serious injury or loss of life.
Potential hazard that could result in serious injury or loss of life.
• Do not allow unskilled or untrained individuals to operate the
Gravity-feed Spray Gun.
• Use components recommended by manufacturers: Never modify the
tool for other applications. Use only parts, nozzles, and accessories
with specifications as mentioned in this manual (see section “
Technical Specifications”).
• Inspect the tool components and attachments before operation and
ensure that they are assembled properly and are not damaged.
Failure to comply could lead to serious injury or loss of life.
• Locate the compressor in a well-ventilated area for cooling, at a
minimum of 12" (31 cm) away from the nearest wall.
• Protect the air hose and the power cord from damage and puncture.
Inspect them for weak or worn spots every week, and replace them
if necessary.
WARNING!
DANGER!
• Keep children away from the work area. Do not allow children to
handle power tools.
• Do not point the tool towards yourself or other people, even when
the tool has stopped. Keep hands, feet, and all other parts of the
body clear from work area.
• Never use homogenate hydrocarbon solvent, which can chemically
react with aluminum and zinc parts and which is not chemically
compatible with aluminum and zinc parts.
Page 5
98
model no. 058-9807-2 | contact us 1-800-689-9928
CAUTION!
Potential hazard that may result in injury or damage to
equipment.
CAUTION!
Potential hazard that may result in injury or damage to
equipment.
Note: Recycle unwanted materials rather than disposing of them as waste. Sort
the tools, hoses, and packaging in specific categories and take them to the local
recycling centre or dispose of them in an environmentally safe way.
SAFETY GUIDELINES
SAFETY GUIDELINES
• Keep proper footing at all times in order to ensure correct balance.
• Do not use a tool that is leaking air, that has missing or damaged parts, or
that requires repairs. Verify that all screws are securely tightened.
• For optimal safety and tool performance, inspect the tool daily in order to
ensure free movement of the trigger, safety mechanisms, and springs.
• Ensure proper tool operation before painting. Before painting, inspect to
ensure free movement of the trigger and nozzle.
• Check the tightness of screws before operating the tool. Before operating
the tool, make sure all the screws and caps are securely tightened to
prevent leakage.
• Keep the work area clean. A cluttered or dirty workbench may lead to an
accident. Floors should be kept clear.
• Handling and storage of oil: Use with adequate ventilation. Avoid contact of
oil with eyes, skin, and clothing. Avoid breathing spray or mist. Store in a
tightly closed container in a cool, dry, well-ventilated area free from
incompatible substances.
• Do not use the tool near or below freezing temperatures, as doing so may
cause tool failure.
• Do not store the tool in a freezing environment to prevent ice formation on
the operating valves of the tool, as doing may cause tool failure.
• Use safety goggles and ear protection. Wear safety glasses
with side shields when operating the tool/compressor and
verify that others in the work area are also wearing safety
glasses. Safety glasses must conform to American National
Standards Institute (ANSI Z87.1) requirements and must
provide protection from flying particles from the front and
the sides.
Air-powered tools are loud and the sound can cause hearing
damage. Always wear ear protection to help prevent hearing
damage and loss. Failure to comply may result in moderate
injury.
Disconnect the spray gun from the air supply hose and turn
off the compressor before performing any maintenance,
when the tool is not in use, when it is being handed to
another person, and when it is left unattended. It is
recommended to use a ball valve in the gun to air supply,
for emergency stop and prevention of unintended operation.
•
•
Use a safety respirator: Toxic vapours produced by spraying
certain materials can cause serious damage to health.
Always wear safety glasses, gloves, and a respirator to
prevent the hazard caused by inhaling toxic vapour or
contact of solvent and paint with eyes or skin. Failure to
comply may result in moderate injury.
Page 6
1110
model no. 058-9807-2 | contact us 1-800-689-9928
General use
KEY PARTS DIAGRAM
TECHNICAL INFORMATION
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Plastic canister
Pattern adjusting knob
Gun body
Air adjusting knob
Trigger
Air cap nozzle and needle
Air inlet plug
Paint adjusting knob
This Mastercraft
®
Air-powered Gravity-feed Spray Gun is an HVLP or high-volume low-pressure
sprayer. This tool applies paint with less force, reducing the bounce of the material from the
surface to be painted. It features a stainless steel needle and nozzle to accommodate a variety of
coatings. The spray gun is capable of forming very large patterns.
Air Compressor
Size and Power
1 1/2–2 HP 2 1/2–3 HP 3 HP and more
5–6 Gallons
8–11 Gallons
15 Gallons
and more
Light-duty and
intermittent use
Light-duty and
intermittent use
Medium-duty and
intermittent use
Light-duty and
intermittent use
Medium-duty and
intermittent use
Heavy-duty and
continuous use
Light-duty and
intermittent use
Medium-duty and
intermittent use
Heavy-duty and
continuous use
Air Compressor
Size and Power
1 1/2–2 HP 2 1/2–3 HP 3 HP and more
4–6 Gallons
8–11 Gallons
15 Gallons
and more
Light-duty and
intermittent use
Light-duty and
intermittent use
Medium-duty and
intermittent use
Light-duty and
intermittent use
Medium-duty and
intermittent use
Heavy-duty and
continuous use
Light-duty and
intermittent use
Medium-duty and
intermittent use
Heavy-duty and
continuous use
Compatible compressors and air tool
Be sure to use the proper air compressor with Mastercraft® air-powered tools. The compressor
should be able to supply a minimal air delivery of 3.4 CFM @ 40 PSI to ensure it can run
continuously with the MAXIMUM® Air-powered Gravity-feed Spray Gun. Using tools or
combinations of tools that together or separately require more than the air compressor can
deliver will reduce performance and could void the compressor or tool guarantee/warranty.
GUIDELINES FOR PROPER USE AND OPERATION
Page 7
1312
model no. 058-9807-2 | contact us 1-800-689-9928
TECHNICAL INFORMATION
OPERATING INSTRUCTIONS
CAUTION!
Incomplete or improper cleaning could cause function failures and degradation
of the tool. Failure to comply may result in moderate injury or damage to
equipment.
•
Storage
• Rotate the paint adjusting knob in a counterclockwise direction and open the knob when the
gun is not in use. This will reduce spring tension on the needle fluid tip.
• Clean the Air-powered Gravity-feed Spray Gun thoroughly and slightly lubricate it after using
and before storing.
POTENTIAL HAZARD THAT MAY RESULT IN INJURY OR DAMAGE TO EQUIPMENT.
CAUTION!
POTENTIAL HAZARD THAT COULD RESULT IN SERIOUS INJURY OR LOSS OF LIFE.
Before assembly and preparation
• Do not exceed the maximum pressure for the Air-powered Gravity-feed Spray
Gun or any other parts in the compressor system.
• Never aim or spray at yourself or anybody else. Failure to comply could result in
serious injury or loss of life.
CAUTION!
POTENTIAL HAZARD THAT MAY RESULT IN MODERATE INJURY OR DAMAGE TO
EQUIPMENT.
• Do not exceed the thinning recommendations of the paint manufacturer. Failure
to comply may result in moderate injury or damage to equipment.
• After unpacking the tool, inspect it carefully and check thoroughly for any damage that may
have occurred during transit. Ensure the tightness of fittings, bolts, etc., before using the tool.
Paint lling
• Mixing and thinning of paint should be performed in accordance with the paint manufacturer’s
instructions. Most materials readily spray if thinning is properly performed.
Note: Always thin the paint with care.
Page 8
15
model no. 058-9338 | contact us 1-800-689-9928
14
model no. 058-9807-2 | contact us 1-800-689-9928
Before assembly and preparation
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS

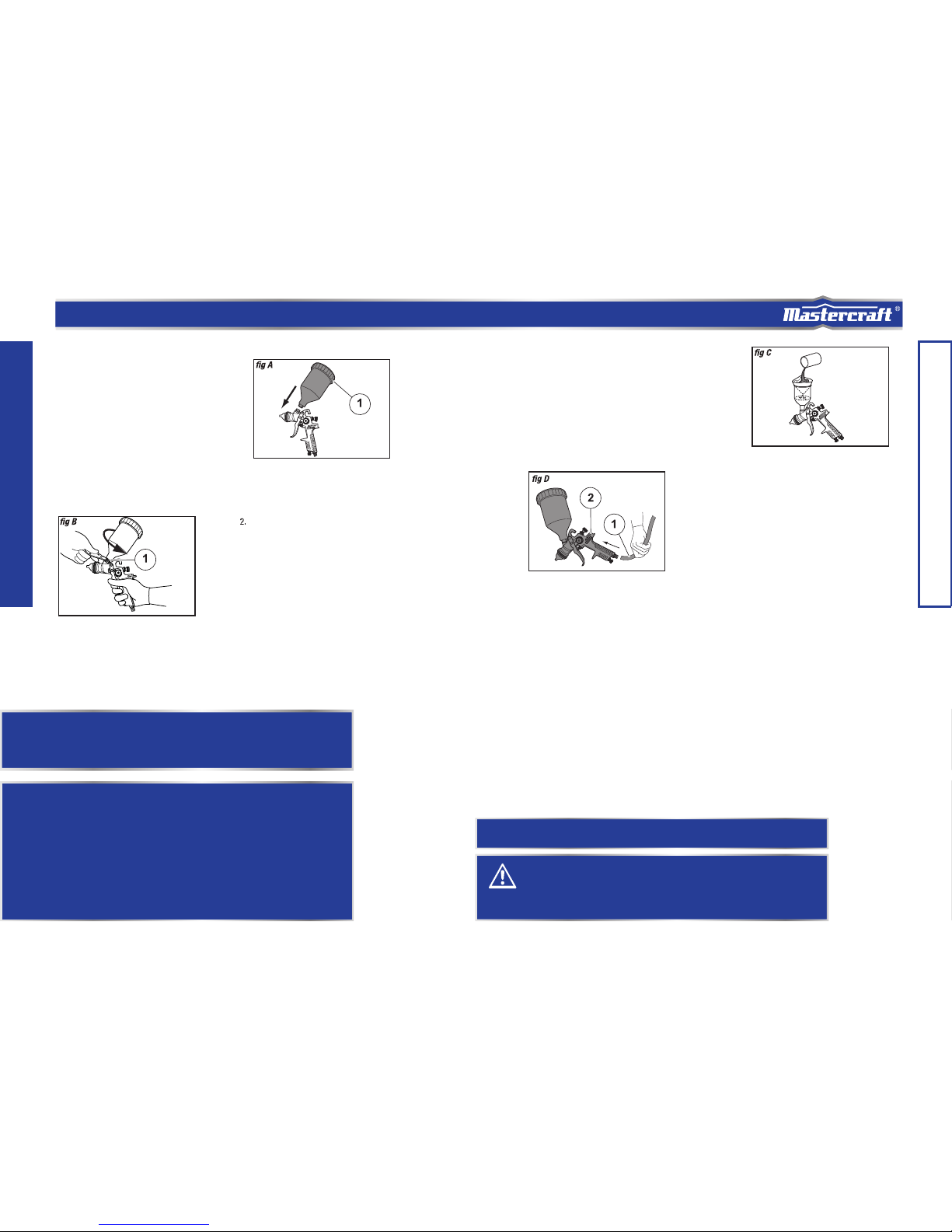

1. Attach the empty canister (1) to the
spray gun by lining up the threads,
holding the gun stationary and twisting
the canister clockwise until snug (fig A).
Note: Do not tighten the canister too tight by
hand, as doing so may break the plastic
canister.
Use the wrench provided to rotate the
nut (1) clockwise and tighten it securely
to ensure paint does not leak (fig B).
Pour paint through a strainer, cheese
cloth or a paint strainer to remove any
foreign substances from the paint (fig C)
Fill the canister three quarters full with
the paint.
3.
4.
5. Plug in compressor, turn it on set the
pressure regulator to 40 PSI. Connect
one end of the air hose (1) to the spray
gun (2) and the other end to the
compressor. The spray gun is now ready
to use (fig D).
6. After connecting the spray gun to the air
supply, ensure the fluid cap, canister,
and air hose are tightly connected with
the Air-powered Gravity-feed Spray Gun.
7. Use a piece of cardboard or other scrap
material as a target for trial spray and
adjust for best spray pattern.
8. Test the consistency of the paint by
making a few strokes on a cardboard
target. If the stroke appears to be very
thick, add a small amount of thinner.
loss of life.
lead to serious injury or loss of life.
lead to serious injury or loss of life.
• After unpacking the tool, inspect it carefully and check
thoroughly for any damage that may have occurred
during transit. Ensure the tightness of fittings, bolts,
etc., before performing service operation.
Paint filling
• Mixing and thinning of paint should be performed in
performed.
WARNING!
Potential hazard that could result in serious injury or loss of life.
• Do not exceed the maximum pressure for the Air-powered Gravity-feed
Spray Gun or any other parts in the compressor system. Failure to
comply could lead to serious injury or loss of life.
• Never aim or spray at yourself or anybody else as this could cause
serious injury. Failure to comply could lead to serious injury or loss of life.
• After unpacking the tool, inspect it carefully and check thoroughly for
any damage that may have occurred during transit. Ensure the tightness
of fittings, bolts, etc., before performing service operation.
PAINT FILLING
• Mixing and thinning of paint should be performed in accordance with the
paint manufacturer’s instructions.
Most materials readily spray if thinning is properly performed.
• Do not exceed the thinning recommendations of the paint manufacturer.
Failure to comply may result in moderate injury or damage to equipment.
CAUTION!
Potential hazard that may result in injury or damage to equipment.
NOTE: Always thin the paint with care.
Page 9
1716
model no. 058-9807-2 | contact us 1-800-689-9928
Adjustments
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS

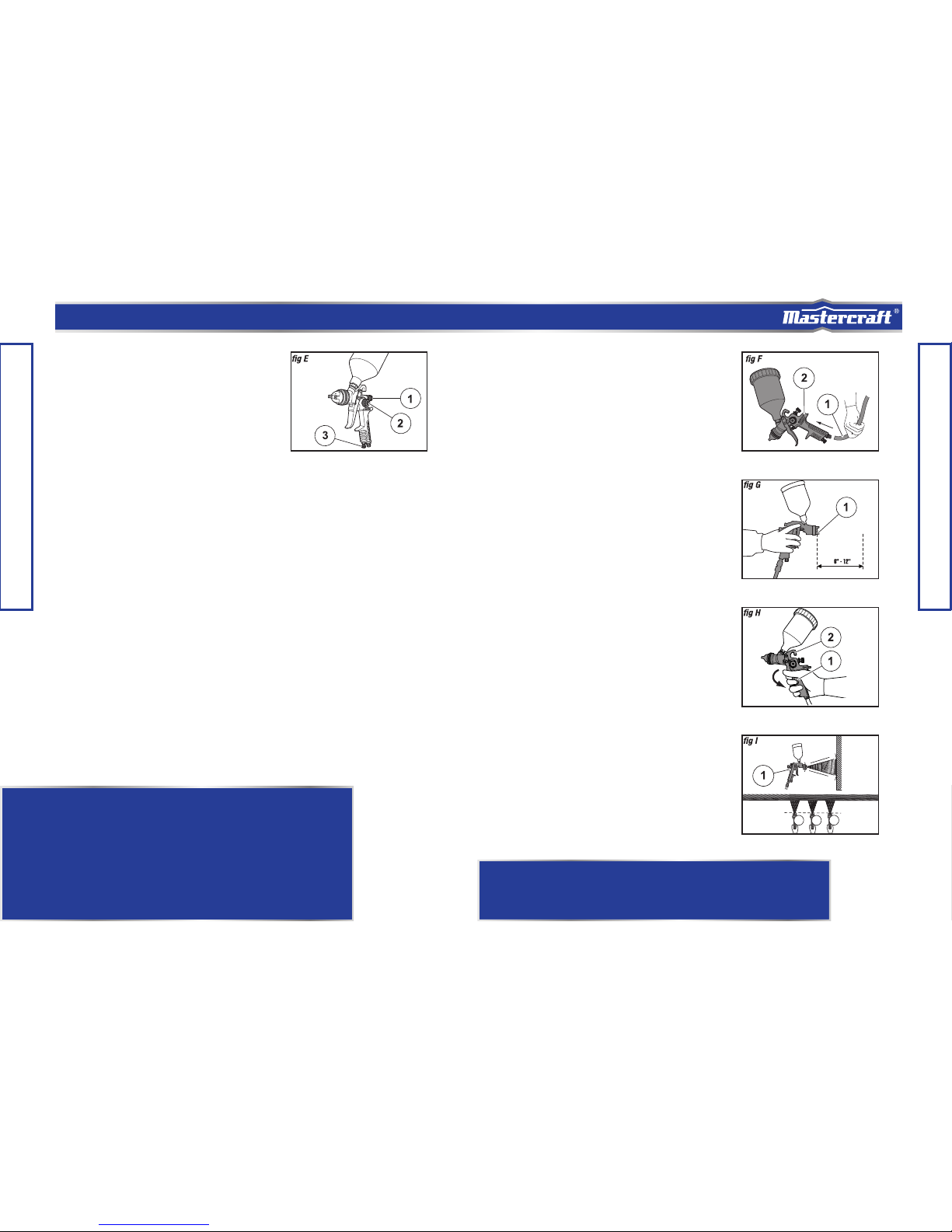

The Gravity-feed Spray Gun has a pattern
adjusting knob (1), a paint adjusting knob (2),
and an air adjusting knob (3) that are used to
obtain the desired pattern, to control the output
volume of paint, and to obtain fine atomization,
respectively (fig E).
PATTERN ADJUSTMENT
Rotate the pattern adjusting knob clockwise to
form a circular spray pattern and rotate the
knob counter-clockwise to form an elliptical
spray pattern.
PAINT ADJUSTMENT
Rotate the paint adjusting knob clockwise to
reduce the output volume of paint and rotate
the knob counter-clockwise to increase the
output volume of paint.
AIR VOLUME ADJUSTMENT
Rotate the air adjusting knob clockwise to
reduce the output volume of air and rotate the
knob counter-clockwise to increase the output
volume of air.
Operation
1. Plug in compressor, turn it on set the
pressure regulator to 40 PSI, attach one
end of the air hose to the compressor
and the other end of the air hose (1) to
the air tool (2) (fig F).
2. Hold the spray gun (1) so that the nozzle
is approximately 6 to 12” from the work
surface, perpendicular to the spraying
area (fig G).
Note: Do some practice sprays while adjusting
the spray pattern and setting up the gun, using
a spare surface (scrap piece of metal).
3. Squeeze the trigger (1) of the spray gun
(2). Start moving the gun before pressing
the trigger and release the trigger before
stopping the gun movement at the end
of each stroke. This procedure will blend
each stroke with the next without any
overlap or unevenness (fig H).
4. Move the spray gun (1) at a constant
pace in a back and forth parallel
direction, maintaining a uniform distance
from the surface to be painted (fig I).
5. Repeat the strokes until a uniform
coating is formed.
Potential hazard that could result in serious injury or loss of life.
WARNING!
• Do not exceed the maximum pressure for the Air-powered Gravity-feed
Spray Gun or any other parts in the compressor system. Failure to comply
could lead to serious injury or loss of life.
• Never aim or spray at yourself or anybody else as this could cause serious
injury. Failure to comply could lead to serious injury or loss of life.
• After unpacking the tool, inspect it carefully and check thoroughly for
any damage that may have occurred during transit. Ensure the tightness
of fittings, bolts, etc., before performing service operation.
performed.
NOTE: Use a piece of cardboard as a shield to capture
the loss of spray paint at the ends of the workpiece to
protect other surfaces from being painted.
Page 10
1918
model no. 058-9807-2 | contact us 1-800-689-9928
OPERATING INSTRUCTIONS
MAINTENANCE
Note: Use a piece of cardboard as a shield to
capture the loss of spray paint at the ends of
the workpiece to protect other surfaces from
being painted.
2 3 4 5
6
1
6" - 12"
121

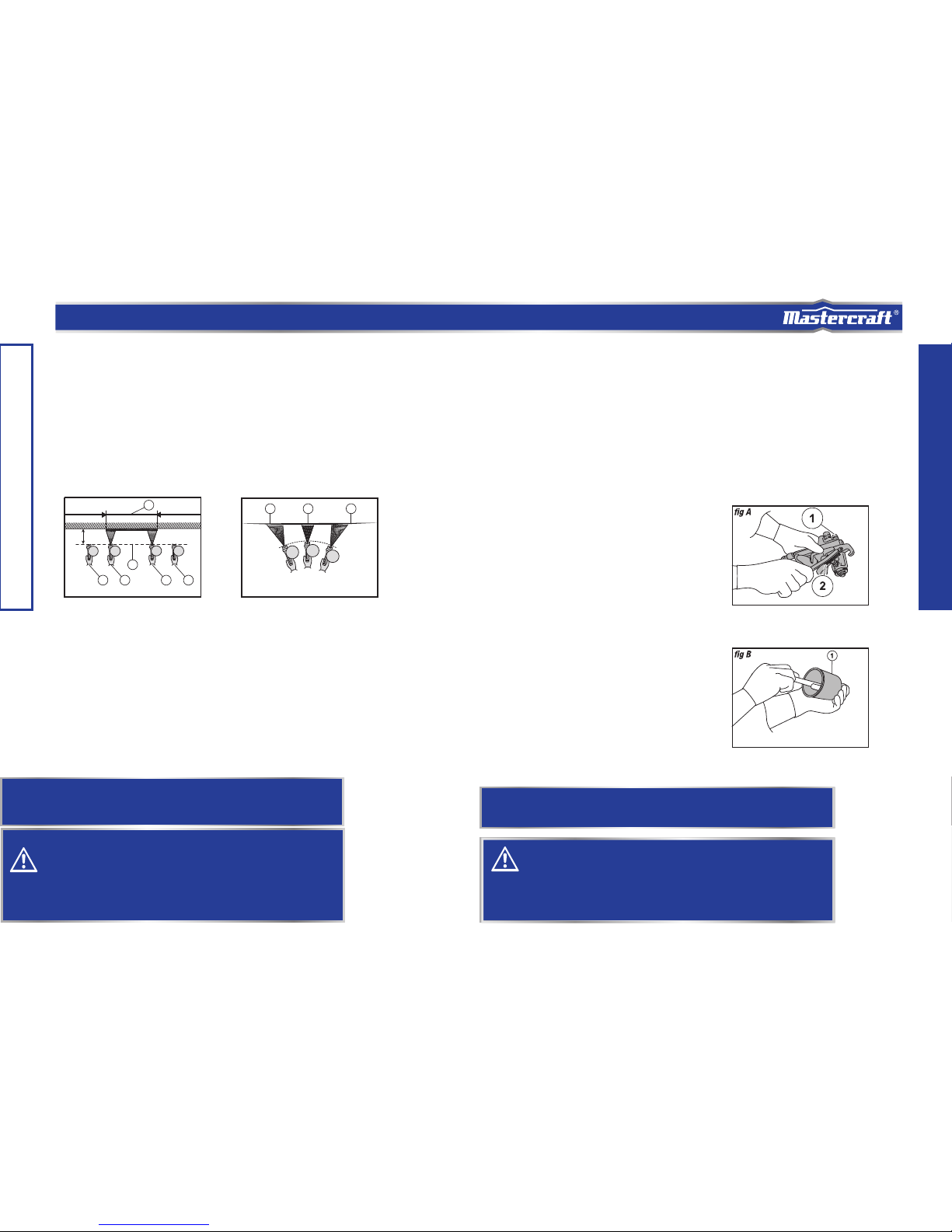

6. The speed of stroke, the distance from
work surface, and the adjustment of the
paint adjusting knob vary the amount of
paint being applied.
DO’S
DONT’S
Always move the gun in a parallel
direction.
Do not press the trigger with the gun
at an inclined position.
1. Uniform coating region
2. Stroke starting position
3. Trigger pressing position
4. Trigger releasing position
5. Stroke stopping position
6. Gun movement path
1. Improper/thin coating region
2. Uniform/thick coating region
Note: Two proper and uniform thin coats of paint, rather than one thick layer, will
yield better resultsand have less chance of runs.
Care of spray gun
The spray gun should be cleaned after every
use. The paint remaining inside the gun
thickens and may damage the inner
components and mechanism of the gun.
Washing procedure
1. Cover the air cap with a cloth and pull
the trigger. The air that is blown out of
the paint nozzle tip enters the paint
passage and cleans the inside of the
gun.
2. Discard the paint remaining in the
canister and add some thinner for
washing and blow out the gun.
3. Clean the inside and outside of the spray
gun (1) with a brush (2) (fig A).
4. Clean the inside of the paint canister (1)
(fig B).
5. Remove and clean the inside and
outside of the air cap with a brush
soaked in cleaning solvent.
NOTE: Two proper and uniform thin coats of paint, rather
than one thick layer, will yield better results and reduce the
chance of runs.
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
Potential hazard that may result in moderate injury or damage to
equipment.
• Do not fan the gun while painting. This will cause a build-up of paint
in the centre of the stroke and an insufficient coating at the ends.
Failure to comply may result in moderate injury or damage to
equipment.
When it is hard to get rid of the stuck paint, wash it
after soaking it in lacquer thinner.
CAUTION!
• Ensure that the needle is removed before disassembling the nozzle, to
avoid damage to the nozzle closure housing. Failure to comply may
result in injury or damage to equipment.
NOTE:
Page 11
21
model no. 058-9807-2 | contact us 1-800-689-9928
20
MAINTENANCE
Note: Wash the air cap (1) carefully without
causing any damage to its air hole as it will
affect the spraying pattern. Never use a steel
wire or wire brush for cleaning. When the air
hole is clogged, clean it using a wooden
toothpick (2) (fig C).
Note: When it is hard to get rid of the stuck
paint, soak the cap in lacquer thinner and
wash it again.
CAUTION!
POTENTIAL HAZARD THAT MAY RESULT IN MODERATE INJURY OR DAMAGE TO
EQUIPMENT.
• Incomplete cleaning could cause function failures and a degradation of the tool.
Failure to comply may result in moderate injury or damage to equipment.
POTENTIAL HAZARD THAT COULD RESULT IN SERIOUS INJURY OR LOSS OF LIFE.
WARNING!
• Do not use metal or other objects that could damage the holes in the nozzle
and cap.
• Never immerse the spray gun completely in solvent.
• Do not use components or parts that are not recommended. Failure to comply
could result in serious injury or loss of life.
CAUTION!
• Ensure that the needle is removed before disassembling the nozzle to avoid
damage to the nozzle closure housing. Failure to comply may result in
moderate injury or damage to equipment.
POTENTIAL HAZARD THAT MAY RESULT IN MODERATE INJURY OR DAMAGE TO
EQUIPMENT.
MAINTENANCE
• Remove the remaining paint by pouring it into another canister.
• Disassemble the Air-powered Gravity-feed Spray Gun. Ensure that the needle is
removed before disassembling the nozzle to avoid damage to the housing of
the nozzle closure.
• Clean all the paint passages, nozzle, and other components using a brush
soaked in cleaning solvent.
• Reassemble the spray gun and spray a small quantity of solvent to remove any
residues in the paint passages.
MAXIMUM SERVICE INTERVAL
Page 12
PROBLEM POSSIBLE CAUSES SOLUTIONS
23
model no. 058-9807-2 | contact us 1-800-689-9928
22
TROUBLESHOOTING
TROUBLESHOOTING
Troubleshooting
POTENTIAL HAZARD THAT COULD RESULT IN SERIOUS INJURY OR LOSS OF LIFE.
CAUTION!
The following chart lists common issues and solutions. Please read it carefully and follow all
instructions closely.
• If any of the following symptoms appear while the tool is in use, turn it off and
disconnect it from the air supply immediately. Failure to heed this warning
could result in serious personal injury.
• Disconnect the electrical plug and air supply from the tool before making any adjustments.
• Repairs must be performed by a qualified service technician only.
Fluttering or spitting
Arc-shaped pattern
1. Paint level is too low.
2. Canister is tipped too far.
3. Fluid inlet connection is loose.
4. Fluid tip/seat is loosened or damaged.
5. Fluid needle packing nut is dry or
loose.
6. Air vent is clogged.
1. Add paint inside the canister.
2. Hold the canister in upright position.
3. Tighten the fluid connection.
4. Adjust or replace the fluid tip/seat.
5. Lubricate and/or tighten the nut.
6. Clear the vent hole.
1. Fluid nozzle is worn or loose.
2. Paint has build up on air cap.
1. Tighten or replace fluid nozzle.
2. Remove obstructions from holes, but
don’t use metal objects to clean it.
PROBLEM POSSIBLE CAUSES SOLUTIONS
Centre of pattern is
too narrow
Pattern is not spread
uniformly
1. Paint is too thin or not sufficient.
2. Atomization air pressure is too high.
1. Paint has build up on air cap.
2. Fluid nozzle is dirty or worn.
1. Clean or replace air cap.
2. Clean or replace fluid nozzle.
1. Regulate paint viscosity.
2. Reduce air pressure.
Width of spray
pattern is too narrow
1. Paint is too thick.
2. Atomization air pressure is too low.
1. Regulate paint viscosity.
2. Increase air pressure.
Air leakage from air
cap when trigger is
not pressed
1. Air inlet valve or seat is
contaminated.
2. Inlet valve stem is stuck.
3. Air inlet valve or seat is worn or
damaged.
4. Air inlet spring is broken.
5. Inlet valve stem is bent.
1. Lubricate the inlet valve stem.
2. Clean the air inlet valve or seat.
3. Replace air inlet valve or seat.
4. Replace air inlet spring.
5. Replace inlet valve stem.
Fluid leakage from
packing nut
1. Packing nut is loose.
2. Packing is worn or dry.
1. Tighten, but do not restrict the needle
movement.
2. Replace or lubricate (non-silicone oil).
Excessive overspray
1. Atomization pressure is too high.
2. Work surface is too far.
3. Improper stroking (arcing, gun
motion are too fast).
1. Reduce the air pressure.
2. Adjust to proper distance.
3. Move at moderate pace, parallel to work
surface.
No spray 1. No pressure in gun.
2. Fluid control is not properly opened.
3. Fluid is too thick or heavy.
1. Check air lines.
2. Open the fluid control.
3. Thin the fluid or change to pressure
feed system.
Note:For further repair information,please call 1-800-689-9928.
Page 13
25
model no. 058-9807-2 | contact us 1-800-689-9928
24
EXPLODED VIEW
PARTS LIST
PROBLEM POSSIBLE CAUSES
Parts list - Production Spray Gun
Exploded view - Production Spray Gun
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7891011 12 1314
15 16 17 18 19 20 21 22 23 24 25
26 27
28 29 30 31 32
33
34
35
36
37 38 39 40
47
48
31
32 45 44 43 42
41
Air adjusting screw
Air adjusting knob
O-ring 2.5 X 2.1
Washer
Air inlet spring
Air inlet valve
Switch spring
Air valve body
Switch knob
O-ring 8.5 X 1.2
Switch seat
Foam washer
Washer
Direction screw
Spring
Round nut
Fluid cap washer
Atomization
Fluid nozzle
Fluid nozzle joint
Washer
Joint washer
Direction screw
Seal washer
Samll washer
1
1
1
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Spring
Big washer
Trigger pin I
Trigger pin II
Trigger
Snap retainer
Trigger washer
Ventilator head
Canister cover
Canister
Paint inlet joint
Paint adjusting needle
Paint adjusting needle spring
Paint adjusting knob joint
Paint adjusting screw
Bolt
Pattern adjusting knob
Pattern adjusting knob joint
Copper washer
Pattern adjusting screw
O-ring 6 X 2
Gun Body
Air inlet plug
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page 14
PARTS LIST
27
model no. 058-9807-2 | contact us 1-800-689-9928
26
PROBLEM POSSIBLE CAUSES SOLUTIONS
Parts list - Production Spray GunExploded view - Production Spray Gun
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Air adjusting screw
Air adjusting joint
O-ring 2.5 X 2.1
Washer
Air inlet spring
Air inlet valve
Switch spring
Air inlet valve
Switch knob
O-ring 4.9 X 1.5
Switch seat
Sealing washer
Lock screw
Round nut
Air cap washer
Atomization
Nut housing
O-ring 17 X 1.5
Fluid nozzle
Fluid nozzle washer
Screw
Needle washer
1
1
1
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Sealing washer
Nut compressed spring
Trigger level II
Trigger level I
Trigger
Snap retainer
Canister cover
Canister
Filter
Fluid inlet joint
Needle
Spring
Paint adjusting joint
Paint adjusting screw
Bolt
Pattern adjusting screw
Pattern adjusting joint
O-ring 2 X1.5
Snap retainer
Pattern adjustment seat
Gun body
Air inlet plug
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
EXPLODED VIEW
PARTS LIST
Page 15
29
model no. 058-9807-2 | contact us 1-800-689-9928
28
PROBLEM POSSIBLE CAUSES SOLUTIONS
3-Year Limited Warranty
This product is guaranteed for a period of 3 years from the date of original retail purchase
against defects in workmanship and materials, except for the following component:
Component A: Accessories, which are guaranteed for a period of 1-year from the date of
original retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us
with proof of purchase within the stated warranty period and if covered under this
warranty, will be repaired or replaced (with the same model, or one of equal value or
specification), at our option. We will bear the cost of any repair or replacement and any
costs of labor relating thereto.
These warranties are subject to the following conditions and limitations:
A bill of sale verifying the purchase and purchase date must be provided.
This warranty will not apply to any product or part thereof which is worn or broken or
which has become inoperative due to abuse, misuse, accidental damage, neglect, or lack
of proper installation, operation, or maintenance (as outlined in the applicable instruction
manual or operating instructions), or which is being used for industrial, professional,
commercial, or rental purposes.
This warranty will not apply to normal wear and tear or to expendable parts or accessories
that may be supplied with the product which are expected to become inoperative or
unusable after a reasonable period of use.
This warranty will not apply to routine maintenance and consumable items such as, but
not limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids,
tune-ups, or adjustments.
This warranty will not apply where damage is caused by repairs made or attempted by
others (i.e., persons not authorized by the manufacturer).
This warranty will not apply to any product that was sold to the original purchaser as a
reconditioned or refurbished product (unless otherwise specified in writing).
a)
b)
c)
d)
e)
f)
This warranty will not apply to any product or part thereof if any part from
another manufacturer is installed therein or any repairs or alterations have
been made or attempted by unauthorized persons.
This warranty will not apply to normal deterioration of the exterior finish, such
as, but not imited to, scratches, dents, paint chips, or to any corrosion or
discoloring by heat, or abrasives and chemical cleaners.
This warranty will not apply to component parts sold by and identified as the
product of another company, which shall be covered under the product
manufacturer’s warranty, if any.
g)
h)
i)
This warranty applies only to the original purchaser and may not be
transferred. Neither the retailer nor the manufacturer shall be liable for any
other expense, loss or damage, including, without limitation, any indirect,
incidental, consequential, or exemplary damages arising in connection with
the sale, use, or inability to use this product.
This warranty gives you specific legal rights, and you may have other rights,
which may vary from province to province. The provisions contained in this
warranty are not intended to limit, modify, take away from, disclaim, or
exclude any statutory warranties set forth in any applicable provincial or
federal legislation.
Additional limitations
Notice to consumer
Made in China
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
WARRANTY
WARRANTY
Loading...
