TABLE SAW
WITH DUAL EXTENSION WINGS
055-6737-2
User Manual
Toll-free helpline
1-800-689-9928
2
Table of contents
I.Specifications
SECTION
PAGE
I. Specifications 2
3
7
8
9
21
29
30
31
33
............................................................................................
........................................................................
..............................................................................
...............................................................................
......................................................................
............................................................................
..........................................................................................
.......................................................................
.................................................................................................
....................................................................................................
II. General safety guidelines
III. Electrical information
IV. Know your table saw
V. Assembly and adjustments
VI. Operating instructions
VII. Maintenance
VIII. Troubleshooting guide 3
IX. Warranty
X. Part list
MOTOR: 15 A, 120 V, 60 Hz
MOTOR SPEED: 4500 RPM (no load)
MAIN TABLE SIZE: 26 x 19 11/16” (66 x 50 cm)
EXTENSION TABLE: 6 x 26” (15.2 x 66 cm)
REAR EXTENSION TABLE: 26” x 2 1/2” (66 x 6.4 cm)
BLADE SIZE: 10” (25.4 cm) carbide-tipped
LASER: Class IIIA
LASER WAVELENGTH: 630-665 nm
LASER OUTPOWER: < 5mW
MAXIMUM DEPTH OF CUT AT 90°: 3 9/64” (8 cm)
MAXIMUM DEPTH OF CUT AT 45°: 2 5/32” (5.5 cm)
NET WEIGHT: 64 lb (29 kg)
1. Store all safety guidelines and instructions for future use.
2. This device is not intended for use by people (including children) lacking experience with
electrical power tools unless they have received instructions about how the device is to be
used. Children have to be supervised to ensure that they do not play with the device.
3. Store the operating instructions so that they are always available to the user of the tool when
it is being operated.
4. If you lend this device to other people, then always hand over these operating instructions to
ensure safe use. Instruct inexperienced people in accordance with these safety instructions.
5. Keep your working area tidy. Untidiness in your work area can cause accidents.
6. Pay attention to the surrounding conditions. Do not expose the electric power tool to rain. Do
not use electric power tools in damp or wet conditions. Ensure that the work area is well lit.
Do not use electric power tools where there is a danger of fire or explosion.
7. Protect yourself against electric shocks. Avoid bodily contact with earthed parts (e.g. pipes,
radiators, electric hobs or cooling appliances).
8. Keep other people away from the work area. Do not let other people, especially children,
touch the electric power tool or the power cable. Keep them away from your work area.
9. Store unused electric power tools safety. Unused electric power tools should be stored in a
dry, high-lying or locked place, out of the reach of children.
10.Do not overload your electric power tool. It works better and more securely within the stated
output range.
11.Use the correct electric power tool. Do not use inefficient machines for heavy work. Do not
use the electric power tool for purposes which it was not intended for. For example, do not
use circular saws to cut wooden masts or logs.
12.Wear suitable clothing. Do not wear baggy clothing or jewellery, as they can be caught by
moving parts. When working outdoors, anti-slip shoes are recommended. If you have long
hair, wear a hair net.
WARNING: Read all the safety guidelines and instructions before you use this electric power
tool!
3
WARNING! When using electrical power tools, the following essential safety measures have
to be observed to prevent electric shocks, injury and fire hazards. Failure to adhere to the
safety guidelines and instructions can cause electric shock, fire and/or severe injuries.
II. General safety guidelines
13.Wear safety equipment. Wear safety goggles. If the work creates dust, wear a dust mask.
14.Attach the dust extraction unit. If there are connections for dust extraction and collection
equipment, then make sure that the equipment is correctly attached and used.
15.Never use the cable for purposes which it is not intended for. Do not use the cable to pull the
plug out of the power socket. Protect the cable form heat, oil and sharp edges.
16.Secure the workpiece, when necessary use clamping devices to secure the workpiece. The
workpiece is thereby secured better than by hand.
17.Avoid taking abnormal stances. Make sure you stand securely and keep your balance at all
times.
18.Look after your tool with care. Keep the cutting tool sharp and clean so that you are able to
work better and safer with it. Observe the guidelines on lubrication and exchanging the tool.
Check the power cable of the electric power tool regularly and in case of damage let a
recognized specialist repair it. Check extension cables regularly and replace them if they are
damaged. Keep the handles dry, clean and free of oil and grease.
19.Pull the plug out of the power socket when the electric power tool is not in use, before
maintenance and when exchanging tools such as saw blades, drills and mills.
20.Do not leave keys in the device. Before you switch the device off, check that keys and setting
tools have been removed.
21.Avoid starting-up the device accidentally. Make sure that when you insert the plug into the
power socket, the power switch is turned off.
22.Use an extension cable when working outdoors. Only use extension cables outdoors which
are authorized for outdoor use and are correspondingly marked.
23.Be attentive. Be careful what you do. Carry out your work sensibly.
24.Check the electric power tool for any sign of damage. Before continuing work with electric
power tool, safety devices or easily damaged parts have to be carefully checked to ensure
that they function properly and are not defective. Check that the moving parts are working
properly and are not jammed, or whether the parts are damaged. All parts must be correctly
assembled by an experienced individual, unless stated otherwise in the operating instructions,
and meet all required conditions in order to guarantee that the electric power tool functions
without a problem. Damaged switches have to be replaced by a qualified electrician. Do not
use electric power tools if the power switch cannot be turned on and off.
II. General safety guidelines(continued)
4
Additional safety guidelines for circular table saws
5
II. General safety guidelines(continued)
25.Warning!
The use of other insertion tools and accessories can present a danger of injury to you.
26.Let a specialist electrician repair your electric power tool. This electric power tool corresponds
to the applicable safety conditions. Repairs are only allowed to be carried out by a specialist
electrician, using original replacement parts; otherwise accidents may occur.
27.No other people are allowed to stand in the direct vicinity of the machine when it is in use.
People not operating the machine must maintain a suitable safe distance!
28.Never lay the power cable over the machine table!
29.Use the push rod to pass the workpiece safely into the saw blade! Do not come too close to
the saw blade!
30.Make sure that the thickness of the material to be cut is less than the maximum possible
cutting depth.
31.Never cut “hands-free”! The workpiece must always lie level on the machine table and be
moved along the stop! The workpiece must always be pressed hard against the stop!
32.Never cut workpieces that are so small that they cannot be safety pressed against the stop
and could turn!
33.Never cut workpieces that are so small that they cannot be moved by the push rod at a safe
distance from the saw blade!
34.Only cut one workpiece at a time! Never cut several workpieces simultaneously! Workpiece
are not allowed to be placed behind or on top of each other!
35.There is a danger of the workpiece “jamming” and slipping away!
36.Make sure that the workpiece cannot slip while cutting or get jammed in the saw blade!
37.Clean the working area and the workpiece after each cut.
Warning! Switch the device off, remove the plug from the power socket and let the machine
come to a standstill! No foreign bodies are allowed to be on the workpiece or the machine
table! Cut pieces of the workpiece can be caught by the rotating cutting disc and be flung
away!
KEEP THIS USER’S MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE.
6
II. General safety guidelines(continued)
38.Never reach into the openings of the device! Never insert objects into the openings of the
device (e.g. the saw blade casing, dust extraction adaptor). Danger of cuts!
39.Never remove the cutting piece if the machine is still switched on or running! Danger of cutting
yourself!
40.Cut workpieces may have sharp edges, ridges or wooden splinters! Danger of cutting injuries!
41.Always switch the machine off and remove the power plug when your leave the machine.
42.Never expose the device to rain or extreme moisture!
43.Do not perform any cuts with this circular table saw, other than those described in these
operating instructions! Seams and notches are not allowed to be sawn!
44.Circular saws are not allowed to be used for slitting (notches which end in the workpiece)!
III. Electrical information
7
GUIDELINES FOR USING EXTENSION CORDS
WARNING: THIS TABLE SAW IS INTENDED FOR INDOOR USE ONLY. DO NOT EXPOSE
IT TO RAIN OR USE IT IN DAMP LOCATIONS.
Make sure the extension cord is in good condition. When using an extension cord, be sure to use
one that is heavy enough to carry the current that your product will draw. An undersized cord will
cause a drop in line voltage, which will result in loss of power and overheating. The table below
shows the correct size to be used according to cord length and nameplate ampere rating. When
in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
MINIMUM GAUGE FOR EXTENSION CORDS(AWG)
(when using 120 V only)
Ampere Rating Total length of cord in feet (metres)
More Than Not More Than
0
6
10
12
6
10
12
16
25’ (7.6 m)
18’ (5.5 m)
18’ (5.5 m)
16’ (4.9 m)
14’ (4.4 m)
50’ (15.2 m)
16’ (4.9 m)
16’ (4.9 m)
16’ (4.9 m)
12’ (3.7 m)
100’ (30.5 m)
16’ (4.9 m)
14’ (4.4 m)
14’ (4.4 m)
150’ (45.7 m)
14’ (4.4 m)
12’ (3.7 m)
12’ (3.7 m)
Not Recommended
Make sure your extension cord is properly wired and in good condition. Always replace a
damaged extension cord, or have it repaired by a qualified person before using it. Protect your
extension cords from sharp objects, excessive heat, and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must consist of not less than #12 wire
with a 20 A time-delayed fuse or a #14 wire with a 15 A time-delayed fuse. Before connecting the
motor to the power line, make sure the switch is in the OFF position and the electric current is
rated the same as the current stamped on the motor nameplate. Running at a lower voltage will
damage the motor.
WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE IN ORDER TO PROTECT
THE OPERATOR FROM ELECTRIC SHOCK.
8

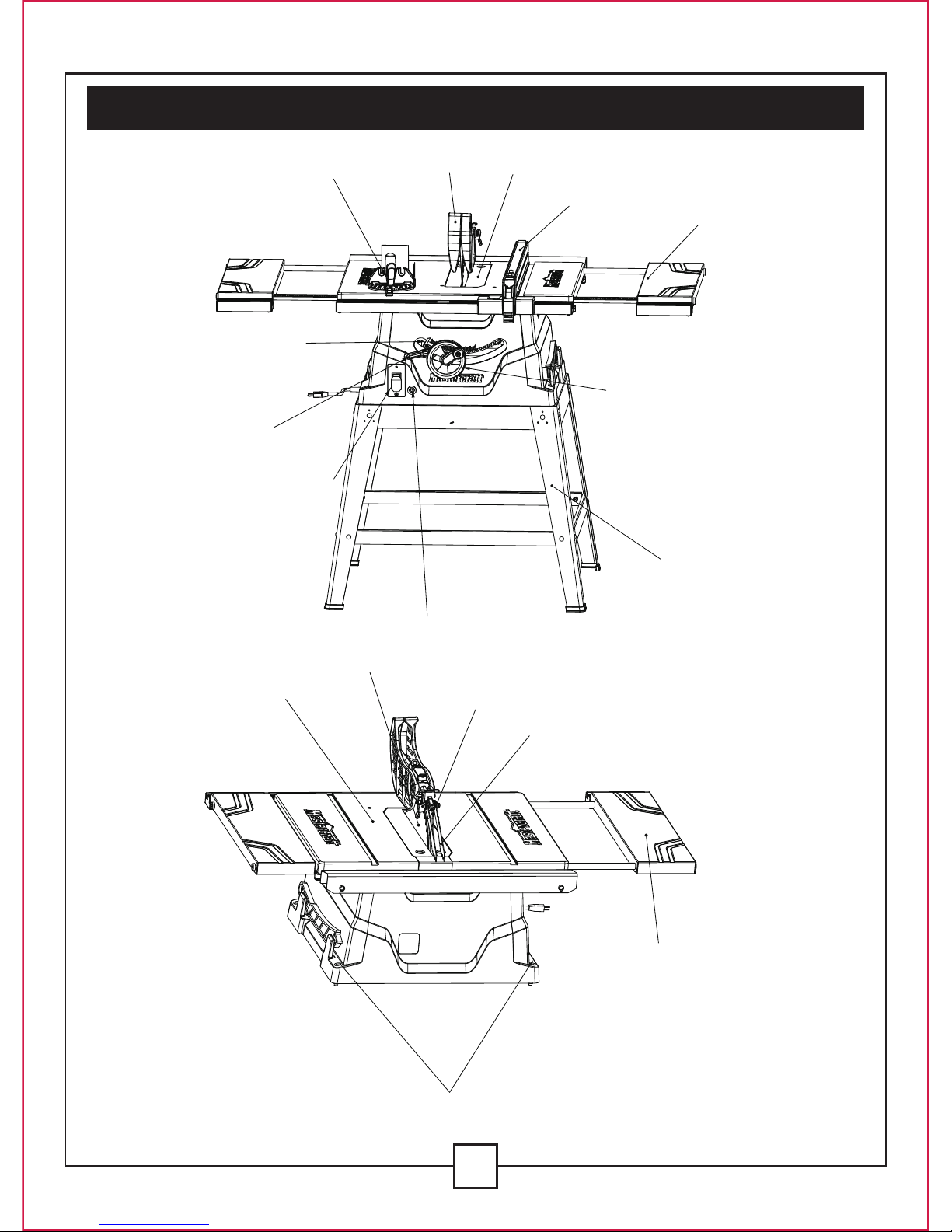

IV. Know your table saw
Stand
Side table
extension
Rip fence
Table insert
Blade guard
Mitre gauge
Blade elevation
handwheel
ON/OFF switch with Key
Overload reset
switch
Bevel angle
pointer and scale
Blade bevel
lock knob
Mounting holes
Splitter
Kickback pawls
Table
Blade
Side table
extension
9
V. Assembly and adjustments
UNPACKING
1. Carefully remove the table saw from the carton.
2. Separate the parts.
3. Lay out all of the parts, and check them against the parts listed below. Examine all of the parts
carefully.
WARNING:
• IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG IN THE TABLE SAW UNTIL
YOU HAVE REPLACED THE MISSING OR DAMAGED PARTS. CALL THE TOLL FREE
HELPLINE AT 1-800-689-9928 FOR MORE INFORMATION.
• TO AVOID INJURY, THE STYROFOAM BLOCK SHOULD BE REMOVED BETWEEN
THE MOTOR AND THE TABLE.
Table saw assembly
Rear table extension
tubes
Rip fence Locating seats
Blade
wrenches
Dado table insert
Right table
extension fence
Push sticker Hex key Rear table
extension
Long top leg
brackets
Short bottom
leg brackets
Long bottom
leg brackets
Stand legs
Short top leg
brackets
Mitre gauge Left table
extension fence
Flat washers
and dome nuts
Hex bolts Batteries
Blade guard and
splitter
30
45
60
75
75
90
60
45
30
V. Assembly and adjustments(continued)
10

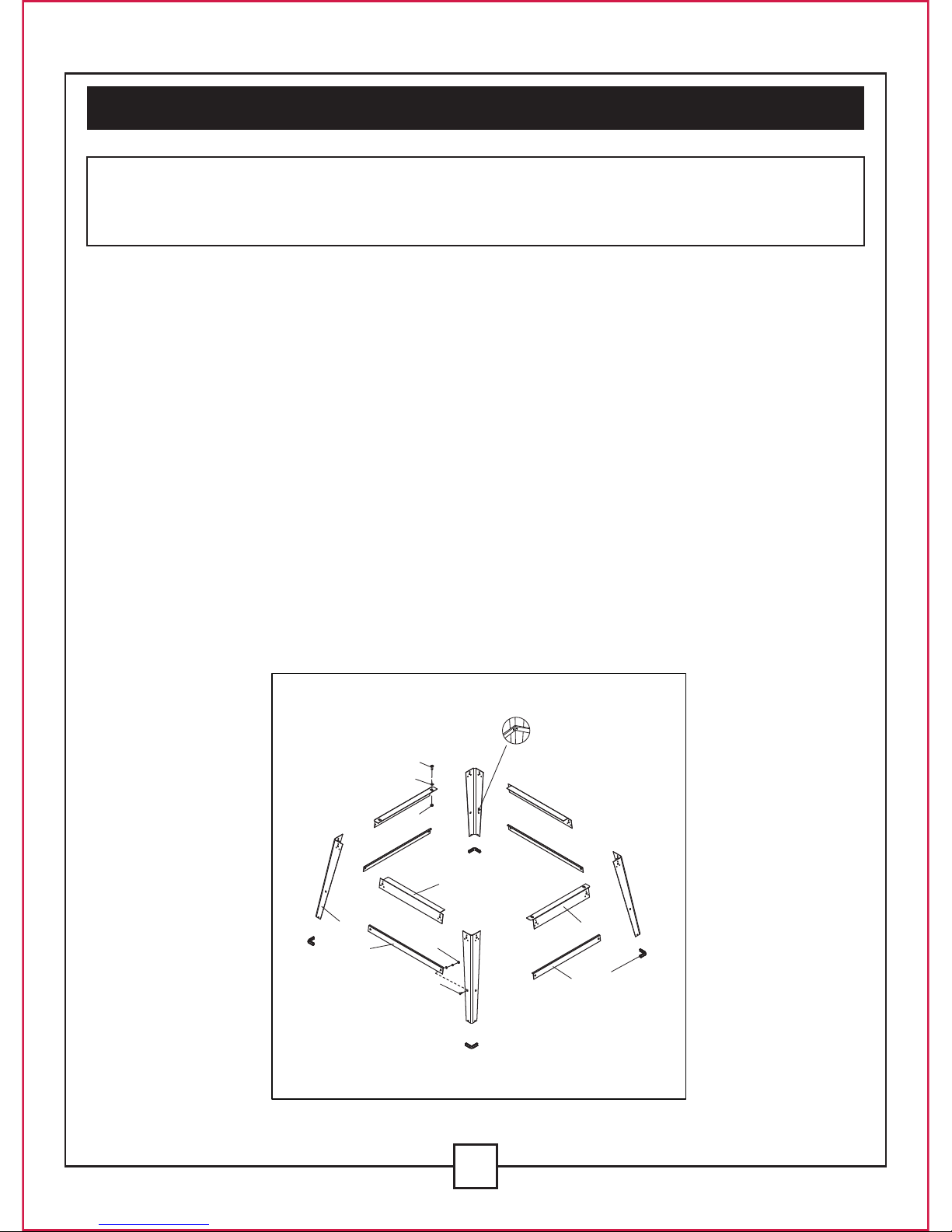

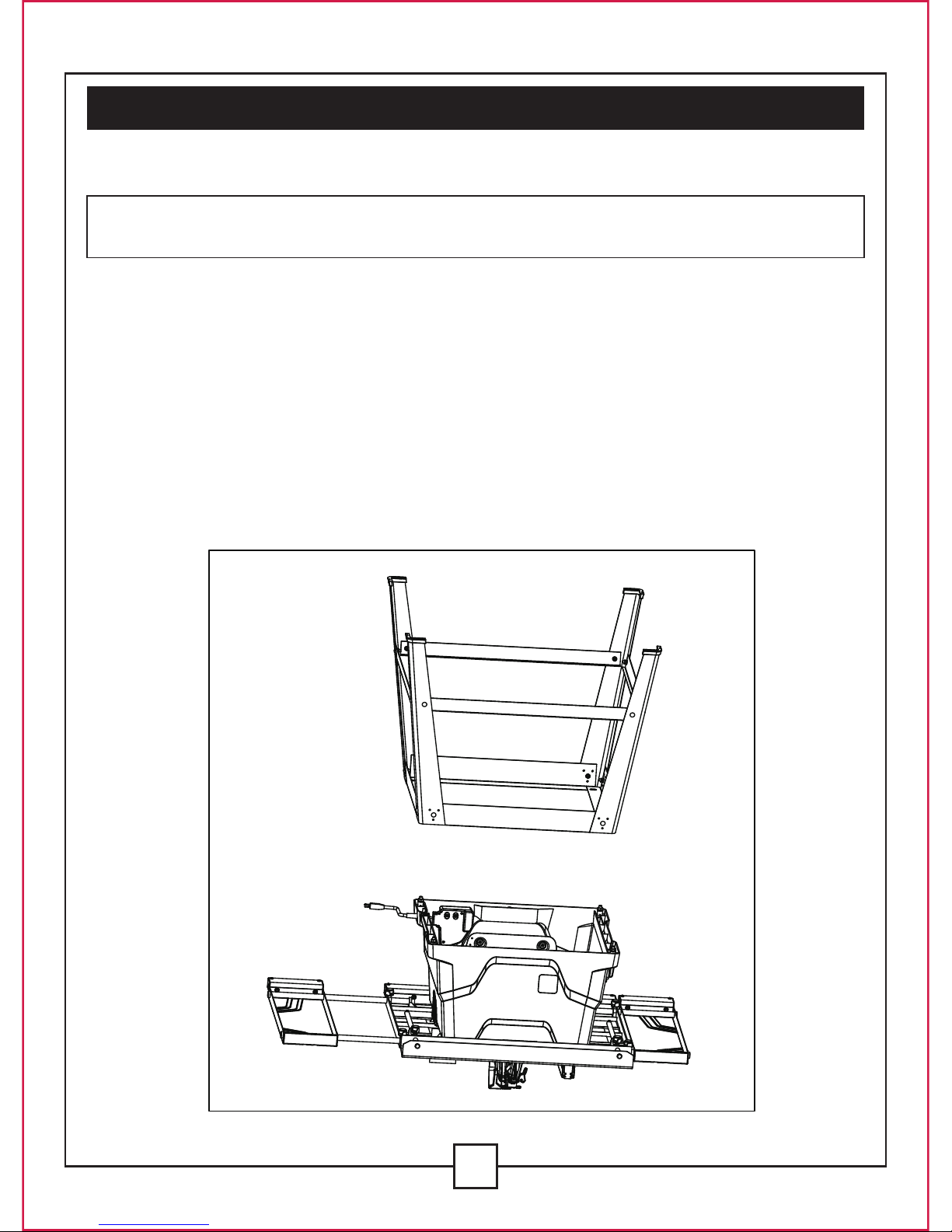

ASSEMBLE THE STAND (FIG.1)
WARNING: DO NOT CONNECT THE PLUG TO THE OUTLET UNTIL ALL INSTALLATIONS
AND ADJUSTMENTS HAVE BEEN COMPLETED AND YOU HAVE READ AND
UNDERSTOOD THE SAFETY AND OPERATIONAL INSTRUCTIONS.
1. Unpack all of the parts, and group them by type and size (see Fig.1). Refer to the parts list for
correct quantities.
2. Attach one long top leg bracket (6) to the top of one leg (2) using a bolt (3) and a nut (4).
NOTE: Do not tighten the bolts until the stand is properly aligned (see step #8).
3. Attach other end of the long top leg bracket to top of another leg using a bolt and nut.
4. Attach ong one long bottom leg bracket (7) to the centre of each leg using bolts (3) and nuts
(4).This completes the front frame section.
5. Assemble the rear frame section in exactly the same manner.
6. Join the front and rear frame assemblies to the two short upper supports (1) and two short
bottom supports (5)using bolts and nuts.
7. Insert the rubber foot (8) into leg.
8. Place the stand on a level surface, and adjust it so that all of the legs are contacting the floor,
and are at similar angles to the floor. Tighten all of the bolts.
NOTE: The stand should not rock after all of the bolts have been tightened.
Fig. 1
2
6
11
1
5
7
3
4
8
10
9
V. Assembly and adjustments(continued)
11
ATTACH THE TABLE SAW TO THE STAND (FIG.1, 2)
WARNING: DO NOT OPERATE THIS MACHINE ON THE FLOOR. THIS IS A VERY
DANGEROUS POSITION.
1. Place cardboard or an old blanket on floor in order to protect the surface of the saw table.
2. Place the saw upside down on the protective material (see Fig. 2).
3. Position the stand upside down on the saw base.
4. Line up the four holes in saw base and the stand.
5. Fasten the saw to stand using four bolts (9), washers (10), and nuts (11) (see Fig. 1)
NOTE: Place a washer on each bolt before inserting it into the saw base and through the
support. The nut must be snug against the bracket (see Fig. 1).
6. Tighten all four nuts.
NOTE: DO NOT OVER-TIGHTEN THE NUTS THAT HOLD THE SAW TO THE STAND.
DOING SO WILL DAMAGE THE SAW BASE.
7. Carefully set the saw in its upright position on a clean level surface.
Fig. 2
V. Assembly and adjustments(continued)
12

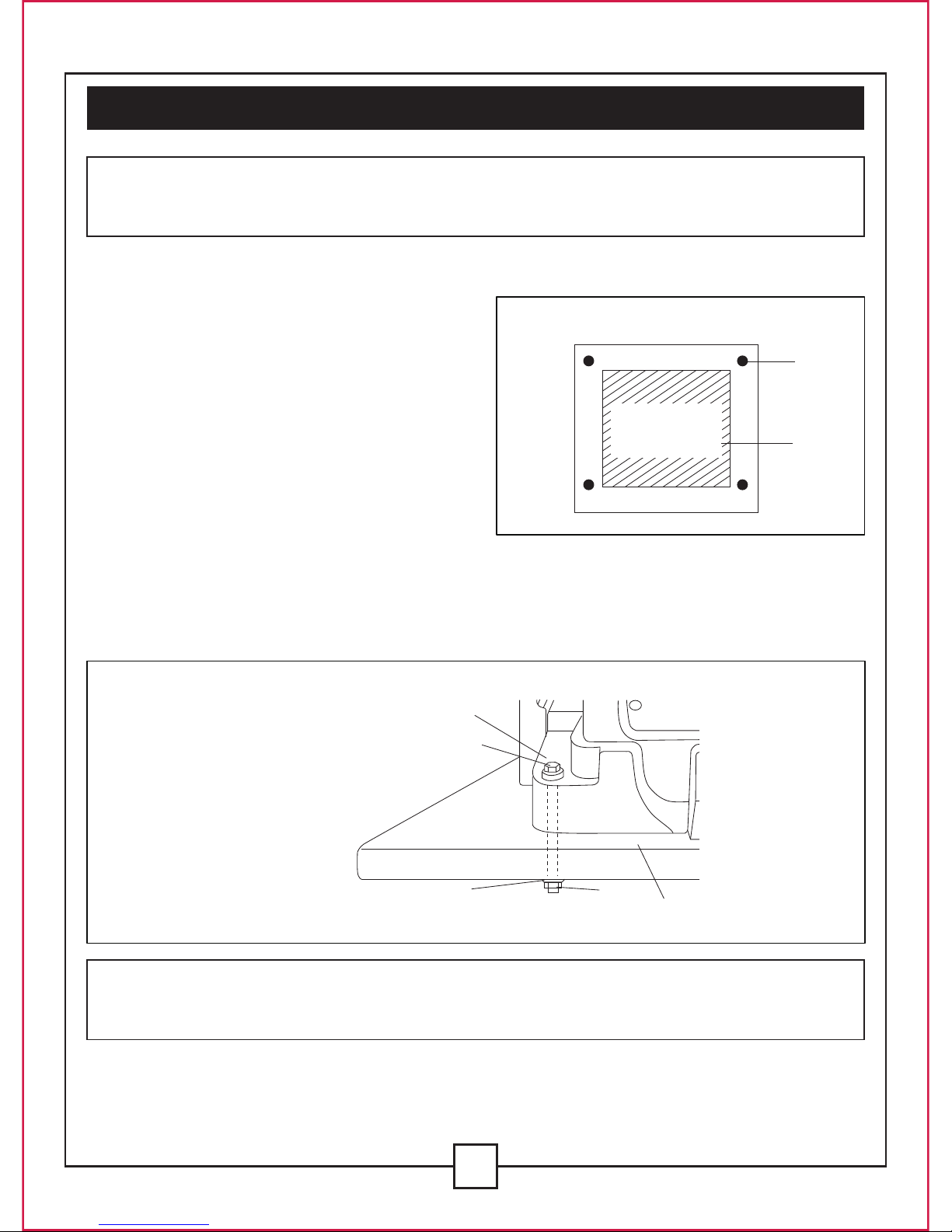

MOUNTING THE SAW TO ANOTHER SURFACE (FIG. 3,3-1)
WARNING: FAILURE TO PROVIDE A SAWDUST FALL-THROUGH AND REMOVAL HOLE
WILL CAUSE SAWDUST TO BUILD UP IN THE MOTOR AREA, WHICH MAY RESULT IN A
FIRE HAZARD OR CAUSE DAMAGE TO THE MOTOR.
IMPORTANT: FAILURE TO PROVIDE A SAWDUST FALL-THROUGH AND REMOVAL HOLE
WILL CAUSE SAWDUST TO BUILD UP IN THE MOTOR AREA, WHICH MAY RESULT IN A
FIRE HAZARD OR CAUSE DAMAGE TO THE MOTOR.
NOTE: If there is a tendency for the stand or workbench to move during operation, the stand or
workbench must be fastened to the floor.
1. If the leg set will not be used, the saw must
be properly secured to a sturdy workbench
using the four mounting holes at the base
of the saw.
2. The surface of the table where the saw is
to be mounted must have a hole that is
large enough to facilitate sawdust fall through and removal.
3. Square the saw on the mounting surface,
and mark the locating of the four 3/8”
mounting holes (1).
4. Drill 3/8” holes into the mounting surface.
5. Mark a 11x11” (28 x 28 cm) square (2), centred between the four mounting holes (1).
6. Cut out and remove the square.
7. This opening will allow sawdust to fall through the saw base.
8. Fasten the saw to the work surface, matching the mounting holes of the saw to the holes
drilled in the work surface.
Fig. 3
Fig. 3-1
SQUARE
CUTOUT
1
2
1. Saw base
2. Hex head bolt
3. Workbech
4. Flatwasher
5.Hex nut
1
2
4
5
3
WARNING: ALWAYS KEEP YOUR WORK AREA CLEAN, UNCLUTTERED, AND WELL LIT.
DO NOT WORK ON FLOOR SURFACES THAT ARE SLIPPERY FROM SAWDUST OR WAX.
Fig. 4
Fig. 5
Fig. 6
V. Assembly and adjustments(continued)
13
1
2
3

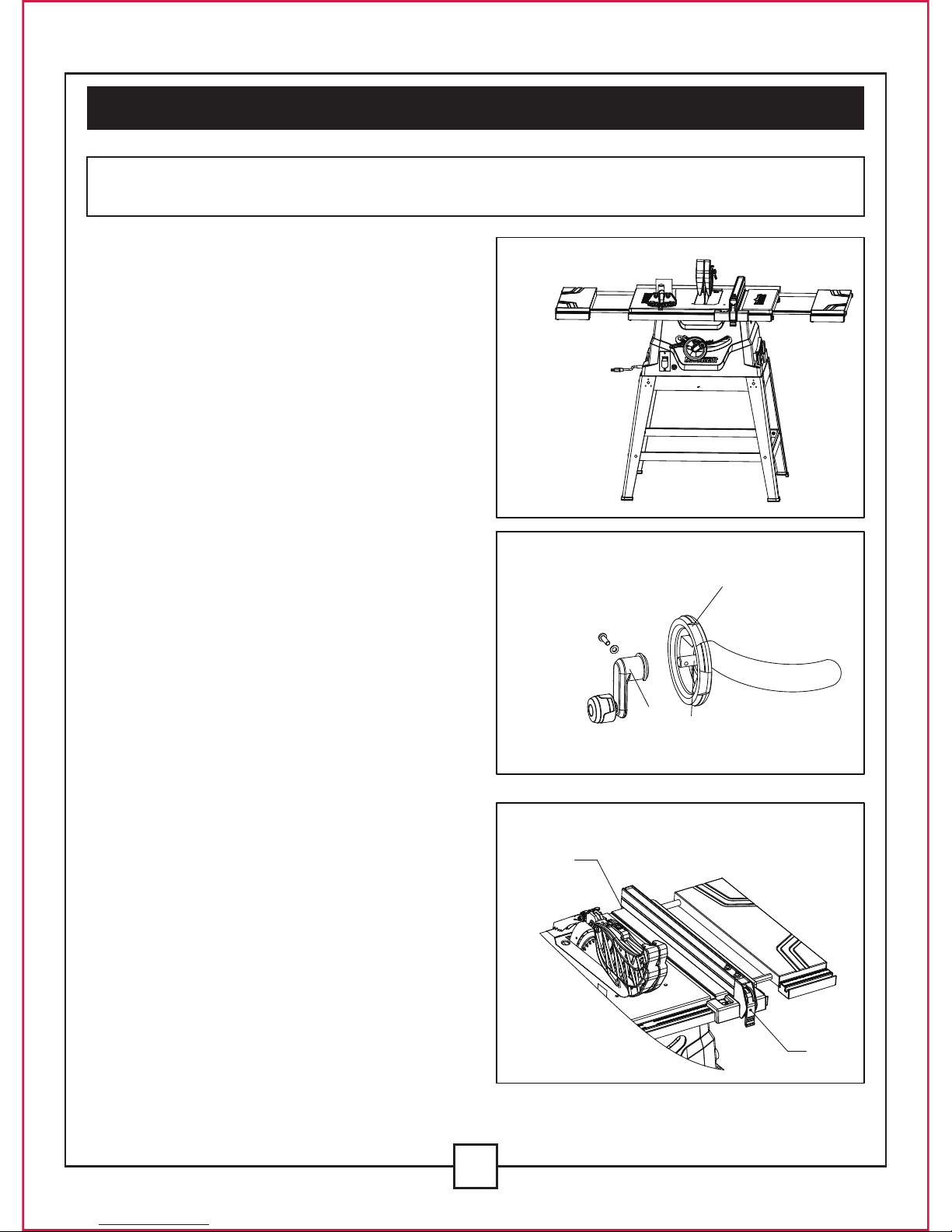

KEEPING THE AREA CLEAN (FIG. 4)
Sawdust and wood chips that fall under
the saw will accumulate on the floor.
Make it a practice to pick up and discard
this dust when you have completed
cutting.
BLADE RAISING/TILTING
HANDWHEEL (FIG. 5)
Attach the blade tilting wheel (1) into
the fix pole (3). Assemble the height
adjustment rock (2) to the height
regulating bolt (3). Use the screw and
washer to lock the height adjustment
rock.
RIP FENCE (FIG. 6)
1. Lift the rip fence handle (1) until
the rear fence clamp (2) is fully
extended.
2. Place the rip fence on the saw
table, and push down on the rip
fence handle (1) in order to lock it.
1
2

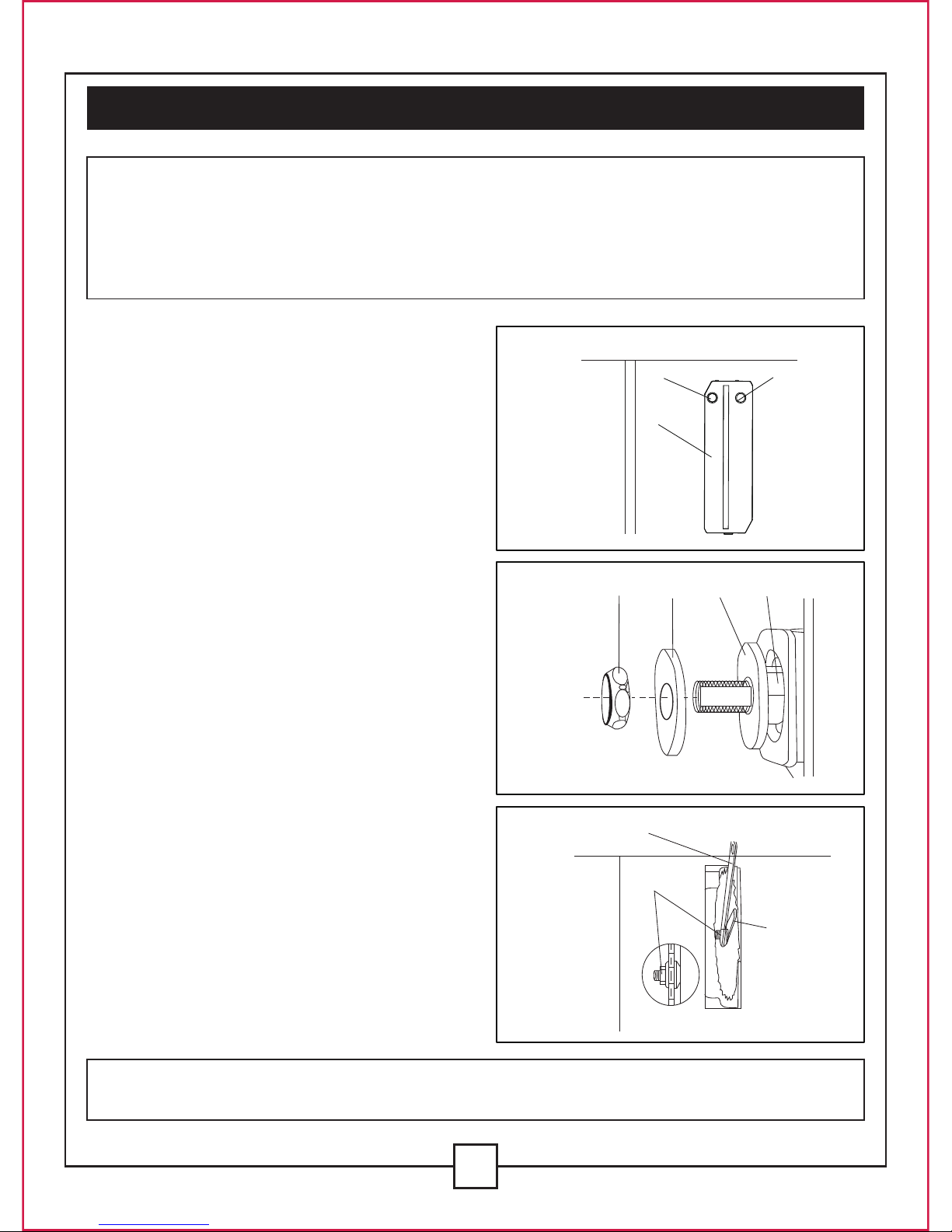

INSTALL THE BLADE TO THE
ARBOR (FIG. 7, 8 & 9)
WARNING: TO AVOID INJURY FROM AN ACCIDENTAL STARTUP, VERIFY THAT THE
SWITCH IS IN THE “OFF” POSITION AND THE PLUG IS NOT CONNECTED TO THE
OUTLET. IN ORDER TO AVOID SERIOUS INJURY, THE TABLE INSERT MUST BE LEVEL
WITH THE TABLE. IF THE TABLE INSERT IS NOT LEVEL WITH THE TABLE, ADJUST THE
SCREW (3) UNTIL IT IS LEVEL WITH THE TABLE. TURN THE SCREW COUNTER-CLOCK
WISE TO RAISE THE INSERT, OR TURN IT CLOCKWISE TO LOWER THE INSERT.
WARNING: MAKE SURE THE SAW BLADE, ARBOR FLANGE, AND NUT ARE PROPERLY
SEATED, AND VERIFY THAT THE ARBOR NUT IS TIGHT.
1. Remove the table insert (1) by inserting the
finger into the hole (2 & 3) (see Fig. 7).
2. Raise the saw blade arbor (4) to its
maximum height by turning the blade raising
hand wheel counter-clockwise (see Fig. 8).
Remove the arbor nut (5) and the outer
flange (6) from the saw arbor.
3. Place the saw blade on the arbor, making
sure the teeth of the blade point DOWN at
the front of the table.
4. Place the flange (6) and the arbor nut (5)
on the arbor, and tighten the nut as far as
possible by hand, making sure the saw
blade is firmly seated against the inner
flange (7) (see Fig. 8).
NOTE: Make sure the large flat surfaces
of the flange and the nut face INWARD,
toward the saw blade.
5. Place the jaws of the open-ended wrench
(8) on the flats of the saw arbor in order to
prevent the arbor from turning while
tightening. Tighten the arbor nut by turning
it clockwise using the box end of the wrench
(9) (See Fig. 9).
Fig. 7
Fig. 8
Fig. 9
V. Assembly and adjustments(continued)
14
2
1
3
4
7
6
5
8
5
9

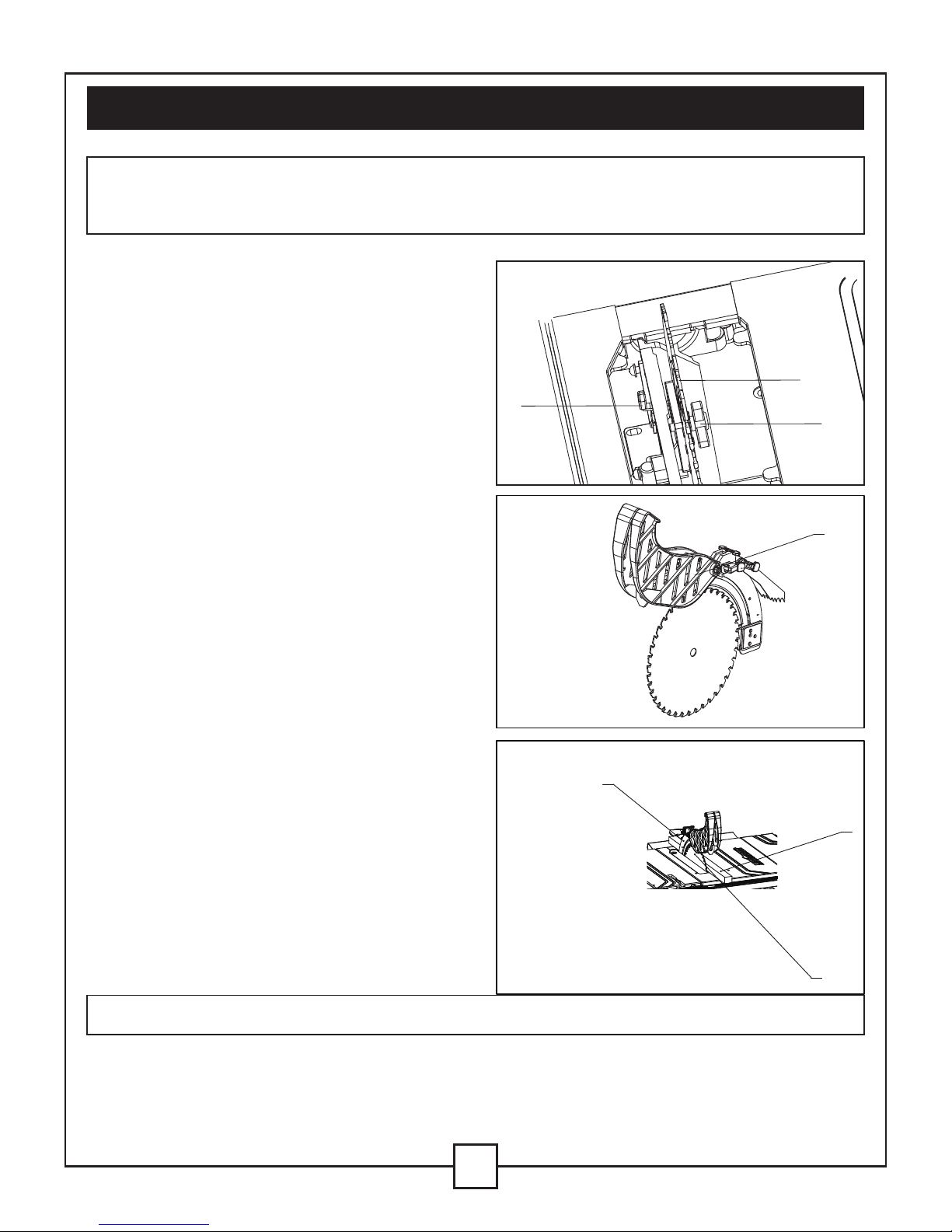

ASSEMBLE THE BLADE GUARD
AND THE SPLITTER (FIG. 10, 11, 12)
WARNING: TO AVOID INJURY FROM AN ACCIDENTAL STARTUP, VERIFY THAT THE
SWITCH IS IN THE “OFF” POSITION AND THE PLUG IS NOT CONNECTED TO THE
OUTLET.
WARNING: Improper splitter alignment can cause kickback and serious injury.
MAKE SURE THE SAW IS DISCONNECTED
FROM THE POWER SOURCE WHEN
INSTALLING THE BLADE GUARD AND
SPLITTER ASSEMBLIES.
Fig. 10
Fig. 11
V. Assembly and adjustments(continued)
15
1
Fig. 12
2
4
3
1. Use the handwheel to set the blade to
the maximum height and to set the tilt
to 0° on the bevel scale. Lock the
blade bevel locking knob.
3. Insert the blade guard assembly (1)
into the splitter bracket, as shown.
(Fig. 11)
4. Using a straight edge (2), verify
whether the blade guard splitter (3)
is aligned with the saw blade (4),
with the straight edge lying between
the teeth of the blade. (Fig. 12)
NOTE: The blade guard and splitter
must always be correctly aligned so
that the cut workpiece will pass on
either side of the splitter without
binding or twisting to the side.
2. After loosing the knob (6),press the
device(5),the splitter (7) should be at
the highest position(Fig.10)
5
6
7

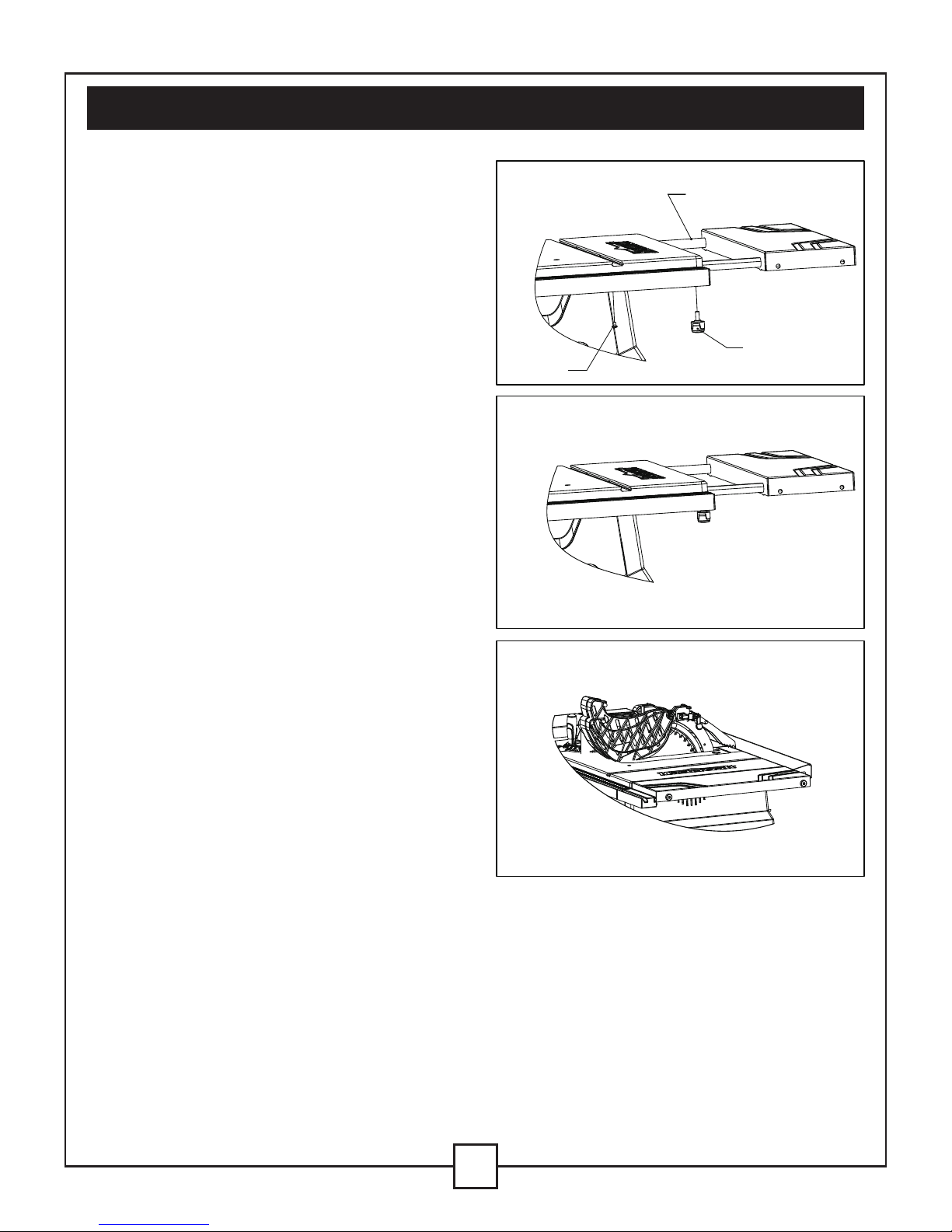

INSTALL THE TABLE EXTENSIONS
(FIG. 13)
INSTALL THE TABLE EXTENSION
FENCE (FIG. 15)
1. Loosen the screw (1) before installing table
side extension.
NOTE:
Make sure the front mounting tube has the
measuring scale visible from the front of
the saw.
2. Loosen the two clamp bolts (2) on the two
extension tube brackets.
3. Insert the table extension mounting tubes
(3) into the two matching holes.
4. Slide the table extension toward the table
until it rests against the saw table.
5. Tighten the two clamp bolts.
6. Thread the stop screw (1) into the hole of
the extension tube (3).
7. Install the left hand table side extension
the same manner.
NOTE:
A. For right ripping short workpieces, the right
extension fence must be extension shortest
position. For left ripping short workpieces,
the left extension fence must be installed in
the shortest position (Fig.15).
B. For right ripping long workpieces, the right
extension fence can be installed in the
extension position (Fig. 14). For left ripping
long workpieces, the left extension fence
must be installed in the extension position.
Fig. 13
Fig. 14
Fig. 15
V. Assembly and adjustments(continued)
16
3
2
1
WARNING: To avoid injury from an accidental startup, verify that the switch is in the “off”
position and the plug is not connected to the outlet.
WARNING: Failure to properly align the fence can cause kickback and serious injury.

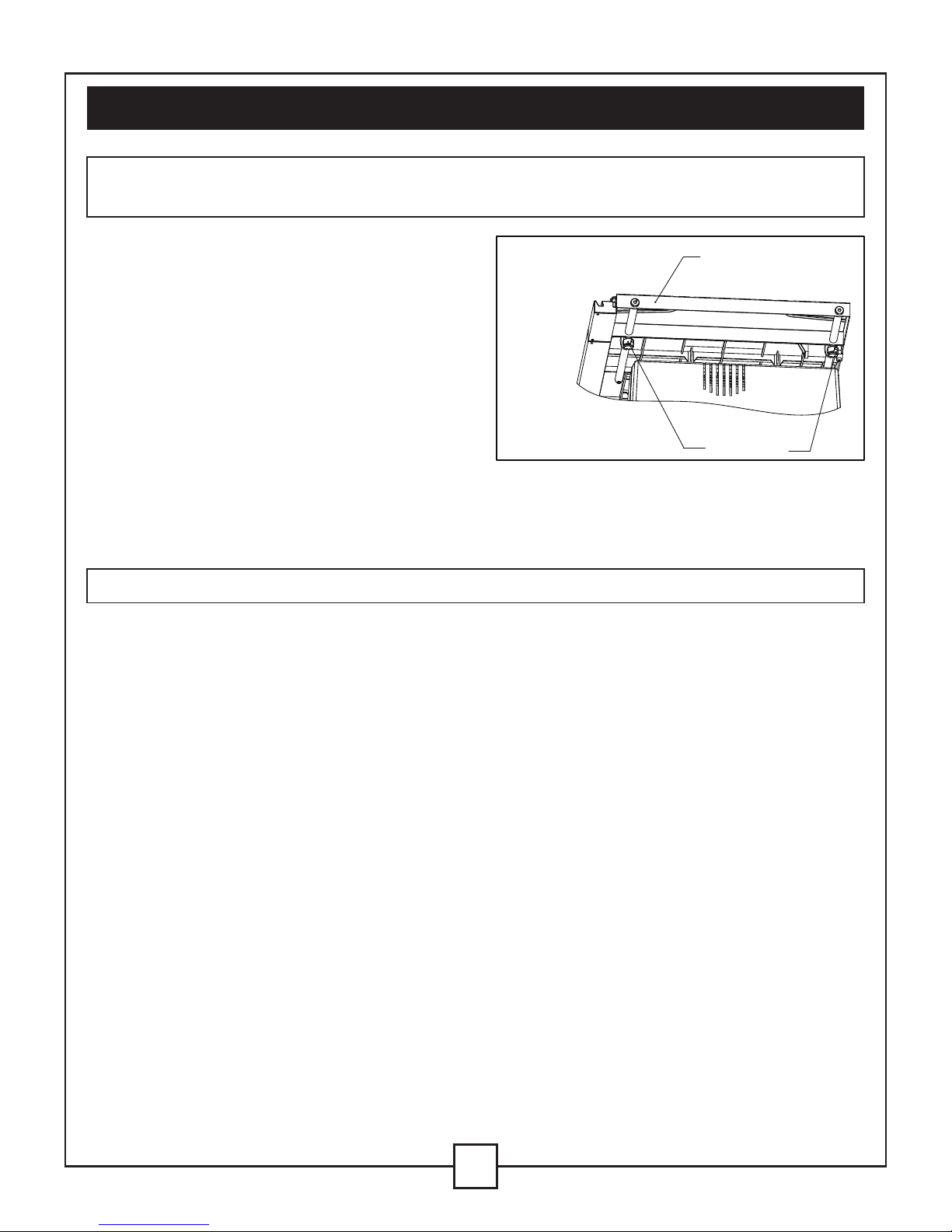

ADJUST THE TABLE EXTENSION
(FIG. 16)
NOTE: The table extension can be installed
on the right side of the table or on the left side
of the table, as needed, in order to support a
long workpiece.
To adjust the position of the table Extension.
1. Loosen the two clamp bolts (5) on the two
extension tube brackets.
2. Slide the extension tubes in or out, until the scale on the front tube positioned at the desired
distance.Tighten the two clamp bolts.
3. To adjust the fence position, loosen the lock handles (5) and position the auxiliary fence (6).
4. Tighten the lock handles (5).
Fig. 16
V. Assembly and adjustments(continued)
17
5
6
5
ADJUSTING THE RIP FENCE INDICATOR (FIG. 17)
1. The rip fence indicator (6) points to the measurement scale (8).The scale shows the distance
from the side of the fence closest to blade.
2. Measure the actual distance with a ruler. If there is a difference between the measurement
and the indicator, adjust the indicator (6).
3. Loosen the screw (7), and slide the indicator to the correct measurement on the scale. Tighten
the screw, and re-measure with the ruler.
V. Assembly and adjustments(continued)
18

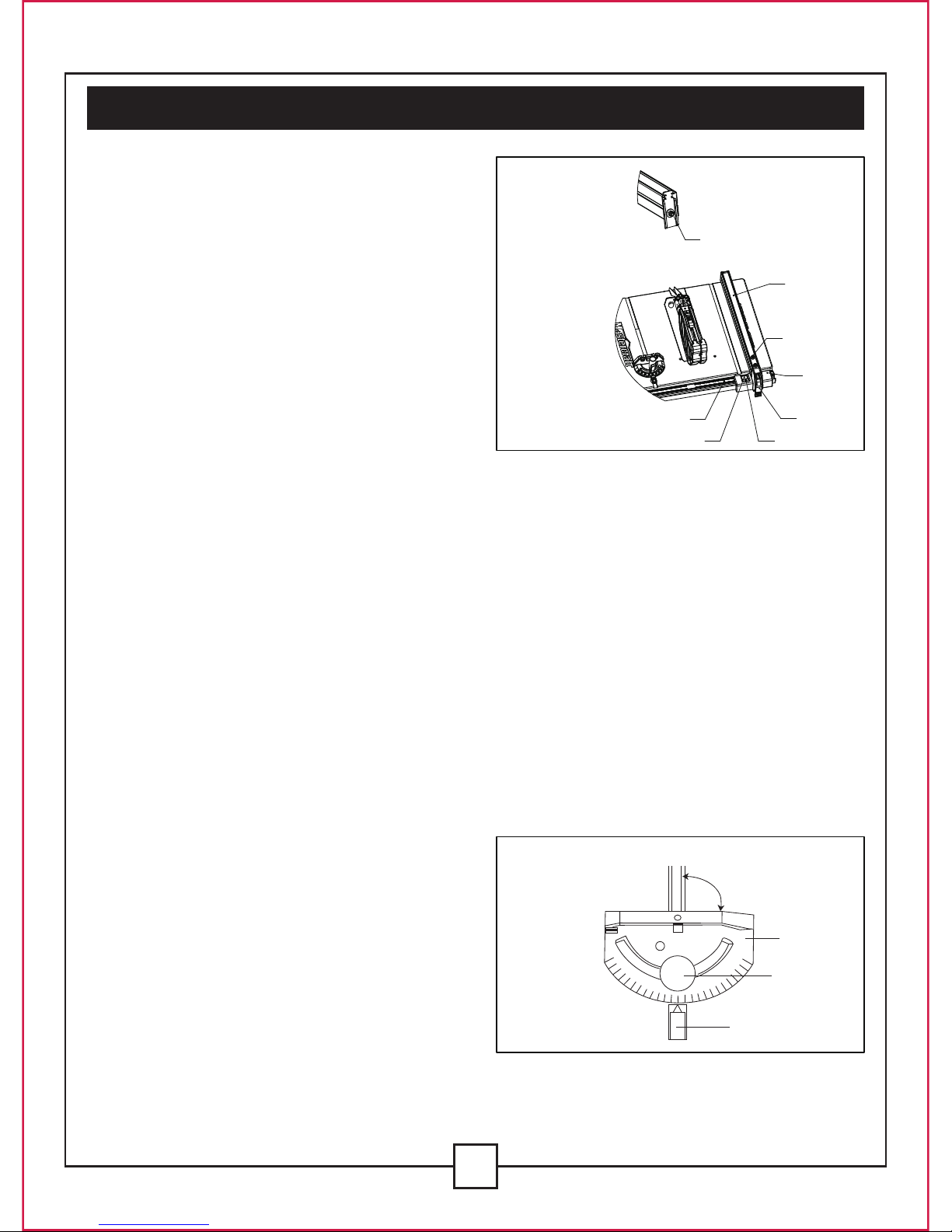

ADJUST THE RIP FENCE (FIG. 17)
1. The fence (1) is moved by lifting the handle
(2) and sliding the fence to the desired
location. Pushing down on the handle locks
the fence in place.
2. Position the fence on the right side of the
table, along the edge of the mitre gauge
groove.
3. Lock the fence handle. The fence should
be parallel with the mitre gauge groove.
4. If adjustment is needed in order to make
the fence parallel to the groove, follow
these steps:
• Loosen the two bolts (3), and lift the handle (2).
• Hold the fence bracket (4) firmly against the front of the saw table. Move the far end of the fence
until it is parallel with the mitre gauge groove.
• Push the handle down to lock it, and tighten both screws.
5. If fence is loose when the handle is in the locked (down) position, follow these steps:
• Lift the handle (2) and turn the adjusting nut (5) clockwise until the rear clamp is snug. Do not
turn the adjusting screw more than 1/4 turn at a time.
• Over-tightening the adjusting screw could bend the rear clamping lever, which may cause the
fence to come out of alignment.
Fig. 17
ADJUST THE MITRE GAUGE (FIG. 18)
1. Loosen the lock handle (1) in order to allow
the mitre body (2) to rotate freely (Fig.18).
Position the mitre body at 90°, so that the
positive detent secures its position. Tighten
the lock handle in order to hold the mitre
body in position.
2. If the pointer (3) requires adjustment,
loosen the two screws under the pointer
using a screwdriver. Adjust the pointer to
90° on the scale, and then firmly tighten both adjusting screws.
3. To change angles on the mitre gauge, loosen the lock handle (1) and rotate the mitre body to
the desired angle, as indicated by the scale. Secure in position by tightening the lock handle.
Fig. 18
8
6
2
4
3
7
1
5
30
45
60
75
75
90
60
45
30
2
1
3
90°
V. Assembly and adjustments(continued)
19
ADJUSTING THE 90° AND 45°
POSITIVE STOPS (FIG. 19, 20)
This saw has positive stops that will quickly position the saw blade at 90° to the table.
Make adjustments only if necessary.
90°Stop (FIG. 19)
1. Raise the blade to the maximum height by
turning the control handle counter-clockwise.
2. Loosen the bevel angle locking knob.
3. Tilt the blade to the 90° (0°) bevel.
4. Using a square (1), verify that the blade is
at a 90° (0°) angle to the table top.
5. If blade is not at a 90° (0°) angle to the
table, back off the adjustment screw (2).
6. Loosen the bevel locking knob and square
the blade 90° (0°) to the table.
7. Once the blade is at a 90° (0°) angle to the
table top, tighten the bevel angle locking
knob.
8. Carefully tighten the adjusting screw (2)
until it touches the bevel stop.
DO NOT OVERTIGHTEN.
9. Verify that the blade is still aligned at 90° (0°).
45°Stop
45° BEVEL STOP (FIG. 20)
1. Raise the blade to the maximum height by
turning the control handle counter-clockwise.
2. Loosen the bevel angle locking knob.
3. Tilt the blade to the 45° bevel.
4. Using a square (1), verify that the blade is
at a 45° angle to the table top.
5. If blade is not at a 45° angle to the table,
back off the adjustment screw (2).
6. Loosen the bevel locking knob and set the
blade at a 45° angle to the table.
7. Once the blade is at a 45° angle to the table top, tighten the bevel angle locking knob.
8. Carefully tighten the adjusting screw (2) until it touches the bevel stop.
DO NOT OVERTIGHTEN.
9. Verify that the blade is still aligned at 45°.
Fig. 19
Fig. 20
1
2
1
2
CAUTION: TO PREVENT PERSONAL INJURY:
• ALWAYS DISCONNECT THE PLUG FROM THE POWER SOURCE WHEN MAKING ANY
ADJUSTMENTS.
• THIS ADJUSTMENT MUST BE CORRECT, OR KICKBACK COULD RESULT IN A
SERIOUS INJURY AND INABILITY TO MAKE ACCURATE CUTS.
V. Assembly and adjustments(continued)
20
BLADE TILT POINTER
1. When the blade is positioned at 90°, adjust the blade tilt pointer read 0° on the scale.
2. Loosen the holding screw, position the pointer over the 0°, and tighten the screw.
NOTE: Make a trial cut on a scrap piece of wood before making critical cuts. Measure for
exactness.
The ON/OFF switch has a removable key.
With the key removed from the switch,
unauthorized and hazardous use by children
and others is minimized.
1. To turn the saw ON, insert the key (2) into
the slot in the switch (1). Move the switch
upward to the ON position.
2. To turn the saw OFF, move the switch
downward.
3. To lock the switch in the OFF position,
grasp the end (or yellow part) of the toggle
switch (2) and pull it out.
4. The switch will not operate with the switch
key removed.
5. If the switch key is removed while the saw
is running, it can be turned OFF, but it
cannot be restarted without inserting the
switch key (2).
WARNING: In order to avoid injury, the on/off switch should be in the off position and the plug
should be removed from the power source while the motor is cooling down. This will prevent
accidental startup when the reset button is pushed.Overheating may be caused by misaligned
parts or by a dull blade. Inspect the saw for proper setup before using it again.
VI. Operating instructions

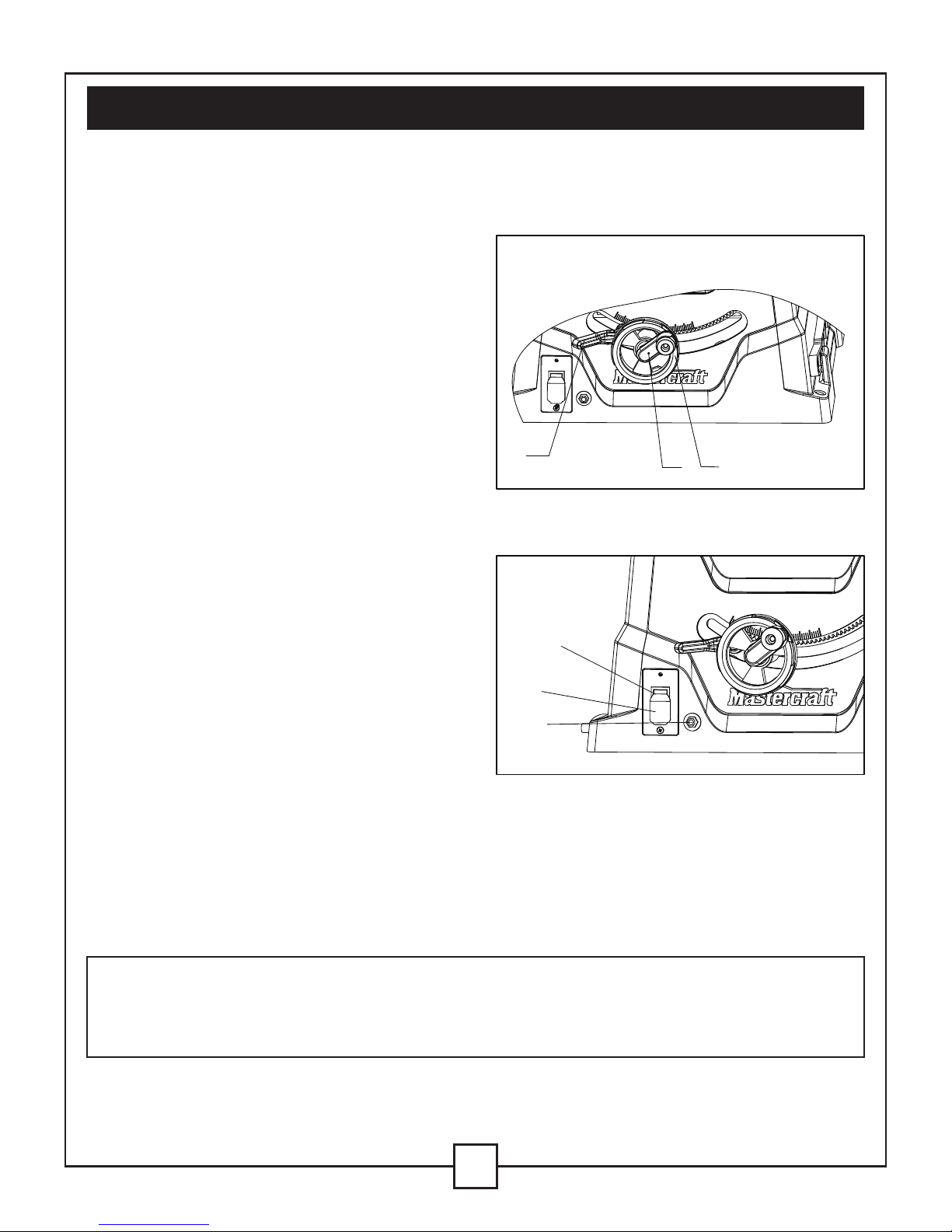

BASIC SAW OPERATIONS RAISE THE BLADE (FIG.21)
TILTING THE BLADE (FIG. 21)
ON/OFF SWITCH (FIG. 22)
OVERLOAD PROTECTION (FIG. 22)
In order to raise or lower the blade, turn the blade elevation handwheel (1) to the desired blade
height, and then tighten the lock knob (2) in order to maintain the desired blade angle.
1. In order to tilt the saw blade for bevel cutting,
loosen the lock knob (2) and turn the blade
tilt handwheel (3).
2. Tighten the lock knob (2) in order to secure
the blade at the proper angle.
This saw has a reset overload relay button (3) that will restart the motor after it shuts off due to
overloading or low voltage. If the motor stops during operation, turn the ON/OFF switch to the
OFF position. Wait approximately five minutes for the motor to cool off, and then push the reset
button (3) and turn the switch to the ON position.
Fig. 21
Fig. 22
2
2
3
1
21
1 3
CAUTION! HAVE YOU READ GENERAL SAFETY GUIDELINES FOR THE TABLE SAW
BEFORE OPERATING THIS SAW YOUR SAFETY DEPENDS ON IT.
VERIFY THE FOLLOWING EVERY TIME THE SAW IS USED:
1. THE BLADE IS TIGHT.
2. THE BEVEL ANGLE LOCKING KNOB IS TIGHT.
3. IF RIPPING, THE FENCE LOCKING KNOB IS TIGHT, AND THE FENCE IS PARALLEL,
AND THE MITRE GAUGE KNOB IS TIGHT.
4. IF CROSSCUTTING, THE MITRE GAUGE KNOB IS TIGHT.
5. THE BLADE GUARD AND SPLITTER ARE IN PLACE, AND ARE WORKING PROPERLY.
6. SAFETY GLASSES ARE BEING WORN.
FAILURE TO ADHERE TO THESE SAFETY RULES CAN GREATLY INCREASE THE
CHANCES OF INJURY.
22

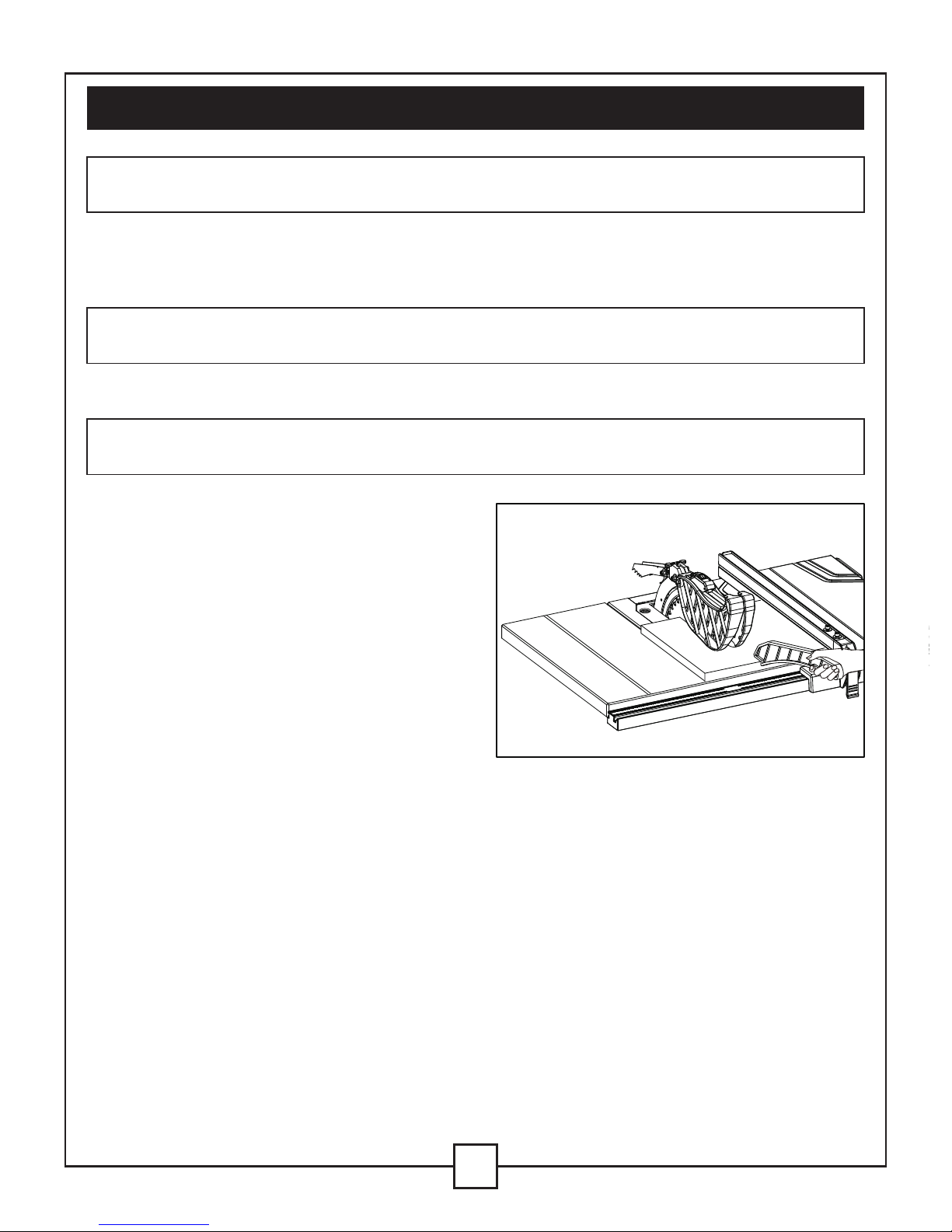

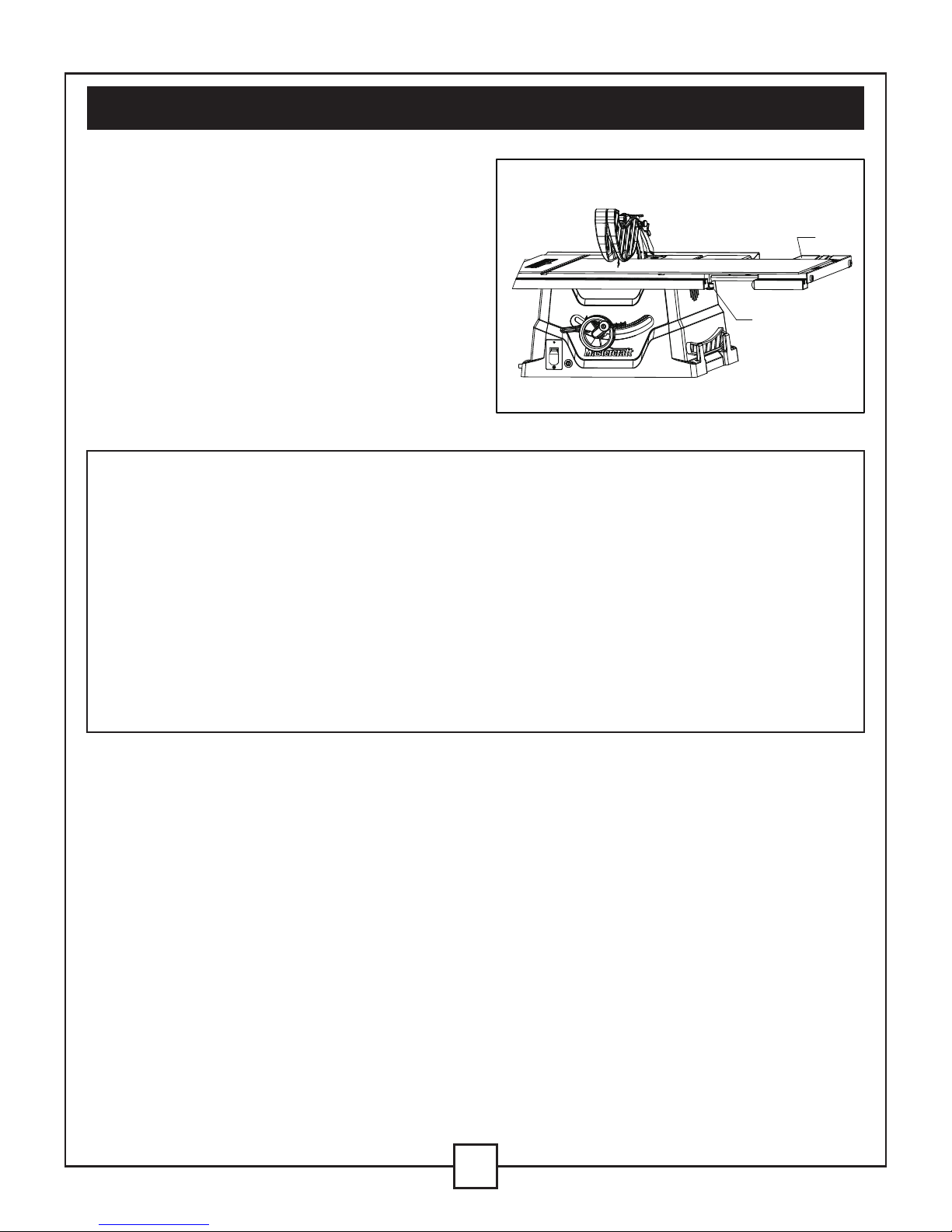

USING THE TABLE EXTENSION
(FIG. 23)
1. Unlock the table extension knob (2) on the
two extension tube brackets.
2. Slide the extension tubes in or out until the
scale on the front tube is positioned at the
desired distance. Lock the table extension
clamp bolts (2).
3. To adjust fence position, loosen lock handles
(2) and position auxiliary fence (1).
4. Tighten lock handles (2).
Before using the table saw, polish the table with an automotive wax in order to keep it clean and
make it easier to slide the workpiece.
There are two basic types of table saw cuts: ripping and crosscutting. In general, ripping means
cutting with the grain, along the length of the workpiece. Crosscutting means either cutting
across the width or across the grain of the workpiece. However, with man made materials, this
distinction can be difficult to make. Therefore, cutting a piece of wood to a different width is
ripping, and cutting across the short dimension is crosscutting. Neither ripping nor crosscutting
operations can be performed safety freehand: ripping requires the use of the rip fence, and
crosscutting requires the use of the mitre gauge.
Fig. 23
VI. Operating instructions(continued)
1
2
WARNING
To prevent serious injury:
• Never use the mitre gauge when ripping.
• Never use more than one rip fence during a single cut.
• Do not allow familiarity or frequent use of your table saw to cause careless mistakes.
Remember that even a fraction of a second of carelessness is enough to cause a severe
injury.
• Keep both hands away from the blade and the path of the blade.
• When ripping, the workpiece must have a straight edge against the fence, and must not be
warped, twisted, or bowed.
1. Remove the mitre gauge, and secure the rip
fence to table.
2. Adjust the blade so that it is approximately
1/8” (3.2 mm) higher than the workpiece.
3. Hold the workpiece flat on the table and
against the fence. Keep the workpiece
approximately 1” (2.5 cm) away from the
blade.
4. Turn the saw ON, and allow the blade to
come up to full speed.
5. Slowly feed the workpiece into the blade
by pushing forward only on the section of
the workpiece (1) that will pass between the blade and the fence (see Fig. 24).
6. Keep your thumbs off the table top. When both of your thumbs touch the front edge of the
table (2), complete the cut using a push stick (3). See Fig. 25).
7. The push stick should always be used when the ripped workpiece (1) is 2” (5 cm) wide or
narrower.
8. Continue to push the workpiece with the push stick until it passes the blade guard and clears
the rear of the table.
9. Never pull the workpiece back while the blade is turning. Turn the switch OFF. When the
blade comes to a complete stop, raise the anti-kickback pawls on either side of the splitter, if
necessary, and then slide the workpiece out.
23
RIPPING (FIG. 24 & 25)

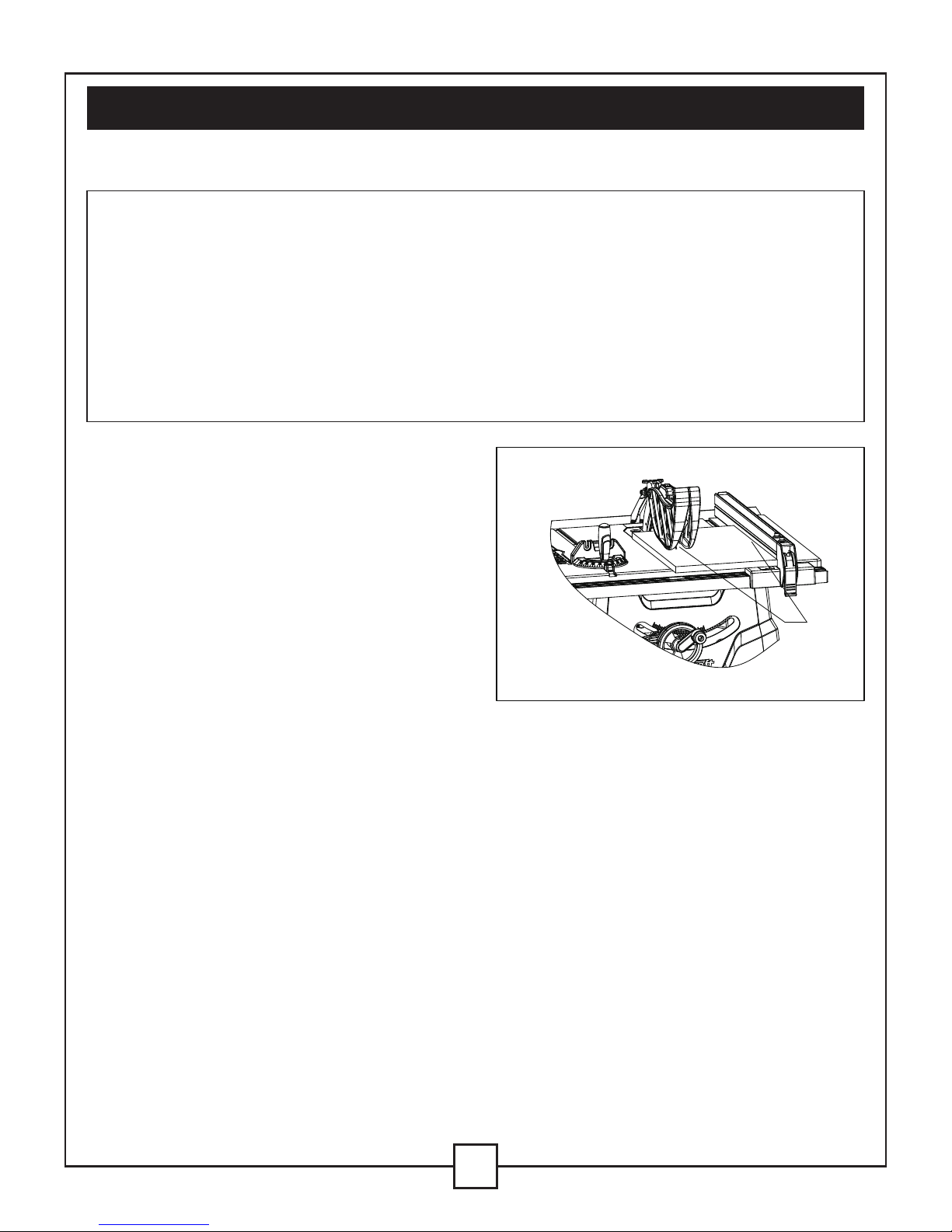

Fig. 24
VI. Operating instructions(continued)
1
CAUTION! AVOID KICKBACK BY PUSHING ONLY ON THE SECTION OF WORKPIECE
THAT WILL PASS BETWEEN THE BLADE AND THE FENCE.
CAUTION! ONLY CUT WITH THE WORKPIECE AND THE FENCE ON THE RIGHT-HAND
SIDE OF THE BLADE.
CAUTION! AVOID INJURY RESULTING FROM CONTACT WITH THE BLADE. NEVER
MAKE THROUGH-CUTS NARROWER THAN 3/4” WIDE.
This operation is the same as ripping, except that the bevel angle is set to an angle other than
0°.
1. It is not safe to rip small pieces. It is not safe
to put your hands close to the blade. In order
to ensure your safety, rip the small piece from
a larger piece.
2. When a small width is to be ripped and the
hand cannot be safety put between the blade
and the rip fence, use one or more push
sticks. Use the push sticks to hold the
workpiece against the table top and the
fence, and to push the workpiece completely
past the blade (see Fig. 25).
BEVEL RIPPING
RIPPING SMALL PIECES
VI. Operating instructions(continued)
Fig. 25
24
CAUTION! To prevent serious injury:
• Do not allow familiarity or frequent use of your table saw to cause careless mistakes.
Remember that even a fraction of a second of carelessness is enough to cause a severe
injury.
• Keep both hands away from the blade and the path of the blade.
• Never attempt to pull the workpiece backward during a cutting operation. This will cause
kickback, and serious injury to the user can occur.
WARNING:In order to avoid instability, always place the larger surface of the workpiece on
the table when crosscutting and/or bevel crosscutting.
1. Remove the rip fence, and place the mitre
gauge one of the mitre gauge grooves on
the table.
2. Adjust the blade height so that it is 1/8”
(3.2 mm) higher than the top of the
workpiece.
3. Hold the workpiece firmly against the mitre
gauge, with the blade path in line with the
desired cut location. Move the workpiece to
within 1” (2.5 cm) of the blade.
4. Start the saw, and wait for the blade (1) to
come up to full speed. Never stand directly
in line with the path of the saw blade.
CROSSCUTTING (FIG. 26)

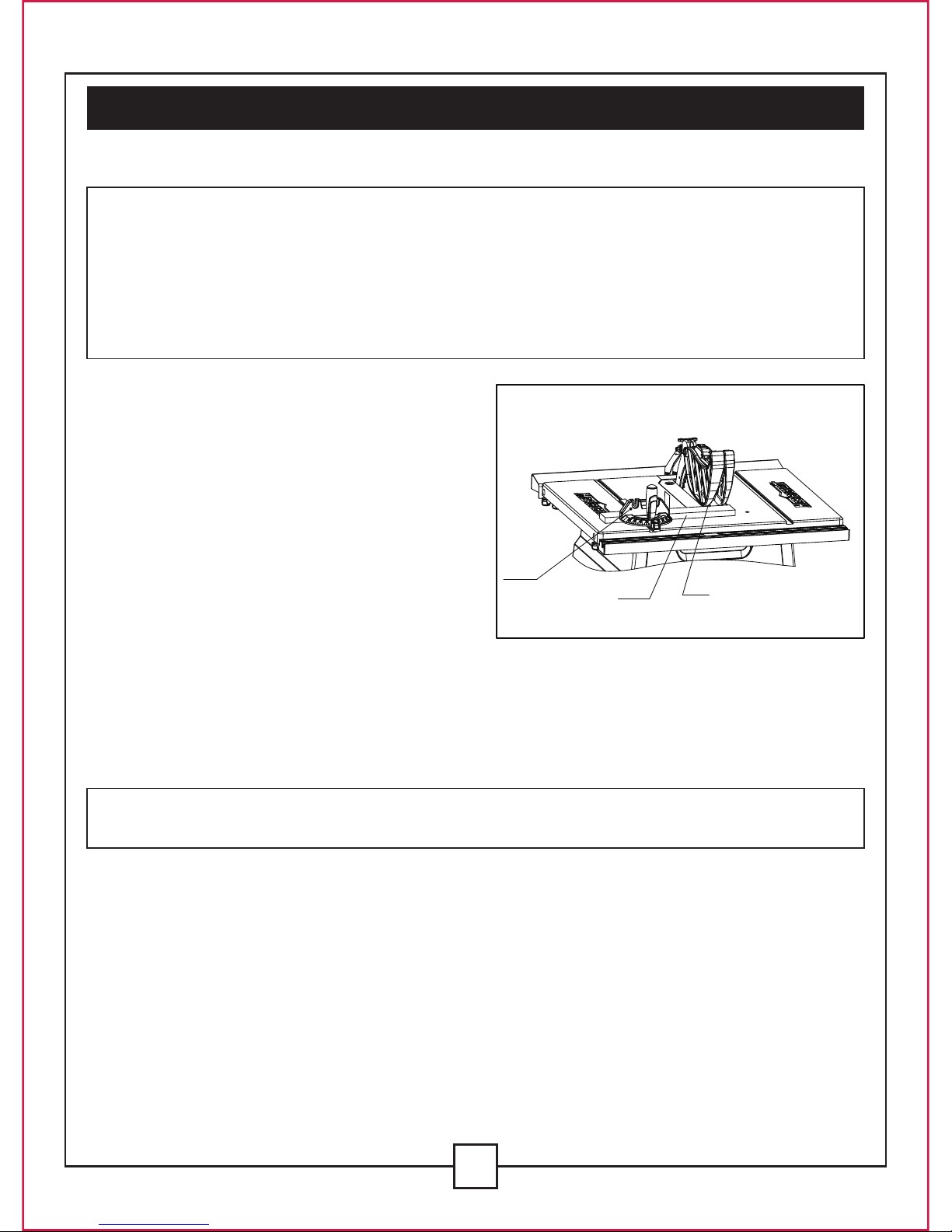

Fig. 26
25
VI. Operating instructions(continued)
2
3
1
5. Keep the workpiece (2) against the face of the mitre gauge (3) and flat against the table.
Slowly push the workpiece through the blade.
6. Do not attempt to pull the workpiece backward while the blade is turning. Turn the switch OFF,
and wait until the blade has come to a complete stop before carefully sliding the workpiece out.
WARNING:Always work to the right side of the blade during this type of cut. The mitre gauge
must be in the right side groove, because the bevel angle may cause the blade guard to
interfere with the cut if it is used in the left side groove.
WARNING:Always work to the right side of the blade during this type of cut. The mitre gauge
must be in the right side groove, because the bevel angle may cause the blade guard to
interfere with the cut if it is used in the left side groove.

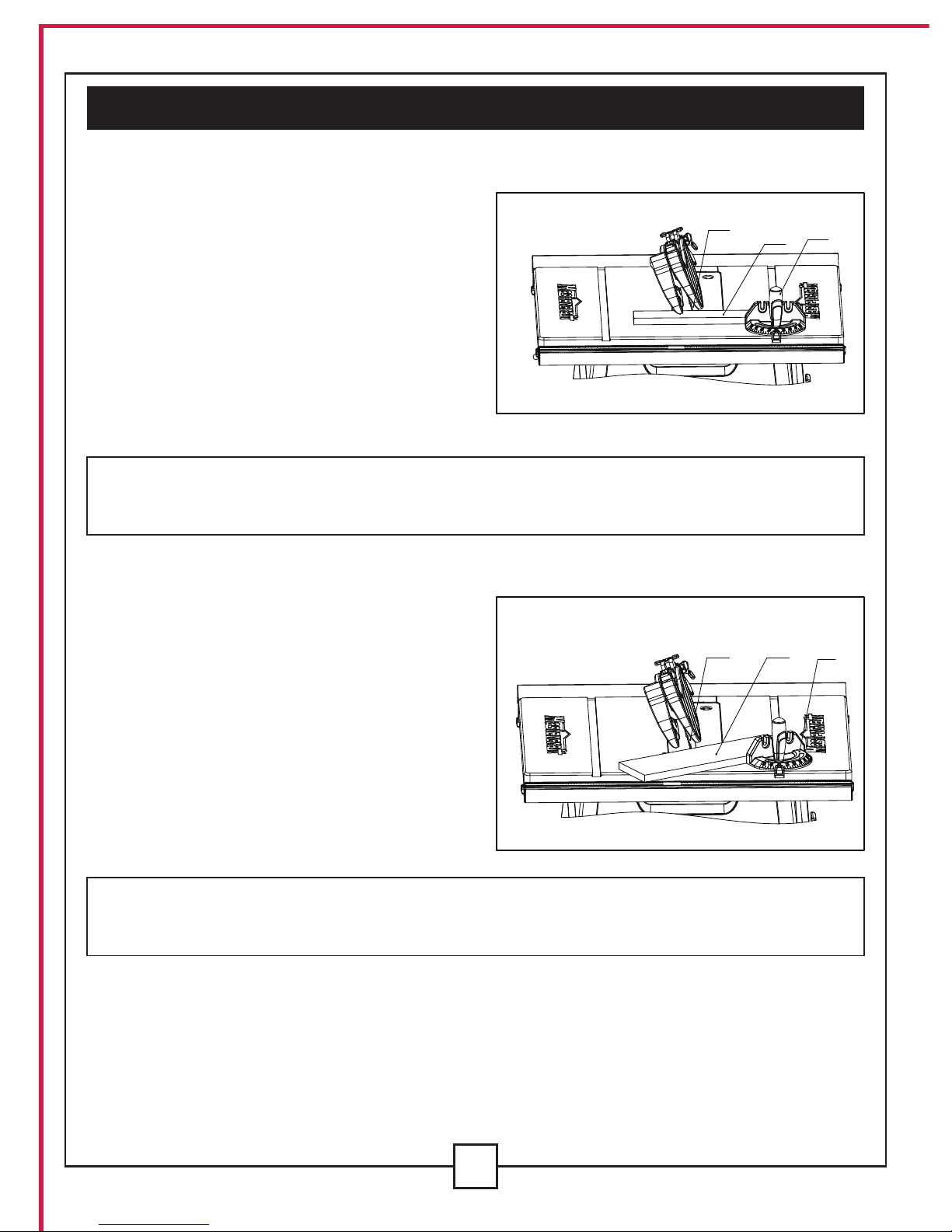

This cutting operating is the same as crosscutting,
except that the blade is at a bevel angle other
than 0°. This operation must be performed with
mitre gauge in the right side groove.
1. Adjust the blade (1) to the desired angle,
and then tighten the blade bevel lock knob.
2. Tighten the mitre lock handle (3) at 90°.
3. Hold the workpiece (2) firmly against the
face of the mitre gauge throughout the
cutting operation.
This sawing operation combines a mitre angle
with a bevel angle. This operation must be
performed with the mitre gauge in the right
side groove.
1. Set the mitre gauge (3) to the desired angle.
2. Place the mitre gauge in the right side
groove of the table.
3. Set the blade (1) bevel to the desired bevel
angle, and tighten the blade bevel lock knob.
4. Hold the workpiece (2) firmly against the
face of the mitre gauge throughout the
cutting operation.
BEVEL CROSSCUTTING (FIG. 27)0°~45° BLADE BEVEL & 90° MITRE ANGLE
0°~45° BLADE BEVEL & 0°~45° MITRE ANGLE
Fig. 27
Fig. 28
26
VI. Operating instructions(continued)
1
2
3
1
2
3

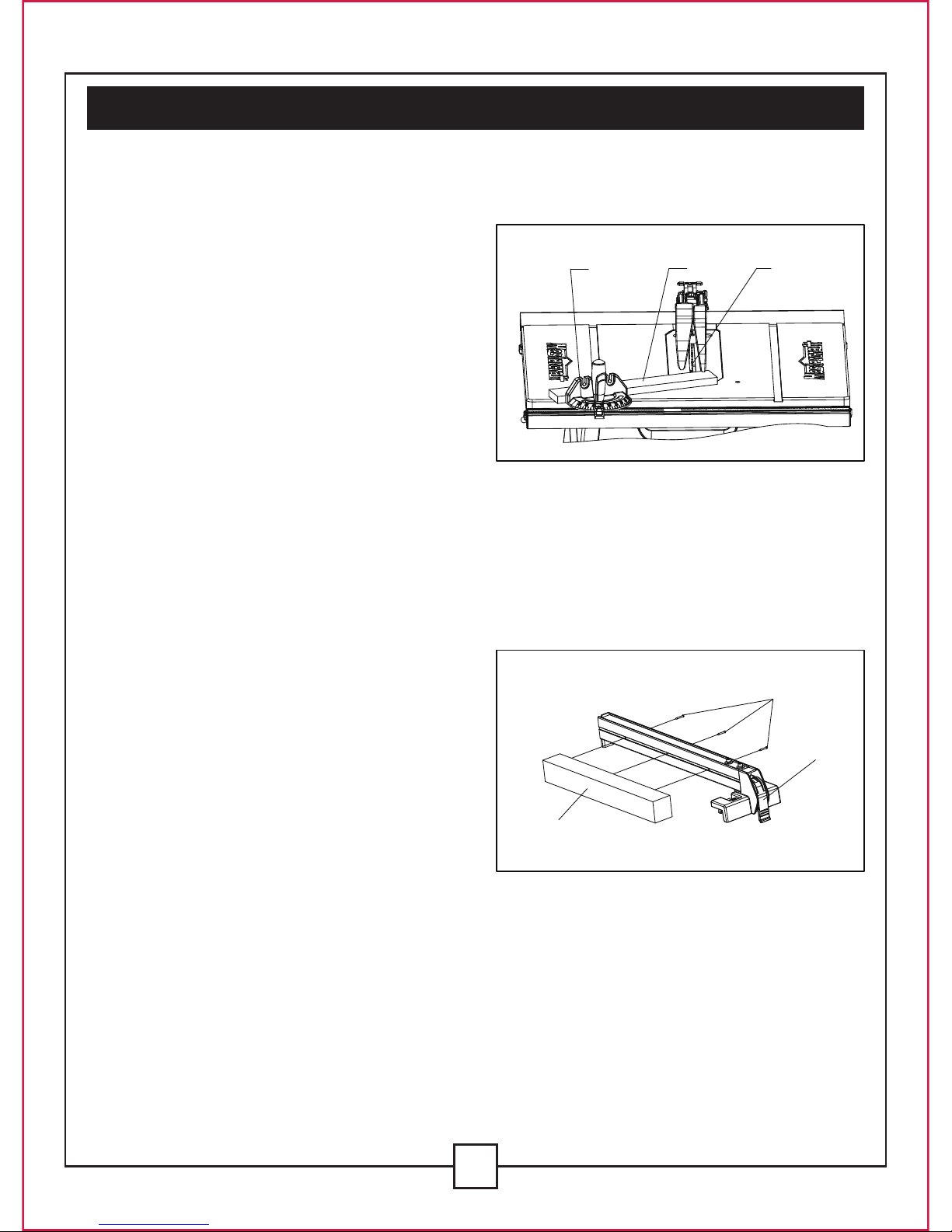

This sawing operation is the same as crosscutting, except that the mitre gauge is locked at an
angle other than 90°.
1. Set the blade (1) to the 0° bevel angle, and
then tighten the blade bevel lock knob.
2. Set the mitre gauge (3) to the desired mitre
angle, and lock it in position by tightening
the mitre gauge locking handle.
3. Hold the workpiece (2) firmly against the
face of the mitre gauge throughout the
cutting operation.
When performing certain special cutting operations, add a wood facing (1) to either side of the rip
fence (2).
NOTE: Before using a wood facing on the rip fence, verify that the auxiliary fence is removed.
1. Use a smooth, straight 3/4” wood board (1)
that is as long as the rip fence.
2. Attach the wood facing to the fence using
wood screws (not included) (3) through the
hole in the fence. A wood facing should be
used when ripping material such as thin
paneling, in order to prevent the material
from catching between the bottom of the
fence and the table.
MITERING (FIG. 29)0°~45° MITRE ANGLE
USING WOOD FACING ON THE RIP
FENCE (FIG. 30)
Fig. 29
Fig. 30
27
VI. Operating instructions(continued)
1
2
3
3
2
1
CAUTION! Use caution when the dado blade is running. You have no guard to protect you.
Also, adjustable or wobbling dado blades CANNOT be used on this machine.
CAUTION! In order to avoid injury, always replace the blade, the blade guard assembly, and
the table insert when you are finished with the dado operation.
1. Unplug the power cord before removing
and/or installing dado blades.
2. When making dado cuts, a dado insert
plate must be installed in place of the
regular table insert.
3. Instructions for operating the dado are
packed with the dado set. (Purchased
separately)
4. The arbor (1) of this saw restricts the
maximum width of a dado cut to 1/2”
(1.3 cm) (Fig. 31). The flange (2) must
be installed prior to reinstalling and
tightening the arbor nut (3).
5. NOTE: Verify that the arbor nut is tight
and that at least one thread of the arbor
sticks out past the nut.
6. After loosing the knob (5),press the
device(4),the splitter (6) should be at
the lowest position,the purpose is not
intended to cut through the workpiece
the splitter is on the midlle position,the
purpose is for non-through operations.
Use only a stackable dado set, and keep
the width to 1/2” (1.3 cm) or less. It will be
necessary to remove the blade guard and kickback pawl when using the dado.
7. Use the correct number of round outside blades and chippers, as shown in the instruction
manual for the dado set. The total width of the blades and chippers must not exceed 1/2”
(1.25 cm).
8. Before starting the table saw, check to make sure the installed dado assembly will not strike
the motor, table, or table saw base when in operation.

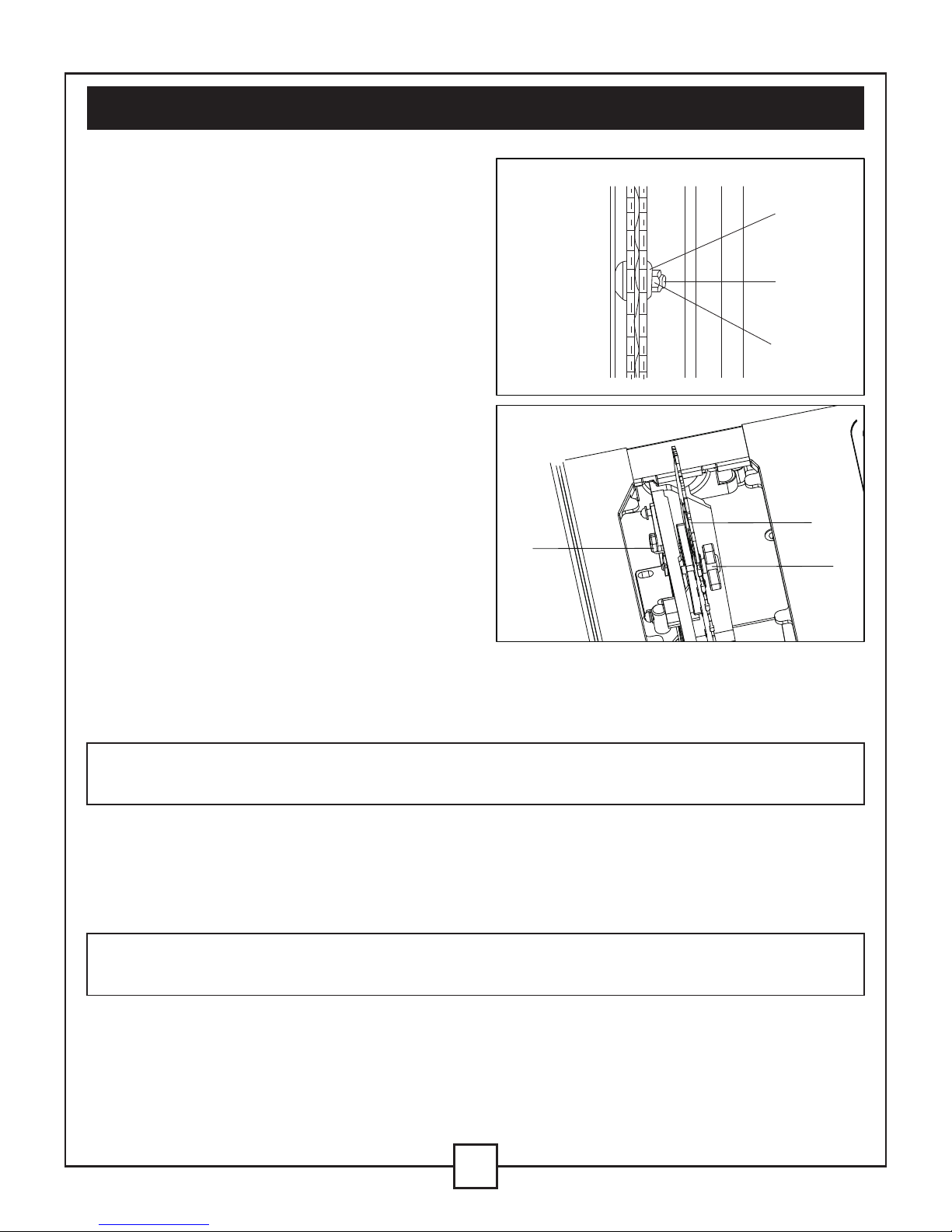

DADO CUTTING (FIG. 31 FIG. 31-1)
Fig. 31
Fig. 31-1
28
VI. Operating instructions(continued)
4
5
6
2
1
3
CAUTION! For your own safety, turn the switch OFF and remove the key. Remove the plug
from the power source before maintaining or lubricating your saw.
CAUTION! All electrical and mechanical repairs should be performed by a qualified repair
technician. Use only identical replacement parts. Any substitute parts may create a hazard.
Clean out all sawdust that has accumulated inside the saw base and around the motor. Polish
the saw table with an automotive wax in order to keep it clean and to make it easier to slide the
workpiece. Clean the cutting blades with pitch and gum remover. Immediately replace a worn,
cut, or damaged power cord.
Use liquid dish washing detergent and water to clean all plastic parts. NOTE: The use of certain
cleaning chemicals may damage plastic parts. Do not use the following cleaning chemicals or
solvents on your table saw: gasoline, carbon tetrachloride, chlorinated solvents, ammonia, and
household detergents that contain ammonia.
The blade raising mechanisms should be checked for looseness, binding, or other abnormalities
after every five hours of operation. Disconnect the table saw from the power source and turn it
upside down, and then alternately pull upward and downward on the motor unit. Observe any
movement in the motor mounting mechanism. (See Fig. 32).
1. Turn the screw pole (1) in the fixed part (2)
connection with the wheel.
2. The power will be transferred by the taper
gear (3) and screw pole (4).
3. The pole (6) in the fixed part (5) will be
moved up and down.
Place a small amount of dry lubricant, such as
graphite or silicone, on the screw rod at the
thrust washer. Do not oil the threads of the
screw rod. For smooth operation, the screw
rod must be kept clean and free of sawdust,
gum, pitch, and other contaminants. Wet
lubricants such as oil will attract sawdust, etc.
If excessive looseness is observed in any other part of the blade raising or tilting mechanisms,
call the Toll-Free Helpline at 1-800-689-9928 for proper adjustment procedures.
All motor bearing are permanently lubricated at the factory, and do not require any additional
lubrication. Lubricate all mechanical parts of your table saw where a pivot or threaded rod is
present with graphite or silicone. These dry lubricants will not hold sawdust like oil or grease will.
GENERAL MAINTENANCE

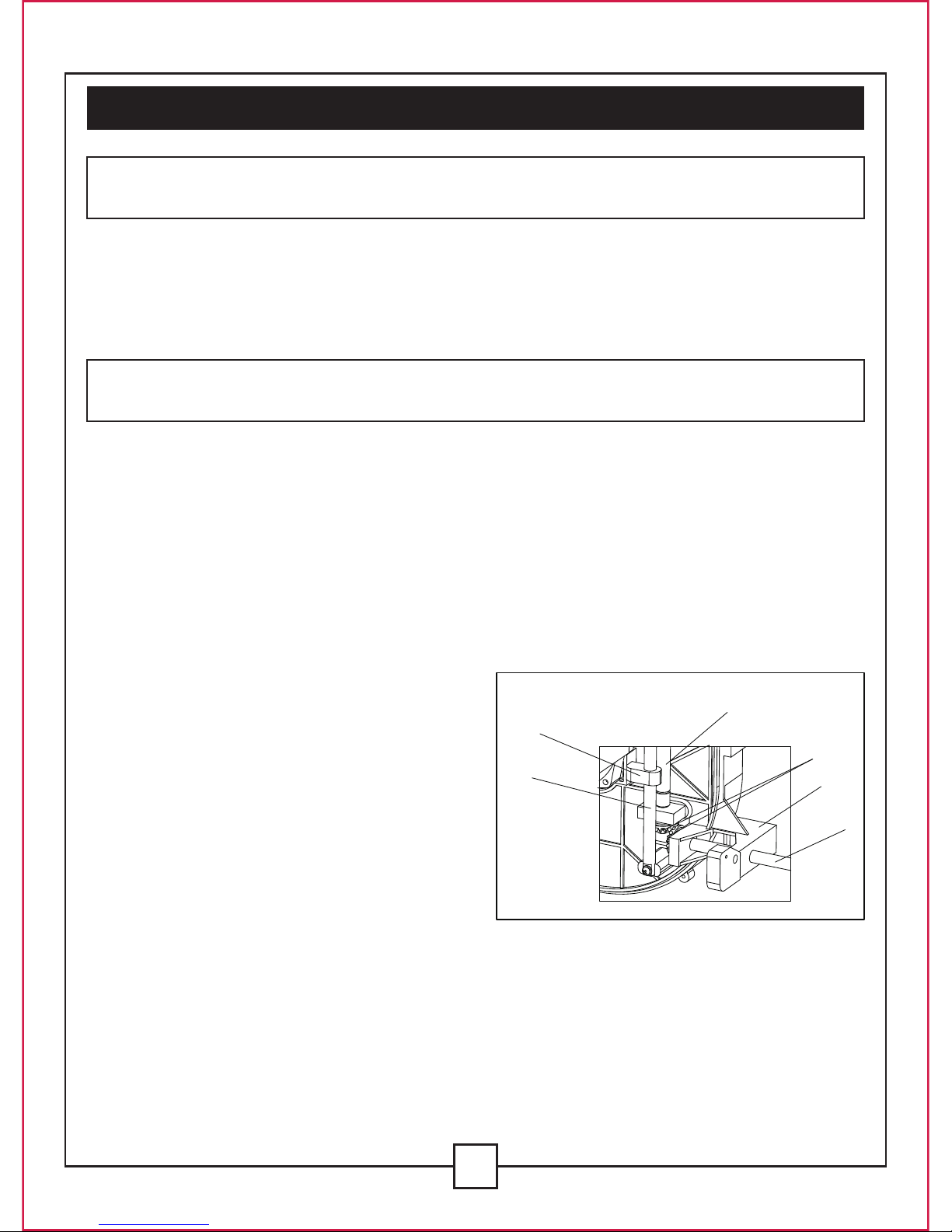

BLADE RAISING MECHANISM (FIG. 32)
LUBRICATION
Fig. 32
29
VII. Maintenance
1
2
3
4
5
6
WARNING! To avoid injury from an accidental start-up, always turn switch OFF and unplug
the table saw before moving, replacing the blade or making adjustments.
SYMPTOM
The saw will not start
The saw does not
make accurate 45°
or 90° rip outs
The material pinches
the blade when ripping
The material binds on
the splitter
The saw makes
unsatisfactory cuts
The material kicks
back from the blade
1. The rip fence is out of alignment
2. The splitter is not aligned correctly with
the blade
3. The workpiece is being fed without the
rip fence
4. The splitter is not in place
5. The blade is dull
6. The operator is letting go of the material
before it has passed the saw blade
7. The mitre angle lock knob is loose
POSSIBLE CAUSES
1. The saw is not plugged in
2. The fuse has blown or the circuit breaker
has tripped
3. The cord is damaged
1. The positive stop is not adjusted correctly
2. The blade tilt pointer is not set correctly
3. The rip fence is not properly aligned
1. The rip fence is not aligned with the blade
2. The wood is warped, the edge against the
fence is not straight
1. The splitter is not aligned correctly with
the blade
1. The blade is dull
2. The blade is mounted backwards
3. There is gum or pitch on the blade
4. The blade is not appropriate for the work
being done
5. There is gum or pitch on the table, causing
erratic feeding
1. Plug in the table saw
2. Replace the fuse of reset the circuit breaker
3. Have the cord replaced by a qualified
electrician
1. Check the blade with the square, and
adjust the positive stop
2. Check the blade with the square, and
adjust the pointer to zero
3. Align the rip fence with the mitre gauge slot
1. Check and adjust the rip fence
2. Select another piece of wood
1. Check and align the splitter with the blade
1. Replace the blade
2. Turn the blade around
3. Remove the blade and clean it with
turpentine and coarse steel wool
4. Change the blade
5. Clean the table with turpentine and coarse
steel wool, and apply a coat of automotive
polishing wax
1. Align the rip fence with the mitre gauge slot
2. Align the splitter with the blade
3. Install and use the rip fence
4. Install and use the splitter(with the guard)
5. Replace the blade
6. Push the material all the way past the saw
blade before releasing the workpiece
7. Tighten the knob
The blade does not
raise or tilt freely
1. There is sawdust and/or dirt in the raising
and tilting mechanisms
1. Brush or blow out any loose dust and dirt
The blade does not
come up to speed
1. The extension cord is too light or too long
2. The voltage from the power source is too
low
1. Replace with the proper size of extension
cord
2. Contact your electricity supplier
The saw vibrates
Excessively
1. The saw is not mounted securely to the
workbench
2. The bench is on an uneven surface
3. The blade is damaged
1. Tighten all mounting hardware
2. Reposition the table saw on a flat level
surface
3. Replace the blade
The saw does not make
accurate 45°or 90°
crosscuts
1. The mitre gauge is out of adjustment 1. Adjust the mitre gauge
CORRECTIVE ACTION
30
VIII. Troubleshooting guide
This Mastercraft product is guaranteed for a period of three(3)years from the date of original retail
purchase against defects in workmanship and materials, except for the following components:
a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of two
(2) years from the date of original retail purchase against defects in workmanship and materials;
b) Component B: Accessories, which are guaranteed for a period of one (1) year from the date of
original retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired
or replaced (with the same model, or one of equal value or specification), at our option. We will
bear the cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper
installation, operation or maintenance (as outlined in the applicable owner’s manual or
operating instructions) or which is being used for industrial, professional, commercial or rental
purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that
may be supplied with the product that are expected to become inoperative or unusable after a
seasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not
limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or
adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others
(i.e., persons not authorized by the manufacturer);
f ) this warranty will not apply to any product that was sold to the original purchaser as a
reconditioned or refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer
is installed therein or any repairs or alterations have been made or attempted by unauthorized
persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited
to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and
chemical cleaners; and
i ) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
3-Year Limited Warranty
31
IX. Warranty
This warranty applies only to the original purchaser and may not be transferred. Neither the
retailer nor the manufacturer shall be liable for any other expense, loss or damage, including,
without limitation, any indirect, incidental, consequential or exemplary damages arising in
connection with the sale, use or inability to use this product.
This warranty gives you specific legal rights, and you may have other rights, which may vary
from province to province. The provisions contained in this warranty are not intended to limit,
modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable
provincial or federal legislation.
32
Additional Limitations
Notice to Consumer
IX. Warranty(continued)
WARNING! ANY ATTEMPT TO REPAIR OR REPLACE ELECTRICAL PARTS ON THIS
TOOL MAY CREATE A HAZARD UNLESS THE REPAIRS ARE CARRIED OUT BY A
QUALIFIED SERVICE TECHNICIAN.
When servicing the Mastercraft table saw, use only Mastercraft replacement parts. The use of
any other parts may cause damage to the product. Any and all servicing of the table saw should
be performed by a qualified service technician.
33
MASTERCRAFT
®
Table Saw with Dual Extension Wings
X. Part list
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
2
1
9
3
1
4
2
1
1
4
25
13
1
1
1
4
1
1
1
2
4
1
1
2
1
1
1
1
1
1
1
2
2
1
1
1
1
1
2
Screw pole
Compaction fixed ring
Compaction shaft
Bolt M4×10
Flat washer 4
Eccentricity compaction handle
Bolt M4×8
Compaction washer
Guide pipe fixed seat
Pointer
Hex bolt M6×20
Spring washer 6
Big washer 6
Rip fence
Rub washer
Compress spring
Press board
Locking nut M6
Mitre guide knob cover
Mitre guide knob
Mitre guide pointer
Washer 3
Bolt ST2.9×8
Mitre guide
Rip fence
Hex bolt M14
Extension table（left ）
Extension pole（left ）
Scale extension pole（left）
Scale for extension pole（left）
Table insert
Washer
Main table
Rear extension pole for table
Limited ring
Rear extension table
Extension pole（right）
Extension pole（right）
Scale for extension pole（R）
Extension table （right）
Hex bolt M6×20
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
8
6
1
1
37
1
1
1
2
1
3
2
2
2
2
1
3
1
1
1
1
1
2
1
1
2
2
2
2
2
1
1
1
1
3
3
6
1
1
1
1
Bolt M6×20
Knob
Screw M6×58
Guard (left)
Flat washer 6
Laser switch
Bolt M4×16
Laser base
Bolt M5×6
Laser
Washer (C)
Compaction cover (A)
Bolt ST2.9×8
Bolt M4×15
Bolt M4×10
Guard support board
Support board cover
Gasket
Guard support base
Connect shaft (A)
Battery box cover
Battery box
Battery
Battery cover
Cover（right）
Circumgyrate wrench parts
Spring pin 4×12
Uncork ring 9
Limited piece
Compaction cover (B)
Spring pin 4×30
Torsional spring
Limited piece support base
Connection shaft (B)
Scale seat insert (B)
Scale seat insert (A)
Bolt ST4.2×8
Extension scale seat（right）
Label（right）
Scale seat
Scale Label
Description Qty
No Description Qty
34
X. Part list(continued)
No
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
1
1
7
7
1
1
1
1
1
1
1
1
4
10
1
1
1
1
2
1
2
1
2
2
1
1
1
1
4
2
2
2
2
2
1
1
1
1
1
1
1
1
1
4
4
4
1
2
1
1
1
Extension table scale base（let）
Label（left）
Square screw M6×16
Hex nut M6
Bolt M3×18
Uncork ring 3.5
Locking nut M3
Adjustment pole
Motor parts
Rip knife base
Compress spring
Pin for rip knife
Rip knife
Bolt M5×20
Spring washer 5
Washer 5
Orientation shaft（A）
Rip knife press board
Rip knife locking knob
Up-down column
Up-down adjustment screw（B）
Flat key 4×8
Up-down adjustment seat
Prick gear
Ring for shaft 10
Fix seat（B）
Angle pointer
Spring washer 4
Up-down adjustment screw(A)
Bolt M6×16
Fix seat（B）
Screw M6×16
Clearance piece
Hex bolt M5×20
Slip piece
Hex bolt M6×12
Body
Dust collection insert
Inside plywood
Blade
Outside plywood
Thin nut M16
Push sticker
Insert board
Hex bolt M8×40
Washer 8
Hex nut M8
Case
Bolt ST4.2×16
Press wire block
Cord inlet
Plug & cord
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
3
1
1
4
3
2
2
2
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
1
4
4
16
2
2
2
2
2
1
2
2
2
1
1
1
1
1
2
1
1
1
1
4
Locking nut M5
Reinforce side board
Rack（B）
Bolt M5×8
Bolt M5×16
Bolt ST2.9×10
Bolt ST4.2×12
Rubber ring
Switch box cover
Overloading protection
Junction box groupware
Overloading protection label
Overloading protection nut
Switch board
Bolt M4×12
Switch
Main label
Adjustment wheel
Nut M5
Circumgyrate handle
Circumgyrate handle
Bolt
Bolt M5×16
Locking handle
Hex nut M5×12
Compaction screw
Locking compress spring
Gasket ring
Angle pointer
Rubber feet
Stand
Half-round square screw M6×16
Front-back angle iron
Front-back support
Left & right angle iron
Left & right support
Bolt M5×8
Cover board
Brush cover
Brush
Brush holding
Press board cover
Body
Damping ring
Bearing 6001-2Z
Stator
Bolt ST4.8×70
Rotor
Bearing 6201-2Z
Inside track
Front cover
Bolt M5×35
Description Qty
No Description Qty
35
No
187
188
189
190
191
192
3
1
1
1
1
1
Bolt M5×16
Gear cover
Bearing 6003-2Z
Ring for shaft or hole 35
Output shaft
Half-round key 5×6.5×16
193
194
195
196
197
1
1
1
2
1
Gear
Ring for shaft 16
Self-lubricating bearing
Blade wrench
Hex key
Description Qty
No Description Qty
X. Part list(continued)
36
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
1
2
3
5
4
6
2
7
8
9
10
11
12
13
14
15
13
16
13
17
13
18
19
20
13
21
22
23
24
25
26
26
26
26
4
4
4
27
29
30
31
4
4
4
32
34
34
35
35
36
33
37
38
40
39
46
45
4
47
5
48
49
51
50
18
52
53
54
55
56
57
58
60
59
61
24
62
63
64
65
24
66
18
46
67
68
18
52
69
70
72
71
74
73
71
70
69
52
75
68
67
44
41
42
43
41
43
28
76
76
76
77
77
78
79
80
78
81
82
78
83
84
85
12
21
86
85
12
21
86
85
12
21
86
11
12
21
87
58
88
89
90
91
92
93
94
95
99
96
97
98
100
101
102
103
104
105
106
107
108
109
110
111
4
104
112
46
113
114
12
115
116
117
118
119
120
117
115
113
112
121
122
123
124
125
126
127
128
129
130
129
128
129
128
129
128
127
127
127
131
132
133
134
135
135
136
137
138
138
138
138
139
139
140
141
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
98
157
158
153
159
160
161
162
164
165
166
46
12
86
166
166
166
46
12
86
46
12
86
46
12
86
167
168
167
168
169
170
169
170
164
164
164
165
165
165
166
166
166
166
166
166
166
166
166
166
166
166
46
12
86
46
12
86
46
12
86
46
12
86
46
12
86
46
12
86
46
12
86
12
86
46
91
171
97
98
172
173
174
175
176
141
173
175
177
178
179
180
98
181
182
183
184
185
46
12
186
187
188
189
190
191
192
193
195
194
174
196
197
198
96
96
96
96
Loading...
