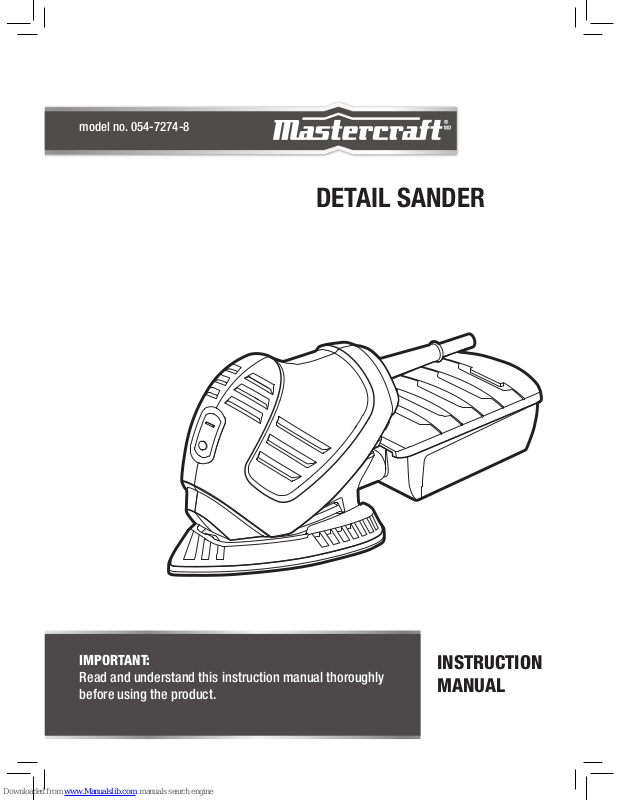

Page 1
model no. 054-7274-8
DETAIL SANDER
IMPORTANT:
Read and understand this instruction manual thoroughly
before using the product.
INSTRUCTION
MANUAL
Page 2
headline bars
3
TABLE OF CONTENTS
Technical Specifications 4
Safety Guidelines 5
Key Parts Diagram 9
Operating Instructions 10
Maintenance 12
Troubleshooting 13
Parts List 14
Warranty 16
TABLE OF CONTENTS
NOTE:
If any parts are missing or damaged, or if you have any questions,
please call our toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
• This manual contains important safety and operating
instructions. Read all instructions and follow them with use
of this product.
Page 3
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
5
4
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Rated voltage 120V ~, 60 Hz
Rated power input 0.5A
No-load Speed 11,000 OPM
Weight 1 lb 8 oz (0.7 kg)
Pad Size 5 1/4 x 3 11/16" (13.3 x 9.3 cm)
Pad Type Hook-and-loop fastening system with 9 holes
Noise Level L
p
: 73.2 dB(A); Lw: 84.2 dB(A)
Vibration a
hi
= 4.085 m/s2; K =1.5
SAFETY GUIDELINES
WARNING!
Safety symbols in this instruction manual are used to flag possible dangers. The safety
symbols and their explanations require your full understanding. The safety warnings do not,
by themselves, eliminate any danger, nor are they substitutes for proper accident prevention
measures.
WARNING!
This safety alert symbol indicates caution, warning, or danger. Failure to obey a safety
warning can result in serious injury to yourself or others. To reduce the risk of injury, fire, or
electric shock, always follow the safety precautions.
KNOW YOUR TOOL
Carefully read this instruction manual and all labels affixed to the detail sander before using it. Keep
this available for future reference.
IMPORTANT
This tool should only be serviced by a qualified service technician. For more information, call the tollfree helpline at 1-800-689-9928.
READ ALL INSTRUCTIONS THOROUGHLY.
SAVE THESE INSTRUCTIONS.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or batteryoperated (cordless) power tool.
WORK AREA SAFETY
• Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks, which may ignite the dust or
fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
SAFETY GUIDELINES
Page 4
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
7
6
ELECTRICAL SAFETY
• The plug on the power cord must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground-fault circuit
interrupter (GFCI) protected supply. Use of a CFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment
of inattention while
operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection, used for a ppropriate
conditions, will reduce personal injuries.
• Prevent unintentional starting. Ensure that the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or plugging in power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts.
• If devices are provided for the connection of dust extraction and collection facilities,
ensure that these are connected and properly used. Use of these devices can reduce dust-
related hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and more safely at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
• Use the power tool, accessories, tool bits, etc., in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
SERVICE
• Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
SAFETY GUIDELINES
SAFETY GUIDELINES
Page 5
headline bars
9
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
8
PACKAGE CONTENTS:
Detail sander, dust box, 12 sanding sheets (80 grit x 3, 100 grit x 3, 120 grit x 3, 240 grit x 3),
instruction manual.
KEY PARTS DIAGRAM
1
2
No. Description No. Description
1 Dust sealed On/Off switch 2 Dust collection box
SAFETY GUIDELINES FOR DETAIL SANDER
• Hold the power tool by insulated gripping surfaces when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. If a cutting
accessory contacts a “live” wire, it may cause the exposed metal parts of the power tool to
become“live” and shock the operator.
• The label on your tool may include the following symbols. The symbols and their
definitions are as follows:
V ..................... Volts
A ..................... Amperes
Hz ................... Hertz
W .................... Watts
min ................. Minutes
................. Alternating current
............. Direct current
n
0
................... No-load speed
............... Class II Construction
…/min ........... Revolutions or reciprocation per minute
............... Grounding terminal
BPM ............... Beats per minute
.............. WARNING – To reduce the risk of injury, user must read instruction manual.
.............. WARNING – To reduce the risk of injury always wear eye protection.
.............. WARNING – To reduce the risk of injury always wear ear protection.
• A suitable breathing respirator must be worn while sanding lead paint, some woods
and metal to avoid breathing the harmful/toxic dust or air.
• Always wear safety goggles and a dust mask when sanding, especially when sanding
overhead.
• The machine is not suitable for wet sanding.
• Do not use sanding paper that is larger than needed. Extra paper extending beyond the
sanding pad can cause serious lacerations.
• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more
securely than by hand.
• Attach the dust bag to the tool and empty it frequently. Do not throw sanding dust on an
open fire, because materials in fine particle form may be explosive.
SAFETY GUIDELINES
KEY PARTS DIAGRAM
WARNING!
• Remove the detail sander from the package, and examine it carefully. Do not discard
the carton or any packaging material until all parts have been examined.
• If any part of the detail sander is missing or damaged, do not attach the tool to a power
source or use the tool until the part has been repaired or replaced. Failure to heed this
warning could result in serious injury.
• Do not allow familiarity with the detail sander to cause a lack of alertness. A fraction of
a second of carelessness is enough to cause severe injury.
Page 6
headline bars
11
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
10
OPERATING INSTRUCTIONS
INSTALLING SANDPAPER
This detail sander uses hook-and-loop backed sandpaper, which grips the pad firmly when it is applied
with
moderate pressure. To change the sandpa per, simply peel off the old sandpaper, remove the dust
from the pad if necessary, and press the new sandpaper into position. Use a suitable tool (cross-head
screw driver, etc.) to punch holes in the sandpaper. The holes should align with the holes in the sanding
pad to facilitate effective dust collection. Be sure to align the holes in the sanding disc with the holes in
the backing pad to allow the dust extraction system to function properly.
TURNING THE SANDER ON AND OFF
(fig 1)
Insert the plug from the sander’s power cord into
a standard household outlet. Start the sander by
pushing the “On/Off” switch to the “I” position.
Turn the sander off by pushing the “On/Off” switch to
the “O” position.
DUST COLLECTION
Attaching and removing:
Fit the dust collection box over the dust extraction
outlet. To remove the dust collection box, pull it out to
the rear and off the outlet.
Emptying:
Remove the dust box from the sander and shake out
the dust.
For a more thorough cleaning of the dust box, open
the cover and gently shake or tap the dust box to
empty. Use a soft brush to clean the filter in the cover.
SELECTING THE PROPER ACCESSORY
Accessory Recommended Applications
Coarse Grit (60–80) Initial sanding of rougher surfaces. Fast removal of stock. Rough sanding
and stripping of painted and rusted surfaces.
Medium Grit (100–140) Intermediate sanding. Removal of minor surface imperfections.
Fine Grit (150–220) Fine sanding. Sanding prior to staining, priming, or sealing.
Do not switch from a coarse grit to a very fine grit in one step, because it may be difficult to remove the
marks made by the coarse grit. Use the coarsest grits for the roughing operation, and finish by using
successively finer grits.
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
WARNING!
• Collected sanding dust from sanding surface coatings (polyurethane, linseed oil, etc.) can self-ignite
in sander dust collection box or elsewhere and cause fire. To reduce risk, empty dust collection box
frequently and strictly follow sander manual and coating manufacturer’s instructions.
NOTICE:
• The filter cannot be rinsed with water.
• In order for the dust-collection system to function properly, it is necessary that holes are punched in
the sandpaper such that the holes in the sandpaper align with the holes in the sanding pad.
fig 1
fig 2
Page 7
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
13
12
MAINTENANCE
The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when
cleaning tools with compressed air. Before each use:
• Inspect the tool, the trigger switch, and the cord for damage.
• Check for damaged, missing, or worn parts.
Check for loose screws, misalignment or binding of moving parts, or any other condition that may
affect the operation.
If abnormal vibration or noise occurs, turn the cordless tool off immediately, and have the problem
corrected before further use.
TROUBLESHOOTING
Problem Possible Causes Solutions
The motor is
overheating.
Be sure the cooling vents are free
from dust and obstacles.
Clean, and clear the vents. Do not cover the
vents with your hand during operation.
If the problem remains unsolved after performing the checks described above, call the toll-free helpline
at
1-800-689-9928.
MAINTENANCE
TROUBLESHOOTING
WARNING!
• To avoid personal injury, al ways unplug the tool when cleaning or performing any maintenance.
• Do not let brake fluids, gasoline, petroleum-based products, penetrating oil, etc., come into contact
with plastic parts. These substances contain chemicals that can damage, weaken, or destroy plastic.
• When servicing, use only identical replacement parts. The use of any other parts may create a hazard
or cause damage to the product.
• Use only accessories that are recommended for this sander by the manufacturer. Accessories tha t
may be suitable for one tool may become hazardous when used with another tool.
• To ensure safety and reliability, all repairs should be performed by a qualified service technician.
• If the supply cord is damaged, it must be replaced by a specially-prepared cord available through the
service organization.
Page 8
headline bars
15
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
14
EXPLODED VIEW
No. Part No. Description QTY No. Part No. Description QTY
1 3126581000 Left housing 1 14 3120370000 Front pad support 1
2 3123539000 Switch cover 1 15 3120362000 Rear pad support 1
3 3700577000 Fixing board 1 16 4860006000 Inner wire 3
4 4870053000 Switch 1 17 3123540000 Base plate 1
5 3123778000 Dust cap 1 18 3700137000 Flange screw 4
6 3126582000 Right housing 1 19 3704011000 Soft pad 1
7 5610033000 Tapping screw 4 20 3810404000 Sanding paper 1
8 2730128000 DC motor 1 21 4930004000 Connecter 1
9 3123537000 Dust fan 1 22 3120234000 Cord anchorage 1
10 3520319000 Counterweight 1 23 5610024000 Tapping screw 2
11 5700008000 Ball bearing 1 24 3121011000 Cord guard 1
12 3123538000 Fan baffle 1 25 4810002000 Power cord and
plug
1
13 3704013000 Felt ring 1 26 2824207000 Dust box assembly 1
PARTS LIST
PARTS LIST
Page 9
headline bars
17
headline bars
model no. 054-7274-8 | contact us 1-800-689-9928
16
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail
purchase against defects in workmanship and materials, except for the following components:
a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years
from the date of original retail purchase against defects in workmanship and materials;
b) Component B: Accessories, which are guaranteed for a period of 1 year from the date of original
retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear the
cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or
which is being used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be
supplied with the product that are expected to become inoperative or unusable after a reasonable period
of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited
to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e.
persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a
reconditioned or refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer
is installed therein or any repairs or alterations have been made or attempted by unauthorized
persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to,
scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical
cleaners; and
i) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation,
any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal
legislation.
Made in China
Imported by
Mastercraft Canada Toronto, Canada M4S 2B8
WARRANTY
WARRANTY
Page 10
Loading...
