model no. 054-0932-4
CORDLESS RADIO
P
M
S
IMPORTANT:
Read and understand this instruction manual thoroughly
before using the product.
INSTRUCTION
MANUAL
headline bars
TABLE OF CONTENTS
Technical Specifications 4
Safety Guidelines 5
Key Parts Diagram 8
Operating Instructions 10
Maintenance 14
Troubleshooting 15
Parts List 16
Warranty 18
3
TABLE OF CONTENTS
NOTE:
If any parts are missing or damaged, or if you have any questions,
please call our toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
• This manual contains important safety and operating instructions. Read all
instructions and follow them with use of this product.
headline bars
4
model no. 054-0932-4 | contact us 1-800-689-9928
5
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
AM Tuner 520–1710 KHz
FM Tuner 87.5–108 MHz
Auxiliary Cable 3.5 mm plug
USB Charge Port 5V DC, 1A (max)
Weight (without battery) 1 lb 8 oz (0.69 kg)
Compatible Battery Packs
Battery Chargers 054-3126-6 (Sold separately)
Preset channels 20 AM/20 FM
Speaker 5 W
3 modes AM/FM/AUX
1.3 Ah Li-ion (054-3124-0) (Sold separately)
2.6 Ah Li-ion (054-3125-8) (Sold separately)
SAFETY GUIDELINES:
WARNING!
Safety symbols in this instruction manual are used to flag possible dangers. The safety
symbols and their explanations require your full understanding. The safety warnings do not,
by themselves, eliminate any danger, nor are they substitutes for proper accident prevention
measures.
WARNING!
This safety alert symbol indicates caution, warning, or danger. Failure to obey a safety
warning can result in serious injury to yourself or others. To reduce the risk of injury, fire, or
electric shock, always follow the safety precautions.
KNOW YOUR TOOL
To operate this tool, carefully read this instruction manual and all labels affixed to the radio before
using. Keep this manual available for future reference.
IMPORTANT
This tool should only be serviced by a qualified service technician. For more information, call the tollfree helpline at 1-800-689-9928.
READ ALL INSTRUCTIONS THOROUGHLY
SAVE THESE INSTRUCTIONS
GENERAL SAFETY WARNINGS
SAFETY GUIDELINES
WARNING!
Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
WORK AREA SAFETY
• Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks, which may ignite the dust or
fumes.
headline bars
6
model no. 054-0932-4 | contact us 1-800-689-9928
7
ELECTRICAL SAFETY
• A battery operated product with integral batteries or a separate battery pack must be
recharged only with the specified charger for the battery. A charger that may be suitable
for one type of battery may create a risk of fire when used with another battery.
• Use battery operated product only with specifically designated battery pack. Use of any
other batteries may create a risk of fire.
• Use only with battery and charger listed.
PERSONAL SAFETY
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Do not use on a ladder or unstable support. Stable footing on a solid surface enables better
control of the product in unexpected situations.
PRODUCT USE AND CARE
• Do not use the product if the switch does not turn it on or off. Any product that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect battery pack from product or place the switch in the locked or off position
before making any adjustments, changing accessories, or storing the product. Such
preventive safety measures reduce the risk of starting the product accidentally.
SAFETY GUIDELINES
• When battery pack is not in use, keep it away from other metal objects like: paper
clips, coins, keys, nails, screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the battery terminals together may cause
sparks, burns, or a fire.
• Keep the radio and its handle dry, clean and free from oil and grease. Always use a
clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any
strong solvents to clean your radio. Following this rule will reduce the risk of loss of control and
deterioration of the enclosure plastic.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Only use attachments/accessories specified by the manufacturer.
SERVICE
• Have your product serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
SAFETY GUIDELINES FOR RADIO
• Know your product. Read the operator’s manual carefully. Learn the applications and
limitations, as well as the specific potential hazards related to this product. Following
this rule will reduce the risk of electric shock, fire, or serious injury.
• Battery products do not have to be plugged into an electrical outlet; therefore, they
are always in operating condition. Be aware of possible hazards when not using your
battery product or when changing accessories. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
• Do not place battery products or their batteries near fire or heat. This will reduce the risk
of explosion and possibly injury.
• To reduce the risk of electric shock, do not expose to water or rain.
• Do not use the radio to listen to music or other audio programs while operating
machinery. Doing so may cause distractions that could result in serious personal injury.
• This radio is capable of producing sound levels that can be dangerous to long-term
hearing. Listening to music at high volume for any period of time may cause noiseinduced hearing loss. The higher the volume, the less time required before your hearing may
be affected.
• Save these instructions. Refer to them frequently and use them to instruct others who
may use this product. If you loan someone this product, loan them these instructions also.
• The label on your product may include the following symbols. The symbols and their
definitions are as follows:
V ..................... Volts
A ..................... Amperes
Hz ................... Hertz
W .................... Watts
min ................. Minutes
................. Alternating current
n
…/min ........... Revolutions or reciprocation per minute
BPM ............... Beats per minute
............. Direct current
................... No-load speed
0
............... Class II Construction
............... Grounding terminal
.............. WARNING – To reduce the risk of injury, user must read instruction manual.
SAFETY GUIDELINES
headline bars
headline bars
8
P
M
S
PM
BASS
CH 88
MHz
kHz
AM
FM
model no. 054-0932-4 | contact us 1-800-689-9928
9
PACKAGE CONTENTS:
Radio and instruction manual.

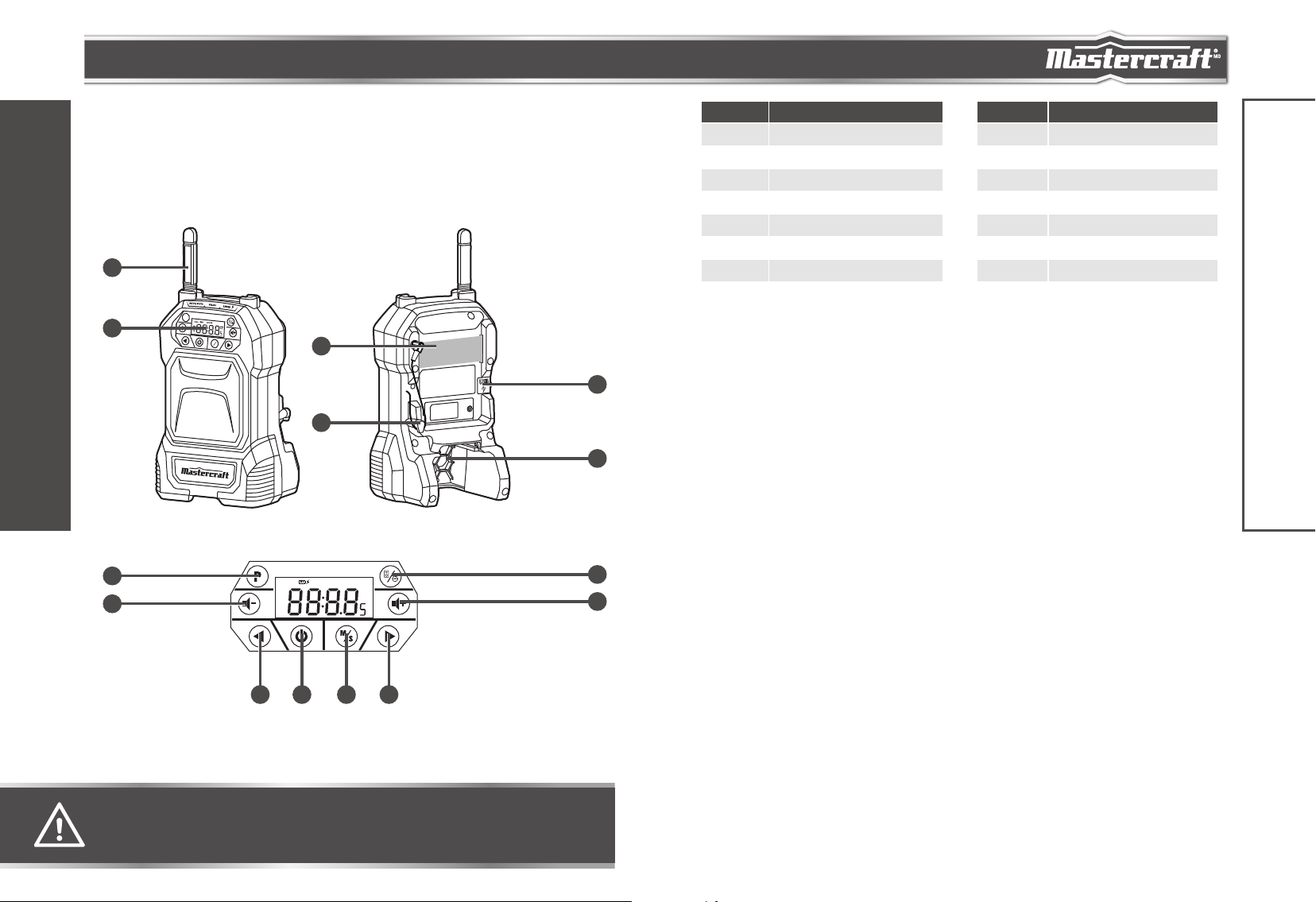

KEY PARTS DIAGRAM
1
2
KEY PARTS DIAGRAM
No. Description No. Description
1 Antenna 8 Volume down button
2 LCD display 9 Volume up button
3 Retainer strap 10 Tune/seek down button
4 USB power port 11 Tune/seek up button
5 Integrated auxiliary cable 12 On/off button
6 Battery port 13 Mode/scan button
7 Preset button 14 Bass/clock button
3
4
5
6
KEY PARTS DIAGRAM
7
8
10 12 13 11
WARNING!
• Remove the radio from the package and examine it carefully. Do not discard the carton or any packaging material until all
parts have been examined.
14
9
headline bars
headline bars
10
model no. 054-0932-4 | contact us 1-800-689-9928
11
OPERATING INSTRUCTIONS
TO INSTALL/REMOVE AAA
BATTERIES
It is advisable to write down stored frequencies
before replacing the AAA batteries if, at the time of
AAA battery replacement, the 20V battery pack is
removed or has no charge. The radio will lose all
settings previously stored in memory when replacing
the AAA batteries in this situation, and they will
require reprogramming.
Always use new alkaline batteries for replacement.

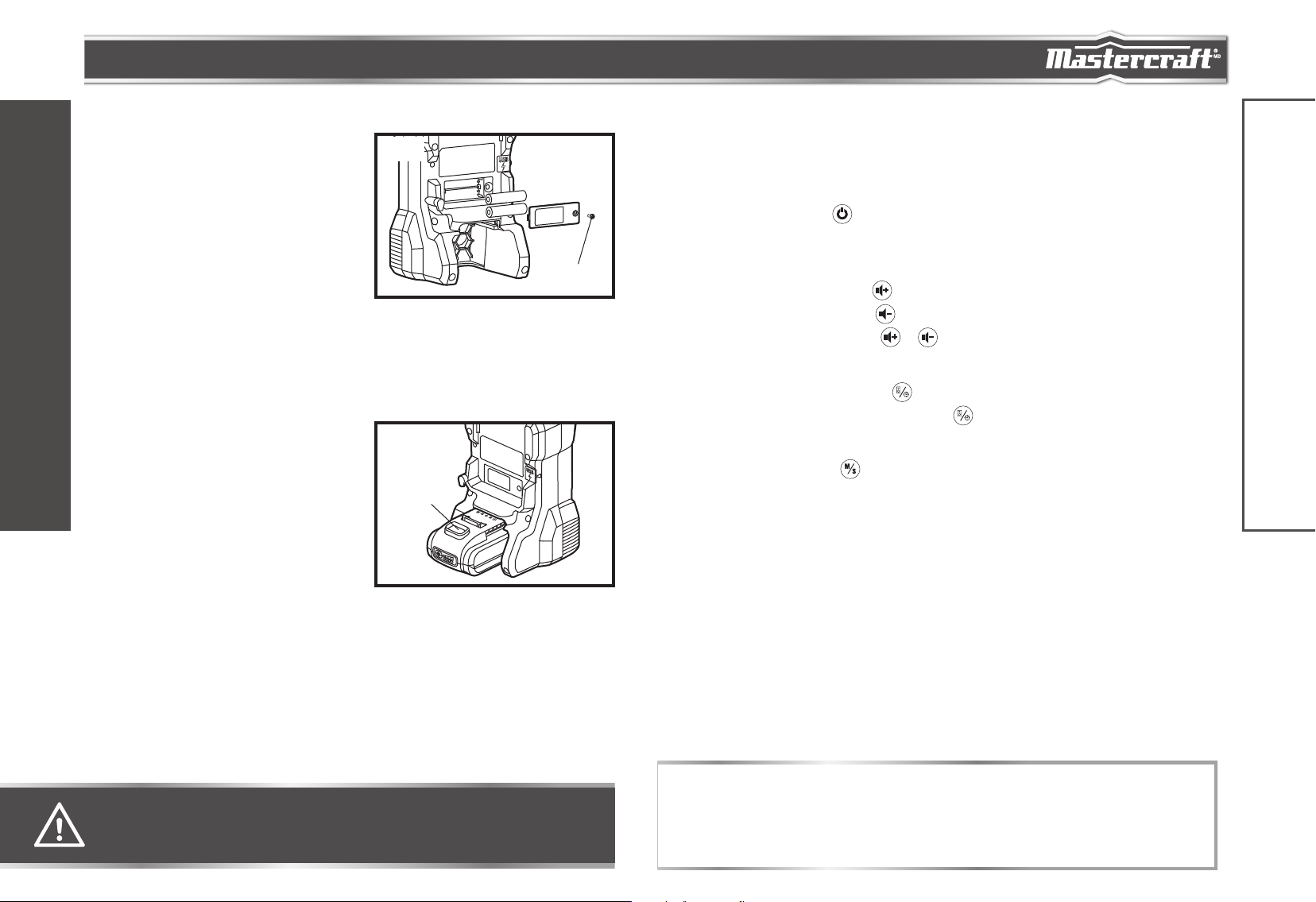

1. Use a cross-head screwdriver to loosen the screw from the battery cover. Remove the screw.
2. Remove the battery cover.
3. Install two new AAA batteries according to polarity indicators inside the battery compartment.
4. Replace the battery cover and secure it with the screw.
(fig 1)
TO INSTALL/REMOVE 20 V BATTERY
PACK
(fig 2)
OPERATING INSTRUCTIONS
To install:
1. Place the battery pack in the radio, aligning the
raised rib on the battery pack with the groove in the
radio’s battery port.
2. Make sure that the latch on the battery pack snaps
into place and the battery pack is secured to the
radio.
fig 1
fig 2
Battery-release
button
Screw
LCD DISPLAY
The LCD display on the front of the radio illuminates when the radio is turned on. It will display the
radio mode and frequency/channel setting. The LCD will be dark if there is no operation within 10
seconds.
Turning the radio on/off
Press and hold the button for three seconds to turn the radio on or off.
Adjusting the volume
When the radio is turned ON, it will initially return to the last volume setting used.
To increase the volume: Press the
To decrease the volume: Press the
To change volume quickly: Hold the
button.
button.
or button.
EQ adjustment
To increase the bass sound, press the button and quickly release it.
To go back to the preset balance setting press the
button and quickly release it again.
Mode selection
To switch modes, press the button and quickly release it. The selected mode will be shown in the
digital display.
There are three modes:
• FM mode.
• AM mode.
• AUX mode.
OPERATING INSTRUCTIONS
To remove:
1. Depress the battery-release button, located on the front of the battery pack, to release the battery pack.
2. Pull the battery pack and remove it from the radio.
WARNING!
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
NOTICE:
• If AAA batteries have been installed, the time will be displayed when the radio is off, even if the 20 V battery pack is removed.
• If both 20 V battery pack and AAA batteries are removed from the radio or have no charge, the radio will return to the default
volume setting.
• When turned on, the radio will return to the last mode that was used, unless both AAA batteries and 20 V battery pack are
removed or have lost their charge.
headline bars
12
model no. 054-0932-4 | contact us 1-800-689-9928
13
Changing channels
The buttons are used to manually tune to the desired radio frequency. The selected frequency
is displayed on the digital display.
To use the tune feature:
1. Press the or button and quickly release it to manually scroll through radio channels one
frequency at a time.
To use the seek feature:
1. Press and hold the button for three seconds to tune to the next lowest frequency that has clear
reception.
2. Press and hold the
reception.
To use scan feature:
1. Press and hold the button for three seconds to scan through the band.
2. The scanning will pause when a channel is found, and all channels will be saved automatically in the
memory.
3. Press the
or button to stop scanning.
To use the FM antenna:
OPERATING INSTRUCTIONS
Raise or lower radio antenna until the radio channel can be heard clearly.
Storing a preset in memory
The memory feature saves up to 40 frequencies as presets in the radio’s memory. You can save 20
frequencies in FM mode and 20 in AM mode.
button for three seconds to tune to the next highest frequency that has clear
Setting the clock
The time is always displayed when the radio is turned off and in AUX mode.
To set the clock:
1. Press and hold the button. The number representing the hours will blink on and off.
2. Press the
AM/PM is displayed.
3. Press the
4. Press the
5. Press the
or button to set the hour. For AM/PM settings, scroll through the first 12 numbers until
button quickly. The number representing the minutes will blink on and off.
or button to set the minutes.
button again to save.
Using media player
1. Select AUX mode. Refer to “mode selection”.
2. The retainer strap may be used to secure the media player into position.
3. Connect the integrated auxiliary cable to the media player .
4. The media player must be ON and in PLAY mode for sound to be heard through the speaker.
5. All media player controls can be used normally while connected to the radio.
Charging/powering a USB device
The USB POWER PORT charges/powers most devices that can accept power through a USB connection.
The symbol will be displayed when charging a USB device.
OPERATING INSTRUCTIONS
To store a frequency in memory:
1. Tune to the frequency you want to save.
2. Press and hold the
3. Press the
4. Press the
button. A number designating a memory location will blink on and off.
or button to select another memory location.
button and quickly release it to store the frequency in the selected memory location.
To recall a preset frequency:
1. Press the button and quickly release it to cycle through the stored frequencies.
NOTICE:
• If both AAA batteries and 20 V battery pack are removed or lose their charge, the clock settings will be lost. Settings are not
affected by the removal of only the 20 V battery pack.
• If you do not press a button within 10 seconds, the clock programming feature will automatically return to the previous
setting.
• Volume for any device connected through the auxiliary connector can be adjusted using the volume control for that device or
with the the
• Turning the radio OFF will not turn the media player OFF.
• The integrated auxiliary cable does not provide a charging function for auxiliary devices.
or buttons on the radio.
headline bars
14
model no. 054-0932-4 | contact us 1-800-689-9928
15
MAINTENANCE
BEFORE EACH USE
1. Inspect the radio and the accessories for damage.
2. Check for damaged, missing, or worn parts.
3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect
the operation.
4. If abnormal vibration or noise occurs, turn the product off immediately and have the problem corrected
before further use.
5. Remove the batteries or battery pack from the radio before cleaning or performing any maintenance.
6. Using compressed air may be the most effective cleaning method. Always wear safety goggles when
cleaning product using compressed air.
MAINTENANCE
TROUBLESHOOTING
Problem Possible Causes Solution
The radio does not work The 20 V battery pack is depleted Charge the battery pack
The radio lost clock memory
and preset channels after the
20 V battery pack is removed
If the problem remains unsolved after performing the checks described above, call the toll-free helpline
at 1-800-689-9928.
The AAA size batteries are
depleted
Replace the AAA batteries and
reprogram the settings.
TROUBLESHOOTING
WARNING!
• Do not let brake fluids, gasoline and petroleum-based products, penetrating oil, etc. come into contact with
plastic parts. These substances contain chemicals that can damage, weaken, or destroy plastic.
• When servicing, use only identical replacement parts. The use of any other parts may create a hazard or
cause damage to the product.
• Use only accessories that are recommended for this radio by the manufacturer. Accessories that may be
suitable for one tool may become hazardous when used with another tool.
• To ensure safety and reliability, all repairs should be performed by a qualified service technician.
headline bars
headline bars
16
model no. 054-0932-4 | contact us 1-800-689-9928
17

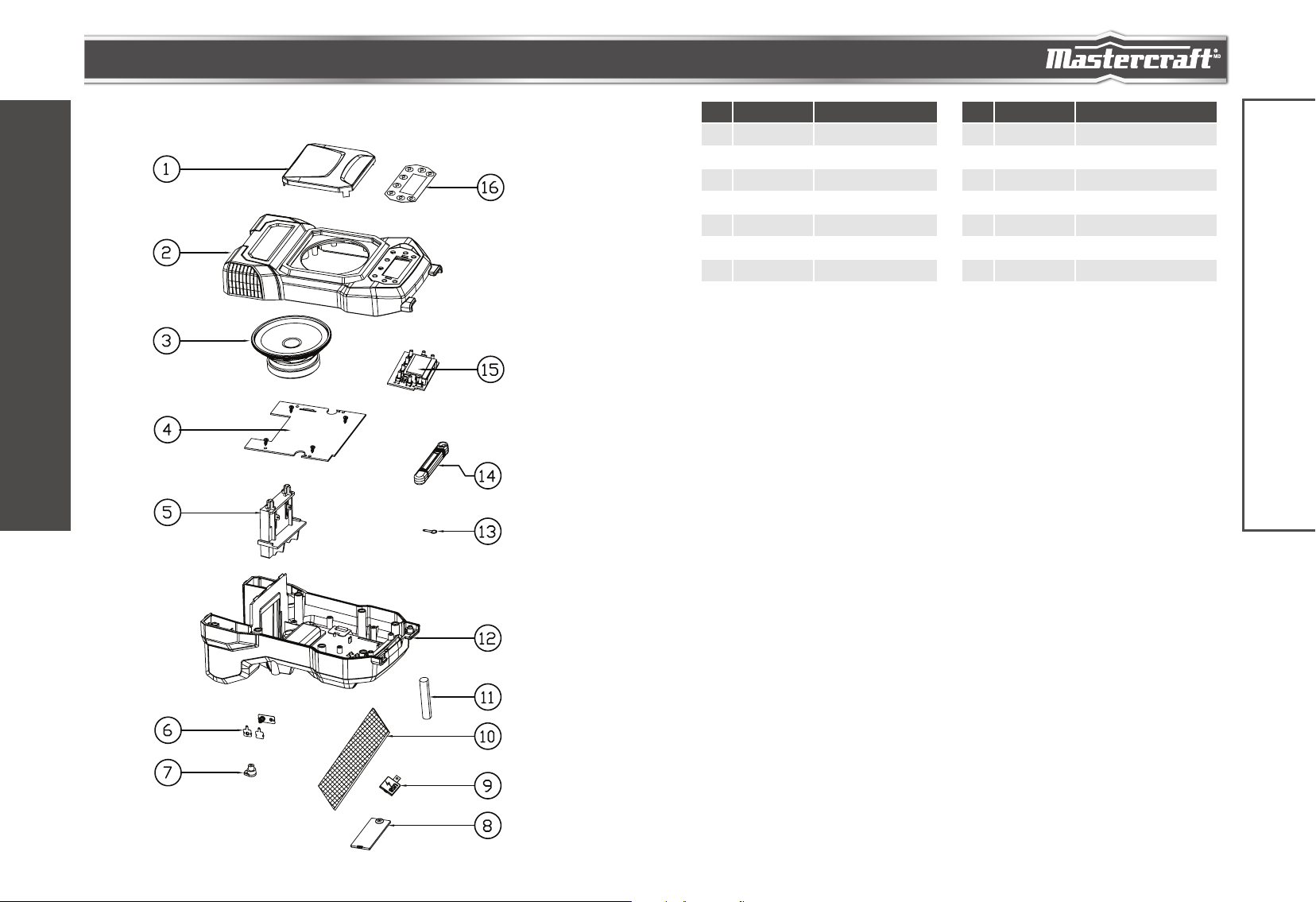

EXPLODED VIEW
PARTS LIST
No. Part No. Description No. Part No. Description
1 0540932401 Speaker grill 9 0540932409 Usb rubber cover
2 0540932402 Front cabinet 10 0540932410 Belt
3 0540932403 Speaker 11 0540932411 Fm antenna
4 0540932404 Main pcb board 12 0540932412 Back cabinet
5 0540932405 Charge socket 13 0540932413 Fm antenna connect pin
6 0540932406 Battery connect pin 14 0540932414 Fm antenna cover
7 0540932407 Aux cable fastener 15 0540932415 Lcd and control pcb board
8 0540932408 Battery cover 16 0540932416 Button cover
If the problem remains unsolved after performing the checks described above, call the toll-free helpline
at 1-800-689-9928.
PARTS LIST
headline bars
headline bars
18
model no. 054-0932-4 | contact us 1-800-689-9928
19
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to,
scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners;
and
i) this warranty will not apply to component parts sold by and identified as the product of another company,
which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation,
any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail
purchase against defects in workmanship and materials, except for the following components:
a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from
the date of original retail purchase against defects in workmanship and materials;
b) Component B: Accessories, which are guaranteed for a period of 1 year from the date of original retail
purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear the
WARRANTY
cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has become
inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation, operation or
maintenance (as outlined in the applicable owner’s manual or operating instructions) or which is being
used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be supplied
with the product that are expected to become inoperative or unusable after a reasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited to, fuel,
lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e. persons
not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a reconditioned or
refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer is
installed therein or any repairs or alterations have been made or attempted by unauthorized persons;
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal
legislation.
Made in China
Imported by
Mastercraft Canada Toronto, Canada M4S 2B8
WARRANTY
Loading...
