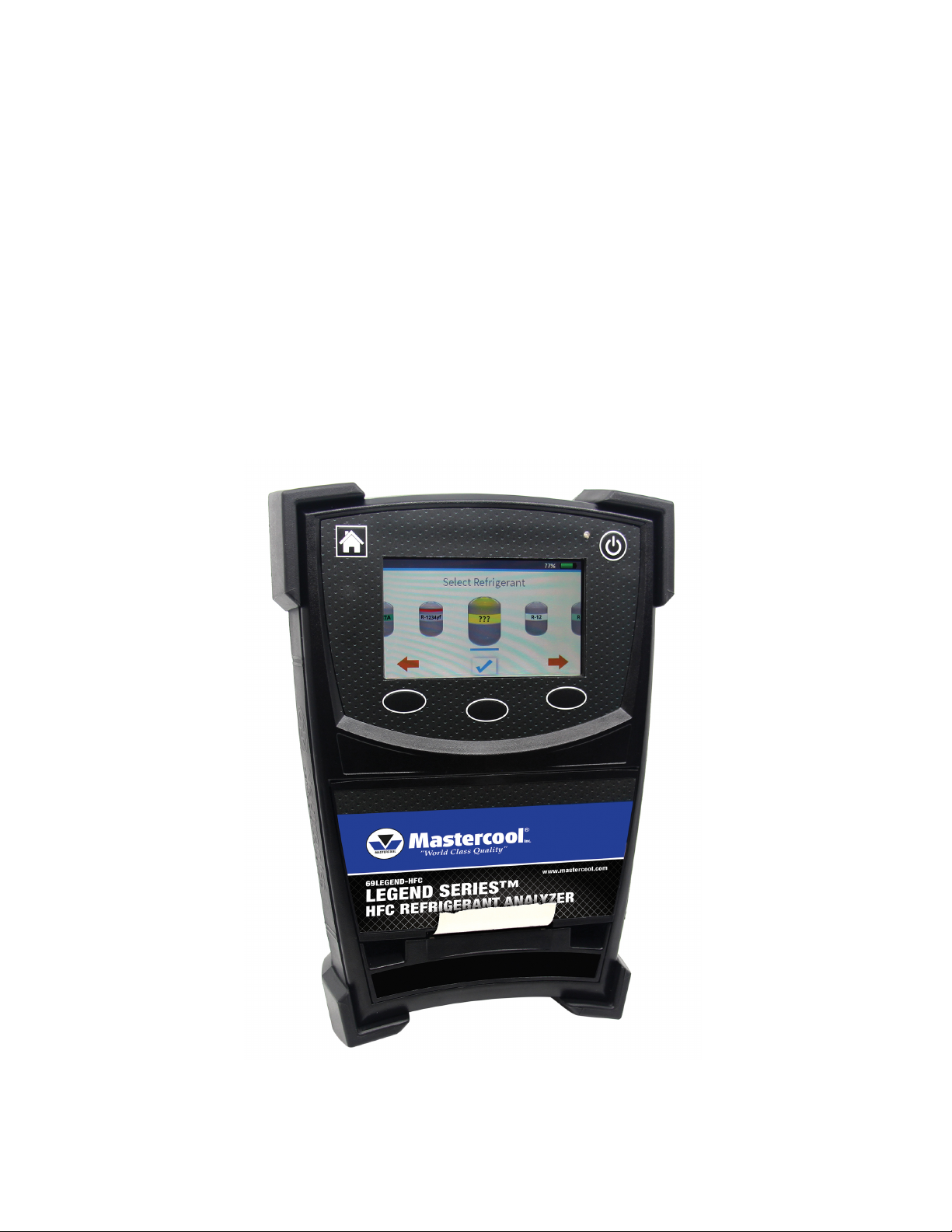

LEGEND SERIES
HVAC/R
REFRIGERANT ANALYZER
OPERATION MANUAL
Ô
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page III
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page V
For Your Safety:
PLEASE READ THIS MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING
INSTALLATION OR OPERATION! Attempting to operate this tool without fully
understanding its features and functions may result in unsafe conditions.
Analyzer Warnings
o REFRIGERANT BLEND WARNING: This refrigerant analyzer is approved
for specific refrigerant testing and should not be used with substances
outside the scope of the device. Cross-contamination with other refrigerant
types causes severe damage to the A/C system, to service tools,
equipment. Do NOT attempt to adapt the unit for another refrigerant. Do
NOT mix refrigerant types in a system or in the same container.
o SAMPLE HOSE WARNING: Replace the sample hose AS SOON AS
LIQUID, OIL OR RED SPOTS (DISCOLORATION) BEGIN TO
ON THE INSIDE DIAMETER OF THE SAMPLE HOSE OR WHITE FILTER
ELEMENT. Failure to properly maintain and replace the sample hose will
result in severe damage or inaccurate results.
o FLAMMABILITY WARNING: Some systems may contain flammable
refrigerants such as hydrocarbons. Failure to follow the manual can resul
in serious injury or death. Less than 2 grams of refrigerant are vented with
each sample. This analyzer is designed with sealed heat sources
without sparking components.
o SAMPLE INPUT WARNING: DO NOT attempt to introduce liquid or
samples heavily laden with oil into the vapor sampling hose configuration.
Damage caused to the instrument due to the use of the wrong hose
configuration on the wrong port will void the warranty!
o BATTERY CHARGING WARNING: When charging the internal battery with
the supplied power supply, the power supply may become warm. If the
power supply becomes warm, unplug the cord immediately! When
charging multiple analyzers, allow the charger to cool between
battery.
o AIR SENSOR WARNING: The air detection sensor is a chemical fuel cell
sensor that will eventually expire. The user must return the unit to an
approved vendor in order to replace the air detection sensor whenever t
instrument indicates as such. Failure to replace the air detection sensor will
result in non-functionality of the instrument.
POWER SOURCE WARNING: Connection to power sources greater than
o
13VDC could cause “out of warranty” damage.
o OPPERATIONAL WARNING: If the equipment is used in a manner no
specified by the manufacturer, the protection by the equipment may be
impaired.
and
APPEAR
t
and
each
he
t
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
page VI
General Cautions
• ALWAYS wear eye and skin protection when working with refrigerants.
Escaping refrigerant vapors will present a freezing danger. Do NOT direct
refrigerant escaping from the sample hose toward exposed skin or toward
the face.
• ALWAYS turn the compressor or power source OFF before connecting t
instrument to an HVAC/R system.
he
• ALWAYS inspect the sample hose before each use. Replace the hose
it appears cracked, frayed, obstructed or fouled with oil.
• DO NOT direct refrigerant vapors venting from hoses towards the skin.
• DO NOT disassemble the instrument. There are no serviceable component
internal to the instrument and disassembly will void the warranty.
• ALWAYS place the analyzer on a flat and sturdy surface.
• To r edu ce t he risk of electrical shock, do NOT disassemble the instrumen
do not use the instrument in wet or damp areas.
• Some systems may contain hydrocarbons or flammable refrigerants. This
analyzer is designed with sealed heat sources and without sparki
components. Ensure adequate ventilation and always take proper
precautions when working with refrigerants.
• DO NOT breathe refrigerant and lubricant vapor or mist. Exposure m
irritate eyes, nose, and throat. If accidental system discharge occurs,
immediately ventilate the work area. There must be adequate ventilati
when operating this device.
• DO NOT utilize any hose(s) other than those supplied with the instrument.
The use of other hose types will introduce errors into the refrigerant analysis
and instrument calibration.
• ALWAYS verify that the refrigerant does not contain or will not emit heavy
loads of oil or liquid.
ng
ay
on
if
s
t;
• NEVER admit any sample into the instrument at pressures in excess of
psig.
• NEVER obstruct the air intake, sample exhaust or case vent ports of the
instrument during use.
• DO NOT utilize the coupler supplied on the service end of the Sample Hoses
for any application other than with this instrument. The coupler supplied is a
modified version that does not contain a check valve and is not suitable fo
any other refrigerant application.
500
r
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page 1-8
1 INTRODUCTION AND OVERVIEW
General
Contamination of refrigerants either in storage cylinders or HVAC/R system can lead to component
corrosion, elevated head pressures and system failures when utilized by unsuspecting technicians.
The ability of the technician to determine refrigerant type and purity is severely hampered by the
presence of air when attempting to utilize temperature-pressure relations. The development of
various substitute refrigerants further complicates the ability of a technician to identify refrigerant
purity based upon temperature-pressure relationships.
The Legend Series™ HFC Refrigerant Analyzer will provide a fast, easy and accurate means to
determine refrigerant purity in refrigerant storage cylinders or directly in an HVAC/R system.
The instrument utilizes non-dispersive infrared (NDIR) technology to determine the weight
concentration of many common refrigerants.
The instrument is supplied complete with a ¼” Flare Vapor Sampling Hose, ¼” Flare Liquid Sample
Hose, Hose Extensions for ease of connection, a High-Pressure Liquid Sample Trap Assembly, a
100-240 VAC power transformer, built in rechargeable Lithium-Ion battery, thermal printer, and all
required plumbing housed within a rugged, portable, storage case.
Sample gas is admitted into the instrument through the supplied sample hose and presented to the
sensing device. The instrument provides the user with a digital display of refrigerant purity or
identified refrigerant. The instrument only considers the weights of the refrigerant and contaminates
in the total mixture. Air is measured, and displayed, separately. Other contents such as refrigerant
oil, moisture and dye are not considered contaminants.
The instrument interfaces with the user via a full color graphic LCD, audio indications and soft key
command buttons. Alarm indications are provided to alert of instrument fault conditions or
contaminated refrigerant presence.
Manual Part Number:
5-06-7000-81-1, 7-08-1234
-
40-0
Manual File:
069706 Rev. A
Page 1-9
1.1 Features
The Legend Series™ HFC Refrigerant Analyzer is the most precise portable instrument ever
manufactured for field applications to determine the purity of gaseous refrigerants in the HVAC/R
market.
Features Include:
• Quickly and accurately determines refrigerant purity
• Advanced ergonomic design
• Analyzes percentage purity
• Identifies specific refrigerants
• Displays percentage AIR independent of the refrigerant sampled
• Multiple Languages:
o English, German, Spanish, French, Italian, Portuguese, Chinese, Japanese,
Korean and Russian
• Vapor or L iquid Sampl ing
• Easily prints test results with built-in printer
• Uses Standard 2.25” (57 mm) thermal paper
• Improved oil resistance with user replaceable hose assembly
• Full Color Graphic LCD with on-screen instructions
• Ultra-fast test time
• Internal, rechargeable Lithium-Ion battery for cordless operation in any location
• USB Port for test data storage and software updates (USB Drive not included)
• All accessories stored in hard shell carry/storage case

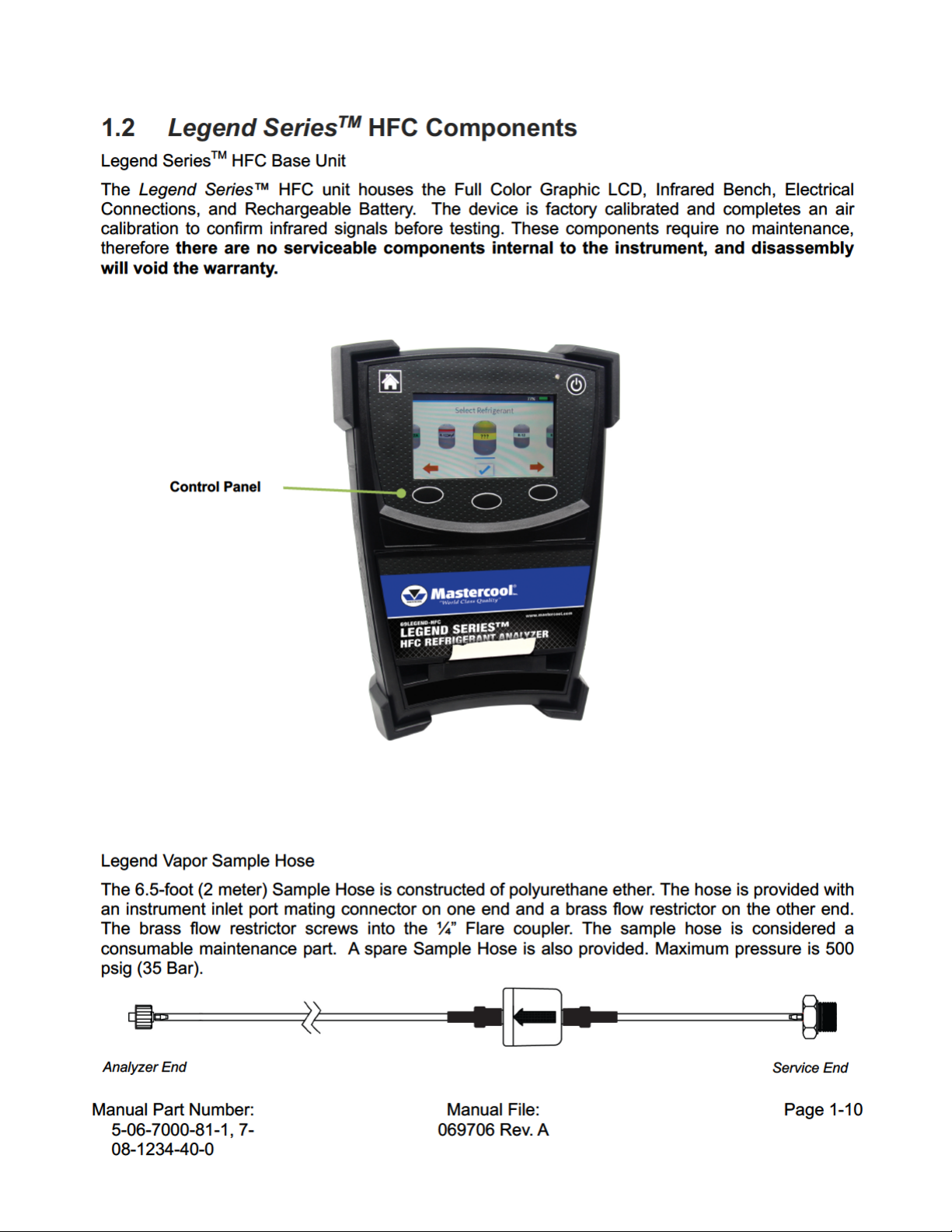

Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 1-11

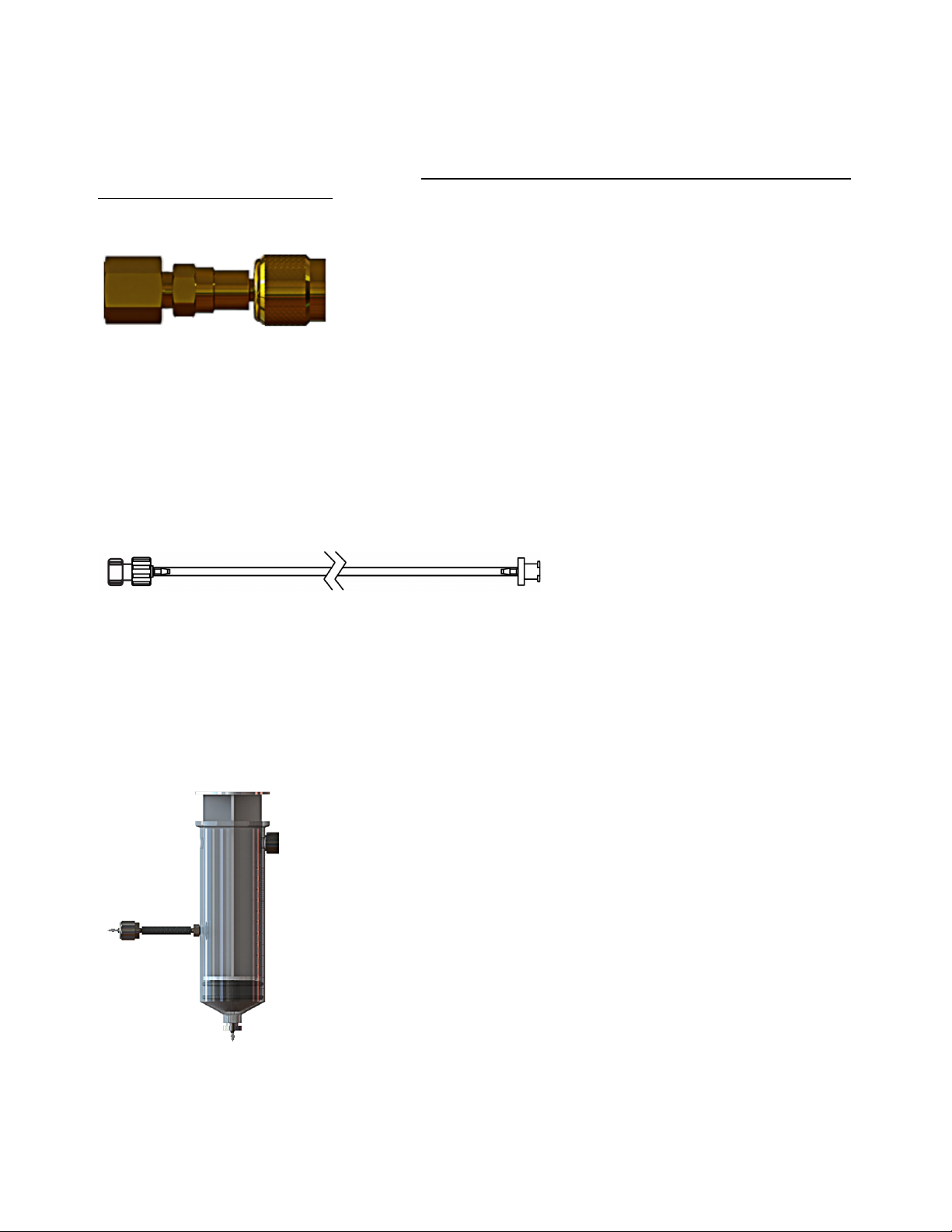

¼” Flare Coupler
The ¼” Flare coupler is designed for easy connection to a cylinder or HVAC/R system. The coupler
can be used for vapor or liquid sampling. Liquid sampling will require the use of the liquid sample
hose and liquid sample syringe.
Sample Hose Extensions
The sample hose extensions allow the user to easily connect and disconnect the hose assembly to
the analyzer. The extension is connected directly to the analyzer and the sample hose connects to
the male feral on the opposite end.
Liquid Sample Trap
The liquid sample trap is designed as a barrier to oil or liquid refrigerant entering the analyzer.
During liquid sampling, the syringe will collect oil which may be present in the liquid sample and act
as the catalyst for refrigerant to change phases from liquid to vapor. Liquid sampling will provide a
more accurate analysis of multicomponent refrigerants.

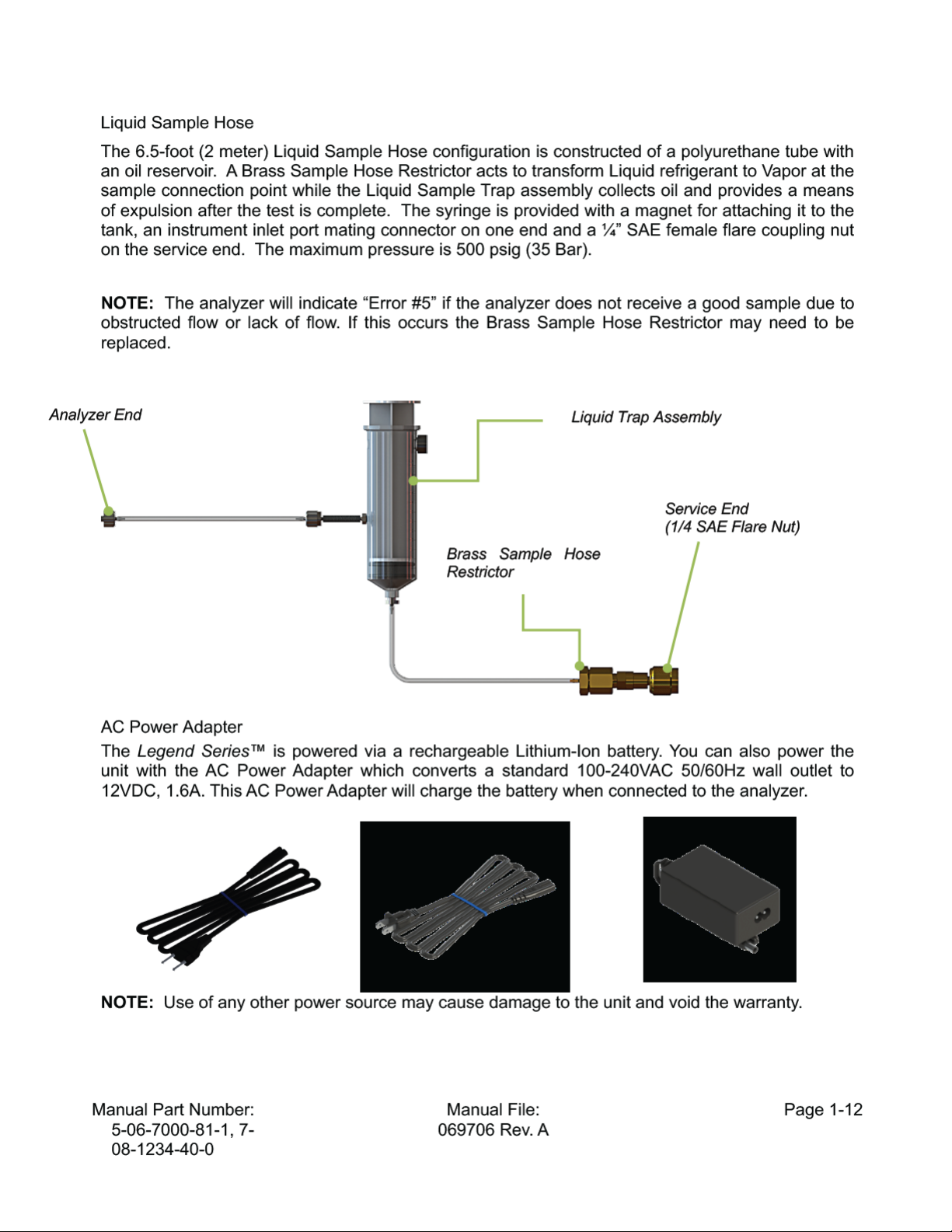

Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 1-13

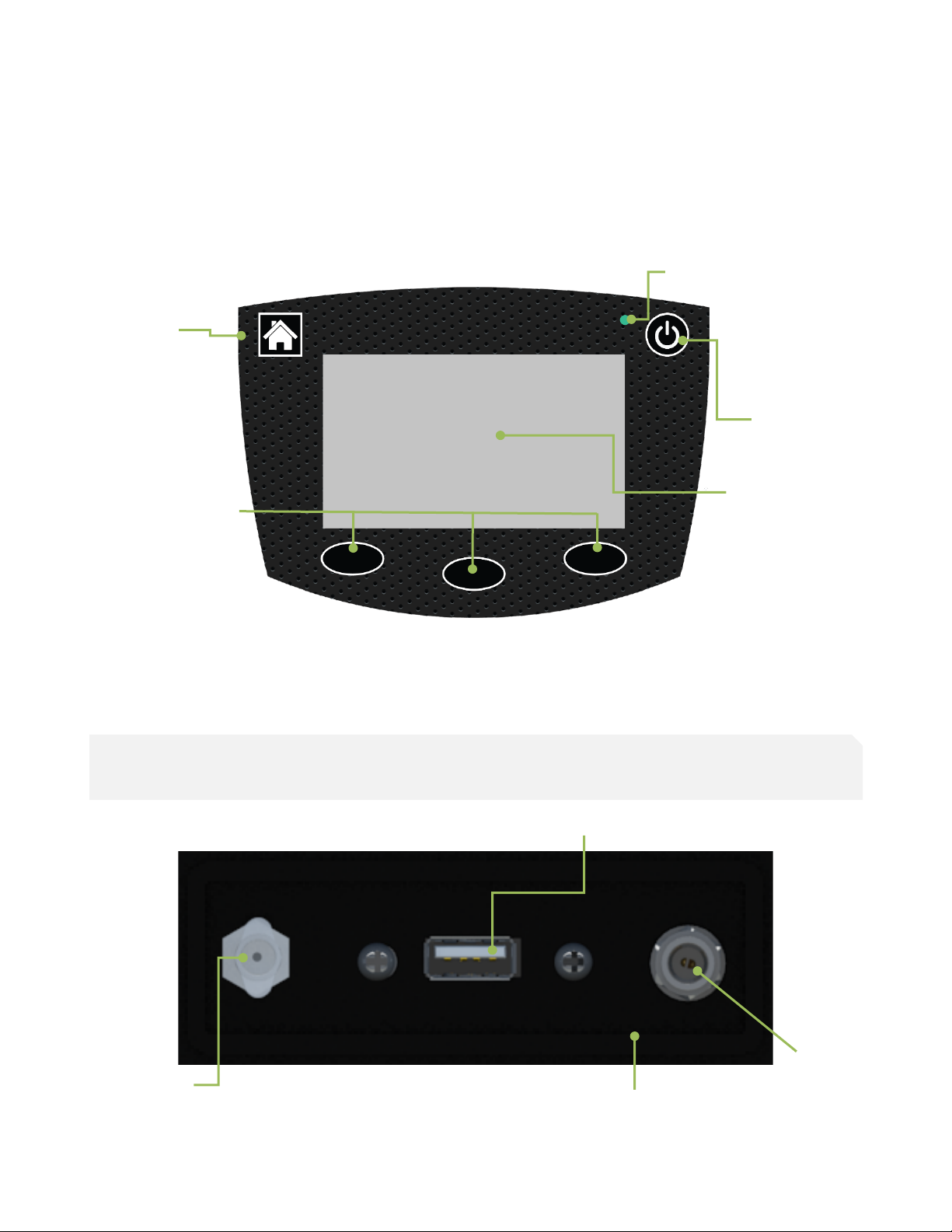

Control Panel
Green LED
Home
Power
On/Off
Soft Keys
Buttons
Graphic
LCD
USB Port
The Control Panel serves as the main user interface. The Control Panel features three soft key
buttons. The current function for each button is displayed above the Soft Key Buttons on the full
color graphic LCD. A Home button and a Power button are also found at the top of the control
panel.
Back Panel Connections
The connections located on the back panel are illustrated below.
CAUTION: The sample outlet port should never be obstructed. Keep the sample outlet port
free and clear at all times. Do not operate near open flames.
Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 1-14
Hard-Shell Storage/Carrying Case
The hard-shell storage/carrying case is custom fit to the Legend Series™. It provides rugged
protection for the instrument, as well as convenient storage for all components. The enclosure is
general purpose and is not watertight.
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page 2-15
2 LEGEND SERIES
Figure 1
Figure 2
HFC OPERATION
2.1 First Use
TM
The Legend Series™ HFC has a built in Lithium-Ion battery. Prior to first use charge the
battery for a minimum of 2 hours with the included AC Power Supply. The analyzer will
function and charge the battery when the AC Power Supply is connected.
2.2 Power On the Analyzer

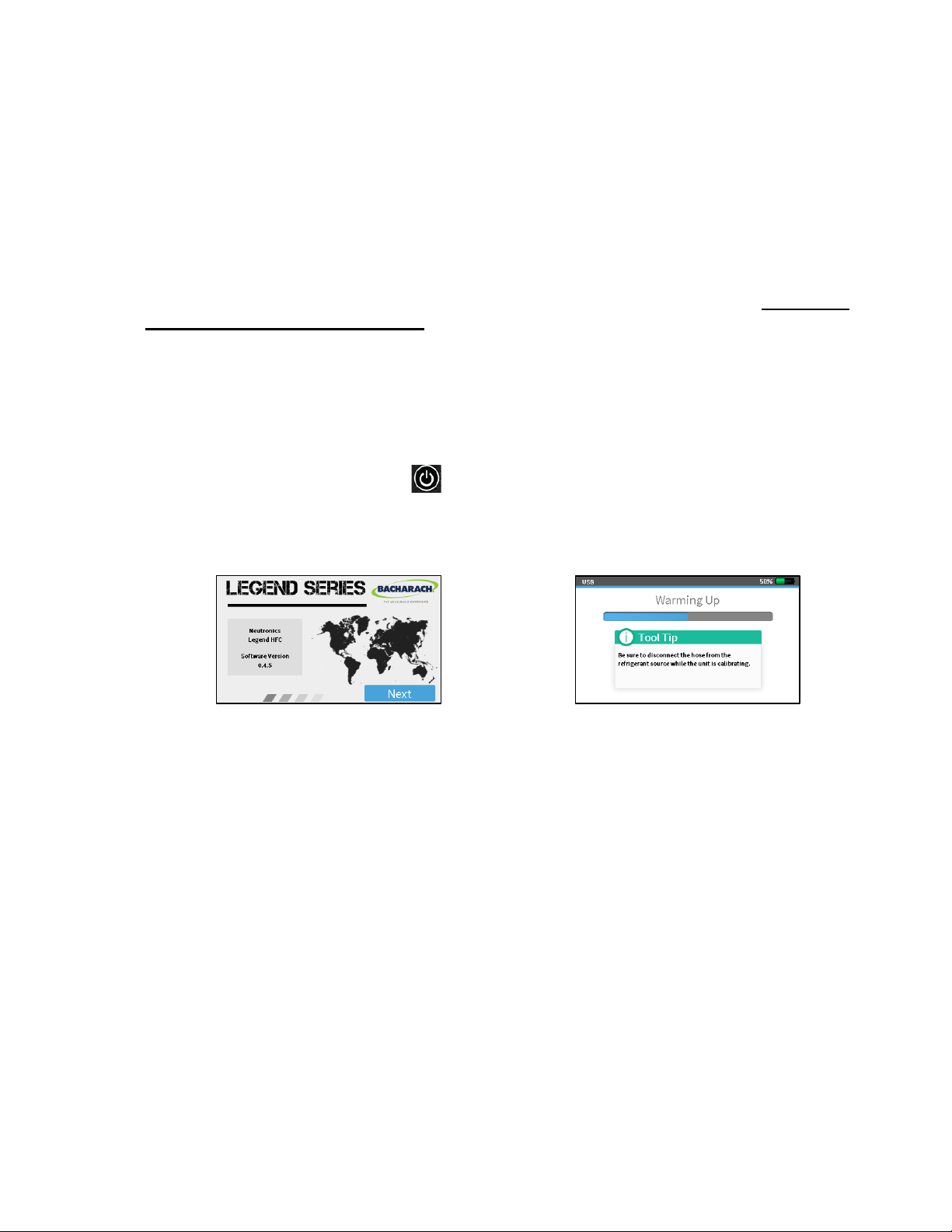

Press the upper right power button and the splash screen shown in (Figure 1) will appear.
Press the right soft key for ‘Next’ and the device will warm up as shown in (Figure 2). Warm
up will take approximately 30 seconds.

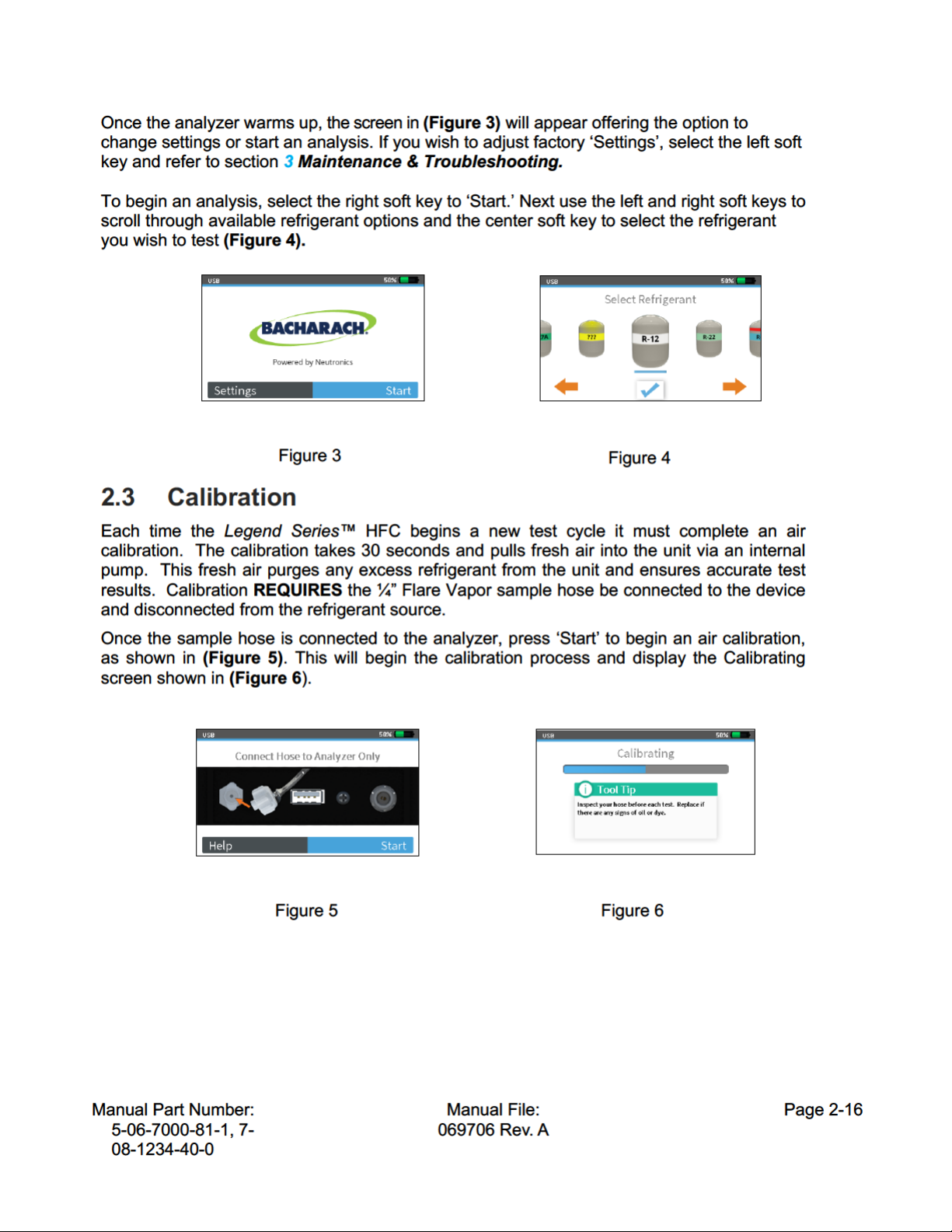

Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 2-17
TIP: A refrigerant source with a pressure <30 psig (2 Bar) may require additional flow time to
generate an accurate result. Low pressure samples will take more time to fill the sample bench
and require this additional flow time before the user presses ‘Test.’
2.4 Testing the Refrigerant
Figure 8
Figure 9
Figure 10
Figure 7

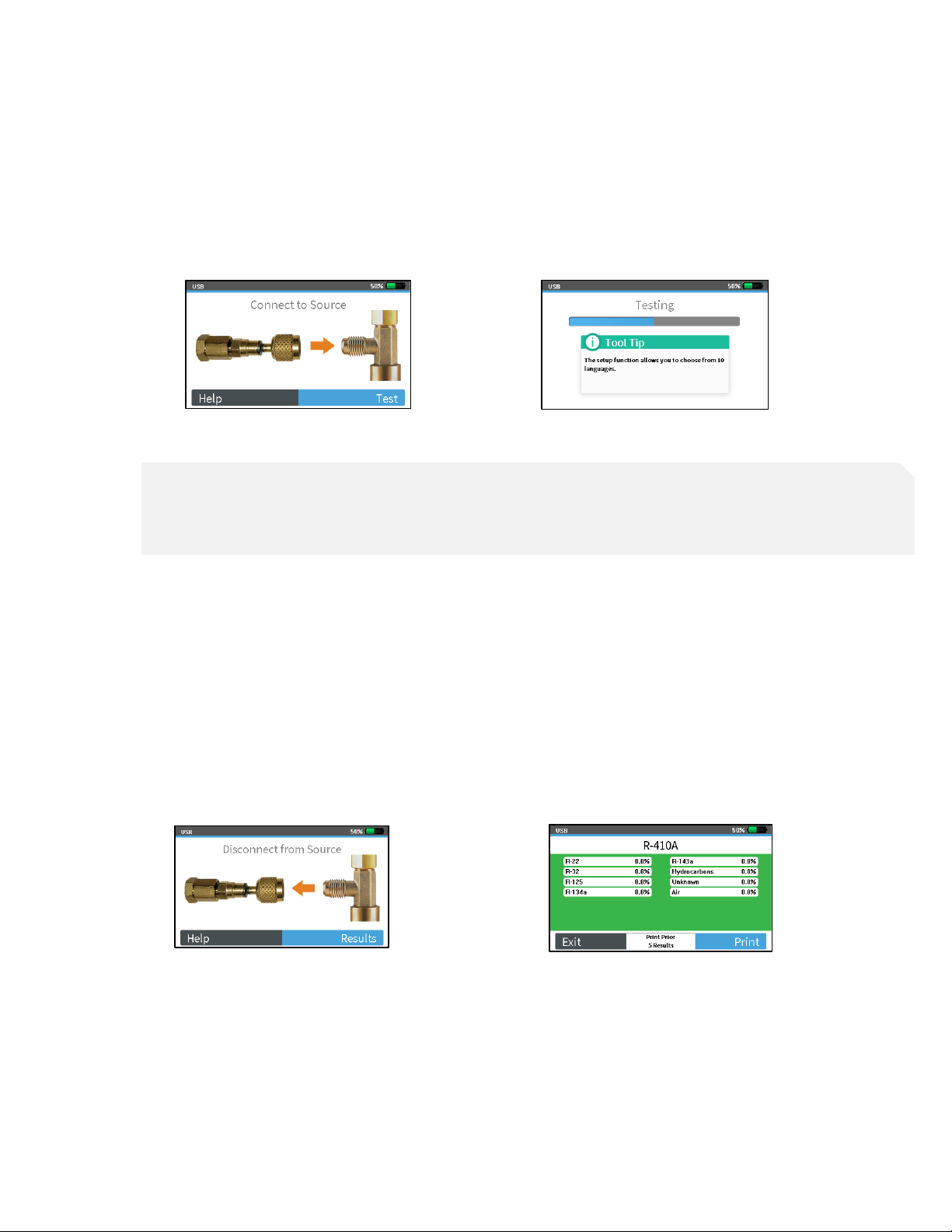

After the air calibration is complete, the instrument is ready for to begin the refrigerant
analysis. The analyzer will direct you to connect the hose to a refrigerant source as shown in
(Figure 7). Open the refrigerant source valve, if equipped, and allow the refrigerant to flow
for a few seconds. Next press the ‘Test’ button to begin the test. The Testing screen shown
in (Figure 8) will display.

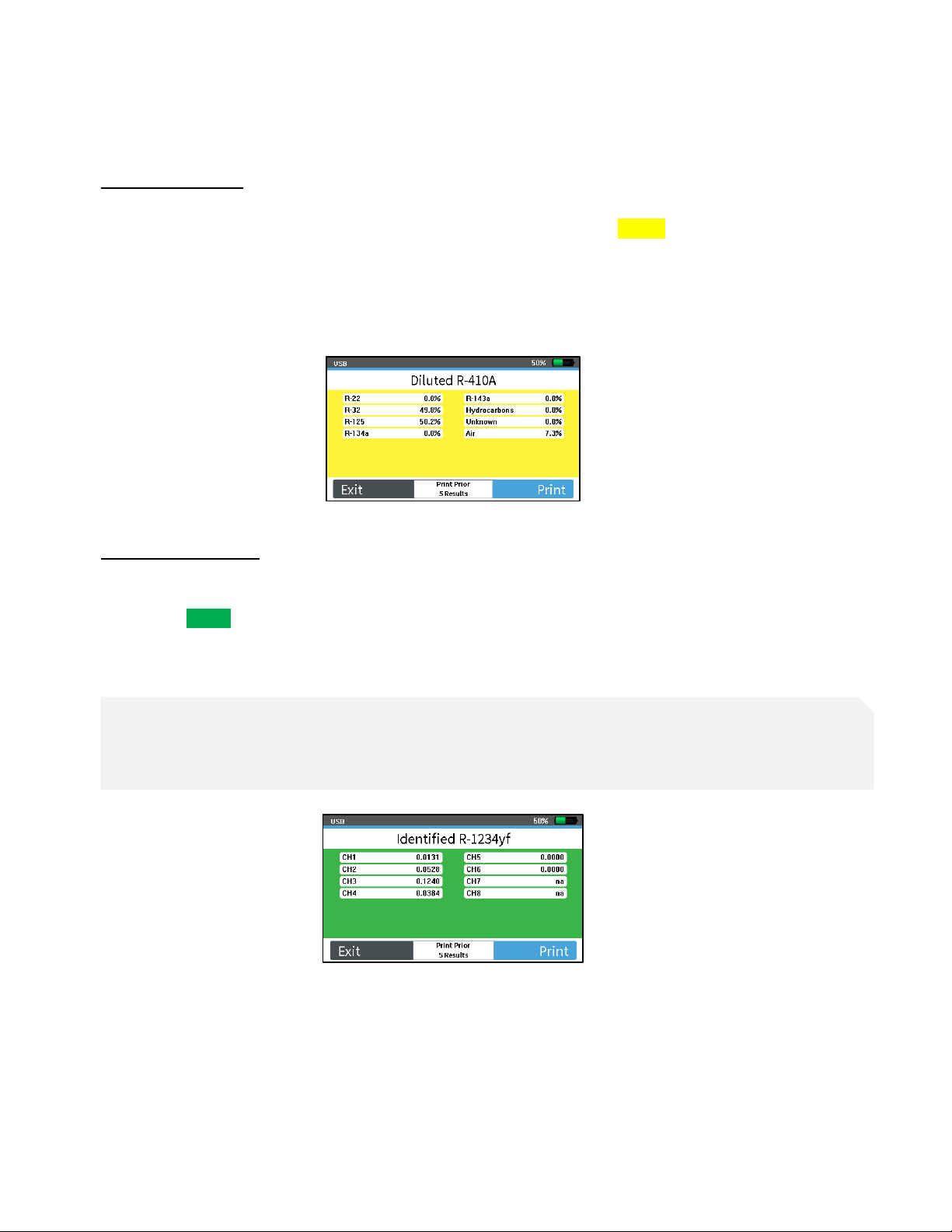

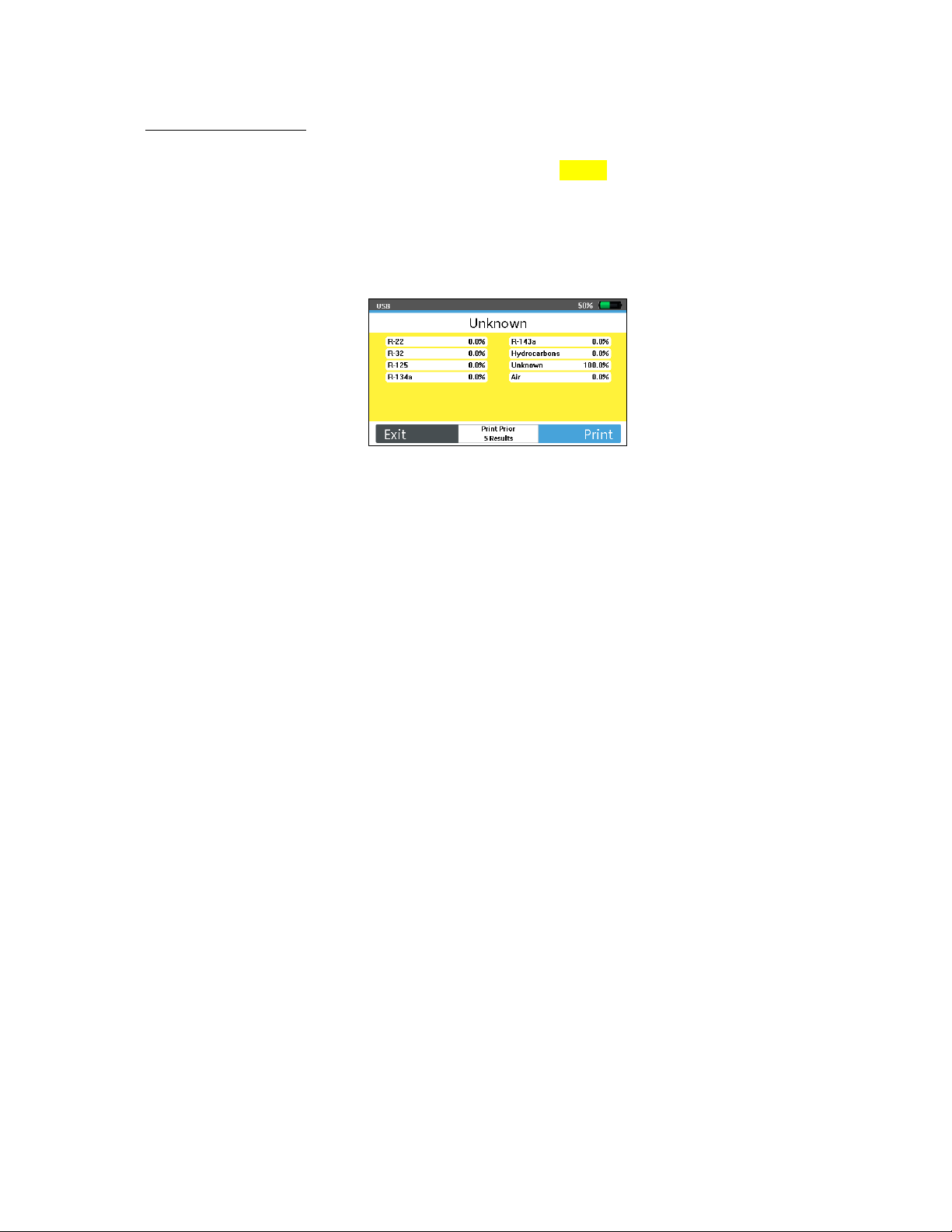

2.5 Viewing the Test Results
Upon completion of analysis, the Legend Series™ HFC will display (Figure 9). Close the
refrigerant source valve if equipped, and then disconnect the coupler from the refrigerant
source. Select ‘Results,’ which will display the test results (Figure 10). The percentage
displayed for each refrigerant indicates the total purity weight of that refrigerant, equaling
100%, with air measured independently. Pressing ‘Print’ will print the test results. Pressing
‘Print Prior 5 Results’ will print the last 5 tests completed.
Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 2-18
Verify the hose is disconnected from the refrigerant source and press ‘Exit’ to return to the
Figure 12
Figure 13
Figure 11
Figure 11a
main screen (Figure 11). When you are ready to power down the device press the power
button and the powering down screen will appear (Figure 11a).
2.6 Understanding Test Results
The Legend Series™ HFC is designed to analyze or identify a wide array of refrigerants.
Before sampling a gas, you should select the refrigerant you anticipate testing to accurately
align the calibration (Figure 12). If the wrong base refrigerant is selected the analyzer will
still provide accurate single component refrigerant outputs but may not confirm the
refrigerant matches the refrigerant selected (Figure 13).
The refrigerant analyzer is designed to provide visual cues after analysis is complete. There
are six possible result screens that may display. After an analysis, a user may find the
refrigerant is as EXPECTED, IMBALANCED, CONTAMINATED, DILUTED, an IDENTIFIED
refrigerant, or UNKNOWN. Explanation of each possible result is defined below.
Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 2-19
Expected Refrigerant:
Figure 14
Figure 15
Refrigerant analyzed and found to be within an acceptable composition range of the selected
gas will define the results as that refrigerant and display a green screen (Figure 14). In this
example, R-410A is confirmed with some slight composition shift. The R-410A is still within
composition specification of AHRI Standard 700 which qualifies it as R-410A.
Imbalanced Refrigerant:
Refrigerant analyzed and found to have the required components but outside the AHRI
Standard 700 acceptable range will display as Imbalanced with a yellow screen (Figure 15).
In this example, Imbalanced R-410A is confirmed with composition shift. The R-410A has the
correct components but is too far outside the acceptable range to be considered ideal.
Contaminated Refrigerant:
Refrigerant analyzed and found to be contaminated has the expected base components, but
some other refrigerant(s) is present diluting the entire sample. This refrigerant would have a
red screen to indicate it is unacceptable and should not be recovered with pure gas or
reused (Figure 16). In this example, Imbalanced R-410A is contaminated with R-22.
Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 2-20
Note: The channel data is representative of the IR signal detected. It is not representative of
any specific refrigerant, is not measured as a % by weight and only indicates an optical response.
Channel data should be used as a reference to help improve accuracy of Identified Refrigerants.
Diluted Refrigerant:
Figure 18
Figure 17
Figure 16
Refrigerant analyzed and found to be diluted will have the expected base components with
any level of Air present in the sample. This refrigerant would have a yellow screen to indicate
the Air has contaminated the sample (Figure 17). Air can be removed from refrigerant but
can be harmful if present inside a system. Air left in a system can alter P/T curves, lead to
moisture accumulation and acid buildup. Both will cause a system to work inefficiently and
lead to possible system failure. In this example, Diluted R-410A is contaminated with Air.
Identified Refrigerant:
Refrigerant analyzed and found to be an identified gas will not display composition of the
refrigerant. Instead, the analyzer confirms the refrigerant matches the expected identified
gas with a green screen and provides channel data to reference as a “fingerprint” model of
that gas (Figure 18). In this example, R-1234yf is Identified as R-1234yf. The channel output
provides a “fingerprint” of this gas. This channel data can be documented and used for future
cross reference to confirm the quality of the identified refrigerant.
Manual Part Number:
5-06-7000-81-1, 708-1234-40-0
Manual File:
069706 Rev. A
Page 2-21
Unknown Refrigerant:
Figure 19
Refrigerant analyzed and found to be an Unknown gas is a gas that does not match any of
the refrigerants directly measured by the device. A yellow screen will appear to indicate
caution as the gas is unknown (Figure 19). If you believe the sampled refrigerant should be
measured by the device restart the analysis and confirm you select the appropriate
refrigerant before calibration. Unknown refrigerant should be handled with care as there is no
certainty to what refrigerant is present.
If an error message appears at all during or after analysis. Refer to section
and Troubleshooting.
3 Maintenance
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page 3-22
3 MAINTENANCE & TROUBLESHOOTING
3.1 Replacing the Sample Hose Assembly.
In the event the analyzer displays an Error #3 or Error #5 this may be an indication the
sample hose needs replacing. This will occur when the integrated flow restrictor becomes
clogged with oil, debris, or sealant. It can also occur if there is inadequate flow of refrigerant
in a cylinder or refrigerant source. Replacement hoses for both the vapor and liquid sample
hose are provided in the kit. Additional replacements are listed on the spare parts list in
section
4 Appendices.
To replace the Sample Hose Assembly, follow the instructions below:
1) Disconnect the sample hose from the refrigerant source and Analyzer
2) Remove the brass restrictor end (with hose attached) from the coupler
and discard. Be sure to use a backing wrench as not to damage the
coupler.
3) Check for signs of oil and debris in the coupler.
4) If oil or debris is present, use a cleaner which ONLY contains,
Tetrachloroethylene and carbon dioxide, follow safety instructions on
the can and spray all parts of the coupler with the cleaner to remove
any oil. DO NOT soak the part for more than 60 seconds.
3.2 Information Screens
An “Information” icon or ‘Help’ indication will appear at various points throughout the
testing process. This button will provide additional information or tips about the command
screens to help complete your analysis.
5) Allow coupler to dry. Check coupler for oil once again. Failure to clean
the oil out of the coupler will result in premature obstruction of the new
sample hose.
6) Install the brass end of the new sample hose assembly into the
coupler and lightly tighten, usually finger tight is sufficient.

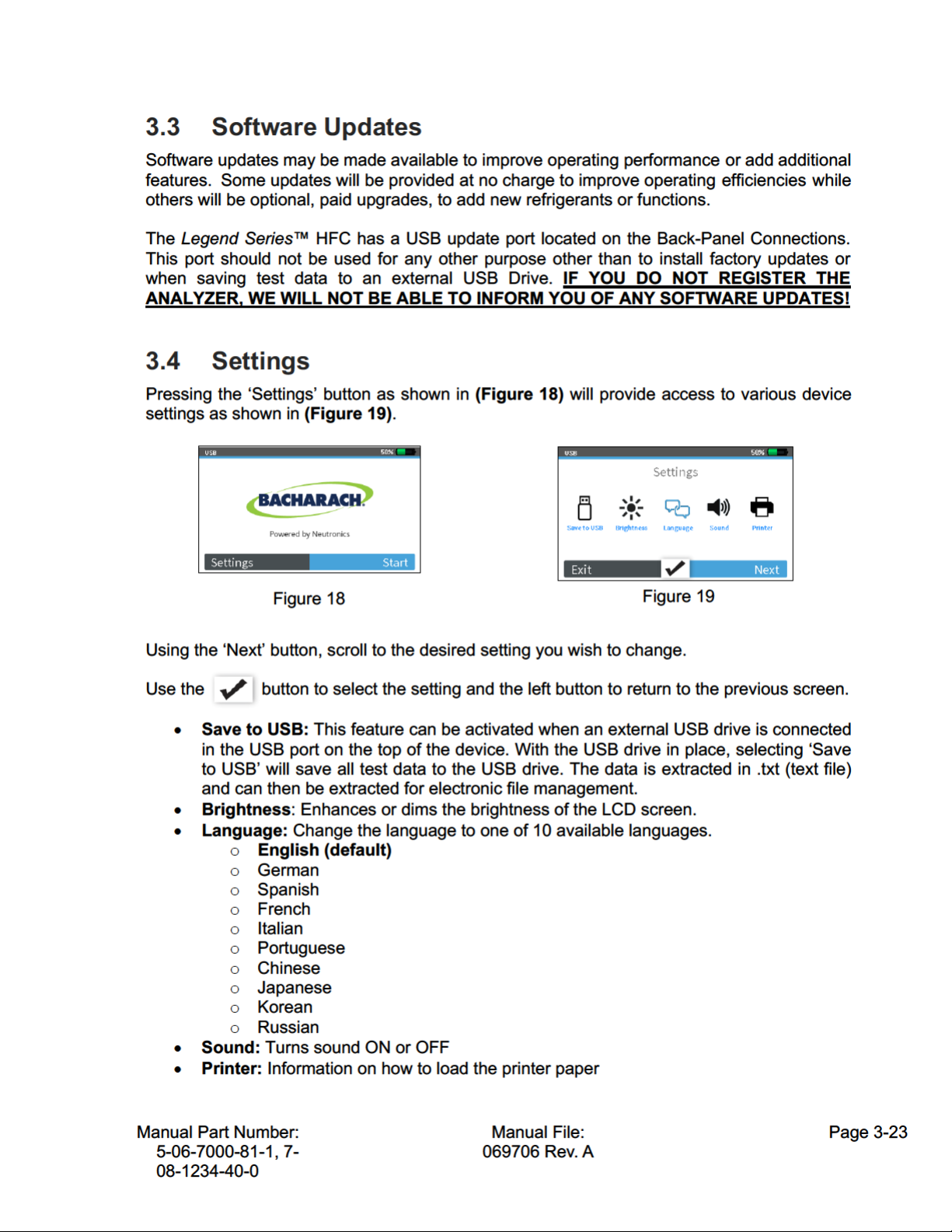

Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page 4-27
4 APPENDICES
PART N UMBE R
DESCRIPTION
5-06-7000-81-1
Operating Manual
6-01-6000-74-0
AC Power Supply
6-01-6001-23-1
Liquid Sample Hose
6-02-6001-17-0
Liquid Sample Trap
6-02-6001-41-1
Sample Hose Extensions
6-02-6001-42-0
Vapor Sample Hose
6-02-6001-54-0
¼” Flare Coupler
SAMPLE PARAMETERS:
Vapor or Liquid depending on hose configuration, oil-free
PRESSURE:
Max Pressure 500 psig (35 Bar)
Low Pressure samples <30 psig (2
Bar) will require additional flow
time for accurate analysis
HFC MODEL:
Analyzed Refrigerants (displays % purity):
• R-22, R-32, R-134a, R-404A, R-407C, R-410A,
Hydrocarbons (HC) and Air
Identified Refrigerants (NO % purity):
• R-12, R-1234yf, R-408A, R-409A, R-417A,
R-421A, R-421B, R-422A, R-422B, R-422C, R-427A
SENSOR TECHNOLOGY:
Non-Dispersive Infrared (NDIR)
REFRIGERANT SAMPLE SIZE:
2 grams per sample
POWER:
Power Supply:
Input: 90-264VAC, 50-60HZ
Output: 12VDC, 1.6 AMP
Built in Lithium-Ion Battery:
OPERATIONAL
TEMPERATURE:
50-120oF (10-49oC)
4.1 Spare Parts List
4.2 Specifications
Manual Part Number:
5-06-7000-81-1, 7-08-123440-0
Manual File:
069706 Rev. A
Page 4-26
Note: “HC” refers to “Hydrocarbons”. Hydrocarbons are flammable contaminants such as R290, R600,
R600a, R152a etc.
Test Equipment Depot - 800.517.8431
- 5 Commonwealth Ave, MA 01801 - TestEquipmentDepot.com
Loading...
