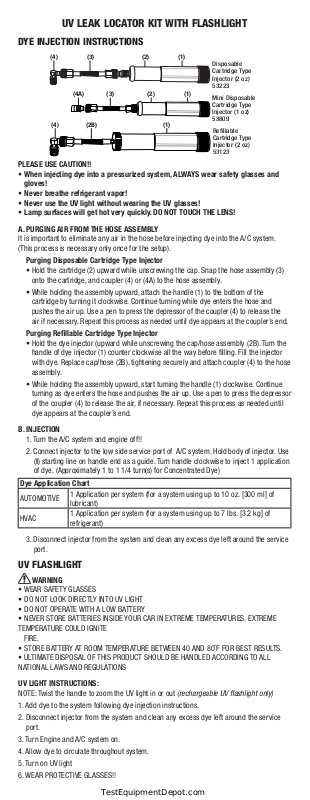

UV LEAK LOCATOR KIT WITH FLASHLIGHT
DYE INJECTION INSTRUCTIONS
(4) (3) (2) (1)
(4A) (3) (2) (1)
(4) (2B) (1)
PLEASE USE CAUTION!!
• When injecting dye into a pressurized system, ALWAYS wear safety glasses and
gloves!
• Never breathe refrigerant vapor!
• Never use the UV light without wearing the UV glasses!
• Lamp surfaces will get hot very quickly. DO NOT TOUCH THE LENS!
A. PURGING AIR FROM THE HOSE ASSEMBLY
It is important to eliminate any air in the hose before injecting dye into the A/C system.
(This process is necessary only once for the setup).
Purging Disposable Cartridge Type Injector
• Hold the cartridge (2) upward while unscrewing the cap. Snap the hose assembly (3)
onto the cartridge, and coupler (4) or (4A) to the hose assembly.
• While holding the assembly upward, attach the handle (1) to the bottom of the
cartridge by turning it clockwise. Continue turning while dye enters the hose and
pushes the air up. Use a pen to press the depressor of the coupler (4) to release the
air if necessary. Repeat this process as needed until dye appears at the coupler’s end.
Purging Refillable Cartridge Type Injector
• Hold the dye injector (upward while unscrewing the cap/hose assembly (2B). Turn the
handle of dye injector (1) counter clockwise all the way before filling. Fill the injector
with dye. Replace cap/hose (2B), tightening securely and attach coupler (4) to the hose
assembly.
• While holding the assembly upward, start turning the handle (1) clockwise. Continue
turning as dye enters the hose and pushes the air up. Use a pen to press the depressor
of the coupler (4) to release the air, if necessary. Repeat this process as needed until
dye appears at the coupler’s end.
B. INJECTION
1. Turn the A/C system and engine off!!
2. Connect injector to the low side service port of A/C system. Hold body of injector. Use
(I) starting line on handle end as a guide. Turn handle clockwise to inject 1 application
of dye. (Approximately 1 to 1 1/4 turn(s) for Concentrated Dye)
Dye Application Chart
AUTOMOTIVE
HVAC
1 Application per system (for a system using up to 10 oz. [300 ml] of
lubricant)
1 Application per system (for a system using up to 7 lbs. [3.2 kg] of
refrigerant)
3. Disconnect injector from the system and clean any excess dye left around the service
port.
UV FLASHLIGHT
WARNING
• WEAR SAFETY GLASSES
• DO NOT LOOK DIRECTLY INTO UV LIGHT
• DO NOT OPERATE WITH A LOW BATTERY
• NEVER STORE BATTERIES INSIDE YOUR CAR IN EXTREME TEMPERATURES, EXTREME
TEMPERATURE COULD IGNITE
FIRE.
• STORE BATTERY AT ROOM TEMPERATURE BETWEEN 40 AND 80˚F FOR BEST RESULTS.
• ULTIMATE DISPOSAL OF THIS PRODUCT SHOULD BE HANDLED ACCORDING TO ALL
NATIONAL LAWS AND REGULATIONS
UV LIGHT INSTRUCTIONS:
NOTE: Twist the handle to zoom the UV light in or out (rechargeable UV flashlight only)
1. Add dye to the system following dye injection instructions.
2. Disconnect injector from the system and clean any excess dye left around the service
port.
3. Turn Engine and A/C system on.
4. Allow dye to circulate throughout system.
5. Turn on UV light
6. WEAR PROTECTIVE GLASSES!!
TestEquipmentDepo
t.com
Disposable
Cartridge Type
Injector (2 oz)
53223
Mini Disposable
Cartridge Type
Injector (1 oz)
53809
Refillable
Cartridge Type
Injector (2 oz)
53123
7. Search for a bright green/yellow glow where the system is leaking. Clean the area
around leak after repair.
CHARGING & REPLACING BATTERIES (rechargeable UV flashlight only)
NOTE: The lithium li-ion battery will need to be charged prior to use.
NOTE: When replacing all batteries, be sure the cartridge and all batteries are in the proper
direction.
Battery Installation:
• Unscrew the bottom cap counter-clockwise and insert positive pole of battery into the
flashlight casing.
• After inserting battery, plug the charging adapter into the flashlight. (The charging
adapter can be plugged into the flashlight using the port which is located behind the
rubber grommet on the opposite side of the power switch.)
• Then plug the charger into the voltage source for charging.
• Charging the Lithium Li-Ion battery can take 5 to 6 hours. When the light turns green, the
unit is charged. Unplug the adapter in a timely manner to prevent overcharging and to
preserve the life of the battery.
FLASHLIGHT PARTS LIST
3A
1
2
1. Safety Glasses
2. Rechargeable UV Flashlight
2A. Lithium Li-Ion Battery
2B. AAA Battery Holder
2C. 3 AAA Batteries
2D. 110V or 220V charger
3. Mini UV Flashlight
3A. AAA Battery Holder
4. Compact UV Flashlight
4A. AAA Battery Holder
2A
2B
3
2C
2D
4A
4
