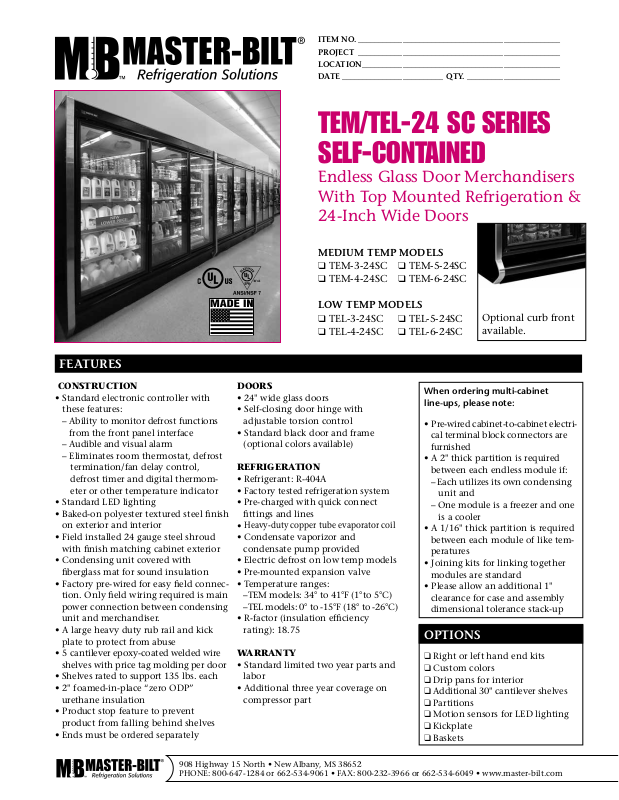

TEM/TEL-24 SC SERIES
SELF-CONTAINED

Endless Glass Door Merchandisers
With Top Mounted Refrigeration &
24-Inch Wide Doors

MEDIUM TEMP MODELS

❑ TEM-3-24SC ❑ TEM-5-24SC
❑ TEM-4-24SC ❑ TEM-6-24SC

LOW TEMP MODELS

❑ TEL-3-24SC ❑ TEL-5-24SC
❑ TEL-4-24SC ❑ TEL-6-24SC

Optional curb front
available.

FEATURES

CONSTRUCTION

• Standard electronic controller with
these features:

– Ability to monitor defrost functions

from the front panel interface

– Audible and visual alarm

– Eliminates room thermostat, defrost
termination/fan delay control,
defrost timer and digital thermom­ eter or other temperature indicator

• Standard LED lighting

• Baked-on polyester textured steel finish

on exterior and interior

• Field installed 24 gauge steel shroud

with finish matching cabinet exterior

• Condensing unit covered with

fiberglass mat for sound insulation

• Factory pre-wired for easy field connec-

tion. Only field wiring required is main
power connection between condensing
unit and merchandiser.

• A large heavy duty rub rail and kick

plate to protect from abuse

• 5 cantilever epoxy-coated welded wire

shelves with price tag molding per door

• Shelves rated to support 135 lbs. each

• 2" foamed-in-place “zero ODP”

urethane insulation

• Product stop feature to prevent

product from falling behind shelves

• Ends must be ordered separately

DOORS

• 24" wide glass doors

• Self-closing door hinge with
adjustable torsion control

• Standard black door and frame
(optional colors available)

REFRIGERATION

• Refrigerant: R-404A

• Factory tested refrigeration system

• Pre-charged with quick connect
fittings and lines
Heavy-duty copper tube evaporator coil

•

• Condensate vaporizor and
condensate pump provided

• Electric defrost on low temp models

• Pre-mounted expansion valve

• Temperature ranges:
–TEM models: 34° to 41°F (1°to 5°C)
–TEL models: 0° to -15°F (18° to -26°C)

• R-factor (insulation efficiency
rating): 18.75

WARRANTY

• Standard limited two year parts and
labor

• Additional three year coverage on
compressor part

When ordering multi-cabinet
line-ups, please note:

• Pre-wired cabinet-to-cabinet electri­cal terminal block connectors are
furnished

• A 2" thick partition is required
between each endless module if:

– Each utilizes its own condensing

unit and

– One module is a freezer and one

is a cooler

• A 1/16" thick partition is required
between each module of like tem­peratures

• Joining kits for linking together
modules are standard

• Please allow an additional 1"
clearance for case and assembly
dimensional tolerance stack-up

OPTIONS

❑ Right or left hand end kits
❑ Custom colors
❑ Drip pans for interior
❑ Additional 30" cantilever shelves
❑ Partitions
❑ Motion sensors for LED lighting
❑ Kickplate
❑ Baskets

908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com

TEM/TEL-24 SC SERIES – SELF-CONTAINED

ENDLESS GLASS DOOR MERCHANDISERS WITH TOP MOUNTED
REFRIGERATION SYSTEM & 24-INCH WIDE DOORS

TECHNICAL SPECIFICATIONS

DIMENSIONS

(in.)

MODEL

TEM/TEL-3-24SC 725/16381/4 102 1837 972 2591 3 15 57.7 67.5 31.8 4
TEM/TEL-4-24SC 961/16381/4 102 2440 972 2591 4 20 76.7 89.7 42.2 5
TEM/TEL-5-24SC 11913/16381/4 102 3043 972 2591 5 25 95.7 111.8 52.6 6
TEM/TEL-6-24SC 1439/16381/4 102 3646 972 2591 6 30 114.7 134.0 63.1 7

*Add 2" (51mm) to length for each end or insulated partition. Also allow an additional 1" clearance for case and assembly
dimensional tolerance stack-up. **Height includes shroud.

L* D H** L* D H**

DIMENSIONS

(mm)

NO. OF

DOORS

NO. OF

SHELVES

SHELVING

AREA

SQ. FT.

USABLE

CU. FT.

PRODUCT

FACING

SQ. FT.

NO. OF

INTERIOR

LIGHTS

ELECTRICAL

TEM-3-24SC TEM-4-24SC TEM-5-24SC TEM-6-24SC TEL-3-24SC TEL-4-24SC TEL-5-24SC TEL-6-24SC

115/208-230V/60/1 CIRCUIT AMPS (REQUIRES 4-WIRE 208-230 SERVICE)

Condensing Unit
Model Number*
Capacity BTU with
10º @ 90ºF Ambient
Condensing Unit 5.7 5.7 5.7 5.7 8.2 8.2 8.4 11.4
Defrost Heater N/A N/A N/A N/A 5.6 6.7 9.5 12.5
Drain Line Heater N/A N/A N/A N/A 6.5 6.5 6.5 6.5
Horsepower 0.5 0.5 0.5 0.5 1.5 1.5 2 2.5
Evaporator Fan
Motor
Anti-Sweat Amps/
Mullion/Frame
LED Lights 0.37 0.5 0.62 0.75 0.37 0.5 0.62 0.75
Condensate Pump 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Condensate Pan 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3
Minimum Circuit
(MCA)
Maximum Over­current Protector
(MOP)

*Condensing units listed are for individual modules only. For multi-module line-ups, please contact factory for system
recommendations.

MHHZ007FB MHHZ007FB MHHZ007FB MHHZ007FB MHLZ007FB MHLZ007FB MHLZ008FB MHLZ009FB

6100 6100 6100 6100 6670 6670 7540 9640

1.0 1.0 1.0 1.0 0.5 0.5 0.5 0.5

1.38 2.18 2.37 2.48 3.37 4.83 5.67 6.7

12 12 12 12 22.1 22.1 23.7 28.3

15 15 15 15 25 25 30 40

EST. SHIP WEIGHTS

CABINET

WT.

WITH ENDS

MODEL

TEM-3-24SC 1120/509 97/44 1217/553
TEM-4-24SC 1490/677 97/44 1587/721
TEM-5-24SC 1806/821 97/44 1903/865
TEM-6-24SC 2080/945 97/44 2177/990

LB/KG

CONDENSING

UNIT WT.

LB/KG

TOTAL

WT.

LB/KG

CABINET

WT.

WITH ENDS

MODEL

TEL-3-24SC 1150/523 100/45 1250/568
TEL-4-24SC 1520/677 100/45 1620/736
TEL-5-24SC 1785/811 156/71 1941/882
TEL-6-24SC 2100/945 158/72 2258/1026

LB/KG

CONDENSING

UNIT WT.

LB/KG

TOTAL

LB/KG

2

WT.

TECHNICAL DRAWINGS

2" FOR END OR
PARTITION

TEM/TEL-3-24SC: 72-5/16"
TEM/TEL-4-24SC: 96-1/16"

PLAN VIEW

20"

17-3/4"

OVERALL LENGTH W/O ENDS

TEM/TEL-5-24SC: 119-13/16"
TEM/TEL-6-24SC: 143-9/16"

SHELVING

(5 PER DOOR)

METAL SHROUD

BY MASTER-BILT

CONDENSING UNIT
WITH SOUND
ATTENUATION KIT

2" FOR END OR

CONDENSATE PAN

PLUGS INTO

ELECTRICAL BOX

PARTITION

ELECTRICAL

CONNECTIONS

TOP RIGHT

OF CABINET

SKID

REFRIGERATION
LINES EXIT LEFT REAR
OF CASE WITH QUICK­CONNECT FITTINGS

29"

4"

2"

79-3/4"

63-1/4"

33-1/2"

35-1/2"

36-1/4"

RUNNER

4" REMOVABLE
STANDOFF

2-POSITION
CANTILEVER
SHELVING

83-3/4"

MINIMUM
DEPTH
FRONT
TO BACK
WITH DOORS,
ENDS, &
BUMPER/KICKPLATE
REMOVED
IS 35-1/2"

102"

82"

ELEVATION VIEW

61"

27-1/2"

SKID

RUNNER

HOOKUPLISTINGS

Hardwire.

OPTIONAL

CURB FRONT

33-1/2"
35-1/2"
38-1/4"

SIDE VIEW

3

TEM/TEL-24 SC SERIES – SELF-CONTAINED

ENDLESS GLASS DOOR MERCHANDISERS WITH TOP MOUNTED
REFRIGERATION SYSTEM & 24-INCH WIDE DOORS

MODULES REQUIRED FOR 24" WIDE DOOR LINEUPS & BTU PERFORMANCE DATA

MODULES REQUIRED

ALL LENGTH

WITH ONE

TOTAL OVER-

NO. OF
DOORS

3

DOOR4 DOOR5 DOOR6 DOOR

3 1 76

PAIR OF 2"

ENDS

5

4 1 100
5 1 12313/
6 1 1479/

+20°F SUCTION MIN.

BTUs (75°F STORE,

55% RH, +35°F

AVERAGE PRODUCT

TEMP.)

/

16

1

/

16

16

16

3750 4750 5125
4600 6150 6550
5750 7625 8300
6900 9150 9960

-11°F SUCTION MIN.
BTUs (75°F STORE,

55% RH, -3°F AVER

-

AGE PRODUCT

TEMP.)

-18°F SUCTION MIN.
BTUs (75°F STORE,

55% RH, -12°F AV
ERAGE PRODUCT

TEMP.)

7 1 1 1723/8 8050 10,675 11,620
8 2 1961/8 9200 12,200 13,280
9 1 1 2197/8 10,350 13,725 14,940
10 2 243
11 1 1 267

5

/8 11,500 15,250 16,600

3

/8 12,650 16,775 18,260
12 2 2911/8 13,800 18,300 19,920
13 2 1 31515/
14 2 1 33911/
15 3 3637/

16

16

16

14,950 19,825 21,580
16,100 21,350 23,240

17,250 22,875 24,900
16 4 3881/4 18,400 24,400 26,560
17 1 2 41015/
18 3 434

11

16

/

16

19,550 25,925 28,220

20,700 27,450 29,880
19 1 3 4591/2 21,850 28,975 31,540

1

20 4 483

/4 23,000 30,500 33,200
21 1 3 507 24,150 32,025 34,860
22 1 3 530
23 1 3 554

3

/4 25,300 33,550 36,520

1

/2 26,450 35,075 38,180
24 4 5781/4 27,600 36,600 39,840
25 5 6031/

16

28,750 38,125 41,500

-

BID SPECIFICATIONS

Item no. TEM/TEL-______-24SC

Provide__________( ) Endless Self­Contained Glass Door Merchandisers - Top
Mounted model no. TEM/TEL-_______-24SC.

Merchandiser to be constructed of baked­on polyester painted textured steel with
2" foamed-in-place “zero ODP” urethane
insulation. Merchandiser may be used as a
stand-alone unit or combined in a modular
endless design.

Merchandiser will be equipped with stan­dard electronically controlled monitoring
system, LED lighting and five cantilever
epoxy-coated welded wire shelves with price
tag molding per door. In addition, a product
stop feature will prevent product from falling

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.

908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com

behind shelves. Other standard features to
include:

• Condensate vaporizor and condensate
pump

• Field installed, sound insulated 24 gauge
steel shroud with finish matching cabi­net exterior

• Standard joining kits when linking togeth­er multi-door modules
Glass doors will be supplied with self-clos-

ing door hinge and provision for easy ad­justment of torsion and leveling. Merchan­diser supplied with 30" wide glass doors.
Door and frame provided in standard black
finish with optional colors available.

A pre-charged self-contained refrigeration

©2015 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.

system will be furnished with quick connect
fittings and lines. Each merchandiser will be
equipped with a full-length heavy-duty cop­per tube evaporator coil and pre-mounted
expansion valve. Electric defrost will be
standard on low temp models. All models
will use R-404A refrigerant.

Temperature range will be 34° to 41°F
(1°to 5°C) for TEM models and 0° to -15°F
(18° to -26°C) for TEL models.

Merchandiser to have standard limited
two year parts and labor with additional
three year coverage on compressor part.

Merchandiser to be UL and C-UL listed
and UL EPH classified.

1404-6/15-web
