Master-Bilt SMP27-8 Installation Manual
1
10/16 57-02523

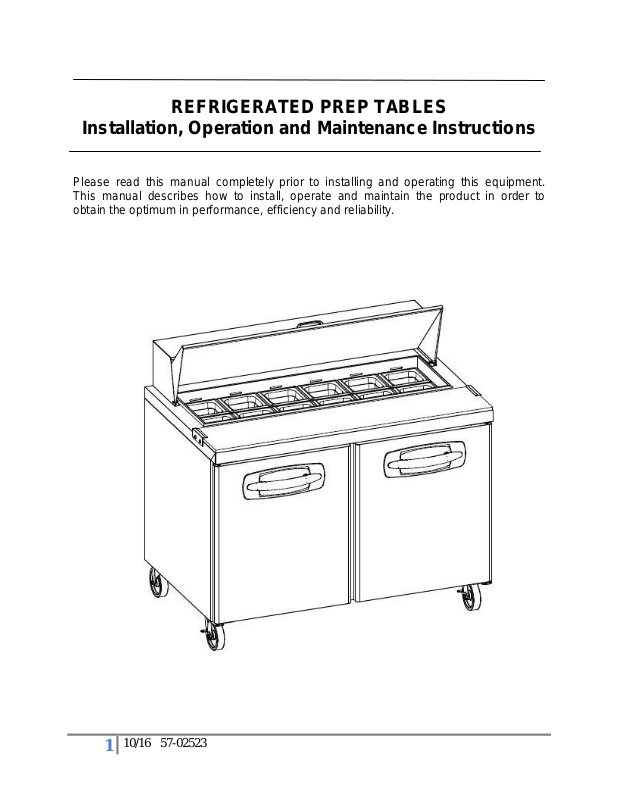

REFRIGERATED PREP TABLES
Installation, Operation and Maintenance Instructions
Please read this manual completely prior to installing and operating this equipment.
This manual describes how to install, operate and maintain the product in order to
obtain the optimum in performance, efficiency and reliability.
2
10/16 57-02523
STANDARD TOP PREP TABLES
CAPACITY
MODEL
STORAGE (FT³)
PANS (1/6TH)
ELECTRICAL
REFRIGERANT
WEIGHT (lbs)
SP27-8A
7.2
8
115/60/1/3.6
R134a
212
SP36-10A
9.9
10
115/60/1/3.6
R134a
268
SP48-12A
13.4
12
115/60/1/5.2
R134a
304
SP60-16A
16.2
16
115/60/1/5.2
R134a
344
SP72-18A
20.5
18
115/60/1/5.2
R134a
384
MEGA TOP PREP TABLES
CAPACITY
MODEL
STORAGE (FT³)
PANS (1/6TH)
ELECTRICAL
REFRIGERANT
WEIGHT (lbs)
SMP27-12A
7.2
12
115/60/1/3.6
R134a
223
SMP36-15A
9.9
15
115/60/1/3.6
R134a
284
SMP48-18A
13.4
18
115/60/1/5.2
R134a
318
SMP60-24A
16.2
24
115/60/1/5.2
R134a
362
SMP72-30A
20.5
30
115/60/1/5.2
R134a
399
TABLE OF CONTENTS
SPECIFICATIONS 2
RECEIVING INSPECTION 3
SAFETY INFORMATION 4

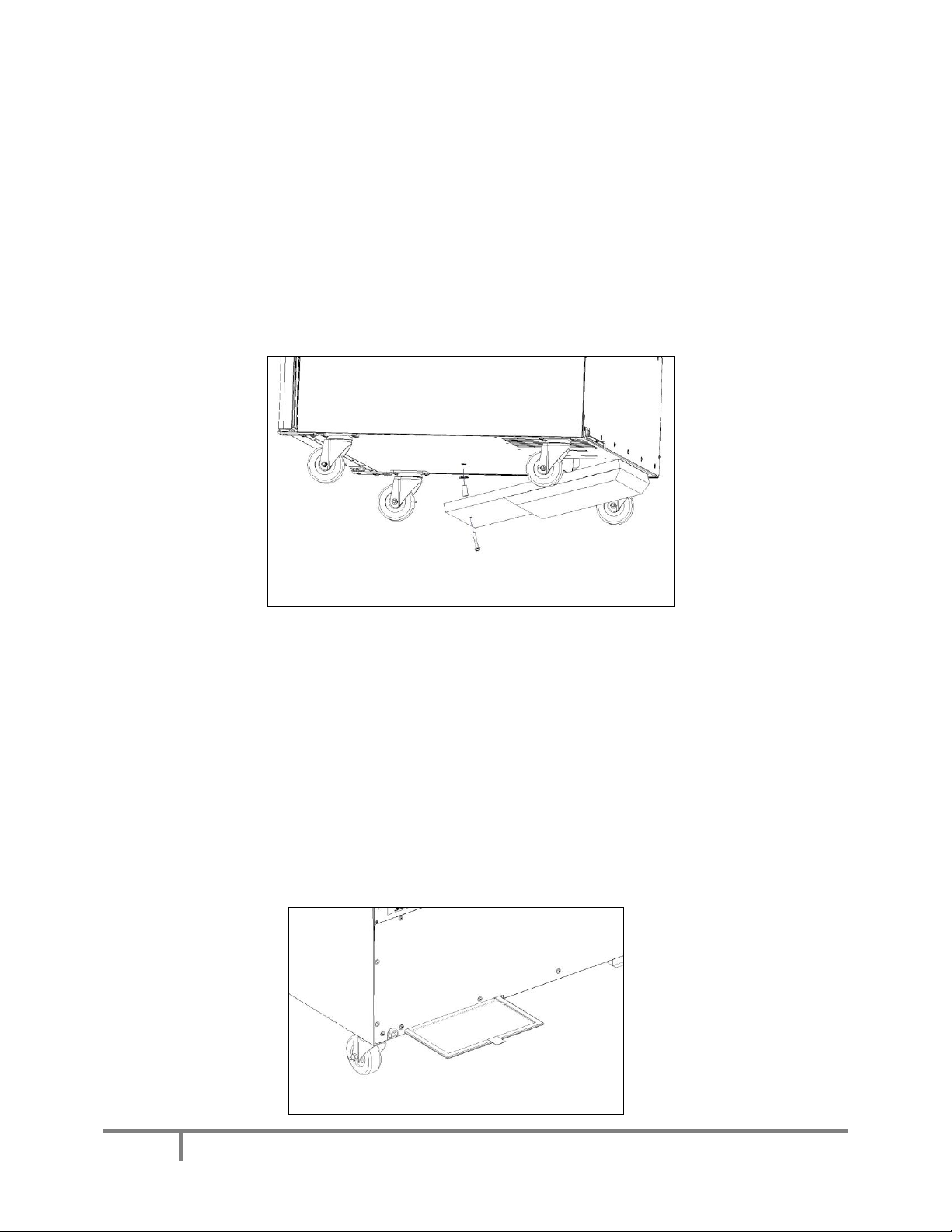

SET-UP AND INSTALLATION 6
START-UP AND OPERATION 9
CLEANING AND MAINTENANCE 10
TROUBLE SHOOTING GUIDE 11

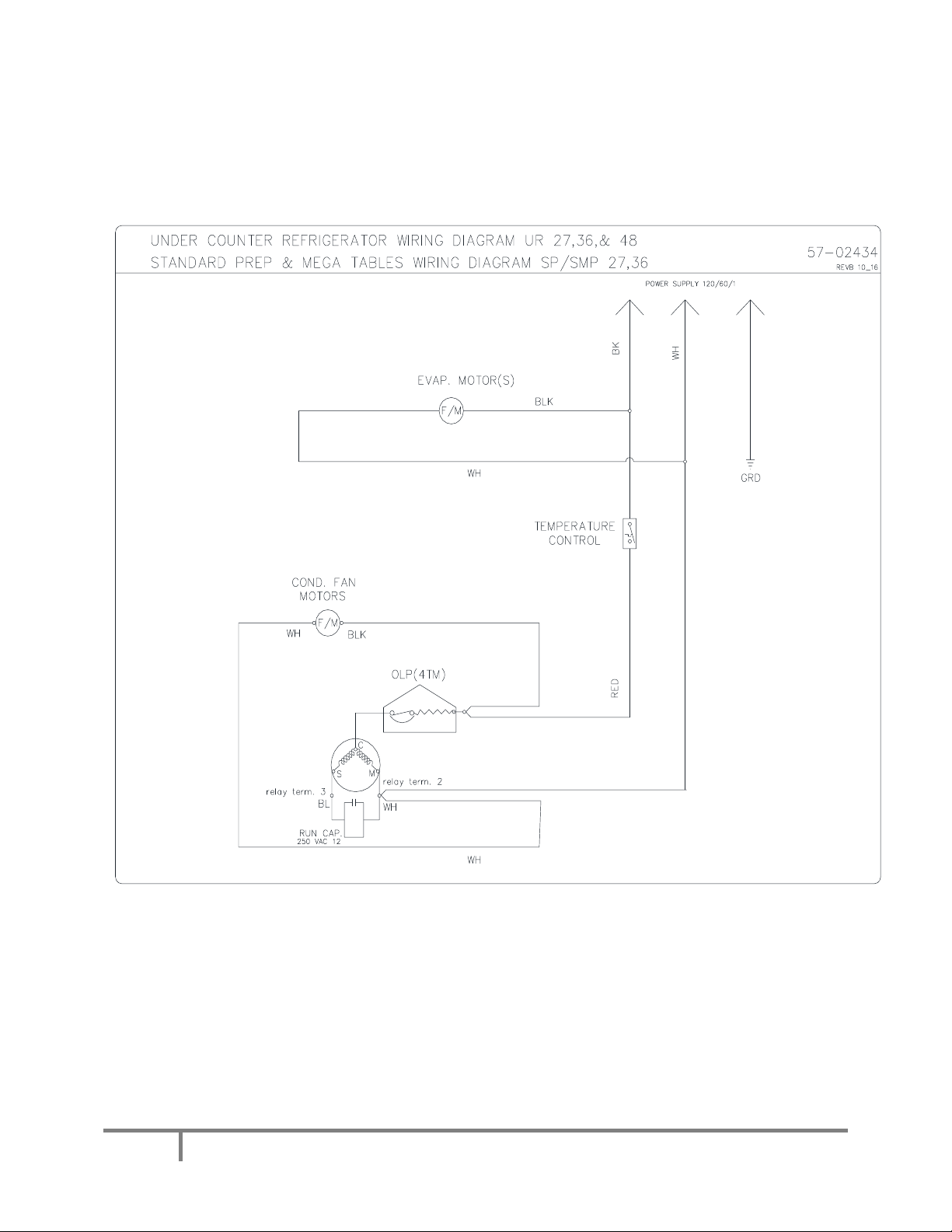

WIRING DIAGRAMS 12
SPECIFICATIONS
3
10/16 57-02523
RECEIVING INSPECTION
Congratulations on your purchase of a quality built appliance. When properly installed
and maintained this product will give many years of trouble free service. It was shipped
using trusted carriers with a history of careful handling, good customer service and
prompt delivery.
Even with all of these precautions taken occasionally accidents may happen which
result in shipping damage. When the product was picked up by the carrier they assume
responsibility for the product until they deliver it to you. Thus any claims for shipping
damages must be filed with the delivering carrier.
Always thoroughly inspect the delivery for visible damages and shortages. Should any
damages or shortages be found be sure to note them in detail on the delivery receipt
before you sign off on it. Make sure the driver signs and dates the delivery receipt
acknowledging the damages. This is critical in protecting yourself should a claim need
to be filed. You can consult the carrier’s website for their specific claim procedures.
Remember it is your responsibility to file a claim with the carrier.
In the case of concealed damages that are not discovered in the initial inspection but
are found upon removing packaging, time is critical. You should unpack and inspect the
unit as soon as possible. If concealed damage is found, stop unpacking and contact the
delivering carrier immediately to alert them of the damages and get a claim number.
Save all packaging for inspection by the carrier. Consult the carrier website for details
in filing a concealed damage claim.
Please remember, the carrier is your only source for reclaiming freight damages. The
manufacturer should not be contacted to attempt a return of the product. No returns are
accepted without a prior authorization.
4
10/16 57-02523
SAFETY INFORMATION
This manual may contain notices that identify situations that could cause death, serious
injury and /or damage to the appliance or property.
Please make note of the following definitions;
! WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the appliance
or property.
IMPORTANT Indicates important information about the use and care of the
appliance.
! WARNING
This appliance should be applied only for the use for which it has been expressly
intended. Any other use would be considered improper and therefore dangerous. The
manufacturer cannot be held responsible for injury or damage resulting from improper,
incorrect and unreasonable use. Failures to install, operate, or maintain the appliance
in accordance with this manual will adversely affect safety, performance, component life
and warranty coverage.
To reduce the risk of death, electric shock, serious injury or fire, follow basic precautions
including but not limited to the following;
Only qualified service technicians should install and service this appliance.
This appliance must be installed in accordance with applicable national, state
and local codes and regulations.
To reduce the risk of electrical shock, do not touch the appliance or plug with wet
hands.
Disconnect the appliance from power before servicing.
The appliance requires an independent power supply of proper capacity. See
the appliance nameplate for electrical specifications. Failure to use an
independent power supply of proper capacity can result in a tripped breaker,
blown fuse, damage to existing wiring or component failure. This could lead to
heat generation or fire.
The appliance must be properly grounded. This appliance is equipped with a
NEMA 5-15P three prong grounded plug to reduce the risk of potential electrical
shock hazards. It must be connected to a properly grounded, independent 3
prong wall outlet. Do not remove the ground prong from the appliance plug and
do not use and adapter plug. Failure to follow these instructions may result in
death, electrical shock or fire.
Do not use an extension cord to supply power to the appliance.
