Master-Bilt MUR162 User Manual

ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________

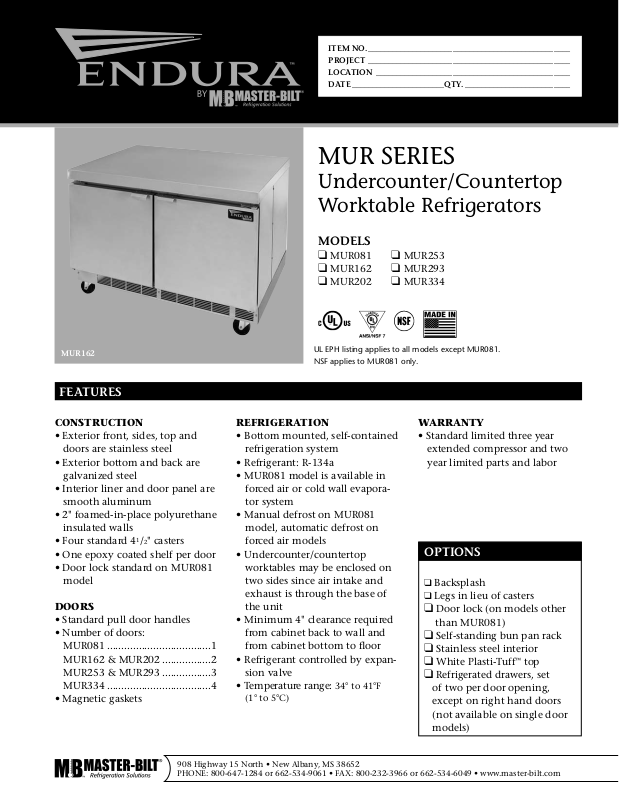

MUR SERIES
Undercounter/Countertop Worktable Refrigerators
MODELS
MUR081 MUR253
MUR162 MUR293 MUR202 MUR334
MUR162
FEATURES
CONSTRUCTION
• Exterior front, sides, top and doors are stainless steel
• Exterior bottom and back are galvanized steel
• Interior liner and door panel are smooth aluminum
• 2" foamed-in-place polyurethane insulated walls
• Four standard 41/2" casters
• One epoxy coated shelf per door
• Door lock standard on MUR081 model
DOORS
• Standard pull door handles
• Number of doors:
MUR081 ....................................1
MUR162 & MUR202 .................2
MUR253 & MUR293 .................3
MUR334 ....................................4
• Magnetic gaskets
UL EPH listing applies to all models except MUR081.
NSF applies to MUR081 only.
REFRIGERATION
• Bottom mounted, self-contained refrigeration system
• Refrigerant: R-134a
• MUR081 model is available in forced air or cold wall evapora­tor system
• Manual defrost on MUR081 model, automatic defrost on forced air models
• Undercounter/countertop worktables may be enclosed on two sides since air intake and exhaust is through the base of the unit
• Minimum 4" clearance required from cabinet back to wall and from cabinet bottom to oor
• Refrigerant controlled by expan­sion valve
• Temperature range: 34° to 41°F
(1° to 5°C)
WARRANTY
• Standard limited three year extended compressor and two year limited parts and labor
OPTIONS
Backsplash Legs in lieu of casters
Door lock (on models other
than MUR081)
Self-standing bun pan rack Stainless steel interior White Plasti-Tuff
top
Refrigerated drawers, set
of two per door opening, except on right hand doors (not available on single door models)
908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MUR SERIES
UNDERCOUNTER/COUNTERTOP WORKTABLE REFRIGERATORS
DIMENSIONS (in.) DIMENSIONS (mm)
MODEL
MUR081 27 35 341/2686 889 876 115 4.0 1/5 1 per door 8.0 24.3 220/100 MUR162 47 MUR202 593/435 341/21518 889 876 115 8.7 1/4 1 per door 20.0 65.2 430/195 MUR253 713/435 341/21822 889 876 115 8.7 1/4 1 per door 24.0 77.4 450/205 MUR293 833/435 341/22127 889 876 115 8.7 1/4 1 per door 29.0 89.5 460/209 MUR334 953/435 341/22432 889 876 115 8.7 1/4 1 per door 33.0 101.6 470/214
*Height includes casters.
L D H* L D H*
3
/435 341/21213 889 876 115 8.7 1/4 1 per door 16.0 53.1 400/182
VOLTS AMPS UNIT H.P.
NO. OF
SHELVES
CAP.
CU. FT.
SHIP
CU. FT.
SHIP WT.
LB/KG
MODEL MUR081
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MODEL MUR162
PLAN VIEW
MODEL MUR202
SIDE VIEW
ELEVATION VIEW
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MODEL MUR253
PLAN VIEW
MODEL MUR293
PLAN VIEW
MODEL MUR334
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MUR SERIES
LISTINGS
HOOKUP
BID SPECIFICATIONS
UNDERCOUNTER/COUNTERTOP WORKTABLE REFRIGERATORS
UL EPH listing applies to all models except
MUR081. NSF applies to MUR081 only.
Item no. MUR_______________ Provide____________( ) Un­dercounter/countertop worktable refrigerator(s), Master-Bilt model no. MUR________.
Refrigerator's exterior front, sides, top and doors will be stain­less steel while the exterior bot­tom and back will be galvanized steel. The interior liner and door panel will be smooth aluminum. Standard features will include one epoxy-coated shelf per door and
Via plug in, 10 foot long exible three wire 14/3 cord with molded plug.
four 41/2" casters.
The refrigeration system will be bottom mounted and self-con­tained. The temperature range will be 34° to 41°F (1° to 5°C). MUR081 model is available in forced air or cold wall evaporator system. Manual defrost will be standard on MUR081 model, automatic defrost on forced air models. Refrigeration sytem will use R-134a refrigerant. Refriger­ant will be controlled by expansion valve. Refrigerators may be enclosed
NEMA 5-15P
on three sides since air intake and exhaust is through the base of the unit.
Refrigerator to have standard limited three year extended com­pressor warranty and two year lim­ited parts and labor warranty.
Refrigerator to be UL and C-UL listed and UL EPH classied (except for MUR081 model which is NSF listed).
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity. All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
© Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
1336-6/10-web
