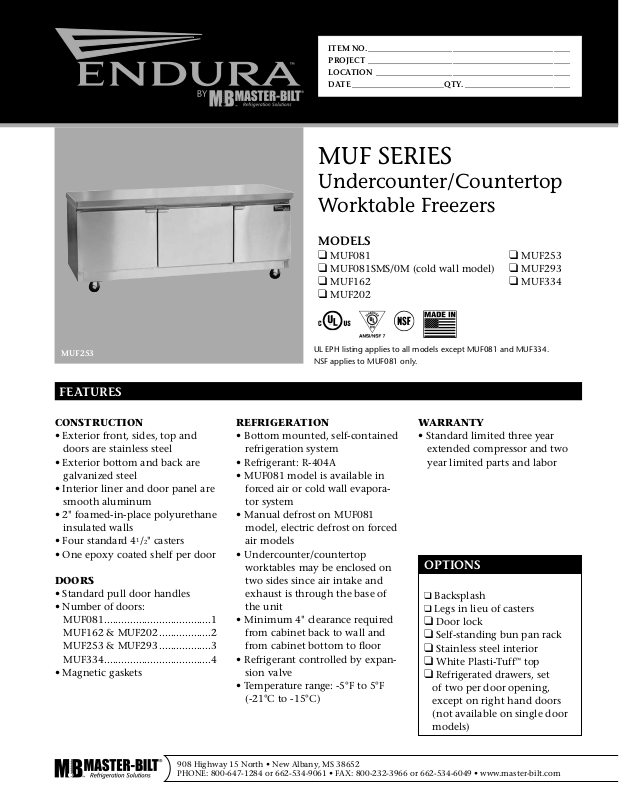

MUF SERIES
Undercounter/Countertop
Worktable Freezers
MODELS
❑
MUF081 ❑ MUF253
❑ MUF081SMS/0M (cold wall model) ❑ MUF293
❑ MUF162 ❑ MUF334
❑ MUF202
MUF253
FEATURES
CONSTRUCTION
• Exterior front, sides, top and
doors are stainless steel
• Exterior bottom and back are
galvanized steel
• Interior liner and door panel are
smooth aluminum
• 2" foamed-in-place polyurethane
insulated walls
• Four standard 41/2" casters
• One epoxy coated shelf per door
DOORS
• Standard pull door handles
• Number of doors:
MUF081 .....................................1
MUF162 & MUF202 ..................2
MUF253 & MUF293 ..................3
MUF334 .....................................4
• Magnetic gaskets
UL EPH listing applies to all models except MUF081 and MUF334.
NSF applies to MUF081 only.
REFRIGERATION
• Bottom mounted, self-contained
refrigeration system
• Refrigerant: R-404A
• MUF081 model is available in
forced air or cold wall evaporator system
• Manual defrost on MUF081
model, electric defrost on forced
air models
• Undercounter/countertop
worktables may be enclosed on
two sides since air intake and
exhaust is through the base of
the unit
• Minimum 4" clearance required
from cabinet back to wall and
from cabinet bottom to oor
• Refrigerant controlled by expansion valve
• Temperature range: -5°F to 5°F
(-21°C to -15°C)
WARRANTY
• Standard limited three year
extended compressor and two
year limited parts and labor
OPTIONS
❑ Backsplash
❑ Legs in lieu of casters
❑ Door lock
❑ Self-standing bun pan rack
❑ Stainless steel interior
❑ White Plasti-Tuff
™
top
❑ Refrigerated drawers, set
of two per door opening,
except on right hand doors
(not available on single door
models)
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MUF SERIES
UNDERCOUNTER/COUNTERTOP WORKTABLE
FREEZERS
DIMENSIONS (in.) DIMENSIONS (mm)
MODEL
MUF081
(forced air)
MUF081SMS/0M
(cold wall)
MUF162 473/435 341/21213 889 914 115 9.7 1/2 1 per door 16.0 53.1 400/182
MUF202 593/435 341/21518 889 914 115 9.7 1/2 1 per door 20.0 65.2 430/195
MUF253 713/435 341/21822 889 914 115 11.0 3/4 1 per door 24.0 77.4 450/205
MUF293 833/435 341/22127 889 914 115 12.3 3/4 1 per door 29.0 89.5 460/209
MUF334 953/435 341/22432 889 914 115/208-230 9.5 1 1 per door 33.0 101.6 470/214
*Height includes casters. **MUF334 operates on a minimum of 208 volts. A voltage boosting transformer (part no. 39-01087) must be used
when the supply voltage is less than 208 volts.
L D H* L D H*
27 35 341/2686 889 914 115 8.1 1/2 1 per door 8.0 24.3 220/100
27 35 341/2686 889 914 115 6.7 1/2 1 per door 8.0 24.3 205/93
VOLTS** AMPS
UNIT
H.P.
NO. OF
SHELVES
CAP.
CU. FT.
SHIP
CU. FT.
SHIP WT.
LB/KG
MODEL MUF081 (forced air)
PLAN VIEW
MODEL MUF081 (cold wall)
PLAN VIEW
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW
MODEL MUF162
PLAN VIEW
MODEL MUF202
PLAN VIEW
MODEL MUF253
PLAN VIEW
MODEL MUF293
SIDE VIEW
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW
ELEVATION VIEW
PLAN VIEW
MODEL MUF334
PLAN VIEW
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW
MUF SERIES
LISTINGS
HOOKUP
BID SPECIFICATIONS
UNDERCOUNTER/COUNTERTOP WORKTABLE
FREEZERS
UL EPH listing applies to all models except
MUF081 and MUF334. NSF applies to
MUF081 only.
Item no. MUF_______________
Provide____________( ) Undercounter/countertop worktable
freezer(s), Master-Bilt model no.
MUF________.
Freezer's exterior front, sides,
top and doors will be stainless
steel while the exterior bottom
and back will be galvanized steel.
The interior liner and door panel
will be smooth aluminum. Standard features will include one
epoxy-coated shelf per door and
Via plug in, 10 foot long exible
three wire 14/3 cord with molded
plug.
MUF334: Via plug in, 10 foot
long exible four wire 208-230v
12/4 cord with neutral and ground
wires and molded plug.
four 41/2" casters.
The refrigeration system will
be bottom mounted and selfcontained. The refrigerant will be
R-404A. The temperature range
will be -5°F to 5°F (-21°C to -15°C).
MUF081 model is available in
forced air or cold wall evaporator system. Manual defrost will
be standard on MUF081 model,
automatic defrost on forced air
models. Freezers may be enclosed
on three sides since air intake and
NEMA 5-15P
NEMA L14-20P (MUF334
model)
exhaust is through the base of the
unit.
Refrigerant will be controlled by
expansion valve. Freezer to have
standard limited three year extended compressor warranty and
two year limited parts and labor
warranty.
Freezer to be UL and C-UL listed
and UL EPH classied (except for
MUF081 and MUF334 models).
NSF listing applies to MUF081
model only.
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
© Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
1337-6/10-web
