DPU-3K6
SCHEMATICS
22 pgs
1.04 Mb
0
Table of contents
Loading...

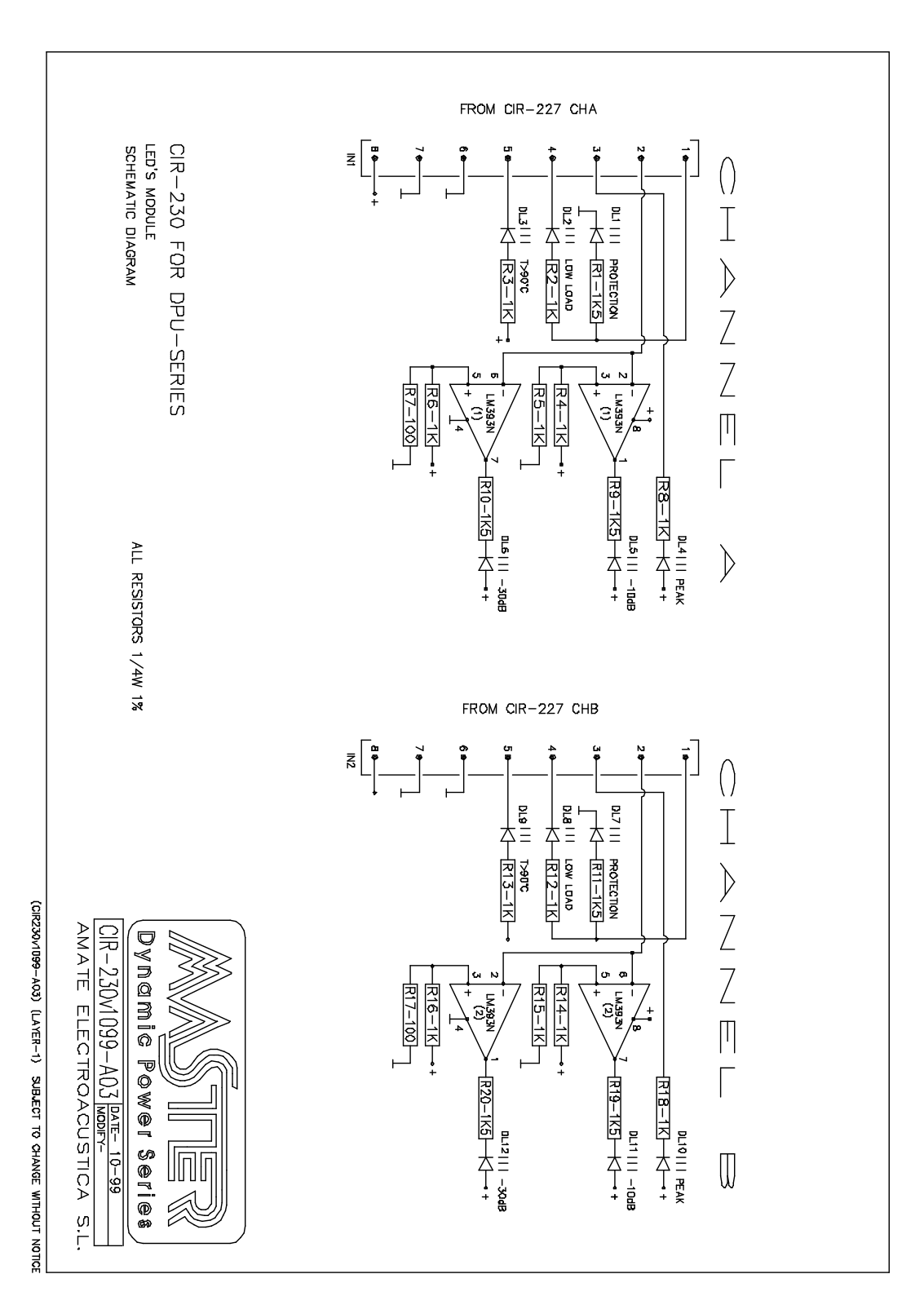

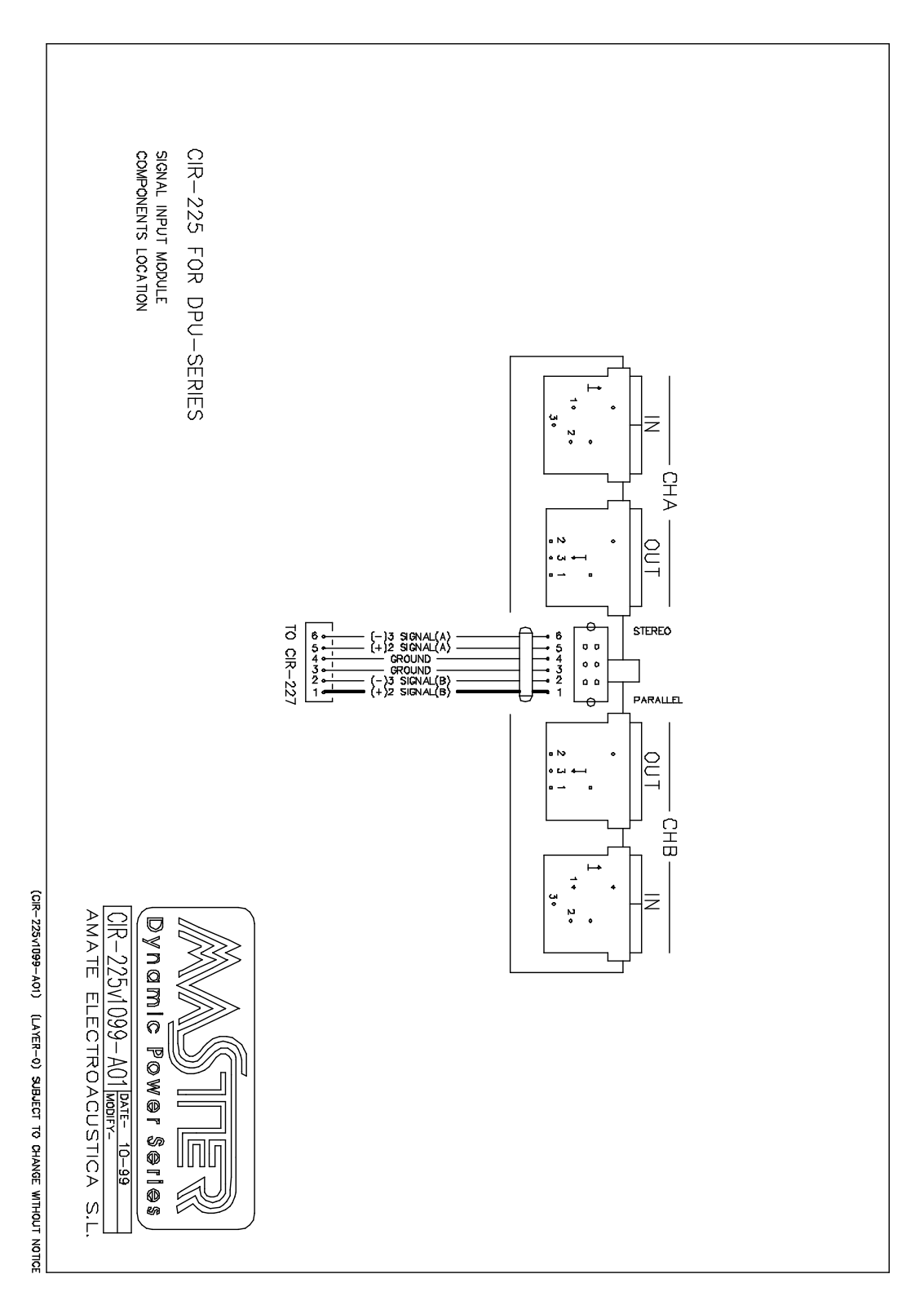

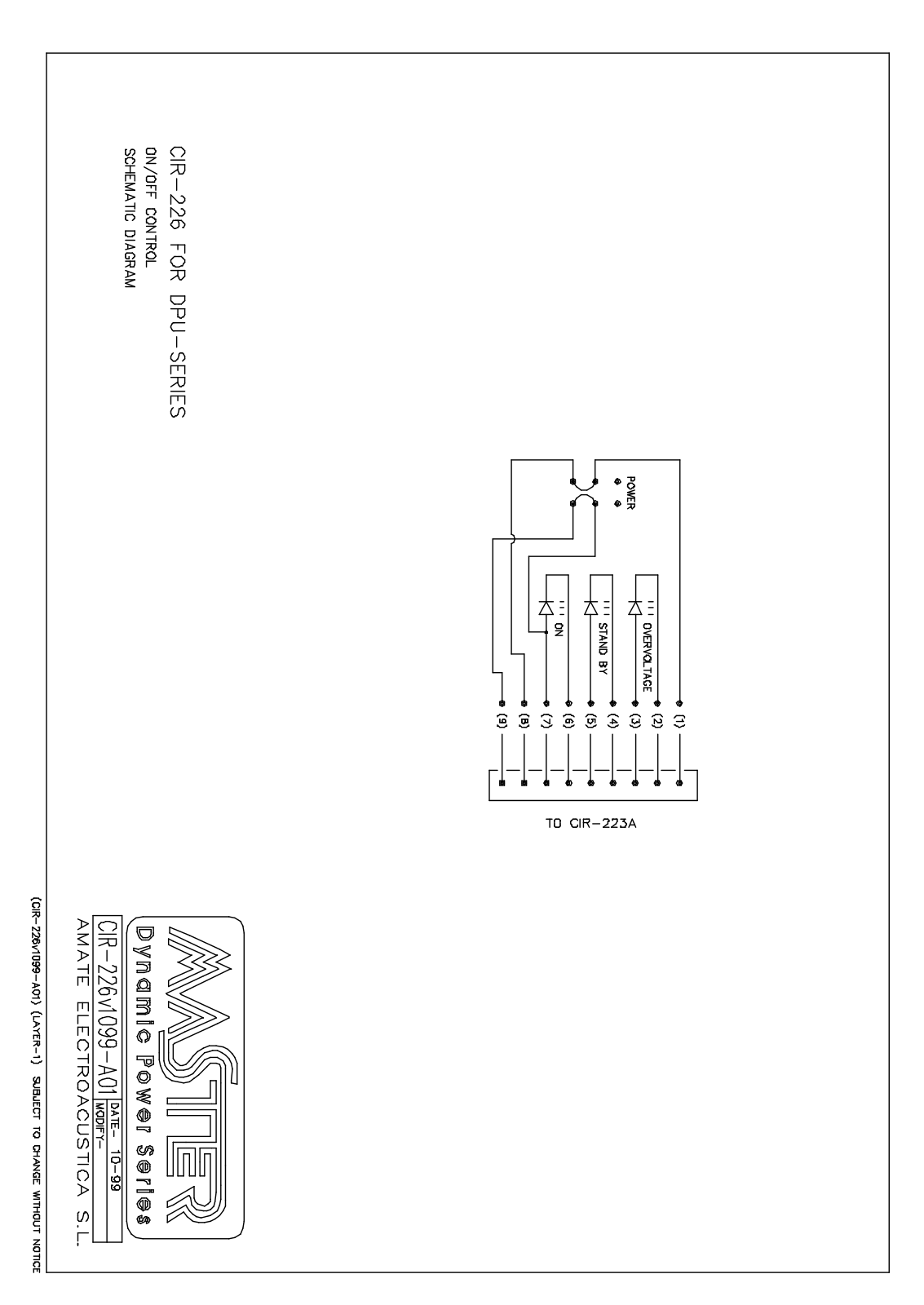

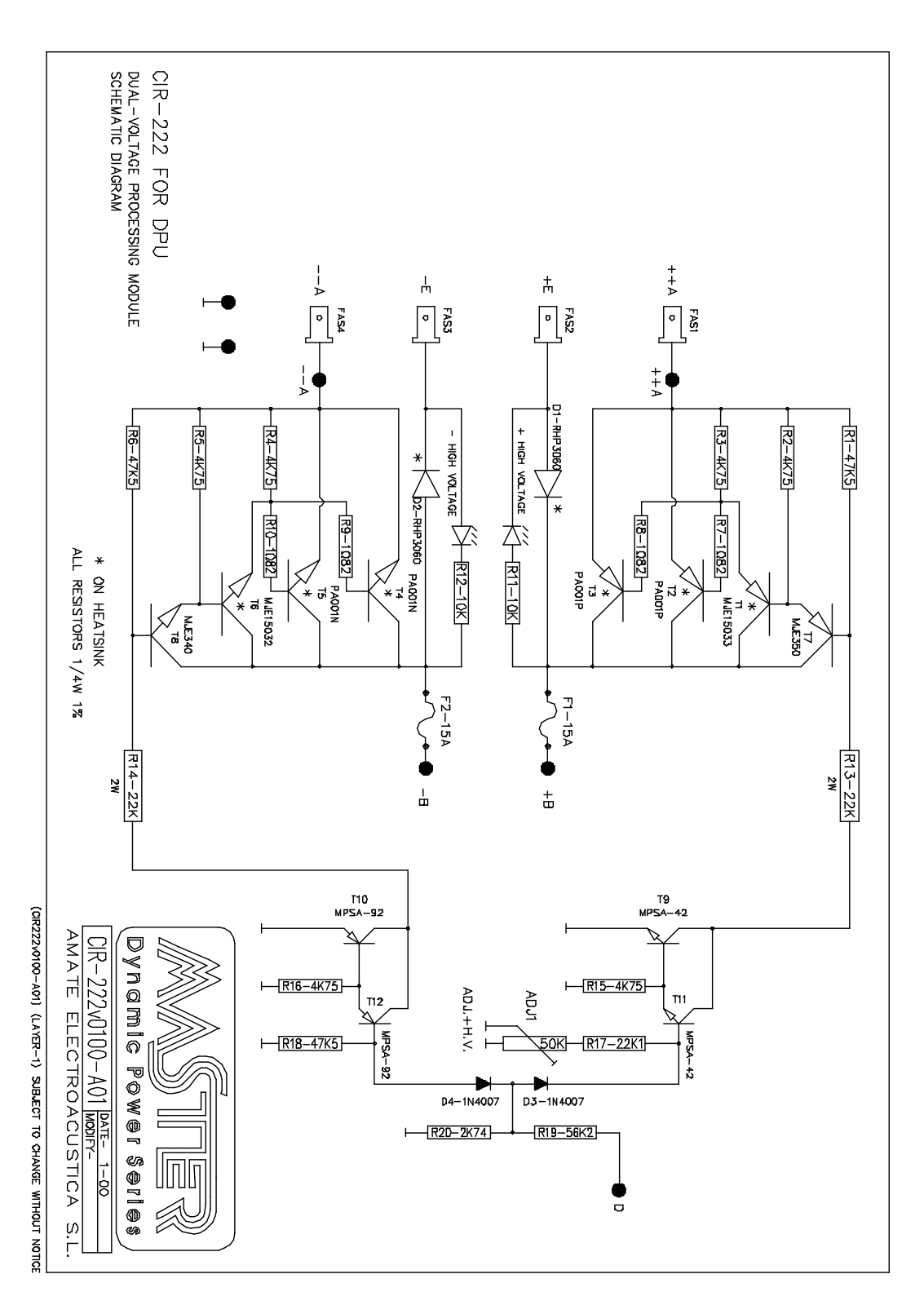

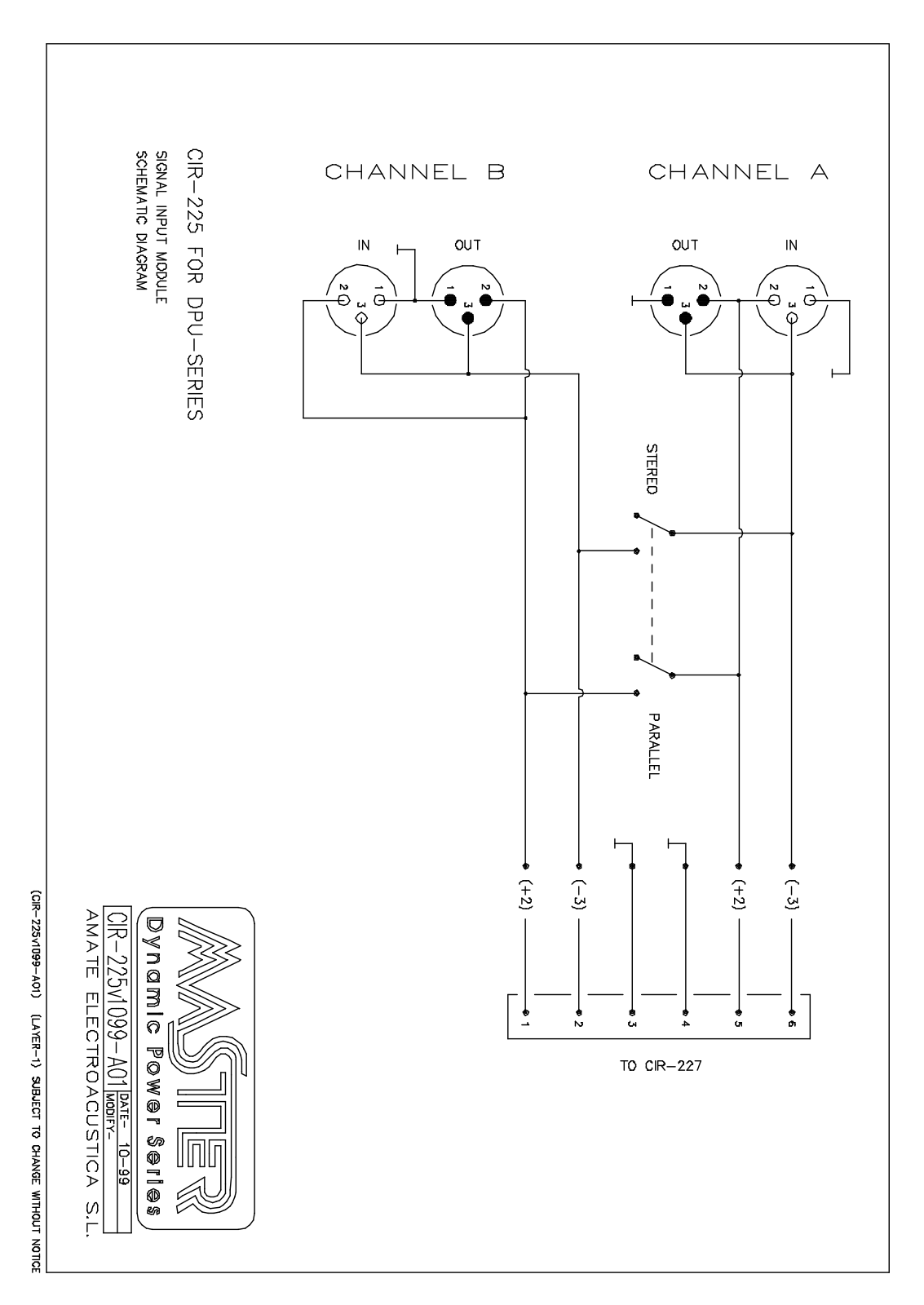

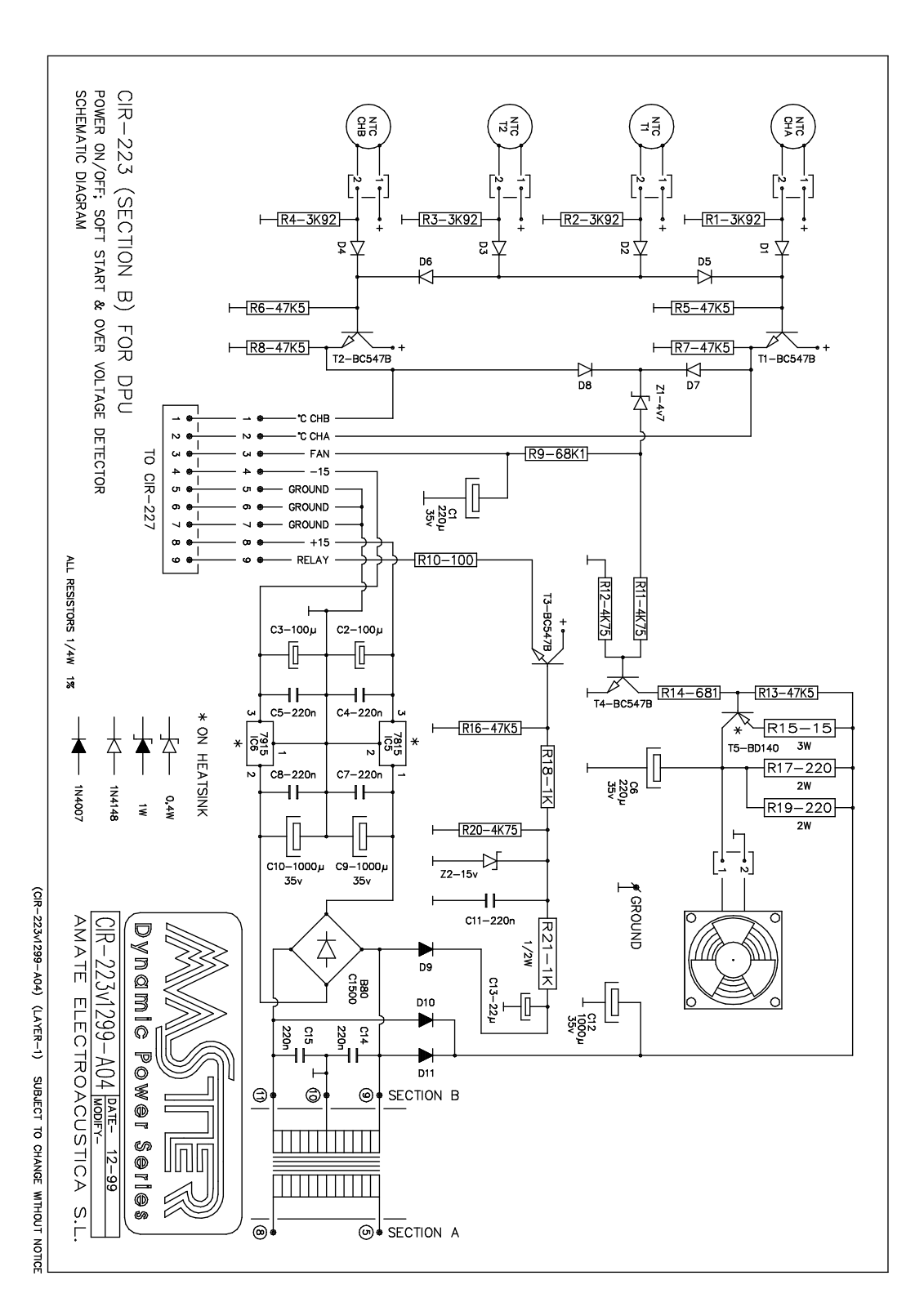

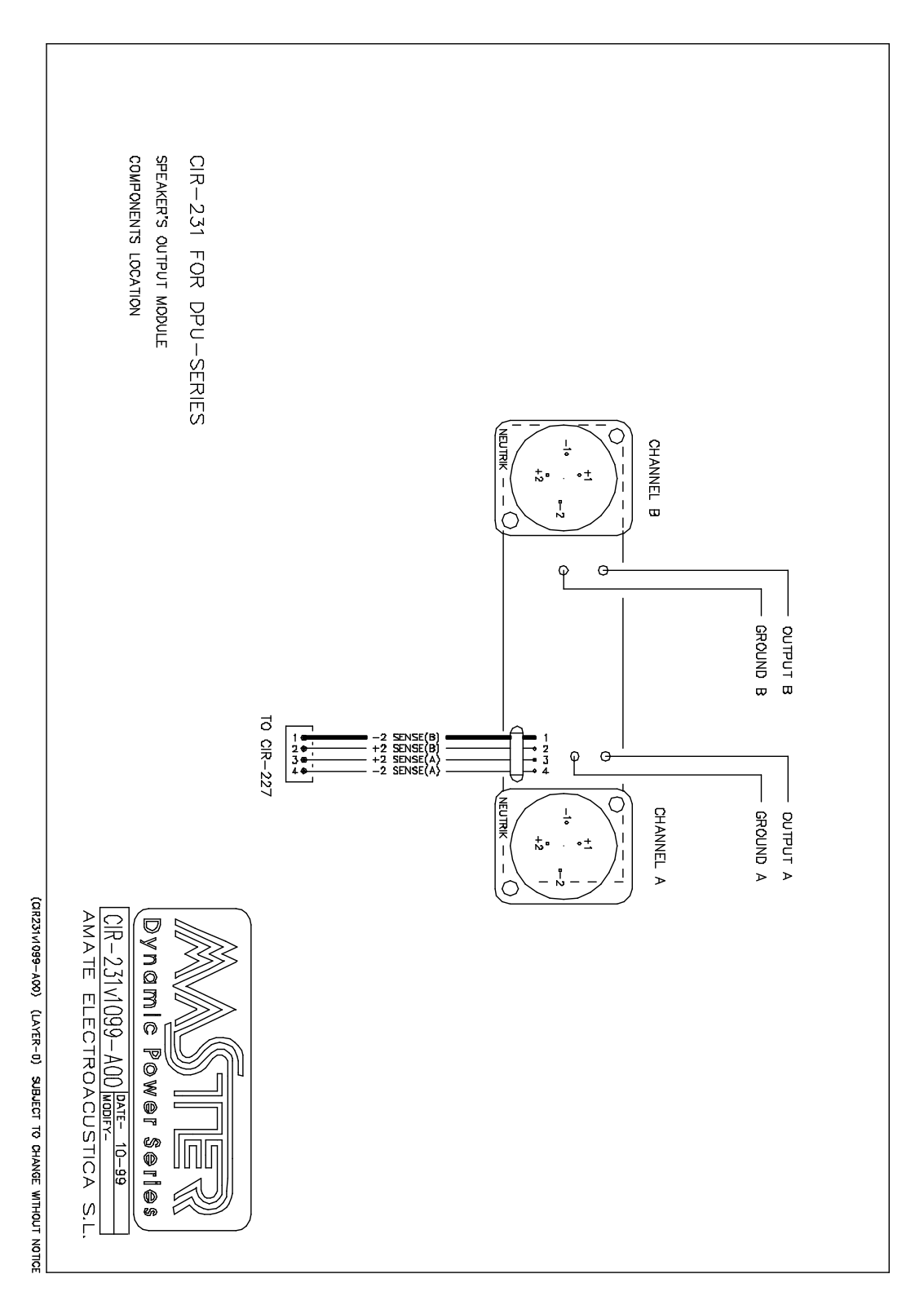

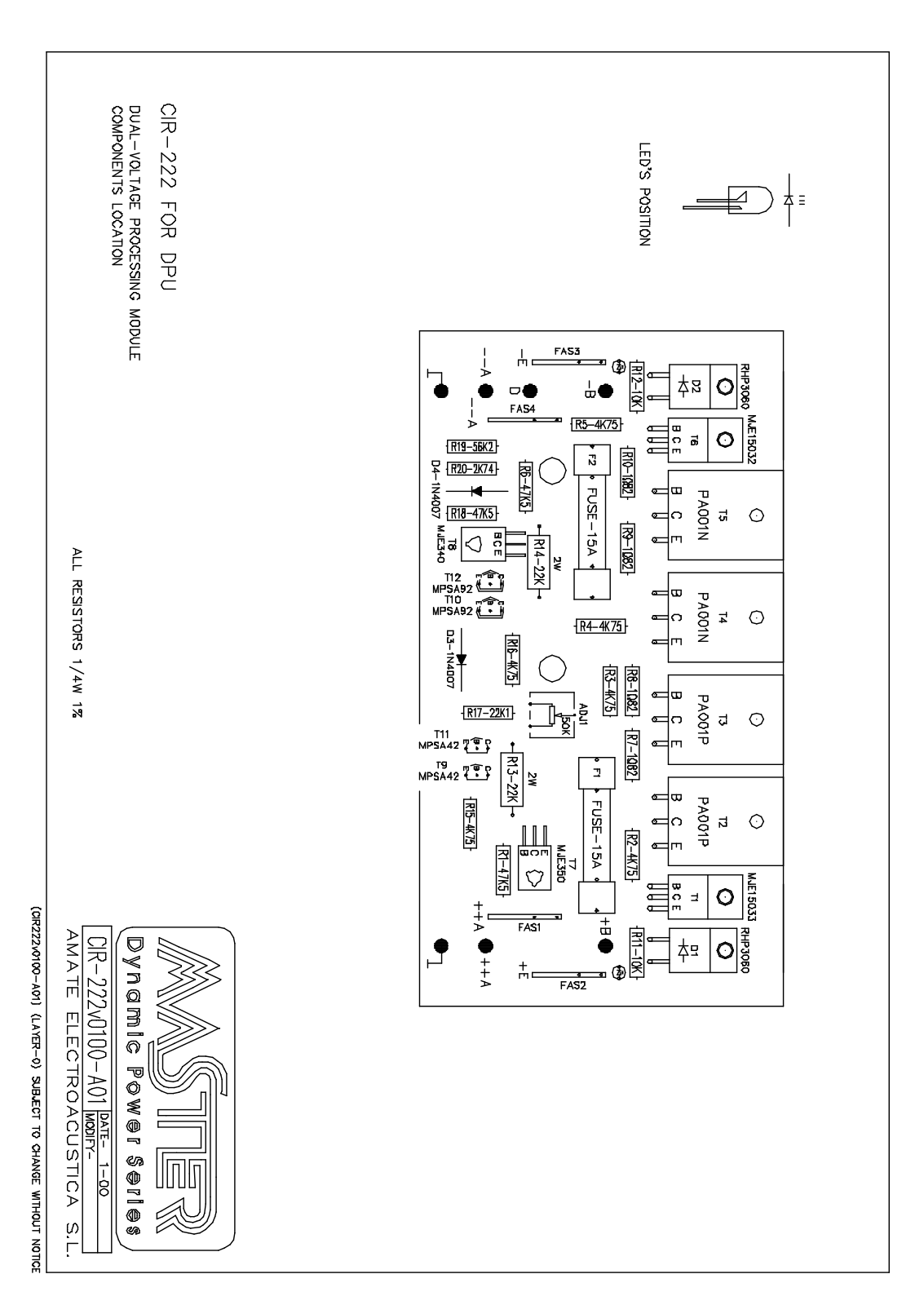

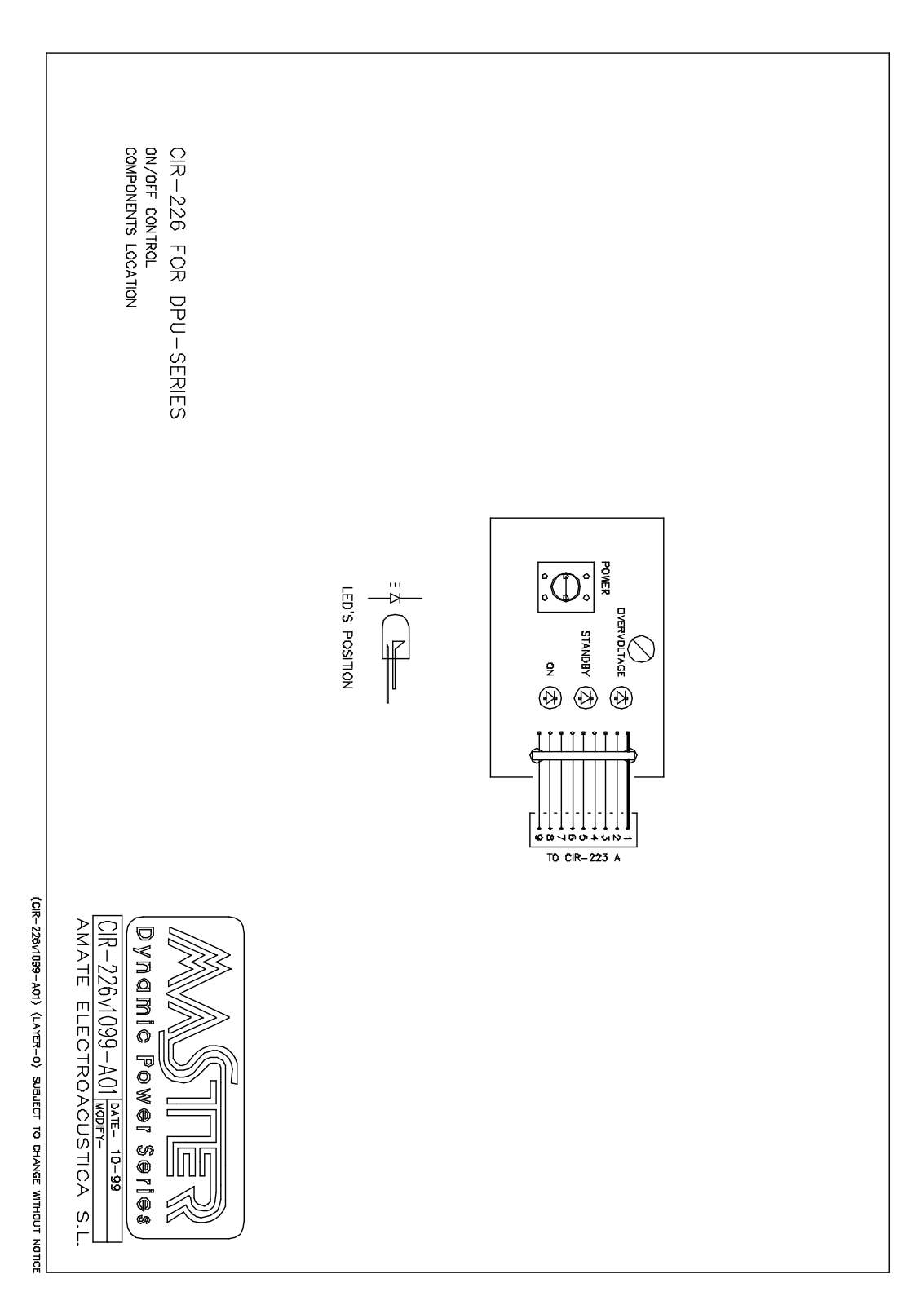

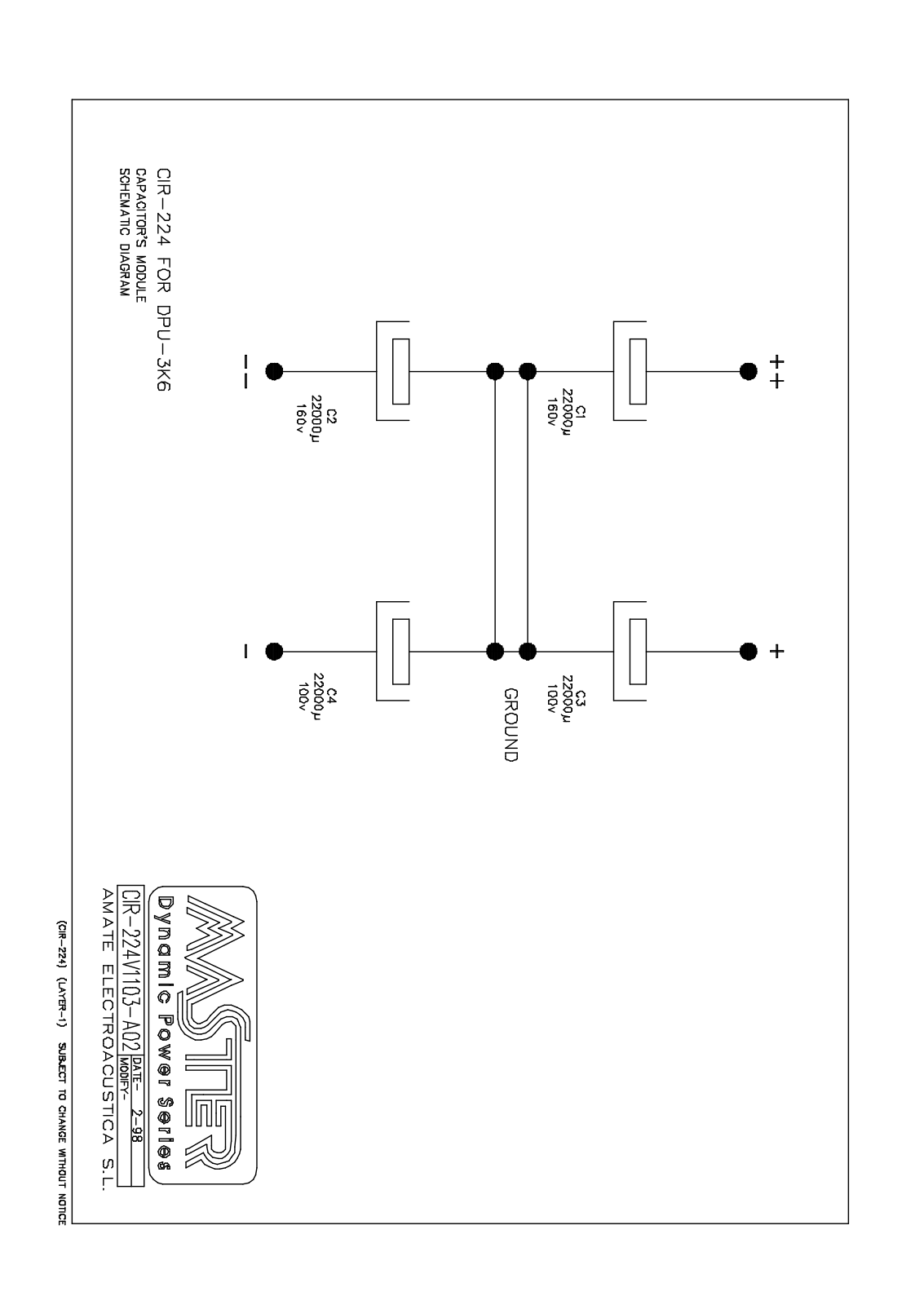

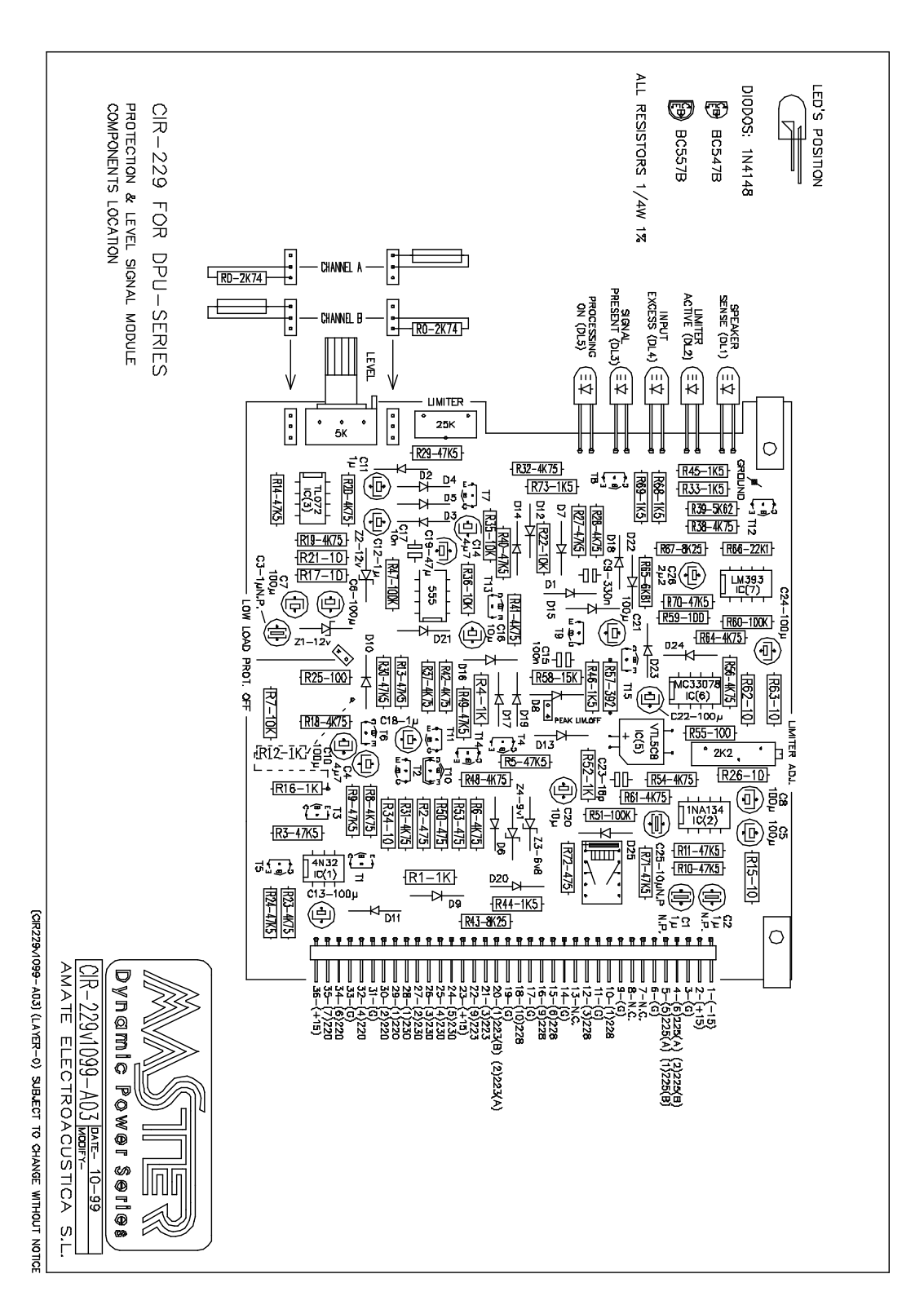

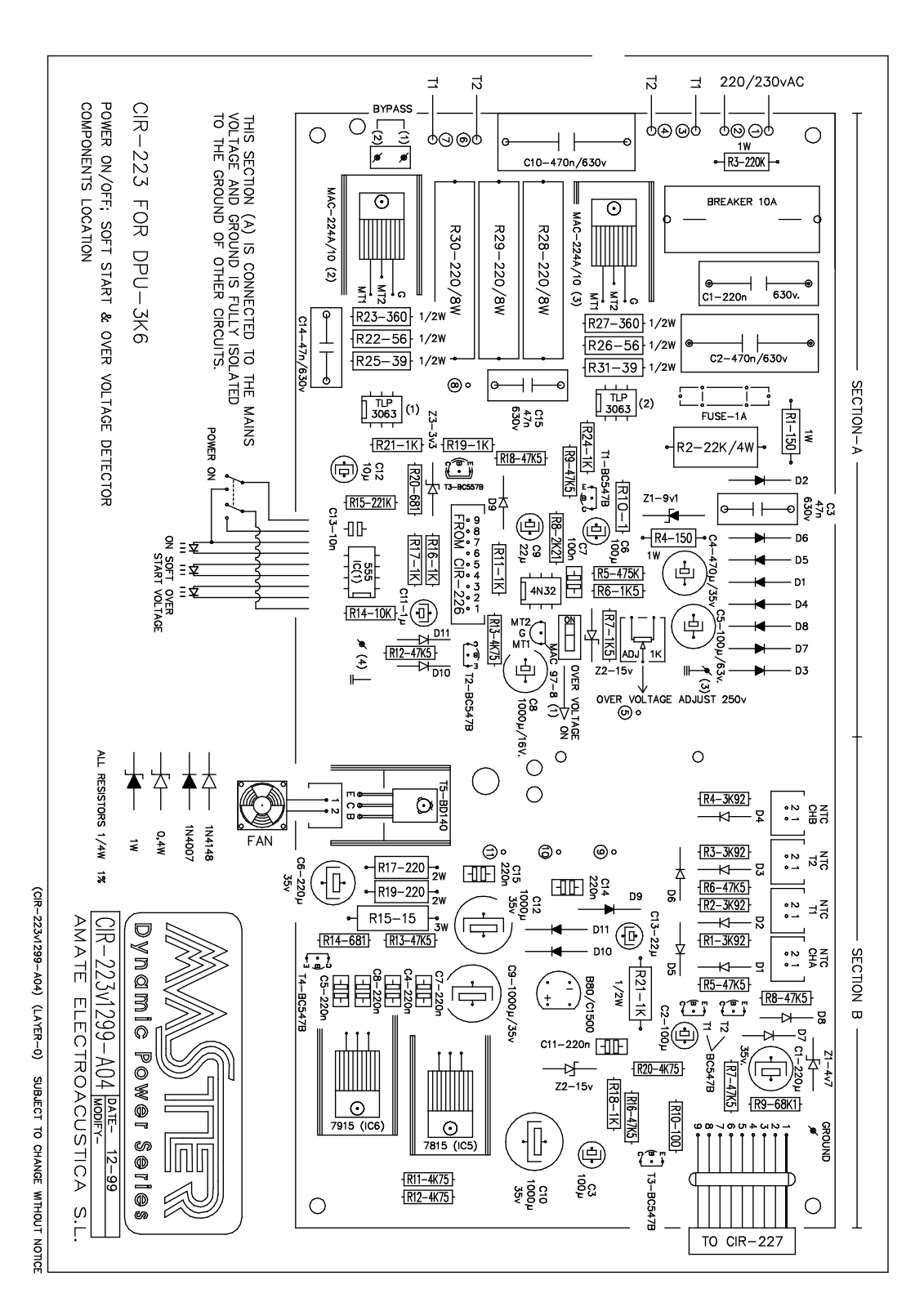

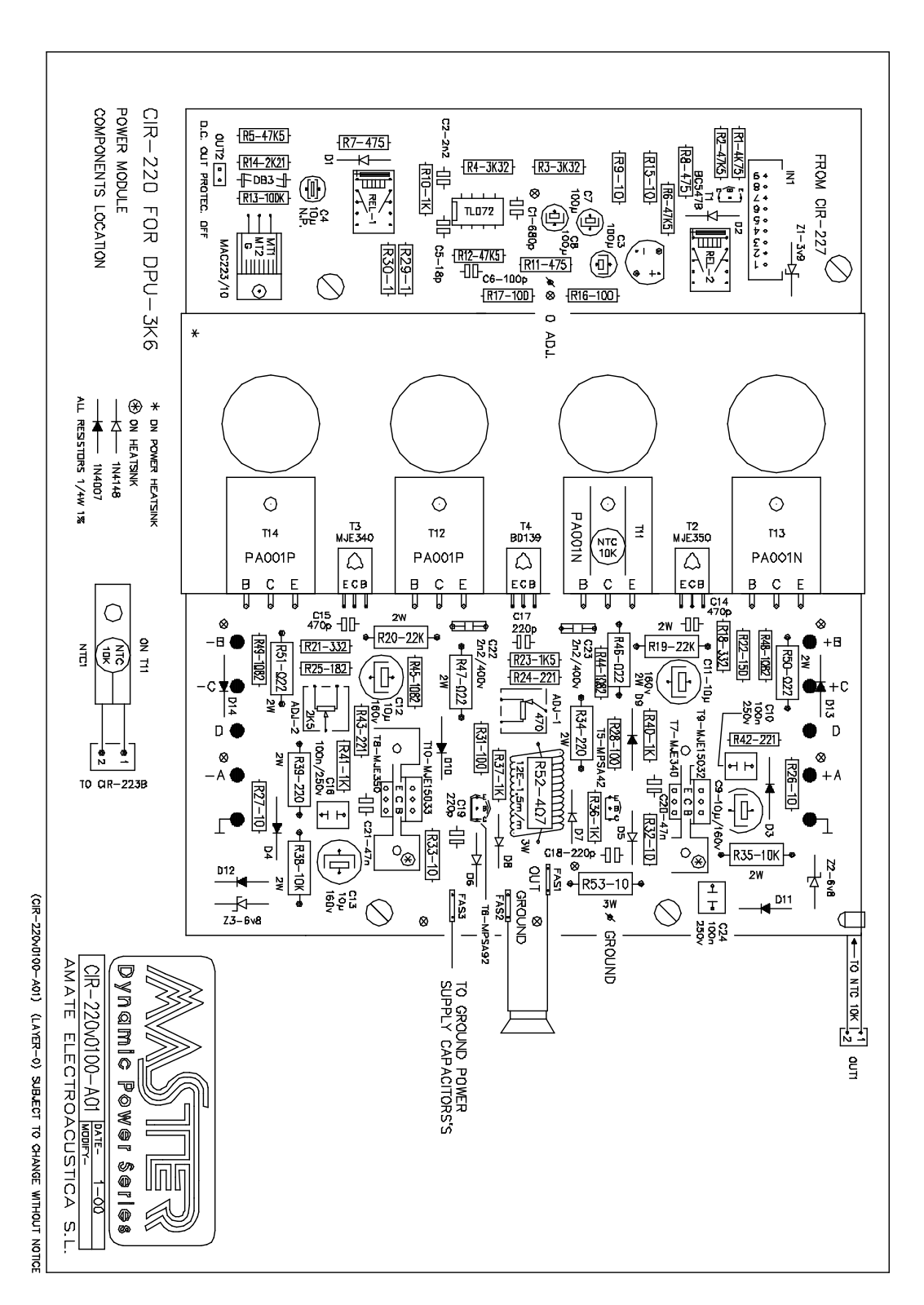

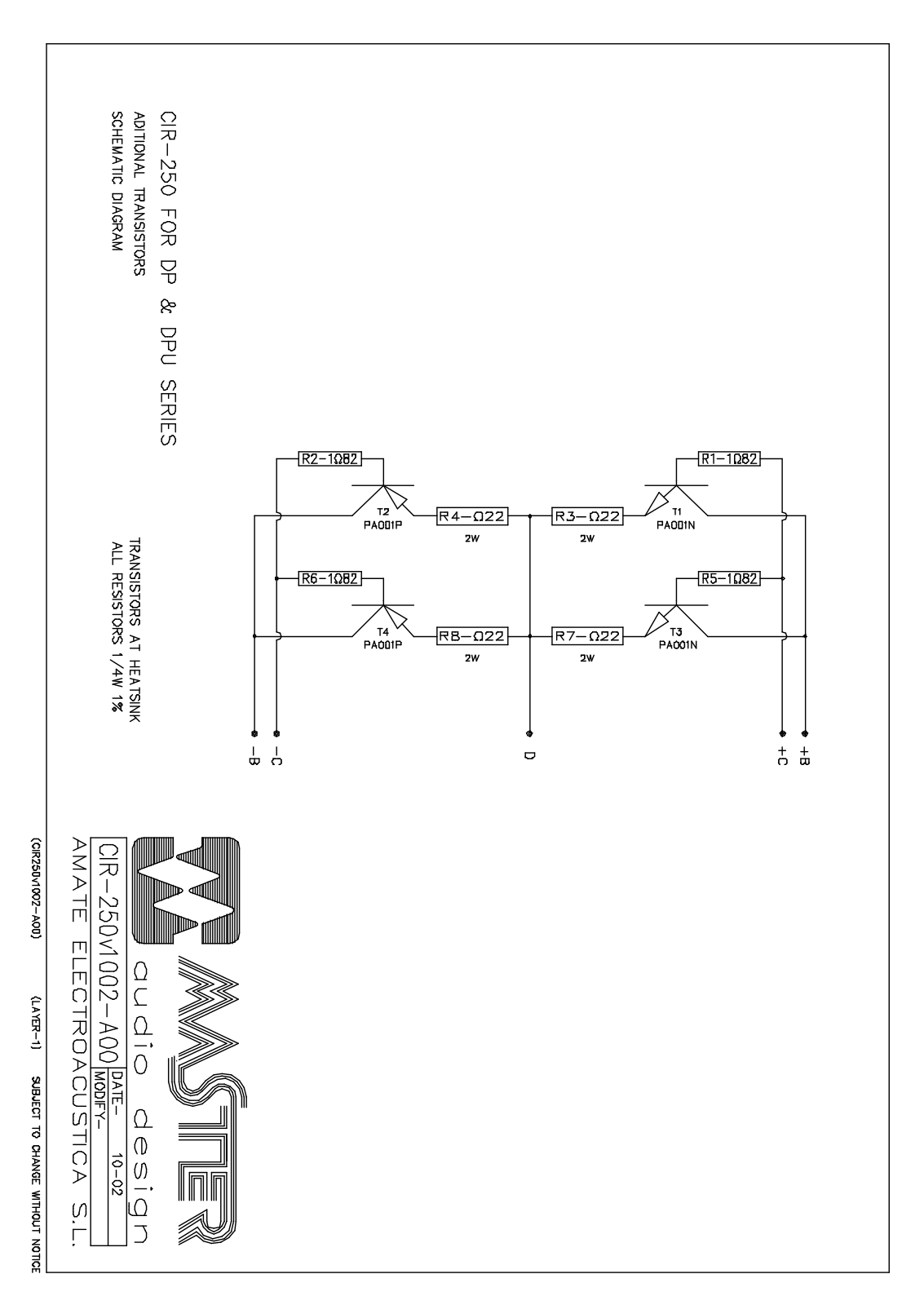

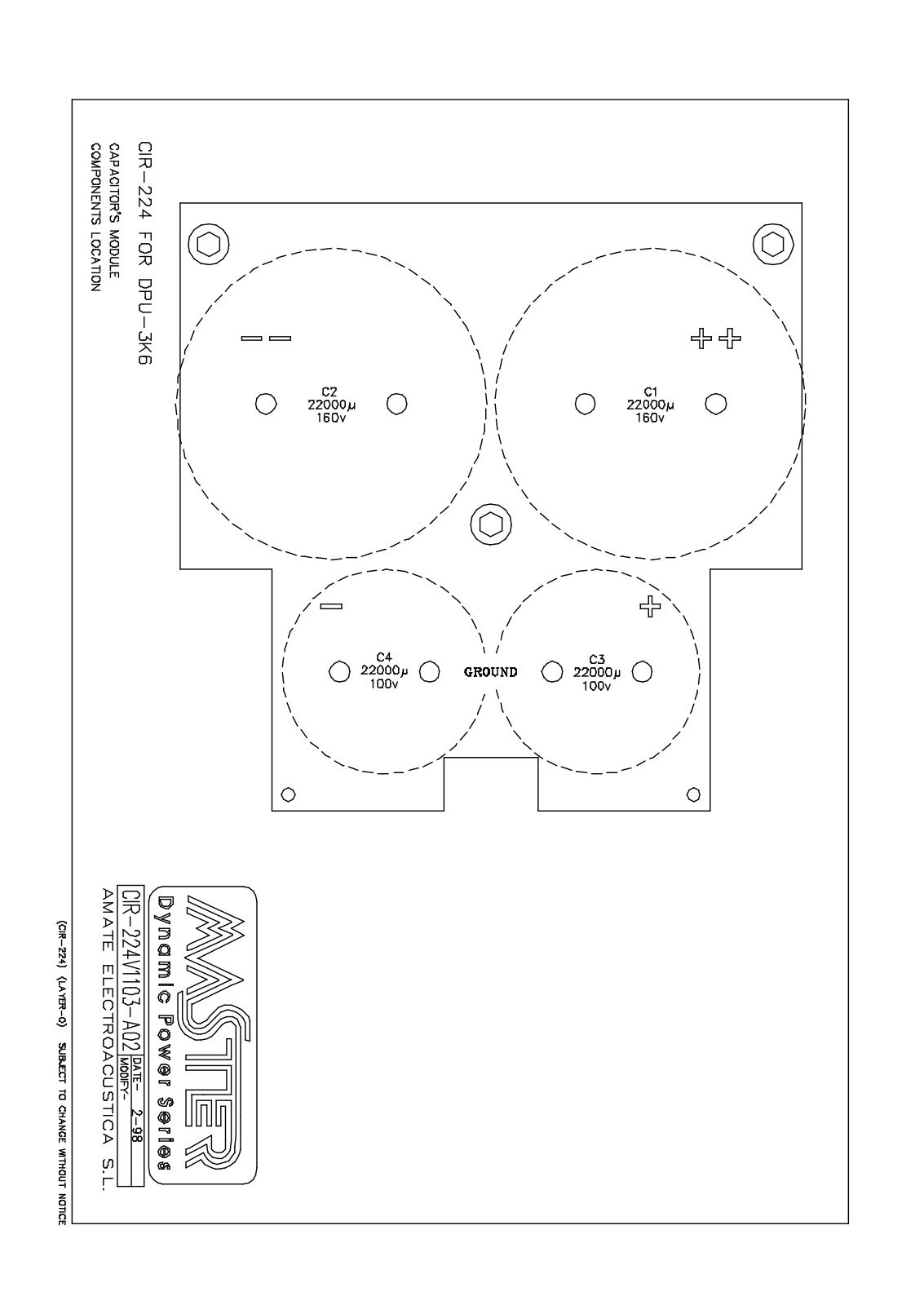

Master audio DPU-3K6 SCHEMATICS
...
Master audio SCHEMATICS
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
