Overall length 8.24 in Diameter 0.95 in
Longueur totale • Largo total 210 mm Diamètre • Diámetro 24 mm
Weight (when gas filled) 2.64 oz
Poids (rempli de gaz) • Peso (llena de gas) 75 g
Unit is shipped without fuel.
Appareil expédié sans carburant
La unidad viene sin combustible
U.S. Pat. # 4500027 Japan Pat.# 1236726

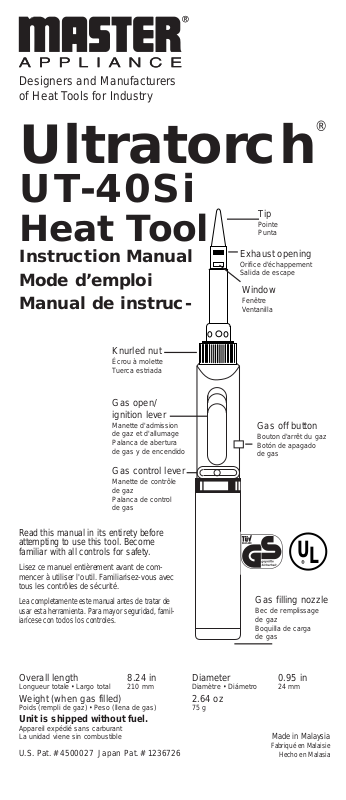

Designers and Manufacturers
of Heat Tools for Industry
Ultratorch
®
UT-40Si
Heat Tool
Instruction Manual
Mode d’emploi
Manual de instruc-
Made in Malaysia
Fabriqué en Malaisie
Hecho en Malasia
Tip
Pointe
Punta
Exhaust opening
Orifice d'échappement
Salida de escape
Window
Fenêtre
Ventanilla
Knurled nut
Écrou à molette
Tuerca estriada
Gas open/
ignition lever
Manette d'admission
de gaz et d'allumage
Palanca de abertura
de gas y de encendido
Gas control lever
Manette de contrôle
de gaz
Palanca de control
de gas
Gas off button
Bouton d'arrêt du gaz
Botón de apagado
de gas
Gas filling nozzle
Bec de remplissage
de gaz
Boquilla de carga
de gas
Read this manual in its entirety before
attempting to use this tool. Become
familiar with all controls for safety.
Lisez ce manuel entièrement avant de commencer à utiliser l'outil. Familiarisez-vous avec
tous les contrôles de sécurité.
Lea completamente este manual antes de tratar de
usar esta herramienta. Para mayor seguridad, familiarícese con todos los controles.
U
L
®
Principles of Operation
This product uses a catalytic gas
reaction system.The special
catalyst contained in the tip is
preheated with a butane flame.
The preheated flame is
extinguished when the shutter is
closed over the ignition vent.
Butane gas continues to flow over the preheated catalyst generating infrared
heat which is either conducted through the soldering iron tip or passed through
the heat tip as hot gas.
Fill with Ultratane™Butane
Use only Master Ultratane butane with your Ultratorch.
Do not fill gas or store near open flame, heater, furnace or
combustible materials.Make sure the unit is cool before
re-fueling. Fill gas holding the unit firmly with the refill
nozzle pointed upwards and press down. Gas will overflow
from nozzle when tank is full.
Ignition Instructions
1. Be sure the exhaust opening is positioned upward. Keep hands and
combustibles clear of exhaust opening and tip housing to avoid burns
or fire.
2. Set the gas Control lever in the middle of the + and -. (In cold places
or soon after refueling, move lever towards + and in hot, towards -.
3. Push the ignition lever upward slowly until it clicks. After several
seconds, the window becomes red and the catalyst starts to react
without a flame inside. If the unit did not ignite, push the OFF button
and repeat.
4. Adjust tip temperature with the gas control lever.
5. To turn off, push GAS OFF BUTTON.Check window to make sure the
unit is off.
Use as a Soldering Iron or Heat Tool
1. Loosen knurled nut to remove tip and tip housing.
2. Replace with soldering tip or hotblow tip and re-install tip housing
onto unit.
DO NOT TRY TO IGNITE WHEN SOLDERING OR HEAT TIP IS
DISMOUNTED.THIS COULD LEAD TO AN IGNITION PROBLEM.
To Replace Ejector
Change ejector unit when gas does not flow, ceramic burner is broken or
used up after a certain amount of time, etc.
TO REMOVE
1. Remove a soldering/heat tip by
loosening the knurled nut.
2. Insert a bar into the hole on the
ejector and turn clockwise.The
ejector unit will come away.
(fig 2)
TO REMOUNT
1. Replace with new ejector unit
and insert a bar in the hole on
ejector and turn counter-clockwise to tighten.
2. Replace a tip and tighten the
knurled nut. (fig 3)
Storage of Your Ultratorch Heat Tool
1. Allow unit to cool and put protective cap on for storage.
2. If your unit is not going to be used for awhile, store in the following
manner.Store in proper location avoiding elevated temperatures and
away from children.
3. Leave tank approximately 1/2 full so lubrication of fuel pickup filter
stays wet.
4. Set flow control valve at mid setting.
Form No. 58175 Rev. 2
1
32
Chrome Plated
Tinned
Copper Base Nickel Plated
Iron Plated
Hot Air Vent Catalyst
Evaporated
Gas
Trouble Shooting
Problem
Does not ignite
Tip does not heat up
Probable cause
a. Empty tank
b. Clogged ejector
c.
Too high or too low
gas pressure
a. Used-up catalyst
b. Insufficient gas pressure
c. Ejector is clogged
Solution
a. Refill with butane fuel
b.
Replace with new ejector
c.
Slide control lever to a
higher or lower position.
a. Replace with new tip
b. Refill with butane gas
c. Replace with new ejector
How to Empty Tank of Butane Gas if Needed
1. Only empty fuel tank in a well
ventilated area and away from
ignition sources. Remember
butane is heavier than air.
2. Depress the filler valve at the
back of the tank with a small
bladed screwdriver and let the
butane gas escape through the
small orifice opening. It takes
approximately one minute for
the butane to escape from the
tank. Be careful that the butane
does not hit against your fingers
or hands.This could cause
frostbite of the skin.
3. One method is to poke a small
bladed screwdriver through a
piece of paper and then
carefully depress the filler valve.
The escaping gas will hit the
paper and not your hand.
4. Never turn gas lever to “ON”
and allow gas to evacuate
through the ejector/tip.Doing
this will clog the ejector and
lead to premature failure.
5. Never try to unscrew the filler
valve as it is adhesively bonded
to the tank. Breaking of this
bond will destroy the unit,
causing the tank to leak.
Important Safety Instructions
WARNING: This product, when used for soldering and similar
applications, produces chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
WARNING: The Department of Transpor tation Hazardous material
Regulations forbid the carriage of butane or other flammable gas
products on passenger aircraft. Do not pack this item or any other
flammable gas item, in any checked or carry-on baggage.
To reduce the risk of injury or property
damage, READ AND UNDERSTAND the
following warnings:
1. To prevent fire or damage to work
surfaces, be sure hot air exhaust
opening is positioned up.Hot air
comes out of the exhaust opening in
the tip.Keep combustibles and hands
away from the opening.
2. To prevent fuel tank leakage, do not
store in environmental area that
exceeds 104°F/40°C (such as car
dashboard or trunk, direct sun, glove
compartment, or other enclosed,
unventilated areas).
3. Be sure to turn “ON/OFF” switch to
“OFF” after use.
4. Do not perform maintenance or repair
unless unit is completely cool. Be
certain “ON/OFF” lever is “OFF”.
5. Wait for tips to cool before changing.
Keep hands and combustibles from tip
area while in use.
6. When soldering or desoldering always
review material safety data sheets
(MSDS) for recommended precautions
for safe handling and use of solder,
solder paste, flux, conformal coatings
and any other chemicals.
7. Store away from, and do not use in the
presence of children.
8.
Keep protective cap on unit while not in use.
9. Use only in well-ventilated area.
Continuous or extended use indoors
should be done only with a local
exhaust ventilation to the outside.
10.Do not expose to open flame or other
sources of high temperature.
11.To prevent clouding of window, do not
use alcohol or alcohol-based cleaner.
12.Use only Master Appliance Ultratane
Butane Fuel to insure maximum safety
and performance. MSDS upon request.
13.Always use safety glasses or goggles.
14.Do not fill gas or store near open
flame, heater, furnace or combustible
materials.
15.Do not misuse, abuse, alter or tamper.
16.It is your responsibility to follow your
governmental regulations when
disposing of this unit.
NOTE: When operating in extremes of
temperature (hot or cold), at high altitude,
ignition may be difficult due to the variation
of gas pressure caused by these
extremes. Gas control settings will also be
affected and will vary from those under
normal conditions. If difficulties are
experienced, please contact our Customer
Service Department who will advise on
adjustment.
Warnings:
