Proheat®Varitemp
Heat Gun
Instruction Manual
Mode d’emploi
Manual de instrucciones
Designers and Manufacturers
of Heat Tools for Industry
Fabricants d’outils chauffants pour
usages industriels
Diseñadores y fabricantes de
herramientas térmicas para la industria
Made in U.S.A.
Fabriqué aux États-Unis
Hecho en EE.UU.
Please read, understand and keep this
manual for future reference
Lire et bien comprendre les instructions
contenues dans ce manuel et les conserver comme référence.
Por favor lea, comprenda y guarde este manual para futura referencia.
The Varitemp Proheat®Heat
Gun is a compact, lightweight,
easy-to-use heat gun. Its
compact size and lightweight
design make it easy to use in
close quarters with minimum
operator fatigue. This multipurpose tool provides a fast
flow of heated air and is well
suited for a variety of flameless
heat applications such as
activating adhesives, bending
and forming plastics, defrosting
frozen coils, drying negatives
and parts, heating solids and
liquids, loosening nuts and
bolts, removing vinyl, shrinking
tubing and packaging, softening
materials and stripping paint.
It’s your dependable answer,
“wherever a fast, portable, heat
is the need.”
Heat guns are a source of
extremely high temperature
flameless heat (up to
1050°F/566°C). As with other
products which generate
extremely high temperatures,
regardless of your specific
application, extreme care and
caution should be observed
when using this product.
Therefore, we recommend
that you pay particular
attention to the safety
instructions which we have
provided for your protection.
2
Description & Introduction
Specifications
Model # PH-1200 PH-2200
Volts 120 220
Cycles 60 Hz 50 Hz, 60 Hz
Watts 1450 max. 1300 max.
Amps 12 6
Temp. nozzle at 1” 1050°F max. 800°F max.
Air velocity 3650 FPM 3650 FPM
Air volume 15 CFM 15 CFM
Net. wt. 1 lb. 12 oz. 1 lb. 12 oz.
Ship wt. 2 lbs. 2 oz. 2 lbs. 2 oz.
Cord length 6 ft. 6 ft.
Approvals UL & CSA —
Overall dimensions 8.25"L, 3"W, 7.3"H 8.25"L, 3"W, 7.3"H
Nozzle diameter (end) 1.3" 1.3"
Read These Instructions.
WARNING: Extreme care
should be taken when stripping
paint. The peelings, residue and
vapors of paint may contain
lead, which is poisonous. Any
pre-1977 paint may contain
lead and paint applied to homes
prior to 1950 is likely to contain
lead. Once deposited on
surfaces, hand to mouth contact
can result in the ingestion of
lead. Exposure to even low
levels of lead can cause
irreversible brain and nervous
system damage; young and
unborn children are particularly
vulnerable.
Before beginning any paint
removal process you should
determine whether the paint
you are removing contains lead.
This can be done by your local
health department or by a
professional who uses a paint
analyzer to check the lead
content of the paint to be
removed. LEAD BASED PAINT
SHOULD ONLY BE
REMOVED BY A
PROFESSIONAL AND
SHOULD NOT BE REMOVED
USING A HEAT GUN.
Hidden areas such as behind
walls, ceilings, floors, soffit
boards and other panels may
contain flammable materials
that could be ignited by the heat
gun when working in these
locations. The ignition of these
materials may not be readily
apparent and could result in
property damage and injury to
persons.
When working in these
locations, keep the heat gun
moving in a back-and-forth
motion. Lingering or pausing in
one spot could ignite the panel
or the material behind it.
Persons removing paint should
follow these guidelines:
1. Move the work piece
outdoors. If this is not
possible, keep the work area
well ventilated. Open the
windows and put an exhaust
fan in one of them. Be sure
the fan is moving the air from
inside to outside.
2. Remove or cover any
carpets, rugs, furniture,
clothing, cooking utensils and
air ducts.
3. Place drop cloths in the work
area to catch any paint chips
or peelings. Wear protective
clothing such as extra work
shirts, overalls and hats.
4. Work in one room at a time.
Furnishings should be
removed or placed in the
center of the room and
covered. Work areas should
be sealed off from the rest of
the dwelling by sealing
doorways with drop cloths.
5. Children, pregnant or
potentially pregnant women
and nursing mothers should
not be present in the work
area until the work is done
and all clean up is complete.
6. Wear a dust respirator mask
or a dual filter (dust and
fume) respirator mask which
has been approved by the
Occupational Safety and
Health Administration
(OSHA), the National
Institute of Safety and Health
(NIOSH), or the United
States Bureau of Mines.
These masks and
replaceable filters are readily
available at major hardware
stores. Be sure the mask fits.
Beards and facial hair may
keep masks from sealing
properly. PAPER MASKS
ARE NOT ADEQUATE.
7. Use caution when operating
the heat gun. Keep the heat
gun moving, as excessive
heat will generate fumes
which can be inhaled by the
operator.
8. Keep food and drink out of
the work area. Wash hands,
arms and face and rinse
mouth before eating or
drinking. Do not smoke or
chew gum or tobacco in the
work area.
9. Clean up all removed paint
and dust by wet mopping the
floors. Use a wet cloth to
clean all walls, sills and any
other surface where paint or
dust is clinging. DO NOT
SWEEP, DRY DUST OR
VACUUM. Use a high
phosphate detergent or
trisodium phosphate (TSP) to
wash and mop areas.
10. At the end of each work
session put the paint chips
and debris in a double
plastic bag, close it with
tape or twist ties and
dispose of properly.
11. Remove protective clothing
and work shoes in the work
area to avoid carrying dust
into the rest of the dwelling.
Wash work clothes
separately. Wipe shoes off
with a wet rag that is then
washed with the work
3
Important Safety Instructions
clothes. Wash hair and
body thoroughly with soap
and water.
12. WARNING: To reduce the
risk of fire or electric shock,
do not expose heat guns to
rain or moisture. Store
indoors. Connect to
grounded outlet only.
13. Do not use plug adapters
or remove the ground
prong from the plug. This
tool is equipped with a 3prong plug and a 3-wire
grounding system. Connect
to properly grounded
outlets only.
14. Use heat gun only on
adequately rated circuits to
avoid overheating of
electrical systems.
15. Proheat heat guns can
produce up to 1050°F of
flameless heat out of the
nozzle. Do not direct this
hot air stream at your
clothing, hands or body
parts. Do not use as a hair
dryer.
16. Do not touch nozzle
opening or nozzle shield
until cool. When in “Hot”
mode, extreme heat is
generated at those areas.
Always hold tool by the
handle or use permanently
attached stand.
17. Run on cool before turning
off. The nozzle and shield
require approximately 3
minutes to become cool to
the touch. Stand the unit on
its end with the nozzle
pointing upward after
turning off.
18. Do not touch work surface
with nozzle. Scrape paint
with nozzle face at least 1”
away.
19. Keep a clean work area.
Messy or cluttered work
areas invite accidents or
injury.
20. Keep away from children.
All visitors should be kept at
a safe distance from the
work area. Do not let
visitors touch the tool or
extension cord.
21. Use tool in a well-ventilated
area. Do not use near
flammable liquids or in an
explosive environment
(where fumes, gases or
dust are present).
22. Remove all highly
flammable materials and
other debris from the work
area.
23. Wear safety glasses at all
times.
24. When using an extension
cord, use only a 3-wire
grounded cord with a
minimum of 14-gauge
capacity. We recommend
they be listed by Underwriters Laboratories (UL) in
the U.S.A. or (CSA)
Canadian Standards
Association in Canada and
be suitable for outdoor use.
Cords marked for outdoor
use are also suitable for
indoor use.
25. Don’t abuse cordset. Never
pull by cord to remove from
electrical outlet or carry tool
by cord.
26. When not hand-held, place
tool on a level surface.
Position cordset so it does
not cause tipping.
27. Keep a fully-charged fire
extinguisher close at hand.
4
Important Safety Instructions
(cont’d)
28. Do not leave heat gun
unattended while it is
running or cooling down.
29. Stay alert. Do not operate
tool when you are tired. Use
common sense and watch
what you are doing.
30. Store properly. Do not store
while hot. Store in a dry,
high or locked-up location.
Keep out of the reach of
children.
31. Always unplug tool before
performing any
maintenance. When
servicing, use only Master
Appliance brand
replacement parts. We
recommend that all
maintenance be performed
by a qualified repair
technician who is
experienced in the repair of
electric tools, a qualified
service organization, or our
repair staff.For Factory
Repair Service, send
product to:
32. WARNING:
THIS PRODUCT,
WHEN USED FOR SOLDERING AND
SIMILAR APPLICATIONS, PRODUCES
CHEMICALS KNOWN TO THE STATE
OF CALIFORNIA TO CAUSE CANCER
AND BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
Master Appliance Corp.
Attn: Repair Department
2420 - 18th Street
Racine, Wl 53403
Save These Instructions.
5
The proper amount of heat for
each application is dependent
upon the distance of the
nozzle from the work surface
and the length of time that
heat is applied to the work
surface.
Before performing any
application, we recommend
that you experiment with a
piece of scrap material. Use
care in approaching the work
until you find the proper
combination of heat
adjustment control, distance
from the work surface, and the
heat application time.
Use a gentle back and forth
motion when applying heat
unless it is found that a
concentrated heat is desired.
Operating Instructions

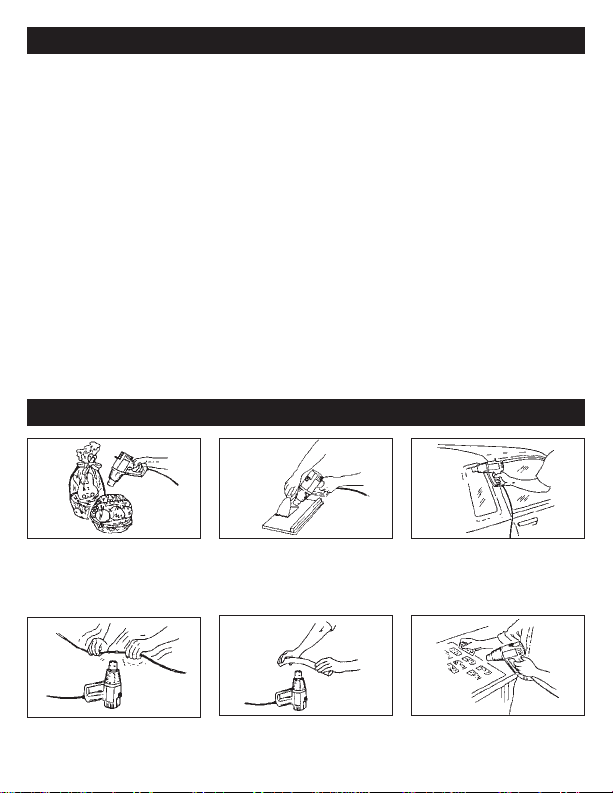

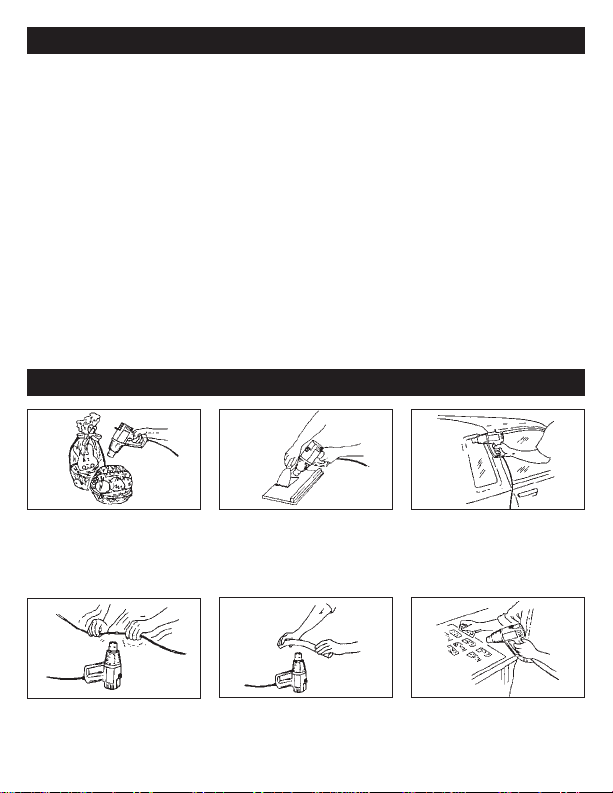

Typical Applications
CAUTION: Do not place unit
on its side while using
spreader or heat shrink
attachments.
To Operate Heat Gun
1) Plug heat gun into properly
rated outlet.
2) Move rocker switch to “Hot”
position. Heat gun will
come up to operating
temperature in
approximately two minutes.
3) Move switch to "Off" position.
Shrink Packaging
Use low or high heat
Shrink Tubing
Use low or high heat
Bend PVC Tubing
Use high heat
Dry Film
Use low heat
Strip Paint
Use low or high heat
Install Vinyl
Use low or high heat
6
exhaust mode), and
keeping a clean work area.
When dust or vapors are
present, use a respirator
designed to filter lead.
Move work outside when
possible.
Failure to follow adequate
safety precautions when
working with lead based
paint could result in lead
poisoning. See our Paint
Stripping instructions for
more information.
3) Keep away from chemical
paint strippers which can
ignite or release harmful
vapors.
4) Use adequate ventilation
(such as a window fan in
exhaust mode) and keep
your work area clean.
5) Wear gloves and safety
glasses at all times.
6) Keep a fully charged fire
extinguisher close at hand.
7) Stay alert, watch what you
are doing, and use
common sense.
Stripping Paint
1) To strip paint, turn unit on
and hold it about 1 inch
from the surface being
stripped. Proper distance
and speed of stripping
should be determined by
experience. It is an
advantage to hold the gun
further from the surface and
to move forward slowly.
Slower speed is
compensated by the wider
1) WARNING: With a heat
gun, as with all other heat
tools, keep a fire
extinguisher handy and
observe all sensible fire
precautions.
We do not recommend
using this heat gun on
hollow surfaces such as
outdoor siding, walls,
soffits, panels and
partitions, etc. These areas
often contain flammable
materials such as dust,
wood chips, insulation,
rodent nests and other
debris which could
accidentally ignite.
Your heat gun is best used
for stripping paint from solid
woodwork with ins and
outs, such as solid interior
trim, mouldings, turnings,
doors balusters and porch
trim, etc.
When stripping paint,
always keep the heat gun
moving in a continuous
back and forth motion.
Stopping or pausing too
long in one spot could ignite
the surface you are working
on or the area behind it.
2) Do not breathe or swallow
lead based paint in any
form. Many old homes and
other buildings contain lead
based paint. Dust,
scrapings, residues and
vapors of lead based paint
are extremely poisonous.
Prevent possible lead
poisoning when stripping
this type of paint by using
adequate ventilation (such
as a window fan in the
softened areas. Heat will
also penetrate deeper.
2) As paint begins to blister
and bubble, move gun
slowly in a steady
progression across the
surface. Follow closely with
a scraping knife (a 2-inchwall scraper works best) to
scrape the loosened paint.
Preheat scraper as you are
heating the paint surface.
This increases the speed of
paint stripping.
a. Removal of paint by
using heat is based on
the fact that all organic
paints soften at elevated
temperatures. When soft,
the paint can be easily
lifted off without damage
to the surface.
b. When stripping paint
from grooves in
mouldings, you can
devise your own scraping
tools. Old screwdrivers
with ground-down blades
and linoleum knives are
often used.
3) Move switch to "Low" after
use. Run for three minutes
and turn to “Off” .
Paint Stripping Safety Instructions
NOTE:
Users should independently
evaluate the suitability of the
product for their application.
7
All repairs and maintenance in
this instruction manual must
be performed by a qualified
repair technician who is
experienced with the repair of
electric tools, a qualified
service organization, or
Master Appliance Corp.’s
Repair Department.
For prompt and efficient
maintenance and repair
service, return your product
to:
Master Appliance Corp.
Attn: Repair Department
2420 - 18th Street
Racine, Wl 53403
Please enclose a note
describing your problem and
your phone number.
WARNING: Always unplug
your tool before performing
any maintenance or repairs.
Use only identical Master
Appliance brand replacement
parts.
Heating Elements
Heating element abuse and
eventual burnout can occur
from one of the following
conditions:
1) Inadequate blower speed
2) High line voltage
3) Improper attachment
4) Improper placement of
element or mica insulator
sheets.
5) Nozzle too close to work
being heated (less than 1”).
Lubrication
The bearings are lubricated at
the factory and require no
further lubrication.
Cleaning
Unplug heat gun before
cleaning. To clean outside of
tool, use only a mild soap and
damp cloth. Do not use other
cleaning agents, turpentine,
gasoline, lacquer or paint
thinner, or other solvents that
may contain chemicals which
are harmful to plastics and
other insulating materials.
Never immerse tool in a liquid
or allow a liquid to enter inside
the tool. Make sure all vents
and openings are free and
clear of debris.
Maintenance Instructions
8

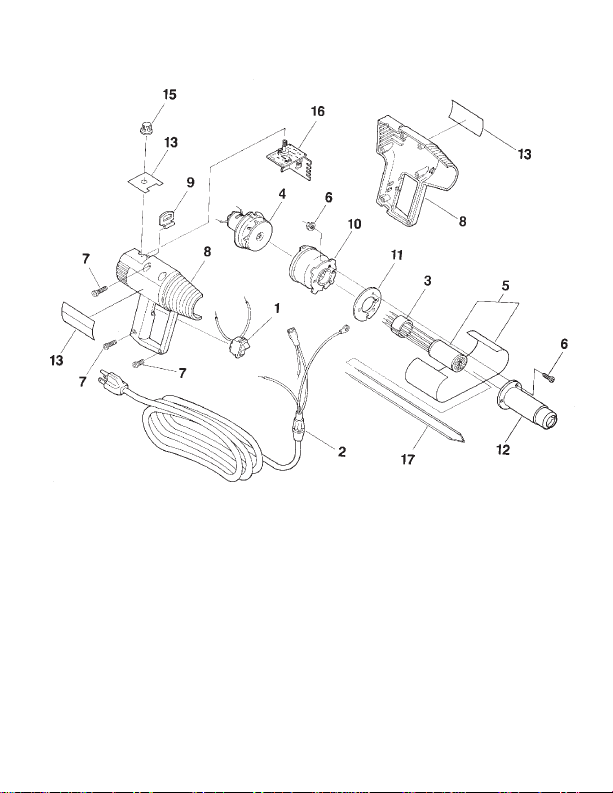

Exploded View
9
Proheat®Varitemp Heat Gun
replacement parts and
accessories are engineered
and manufactured to precise
Master Appliance
specifications. Replacement
parts and accessories from
other manufacturers are not
produced to these precise
specifications, and therefore
may cause difficulties with or
actual damage to a Master
Heat Gun. Master Appliance
cannot assume any
responsibility or liability for
difficulties resulting from the
use of any other brand of
replacement parts or
accessories with a Master
Heat Gun.
Proheat®Varitemp Replacement Parts
PH-1200 PH-2200
Item No. Part No. Part No. Description
1 35028 35028 Switch assembly
2 35029 35030 Cordset with connector
3 35002 35002 Aluminum retaining spacer
4 35040 35040 Motor & fan assembly
5 35031 35032 Heating element kit with thermocouple
6 35010 35010 Nozzle screws (4) & nuts (5)
7 35011 35011 Housing screws (6)
8 35034 35035 Right & left housings & labels
9 35013 35013 Hanger hook
10 35014 35014 Turbine housing
11 35015 35015 Heat barrier
12 35018 35018 Nozzle
13 35038 35039 Housing labels (3)
15 35037 35037 Knob
16 35036 35036 Circuit board
17 35033 35033 Thermocouple
NOTE: All necessary hardware is included to make each replacement complete.
10
Attachments Part No. Description
35016 Spreader Attachment
35017 Heat Shrink Attachment
35026 Nozzle Shield
35027 Spec. Con. & Red. Attach. (Varitemp only)
50379 Reducer Attachment (Varitemp only)
51598 Specialty Connector (Varitemp only)

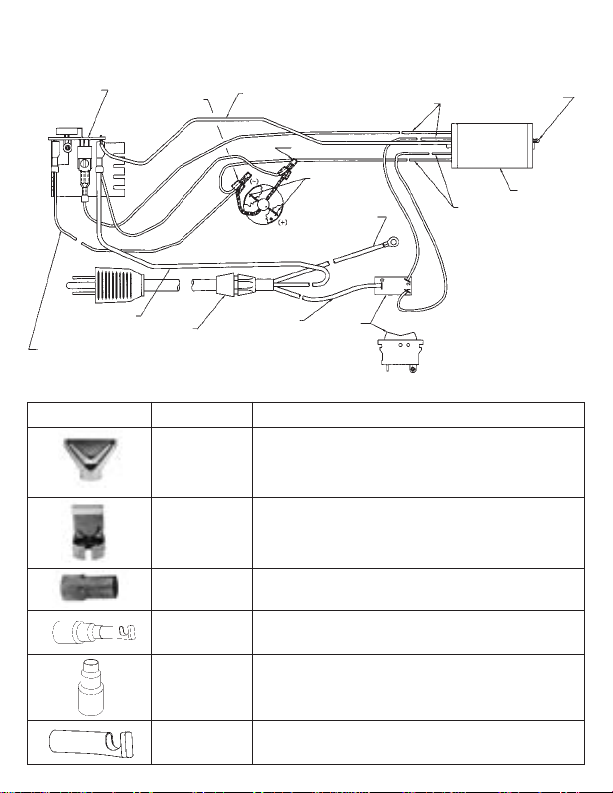

Wiring Diagram
11

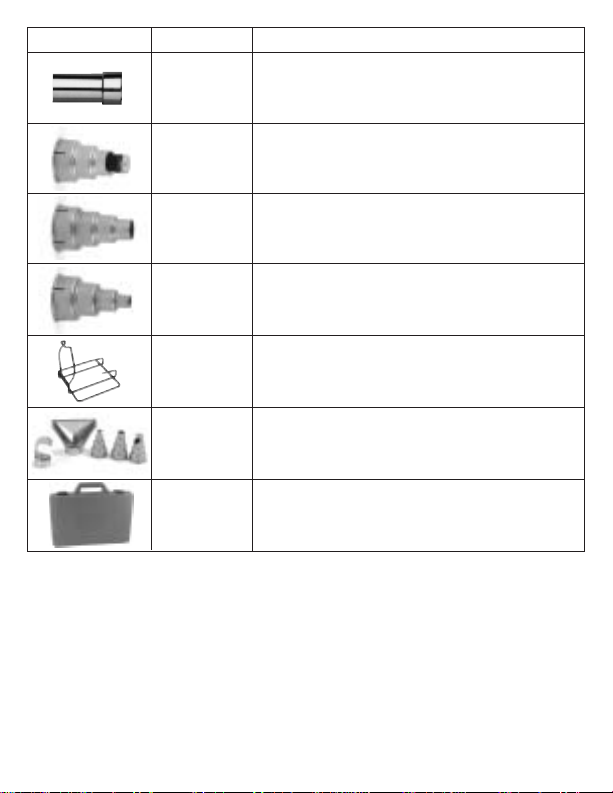

Attachments Part No. Description
35289 Raychem Mini-Gun Adaptor
35292 Specialty Connector
35293 9/16" Reducer
35294 5/16" Reducer
35216 Bench Stand
35309 Attachment Kit
5 of our most popular application tips
35351 Storage Case
Loading...
