Master Appliance MT-5 User Manual

MICROTORCH MT-5

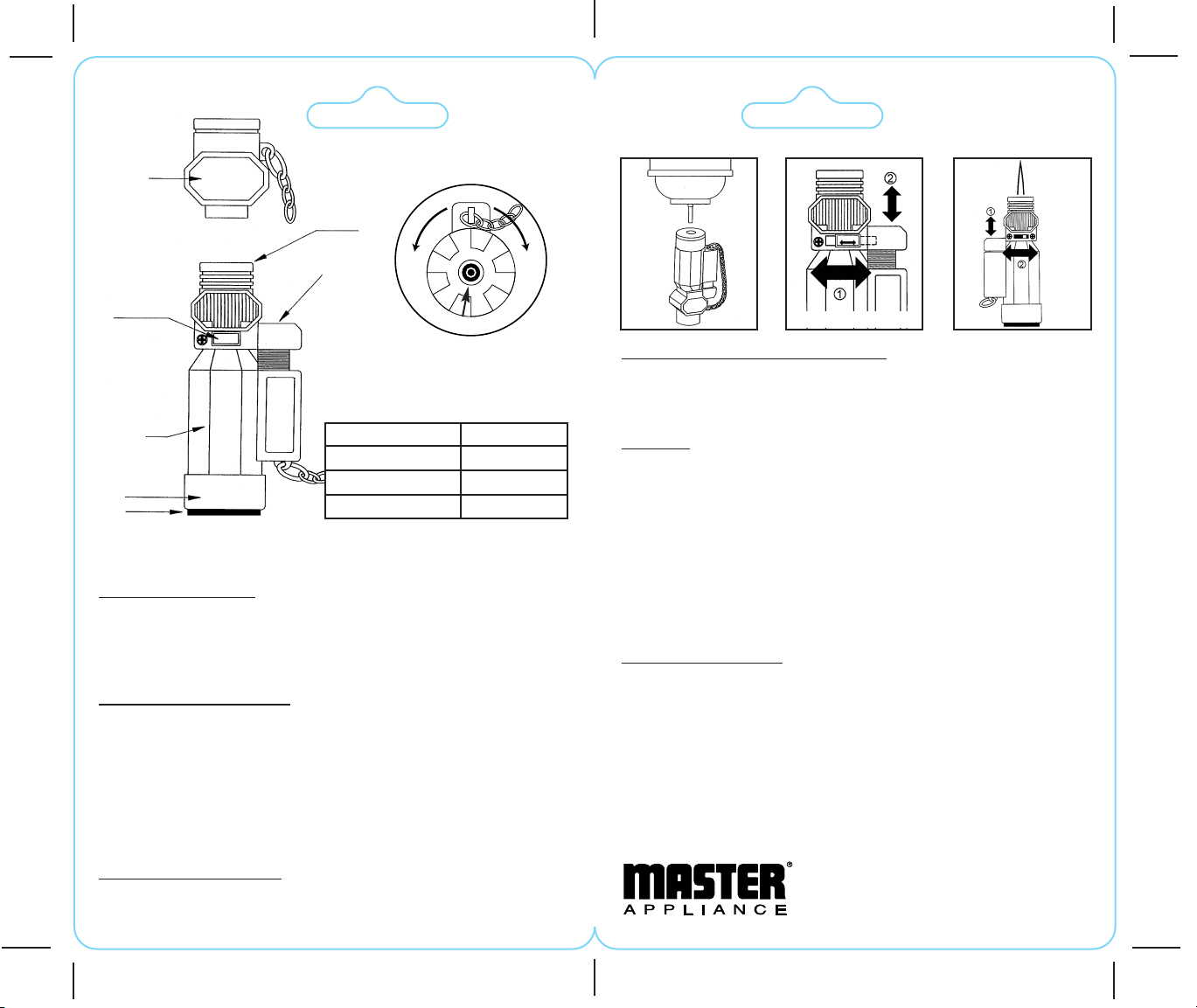

CAP

SAFETY LOCKOUT

LEVER

WINDSHIELD

IGNITION BUTTON

BOTTOM VIEW

MORE

GAS

GAS FLOW VALVE STEM

FLAME ADJUSTMENT

Specifications

BODY

FUEL VIEW

FUEL ADJUSTMENT

Please read and understand
all warnings and instructions.

To ignite unit (figure 2)

• Remove safety cap.

• Slide lockout lever to off position and hold in position while slowly
depressing ignition button.

• After a few attempts if no flame appears, fine tune the unit’s gas flow
and retry ignition step above.

To adjust fuel flow (figure 4)

• Adjust the unit fuel flow by turning the black fuel flow adjustment wheel
at bottom of unit. A 1/4 inch turn CW/CCW will usually be all that is
needed. Note: Extreme caution must be taken not to over adjust fuel
flow. If you are unable to make proper adjustment, please call customer
service. As the gas is consumed, the gas flow can be adjusted periodi­cally to ensure proper flame height. It is recommended that the user set
the flame height to 1/2 inch to 1 inch. If the flame height is set outside
these limits the fuel flow / flame may become unstable and cause
premature clogging or ignition failure.

Hands free mode (figure 3)

• To engage hands free mode follow ignition steps above and once the
unit is ignited, position slide stem button (found on backside of unit) to
full right position. This will allow hands free operation of unit.

Size dim. 75x32x21mm

Unit Weight 45g

Internal tank pressure 65 g/mm2 max

Continuous burn time 20 min. - one fill

LESS

GAS

Fig. 4

OFF-LOCK

Fig. 1

Fig. 2

Fig. 3

To extinguish flame / Turn off gas flow

• From Normal Use: Release pressure from ignition button. Unit will shut

off immediately. (figure 2)

• From Hands free use: Slide hands free slide stem to full left position.

Unit will shut off immediately (figure 3).

CAUTION:

1. Keep out of reach of children.

2. Do not touch flame guard when hot!

3. Butane gas is extremely flammable, please handle with care.

4. Always point away from eyes and body when igniting
or operating.

5. Do not store under direct sunlight or anywhere that will exceed
104°F/40°C.

6. Under no circumstances should you attempt to repair a damaged torch.

7. After using, let the tool cool down before storing.

Contains flammable gas under pressure. Do not use near sparks or open
flame. Do not puncture or incinerate container.

To refuel unit. (figure 1)

• Make sure the unit is OFF and COOL to touch.

• Make sure the protective cap is on nozzle.

®

• Use only Master Ultratane

butane to refuel unit, hold unit firmly with
filler valve pointing up. Place nozzle of butane canister down onto refill
valve and press butane canister down and up in short duration until fuel
tank is filled. Allow 2 -3 minutes for gas to stabilize after filling unit.

• Flame is invisible in direct sunlight. Use caution.

• Point away from face and body when igniting.

• Use in well ventilated areas.

• Always have a fire extinguisher/ bucket of water nearby work area.

• The tank contents are visible through the clear viewing port on the unit.
