Specifications HG-201D HG-301D HG-501D HG-801D
Temperature Rating Measured Inside The Nozzle
400°F 800°F 1200°F 1400°F
Temp Rating - Measured 1"
From The Nozzle
209°F
485°F 552°F 750°F
Adjustable Shutter
No No No No
Volts 120 120 120 120
Hz 60 60 60 60
Amps 5 12 14.5 18.5*
Watts 600 1440 1740 2220
Motor Type Universal Universal Universal Universal
Air Volume (shutter open)
27 CFM 27 CFM 27 CFM 27 CFM
Air Velocity (shutter open)
3,400 FPM 3,400 FPM 3,400 FPM 3,400 FPM
Soft Grip Ergonomic Handle Yes Yes Yes Yes
Plug-In Heating Element Yes Yes Yes Yes
Dimensions
10"L x 5.25"W x
9.5"H
10"L x 5.25"W x
9.5"H
10"L x 5.25"W x
9.5"H
10"L x 5.25"W x
9.5"H
Nozzle Shield O.D. 1.75" 1.75" 1.75" 1.75"
Nozzle Diameter Opening 1.2" 1.2" 1.2" 1.2"
Stand Size
4.5"x 4.5" x 3.92"H 4.5" x 4.5" x 3.92"H
4.5" x 4.5" x
3.92"H
4.5" x 4.5" x 3.92"H
Cord Type 14/3 SJO 90°C 14/3 SJO 90°C 14/3 SJO 90°C 12/3 SJO 90°C
Plug Type
NEMA 5-15P 15
Amp
NEMA 5-15P 15
Amp
NEMA 5-15P 15
Amp
NEMA 5-20P
20Amp*
Cord Length 6ft 6ft 6ft 6ft
Net Weight w/Stand 3.7 lbs. 3.7 lbs. 3.7 lbs. 3.7 lbs.
Ship Weight 5.0 Lbs. 5.0 Lbs. 5.0 Lbs. 5.0 Lbs.
Agency Listings cULus cULus cULus N/A
U.L. File No. E40970 E40970 E40970 N/A
Date Code Location On Blade of Plug On Blade of Plug On Blade of Plug On Blade Plug
Date Code
Month & Year of
Mfg.
Month & Year of
Mfg.
Month & Year of
Mfg.
Month & Year of Mfg.

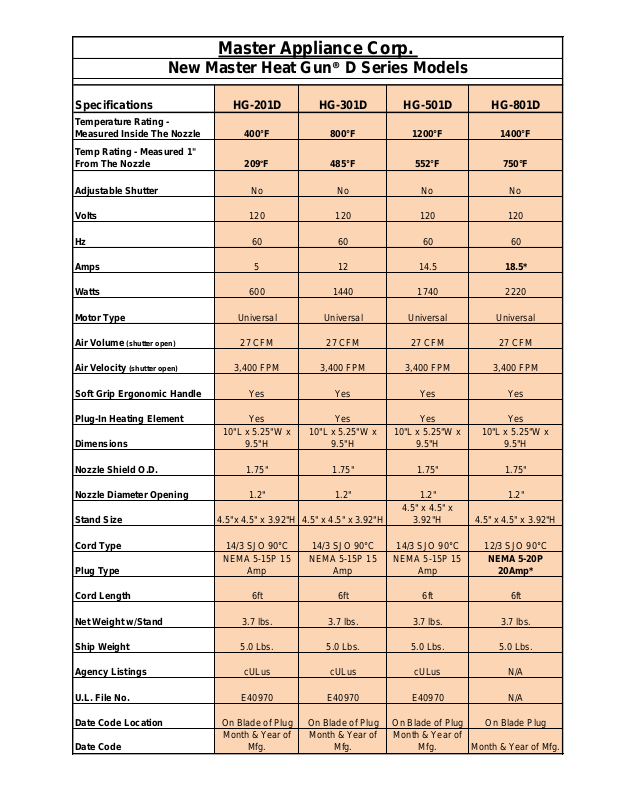

New Master Heat Gun® D Series Models
Master Appliance Corp.
