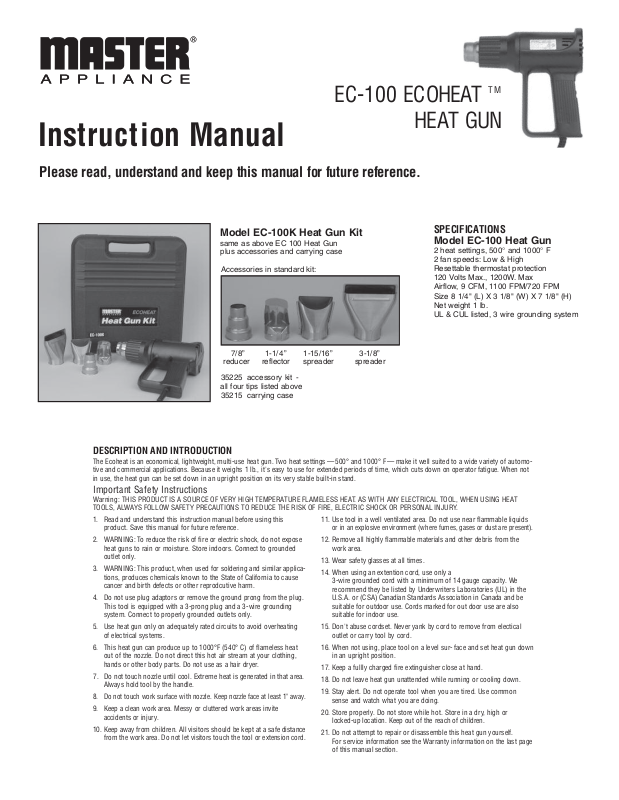

EC-100 ECOHEAT
Instruction Manual
Please read, understand and keep this manual for future reference.
TM
HEAT GUN
Model EC-100K Heat Gun Kit
same as above EC
plus accessories and carrying case
Accessories in standard kit:
7/8”
reducer
35225 acces
all four tips listed above
35215 carrying case
sory kit
100 Heat Gun
1 15/16”-1 1/ 4”
-
spreaderspreaderreflector
--
3 1/8”
SPECIFICATIONS
Model EC-100 Heat Gun
2 heat settings, 500° and 1000° F
2 fan speeds: Low & High
Resettable thermostat protection
120 Volts Max., 1200W. Max
Airflow, 9 CFM, 1100 FPM/720 FPM
Size 8 1/4" (L) X 3 1/8" (W) X 7 1/8" (H)
Net weight 1 lb.
UL & CUL listed, 3 wire grounding system
DESCRIPTION AND INTRODUCTION
The Ecoheat is an economical, lightweight, multi-use heat gun. Two heat settings — 500° and 1000° F — make it well suited to a wide variety of automotive and commercial applications. Because it weighs 1 lb., it's easy to use for extended periods of time, which cuts down on operator fatigue. When not
in use, the heat gun can be set down in an upright position on its very stable built-in stand.
Important Safety Instructions
Warning: THIS PRODUCT IS A SOURCE OF VERY HIGH TEMPERATURE FLAMELESS HEAT. AS WITH ANY ELECTRICAL TOOL, WHEN USING HEAT
TOOLS, ALWAYS FOLLOW SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY.
1. Read and understand this instruction manual before using this
product. Save this manual for future reference.
2. WARNING: To reduce the risk of fire or electric shock, do not expose
heat guns to rain or moisture. Store indoors. Connect to grounded
outlet only.
3. WARNING: This product, when used for soldering and similar applications, produces chemicals known to the State of California to cause
cancer and birth defects or other reprodcutive harm.
4. Do not use plug adap
This tool is equipped with a 3-prong plug and a 3-wire grounding
system. Connect to properly grounded outlets only.
5. Use heat gun only on adequately rated circuits to avoid overheating
of electrical systems.
6. This heat gun can produce up to 1000°F (540° C) of flameless heat
out of the nozzle. Do not direct this hot air stream at your clothing,
hands or other body parts. Do not use as a hair dryer.
7. Do not touch nozzle until cool. Ext
Always hold tool by the handle.
Do not touch work surface with nozzle. Keep nozzle face at least 1" away.
8.
9. Keep a clean work area. Messy or cluttered work areas invite
accidents or injury.
10. Keep away from children. All visitors should be kept at a safe distance
from the work area. Do not let visitors touch the tool or extension cord.
tors or remove the ground prong from the plug.
reme heat is generated in that area.
11. Use tool in a well ventilated area. Do not use near flammable liquids
or in an explosive environment (where fumes, gases or dust are present).
12. Remove all highly flammable materials and other debris from the
work area.
13. Wear safety glasses at all times.
14. When using an extention cord, use only a
3-wire grounded cord with a minimum of 14 gauge capacity. We
recommend they be listed by Underwriters Laboratories (UL) in the
U.S.A. or (CSA) Canadian Standards Association in Canada and be
suitable for outdoor use. Cords marked for out door use are also
suitable for indoor use.
. Don't abuse cordset. Never yank by cord to remove from electical
15
outlet or carry tool by cord.
16. When not using, place tool on a level sur- face and set heat gun down
in an upright position.
17. Keep a fullly charged fire extinguisher close at hand.
18. Do not leave heat gun unattended while running or cooling down.
19. Stay alert. Do not operate tool when you are tired. Use common
sense and watch what you are doing.
20. Store properly. Do not store while hot. Store in a dry, high or
ocked-up location. Keep out of the reach of children.
l
21. Do not attempt to repair or disassemble this heat gun yourself.
For service information see the Warranty information on the last page
of this manual section.
-2-
TY
PICAL APPLICATIONS
- Spot dry paint and primers
- Remove wrinkles and bubbles in vinyl
tops and padded instrument panels
- Soften vinyl tops to stretch material
over short areas
- Remove and replace decals
- Soften undercoating for easy removal
- Thaw frozen door locks, radiators
- Loosen rusted fittings
- Shrink seat covers for perfect fit
- Apply shrink tubing
- Stripping paint
- Drying plaster
- Shrinking packaging
s
- Remove weatherstripping without damage to
doors, side roof rails and deck lid seals
- Remove adhesive backed side mouldings
- Evaporate moisture from metal seams
- Speed cure body fillers, cements, and
adhesives
OPERATING INSTRUCTIONS
Before performing an application, we recommend that you experiment with a piece of scrap material. Use care in approaching the work surface until you
find the proper distance from the work area and the proper heat application time.
Use a gentle back and forth motion when applying heat unless it is found that a concentrated heat is desired.
To Operate Heat Gun
1. Plug heat gun into properly rated outlet.
2. Move slide switch to "1" or "2" switch position. Heat gun will come up
to full operating temperature in approximately two minutes.
3. When performing applications where hands-free use is desired, use
built-in stand.
When heat gun is used in an enclosed container, such as a shrink tunnel or special enclosure, ambient air must be allowed to pass into the heat gun and
there must be an outlet of equal size for heated air to pass out of the enclosure also. Total enclosure will cause damage or possible failure to the heat
gun due to extreme heat generated.
In addition to many other applications, stripping paint has become a popular use for your Heat Gun. Before you attempt to strip paint, make sure you
observe the following safety instructions.
4. To turn heat gun off after use, move switch to "Off" position. This will
allow the heat gun to cool down and the nozzle to become cool to
the touch.
5. After the heat gun has cooled down, store it away for future use.
IMPORTANT SAFETY INSTRUCTIONS R* EAD THESE INSTRUCTIONS
WARNING: Hidden areas such as behind walls, ceilings, floors, soffit boards and other panels may contain flammable materials that could be ignited by
the hot air gun when working in these locations. The ignition of these materials may not be readily apparent and could result in property damage and
injury to persons. Do not use if in doubt about this hazard. When working in t
Lingering or pausing in one spot could ignite the panel or the material behind it. The hot air gun should be used on LOW temperature.
hese locations, keep the hot air gun moving in a back-and-forth motion.
Paint Stripping
WARNING: Extreme care should be taken when stripping paint. The peelings, residue and vapors of paint may contain lead, which is poisonous. Any pre1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead. Once deposited o
result in the ingestion of lead. Exposure to even low levels of lead can cause irreversible brain and nervous system damage; young and unborn children
are particularly vulnerable.
Before beginning any paint removal process you should determine whether the paint you are removing contains lead. This can be done by your local
health department or by a professional who used a paint analyzer to check the lead contact of the paint to be removed
ONLY BE REMOVED BY A PROFESSIONAL AND SHOULD NOT BE REMOVED USING A HOT AIR GUN.
Persons removing paint should follow these guidelines:
1. Move the work piece outdoors. If this is not possible, keep the work
area well ventilated. Open the windows and put an exhaust fan in one
of them. Be sure the fan is moving the air from inside to outside.
2. Remove or cover any carpets, rugs, furniture, clothing, cooking
utensils and air ducts.
3. Place drop cloths in the work area to catch any paint chips or
peelings. Wear protective clothing such as extra work shirts, overalls
and hats.
4. Work in one room at a time. Furnishings should be removed or
placed in the center of the room and covered. Work areas shoud be
sealed off from the rest of the dwelling by sealing doorways with
drop cloths.
5. Children, pregnant or potentially pregnant women and nursing
mothers should not be present in the work area until the work is don
and all cleanup is complete.
Wear a dust respirator or a dual filter (dust and fume) respirator mask
6.
which has been approved by the Occupational Safety and Health
Administration (OSHA), the National Institute of Safety and Health
(NIOSH), or the United States Bureau of Mines. These masks and
replaceable filters are readily available at major hardware stores. Be
sure the mask fits. Beards and facial hair may keep masks from sealing
e
properly. Change filters often. DISPO
ADEQUATE.
7. Use caution when operating the hot air gun. Keep the hot air gun
moving as excessive heat will generate fumes which can be inhaled by
the operator.
8. Keep food and drink out of the work area. Wash hands, arms and face
and rinse mouth before eating or drinking. Do not smoke or chew
gum or tobacco in the work area.
9. Clean up all removed paint and dust by wet mopping the floors. Use a
wet cloth to clean all walls, sills and any other surface where pain
dust is clinging. DO NOT SWEEP, DRY DUST OR VACUUM.
Use a high phosphate detergent or trisodium phosphate (TSP) to
wash and mop areas.
10. At the end of each work session put the paint chips and debris in a
double plastic bag, close it with tape or twist ties, and dispose of
properly.
11. Remove protective clothing and work shoes in the work area to avoid
carrying dust into the rest of the dwelling. Wash work clothes separately. Wipe shoes off with a wet rag that is then washed wit
work clothes. Wash hair and body thoroughly with soap and water.
n surfaces, hand to mouth contact can
LEAD-BASED PAINT SHOULD
.
SABLE PAPER MASKS ARE NOT
SAVE THESE INSTRUCTIONS
t or
h the
One Year Warranty
Your Ecoheat®Heat Gun was carefully tested and inspected before it was shipped from the factory. We warrant this product to be free from defects in
materials and workmanship under normal use and service for one year from date of purchase. In the event of a defect in materials or workmanship, we
will either repair or replace, without charge, at our option, any part which in our judgment shows evidence of such defect.
This warranty does not apply to the attachments, the brush motor, or t
apply if the Ecoheat Heat Gun has been misused, abused, tampered with, or altered. At the end of the warranty period, Master Appliance shall be under
no further obligation expressed or implied. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you.
Master Appliance assumes no responsibility for and this warranty shall not cover a
uct or its use. Some states do not allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you.
This warranty gives you specific rights and you may also have other rights which may vary from state to state.
For warranty repair a proof of purchase or other appropriate proof of date is required with your return for warranty repair to Master Appliance Corp
warranty claims must be made to Master Appliance Corp. and not the distributor. We decline responsibility where repairs have been made or attempted
by others. Any different guarantee made by others is not authorized by us. If a warranty claim is to be made please return your Ecoheat Heat Gun
prepaid, with proof of purchase and a note describing the problem to our customer service department. See below.
Master Appliance Corp.
S
ervice Department, 2420 - 18th St., Racine
www.masterappliance.com
, WI 53403
he heating element, which are items requiring periodic replacement , not does it
ny incidental or consequential damages from any defect in this prod-
. All
Please ship tool prepaid. Enclose your phone number
and a note describing your problem.
Manual de Instrucciones
Por favor lea, comprenda y guarde este manual para futura referencia.
EC-100 ECOHEAT
HEAT GUN
ESPECIFICACIONES
Modelo: EC-100
2 ajustes decalor: 260°C y 540°C(500°Fy 1 000°F)
Ventilador dedos velocidades
Protección de termostato regulable
Voltios: 120 máx.
Vatios: 1 200 máx.
Volumen de aire: 0,25 m3/min (9 pies3/min)
Velocidad de aire: 335 m/min/220 m/min
(1 100 pies/min/720 pies/min)
Dimensiones: 210 mm x 80 mm x 180 mm
(8-1/4"x 3-1/8" x 7-1/8")
Modelo: EC-100
K
DESCRIPCIÓN E INTRODUCCIÓN
La Ecoheat® Heat Gun es una pistola de aire caliente que es económica, liviana y de múltiples usos. Sus dos ajustes de calor — 260 °C y 540 °C —
la hacen adecuada para una amplia variedad de aplicaciones automotrices y comerciales. Dado que pesa sólo 450 g (1 lb), resulta fácil de utilizar por
largos períodos de tiempo con un mínimo de fatiga para el operador. Cuando no esté en uso, la pistola de aire caliente puede dejarse en posición vertical sobre su p
edestal incorporado.
Importantes instrucciones de seguridad
Advertencia: ESTA HERRAMIENTA ES UNA FUENTE DE CALOR, A MUY ELEVADA TEMPERATURA Y SIN LLAMA. COMO CON CUALQUIER
HERRAMIENTA ELÉCTRICA, AL USAR HERRAMIENTAS DE AIRE CALIENTE, SIEMPRE TOME LAS DEBIDAS PRECAUCIONES PARA REDUCIR EL
RIESGO DE INCENDIO, CHOQUE ELÉCTRICO O LESIÓN CORPORAL.
1. Lea y comprenda este manual de instrucciones antes de usar esta
herramienta. Guarde este manual para su futura referencia.
2. ADVERTENCIA: Para reducir el riesgo de incendio o choque eléctrico,
no exponga su pistola de aire caliente a la lluvia o humedad. Guárdela
bajo techo. Conecte la herramienta sólo a un tomacorriente con
conexión a tierra.
3. ADVERTENCIA: El Estado de California tiene conocimientos de que
este producto, cuando se usa en soldaduras o aplicaciones
imilares, produce agentes químicos que pueden provocar cáncer,
s
defectos congénitos y daños al sistema reproductor.
3. No use adaptadores de enchufes ni retire la espiga de tierra del
enchufe. Esta herramienta está equipada con un enchufe para 3
espigas y un sistema trifilar con conexión a tie-rra. Haga la conexión
solamente en tomaco-rrientes debidamente conectados a tierra.
Para evitar el recalentamiento del sistema eléctrico, sólo use la pistola de
4.
aire caliente
5. Esta pistola de aire caliente puede generar por su boquilla hasta
540°C (1 000°F) de calor sin llama. No dirija esta corriente de aire
caliente hacia su ropa, las manos, u otras partes del cuerpo. No la
use como secador de pelo.
6. No toque la boquilla hasta que se enfríe. La boquilla genera un calor
extremadamente intenso. Siempre sostenga la herramienta por su
agarradera.
No toque la superficie de trabajo con la boquilla. Mantenga la boquilla a
7.
una distancia de por lo menos 25 mm (1 pulg) de la superficie de trabajo.
8. Mantenga su área de trabajo limpia. Las áreas de trabajo descuidadas
o desordenadas pueden provocar accidentes y lesiones.
Mantenga esta herramienta fuera del alcance de los niños. Todos los visi-
9.
tantes deben quedar a una distancia prudencial del área de trabajo. No
permita que los visitantes toquen la herramienta o su cable de extensión.
en circuitos eléctricos con la capacidad de carga adecuada.
10. Use esta herramienta en un área bien ventilada. No la use cerca de
líquidos inflamables o en un ambiente explosivo (en presencia de
vapores, gases o polvo).
11. Retire del área de trabajo todos los materia-les altamente inflamables
y otros desechos.
Siempre use gafas de seguridad cuando trabaje con esta herramienta.
12.
13. Al usar un cable de extensión, sólo use un cable trifilar conectado a
tierra con una capacidad mínima de calibre 14. Recomendamos que
estos cables sean aprobados por los Unde
en los EE.UU. o por la Canadian Standards Association (CSA) en el
Canadá y que sean adecuadospara uso al aire libre. Los cables
eléctricos marcados para uso al aire libre también son adecuados
para uso en el interior.
14. No abuse del cable eléctrico. Nunca desconecte la herramienta
tirando el cable del tomacorriente ni transporte la herra-mienta
colgándola del cable.
15. Cuando no esté en uso, coloque la herra-mienta sobre una superficie
nivel
Mantenga a su alcance un extinguidor de incendios totalmente cargado.
16.
17. No deje desatendida la herramienta mientras está funcionando o
enfriándose.
18. Manténgase alerta. No trabaje con esta he-rramienta cuando esté
cansado. Use su sentido común y preste atención a lo que hace.
19. Guarde la herramienta en la forma adecuada. Deje enfriar la
herramienta antes de guardarla. Guarde la herramienta en un lugar
seco, alto y bajo lla
20. No intente reparar ni desarmar esta pistola de aire caliente usted
mismo. Para obtener información de servicio, consulte la información
de garantía en la última página de este manual.
Peso neto: 450 g (1 lb)
Homologación: UL y CSA, sistema trifilar con
conexión atierra
rwriters Laboratories (UL)
ada y póngala en una posición vertical.
ve. Manténgala fuera del alcance de los niños.
TM
Loading...
