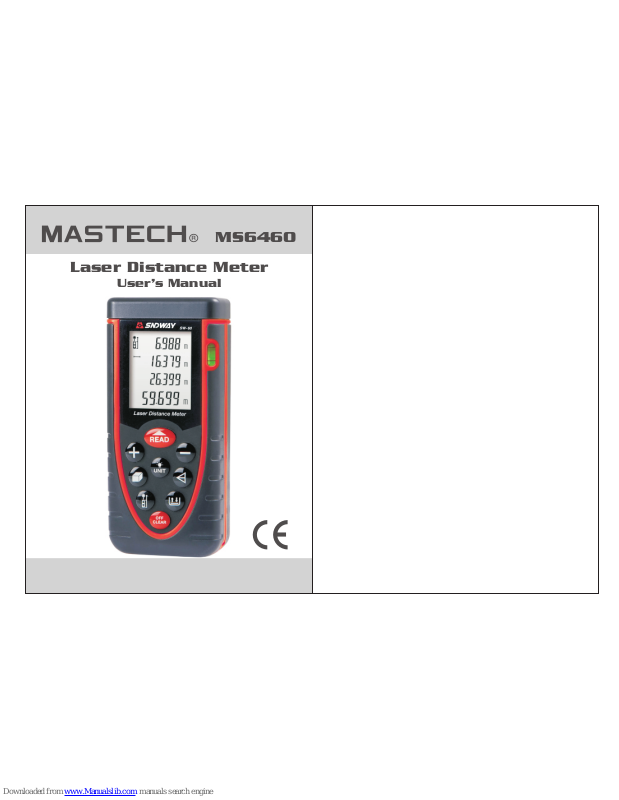

Mastech MS6460 User Manual

MS6460

Laser Distance Meter

User's Manual

>1/4 S

01

02

Safety Regulations

Please read the safety regulations and
operation guide carefully before operating.

Please read all of the operational
guide and safety regulations in this
manual before operation . Improper
operations without complying with this
manual guided could cause damage to
the device, influence on measurement
result or bodily injury to the user.

The instrument is not allowed to
disassemble or repair in any ways. It is
forbidden to do any illegal modification
or performance change for laser emitter.
Please keep it out of reach of children
and avoid using by any irrelevant
personnel.

Due to electromagnetic radiation
interference to other equipment and
devices, please don't use the meter in
the plane or around medical equipment,
don't use it in inflammable, explosive
environment.

It is strictly prohibited to shoot eyes
or other parts of body with the laser; it is
not allowed take the laser to shoot any
objects' surface with strong reflecting.

Discarded batteries or meter device
shall not processed just like household
garbage, please handle them in line
with related law and regulations.

Any quality issues or any questions
on the meter, please contact local
distributors or manufacturer in time,
we are ready to offer solutions for you.

• Laser emission on

• + key

• Area/Volume

Measuring key

• Measurement

benchmark
select key

• Off/Remove key

• Unit Conversion /

Backlight
Conversion Button

• - key

• Pythagorean

proposition indirect
measurement key

• Storage/Storied

date read key

• Laser emission on

• Measurement

• Maximum

instructions

• Instructions of

area, Volume,
Pythagorean
proposition and
indirect measurement

• Minimum instructions

• The Lord

measurement display

•

Auxiliary display

• Measurement

unit instructions

• Battery power instructions

• Store data/check stored data

03

04

Installation and replacement
of battery

• Discharge the battery door on the

back of device, and place battery
according to correct polarity, then
cover the battery door.

• Only 1.5 V AAA alkaline battery is
applied to the meter.

• If not used for a long time, please
take out the battery to avoid battery
corrosion to meter body.

Display Screen

Keyboard

05

06

Start and shut off the meter

Under off state, press key, instrument
and laser get starting simultaneously
and stand by for measurement.
Under on state, long press key for 3
seconds to make the device off. The
instrument will be shut off without any
operation for 150 seconds.

Unit setting

Press key, reset current unit of
measurement, the machine default
unit is: 0.000m

Leng th

Area

0.00 0m

0.00 m

0.0i n

0.00 ft

0.00 0m

2

0.00 m

2

0.00 ft

2

0.00 ft

2

Volume

0.00 0m

3

0.00 m

3

0.00 ft

3

0.00 ft

3

Backlight setting

Long press the key to set on and off
of the backlight

Optional units as below:

Measurement benchmark setting

Press key to enter into setting of
switching between front benchmark
and end benchmark . System usually
takes end benchmark as default.

Single Measurement:

Press key under measuring mode,
the laser is emitted to shoot measuring
location.
Re-press key for single measurement
of distance , then the measured results
displayed on main display.

07

08

Area measurement:

Press key and you will see ,on
the display screen, that is Rectangle
with one edge flashing. Complete the
following operations according to
screen tips: Press key to measure
the first edge(length). Press key to
measure the second edge(width) Area
will be calculated automatically by the
meter, and the results showed on main
display screen.

Continuous Measurement:

Long press key under measuring
mode to enter into continuous
measurement state, and maximum
and minimum measurement results in
the process of continuous measurement
will display on the screen.

The main display screen indicates the
very measured result, press key
to exit continuous measurement state.

Press key to remove previous
measured result and get ready for the
next measurement.

Volumetric Measurement:

Double press key and you will see ,
on the display screen, that is cube with
one edge flashing. Complete the
following operations according to tips:
Press key to measure the first edge
(length).
Pres key to measure the second
edge(width).
Press key to measure the third edge
(height).
Volume will be calculated automatically
by the meter, and the results showed on
main display screen.
Press key to remove previous
measured result and get ready for the
next measurement.

09

10

There are three kinds of pre-designed
measuring mode to get unilateral
distance of triangle by ways 66
of Pythagorean proposition. This is
convenient for users to do indirect
measuring in certain complex
environment. Press key to make
mode selection:

Pythagorean proposition indirect
measurement:

a

b

x

1) Press key and you will see on
the display screen, that is triangle with
hypotenuse flashing.
Press key to firstly measure the
length (a) of dotted line hypotenuse
according to screen prompt
Press key to measure the length(b)
of the dotted line right side Length (x)
of the solid line right side will be
calculated automatically by the meter.

2) Double press key and you will see
on the display screen, that is triangle
with vertical leg flashing
Press key to firstly measure the length
(a) of dotted line right side according to
screen prompt
Press key to measure the length (b) of
the other dotted line right side
Length(x) of the solid line hypotenuse
will be calculated automatically by
the meter.

a

b

x

3) Press key 3 times and you will see
on the display screen, that is triangle
with hypotenuse flashing.

11

12

Press key to firstly measure the
length (a) of dotted line hypotenuse
according to screen prompt
Press key to measure the length(b)
of dotted line hypotenuse (shown as
in the figure
Press key to measure the length(c)
of another dotted line hypotenuse
(shown as in the figure)
Length (x) of the solid line right side
will be calculated automatically by
the meter.

Under Pythagorean proposition
measurement mode, length of right side
must be shorter than hypotenuse length
so that instrument can make out
calculation, otherwise the instrument
will display error signal.

a

c

b

x

Under Pythagorean proposition mode,
to ensure the accuracy of measurement,
it must be measured from the same
starting point with a measuring order of
first hypotenuse, and then right side.

13

14

Browse Measurements

Press key to check stored
measurement data, Press key or
key to browse forward or backward.
Long press , key can remove all
stored records.

Store Measurements

Under measuring mode, as the exiting
data is effective, long press key for
3 seconds, the very measurement data
will be automatically stored into the
instrument memory stick.
SW-100 and SW-100 A respectively has
maximum storage volume of 30 units.

Press key, and "+"appears on main
measurement screen , then enter into
accumulated adding measurement
mode, accumulative value of previous
measured value and the very
measurement results will be displayed
on the screen.
Press key, and "-"appears on main
measurement screen, then enter into
accumulated subtracting measurement
mode, differences between previous
measured value and the very
measurement value will be displaye
on the screen.

Add And Subtract Measurement:

Single distance measurement can be
done through adding/subtracting to get
accumulated add or subtract operation;

Measure target locations
which are with stronger

capabilityrefecting

Improper Measure

-ment on Pythago

-rean proposition

Beyond working
temperature

15

16

Tips:

During operation, tip information may
appear on the main display screen
as follows:

Information

Caus e Solu ti ons

Err1

Err2

Measure target locations
which areweaker
refecting capability

Err3

Err4

Err5

Plea se c ontact the
supp li er

Err6

Technology specifications:

Signal too weak

Signal too strong

Battery voltage is
too low

Memory damage

Replace battery

Carry out measurement
with the meter in the
specifedscope

Re-measure, and ensure
the length of hypotenuse
is longer than that of
right-side

ITEM

LDM-50 LDM-60 LDM-70 LDM-80

LDM-100

Max measured distance

50m

60m 70m 80m 100m

Distance measurement

precision

±2mm

Measurement unit options

mm/in/ft

Continuous measure-

ment function

yes

Outdoortargetrefection

board

no

Area measuremen function

yes

Volume measurement

function

yes

Pythagorean proposi-

tion measurement

function

Full mode

Add and subtract meas-

urement function

yes

Min/Max value

yes

Max storage

20 units 30 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

17

18

Note: There will be a bit of greater
differences of measurement results in
harsh environment, such as strong
sunlight, excessive temperature
fluctuations, weak reflective surface,
low battery. As to this, targe treflection
board as auxiliary will assist you to get
a better result.

Instrument maintenancetions:

• The meter should not be stored in high
temperature and strong humidity
environment for long-term; if not used
for long time, please take out the
battery and place the meter in the
allocated potable bag and store in
cool and dry place.

• Please keep the device surface
cleaning. Wet soft cloth is applied to
clean dust, but erosion liquid is never
allowed to use for the meter
maintenance. Laser output window
and its focus lens can be maintained
according to maintenance procedures
for optical device.

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20℃-60℃

Working temperature

℃

0 -40℃

Storage humidity

RH85%

Battery

1.5V 3*AAA

Weight(including battery)

180g

Dimension

118*54*28mm

19

Packing list

Please carefully check instruments
and attachments are complete in line
with below list.

HYS006887

NO. Item Unit QTY Note

1

Laser Distance

Meter master body

Unit

1

2

Instrument portable

bag

piece

1

3

Holding rope

piece

1

4

AAA battery

set

3

5

Manual

copy

1

6

Warrantycertifcate

copy

1

7

Gift box

set

1

8

Outdoor target

refectionboard

set

1

Only LDM-100

Checked by: Date:
