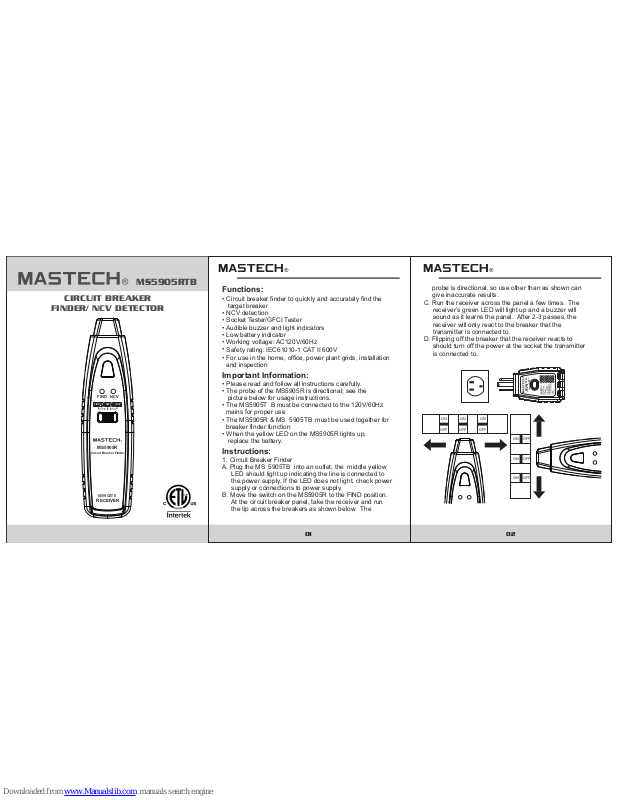

Page 1
MS5905R
600V CAT II
MS5905RTB
Functions:
CIRCUIT BREAKER
FINDER/ NCV DETECTOR
• Circuit breaker finder to quickly and accurately find the
target breaker
NCV detection
Socket Tester/GFCI Tester
Audible buzzer and light indicators
Low battery indicator
Working voltage: AC120V/60Hz
Safety rating: IEC61010-1 CAT II 600V
•
•
•
•
•
•
• For use in the home, office, power plant grids, installation
and inspection
Important Information:
01
• Please read and follow all instructions carefully.
The probe of the MS5905R is directional; see the
picture below for usage instructions.
The MS5905T must be connected to the 120V/60Hz
mains for proper use
The MS5905R & MS must be used together for
breaker finder function
When the yellow LED on the MS5905R lights up,
replace the battery.
•
•
•
•
B
5905TB
Instructions:
1. Circuit Breaker Finder
A. Plug the MS into an outlet; the middle yellow
LED should light up indicating the line is connected to
the power supply. If the LED does not light, check power
supply or connections to power supply.
B. Move the switch on the MS5905R to the FIND position.

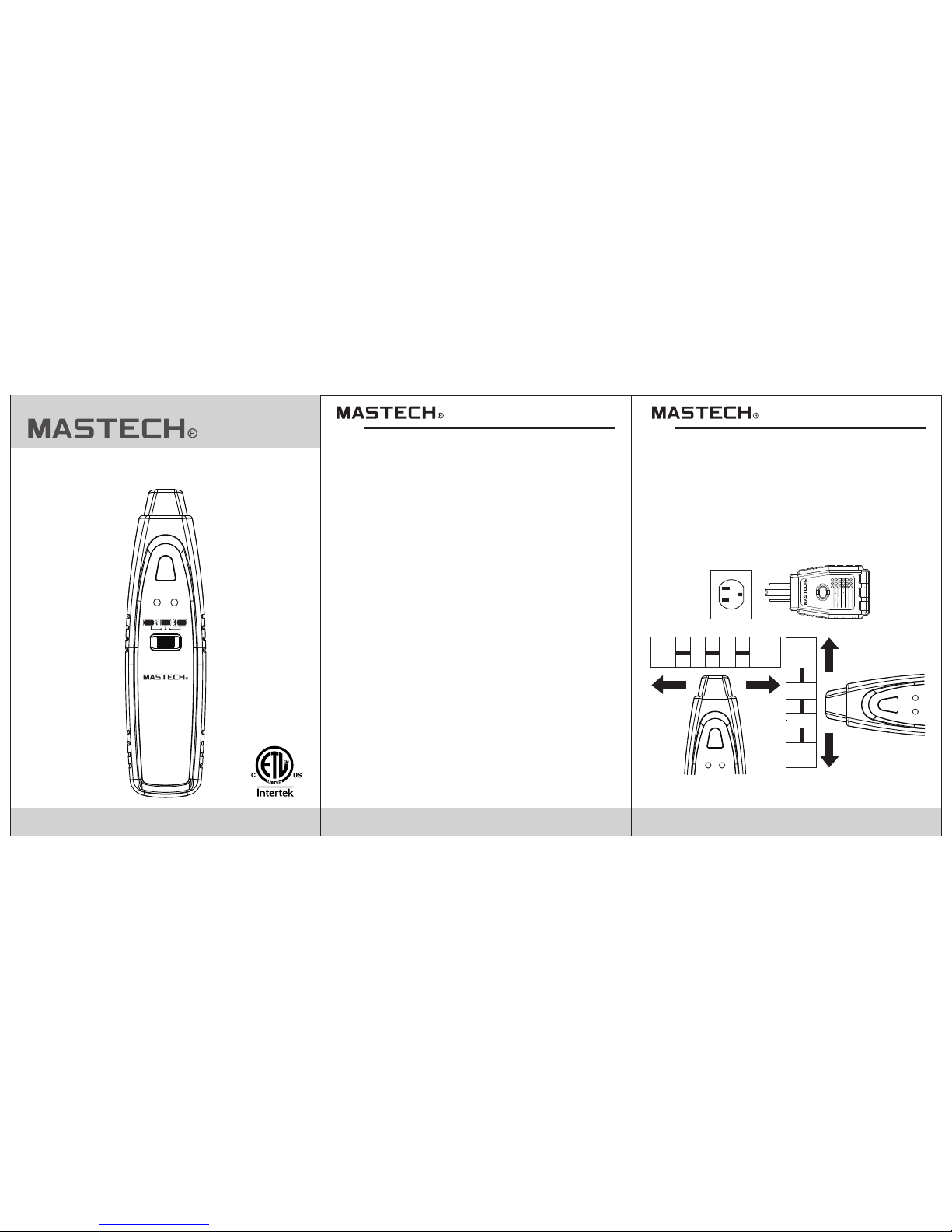

At the circuit breaker panel, take the receiver and run
the tip across the breakers as shown below. The
5905TB
FIND
NCV
FIND OFF NCV
Circuit Breaker Finder
RECEIVER
C. Run the receiver across the panel a few times. The
receiver’s green LED will light up and a buzzer will
sound as it learns the panel. After 2-3 passes, the
receiver will only react to the breaker that the
transmitter is connected to.
D. Flipping off the breaker that the receiver reacts to
should turn off the power at the socket the transmitter
is connected to.
02
ON
OFFONOFFONOFF
ON OFF
ON OFF
ON OFF
probe is directional, so use other than as shown can
give inaccurate results.
MS5905TB
Circuit
Breaker Finder
OPEN GROUND
TERRE DERRANCHE
OPEN NEUTRAL
NEUTRE DEXRANCHE
OPEN HOT
ACTIF DEBRANCHE
HOT/GRD.REVERSE
ACTIF/TERRE INVERSES
HOT/NEU.REVERSE
ACTIF/NEUTRE INVERSES
CORRECT
CORRECT
TRANSMITTER
Page 2

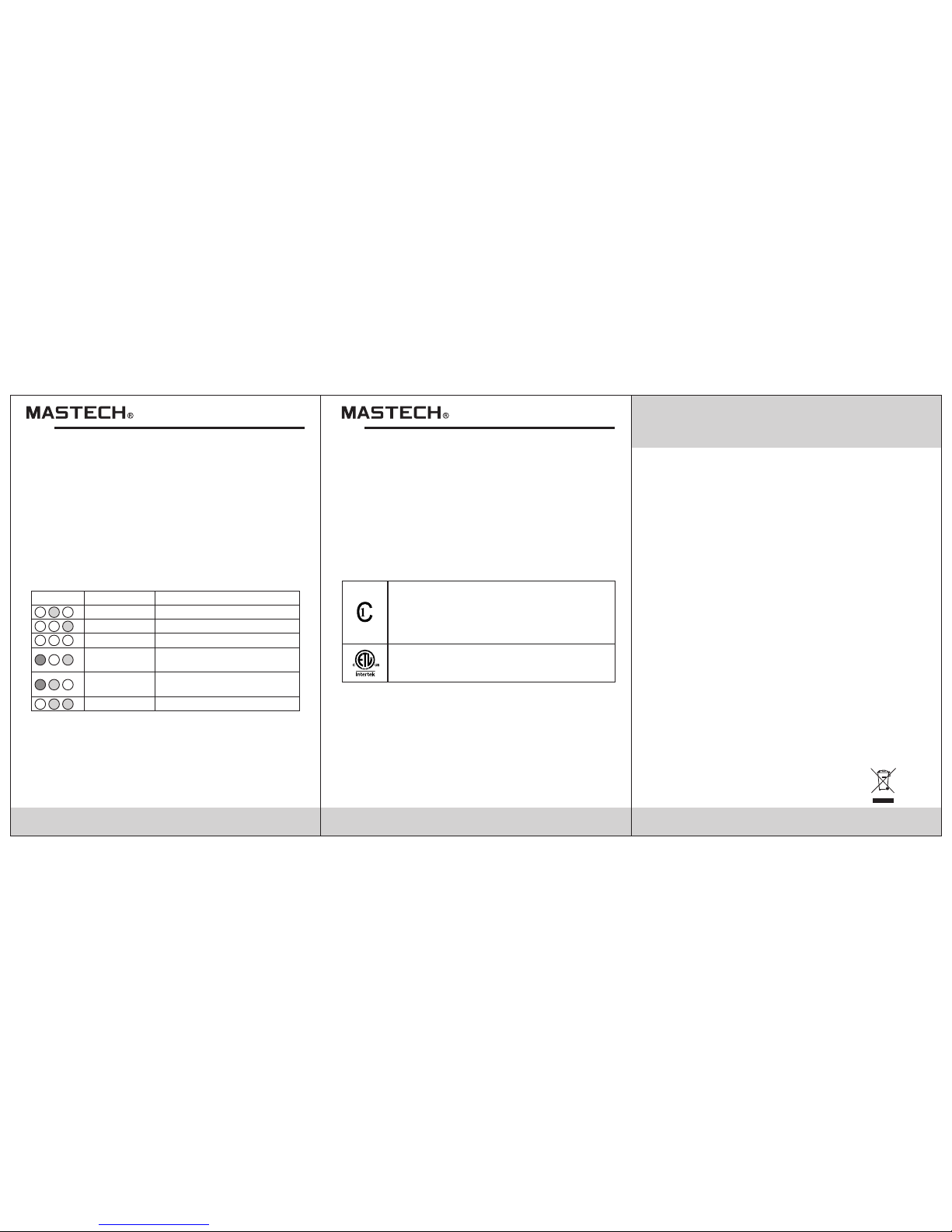

Indicator Fault
Open ground
Open neutral
Open hot
Hot/ground
Reverse
Hot/neutral
Reverse
Correct
Reason for Wiring Fault
Ground contact not connected
Neutral contact not connected
Hot contact not connected
Hot and ground contacts
reversed
Receptacle is wired correctly
Hot and neutral contacts
reversed
2. NCV Non-Contact Voltage Detection
A. Move the Switch on the MS5905R to the NCV position
for Non-Contact Voltage detection.
B. Using the tip of the receiver, move it toward the
conductor in question. If the receiver detects voltage,
the LED will flash and a buzzer will sound.
3. Socket/GFCI Tester
A. Socket Test
• Test on a known good socket before use.
• Plug the transmitter into an outlet, check indicator
lights and refer to the table to determine if the
socket is wired properly.
• If incorrect wiring is indicated, do not use socket.
03 04
B. GFCI
• Test on a known good circuit before use.
• Press the test button on the GFCI that you are testing.
If it does not trip, do not use the circuit and consult
and electrician. If it does trip, reset the GFCI.
• Plug the transmitter into GFCI outlet. Press the test
button on the top of the tester for at least 6 seconds.
The indicator lights should turn off and the GFCI
should trip.
• If the tester does not trip the GFCI, the GFCI is
inoperable; do not use GFCI.
Specifications:
• Working temperature:0~50°C (32~122°F)
• Relative humidity:<80%
• Dimensions: Receiver: 177×46×31mm
(6.97x1.81x1.22 in)
• Transmitter: 81×42×32mm (3.19×1.65x1.26 in)
• Weight: Receiver: 130g (4.59oz)
• Transmitter: 48g (1.69oz)
• Power Supply: 9Vbattery
00-05-3256
Symbols
“This product has been tested to the requirements
of CAN/CSA-C22.2 No.61010-1, second edition,
including Amendment 1, or a later version of the
same standardincorporating the same level of
testing requirements”.
CONFORMS TO UL STD.61010-1 CERTIFIED
TO CSA STD.C22.2 No.61010-1
DON GGUAN H UAYI MAS TECH CO ., LTD
Add ress: Yu liang wei Ind ustri al Park , Qingx i Town,
Don gguan C ity, Gua ngdon g Provi ncei
Tel: 07 69-89 10166 8
Fax :0769 -8910 1600
