The NEW MF 9280 DELTA Hybrid Combine Harvester

MF

7200

VISION INNOVATION LEADERSHIP QUALITY RELIABILITY SUPPORT PRIDE COMMITMENT

Welcome back

At Massey Ferguson we understand that every single customer is different when it comes
to harvesting and that you have specific needs and aspirations to make your business
run smoothly and to its full potential. Years of research, development and pure hard work
have produced a machine of ground-breaking possibilities, built purely to secure the
future of your business. Welcome back to a new era in harvesting.

A new era in harvest
management

"The Massey Ferguson

9280 DELTA combine
harvester is the latest,
albeit big, step on the
way to fulfilling my
commitment to our loyal
customers, distributors,

dealers and staff.

"

A message from
Martin Richenhagen, AGCO
Chairman, President and CEO

Five years ago I pledged that
AGCO, the company I head, would
deploy all the resources necessary
to become a world leader in
harvesting technology. The
Massey Ferguson 9280 DELTA
combine harvester is the latest,
albeit big, step on the way to
fulfilling my commitment to our
loyal customers, distributors,
dealers and staff.

AGCO is one of the largest
manufacturers of agricultural
machinery in the world and it leads
in many markets across the globe.
We are also focused solely on
farm machinery – we don’t make
anything else.

This new harvester is the
latest product of AGCO’s huge
investment in research and
development and results from our
ability to harness the unrivalled
design and manufacturing
expertise of our global Centres
of Excellence to provide new
equipment to improve your
profitability.

Indeed, the exciting new MF 9280
DELTA combine exemplifies our
mission of providing ‘profitable
growth through superior customer
service, innovation, quality and
commitment.’ This new combine
is a substantial development
in harvesting performance and
takes the lead for us in terms of
harvesting capacity, efficiency
and economy.

class innovations. It is the first
in the world, for example, to
feature innovative Selective
Catalytic Reduction (SCR) engine
technology. This not only provides
the cleanest exhaust emissions,
it also allows users to benefit
from significant fuel savings. The
novel HyPerforma Threshing and
Separation Technology, with its
completely new and highly efficient
Twin Hi-Separation rotors offers
further gains in productivity and
economy.

The industry-leading designs on
the MF 9280 DELTA are matched
only by the quality of engineering
provided by Europe’s most modern
and efficient production facility in
Breganze, Northern Italy. AGCO
has acquired a substantial stake in
this factory, making this significant
investment specifically to support
our strategic aim of taking a
leading position in the European
harvesting business.

Breganze is also home to the
recently introduced ACTIVA, BETA
and CENTORA combine ranges.
Now producing the new flagship
DELTA combines, the factory is
truly a Centre of Excellence for
this formidable harvesting force.

04

The MF 9280 DELTA merges
AGCO’s unparalleled experience
in conventional drum and
concave threshing with our
rotary separation expertise
and it is packed with best in

05

®

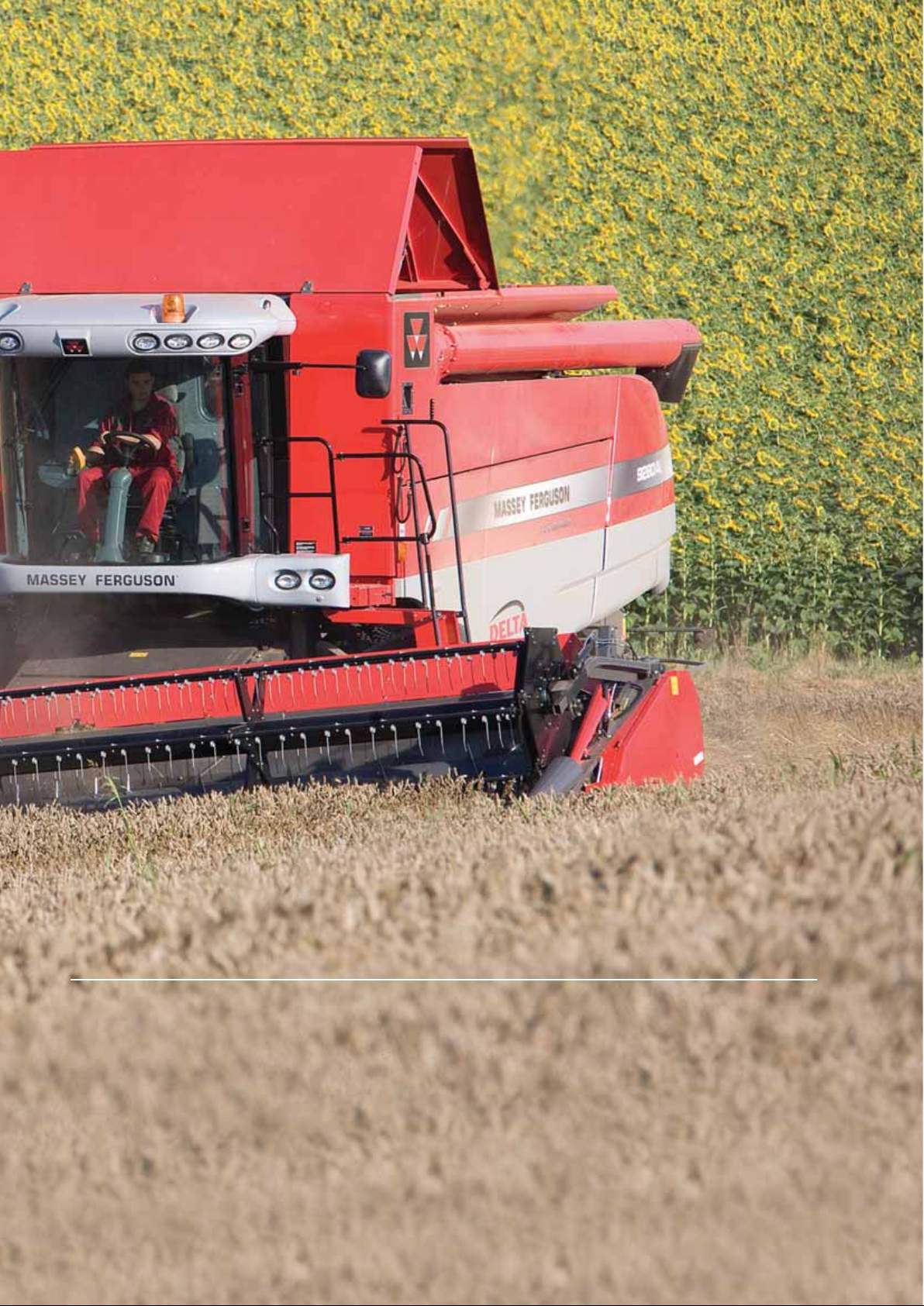

PowerFlow

Making the harvest easier and more profitable since

®

1976. The Massey Ferguson PowerFlow
unique today as it was when we first invented it.
And still as popular.

table is as

06

Alan Haines, Sales Support
Specialist for Massey Ferguson
Harvesting, UK, talks us through
the key points of the PowerFlow
header.

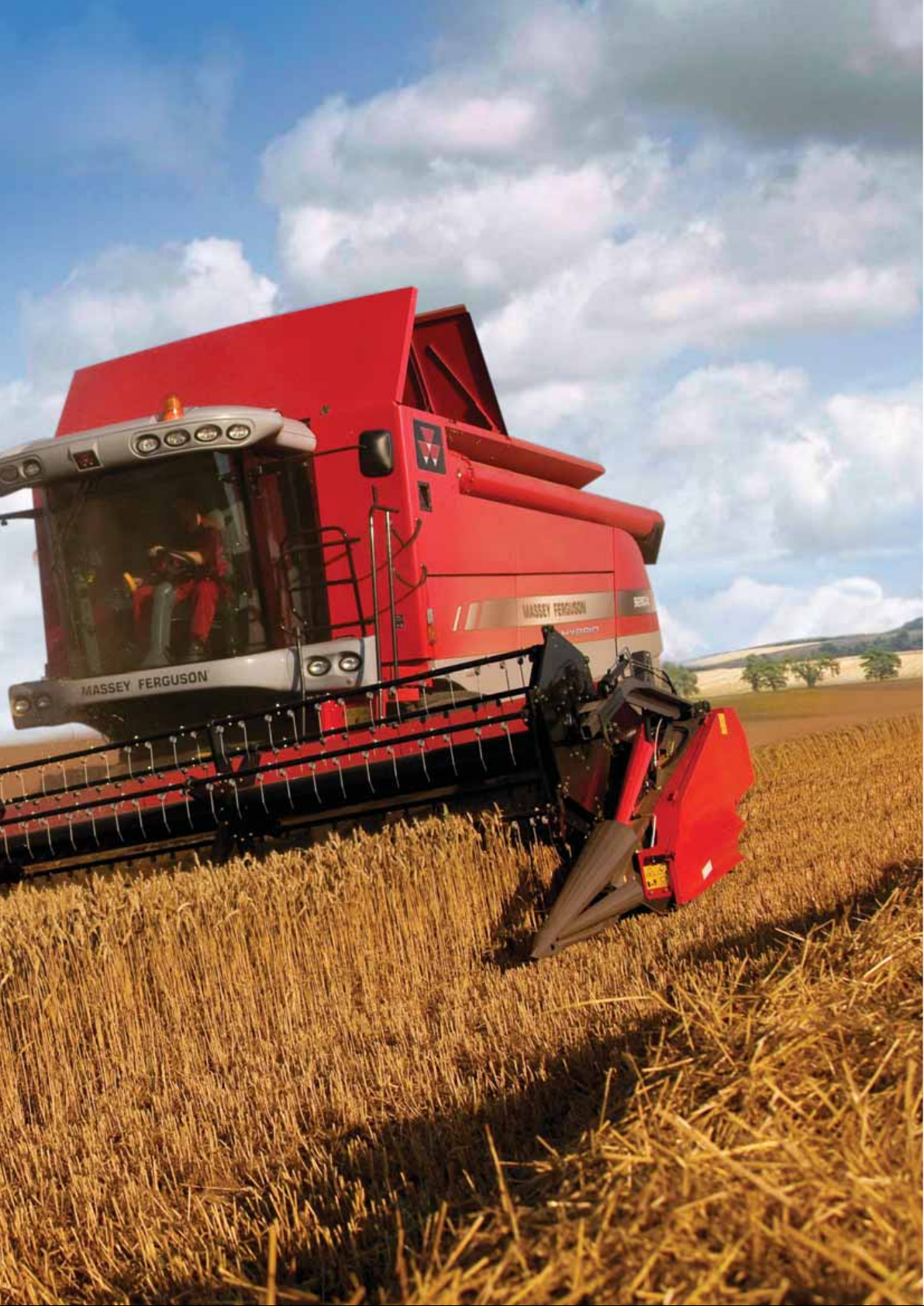

“PowerFlow® is simply the most
efficient cutting table available
on any combine harvester.”

“Its two key features of massive
knife-to-auger clearance and
powered conveyer belts combine
to give head-first, even feed into
the machine. A simple process
that makes an outstanding impact
and works with all crops, in all
conditions.”

The lightweight yet solid •
construction is durable and
long-lasting
Perfect, even feed first time •
improves threshing, securing
a good quality sample and
increased separation will result
in higher output
The driver is guaranteed an •
excellent view of the crop
and the full width of the table
making it less stressful to
operate
Any stones picked up during •
harvesting will be deflected
away from the table by the
belts, resulting in lower
running costs

07

In control with
PowerFlow

With PowerFlow you can specify
the following control systems:

Pre-set cutting height for
effortless headland turns

Just one click to lower the table
to your pre-set height, which also
incorporates two additional height
settings for precision cutting.
Double clicking will raise the table
for perfect headland turns.

Cutting height control

Continuously adjusts the cutting
height as you harvest across the
field for even stubble height.

Field pressure control

Allows the table to follow the
ground contour giving the lowest
possible cutting height for laid
crops or peas, beans and
grass seeds, without the risk of
“bulldozing” the soil. Field pressure
control allows you to speed
up your harvesting in difficult
conditions with confidence.

Auto Level table

Continuously adjusts the table
left and right to ensure you follow
the contours of the field. Sloping
ground or uneven fields are
no obstacle to achieving
maximum output.

Auto reel speed

Adjusts reel speed to ensure
your selected ‘forward speed
to reel speed ratio’ is maintained
as you harvest.

Schumacher knife system

With the most efficient table you
need a top performing knife.
PowerFlow tables are fitted
with the Schumacher system
offering high performance, high
speed cutting knives with double
supported durable fingers.
The ‘under and over’ cutting
process gives quality cutting in all
conditions.

Oilseed rape auger

An optional rape auger can be
fitted which increases performance
in tall crops. The hydraulically
driven auger is mounted above the
standard auger. It allows forward
speed to be increased markedly,
making oilseed rape harvest
extremely quick compared to
normal headers increasing output
and margins..

Folding dividers can be mounted
for quick turnarounds and safety.
Easily fitted crop lifters can
be installed from their own
storage position on the
table when required.

01 PowerFlow auger
02 High capacity rape auger
03 High performance

Schumacher knife

04 Folding dividers
05 Multi-coupler
06 Easy access to drives

08

01

03

02

04

05 06

09

HyPerforma Threshing &
Separation Technology

The Massey Ferguson HyPerforma Technology is a finely tuned
combination of precision engineering and proven technology.
The Hi-Inertia threshing system, Hi-Performance concave, rotor
feeder and Hi-Separation rotors forms the synergy between crop
and combine.

10

Today's modern farming continues
to be a challenge. Larger areas to
combine and quotas to fulfill as
well as the occasional race against
the elements means that you need
a machine that you can rely on in
order to meet that small window of
opportunity during the harvesting
season.

Jakob Bro Sorensen, Manager
for European Combine
Engineering spearheaded the

project with colleagues in four
different countries, from the first
weeks of research and design,
through to testing and finally

the manufacture of
Massey Ferguson's first hybrid
Combine Harvester. Here he talks
us through the process behind
the formation of the HyPerforma
Threshing Technology.

"The Hyperforma Threshing
system has been developed
and tested in controlled lab
systems to ensure the highest
possible material throughput and
afterwards confirmed in real 1:1
field testing. We were able to get
the power consumption down
to a very low level by fine tuning
the conversion from tangential

01

separation to axial separation with
a large receiving zone at the front
of the rotors together with the rotor
feeder’s high volumetric capacity."

"The 40mm threshing concave
opening is exceptionally useful,
especially in rape seed where the
machine is really able to process
large quantities without damaging
the straw.
The essential thing about the
Hybrid concept is to thresh
and separate the grain from the
straw so that it falls through
the separation grates and into
the cleaning shoe, retaining an
excellent straw quality."

"The large, 475mm
diameter rotors with spiral
pattern fingers provide a
gentle grain separation
and have remarkable
'separation efficiency'
even at low speeds."

"The intention with the design
of the rotor and rotor housing
has been to create a system that
is universal and demanding no
changes between different crops.
The only variable in the rotor
system is the speed of the rotors.

That makes it very easy for the
farmer to switch between crops.
Machine changes have to be kept
to a minimum to allow the operator
to spend as much time and effort
on harvesting rather than changing
configurations."

11

HyPerforma Threshing

&

S

Rotor Feeder /
Rotor Feeder Concave

Proven Technology:

• Large 500 mm diameter rotor

• Ensures smooth transition of

crop from the threshing unit into

the Hi-Separation rotors

• A total of 1.9m2 separation area

is available before the
Hi-Separation rotors

Proven Results

• Efficient drive system

• Has a low power requirement

• Provides extra separation area

5.44m2 Total

12

Hi-Inertia Threshing Cylinder /
Hi-Performance Concave

Proven Technology:

• Heavy Duty Construction

Drum & Concave

• True “Hi-Inertia Drum” (Flywheel effect)

• Concave area 1.18m

• Concave wrap 117.5º

• Able to open from 0 mm to 40 mm
Proven Results

High threshing capacity

•

• High separation percentage

• High productivity

• Promotes excellent grain quality

• Low power and fuel consumption

2

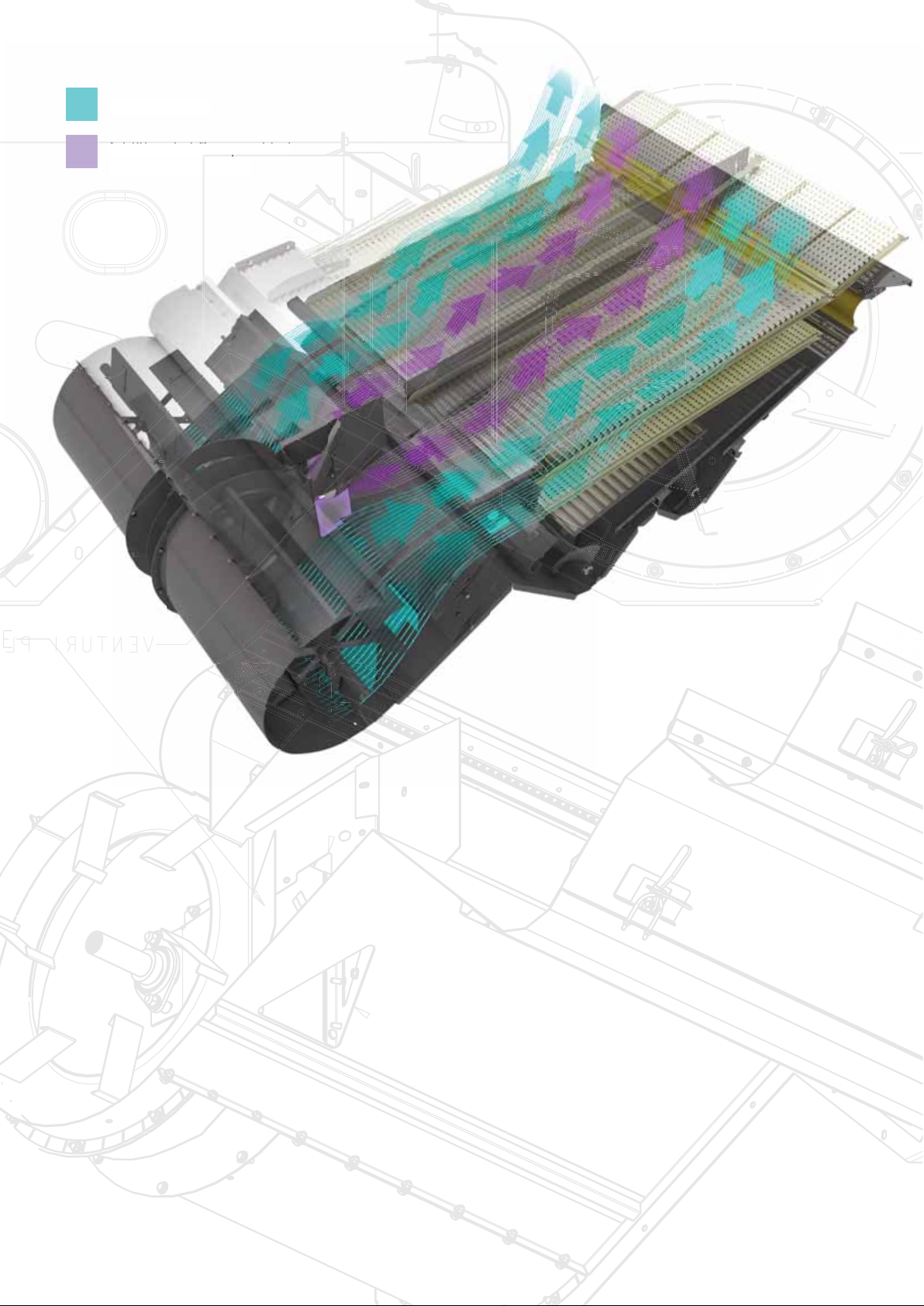

Venturi Cleaning System

Proven Technology:

• Unique design increases airflow

pressure in the centre of the
cleaning system

• The system creates an optimised

airflow across 100% of the sieves
surface

Proven Results

• Reduces grain losses

• Promotes excellent grain quality

• Increases output and productivity

thanks to its highly-efficient design

Separation Technology:

eparation Area

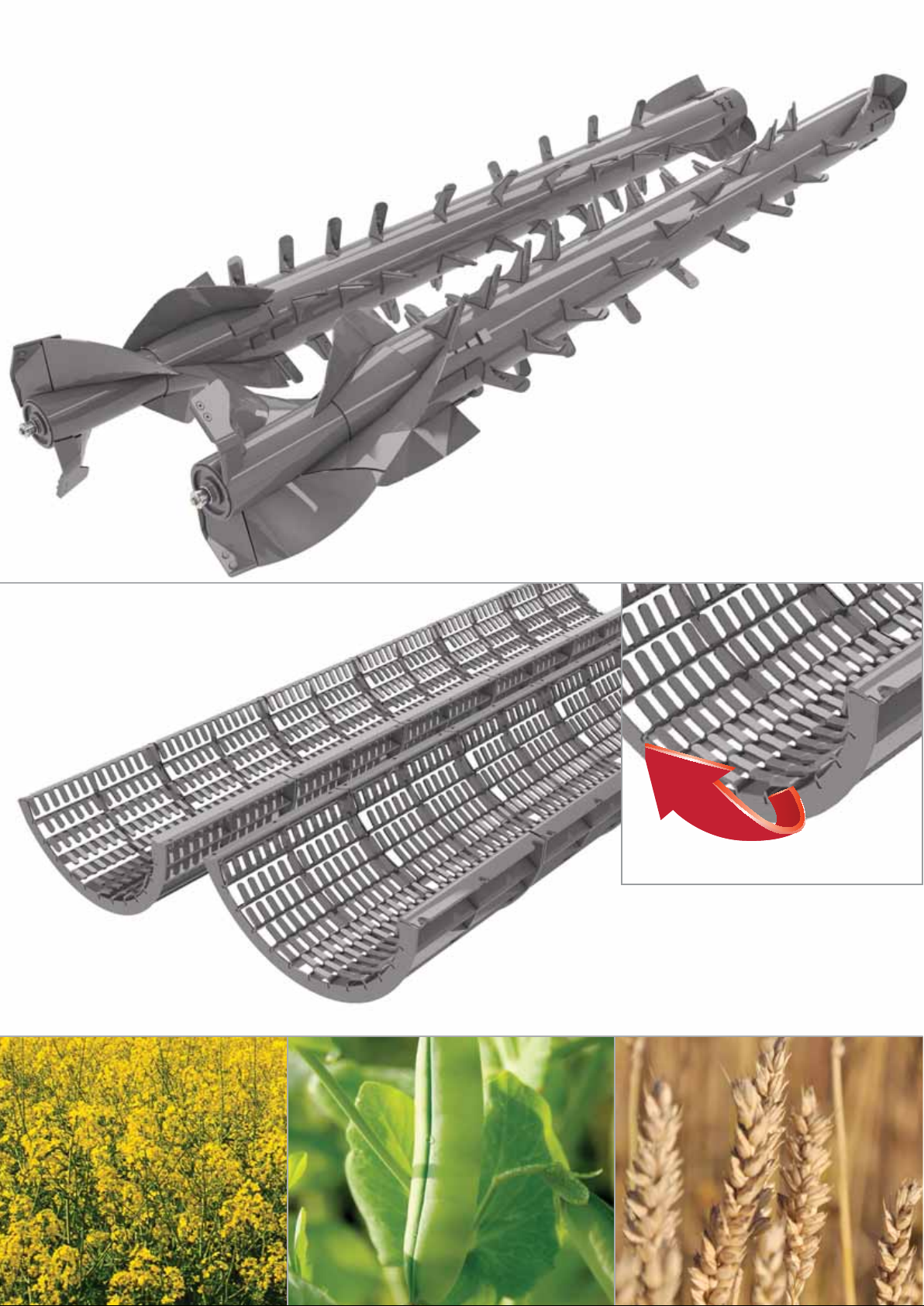

Hi-Separation Rotors

Proven Technology:

• 4.2 m long rotors

• 475 mm diameter

• Smooth separation fingers

• Spiral formed separation fingers

facilitate efficient grain removal
through the straw mat using
centrifugal force

• Variable speed from

360 rpm to 1000 rpm

Loading Bay

Proven Technology:

• Delivers material into the

Hi-Separation rotors from
the rotor feeder

• Deep and wide rotor inlet for

maximum crop throughput

Proven Results

•

Creates a smooth crop flow into the

Hi-Separation rotors

Maximises material flow in heavy

•

crop conditions

• Reduces power and fuel

consumption

Proven Results

• Gentle on the straw

• High grain separation capacity

• High productivity

Rotor Concaves

Proven Technology:

• Large open area for grain

removal 3.54m

• Large wrap angle 150°

• Smooth concave design

Proven Results

• Low crop resistance

• Promotes low straw damage

for good bale quality

High separation capacity

•

2

13

Cropflow & Threshing

Proven threshing technology ensures a smooth transition during
this critical point in the crop flow.

3

2

1

4

6

5

Hyperforma System - Crop Flow

Crop is taken from the main elevator into the Hi-Performance Concave (1) and •

Hi-Inertia Threshing Cylinder (2).

Crop then flows under the Rear Beater where it is passed (3) into the Rotor •
Feeder (4).
The Rotor Feeder then splits the crop and feeds consistently high amounts of •
material into the large loading bay (5).

14

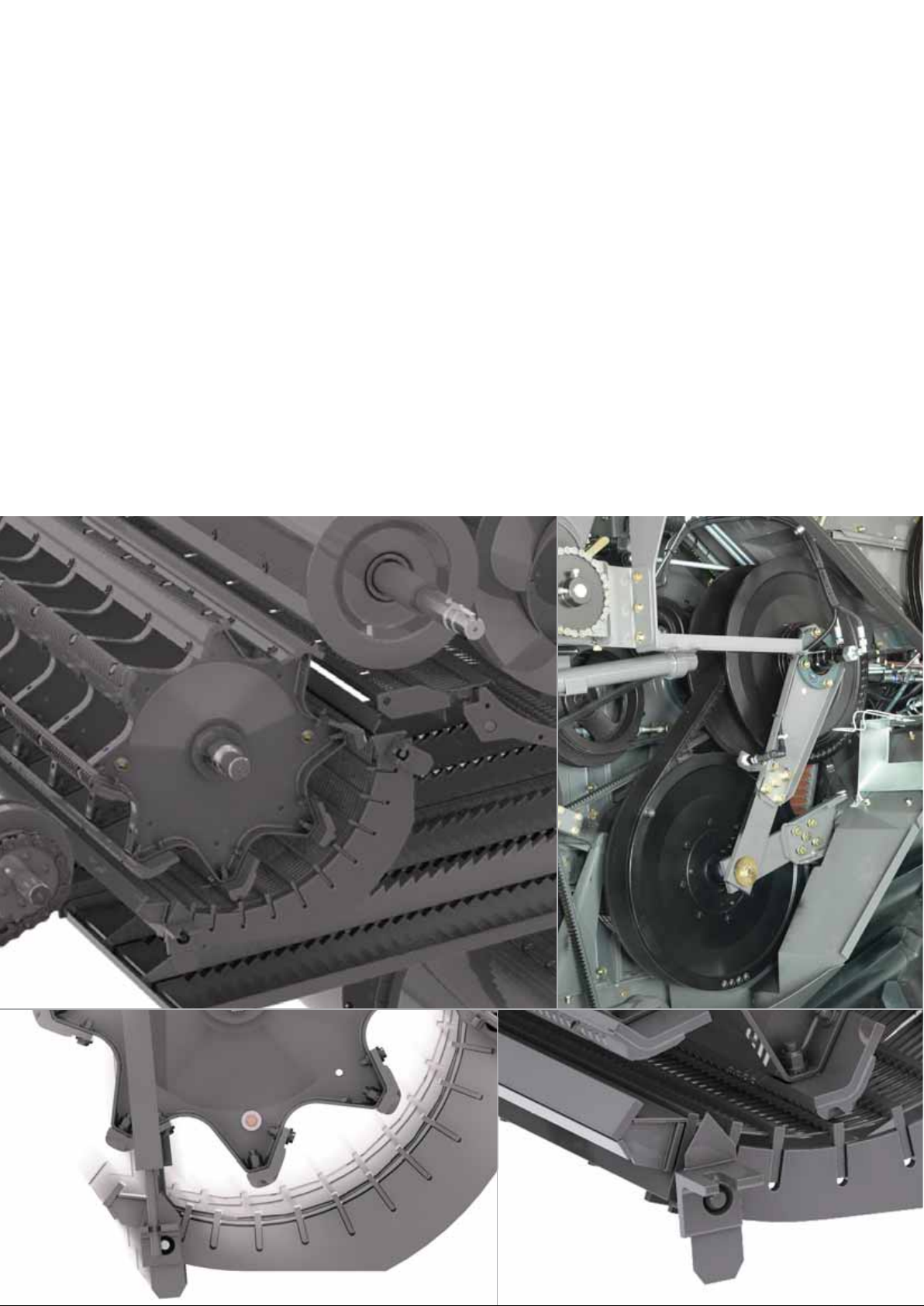

Hi-Inertia Threshing Drum and
Drive Belts

The Hi-Inertia threshing drum
has heavy-duty backing bars
which creates weight on the
outside of the drum, forming an
inertial, flywheel effect. This effect
ensures consistent speed - even in
undulating loads, maintaining high­output with high productivity.

Robust belts which are able to
withstand heavy material loading
from the threshing drum. These
one-piece, heavy-duty belts have a
longer working life which reduces
downtime and extra servicing.

Hi-Performance Concave

Meeting the increasing demand for
intensive output and higher yields
is simple. We have taken
the proven design of the
Hi-Performance concave and
combined it with new drum
technology and introduced it on all
MF DELTA machines.

This productivity boosting concave
design has been created to
produce excellent grain samples
and return high grain separation.
Concave clearance can be
adjusted to a full 40mm to allow
for high volumes of material to
pass through. This is particularly
effective in oilseed rape, where
it becomes easier to thresh and
produces an excellent sample, and
in wheat, where overthreshing is
prevented and separation is higher.

Pre-Threshing Rub Bar

The solid construction of the
Pre-rub threshing bar ensures
a smooth, even and clean feed
into the concave. The rub bar
threshes the crop before it enters
the concave so grain is released
sooner, improving the sample and
producing higher-output.

01 Hi-Inertia threshing drum
02 Heavy-duty drive system
03 Hi-Performance concave
04 Pre-Threshing rub bar

01

0303

04

02

15

Maximise output all day
long with Constant Flow

Constant Flow is a simple yet effective way to obtain high levels of
productivity and output.

16

Increasing output dramatically

The key to increased output is to
keep the combine fully loaded.
When the crop thins, the combine
needs more material to keep it
running at 100% capacity.

To operate Constant Flow just
engage via the Datavision screen.

Sensors mounted within
the threshing drive system
continuously measure the load of
crop passing through the drive and
concave.

Reaping the benefits with Constant Flow

Constant Flow ensures the machine is fully loaded at all •
times during harvesting
Ensures optimum output - More grain harvested •
per day
Reduces losses by ensuring maximum throughput•
Produces cleaner grain samples•
Less operational effort needed•
Reduces operator fatigue•

Constant flow gives continual crop
feed by automatically adjusting
the forward speed in relation to
the amount of material passing
through; monitoring the machines
performance at the front to reduce
losses at the rear. This maintains
optimum productivity even in the
toughest crop. Output can be
increased by up to 15% in a wide
variety of crops with lower losses.

The yield map opposite
shows how forward speed is
automatically adjusted in relation
to the output of material passing
through the machine. Grain loss is
at a minimum.

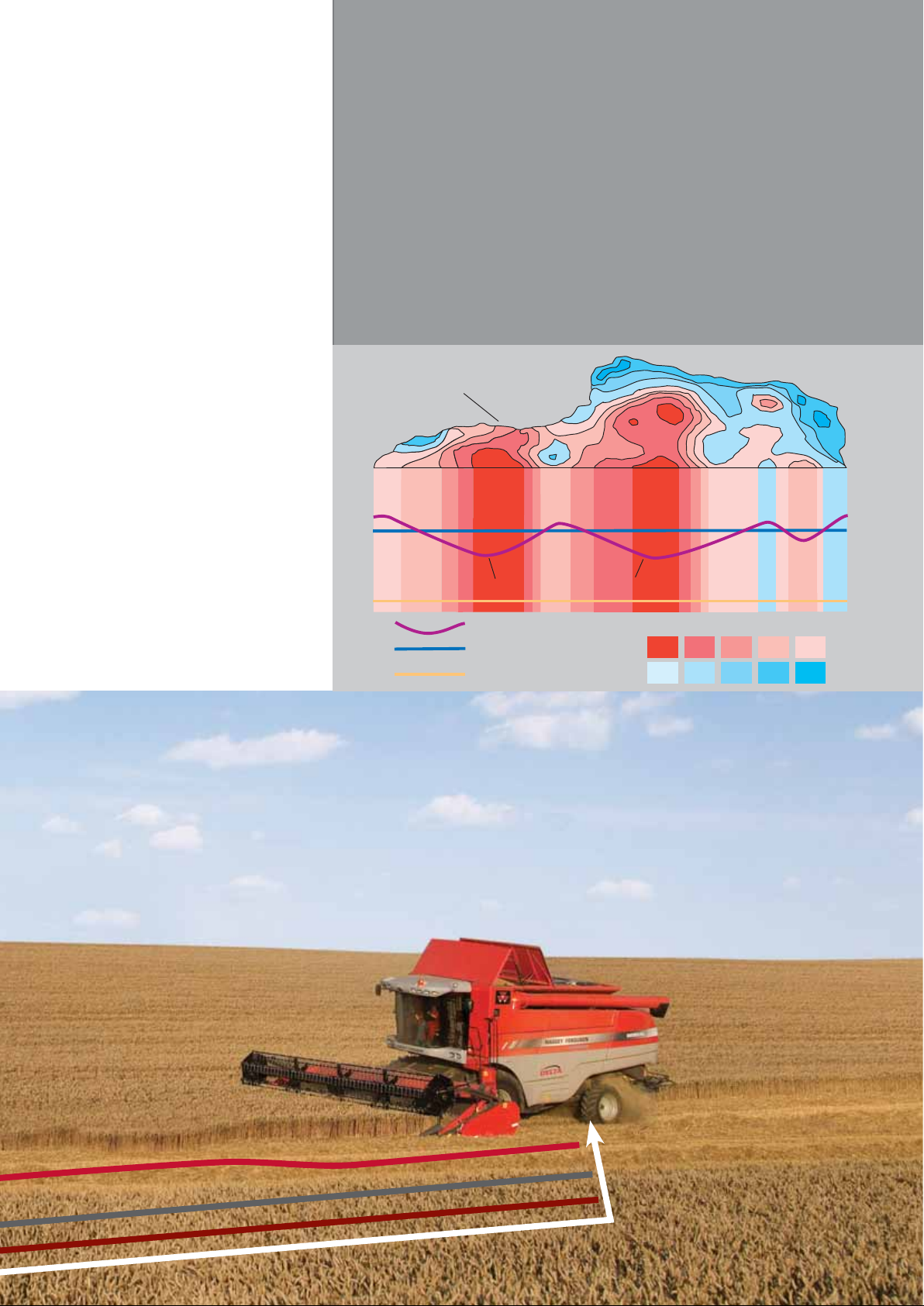

Yield Map

Reduced speed for higher yield

Variable speed
Constant output
Minimised grain loss

Grain and straw yield t/ha

15.5

14.5

13.5

12.5

10.5

9.5

8.5

7.5

11.5

6.5

FORWARD SPEED

CROP LOAD

LOSSES

17

Protecting your crop,
every step of the way

This is where your crop begins its journey to true productivity.
A massive 500mm in diameter rotor and wide inlet loading bay
ensure total crop-flow efficiency and gentle handling through to the
Hi-Separation rotors.

The rotor feeder ensures smooth
and consistent transition of the
crop from the threshing unit to the
Hi-Separation rotors.

The large diameter rotor feeder
creates a flywheel action, forcing
the grain to the outside of the rotor.
In turn, this force splits the crop
and sends it effortlessly through to
the two rotors.

The belt input drive for this rotor is
highly productive, providing 98%
efficiency so the force required to
place the crop in the loading bay
is lowered, reducing the need for
extra power whilst minimising fuel
consumption.

A separation grate fitted below the
feeder releases grain that has been
pushed outward by the centrifugal
force of the rotor, improving grain
separation and maximising output.
This grate ensures that maximum
grain removal is achieved from
the HyPerforma system before
the crop reaches the Hi-Separation
rotors.

Massive potential for separation
begins here; from the first point of
contact with the main concave to
the end of the separation grate.
The three concaves offer an
impressive 1.9m
area. The grate has a large wrap
angle of 53
highest amount of grain possible.

Thanks to the overall design of the
rotor feeder, even the toughest
crop will flow through the machine
effortlessly, using less power and
fuel whilst maximising productivity.

Loading bay

This unique, large entry area
maximises material throughput and
efficiency by accommodating a
massive volume of material.
Crop flows from the rotor feeder
through to the loading bay and
then onto the Hi-Separation rotors
without restriction or the use of
extra power.

2 of

separation

o

, which removes the

01 The 500mm rotor feeder and
separation grate

02 Crop travels smoothly through
the rotor feeder to the two
Hi-Separation rotors

03 Wide-inlet loading bay
04 View of loading bay feeding

through to the two Hi-Separation
rotors

18

01

02

03

04

19

New dimensions

4.2m in length, 475mm in diameter. The Hi-Separation Rotor
System from Massey Ferguson holds the key to precision
harvesting with its class-leading dimensions.

Massey Ferguson has over thirty
years of experience with rotary
technology so it comes as no
surprise that we now have the
largest, most efficient Twin Rotor
Separation System on the market
today. Using proven design and
technology which allows you to
achieve maximum grain separation
with minimal straw damage, the
clever structure of both rotors
pushes the crop evenly along the
entire length.

Intelligent rotor design

The contra-directional rotors with
their spiral-auger design pull the
crop in and then drive it to the
outside with centrifugal force.
This means more crop can pass
through at a consistently high
capacity, with no blockages and
at a much higher output than
normal conventional or rotary
combines.

Specially designed separation
fingers are placed in a spiral
formation along the length of both
rotors to assist the movement
of the crop. These fingers are
angled specifically to reduce straw
damage and ensure high grain
separation.

The speed of the rotors can
be adjusted to lower speeds in
delicate crops such as beans, peas
and oilseed rape.

Concave Separation Grates

The design of the concave
separation grates underneath
the twin rotors ensures easy
throughput low crop resistance
and prevents straw damage.

The grates have a uniquely smooth
surface with a special ‘finger-type’
design ensuring maximum grain
removal without damaging the
crop. The design of these grates
allows for maximum grain removal
and prevents straw entering the
cleaning system.

Benefits of Twin Rotor
technology

‘Finger-type’ surface provides •
smooth, even crop flow
Low crop resistance•
Minimal crop damage•
Anti-blockage design means •
less material enters the
cleaning system
High-quality straw and grain •
sample
No need for blanking plates•
Overall design increases •
productivity and efficiency
Straw swath is positioned •
at an even density for high
capacity baling

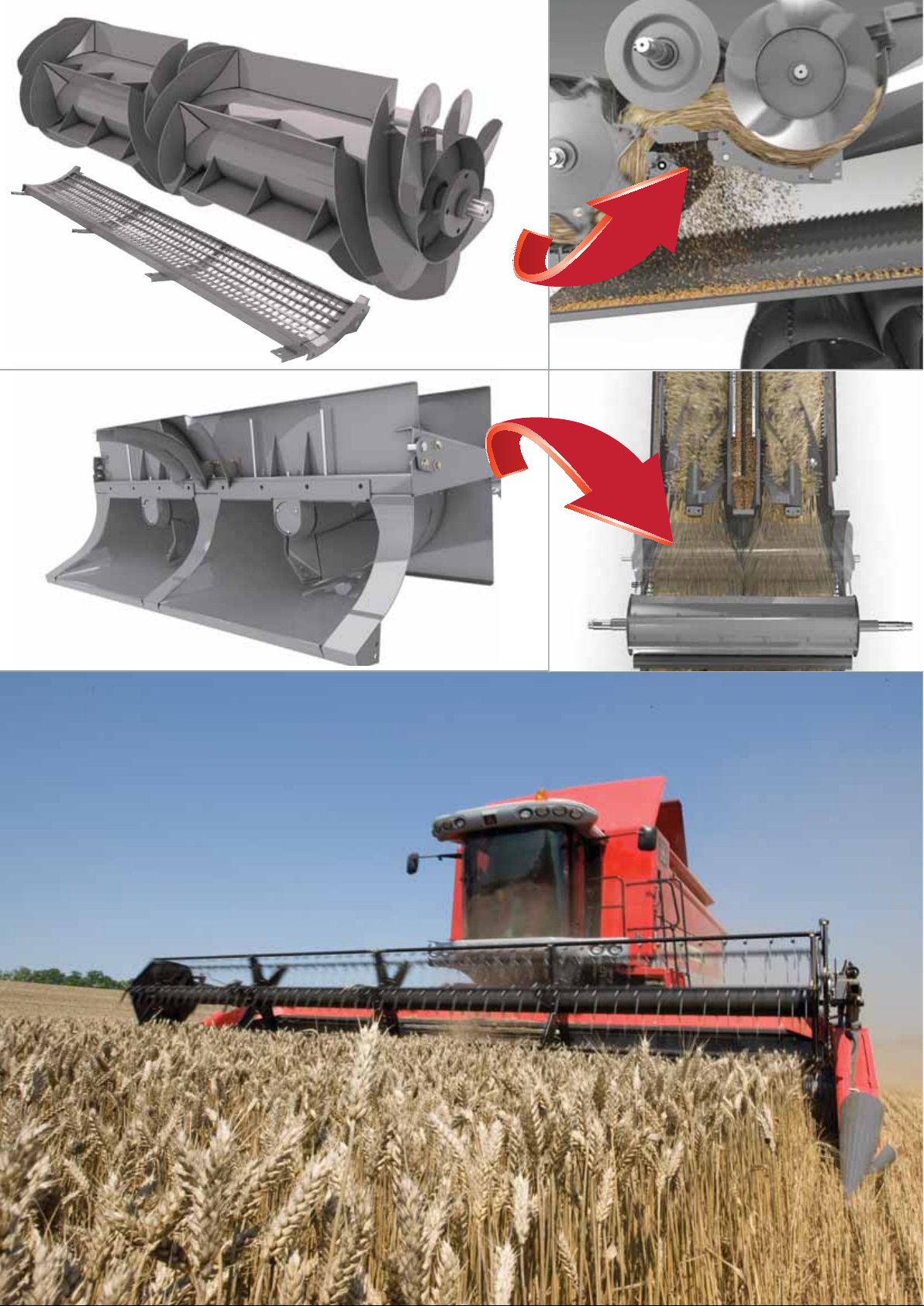

01 Hi-Separation twin rotors with
separation fingers

02 Concave separation grates
03 Crop flow direction prevents

blockage and increases
productivity without loss

20

01

03

02

23

21

The science behind a
clean grain sample

Experience an exceptionally clean grain sample and keep losses
to a minimum with the unique Venturi Cleaning System from
Massey Ferguson.

24

The Venturi Cleaning System
delivers high levels of cleaning
performance to achieve excellent
grain samples whilst losses remain
at a minimum. The system creates
an optimised airflow across 100%
of the sieves surface.

The aerodynamically designed
air inlets situated in the middle of
the fan housing create a “venturi”
effect, raising the air velocity
which allows the system to cope
with the large amount of material
passing through the threshing and

separation system, separating the
grain cleanly and efficiently away
from chaff and dust. Increased
pressurisation from the airflow
underneath the sieves enables
larger volumes of material to be
lifted, separated and cleaned.

Benefits of the Venturi Cleaning
System

Unique design increases •
airflow pressure in the centre
of the cleaning system
Boosts cleaning potential•
Increased pressurisation •

Reduces grain losses•
Increases clean grain •

sample quality

Increases output and •
productivity thanks to its
highly-efficient design

Original airflow

Orig

w

Additional airflow provided

Additional airflow provided

by

the Venturi airflow

inal airflo

Additional airflow provided
by the Venturi airflow

Thomas Bojsen, Test engineer
and shop foreman for the
MF DELTA combine, explains
the concept behind the Venturi
Cleaning System

“Based upon the simple and highly
effective fan on the MF 7200 Series
CENTORA combine, we were able
to take the design one step further
to develop the new Venturi
Cleaning System.

Any Combine with a fan, and
especially in sections, faces the
problem of ‘dead or low zones’ in
air distribution across the width.”

“The Venturi Cleaning System
transforms this “dead zone” into a
highly active area by pulling in air
from the vacuum created by the
Venturi wings.”

“During the testing and
development of this system,
we realised how perfect our air
distribution became without
adding any complexity to the
design. It’s simple and it works!”

25

Reaping the benefits
with high-output
unloading

Time is money when it comes to unloading so don’t lose a minute
of the most important part of your harvest.

The MF Delta combine is equipped
with everything you need to
unload your grain efficiently and
productively. The Delta boasts a
vast grain tank, a high capacity
turret design discharge auger and
the cab offers an unobstructed
view of the unloading operation.

The ultimate in productivity

10,500 and 9,500 litre grain tank
capacity means more space for
more grain. The flat-land MF 9280
Delta combine has a massive
10,500 litre capacity grain tank
whilst the MF 9280 Delta Auto
Level machine has an impressive
9,500 litre capacity. The grain tank
can accommodate an immense
volume ensuring maximum
efficiency with less downtime,
more output and less operator
fatigue.

110 litre per second
unloading rate!

The MF Delta has an awesome
unloading rate of 110 litres per
second. To unload, simply press
the foot pedal. The discharge
rate can also be electronically
controlled from the cab.

Turret system

All DELTA machines have a long
spout fitted as standard for precise
and fast unloading.

Push button operation returns the
spout to the home position once
unloading is complete.

Electric grain lids

The electric grain tank lids open
easily via the Datavision monitor.
They are waterproof and can be
closed when it rains and also when
combining under trees around the
headland.

Always in control

Grain can be inspected easily
from the window at the back of
the cab. Level sensors can also be
monitored through the Datavision
screen.

Full and 3/4 full sensors•
Flashing beacons switch on •
automatically at 3/4
Visual and audible warnings •
alert the operator within the
cab when loading is complete
Grain weight is measured •
constantly and is visible on the
Datavision screen
The volume of the grain in •
the tank is shown on the
Datavision screen in kg for
precise indication of volume

26

27

100% in, 100% out

What comes out of your machine is as important as what goes
in. The MF 9280 Delta ensures quality output every time with high
performance straw chopper and the optional Maxi-Spreader.

Stress-free baling

Thanks to the DELTA’s Hyperforma
system, straw fed through the
machine suffers less damage and
is much easier to pick up when
swathed. A single lever diverts the
straw from the Straw chopper to
leave a swath on the ground ready
for baling.

The MF 9280 DELTA combine offers
an even chop of short straw and
now with the new Maxi-Spreader as
an option, you get even, controlled
spreading every time.

Residue handling – the key to
lower incorporation costs

The DELTA range is equipped as
standard with the Min-Till Chopper.

The Min-Till Chopper has eight
rows of serrated blades, 108 knives
and has a faster rotor speed than
many standard choppers.

This means the minimum chopped
length of the straw is very short.
This ensures quick breakdown of
the straw which is ideal for No-Till
or Min-Till cultivation systems.

The chopper can achieve a spread
of up to 9 metres. An additional
‘dual chop’ bar can be engaged
easily for even more aggressive
chopping action.

Easy access to the chopper ensures
plenty of room for servicing knives.

Electric control of deflectors

Fingertip control from the Datavision
screen can reverse the deflector
settings when turning at the
headland.

The Maxi-Spreader (Optional)

To ensure successful straw
decomposition and higher crop
yields, the following year, the
optional Maxi-Spreader will
distribute an even thickness
across the entire width of the 9.2m
Powerflow header.

The optional Maxi-Spreader
consists of two rotating impellers
which propel the crop at high speed
over a long distance.

The speed of these impellers,
350 - 1000 rpm can be controlled
from the Datavision screen.
If working in windy conditions,
the impellers can be adjusted to
compensate against any wind force
by regulating the speed.

A splitter deflector sits between
the impellers and controls even
distribution of material, improving
crop breakdown and preventing
clumping. The splitter deflector
ensures a consistently even spread.

On the move

At the push of a button, the
Maxi-Spreader can be raised
during transportation. This simple
procedure takes seconds and no
tools are required.

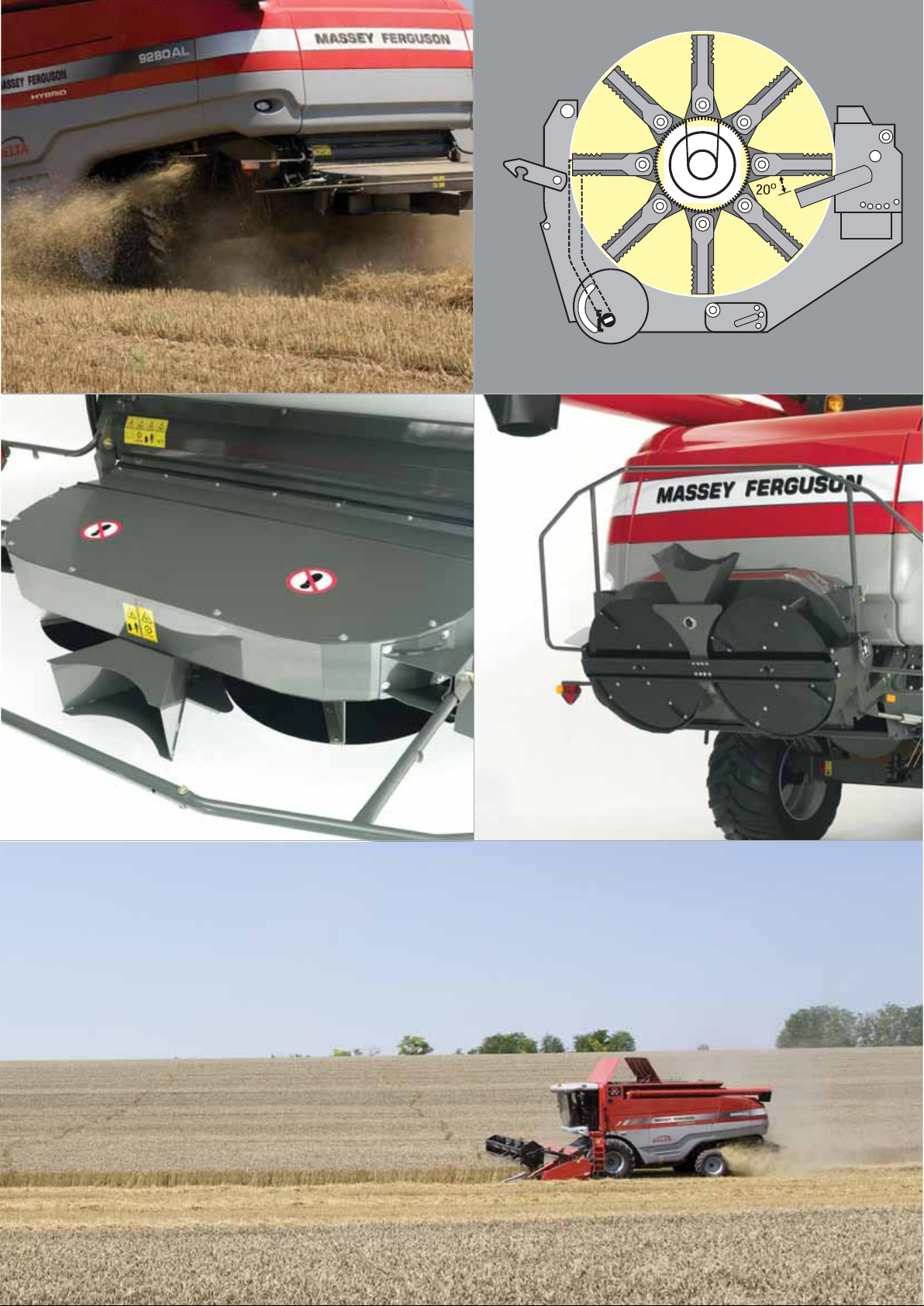

01 - 02 Min-till straw chopper with
additional chop bar

03 Maxi-spreader in work position
04 Maxi-spreader in transport

position

28

01 02

03

04

29

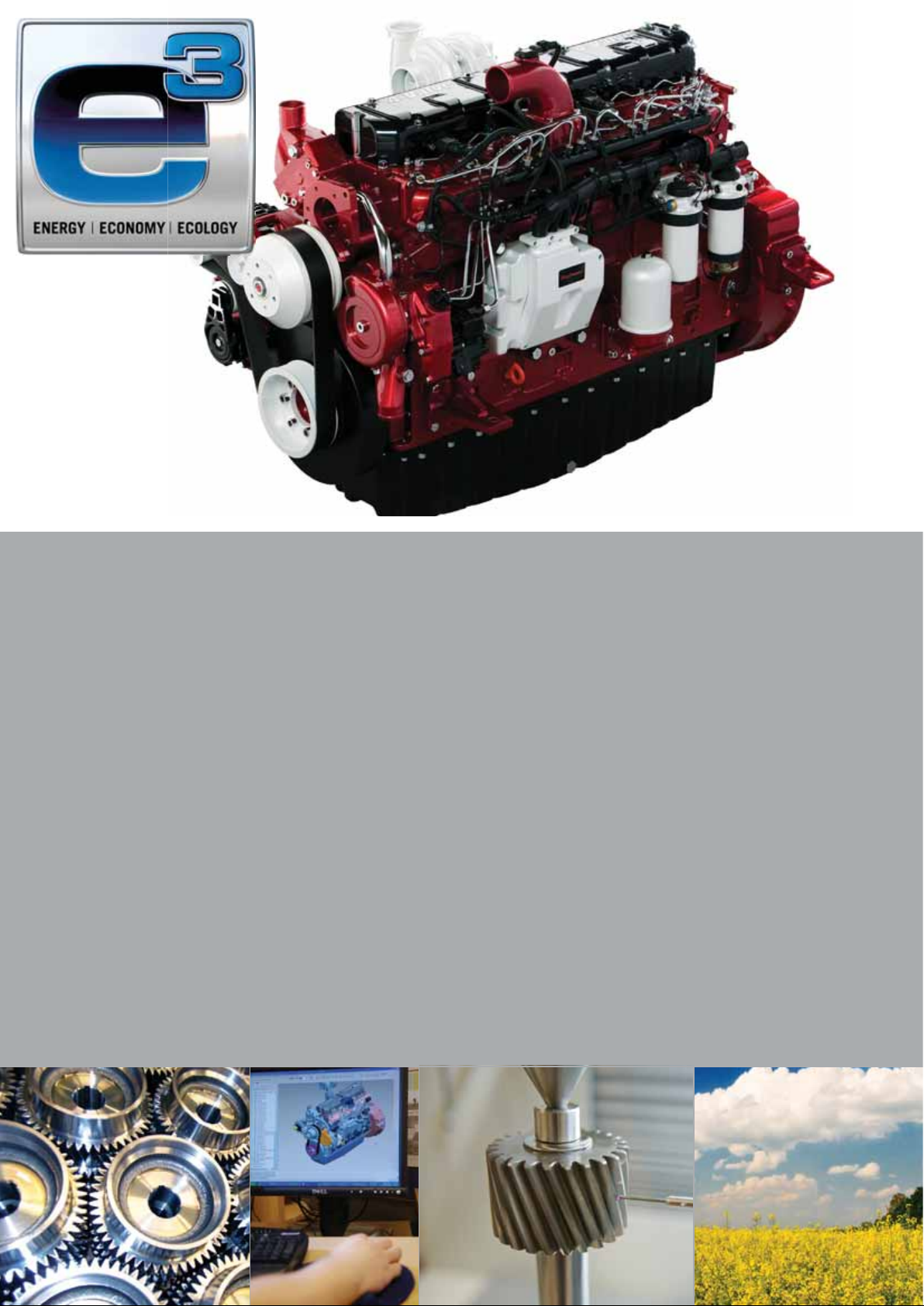

Always one step ahead

We understand and recognise our responsibility towards a cleaner
future. In response to environmental and economical change we
are meeting the expectations of our customers and our dealers,
putting us one step ahead when it comes to energy, economy and
engine efficiency.

AGCO SISU POWER engines are
robust, powerful, durable and
the most efficient on the market.
The MF 9280 DELTA is the first
combine harvester to have the
AGCO SISU POWER SCR engine
as standard, giving you exceptional
fuel efficiency, low noise levels,
reduced emissions and increased
power density.

AGCO SISU POWER’s new
generation of 7-cylinder, diesel
engines with SCR are optimised
to provide the most complete
combustion possible. The E
system enables the engine to be
optimised for lowest possible fuel
consumption, whilst managing
ultralow particulate levels, meeting
the Tier III EU emissions legislation.

How it works

Once the exhaust gases leave
the engine, all that remains to be
done is to reduce the nitrogen
oxides. This is done with the help
of Selective Catalytic Reduction
(SCR). It is an effective and
thoroughly tested method of
cleaning exhaust gases and a
tried and trusted solution which
is already being used on our
MF 8600 Series flagship tractor
range.

3

SCR

A mixture of urea and deionised
water known as AdBlue
injected into the exhaust gases.
The heat of the exhaust system
transforms the urea into ammonia
which reacts with the nitrogen
oxides in a catalytic converter,
converting them into harmless
nitrogen gas and water vapour.

Selective Catalytic Reduction can
cut fuel consumption by a minimum
of 5% compared to equivalent
engines using alternative emission
reduction systems. On average, this
is the equivalent to thousands of
litres of fuel saved every year.
Reduced fuel consumption means
a significant reduction in carbon
dioxide (CO2) emissions. Due to
highly optimised combustion,
particulate emissions are over
83% lower than current legislation
demands. This is exceptionally
beneficial for the environment and
to people’s health. Other gaseous
emissions, such as hydrocarbons
and carbon monoxide (CO)
emissions, are lower than generally
in Stage 3A engines, making this
engine safe and future proof.

®

is

The characteristics of the SCR
system means that optimised
combustion generates around
15% less heat.This reduction in
heat means the cooling package is
lighter and more efficient.

The life span of SCR equipment is
equal to the engine’s lifetime, and
the system is practically service
free. The operator hardly notices
the presence of SCR at all. What
the operator will notice however, is
the significant savings in
operating costs.

Features and Benefits

750 litre fuel tank•
103 litre Adblue tank •
capacity
Max power with boost- •
500hp
Meets Tier 3B emissions •
regulations
Low noise levels•
Proven AGCO SISU •
POWER technology
Longer service intervals•
Lower running costs•
Highly fuel efficient•

30

SCR - Frequently asked questions

What is Adblue®?

AdBlue is a urea based diesel
exhaust fluid which is injected via
the Bosch control system into the
exhaust, which includes a catalytic
converter.

Where is the Adblue tank
located?

Adblue is kept in a separate tank
located next to the fuel tank.

How will SCR improve fuel
efficiency?

SCR will fine tune engine
efficiency, optimising combustion
which significantly improves
horsepower and fuel economy.

Where can I purchase
Adblue?

Adblue can be bought from your
local Massey Ferguson dealership.

What is the ratio of Adblue to
a tank of fuel?

A 600 litre container of AdBlue is
enough to treat 20,000 litres of
diesel safely whilst still allowing for
optimum performance.

How will I know if I my
Adblue tank is empty?

A gauge on the Datavision screen
gives a visual warning when the
tank is low.

Will my combine shut down if
my Adblue tank is empty?

Your combine will not shut down
but will not work to its full capacity.

Will Adblue stop working
under extremely hot
temperatures?

No. Adblue is kept in a sealed
container to prevent evaporation.

Urea would have to be exposed
for a prolonged period before any

degradation could be measurable.

Will Adblue and SCR impair
the performance of the
machine?

Not at all, in fact it will improve
its performance. Optimised
combustion generates around
15% less heat, a reduction in heat
means the cooling package is
lighter and more efficient. The life
span of SCR equipment is equal
to the engine’s lifetime, and the
system is practically service free.
The operator hardly notices the
presence of SCR at all. What the
operator will notice however, is the
significant savings in operational
costs, servicing times and fuel.

31

Auto Level:
King of the field

32

The MF 9280 Combine is available as an
Auto Level machine, where the combine
rump levels independently, adjusting for
slopes of up to 12%

Ideal when working in steep or
hilly conditions. The Auto Level
combine follows the contours of
the field, enabling the machine
to work at maximum efficiency
on gradients.

The Auto Level system is
controlled and managed through
the Datavision screen. This
makes seamless adjustments
to the machine and table whilst
harvesting.

All the internal components are
kept level which means they
can continue to operate at
full productivity. The body of the
combine will remain level whilst
wheel movement compensates
for the slope.

‘Whole machine levelling’ is
more efficient than ‘component
levelling’ as slopes affect the
whole threshing and separation
process, increasing output and
profit.

33

Comfortably in control

The MF 9280 DELTA combine offers exceptional comfort and
serviceability plus you’ll feel perfectly at home with straightforward
and efficient ergonomics.

Throughout your long working
day you’ll find that our combine
cabs are quiet and vibration-free,
allowing you to carry out the
harvesting without distraction.
Tinted glass and climate control
come as standard and electronic
controls put everything at
your fingertips.

Sitting comfortably?

The standard air suspension seat
suits drivers of every shape and
size, and the ‘3D’ (tilt, telescopic,
incline) steering column, allows
the driver to find the perfect
working position. There’s plenty
of leg room too, for long working
days. In addition to this there is a
convenient upholstered
instructor seat.

Perfect visibility - day or night

Twelve, high-powered front work
lights as standard ensure round­the-clock productivity, in comfort
and safety. The entire cab area has
excellent visibility thanks to the
panoramic windscreen, giving a
uninterrupted view of the header.

Fast, accurate unloading

The operator has a perfect view
of the unloader so there’s no need
to lean forward uncomfortably.

Unloader engagement is protected
so that it cannot be switched on
accidentally. It can also be locked­on for static unloading.

Complete control

The Multi-function Lever is part of
the armrest on the seat, making
operating adjustments convenient
and easy; like the Datavision
screen, it can be adjusted precisely
to suit the operator’s driving
preference. Datavision screens
can also be selected from the
Multi-function Lever, in addition
to extending and closing the
unloading auger.

Fast access to all areas

Two daily greasing points
means a quick turnaround in
the morning. Our engineers
have designed the DELTA to be
harvesting for as long as possible
keeping down-time to
a minimum.

The solid engine cover offers safe
and secure access to the grain
tank and protects the engine from
the elements while closed. When
open it offers unrestricted access
to the engine service points.

Cooling air for the radiators is
effectively filtered by the rotary
screen. Access for cleaning
is quick and easy from the
engine bay.
Two-piece side panels provide safe
and unrestricted access for routine
maintenance, and a detachable
engine bay ladder enables the
operator to reach every area.

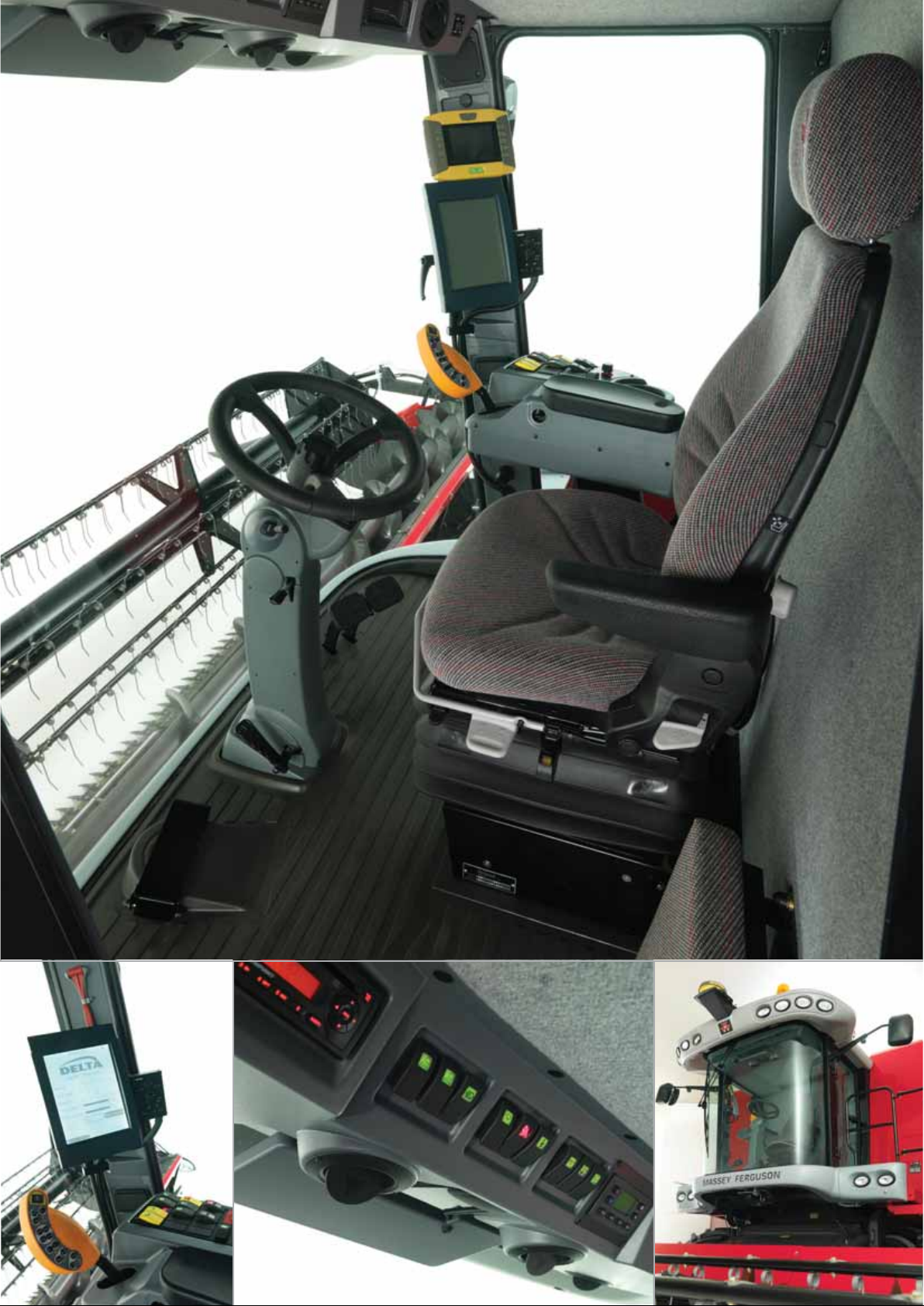

01 Spacious, comfortable cab
with optional Topcon System 150
monitor

02 Datavision screen and multi­function lever

03 Overhead console comes
complete with Datavision printer,
mirror adjustment, climate control,
heating and Radio/CD player

04 The DELTA cab offers an
excellent view of the header
and fields

32

34

01

02

03

04

35

Harvesting technology

Electronic combine monitoring and control is key to achieving
maximum harvesting efficiency. On the new Massey Ferguson
DELTA combine, these multi-functional, straightforward systems
allow operators to adjust settings on-the-move and boost
productivity as well as record crop yield information.

Machine Control

Includes systems

such as Datavision
and TOPCON 150.

Machine

Management

The web-based tool
AGCOMMAND provides
the basis for machine
management in the farm
office. Includes functions
relating to fleet/asset
tracking, with Communicator
and Record-Keeping.

Precision Farming

Includes the yield
monitor and yield
mapping.

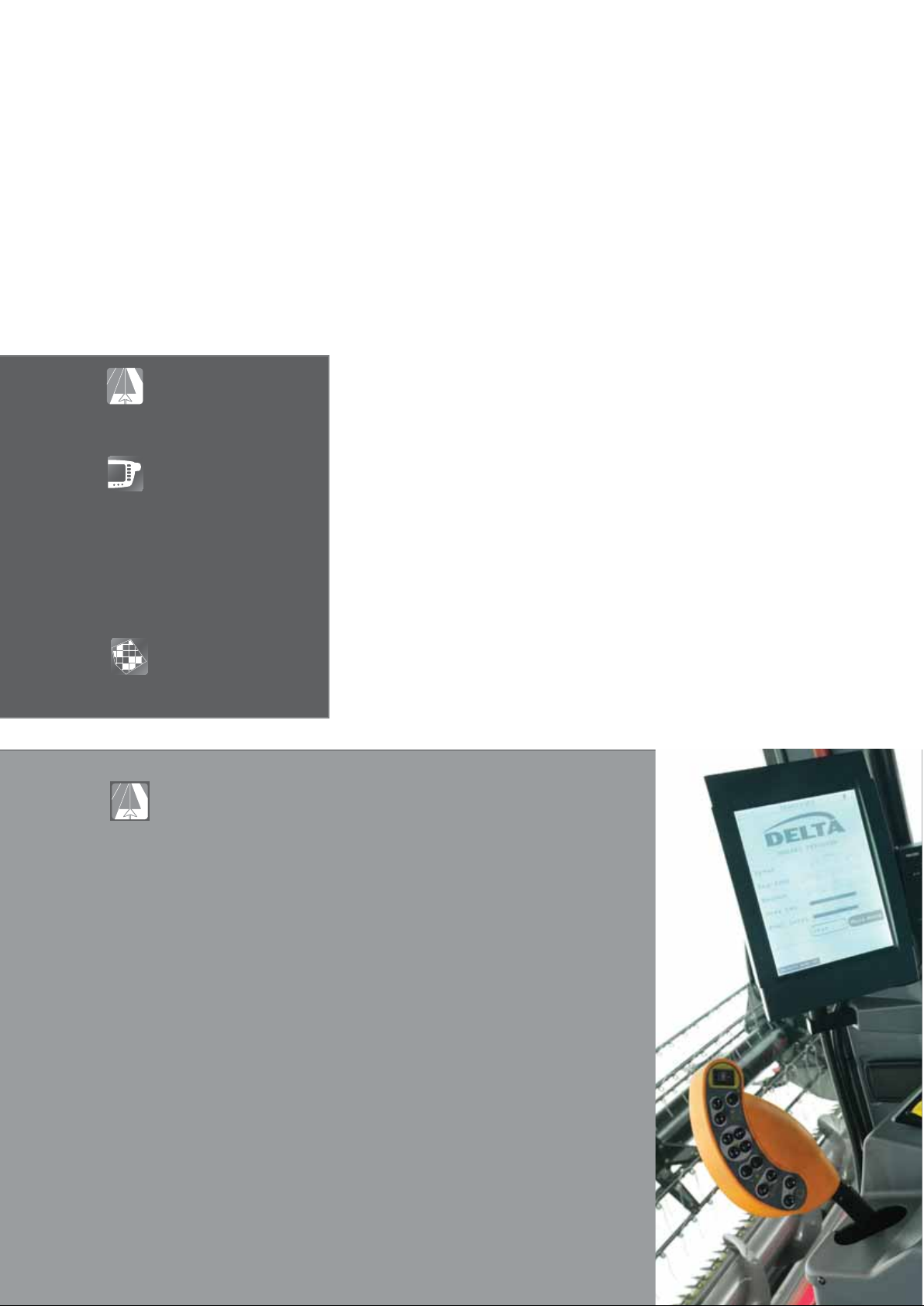

Datavision and the MF DELTA combine

Datavision is very much a part of combine operation. It is a key tool
for getting maximum efficiency from you and your machine in an
easy-to-use way. Datavision comes as standard.

Collecting, monitoring and
interpreting information is a
key element of any successful
enterprise today and farming is no
exception. It enables closer control
of costs, better use of time and
more accurate measurement
of performance.

But don’t assume that you need
to be an expert in electronics to
benefit from Massey Ferguson
Technology – it may be extremely
clever and highly advanced, but
it’s very simple to set up and
operate.

36

What can Datavision do for you?

The screen position is adjustable for comfort and has a clear easy-to-read
display. It enables the operator to see up to eight different functions of his
choice simultaneously. You can, at a glance, ensure that you are getting the
best from your machine.

You can improve your efficiency, as it is easy to adjust major settings,
including sieves and concave clearance, from the screen.

Datavision makes operation easier by having a single clear point of reference
and is large enough to be looked at quickly and understood.
It provides protection and warnings for the machine and operator, avoiding
unnecessary cost and time loss. There is a diagnostic feature, which saves
time for you and your dealer when servicing or trouble-shooting.

It can provide logging information on yield and combine performance, which
forms the basis for Precision Farming.

You will benefit by choosing one of the integrated systems for yield mapping
and data-logging that we offer. A choice of yield metering equipment is
available to match your Precision Farming requirements.

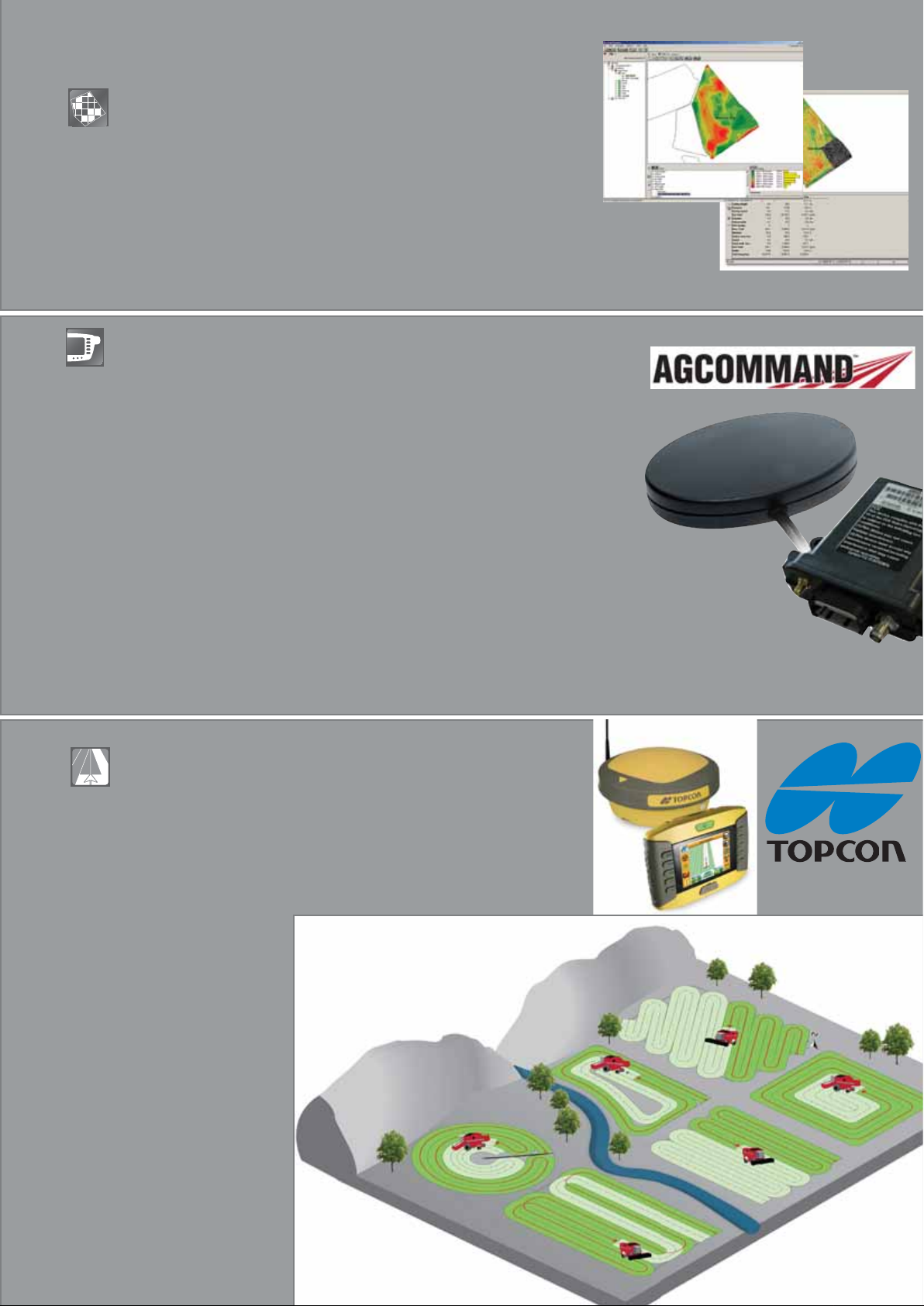

Yield Mapping, for future gains

Massey Ferguson pioneered yield monitoring on combine harvesters in
the 1980’s and continues to lead with the most accurate, easy-to-use
systems available.

The Datavision terminal can provide data that is compatible for most third party
Yield Mapping software programs making it the ultimate information station for farm
management.

AGCOMMAND

Get near real-time access to valuable machine information that
will help you increase your machine’s performance, productivity and profitability
with the AGCOMMAND telemetry system from AGCO’s Advanced Technology Solutions.

AGCOMMAND telemetry system is accessed directly from any internet enabled computer
and offers an abundance of machine data to improve management and profitability of your
operation. AGCOMMAND will log and transmit many different and important pieces of
information, including engine status, vehicle location and maintenance records and hours
of work. A detailed history of service information, such as oil and filter changes is also
available. All of this valuable information can be viewed via the website.

With AGCOMMAND, your machine information is always at your fingertips. AGCOMMAND
will send alarms directly to any mobile phone or via e-mail. Alarms can be set to alert you
to a variety of situations. AGCOMMAND can be used to send an alarm if the machine
leaves a pre-defined boundary. At virtually any time of the day or night, you can know
where your machines are and what they are doing.

The machine’s owner also has theoption of providing their dealer with access to machine
hours, current location and service history, allowing the dealer to anticipate upcoming
maintenance and to schedule a service call to maintain optimum machine performance.

Precision agriculture with TOPCON System 150
The Topcon System 150 is a hands free, satellite-based, steering system
capable of delivering sub-meter, decimetre, and centimetre accuracy.
Steering installation kits for guidance ready AGCO vehicles are available. Vehicle
kits are also available for other makes and models of equipment. The System 150
AGI-3 receiver comes as standard with sub-meter and decimetre accuracy, already
built in, and can be upgraded easily to RTK (cm).

Features and benefits

The System 150 steering •
system allows you
to reduce skips and
overlaps.
World’s first multi-•
constellation (GPS,
GLONASS and Galileo)
receiver with integrated
antenna and guidance
controls
72-channel receiver uses •
all available satellites
Superior compensation for •
rolling terrain
Best in class accuracy at •
all correction levels
Expandable for use with •
future correction sources

Guidance modes available:

A-B lines (straight parallel lines)•
Identical curve•
Adaptive curve •
Centre pivot•

37

A confident future in
harvesting

Adam Sherriff, Marketing Manager for Powered Harvesting explains
why the DELTA combine was commissioned.

“We started this project by
asking farmers with large
capacity combines and larger
combinable areas about
their key requirements. The
feedback from this process
was that they were looking
for a higher output machine
that would give consistent
performance, with reliability
and low running costs”.

In order to do this, Engineering
was spared no expense to
provide an efficient solution
for threshing, separation
and motive power. Our tests
have shown this concept will
be reliable and durable and
unequivocally justify the reason
to purchase.

The MF DELTA combine
has been designed for high­productivity in high yielding
crops, minimal losses,
unbeatable straw quality, and
low fuel costs.

It’s time for change –
Massey Ferguson have every
confidence the MF DELTA
will do this successfully for
all professional farmers and
growers.

38

We have also looked very
carefully at the backup required
for such a machine, provided
training and reviewed the
aftersales support necessary
for this type of combine and for
you, the customer.

Get the right output and
professional support for your
harvest, now and in the future
with the MF 9280 DELTA
combine from
Massey Ferguson.

39

Total support, no matter
where or when!

AGCO Customer
Support…

providing local
service to the
global brand

Massey Ferguson is a true global
brand with machines operating all
over the world, from revolutionary
“little grey fergie” tractors to
the latest high-tech tractors
and combines. Have you ever
wondered how we continue to
provide industry-leading parts
and service support to such
a vast array of machines and
technologies across the globe?

Behind every Massey Ferguson
machine is the powerful aftersales
support of AGCO’s Customer
Support organisation.

Our main aim is to ensure that
every machine - old or new - is
fully supported locally, offering
every Massey Ferguson owner:

• The best service in the industry

• Low cost of ownership

• A reliable and durable machine

• Minimum machine downtime

• A high resale value

State-of the art warehousing and
logistics from AGCO Parts

Of course, every Massey Ferguson
dealer is fully backed-up by
the AGCO Customer Support
organisation which provides
industry-leading parts supply
through AGCO Parts’ state-of­the-art warehousing and logistics.
With outstanding service levels,
overnight delivery and inventory
covering all Massey Ferguson
machines - even those over 10
years old - we only ever supply
genuine parts, and we guarantee
the right fit, first time.

The right aftersales solution
whatever the age of machine

Whatever the age of your
Massey Ferguson machine,
AGCO Customer Support has
the right aftersales solution to
save time and money, providing
appropriate, affordable and
reliable servicing and maintenance
solutions in every situation.

Practical local support
where you need it

AGCO places great emphasis on
providing the best service to our
Massey Ferguson dealers and this
extends beyond the exceptional
servicing and maintenance
solutions and parts supply:

• Expert training and
specialist equipment

• Advanced diagnostic techniques

• Information retrieval technology
to communicate the very latest
parts and service information

• Highly skilled technical
support groups

With aftersales support from
AGCO Customer Support, it’s
not just about supplying a filter
or doing an oil change. It’s about
providing the best solution to our
customers’ needs, wrapped up
with industry-leading parts and
service support.

01 Ensuring the best service
support - whenever, wherever

02-03 Practical, local support,
from highly trained technicians

04 Industry-leading parts supply
from AGCO Parts

36

40

05 Lifetime support for all
Massey Ferguson machines with
10+ parts

01

02 03

02

04

04 05

03

41

MF 9280 DELTA
Powerflow Table MF 9280 MF 9280AL

Width m 6.8 to 9.2
Reel Drive Hydraulic
Reversing Hydraulic
Auto Level

●●

HyPerforma Threshing Technology

Constant Flow

●●

Threshing Drum diameter mm 600
Concave Area m

2

1.18
Rotor Feeder diameter mm 500
Beater Concave Area m
Separation Area Rotor Feeder m

2

2

0.33

0.39
Rotary Separation 2 rotors
Rotor Diameter mm 475
Rotor Length mm 4200
Rotor Separation Area m
Total Separation Area m

2

2

3.54

5.44
Rotor Speed rpm 360 to 1000

Venturi Cleaning System

Total Sieve Area m
Two Step System, pressurised
Removable Preparation Floor

2

5.3

●●

●●

Fan Speed Adjustment Electric
Electronically Adjustable Sieves 2
Separate Rethresher

●●

Grain Tank

Capacity litre 10500 9500
Max Unloading Height mm 4500

Inside light
Adjustable full warning
Outside steps and inside ladder
Sampling tray

●●

●●

●●

●●

Unloading

Unloading Rate l/sec 110
Turret unloading spout length mm 7760 7760

Crop Residue Handling

High speed Min Till Chopper
108 Serrated Knives
Maxi Spreader
Straw Chopper Deflectors
Chaff Spreader

●●

●●

❍❍

●●

●●

Engine MF 9280 MF 9280AL

3

Manufacturer AGCO SISU POWER e
Maximum Power*
Fuel Tank Capacity Litres 750
Adblue Tank Capacity Litres 103

Transmission

Hydrostatic
No. of Gears 4
Speed Range 0 - 25 km/h

Cab

Type Integral, Sound proofed
Ventilation Fan type
Automatic air conditioning
Heating
Datavision monitor
Deluxe Air Seat

Weights and Dimensions

Length (with PowerFlow,
without torpedo dividers)

Length (w/o table & spreader hood) mm 8,266 8,266
Length (with spreader hood in

working position)
Height (grain tank lid closed) mm 4,000 4,000

✪ hp/kW

●●

●●

●●

●●

●●

mm 10,203 10,203

mm + 479 + 479

SCR

500/372

Specifications

Every effort has been made to ensure that the information contained in this publication is as accurate and current as possible.

However, inaccuracies, errors or omissions may occur and details of the specifications may be changed at any time without notice.

Therefore, all specifications should be confirmed with your Massey Ferguson Dealer or Distributor prior to any purchase.

Height (grain tank lid open) mm 4,555 4,555
Height (Transport Position) mm 4,000 4,000
Width with 30’ PowerFlow header,

outside/cut
Weight (w/o table, Maxi spreader)

(with chopper, chaff spreader)
No fuel or Adblue

Weight (w/o table, with Maxi
Spreader, chopper and chaff
spreader) No fuel or Adblue

Weight (w/o table, with Maxi
Spreader, chopper and chaff
spreader) Full fuel & Adblue

Wheels and tyres - Width (In transport w/o table, ladder turned)

620/75R34AL mm - 3480
650/75R32 mm 3500 3500
680/85R32 mm 3500 ­800/65R32 mm 3800 3800
800/65R32AL mm 3882 3882
900/55R32 mm 4020 4020
1050/50R32 mm 4350 -

Rear tyre option

500/70/24 m 3500 3500
600/55-26.5 m 3740 3740

mm 9633/9200 9633/9200

Kg 16,320 17,360

Kg 16,510 17,550

Kg 17,360 18,400

✪ ISO TR14396

● Standard
❍ Optional

- Not applicable
* Including 30hp boost

MF 9280 DELTA highlights

For a productive future in superior harvesting, look no further than
the MF 9280 DELTA combine from Massey Ferguson.

The MF 9280 DELTA combine harvester from

01

Massey Ferguson is the perfect combination of
efficiency and economy.

PowerFlow: This world-renowned ‘cutting platform’ can

02

deal with the harshest conditions and the highest of
capacities. It has ‘quick crop’ changeability for complete
versatility. PowerFlow is standard on both models.

The Hi-Inertia threshing cylinder at the heart of the

03

combine boasts exceptional threshing and separation
results. This highly effective system provides outstanding
grain samples and well-designed components guarantee
fuel efficiency.

Performance enhancing Constant Flow is a superb

04

feature which allows the combine to work at maximum
capacity and optimum output by sensing the load on
the cylinder and varying the machines forward speed to
match the crop, ultimately boosting ouput whilst keeping
losses to a minimum.

Separation is achieved by two high capacity rotors. Spiral

06

patterned fingers ensure a smooth transport along the
rotors for higher output.

The NEW Venturi Cleaning System increases airflow

07

through the sieves, maintaining high cleaning performance
to achieve exceptional grain samples and increase

productivity.

The min-till chopper has 108 serrated knives arranged

08

in 8 rows which work at high speed to produce a very
fine chop. An optional maxi-spread chopper hood can
be fitted for spreading high volumes of straw over wider
distances.

Proven to substantially reduce emissions and fuel costs;

09

the MF DELTA combine has a seven cylinder, 500 hp*,
AGCO SISU POWER engine with Selective Catalytic
Reduction technology (SCR).

High performance concave with wider opening for

05

maximum grain removal and the cleanest of
grain samples.

*With 30hp boost

© AGCO Limited. 2010 | A-English/15023/0710/7m

is a worldwide brand of AGCO.
