A powerful future in farming
A powerful future in farming
5 models: 270 to 370 hp
5 models: 270 to 370 hp
VISION INNOVATION LEADERSHIP QUALITY RELIABILITY SUPPORT PRIDE COMMITMENT
Page 2
Farming
into the
future
Our vision of the future is to
provide you with opportunities
and solutions for your
business. A vision that will last
for generations to come.
02
Farming in today’s climate has many obstacles which
farmers and contractors have to face. With the world’s
population rising, a greater demand for food and land
and with changeable and volatile weather conditions,
you need machinery you can rely on.
We understand the challenges that farmers are
encountering and so our new range of agship tractors
has been designed and built by the people who truly
understand the nature of your business.
Through insight and innovation we build machinery that
meets the needs of modern farming so you can look to the
future with condence.
Page 3
04 05
02
03
Page 4
It’s still a matter of pride
In 2004, we proudly launched the award-winning MF 8400 Series,
then a ground-breaking machinery line-up in the high horsepower
sector. Now, through vision and passion, Massey Ferguson is
anticipating the future demands of today’s farming community.
Since 2004 our designers and
engineers have worked diligently
to continually improve on the
innovative advancements that the
MF 8400 had to offer.
To get the very best performance
and productivity from a tractor,
we put it through its paces again
and again in the most rigorous and
pressurised testing a machine can
be subjected to.
Massey Ferguson’s designers
and engineers researched the
main constraints and problems
facing today’s and tomorrow’s
tractor operator; visibility and
accessibility; both front and rear,
bonnet and grill dynamics, work
quality, ergonomics and
fuel consumption.
We know how important it is to get
an honest and unbiased opinion
of what our customers want and
need, so we used market research
and extensive customer opinion
and feedback to determine what
was needed to take the product to
the next stage.
Extreme testing
Every part of the machine is
painstakingly tested. Extreme
condition simulation tests ensured
that the tractor could withstand
the worst climate, most unforgiving
terrain and most difcult eld
operations. Temperatures within
the cold chamber reach -40
The MF 8600 has undergone
highly detailed analysis. From the
simplest of switches and buttons
to the tractor’s external structure,
every part has been assessed for
pressure, resistance and general
workday use.
Low noise levels, lowest
emissions
Machine noise levels and emissions
were tested to achieve complete
operator comfort and to meet and
deliver the ever-evolving demands
for emission reduction. By
collaborating with SISU and Bosch
systems, we achieved what was
thought to be impossible; cleaner
emissions, lower fuel consumption
but with increased power.
o
C.
The AGCO SISU POWER e3
Selective Catalytic Reduction
(SCR) system is a unique and
sophisticated feature meeting future
emissions legislation right now.
Cab noise levels were also tested
within our unique semi-anechoic
chamber using sophisticated
and modern acoustic equipment,
allowing the operator a comfortable
and quiet working day.
Through listening to the
expectations of the customer
and collaborating with them
during eld tests, we have
been able to test and develop
a machine that denes the
spirit of Massey Ferguson,
producing a tractor with
unprecedented capabilities.
04
Page 5
01 Designing the MF 8600
Series tractor
02 Cold chamber testing
03 Massey Ferguson customers
invited to test the new
‘Panorama’ cab
01
04-05 Rugged eld testing of the MF 8690 including grip and
traction, visibility, power responsiveness, comfort and quality
02
04
03
05
05
Page 6
A new experience
The most important objective during the development of
the MF 8600 Series tractor was to produce a machine with
uncompromised power and a multitude of innovative features;
creating a totally new operator experience.
The MF 8600 Series has seriously
modern, dynamic looks, which
offset its immense structure. At the
heart of the machine is a muscular,
six-cylinder AGCO SISU POWER
engine and award-winning
Dyna-VT transmission.
Protecting your investment is a new
cast front axle support, heavier-duty
front axle with optional QuadLink
front suspension and a tough new
chassis-rail structure.
There are many new and
innovative characteristics that
set the MF 8600 apart from the
competition; all of which guarantee
the highest productivity and
optimum performance.
The MF 8600 range
Model Engine Capacity ISO hp
MF 8650 6 cyl. turbo/intercooled e3 SCR 8.4 litre 240 270
3
MF 8660 6 cyl. turbo/intercooled e
MF 8670 6 cyl. turbo/intercooled e
MF 8680 6 cyl. turbo/intercooled e
MF 8690 6 cyl. turbo/intercooled e
SCR 8.4 litre 265 295
3
SCR 8.4 litre 290 320
3
SCR 8.4 litre 320 350
3
SCR 8.4 litre 340 370
1
ISO hp
2
06
1 ISO TR14396 @ 2200 rev/min 2 ISO TR14396 @ 2000 rev/min
Page 7

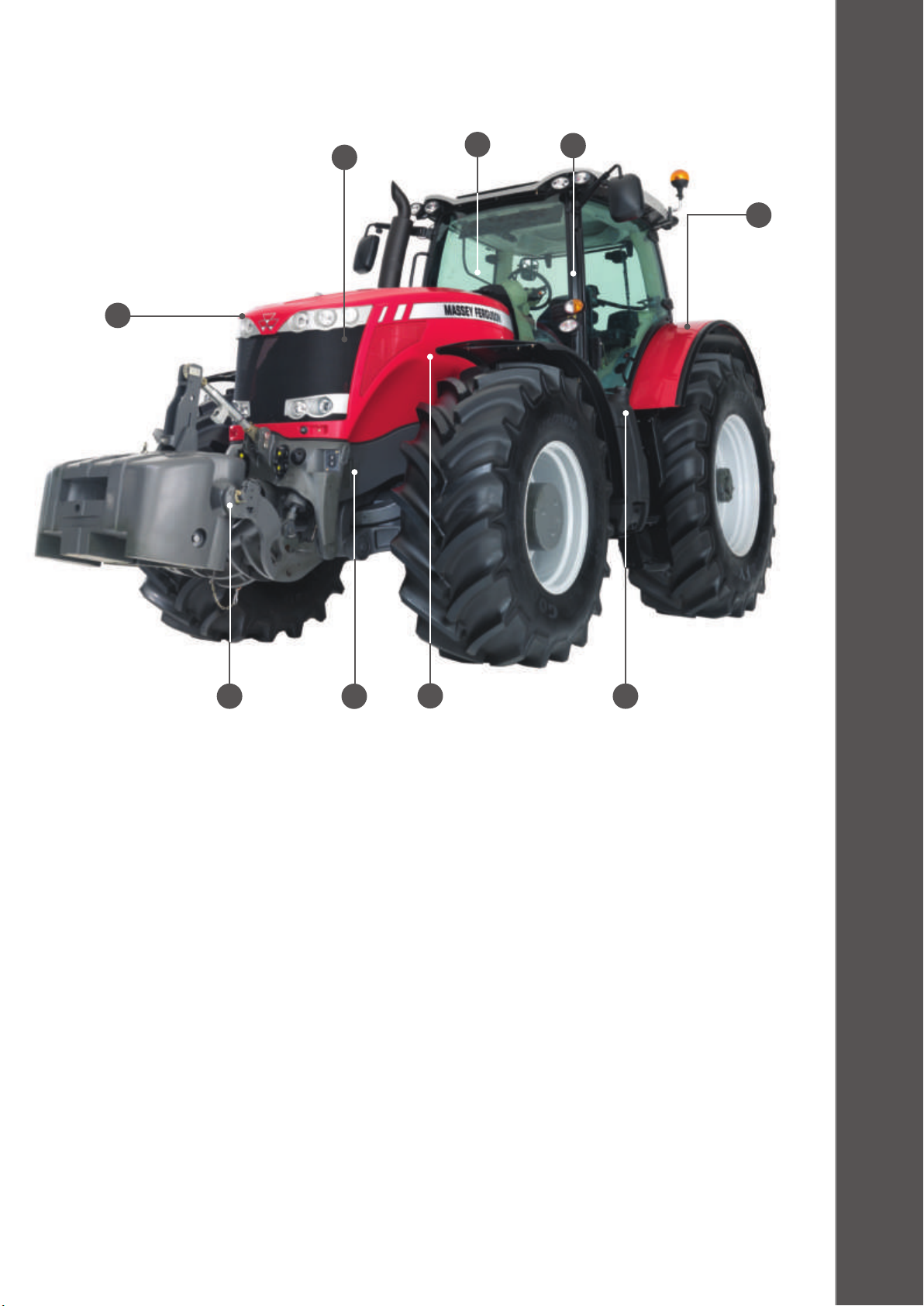

01
02
03
04
05
06
01 Contemporary styling and
a powerful new look combine to
create the MF 8600 Series.
02 AGCO SISU POWER Diesel
8.4 litre, 4-valve common rail
engines; low running costs, low
noise levels and uncompromised
power and torque.

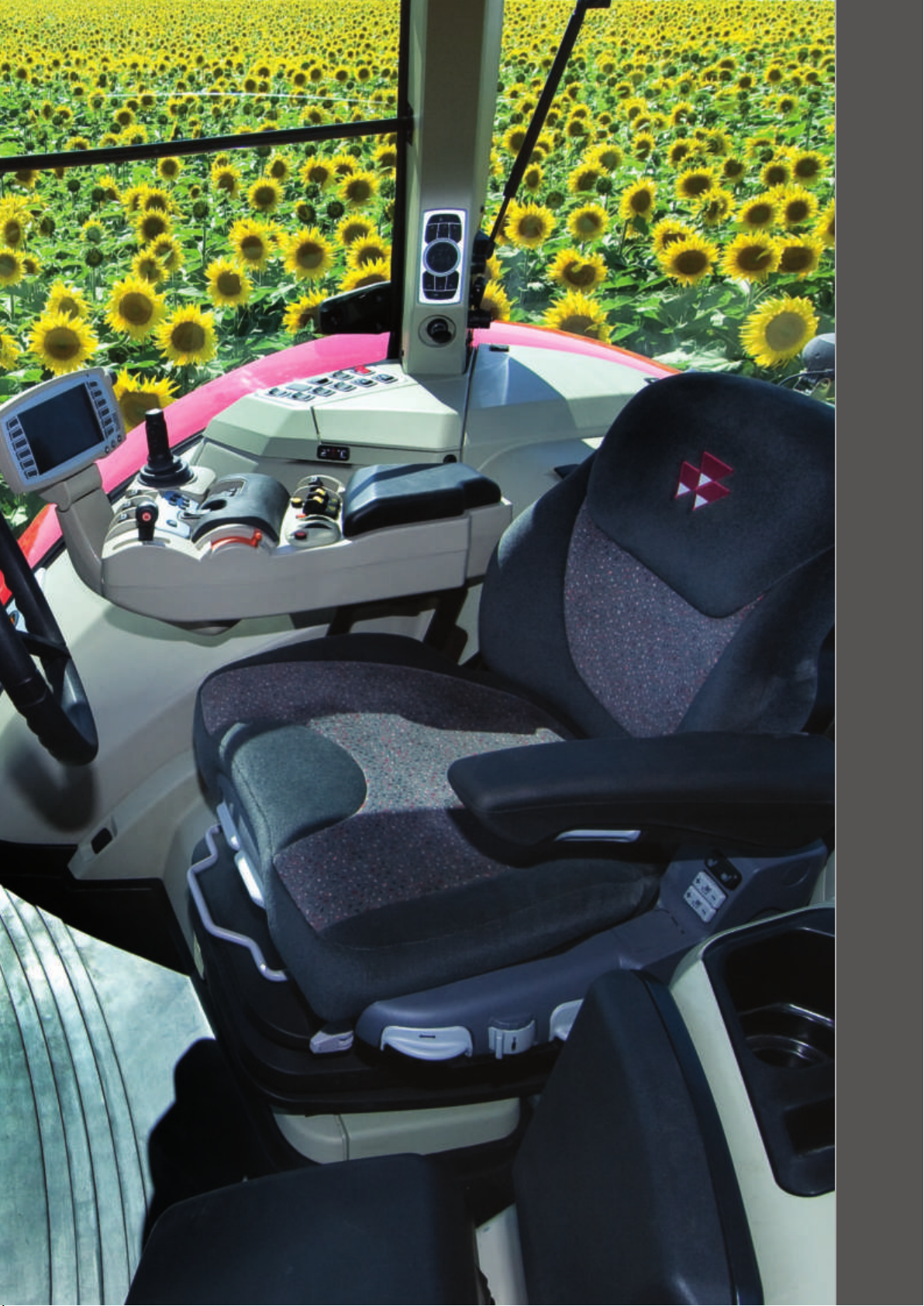

03 The ‘Panorama’ cab. 28%
more room means there’s
more space to work freely and
comfortably. All controls are now
located on the user-friendly arm
rest to the right of the operator’s
seat.
07
04 OptiRide 4-point cab
suspension and OptiRide Plus Dynamic cab suspension (Optional)
05 Superb new rear linkage with
extreme 12,000 kg lift capacity.
06 Integrated Front Linkage
System (IFLS) with a massive
5,000 kg lift capacity.
07 The new chassis structure
with immensely durable chassis
rails, robust cast front axle support
and heavier duty front axle with
QuadLink.
08
09
08 The MF 8600 Series is the
rst tractor range in the world to
feature SCR technology
09 Dyna-VT transmission now
comes with Dynamic Tractor
management; one of the many
new and enhanced features on the
ultimate transmission.
07
Page 8
Engines you can trust
Cleaner, more productive and economic ‘AGCO SISU POWER’
engines are at the heart of every MF 8600 Series tractor,
guaranteeing precise power and high performance.
08
The 4-valve, common rail AGCO
SISU POWER engine provides
the ultimate in optimum power
delivery, with the benet of a
turbocharged intercooler.
With exceptional ‘constant power’
and torque backup, the engine
keeps all of its productivity and
strength, but with the added
advantages of lower emissions and
improved fuel economy.
Intelligent engine management
All AGCO SISU POWER engines
feature new generation, latest
technology, ‘Tier III-compliant’,
Electronic Engine Management
(EEM). This enables continuous
adjustment of the amount and
timing of fuel injected, in relation to
engine speed and load. The results
are lower emissions, more power
and superb fuel economy.
EEM also enables a range of
advanced engine control functions,
including Engine Speed Control,
which is standard on MF 8600
Series tractors.
Extra power
The extra power feature provides
more power at 2,000 rev/min than
at 2,200 rev/min. This is consistent
with PTO speed so that maximum
power is available for all
PTO applications.
Engine speed control
Switches mounted conveniently
on the right-hand console enable
engine speed to be pre-set
and memorised.
The ability to return quickly
and easily to precise engine
speeds will boost productivity,
improve work quality and simplify
operation in almost all of your
daily tasks.
Page 9
1000
1100
800
900
1200
1300
1400
1500
1000
1200
1400
1600
1800 2000
2200
190
200
210
220
230
180
Previous engines
190
200
210
220
230
180
Specic fuel consumption (sfc)
g/kWh
New engines
g/kWh
Specic fuel consumption (sfc)
Optimum fuel economy
Engine rev/min
Optimum fuel economy
Torque (Nm)
Torque reserve
Engine rev/min
Constant
Power
Power (PS)
Engine rev/min
Compared to previous generation engines, MF’s
electronic engine management system broadens the
operating range within which the tractor is operating at
optimum fuel efciency.
Improved fuel economy
The Electronic Engine Management
system constantly monitors a
wide range of parameters and
makes continual and incredibly
ne adjustments to fuel injection.
Combined with high pressure
‘common rail’ fuel injection and
the 4-valve cylinder head design,
this has given further signicant
improvements, not only in
emissions but also in fuel economy.
The upper curve clearly shows how maximum torque
is maintained between 1200 and 1500 rev/min, with
steep torque rise as engine revs fall between 2200 and
1500 rev/min. The lower curve shows high power, with
‘constant power’ maintained down to 1570 rev/min.
The cooling system
A highly efcient cooling system
ensures that the engine itself
works to its fullest capacity
regardless of the application.
The fully-vented bonnet allows
the engine to breathe even in
dusty, dirty conditions. A large air
lter maintains cleanliness within
the engine, allowing for higher
productivity and savings on fuel
consumption.
Engine rev/min
09
Page 10
On the road to
a greener future
It’s more important
than ever to
be part of the
environmental
solution
Through pioneering technology,
Massey Ferguson, AGCO SISU
POWER engines and Bosch have
created the most economical and
ecological off-road diesel engine in
the world; creating the opportunity
to own a machine that is less
harmful to you, your livelihood
and the environment.
While still being cost efcient and
performance-perfect, the AGCO
SISU POWER e3 engine in the
MF 8600 range is well ahead of its
time both in emissions regulations
and in fuel efciency, resulting
in the ultimate high horsepower
tractor of the future.
Featuring Selective Catalytic
Reduction (SCR) system which
is widely used within the road
transport industry, AGCO
SISU POWER’s e
technology signicantly reduces
exhaust pollutants and fuel
consumption.
3
SCR engine
Mauno Ylivakeri is Engineering
Director for AGCO SISU POWER
engines and states: “Selective
Catalytic Reduction is proven to
provide the best fuel economy in
its class and deliver much cleaner
exhaust gas emissions”.
“The two main exhaust pollutants
are Nitrous Oxide (NOx) and
Particulate Matter,” he continues.
“Government policy is clearly
directed at reducing NOx due to
the environmental consequences
of smog, acid rain and respiratory
problems”.
10
Page 11
11
Page 12
The technology
of tomorrow, today
Selective Catalytic Reduction used in conjunction with AGCO SISU
POWER engines means an end to damaging emissions and high
fuel costs
How does the system work?
The SCR system on AGCO SISU
POWER e3 engines treats the
exhaust gases that would normally
enter and damage the atmosphere,
using AdBlue® diesel exhaust fluid.
AdBlue is metered in precise
quantities and is injected via the
Bosch control system into the
exhaust, which includes a catalytic
converter.
Simple to use, easy to maintain
There’s nothing complicated about
the SCR system. It’s incredibly
easy to control and maintain. The
AdBlue is held in a separate tank
located next to the fuel tank and is
consumed at the maximum rate of
3% AdBlue to diesel, the AdBlue
tank only needs to be filled every
second fuel tank fill.
A 600 litre container of AdBlue is
enough to treat 20,000 litres of
diesel safely whilst still allowing for
optimum performance throughout.
Selective Catalytic Reduction can
cut fuel consumption by a minimum
of 5% compared to equivalent
engines using alternative emission
reduction systems. On average, this
is the equivalent to thousands of
litres of fuel saved every year.
Reduced fuel consumption means
a signicant reduction in carbon
dioxide (CO
) emissions. Due to
2
highly optimised combustion,
particulate emissions are over
83% lower than current legislation
demands. This is exceptionally
benecial for the environment and
to people’s health. Other gaseous
emissions, such as hydrocarbons
and carbon monoxide (CO)
emissions, are lower than generally
in Stage 3A engines, making this
engine safe and future proof.
The characteristics of the SCR
system means that optimised
combustion generates around
15% less heat.This reduction in
heat means the cooling package is
lighter and more efcient.
The life span of SCR equipment is
equal to the engine’s lifetime, and
the system is practically service
free. The operator hardly notices
the presence of SCR at all. What
the operator will notice however, is
the signicant savings in
operating costs.
SCR (Selective Catalytic
Reduction) technology will be
essential for meeting the strictest
emissions limits at the beginning
of the next decade, whilst saving
money on rising fuel costs and
protecting the environment for the
next generation.
This is technology for tomorrow,
ready for you to use today. For
your future, for your business,
for the environment.
12
Page 13
Economic. Efcient. Ecological - e3 The facts
3
The AGCO SISU POWER •
3
e
SCR system is the most
efcient in its class, cutting
fuel costs by a minimum
of 5%.
The AdBlue•
solution works in
harmony with the SCR system
and can be easily obtained from
your Massey Ferguson dealer.
AGCO SISU POWER e•
engines with Selective
Catalytic Reduction run at
optimum efciency without
compromising engine
performance.
There is no need for additional •
service tools or expensive
diagnostic interfaces in the
vehicle.
By 2014, a 75% reduction •
in Nitrous Oxide gases is
required as part of Europe
wide legislations on emissions
levels. By using the e3 SCR
system, we are meeting
these regulations in time to
make a real difference to the
environment and to our health.
The technology offers big •
savings in costs and helps
protect our environment at the
same time.
13
Page 14
0
10
20
30
40
50
0
10
20
30
40
0
Innite wisdom
In order to give you the highest possible power and productivity,
we use the best transmission system. Our award-winning high
horsepower tractors all share this ground-breaking, state-of-the-art
functionality.
Dyna-VT is built around careful,
thoughtful design that gives
optimum durability to the machine
and total operator comfort to you.
Ensuring maximum productivity,
reduced physical strain on the
operator and optimum fuel
efciency at all times.
Stepless precision
Dyna-VT is intuitive; not only does
it make life easier when working
in differing conditions but it’s also
amazingly simple to use. There’s
no shifting of gears, no jolts and no
breaks in traction or power.
Constantly in control
The unique power control lever
makes forward/reverse shuttling
and speed change convenient
and hassle-free; when baling and
foraging, for example, you can
choose to control the machine
by foot pedal or, depending
on conditions and specic
applications the operator has a
choice of operating modes.
Pre-set speed control
Forward and reverse speed and
rate of acceleration can be pre-set
within each of two ranges.
By using SV1 and SV2 and
‘pre-setting’, the speed will be
maintained automatically and also
memorised at engine shutdown.
Headland turns, loader work and
many more eld operations become
faster, easier and less tiring.
The ‘Supervisor’
The ‘Supervisor’ is on continuous
stand-by and activates when
engine speed falls under load.
The benet of the ‘Supervisor’ is
that even when the load on the
engine is increased and engine
speed drops, the transmission
will automatically reduce forward
speed to maintain total power,
whether in PTO applications,
eldwork or transportation.
When used in conjunction with SV1
and SV2, which set a specied
forward speed, the tractor will then
operate at maximum output as
load uctuates. Fine adjustments
can be made on-the-move as
response is immediate, making
numerous applications hassle-free.
Dynamic Tractor Management
(DTM) - Intelligent machine
management for optimum fuel
efciency
To keep you in constant control
and comfort we now offer Dynamic
Tractor Management (DTM),
a new feature, which works in
conjunction with Dyna-VT. This
electronic management system will
automatically control the engine
and transmission when activated.
DTM controls the engine speed
according to the load on the
tractor. It maintains the required
forward speed whilst at the same
time minimising the engine revs in
order to keep fuel consumption to
a minimum.
DTM will manage the engine
between 800-2260 rpm but it can
manually set an upper or lower
speed limit in which the DTM will
still work exceptionally well.
The system works in harmony with
Dyna-VT, allowing you the option
of lever or pedal modes.
Dyna-VT and Dynamic Tractor
Management (DTM) will work
consistently at maximum efciency
and economy whilst maintaining
a smoother drive quality and
a noticeable reduction in fuel
consumption.
14
Page 15
01
0
10
20
30
40
50
0
10
20
30
40
0
02

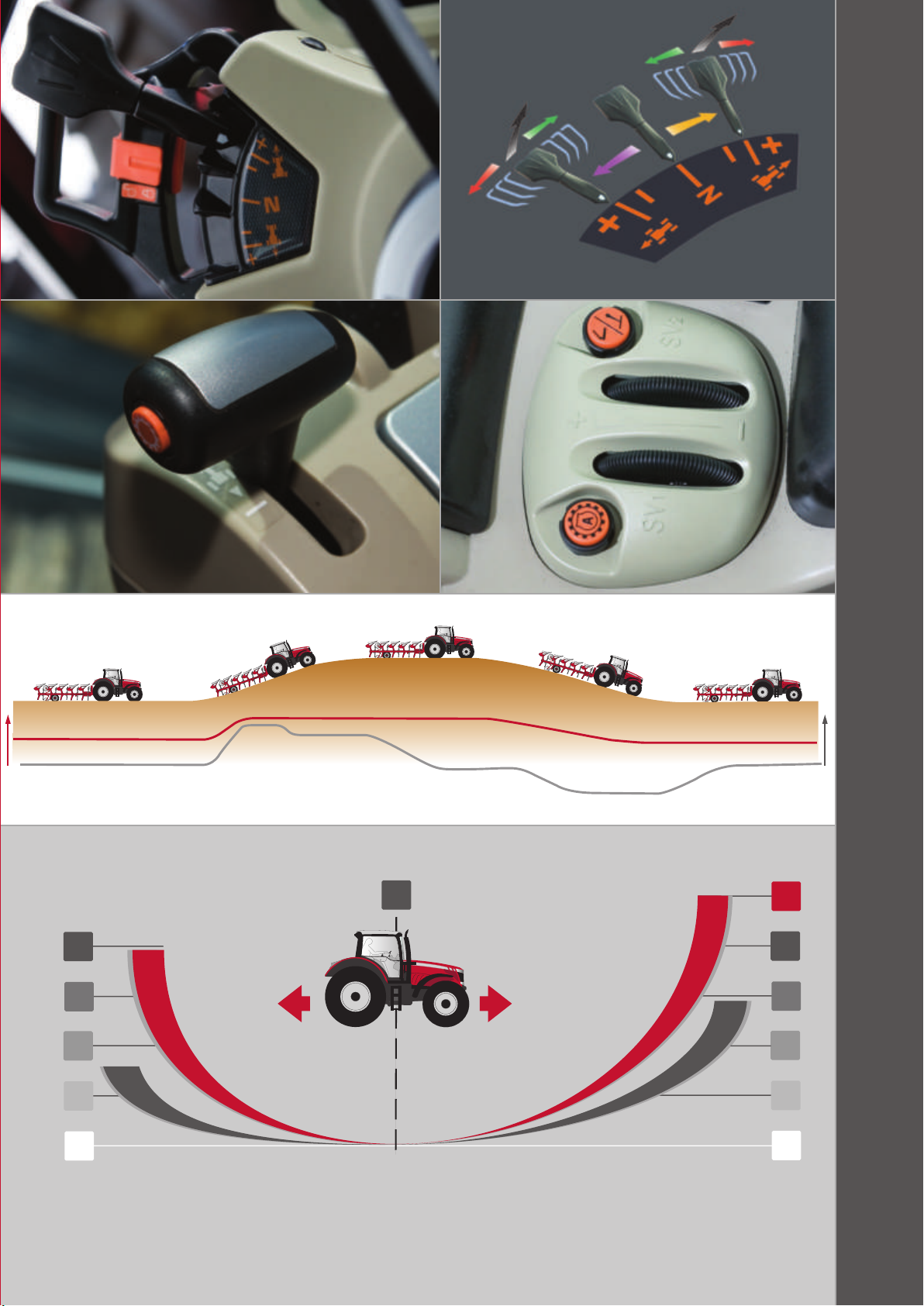

01-02 Left-hand
power control lever
03 Dyna-VT lever
04 SV1/SV2 Speed memories, Dyna-VT
operating modes and range selection
05 Dynamic Tractor
Management at work
03
Engine speed
05
km/h
04

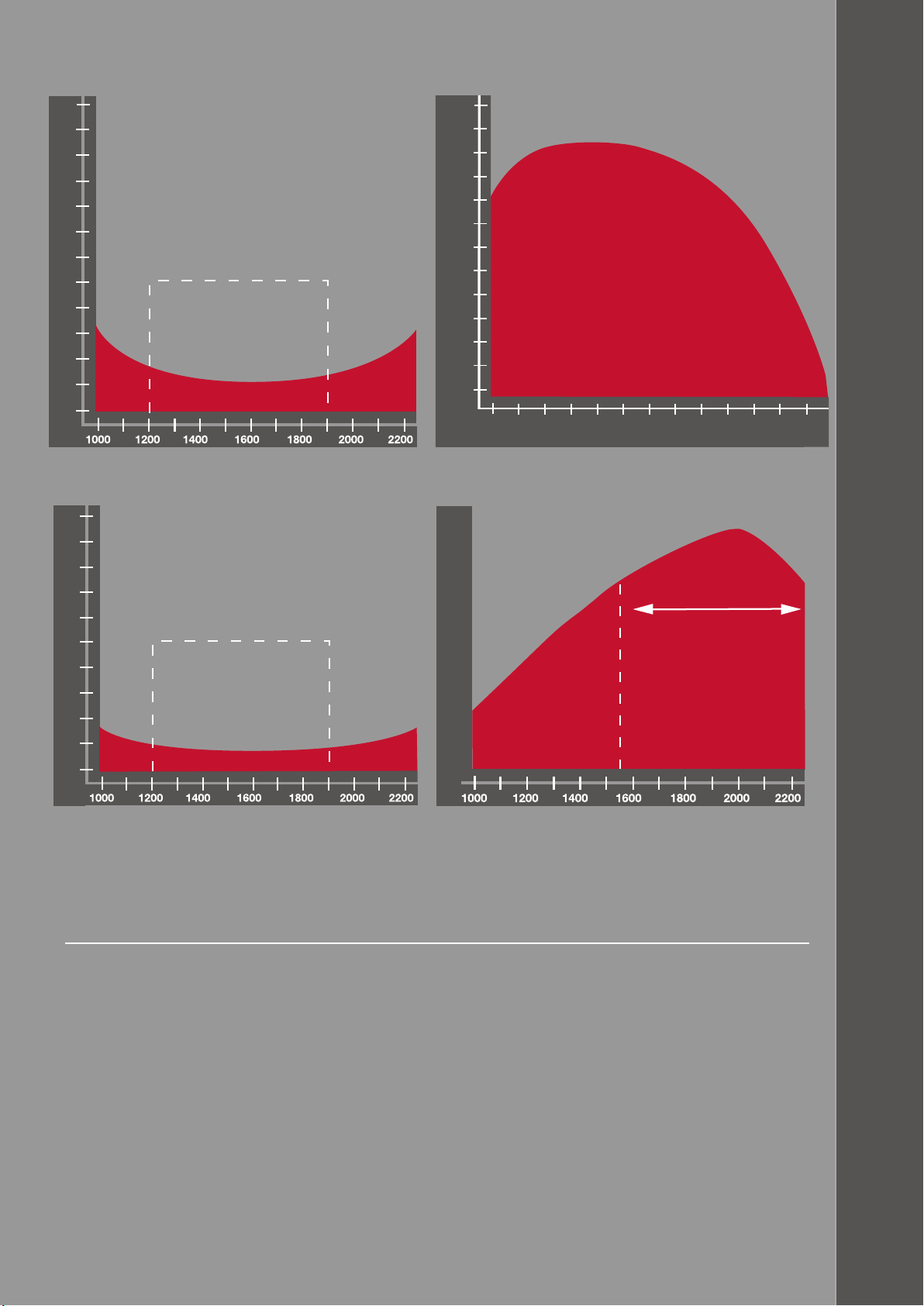

06 Two innitely variable ranges
cover all eld and transport
applications
*Depending on market legislation
Fuel consumption
*km/h
06
15
Page 16
In-Cab
excellence
Like its exterior,
the MF 8600’s
interior is modern,
uncluttered and
ergonomically
sound, offering
you the ultimate
operating space.
This spacious cab has been
specically designed with
the operator’s comfort and
well-being in mind.
We understand that you may
spend many hours in your tractor,
so it’s important to feel relaxed
within a pleasant environment.
The ‘Panorama’ cab features a
purposeful layout, with superb
instrumentation, intuitive Dyna-VT
controls and levers and switches
thoughtfully grouped on the new
armrest to the right of the operator.
The ‘Panorama’ cab now boasts
four pillars rather than six so
visibility is unrestricted. The cab
is now 28% more spacious,
compared to that of the MF 8400
Series tractor.
Signicantly improved
ride quality
As well as an extremely comfortable
drivers seat, the MF 8600
cab is tted with a brand new
4-point suspension system. It
uses the latest in hydraulic ram
and accumulator technology,
through the use of sensors, which
intelligently provides information to
ensure the cab is at an even level.
16

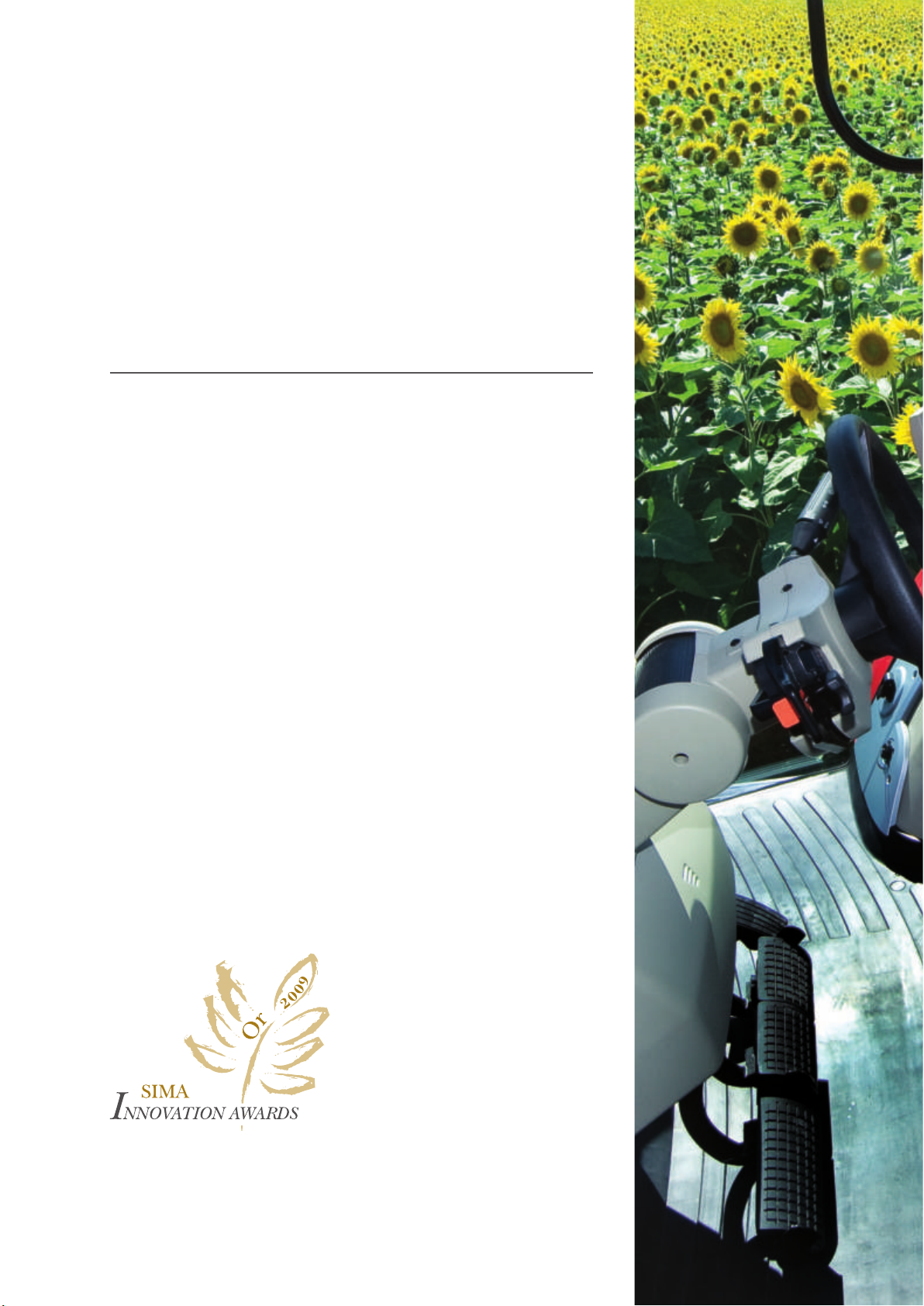

OptiRide Plus cab suspension
system has been awarded the gold
medal for innovation at SIMA 2009.
For even more comfort you may
prefer the award-winning OptiRide
Plus as an option. This allows the
operator to completely control the
level of damping through the dial in
the cab. Via a number of sensors
and data collected through the
tractor CAN-BUS, the system will
automatically adjust the damping
of the cab suspension. Information
on rolling and pitching is fed to the
‘central cab suspension control
box’, which maintains damping
and can provide up to 25% more
comfort.
01
Page 17
01 New ‘Panorama’ cab with
28% more room
04
17
Page 18
Page 19
Page 20
More productivity,
enhanced comfort
You’ll always nd the usual necessities within our cabs but we
always strive to push operator comfort to the next level. That’s why
you’ll nd new features that will help to make the working day a lot
less stressful.
The ‘Panorama’ cab is 28%
larger, allowing the operator more
room to move around easily and
comfortably in the cab. This extra
space makes provision for the
newly styled ergonomic armrest
which can be positioned precisely
for operator comfort.
The single, wide door and
unobstructed at oor provides
excellent access at all times. It’s
quiet too, with low in-cab noise
levels under load. Fine-tuning of the
machine means noise quality has
been improved considerably.
The control centre
For added convenience, the
control centre next to the armrest
houses the controls for PTO, front
and rear linkage, draft and position
control and steering settings. By
encasing these controls within
the panel prevents any risk of
accidental operation.
Datatronic Control
Centre Display
The Datatronic 4-Control Centre
Display (CCD) has a perfectly
positioned 7” colour monitor.
Mounted on the armrest, it is
fully adjustable to allow optimum
viewing of all the tractor’s
functions.
The operator area within the
MF 8600 Series cab is built to
the highest levels of comfort and
usability. As you would expect,
the instrument panel is clear and
concise and has been designed
for optimum visibility. It’s mounted
conveniently on the telescopic
steering column along with the
multi-function lever, dot matrix
controls and ‘Power Control’
lever. All of which can be tilted
so everything moves with your
body’s movement for comfort
and extra control.
The instrument panel has two
main digital displays as well as
an analogue rev counter. All main
tractor warning functions can be
viewed from here as well as engine
coolant temperature, oil pressure,
AdBlue and fuel tank levels, so you
are always in total control of your
machine.
Little extras make a
big difference
Sometimes it’s the little things that
can make a huge difference to how
you work every day. The MF 8600
suspended cab is available with
numerous features including a cool
box, extra plug sockets for mobile
phones and laptops, radio and CD
player, air suspended swivel seat,
telescopic side mirrors and electric
de-icing. Optional extras include
CD Player with MP3 compatibility,
Dynamic suspended cab,
super-deluxe air suspended seat
and automatic air conditioning.
Solar energy for extra power
A new solar panel, located on the
cab roof, is just another costeffective and environmentallyfriendly way to get the most from
your machine. The solar panel
will compensate for any natural
battery loss and will maintain a full
battery all-year-round, even when
the tractor is not in use. There’s no
need to worry about cold start in
the winter.
The solar panel uses only 100%
renewable energy and will maintain
battery longevity.
20
Page 21

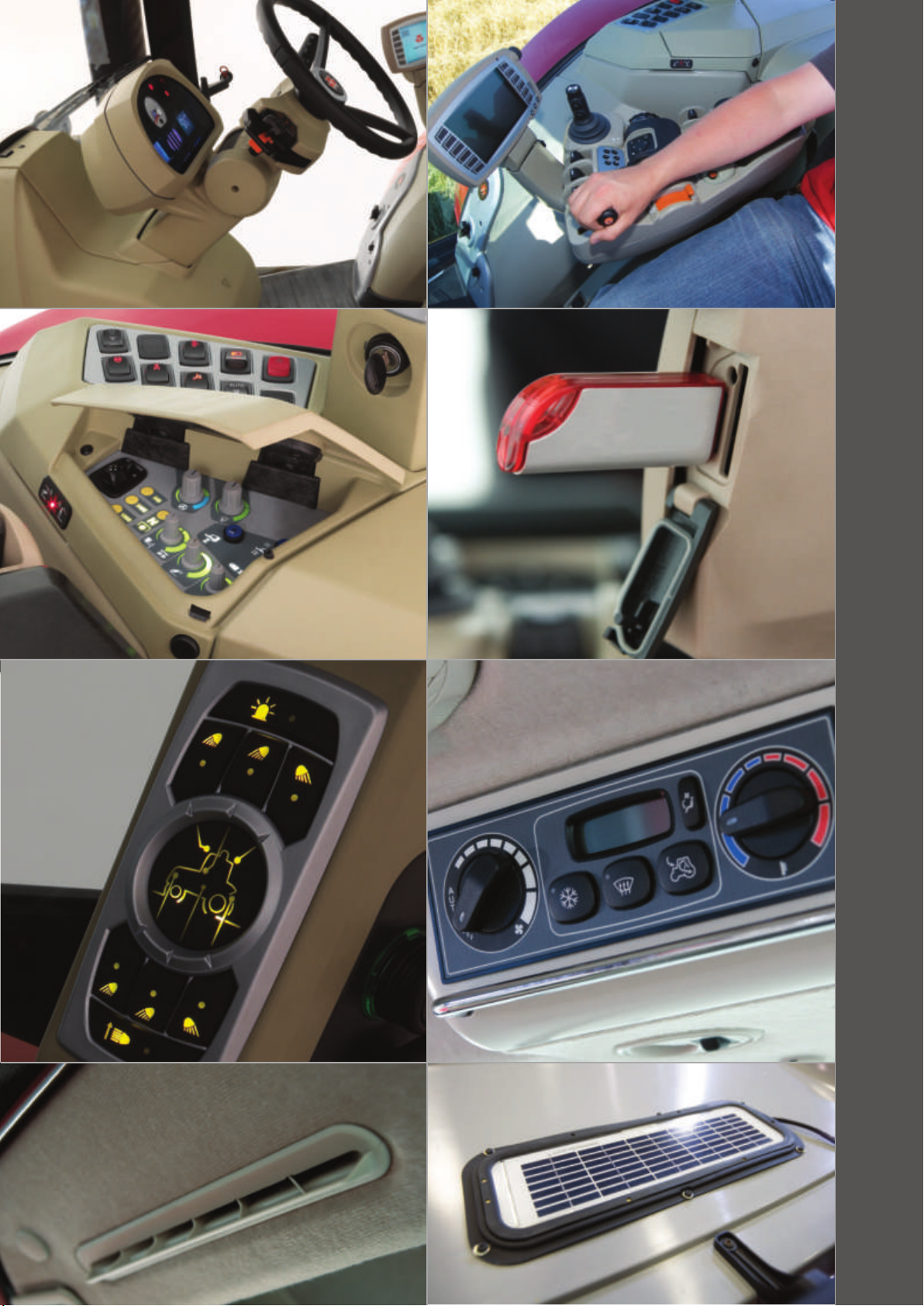

01 High visibility instrument panel
and telescopic steering column
02 Control arm 03 Under-panel control centre
01
03
02
04
04 USB port and SD card
connection through the ‘Control
Centre Display’
05 Work lights module
05
06
06 Air conditioning
and climate control
07 Well-placed vents for extra
ventilation, demisting or heating
08 Using natures resource -
The MF 8600 solar panel
07
08
21
Page 22
Meeting operational
demands precisely
With power, versatility and durability of operation as key design
criteria, the PTO system has a standard specication that meets
all operational demands.
New Front PTO
A new front PTO is now available
as an option across the range.
With 6 splines at a PTO speed of
1000 rev/min, the combination
of robust front linkage and
various PTO options will intensify
productivity and exibility.
High specication PTO
Fully independent 540 Eco/1000
rev/min or 1000/1000 Eco rev/
min PTO is available. Additional
fender-mounted engagement and
emergency stop buttons also give
added convenience and safety.
Power with economy
Nominal PTO speeds are achieved
at, or near to, 2000 rev/min which
is also maximum engine power.
With the benet of a ‘constant
power’ band of up to 600 revs
and the ability, with Dyna-VT, to
precisely select any ground speed
at the chosen engine speed, you
can always achieve a perfect match
of PTO speed, forward speed and
power – with optimum economy.
Economy PTO
For lighter duty work, ‘540 Eco’ or
‘1000 Eco’ PTO speed is achieved
at around 1600 engine revs, further
improving fuel economy and helping
to reduce in-cab noise levels.
Automated PTO control
In ‘Auto’ mode, the PTO is
automatically disengaged when
the linkage is raised (or when
travelling at speeds above 25 km/h)
and re-engaged when the linkage
is lowered.
Further reducing the need for
operator input, the Transmission
Controller monitors and controls
PTO engagement depending on
load. This gives a smoother ‘takeup’, giving improved driver comfort
and also helping to protect both
implement and tractor from damage
due to inappropriate engagement.
Differential locks and
4-wheel drive
The Transmission Controller also
takes care of many of the normally
repetitive tasks of 4-wheel drive
and differential lock operation.
The system also engages the
differential lock when you need it;
when the implement is lowered
into work and disengages it when
you don’t.
QuadLink suspended front axle
Now tted as standard on all
MF 8600 Series tractors, the
QuadLink front axle has excellent
ground clearance and maintains
good turning angles even with
larger tyre sizes.
Accurate, precise steering
All MF 8600 Series tractors are
equipped with hydrostatic steering
which provides light, positive
and accurate steering under all
operating circumstances.
SpeedSteer - for exact turns
This new, optional feature enables
the operator to adjust the steering
ratio and select the number
of turns of the steering wheel
required for a given amount of
steering angle turns. The system
can be switched on and off. Above
18 km/h, it automatically switches
off for safe operation at high speed
in the eld and on the road.
Auto-Guide for faster, precision
farming
The optional Auto-Guide satellite
navigation system uses leading
GPS technology to guide your
tractor and implements at higher
rates of speed and accuracy. This
is especially valuable for more
accurate operation at night, in low
visibility or when working in preemergent crops.
Auto-Guide steers the tractor,
without operator input, to make
parallel bouts avoiding overlap
or un-worked land. This reduces
driver fatigue and fuel usage,
eliminates unnecessary chemical
application and can signicantly
increase productivity.
22
Page 23

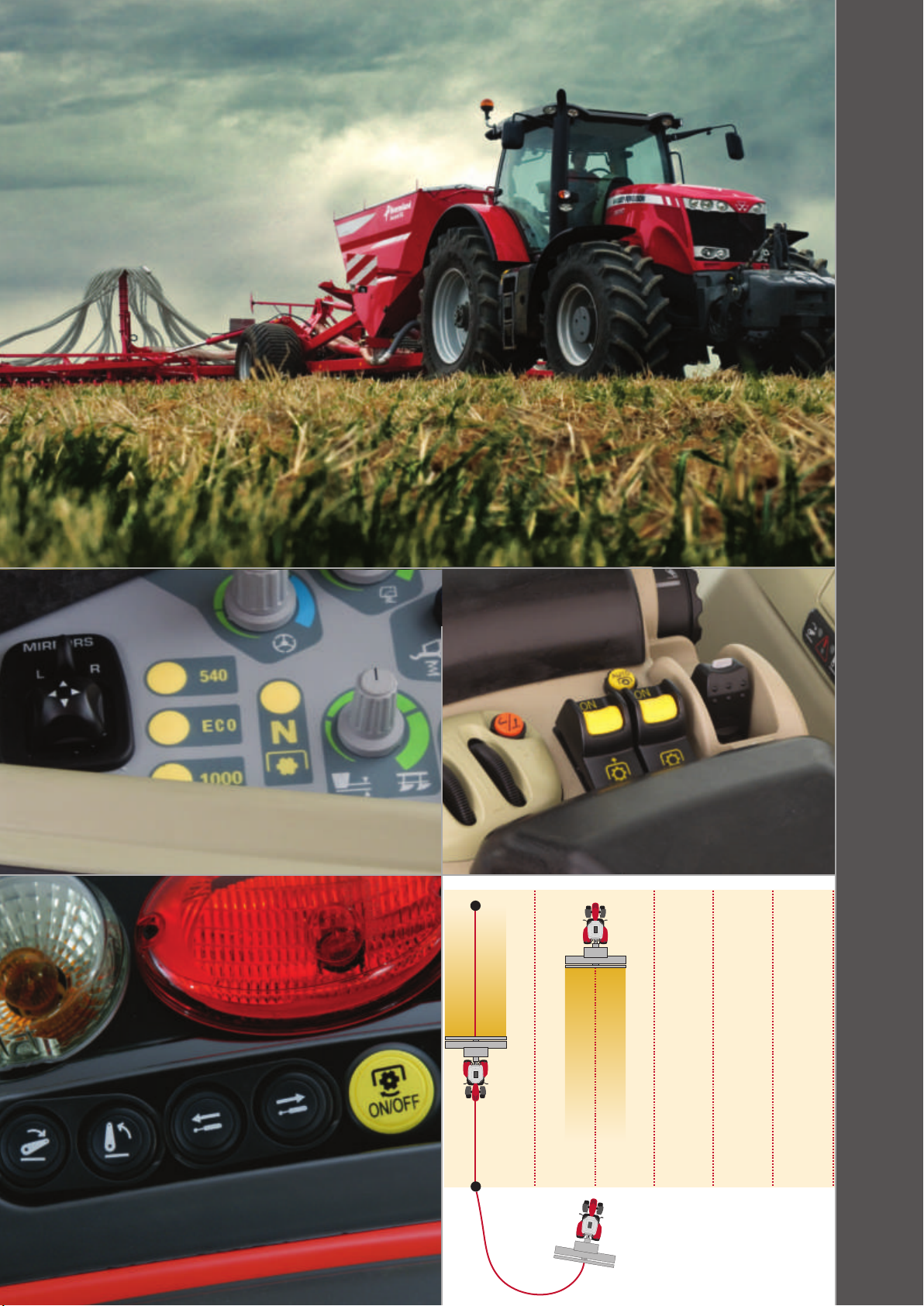

01 PTO speed selection 02 PTO selector
switches and ‘Auto’
activation button
03 Fender mounted PTO
controls
04 Optional SpeedSteer for
simple headland turns
01
03
02
04
23
Page 24
Responsiveness
is second nature
We have always been industry leaders when it comes to hydraulics
and linkage. In part, it’s what we’re famous for but our continual
renement of the Massey Ferguson linkage system means more
productivity, power and responsiveness, for the operator, in the eld.
More accurate draft control
Massey Ferguson’s digital
ELC system gives the highest
standards of draft control with
more accurate depth settings and
better ground contour following.
The result is more weight transfer,
better traction, less wheel slip,
reduced tyre wear and reduced
fuel consumption whilst still
maintaining greater output.
Convenient controls
Frequently used controls and the
ELC control panel are mounted
on the armrest for straightforward,
accurate operation. The system
incorporates advanced integrated
features such as sensitivity, quick
soil engagement and automatic
drop speed as standard.
For faster implement attachment
the rear linkage can also be
operated from push buttons on
each rear fender.
Fast hydraulic response
The Closed Centre Load-Sensing
(CCLS) hydraulic system provides
175 l/min oil ow for both linkage
and external services with virtually
instantaneous response, with no
wasted power - or fuel.
Implement hook-up is
simple, with ‘decompression
hydraulic couplers’ that enable
equipment to be connected and
disconnected under pressure.
Auxiliary spool valves
Four electro-hydraulic valves are
tted as standard and a further
6 rear spool valves are available
if required, the Fingertip Spool
Valve Management System
enables complex equipment to be
controlled with ease and precision.
Separate spools are dedicated to
the operation of the front linkage,
and front couplers, as well as
the dromone auto hitch when
specied.
Power beyond
Built into the CCLS spool block is
the ‘Power beyond’ facility. Extra
ow and return pipes provide
oil ow directly from the pump,
enabling additional remote spool
valves to be connected.
Standard Active Transport
Control (ATC)
When driving across the headland
or transporting heavy mounted
equipment, implement ‘bounce’
can occur.
Active Transport Control is a
shock-absorbing system which
minimises the ‘pitching’ action –
automatically adjusting for different
implement weights.
This gives smoother, safer, faster
transport and, by reducing shock
loads through the lift rams and
hydraulic circuits, also minimises
the risk of damage to the lift
system.
ATC and QuadLink
ATC operates in conjunction with
the QuadLink suspended front axle
to give exceptional stability when
transporting or operating mounted
equipment at speed, giving greater
comfort, safety and productivity.
24
Page 25

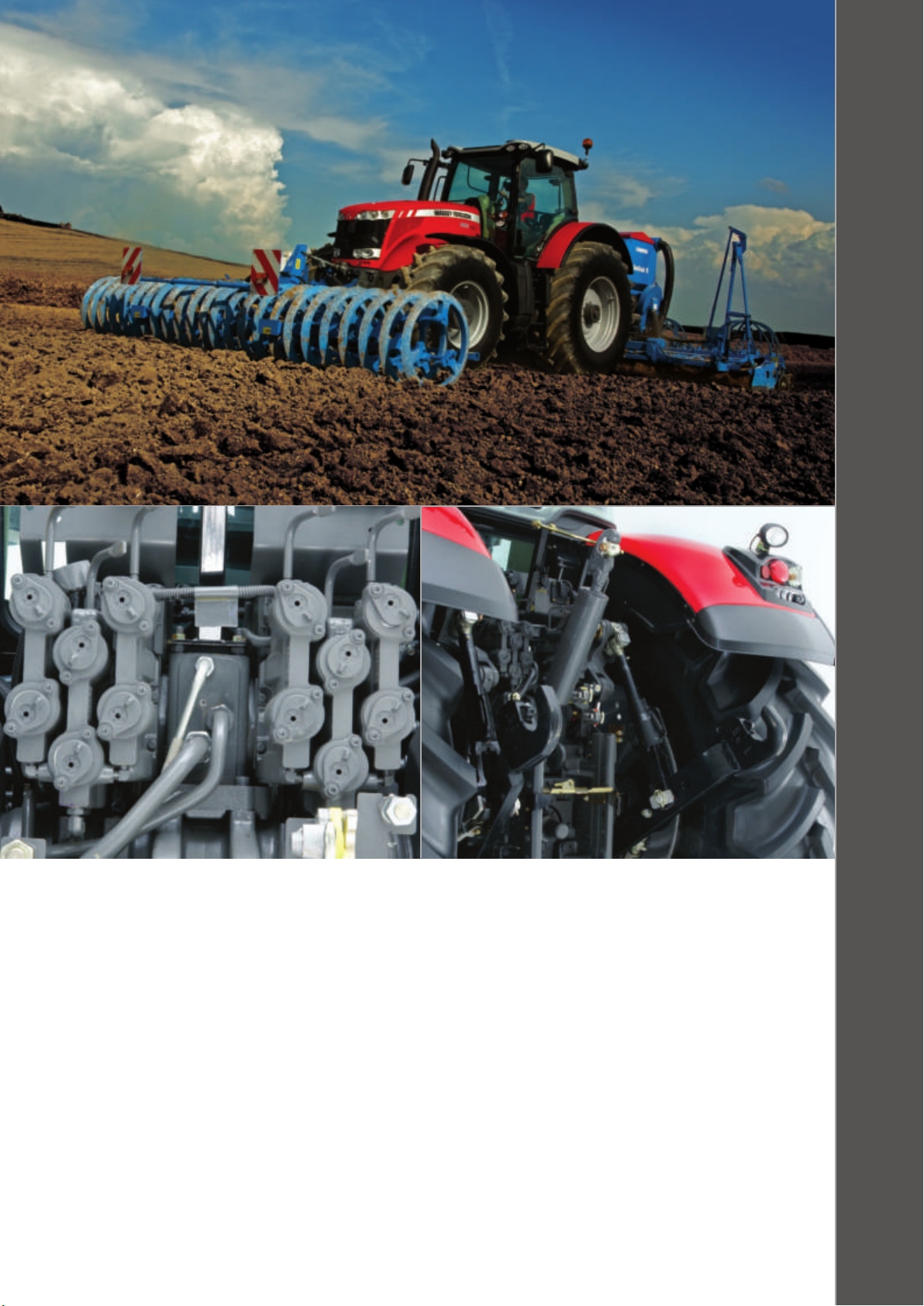

01 Powerful linkage and hydraulics
means excellent eld performance
02 Six rear spool
valves are available
03 Heavy-duty, extra strength
three-point linkage
01
02
03
Highly specied rear axle
and linkage
Like everything else on the
MF 8600 Series, the rear axle and
3-point linkage are highly specied.
Twin external lift rams, high
visibility pick-up hitch and drawbar,
quick-attach hook top and lower
links, external linkage control on
both rear fenders, twin variable
oat telescopic stabilisers and
three spool valves are all standard
equipment. Rear linkage lift
capacity is an immense 12,000kg.
Ex
ceptionally powerful brakes
As you would expect, a tractor
range as powerful as the MF 8600
Series needs an extraordinarily
strong braking system. All models
are tted with oil immersed,
power-assisted disc brakes which
give reassuring, fade-free braking,
even with heavy loads.
Optional factory-tted pneumatic
trailer brakes can be tted, adding
comfort and safety when driving
with heavy loads at high speeds.
Integrated Front Linkage
System (IFLS)
MF 8600 Series tractors come
complete with a brand new,
fully integrated front linkage
system. This new system has
been consolidated into the
overall design of the machine
and complements the front
suspension perfectly.
Two front hydraulic couplers with
dedicated spool valves provide
hydraulic service for implements
and, with an overall lift capacity
of over 5,000 kg, the MF 8600
Series tractors’ immense capability
can easily handle heavy-duty
applications.
25
Page 26
What our customers
have to say
Peter Jensen farms
around 800 hectares
of combinable crops south of
Randers in Denmark, with his
brother Mogens, operating a
rotation comprising winter wheat,
oilseed rape and winter barley. In
2008 he was invited to use a new
MF 8600 Series tractor.
Here’s his verdict.
“My rst impressions were that
the MF 8690 looks very strongly
built and heavily proportioned,
particularly with regard to the front
axle, chassis side rails and 3-point
linkage.”
“It feels good to drive, very easy
to operate and the ride is steadier
due to the OptiRide suspension.
The view from the cab is excellent
and is much more spacious too.
It’s good to have all the main
controls on the Control Arm.”
“I like the new, modern styling
and really appreciate the pivoting
bonnet, which gives easy access
to the cooling package and air
cleaner for daily maintenance.”
Mr Jensen is also impressed
by the MF 8690’s eld and fuel
performance. “After sowing 550
hectares of winter wheat using a
6-metre Amazone power harrow/
seed drill combination, it appears
that the fuel consumption on a
ratio of litres per hectare was
considerably lower compared to
my previous tractor,” he reports.
“However, with the MF 8690, I was
able to travel at a faster average
speed, with the higher productivity
providing a good saving in time. It
also makes it easier to get the job
done on time.”
Asked what would make him
choose a Massey Ferguson
tractor over a competitor’s model,
Mr Jensen replies: “I want a
tractor with the most advanced
technology, with efcient cab
suspension and with renowned
engine and transmission
technology. I also appreciate the
network and back-up behind
Massey Ferguson.”
26
Page 27
Kai-Richard Schlichting
runs a substantial
contracting operation around
the town of Hindenburg,
Sachsen-Anhalt region of Germany.
Besides employing 25 permanent
staff, the business runs 15 tractors –
eight of which are Massey Ferguson
machines. This means he should be
well-qualied to comment on the
new MF 8600 Series.
“My initial impression was
extremely positive, proving to me
that we had made the right decision
in opting to use Massey Ferguson
within our company,” Kai-Richard
Schlichting states. “Compared
to earlier models, the MF 8600
is a step forward in its extremely
successful development, which is
underlined by its provoking and
appealing design.”
in the
“The MF 8600 is extremely
user-friendly, being simple
to understand and operate,”
he continues. “The switch
arrangement is simply and clearly
laid out – for example, it is now
very easy to operate the cruise
control setting on the console. In
addition, the cab is very spacious,
quiet, clearly laid-out
and comfortable.”
Kai-Richard Schlichting has also
formed a highly positive view of
the SCR technology’s potential to
reduce both diesel consumption
and emissions. “I think it makes
you feel good to be able to deliver
a full service to customers, while
at the same time contributing
something to the environment
and nature – which is what we
contractors live off at the end of
the day.”
There are numerous reasons why
Kai-Richard Schlichting
continues to invest in
Massey Ferguson tractors in
order to provide a round-the-clock
service 365 days a year.
High on the list is to be able to
call on good, exible dealers.
“Everyone from the dealers
themselves, area managers and
demonstrators are always available
and ready to act, responding
quickly and constantly on hand to
help with problems,” he says.
“As for the tractors, it is the
robustness of the extremely
powerful engine, the userfriendliness and the diesel
consumption that continue to
astound us.”
James Bolton
is a contractor
based in Somerset,
UK. He currently
owns a eet of
Dyna-VT tractors,
which have helped
to run his business
for over 13 years.
James says that when Dyna-VT
was introduced it was a real
turning point for tractor operators,
“We are busy all year round so
we need good, strong reliable
tractors. Dyna-VT gives us
productivity and comfort without
loss of torque and power.”
“What both ourselves and our
customers particularly like is the
fuel economy and driveability.
Dyna-VT tractors are very easy and
comfortable to drive, even during
heavier road haulage applications.
Fuel efciency is a major issue
for all farmers and contractors so
through the use of Dyna-VT, you
can always achieve good engine
speed and power whilst beneting
from controlled fuel consumption.”
27
Page 28
Individual care
packages for individual
circumstances
Nothing is ever certain in life; this is especially true if you work
within the agricultural sector. So imagine how much easier life would
be if you could experience true peace-of-mind where your farm
machinery is concerned; no more hidden costs or surprise invoices.
Service and Repair
Contract* is a complete package
aimed at providing total care for
your tractor including routine
maintenance, repair cover and full
AGCO backed warranty. This fullybacked contract will cover critical
components such as:
Engine and transmission•
Hydraulics•
PTO•
Steering•
Electronics•
Cab and controls•
Axles•
Assurance for the life of the
machine
You can be assured of ‘preventative’
servicing using the latest technology
and professionally trained
technicians. With years of experience
they are on hand to ensure that
your machine runs at optimum
performance.
All of this will be carried out
according to a strict maintenance
schedule supplied by
Massey Ferguson.
With a contract and
through this ‘preventative’
servicing, your machine will
maintain excellent productivity
throughout its long working life.
The most important aspect of this
package is that you will never incur
any unexpected hidden costs.
It is possible to cut the cost of
maintaining your machine through
‘preventative’ servicing and
maintenance, thereby reducing
long term ownership costs and
securing a productive future for
your business.
Tailored to your needs
has been designed to
cater for your individual needs.
Cover is available for up to 5
years or 6,000 hours depending
on your requirements. Available
at initial point of sale or, for added
exibility, you can choose to take
on a contract any time
up to 12 months after machine
registration.
Your dealer will prepare the
servicing contract and can tailor
it to last up to a maximum of
10,000 hours.
By choosing Service
and Repair Contract, not only are
you assured of complete peaceof-mind for you and your business
but also a higher residual value for
your machinery, full dealer history
and genuine AGCO Parts inside
and out.
For more information on
Service and Repair
Contracts speak to your
Massey Ferguson dealer.
* Service and Repair Contract
may not be available or may be market
dependant. Please contact your
Massey Ferguson dealer to check
availability in your area.
28
Page 29
01 Spacious, at-oor platform 02 Screens help to protect the driver
29
Page 30
Customer Support
AGCO Customer
Support…
providing local
service to the
global brand
Massey Ferguson is a true global
brand with machines operating all
over the world, from revolutionary
“little grey fergie” tractors to
the latest high-tech tractors
and combines. Have you ever
wondered how we continue to
provide industry-leading parts
and service support to such
a vast array of machines and
technologies across the globe?
Behind every Massey Ferguson
machine is the powerful aftersales
support of AGCO’s Customer
Support organisation.
Our main aim is to ensure that
every machine - old or new - is
fully supported locally, offering
every Massey Ferguson owner:
• The best service in the industry
• Low cost of ownership
• A reliable and durable machine
• Minimum machine downtime
• A high resale value
State-of-the-art warehousing
and logistics from AGCO Parts
Of course, every Massey Ferguson
dealer is fully backed-up by
the AGCO Customer Support
organisation which provides
industry-leading parts supply
through AGCO Parts’ state-ofthe-art warehousing and logistics.
With outstanding service levels,
overnight delivery and inventory
covering all Massey Ferguson
machines - even those over 10
years old - we only ever supply
genuine parts, and we guarantee
the right t, rst time.
The right aftersales solution
whatever the age of machine
Whatever the age of
Massey Ferguson machine,
AGCO Customer Support has
the right after sales solution to
save time & money, providing
appropriate, affordable and
reliable servicing and maintenance
solutions in every situation.
Practical local support
where you need it
AGCO places great emphasis on
providing the best service to our
Massey Ferguson dealers and this
extends beyond the exceptional
servicing and maintenance
solutions and parts supply:
• Expert training and
specialist equipment
• Advanced diagnostic techniques
• Information retrieval technology
to communicate the very latest
parts and service information
• Highly skilled technical
support groups
With aftersales support from
AGCO Customer Support, it’s
not just about supplying a lter
or doing an oil change. It’s about
providing the best solution to our
customers’ needs, wrapped up
with industry-leading parts and
service support.
30
Page 31

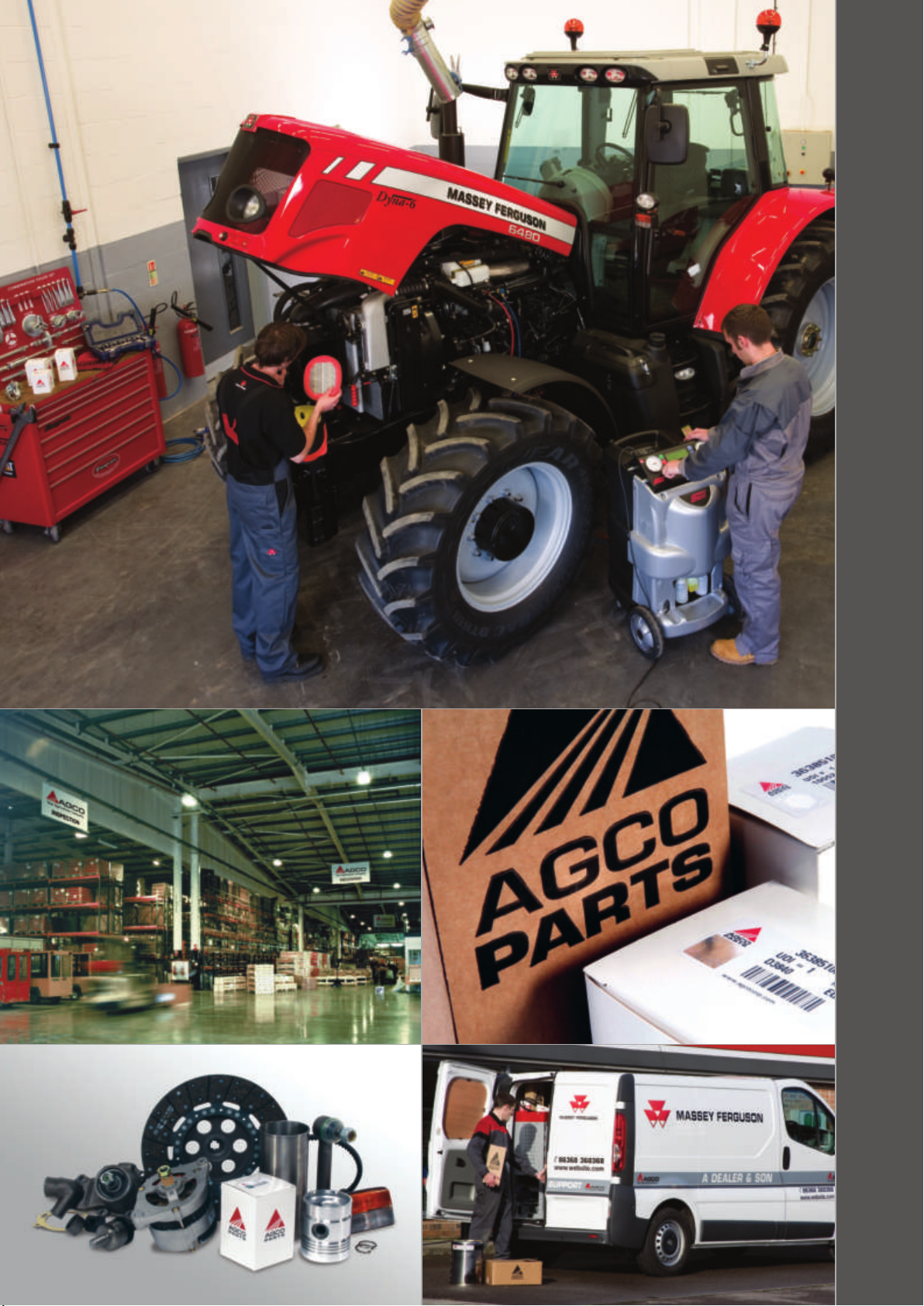

01 Ensuring the best
service support
02-04 Industry-leading parts
supply from AGCO Parts
05 Lifetime support for all
Massey Ferguson machines
01
02
03
04
05
31
Page 32
Our promise to you
Our mission at Massey Ferguson, since the company was founded,
has been to design, engineer and manufacture reliable, trustworthy
and innovative tractors. Tractors that people recognise the world over.
VISION
Our vision for the world of agricultural machinery
has always been clear; to produce worthwhile
and innovative solutions for professional farmers
feeding the world. Always recognisable, the
Massey Ferguson brand of products signies
technological advancement, enhanced design,
strict testing and quality manufacturing which is
consistently trustworthy and hardworking.
INNOVATION
We’ve always been one step ahead when it comes to
innovation. Our founder, Harry Ferguson is proof of that.
Through continual questioning and analysis of
customers’ needs, our products are designed, tested
and built to enhance productivity, efciency and
convenience, constantly pushing the boundaries
of farm machinery.
From the simplest push of a button to technological
innovations in engine and transmission efciency, we
strive to make life simpler for the operator.
LEADERSHIP
Massey Ferguson is the most widely sold tractor in the
world, making us the leaders in the agricultural arena.
We’ve won awards for our class-leading technology and
advancement in design and we’re already driving ahead,
environmentally and economically.
QUALITY
It takes certain distinctive attributes to make a quality
product. At Massey Ferguson, this distinction starts
at the drawing board and doesn’t stop. Every stage of
manufacturing, from the building and testing process
to sourcing the best components, demands
excellence. Our products and services meet the
most stringent standards allowing us to deliver
our promises, condently.
RELIABILITY
We don’t let a Massey Ferguson machine out of our
sight until we are 100% sure it will perform to the high
standards you expect. Only after rigorous and pain
staking testing both in simulations and in the eld, will
we allow our products to leave the factory. Whatever
you put your tractor through, day after day, season after
season, we can guarantee we’ve already tested those
limits and gone beyond them.
SUPPORT
Agriculture can be a solitary business, that’s why we
make sure that you can get support whenever you
need it and at crucial times of the year. Be assured of
sustainability from more than 3,200 dealer outlets in
over 140 countries and a comprehensive machinery
distribution network, you’ll be part of dedicated family
of specialists who make it their business to give you
genuine, top quality service support.
Equally, we won’t let an opportunity slip through your
ngers. If you have the commitment but not necessarily
the nancial resources to compete in today’s market-
driven climate then AGCO Finance could have the
solution. Ask your local dealer for more information.
Financial options are market specic but can include
leasing, hire purchase, contract hire and loan facilities.
PRIDE
Here at Massey Ferguson, pride means many things
to us. It’s in everything we do and it shows. It’s in our
proud heritage, our unique product design and our
ongoing support to our customers.
COMMITMENT
We are deeply committed to delivering the highest of
expectations and to build quality, reliable products with
innovative features that are backed by the best support
packages. Ultimately, we are committed to continuous
growth and protability for all, whilst recognising the
needs of both large and small businesses through
professionalism and quality.
32
Page 33
33
Page 34
Engine Performance MF 8650 MF 8660 MF 8670 MF 8680 MF 8690
Max. hp @ 2000 rev/min
Rated hp @ 2200 rev/min
Max. torque @ 1400 rev/min
ISO hp (kW)
✪
ISO hp (kW)
✪
✪ Nm
270 (199) 295 (217) 320 (236) 350 (258) 370 (272)
240 (177) 265 (195) 290 (213) 320 (236) 340 (250)
1185 1295 1400 1492 1540
Max. power available @ PTO shaft
Maximum hp @ 1000 PTO rpm
OECD hp (kW) 225 (166) 250 (184) 275 (202) 300 (221) 320 (236)
(OECD, accuracy +/– 2%)
Specic optimum fuel consumption g/kWh 190* 190* 190* 190* 190*
Engine
3
Diesel, direct injection AGCO SISU POWER e
SCR
Type litre/no. 84 CTA Turbo/Intercooled 8.4/6
Transmission
Type Dyna-VT with Power Control: Stepless, Continuously Variable Transmission with Dynamic Tractor
Management (DTM)
Field speed range 0.03-28 km/h Forward and 0.03-16 km/h reverse
Road speed range 0.03-50** km/h Forward and 0.03-38 km/h reverse
Power Take-Off (Rear)
Operation and control Independent, electro-hydraulic, start/stop control on armrest
and on rear fender, with headland automation
PTO speed @ engine rev/min
1000 rpm (21 spline shaft) rev/min 2031
Flanged shaft
l l l l l
Economy PTO
540 or 1000 rev/min rev/min 1598
Shaft diameter, 35 mm (13/8in)
l l l l l
Integrated Front Linkage System (IFLS)
Type Independent, electro-hydraulic
Linkage lift capacity
kg m
5000
Linkage and Hydraulics
Linkage control Electronic control of draft, position, Intermix, height/depth, rate of drop, ‘quick
soil engagement’ and Active Transport Control.
Closed Centre Load Sensing (CCLS)
l l l l l
Max. oil ow at pressure litre/min / bar 175/200
Lower links Cat 3 or 4, hook type
Maximum lift capacity, at link ends,
kg l
12,000
Auxiliary hydraulics
Spool valves Up to 6 electronic spool valves, 4 ngertip and 2 joystick
Hydraulic couplers ‘Decompression’ couplers with connect/disconnect under pressure function
Steering
Type- Standard Hydrostatic, tilt/telescopic steering column
with ‘Speed steer’
m m m m m
Brakes
Oil-cooled, multi-plate discs, hydraulic actuation
With power assistance
l l l l l
Parking brake Switch-operated, independent ‘park lock’
Trailer brakes
Air Brakes
Hydraulic, pedal-operated m
m m m m m
Page 35
4WD Front axle MF 8650 MF 8660 MF 8670 MF 8680 MF 8690
Max steering angle degrees 55
‘Hydralock’ differential lock
Quadlink suspended axle
Wheels and Tyres
Front 600/70R28 620/65R34 620/65R34
Rear 650/85R38 710/75R42 710/75R42
Operator Area
Cab
‘Tiltable’ bonnet
Standard equipment
includes:
Variable equipment includes:
Weights and Dimensions (approximate, less fuel)
Weight - Minimum, no
ballast
Length, links horizontal m 5.67 5.67 5.67 5.67 5.67
Wheelbase m 3.10 3.10 3.10 3.10 3.10
Height
Over cab m 3.38 3.38 3.38 3.38 3.38
Turning circle dia. less brakes m 7.4/8.4 7.4/8.4 7.4/8.4 7.4/8.4 7.4/8.4
Capacities
Fuel tank - AGCO SISU
POWER e
AdBlue tank litre 30 30 30 30 30
3
SCR
kg 10300 10300 10300 10300 10300
litre 590 590 590 590 590
l l l l l
l l l l l
l l l l l
De-luxe ‘at oor’ cab, side exhaust, tinted glass, opening side and rear
windows, air conditioning, four-speed fan with heater unit, adjustable steering column, radio, CD player, speakers, aerial,automatic air suspended swivel
seat with armrests, instructor seat, Opti-Ride cab suspension, Control Centre Display (CCD Datatronic 4; video provision and ISOBUS ready) Electronic
linkage control, spool valves, 2 front and 2 rear work lights, ashing beacon,
telescopic side mirrors with electric de-icing, Solar-panel on cab roof.
Automatic climate control, super-deluxe swivelling seat, additional work
lamps, 2 additional spool valves, hitch viewing mirror, ‘Visio’ roof, radio/CD
player, High visibility hitch, OptiRide Plus
cab suspension
Specications
Every effort has been made to ensure that the information contained in this publication is as accurate and current as possible.
However, inaccuracies, errors or omissions may occur and details of the specications may be changed at any time without notice.
Therefore, all specications should be conrmed with your Massey Ferguson Dealer or Distributor prior to any purchase.
l = Standard
m = Optional
– = Not applicable/available
** = Depending on market legislation ✪ = ISO TR14396
* = Manufacturer’s testing
Page 36
MF 8600 highlights
Here’s a quick reminder of some of the advanced features of the
MF 8600 Series tractors that further enhance their place rmly
within the high horsepower sector.
Massey Ferguson’s new agship tractor, the
01
01
award-winning MF 8600 boasts the revolutionary
‘AGCO SISU POWER e
engine as standard.
Smooth, curved lines gives the MF 8600 range a
02
powerful, dynamic new look. The newly shaped
chassis structure allows for tighter turning circles
and the ability to handle heavy ballast and draft
loads as well as very large implements.
Dyna-VT transmissions now work with Dynamic
03
Tractor Management (DTM) for a harmonious and
cost-effective working day.
New fully integrated Front Linkage System has a
04
lift capacity of 5,000 kg and is available with two
optional front hydraulic couplers.
Heavy-duty rear linkage provides 12,000 Kg lift
05
capacity for seriously hard work. Available with a
variety of CAT 3 or 4 ball ends.
3
, six cylinder, 370 hp ‘SCR’
QuadLink can be switched on or off to optimise
06
quality of work and eld performance
whatever the conditions.
The new, ergonomically sound ‘Panorama’ cab
07
provides 28% more room with integrated armrest
for added comfort when working.
New OptiRide and OptiRide Plus cab
08
suspension systems for added operator
comfort and productivity.
The closed centre auxiliary hydraulic system has
09
a 175 l/min pump ow, allowing for excellent
hydraulic ow when you need it most.
A new front PTO is now available as standard
10
across the range. With a choice of 6 or 21 splines
at a PTO speed of 1000 rev/min.
© AGCO Limited. 2009 | 14744/0109/3m |
is a worldwide brand of AGCO.
A-English (UK)/0109/100m
Loading...
