Page 1
2006 - Drop-Off SL
Technical instructions
Technical characteristics: Technical characteristics
© Marzocchi Suspension
2006 - Drop-Off SL
Page 2
Single-crown fork with ø 32mm legs.
Available travels: 130mm, 150 mm.
Right fork leg damping element: spring (air pre-load).
Left fork leg damping element: air.
Right fork leg damping system: VF2 pumping element with internal rebound adjustment.
Left fork leg damping system: pumping element.
The stanchion tubes are pressed into the crown with a cryogenic process.
Lubrication and cooling of the parts subject to friction with a specially formulated oil.
Steer tube: steel, 1-1/8", threadless.
Crown: aluminium alloy forged and CNC machined.
Stanchions: anodised aluminium.
One-piece assembly: made of magnesium alloy cast and CNC machined for lighter weight and more stiffness.
Sliding bushings: made of friction-free and wear-free material.
Seals: computer designed oil seals that guarantee maximum seal in any condition.
Oil: specially formulated oil that prevents foam and keeps the viscosity unchanged while offering high performance; free from static friction.
Dropout type: standard.
Disk brake mount: XC International Standard for 6" disk (fitting the special adapter supplied by the brake system manufacturer you can
install the
8" disk).
Max wheel size: 2.8" x 26".
Integrated fender: available as optional.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 3
Warnings: Instructions for use
MARZOCCHI forks are based on an advanced technology coming from the company’s years long experience in the professional mountain bike
industry.
For the best results, we recommend inspecting and cleaning the area below the dust seal and the stanchion tube after every use and lubricating the
parts with some silicone oil.
MARZOCCHI forks usually offer the best performances since the very first rides. Notwithstanding this, a short running-in period may be necessary
(5-10 hours) to adjust the internal couplings. This precaution will lengthen your fork’s life and guarantee its best performances.
We recommend changing the oil at least every 100 hours.
The forks with a polished finish must be treated periodically with polishing paste to keep the exterior shining like new.
Warnings: General safety rules
After disassembling the forks, always use new, original Marzocchi seals when reassembling.
To tighten two bolts or nuts that are near each other, always follow the sequence 1-2-1, and tighten to the required tightening torque.
Before reassembly, wash all new and old components and dry them with some compressed air, making sure there are neither breaks nor burrs.
Never use flammable or corrosive solvents when cleaning the forks, as these could damage the fork’s seals. If you must use a solvent, use
biodegradable detergents that are not corrosive, non-flammable, or have a high flash point.
Before reassembling, always lubricate those components that are in contact with the fork’s oil.
If you are planning not to use your forks for a long period of time, always lubricate those components that are in contact with the fork’s oil.
Always collect and keep any lubricants, solvents, or detergents, which are not completely biodegradable in the environment. These materials should
be kept in appropriate containers, and disposed of according to local laws.
Always grease the seal lips before reassembling.
All of the components of Marzocchi forks require the use of metric tools. Use only metric tools. Imperial (US) tools may have similar sizes, but can
damage the bolts, making them impossible to loosen or tighten.
When using a screwdriver to assemble or disassemble metal stop rings, O-rings, sliding bushings, or seal segments, avoid scratching or cutting the
components with the screwdriver tip.
Do not carry out any maintenance and / or adjustment operations that are not explained in this manual.
Only use original Marzocchi spare parts.
Before servicing the fork, we recommend washing the fork thoroughly.
Work in a clean, organized, and well-lit place. If possible, avoid servicing your forks outdoors.
Carefully check to see that your work area is free of dust and metal shavings from any component of the forks.
Never modify your fork in any way.
Warnings: Fitting the fork onto the frame
The fork is supplied with “A-Head Set” steer tube to be cut to size according to frame being used.
Fitting the fork onto the bike frame is a very delicate operation that must be carried out at one of our service centres only.
The assembling on the frame and the adjustment of the steer tube must be carried out following the instructions of the steering set manufacturer.
A wrong installation can be dangerous for the rider.
Marzocchi does not guarantee the assembly and accepts no liability for damage and/or accidents arising from a wrong
installation.
The steer tube must be pressed into the crown; its replacement must be carried out by one of our service centres using the adequate tools.
A wrong installation of the steer tube into the crown may cause the rider to lose the control of the bike and lead to serious
personal injury.
Warnings: Installing the disk brake
Installing the brake system is a delicate and critical operation that must be carried out by an authorized Marzocchi Service Center.
Marzocchi is not responsible for the installation and accepts no liability for damage and/or accidents arising from this operation.
Improper installation of a disk brake system can overstress the caliper mountings, which may cause the caliper mountings to break, resulting in loss
of control of the bicycle, an accident, personal injury, or death. Be sure that the brake system installation is also performed in strict compliance with
the instructions provided by the brake system manufacturer.
Improper installation can result in an accident, personal injury, or death.
Use only brake systems that comply with the forks specifications.

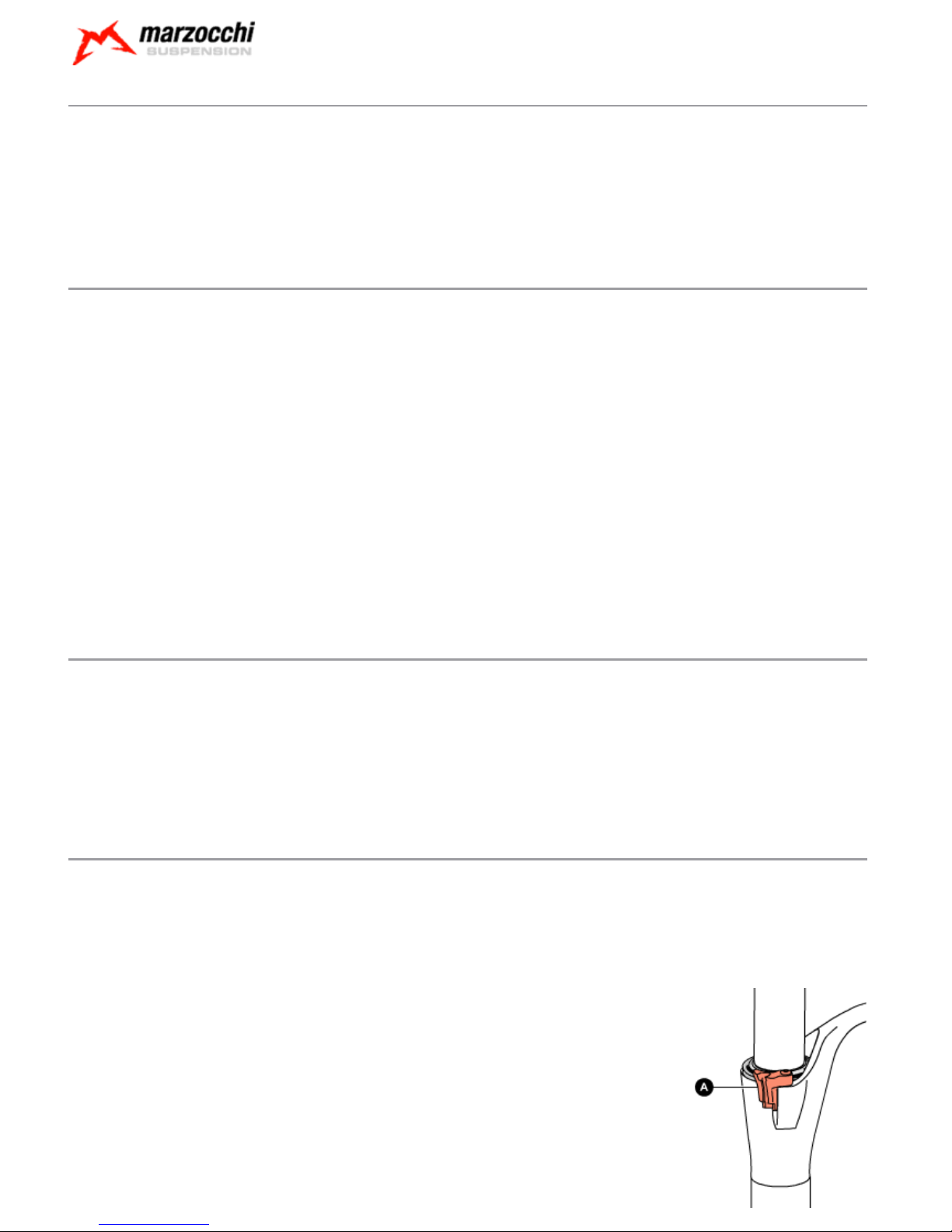

Make sure, after installation, that the brake cable of the brake system is correctly connected
to the proper mounting (A).
© Marzocchi Suspension
2006 - Drop-Off SL
Page 4
The brake cable must never touch the crown and stanchions.
Warnings: Assembling the fender
The fender can be supplied with the fork or purchased separately.

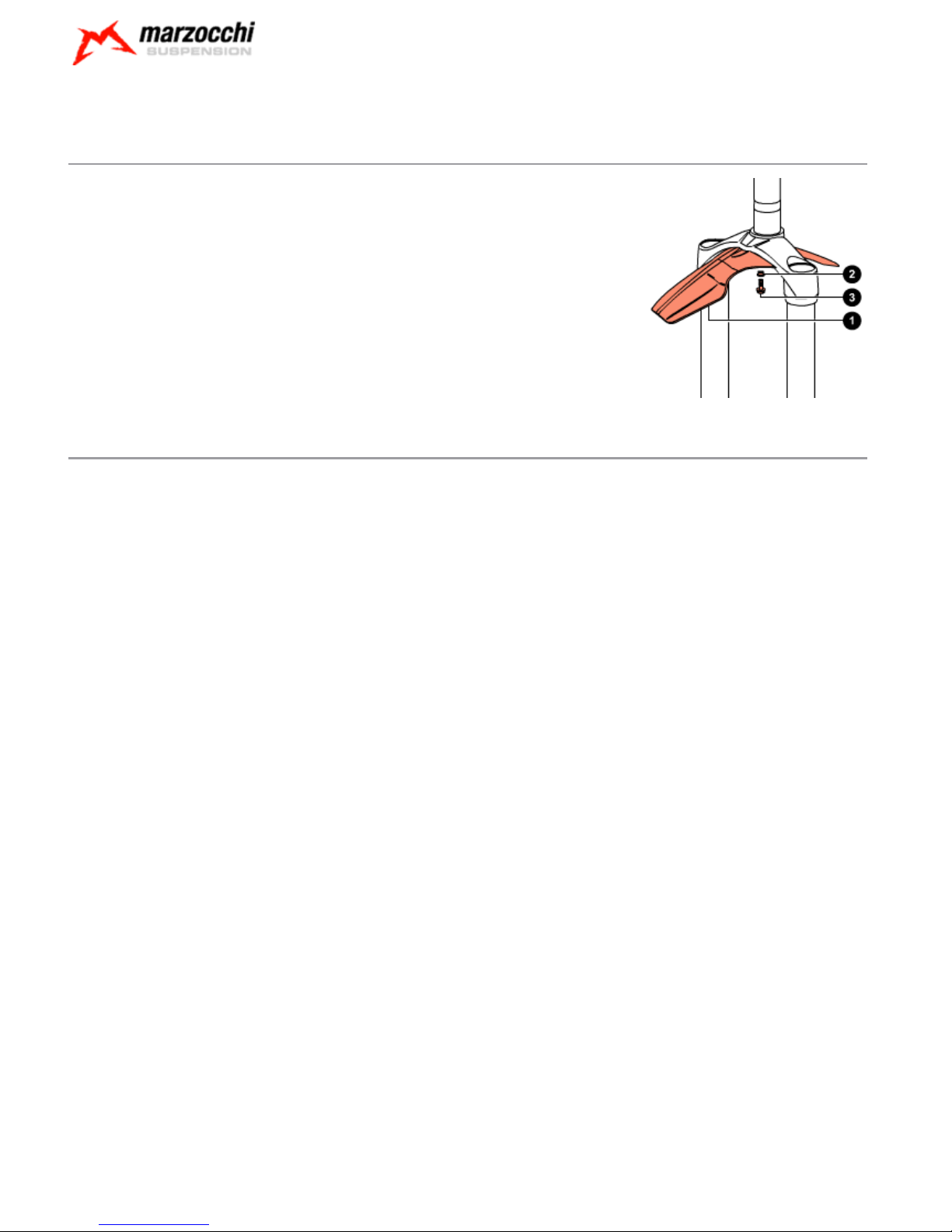

Fender (1) must be assembled by placing the small support bush (2) between the screw and the fender
as shown and by tightening screws (3) with an 8mm fixed spanner to the recommended tightening torque
(6 Nm ±1).
Warnings: Assembling the wheel on forks with standard drop-out
Install the wheel following the instructions of the manufacturer.
For a correct operation of the fork, install the wheel and proceed with the following checks:
Check the correct fork-wheel alignment by fully compressing the fork a few times. The wheel should not come into contact with any parts of the
fork.
Lift the front wheel above the ground; turn the wheel a few times to verify the correct alignment and the distance from the disk brake. Read the
instructions of the brake system manufacturer for the correct specifications.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 5

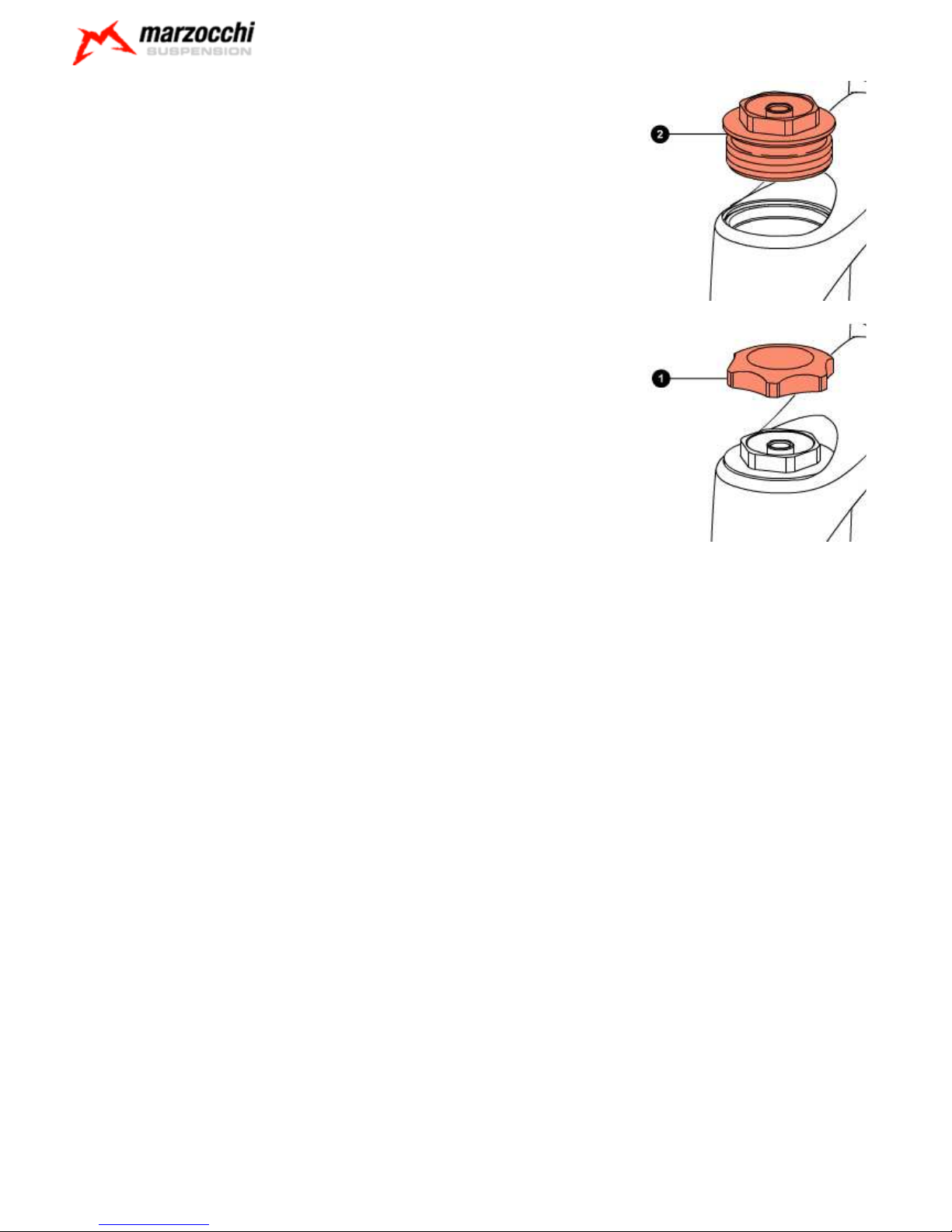

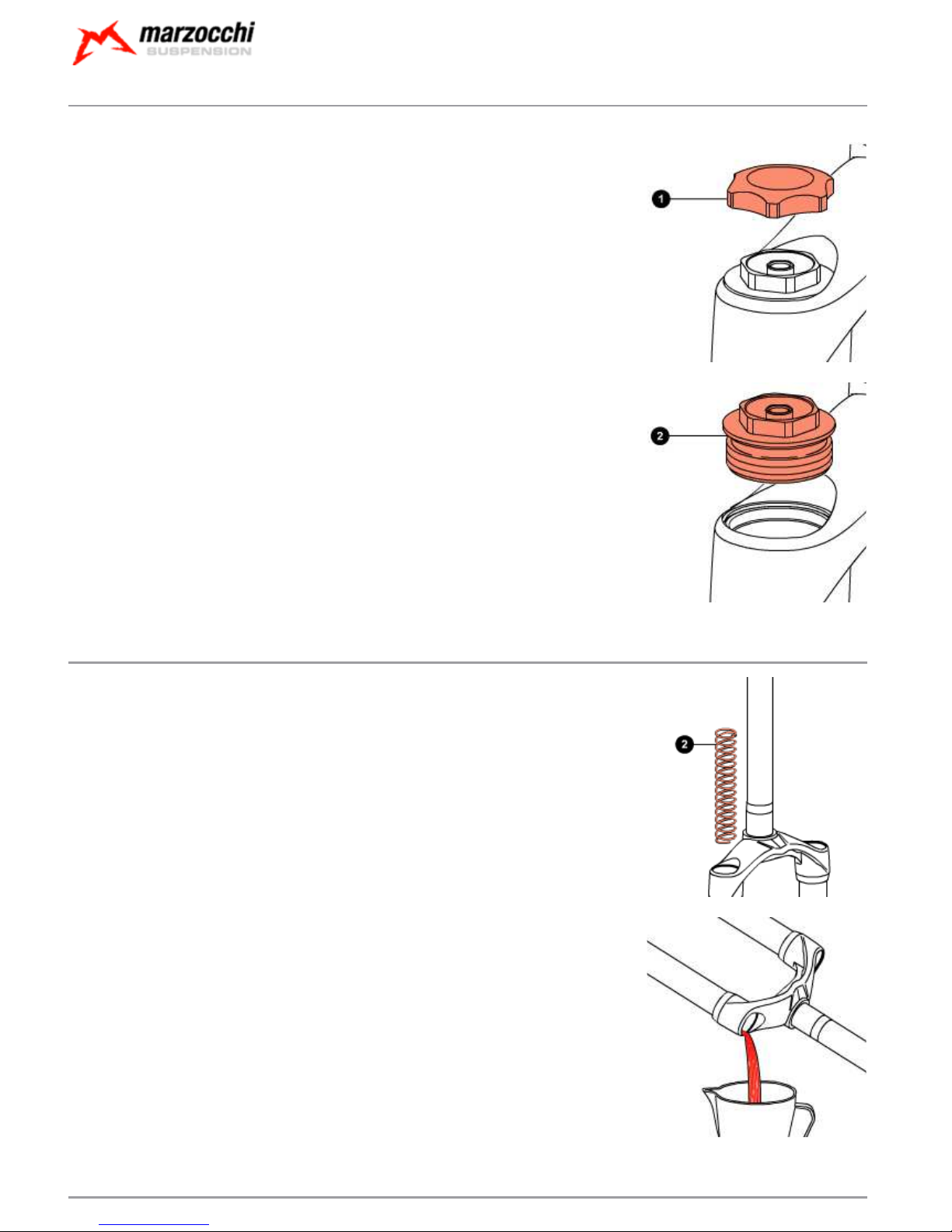

Dismantling: Removing the top caps
Put the fork in the vice in vertical position, fixing it by the dropouts.
Remove the protection cap (1).
Using a small pin screwdriver, blow the air off the fork leg, pushing on the air valve.
Fully unscrew lock cap (2) with a 21mm socket spanner.
Remove lock cap (2).
Dismantling: Draining the oil
Remove spring (2) from the right leg.
Free the fork from the vice and tip it into a container of a suitable size to drain the oil; compress the fork
a few times to help the oil flow out.
Do not pour used oils on the ground.
Dismantling: Breaking down the steering crown unit / arch-slider assembly
© Marzocchi Suspension
2006 - Drop-Off SL
Page 6

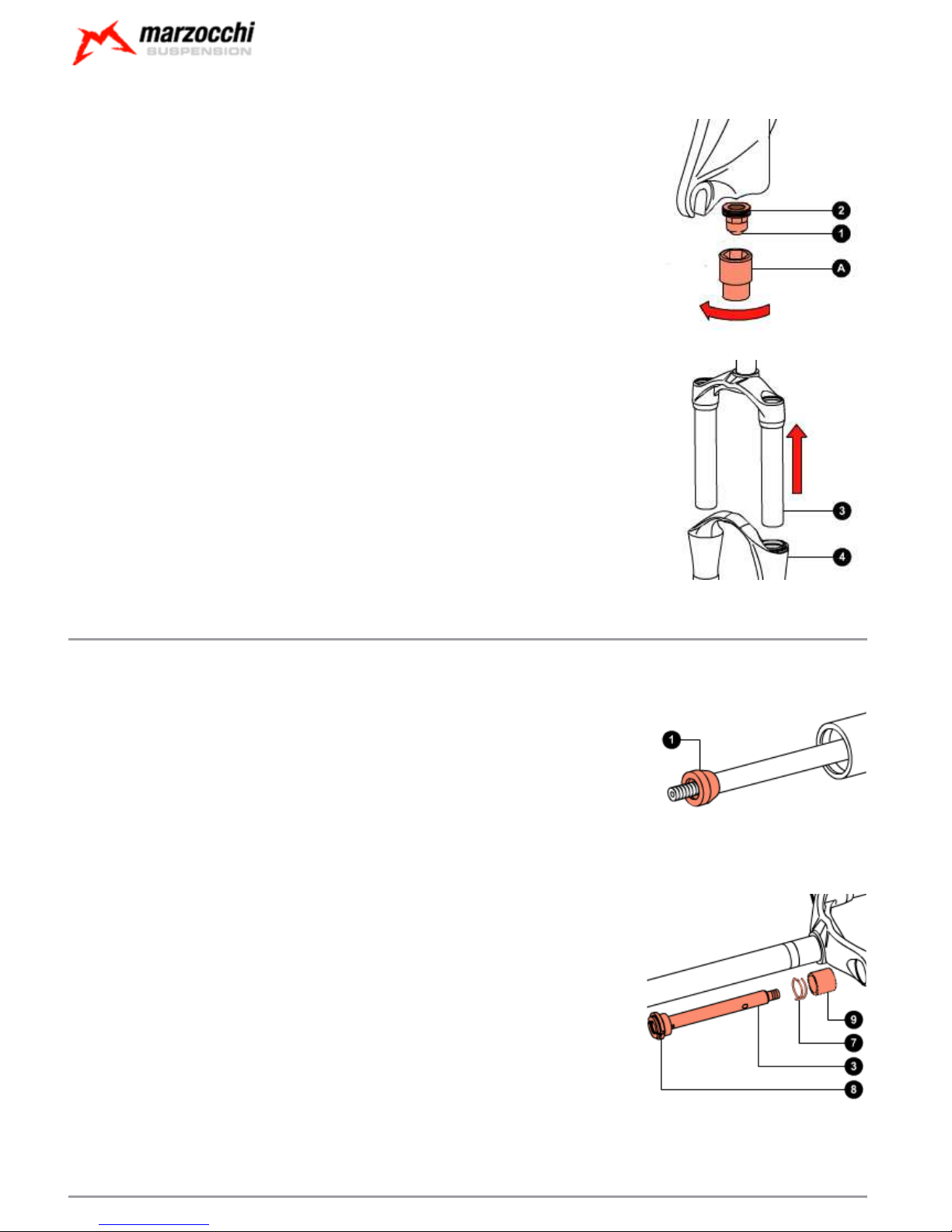

Use the special spanner to remove the bottom nuts. Do not use other tools.
Turn the arch-slider assembly upside down.
Using the special 12mm spanner (A), loosen the bottom nuts (1) of both legs.
Pull the bottom nuts (1) complete with O-rings (2) out of both legs.
Pull the crown-stanchion unit (3) off the arch-slider assembly (4).

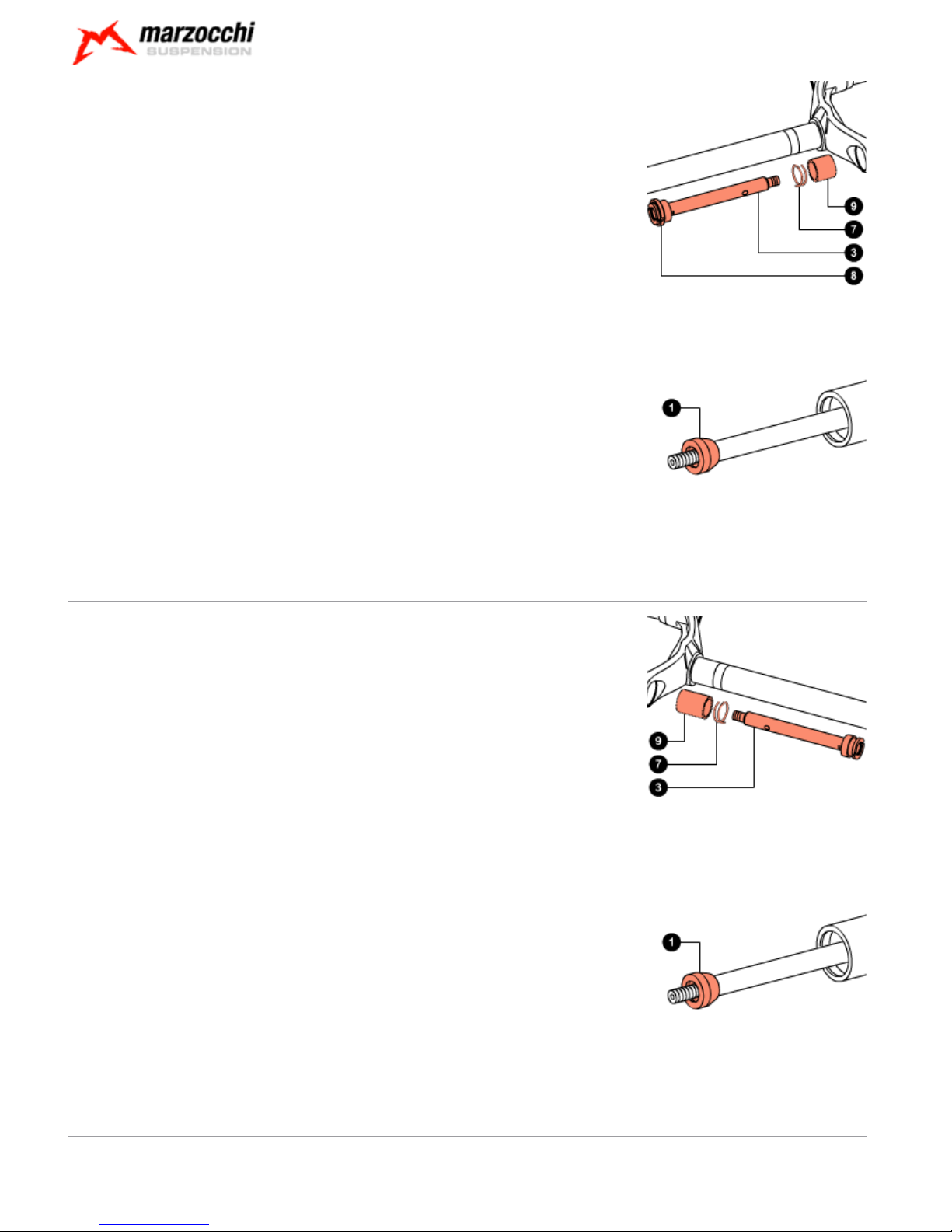

Dismantling: Removing the right pumping element
Remove the bottom pad (1).
Pull out the pumping element (3), the preload tube (9) (
only for models with 110 - 130mm travel
) and
the rebound spring (7).
If the piston segment (8) is damaged, you can prize it off with a small flat-tip screwdriver.
Dismantling: Removing the left pumping element
© Marzocchi Suspension
2006 - Drop-Off SL
Page 7

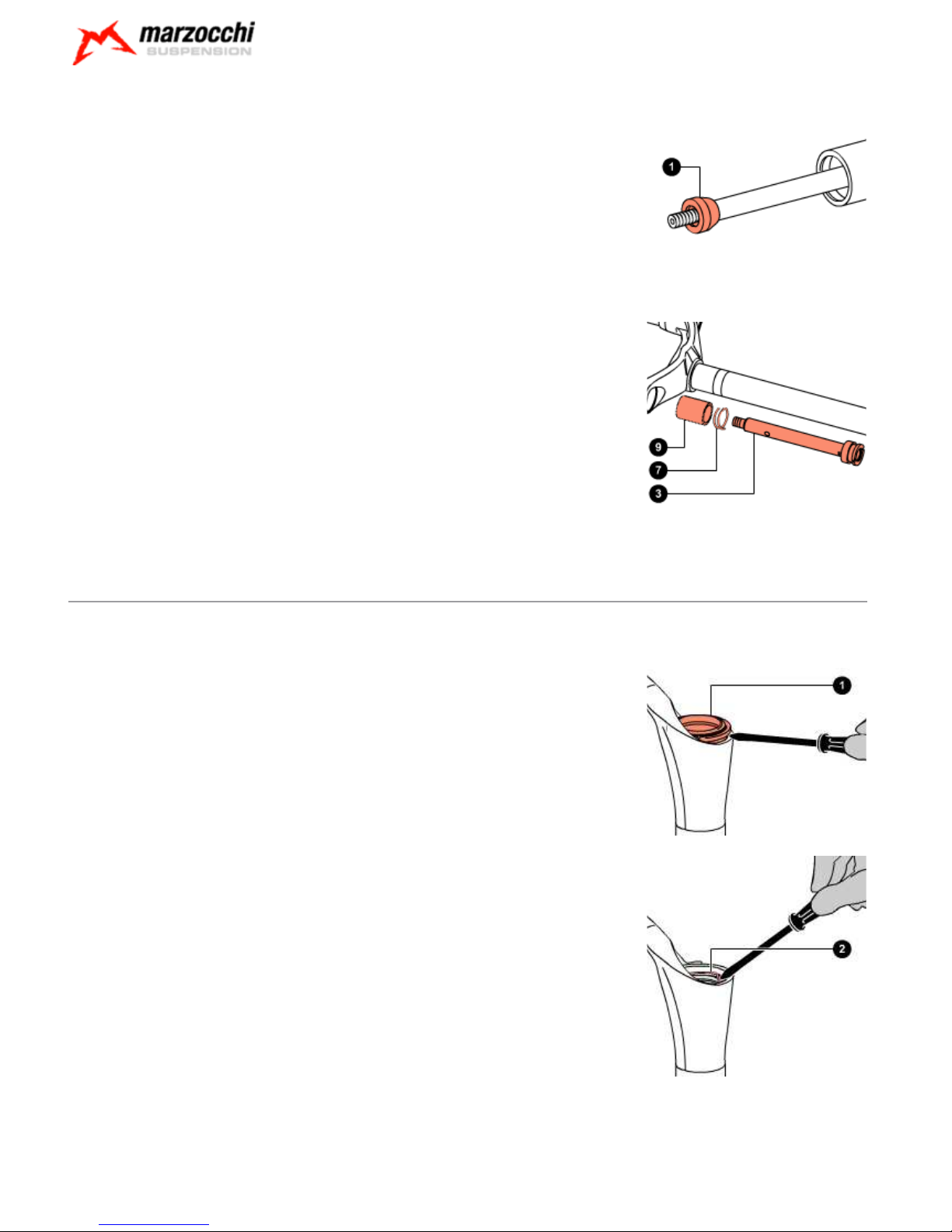

Remove the bottom pad (1).
Pull out the pumping element (3), the rebound spring (7) and the preload tube (9).
Dismantling: Removing the seals
Prize the dust seal (1) off its seat with a small flat-tip screwdriver.
Take great care not to damage the internal surfaces of the one-piece assembly while
removing the dust seal.
With the same screwdriver, prize off the metal stop ring (2).
Take great care not to damage the internal surfaces of the one-piece assembly while
removing the stop ring.

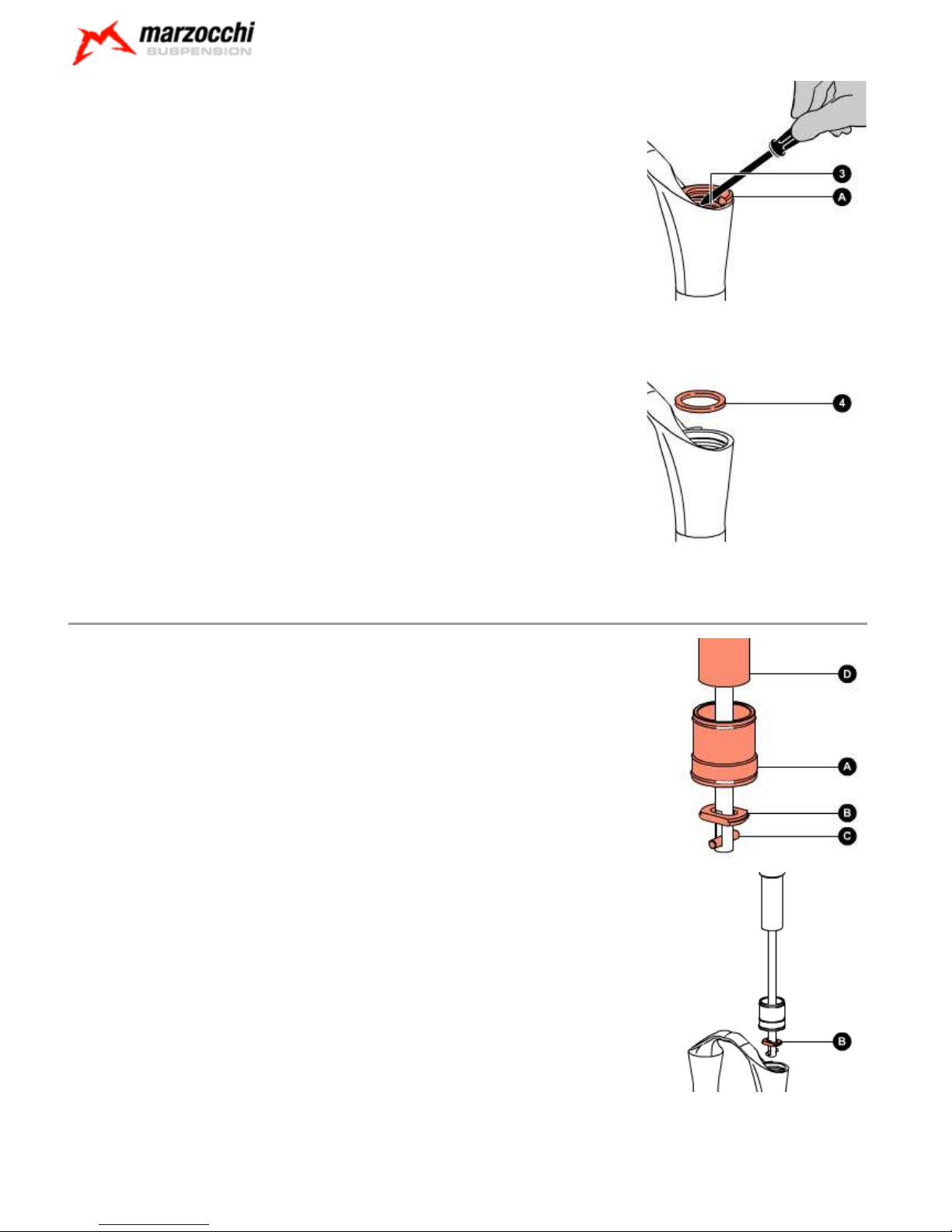

Protect the upper part of the slider with the special tool (A).
With a screwdriver, prize off the sealing ring (3).
Remove the sealing ring (3).
Take great care not to damage the internal surfaces of the one-piece assembly while
removing the sealing ring.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 8
Remove the spring cup (4).
The old sealing rings and dust seals must not be used again.
Dismantling: Removing the guide bushes
Use the special extractor to remove the guide bushes. Do not use other tools.
Fit the aluminium bush (A) to the extractor keeping the side with larger diameter towards the edge
opposite to striker (D).
Fit the extraction washer (B) with a black finish to the extractor.
During use, remove the non-used washer from the extractor.
Remove first the top bushes, then the bottom bushes.
Fit the extraction washer keeping the blunt side towards the threaded grubscrew (C) fixed crosswise on to
the main rod as shown.
The slot in the rod lets the extraction washer swing inside the rod itself.

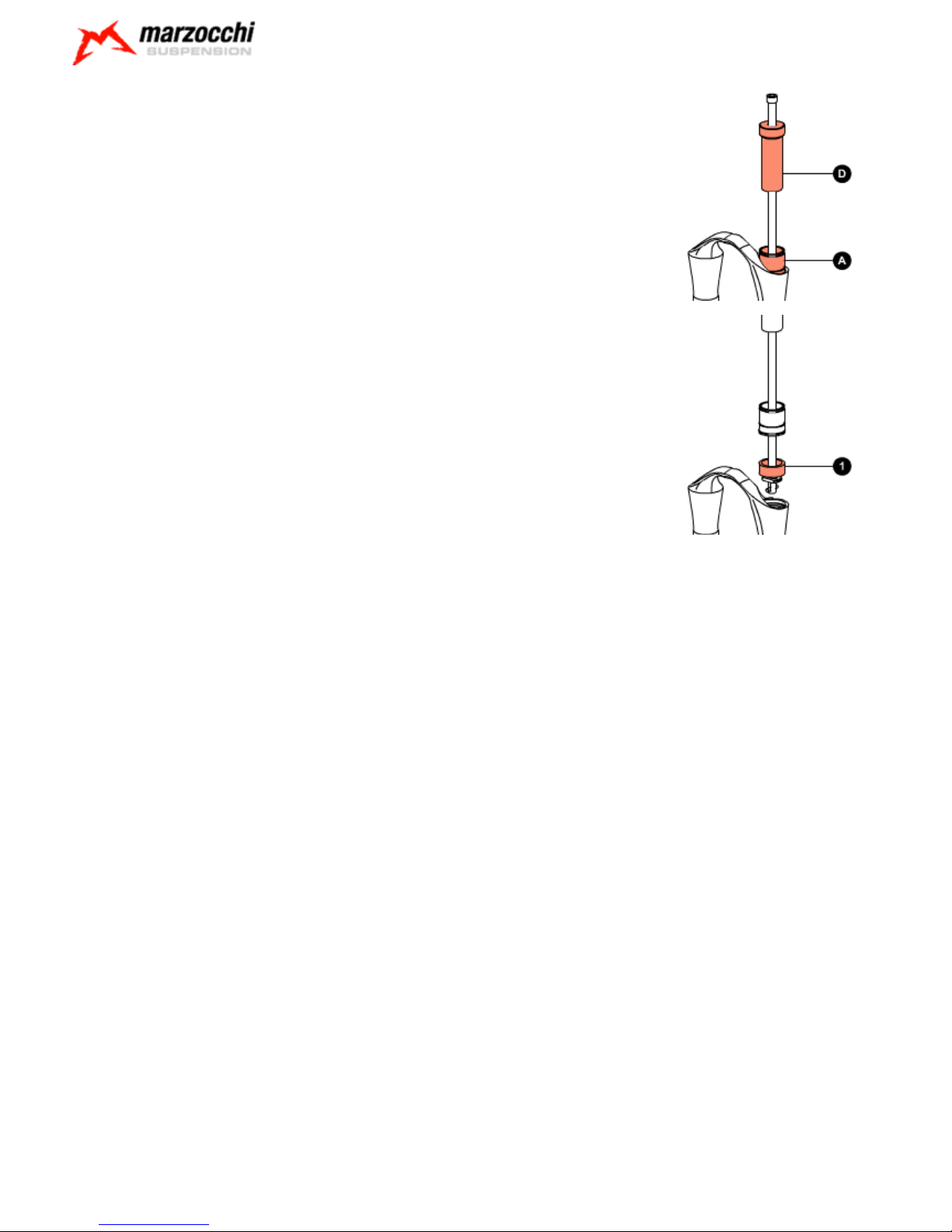

Insert the extractor in the arch-slider assembly from the side of washer (B) as shown.
The slot in the extractor rod will let the washer pass underneath the bush to be extracted.
Pull the extractor rod so that the upper face of the washer stops against the lower face of the guide bush.
Insert the aluminium bush (A) in the seat of the sealing ring.
While holding the main rod in position, the aluminium bush will drive the guide bushes during extraction.
Using striker (D) knock out and extract the guide bush (1).
Remove the guide bush (1) from the extractor.
Repeat the steps above to remove the bottom guide bush.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 9
© Marzocchi Suspension
2006 - Drop-Off SL
Page 10

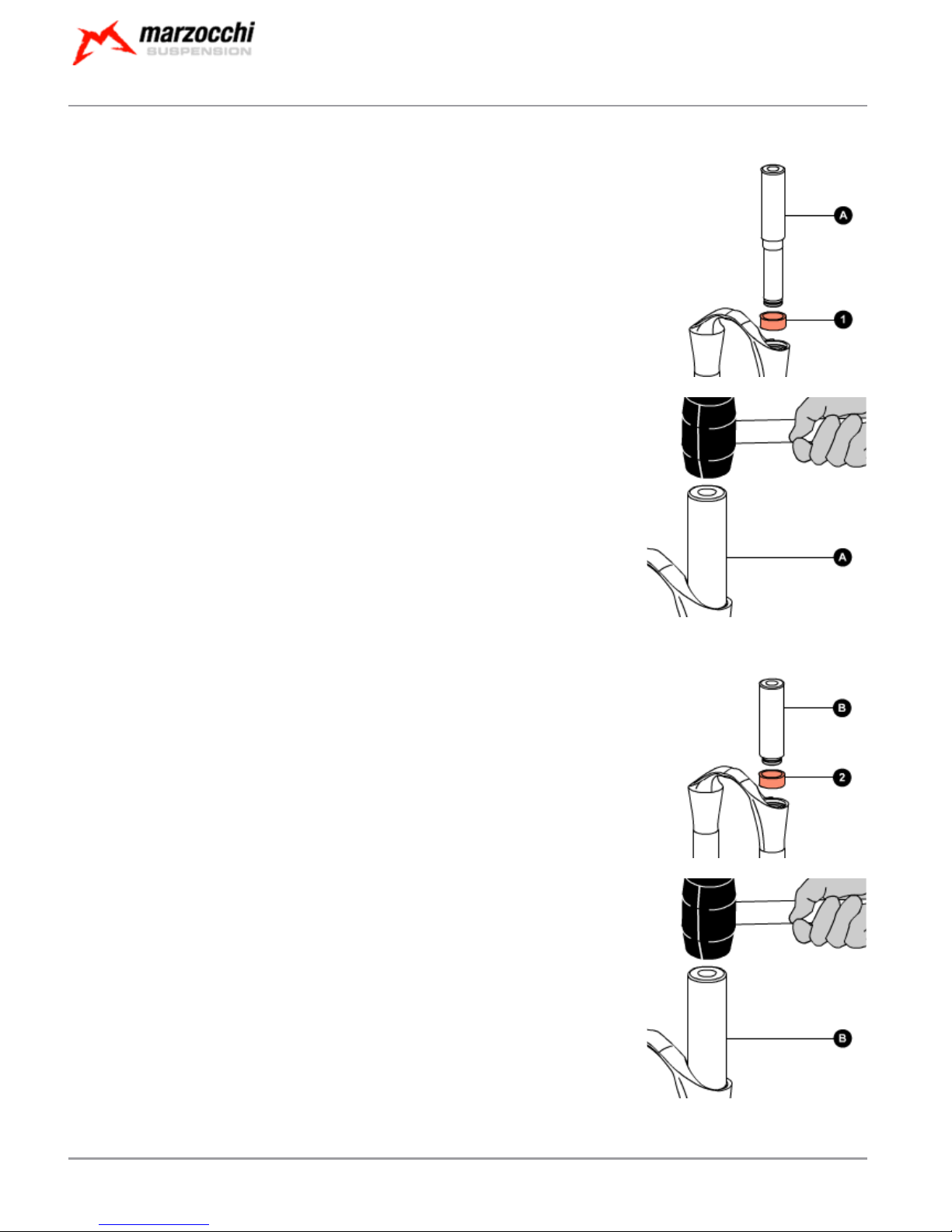

Assembling: Assembling the guide bushes
Insert the guide bushes using the special introducers (short type for the top bush and long type for the bottom bush, both with a
white finish). Do not use other tools.
Fit first the bottom bushes, then the top bushes.
Using the long introducer (A) fit the bottom bush (1).
Using a hammer knock the introducer (A) into the arch-slider assembly.
Using the short introducer (B) fit the top bush (2).
Using a hammer knock the introducer (B) into the arch-slider assembly.
Assembling: Assembling the seals

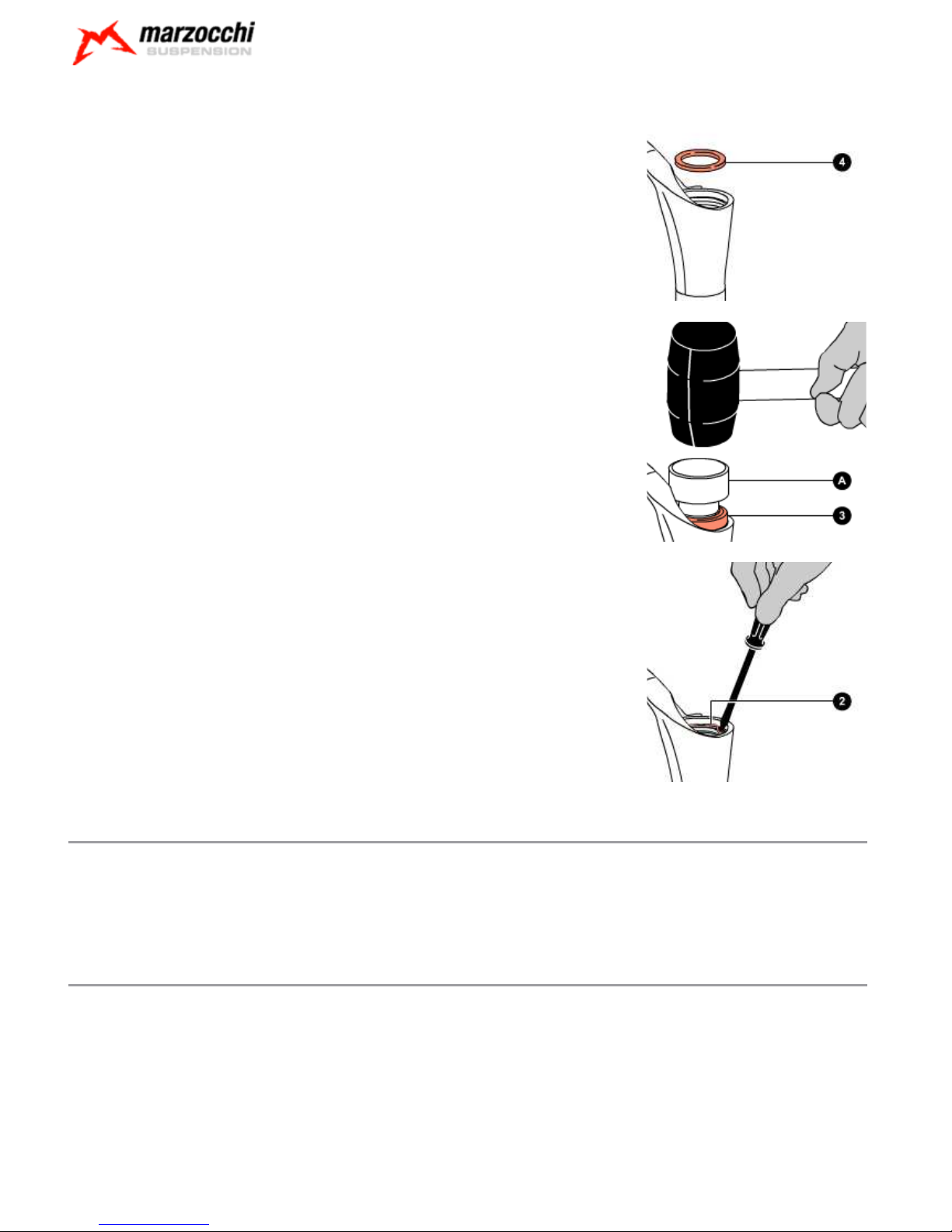

Insert the spring cup (4) in its seat.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 11
Smear the dust seal and the sealing ring with some grease.
Insert the sealing ring (3) in its seat with the special introducer (A).
Using a hammer, knock in introducer (A) and drive the sealing ring home into the arch-slider assembly.
Using a small flat-tip screwdriver, fit the stop ring (2) and check that it fits perfectly into its groove.
Take great care not to damage the internal surfaces of the one-piece assembly when fitting
the stop ring.
The dust seals shall be refitted when reassembling the crown-stanchion unit / arch-slider assembly.
Assembling:
During the assembly of the pumping unit, strictly obey the instructions below.
Do not, at any times, reverse the position of the pumping elements in the fork legs (if you are unsure about anything, please refer
to the relevant exploded view).
The pumping element operating the hydraulic rebound braking (that can be recognised by the segment) must be installed in the
right leg.
Assembling: Assembling the right pumping element
Replace the piston segment (8) if necessary.
Insert the preload tube (9) (
only for models with 110 - 130mm travel
) and the rebound spring (7) in the
piston rod (3).
Insert the pumping element into the stanchion and check it fits perfectly into its groove.
Take great care not to damage the segment and if necessary use a small flat-tip screwdriver
to help the piston of the pumping element into the stanchion.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 12
Fit the bottom pad (1) to the pumping element rod.
Assembling: Assembling the left pumping element
Insert the rebound spring (7) and the preload tube (9) (
only for models with 130mm travel
) into the
piston rod (3).
Insert the pumping element into the stanchion and check it fits perfectly into its seat.
Fit the bottom pad (1) to the pumping element rod.
Assembling: Reassembling the steering crown unit / arch-slider assembly
A special spanner shall be used to assemble the bottom nuts. Do not, at any times, use other
tools.

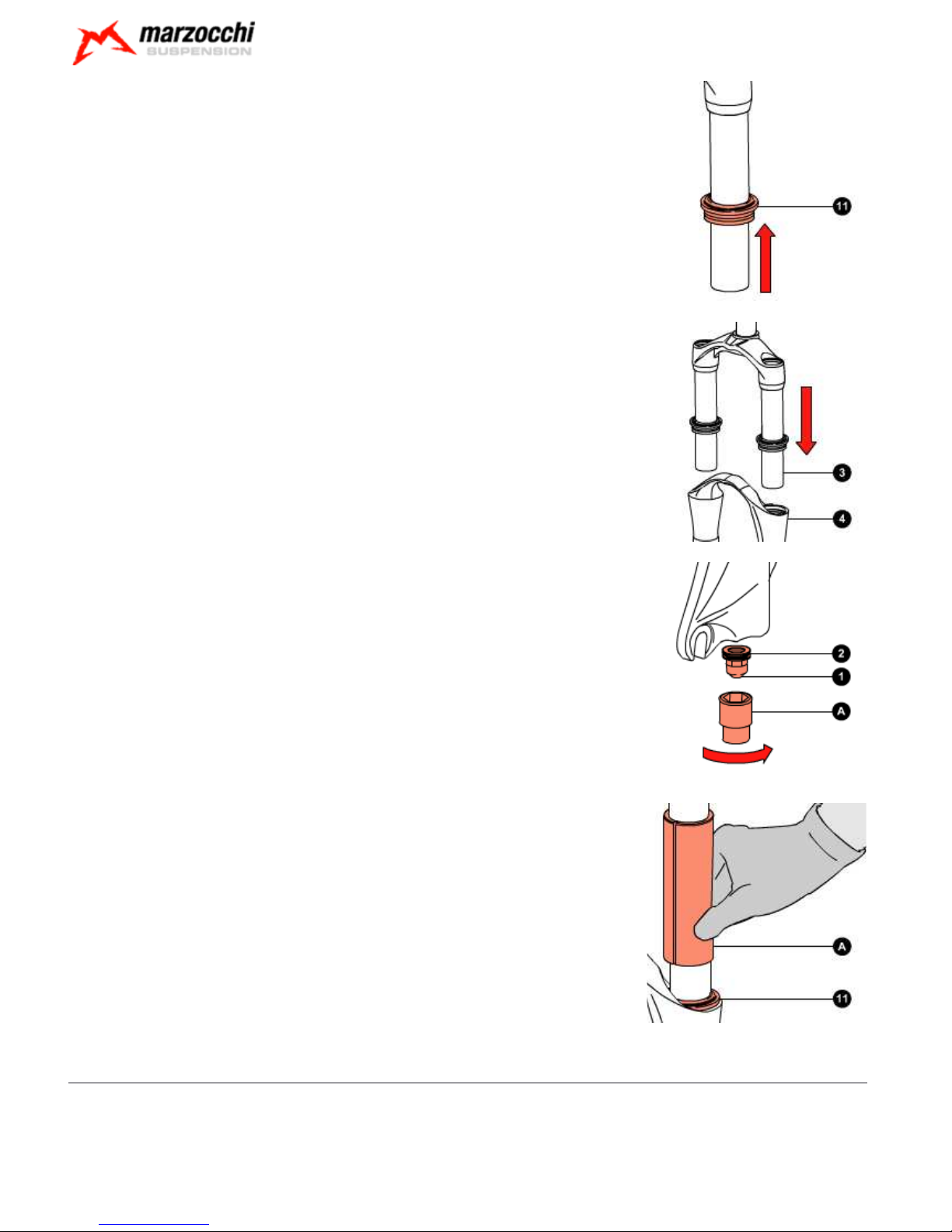

Fit both dust seals (11) to the stanchions.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 13
Insert the crown-stanchion unit (3) in the arch-slider assembly (4).
Using the special 12mm spanner (A), tighten the bottom nuts (1) complete with O-rings (2) of both legs
to the recommended tightening torque (10 Nm ± 1).
Using introducer (A) insert the dust seals (11) in their seats.
Assembling: Filling with oil

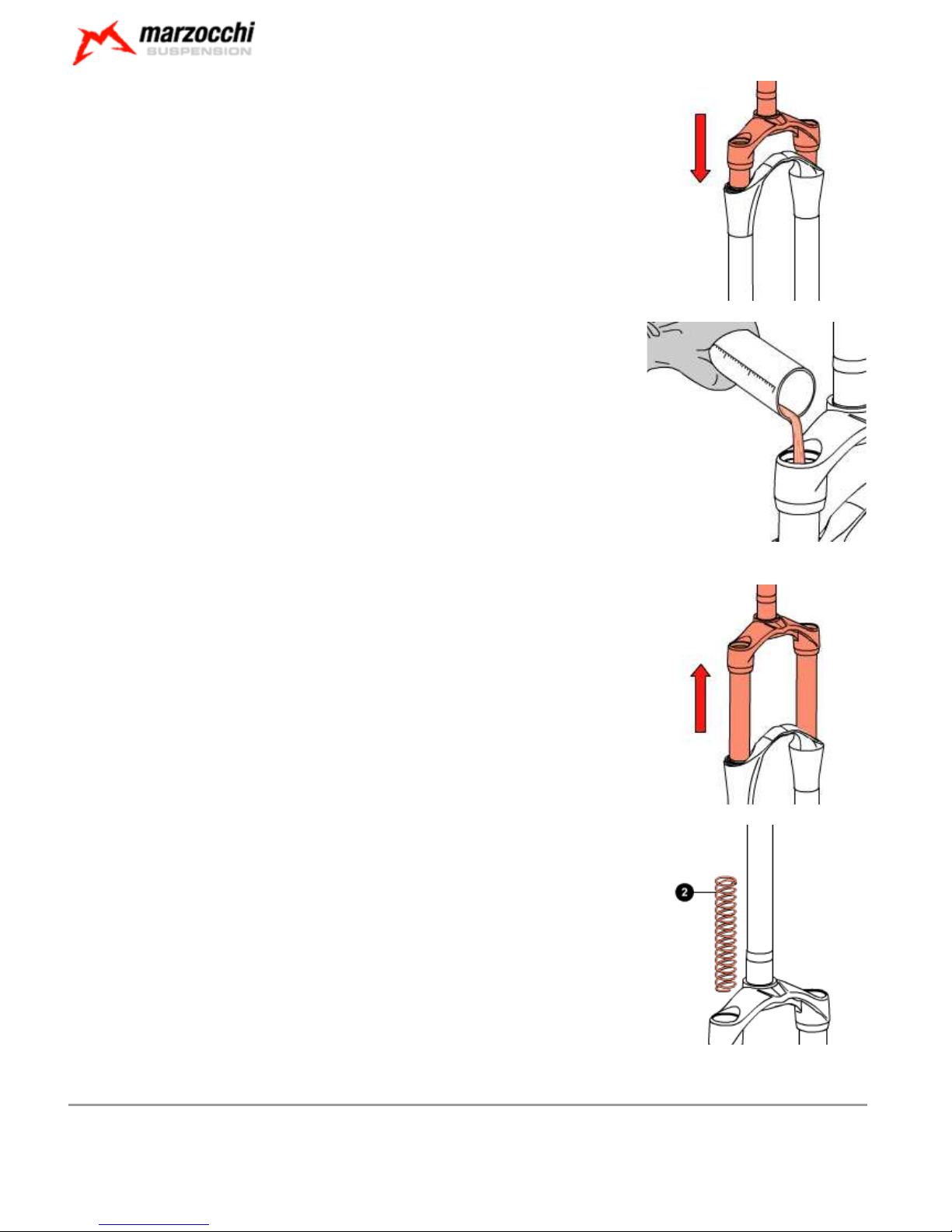

Block the fork in the vice, in perfectly vertical position.
Lower the crown-stanchion unit on the arch-slider assembly.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 14
In a graduated recipient, prepare the quantity of oil to pour into the fork leg (see table).
Pour roughly 1/3 of the oil required into each stanchion, then pump the fork a few times to eliminate any
traces of air.
Pour the rest of oil in.
A lower or higher volume or a type of oil other than the one recommended can change the behaviour of the fork in every phase.
Lift the crown-stanchion unit on the arch-slider assembly.
Insert spring (2) in the right leg.
Assembling: Mounting the top caps
Put the fork in the vice in vertical position, fixing it by the dropouts.
Check that O-ring is not damaged.
Using the 21mm socket spanner, tighten cap (2) to the recommended tightening torque (10 Nm ± 1).
© Marzocchi Suspension
2006 - Drop-Off SL
Page 15
Restore the correct air pressure (see settings).
Fit the protection cap (1).
© Marzocchi Suspension
2006 - Drop-Off SL
Page 16
Setting: General rules for calibration
By carefully calibrating the damping system you can get the maximum performance out of the same.
This paragraph indicates the sequence of operations to perform to set up the Marzocchi forks correctly.
In order to find the best settings for you, you will need to try several times to understand where and how to make adjustments. When doing so,
please ride in an open area, free from traffic, obstacles and other hazards.
The optimal setting is influenced by the geometry of the frame of the mountain bike, the weight of the cyclist, the type of terrain the bike will be
used on and the type of obstacles you have to deal with, but also by subjective factors associated with your riding style; therefore it is impossible to
provide objective data on the desired settings.
Nevertheless by carefully following the instructions below you will soon be able to find the optimal setting for you.
The shock absorber must be calibrated simply by using one adjuster at a time, following the order explained, noting the operations and any result
step-by-step.
During setting don't force the adjusters beyond their limit of travel and don't exceed the max recommended air pressure.
To keep the pressure inside the fork’s legs, only use the special MARZOCCHI pump with pressure gauge.
The use of any other pump can compromise the inflating operation and cause malfunction or damage to the fork, resulting in an
accident, personal injury or death.
Once the correct setting has been found, we recommend noting the number of clicks or turns of the adjuster with respect to the "fully closed"
position (adjuster fully clockwise) for a faster re-setting of your fork in case of need.

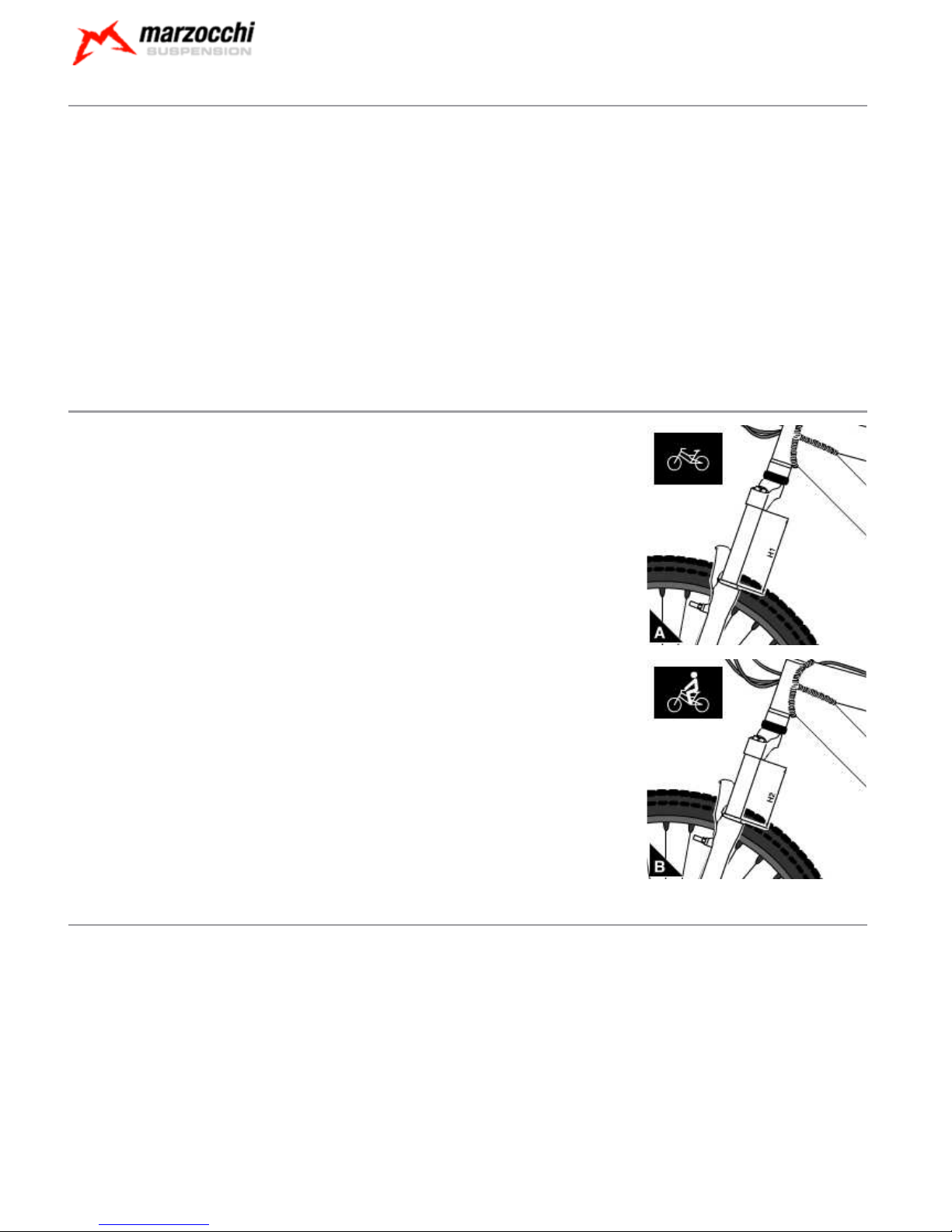

Setting: SAG
SAG means the fork bottoming under the biker's weight.
How to measure the SAG:
Follow these simple steps to measure the SAG.
On the leg portion of the fork, measure the distance between the lower crown and the dust seal (see
Picture A). Note this value as “H1”.
While sitting on the bike, repeat the measurement (see picture B). Note this value as “H2".
SAG = H1 - H2
How to find the best percent SAG:
The best percent SAG is 15-20% for Cross-country and All Mountain forks and 25-30% for Freeride and
Downhill forks.
In order to calculate the best SAG for your own fork, you will need to make the following calculation:
SAG = T x S (T = total travel; S = suggested sinking percentage).

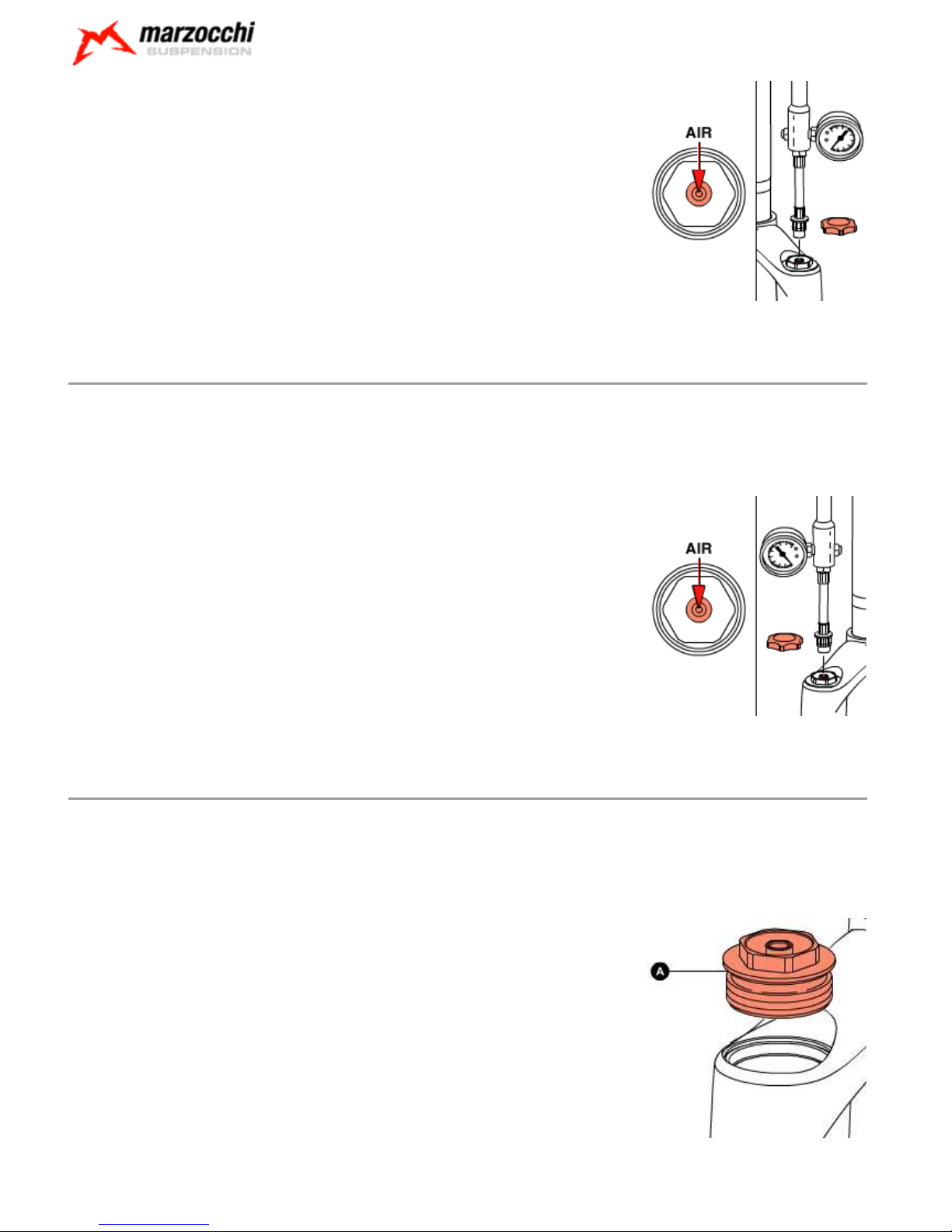

Setting: Positive air
Positive air is the elastic element of air damped forks.
Use the MARZOCCHI pump with pressure gauge to inflate the fork legs.
Using inadequate tools may lead to a wrong inflation and result in a malfunctioning or damage to the fork.
If you need to reduce the leg pressure, simply push the valve pin down with a pointed tool such as a small pin extractor.
Left fork leg:
To increase the pressure in the fork leg:
Remove the protection cap.
Tighten the threaded pump adapter on air valve.
Inflate till reaching the pressure you wish (see table).
Refit the protection cap.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 17
The pressure values in the table are given as a mere example and can be changed to meet the biker’s riding style and the track condition.
Setting: Spring preload with air
The optimal spring preloading is the one that lets you obtain the desired SAG under the biker's weight.
Use the MARZOCCHI pump with pressure gauge to inflate the fork legs.
Using inadequate tools may lead to a wrong inflation and result in a malfunctioning or damage to the fork.
If you need to reduce the leg pressure, simply push the valve pin down with a pointed tool such as a small pin extractor.
Right fork leg:
To increase the pressure in the fork leg:
Remove the protection cap.
Tighten the threaded pump adapter on air valve.
Inflate till reaching the pressure you wish (see table).
Refit the protection cap.
The pressure values in the table are given as a mere example and can be changed to meet the biker’s riding style and the track condition.
Setting: Rebound adjustment
Right fork leg:
With the rebound adjuster you can control the return speed of the fork after compression.
The right rebound speed setting makes the bike stable letting it follow the variations in the terrain and any obstacles.
If the fork setting is too reactive this will make the rear suspension instable and the mountain bike will have a tendency to snake. A too slow setting
however will cause problems when dealing with multiple obstacles where the suspension can't return to its fully extended position fast enough
between one obstacle and the next.
Using a small pin extractor, push the valve pin down to eliminate the right leg pressure.
With a 21mm socket spanner, unscrew and remove the protection cap (A).

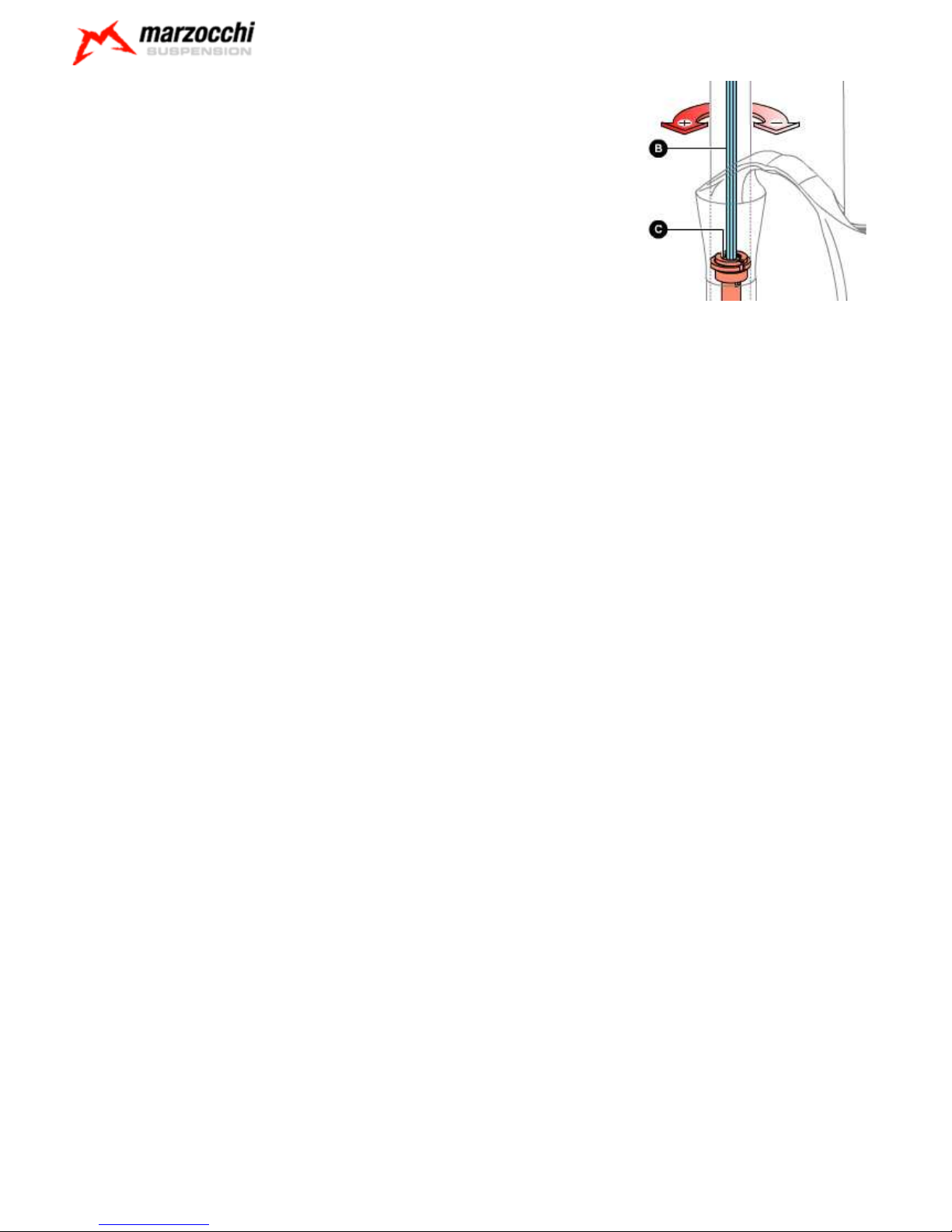

Fit the hexagonal rod (B) supplied into the hole of the adjustment screw (C) in the stanchion tube.
Turning the adjustment screw counter-clockwise increases the hydraulic damping and the fork will be
slower during the rebound phase.
Turning the adjustment screw clockwise decreases the hydraulic damping and the fork will be more
reactive during the rebound phase.
Once the setting has been made, refit the protection cap and tighten it to the recommended torque (10
Nm ±1).
Restore the recommended air pressure.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 18
Do not force the adjuster beyond its limit of travel.
© Marzocchi Suspension
2006 - Drop-Off SL
Page 19
Tightening torques
Drop-Off SL 130 - Oil levels
Drop-Off SL 150 - Oil levels
Components Tightening torque (Nm)
Fender fixing screws 6±1
Fork leg top caps 10±1
Pumping element/cartridge bottom nuts 10±1
Wheel axle Allen screws 6±1
Wheel axle screws 15±1
Position Oil type Quantity (cc)
Right fork leg SAE 7,5 - 5500 13 150
Left fork leg SAE 7,5 - 5500 13 150
Position Oil type Quantity (cc)
Right fork leg SAE 7,5 - 5500 13 150
Left fork leg SAE 7,5 - 5500 13 150
© Marzocchi Suspension
2006 - Drop-Off SL
Page 20
Diagnostics
Finding the problem Finding the possible cause Possible solutions proposed
Fork doesn't get full travel Oil level too high Check oil levels
Fork extends too quickly; harsh top-out after
impacts
Rebound damping is not enough Increase rebound damping
Fork extends too quickly; harsh top-out after
impacts
Rebound damping is not enough
Replace the oil (SAE 7.5) with one of higher
viscosity index
Fork has too much sag Oil is too fluid Check oil levels
Fork is “sticky”; fork does not perform as new
Dirty sealing rings; fork needs to be
serviced
Renew all seals
Fork is too soft, but the sag is the one
recommended
Compression damping is not enough
Increase compression damping by changing oil
volumes
Fork is too soft, needs more than the maximum
preload
Oil is too fluid Check oil levels
Fork stays down or "packs up" during multiple
impacts
Rebound damping is too high
Decrease rebound damping with the relevant
register
Front wheel tends to tuck under while turning left
or right
Rebound damping is too high
Decrease rebound damping with the relevant
register
Heavy amount of oil on stanchions; oil dripping
down legs
Sealing rings damaged Renew all seals
Heavy amount of oil on stanchions; oil dripping
down legs
The stanchion tubes could be damaged Have the stanchions be checked
Knocking sound during rebound, but no harsh topout
Rebound damping is too high
Decrease rebound damping with the relevant
register
Loss of sensitivity Old oil Change the oil
Loss of sensitivity Sliding bushes worn Renew the sliding bushes
Oil ring on stanchions Sealing rings dirty Renew all seals
© Marzocchi Suspension
2006 - Drop-Off SL
Loading...
