Marvel MP24BCG0RS User Manual

EN Installation, Operation and Maintenance Instructions
FR Instructions d’installation, d’utilisation et d’entretien ES Instrucciones de instalación, operación y mantenimiento
Beverage Center Stockage de Boissons Centro de Bebidas
MP24BCG0
CONTENTS
Contents:
Safety information ...............................................................2
Unpacking your appliance ..................................................3
Warranty registration .....................................................3
Installing your appliance ......................................................4
Cabinet clearances .........................................................4
Leveling the appliance ....................................................4
Electrical connection ......................................................5
Product dimensions ............................................................6
Using your Electronic control .............................................8
Starting your appliance ...................................................8
Sleep mode ....................................................................8
Turning your appliance "ON" or "OFF" ...........................8
Interior display lighting ....................................................8
Adjusting the temperature ..............................................9
Temperature mode .........................................................9
Control lock ....................................................................9
Temperature sensor error codes ....................................9
Alarms ..........................................................................10
Door ajar ...................................................................10
Power failure ............................................................10
Temperature alarm ...................................................10
Vacation mode ..............................................................11

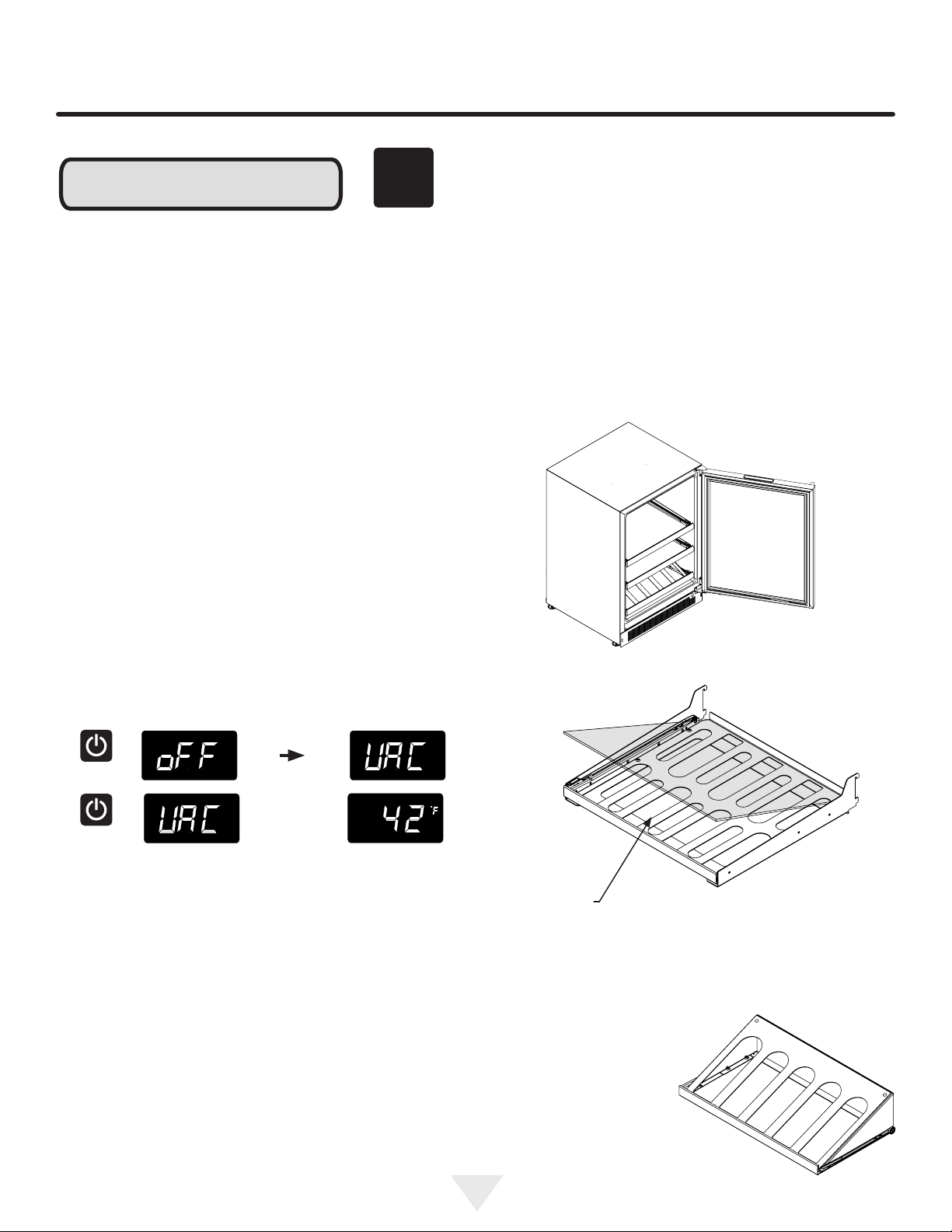

Shelving congurations ....................................................11
Care and cleaning .............................................................12
Energy saving tips .............................................................13
Obtaining service .............................................................13
Troubleshooting ................................................................14
Warranty ...........................................................................15
Important Safety Instructions
Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa­tions that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operat­ing this appliance.
Recognize Safety Symbols,
Words, and Labels.
!
WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!
CAUTION
CAUTION-Hazards or unsafe practices which could re-
sult in personal injury or property / product damage.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known to the State of California to cause cancer.
NOTE-Important information to help assure a problem
free installation and operation.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..
2

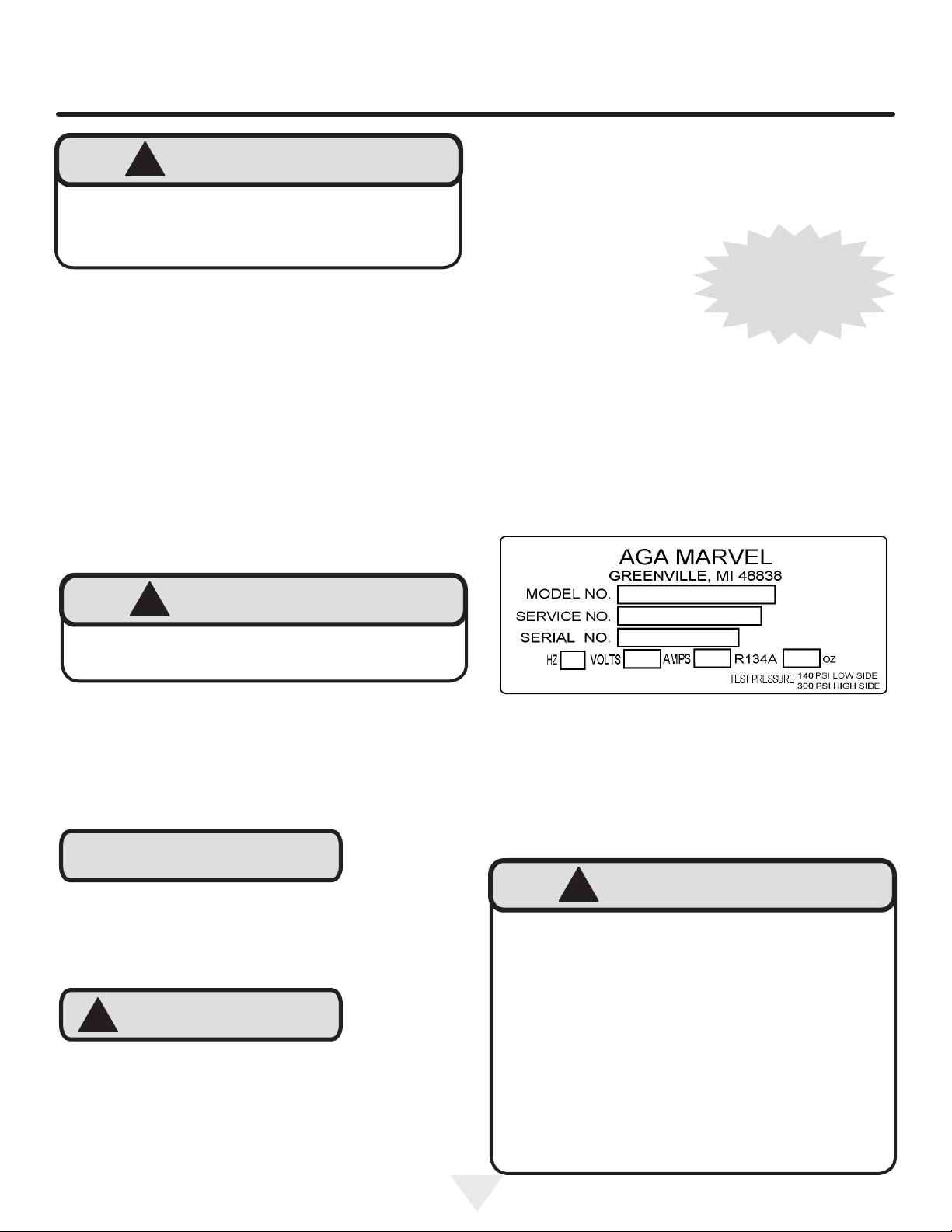

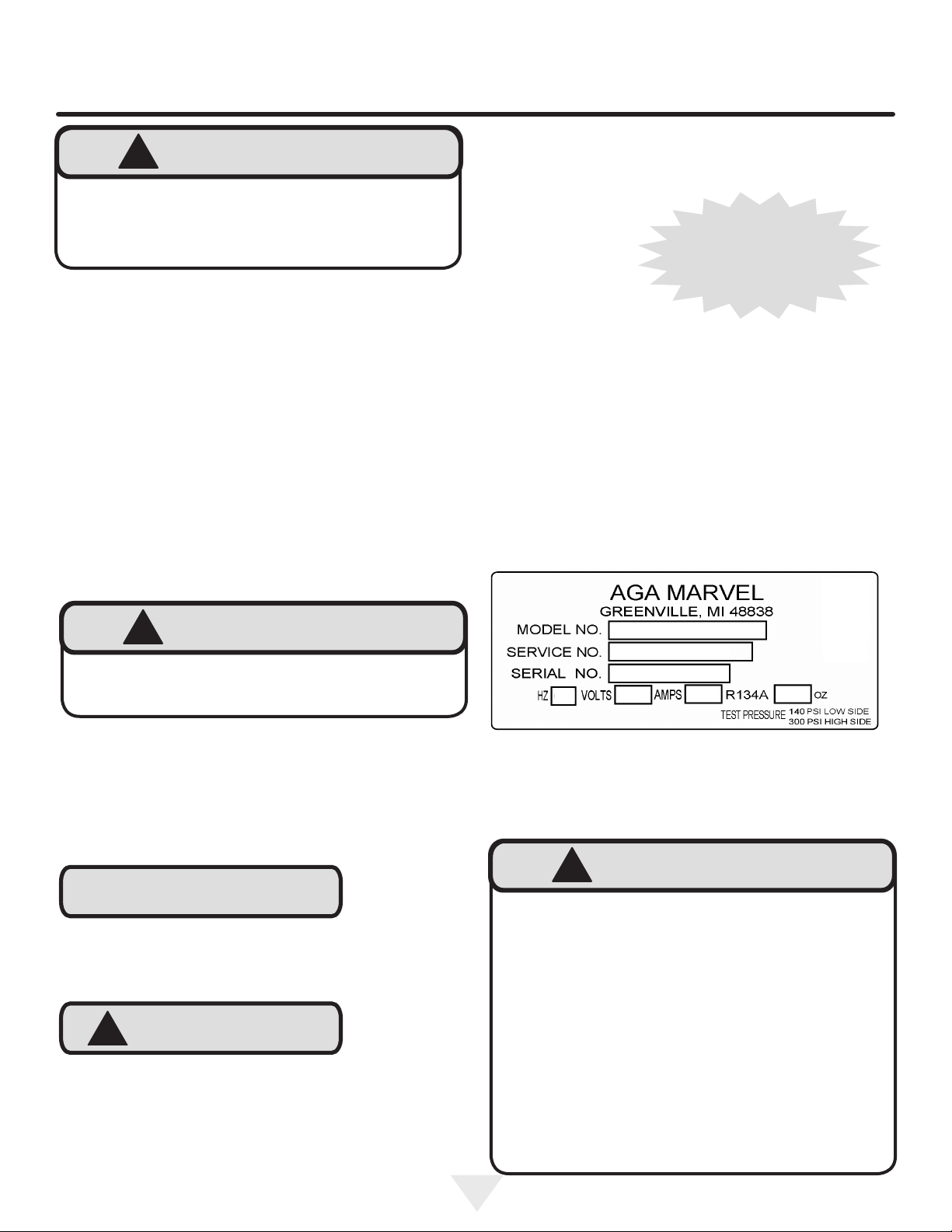

UNPACKING YOUR APPLIANCE
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding in­ternal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condi­tion. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.
Warranty Registration
It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.agamarvel.com.
The following information will be required when registering your appliance. Service Number Serial Number Date of Purchase Dealer’s name and address
The service number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. See Figure 1.
Online registration
available at
www.agamarvel.com
!
WARNING
WARNING - Dispose of the plastic bags which can
be a suffocation hazard.
Note to Customer
This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.
!
CAUTION
XXXXXXXXXXXX
XXXXXXXXXXXX

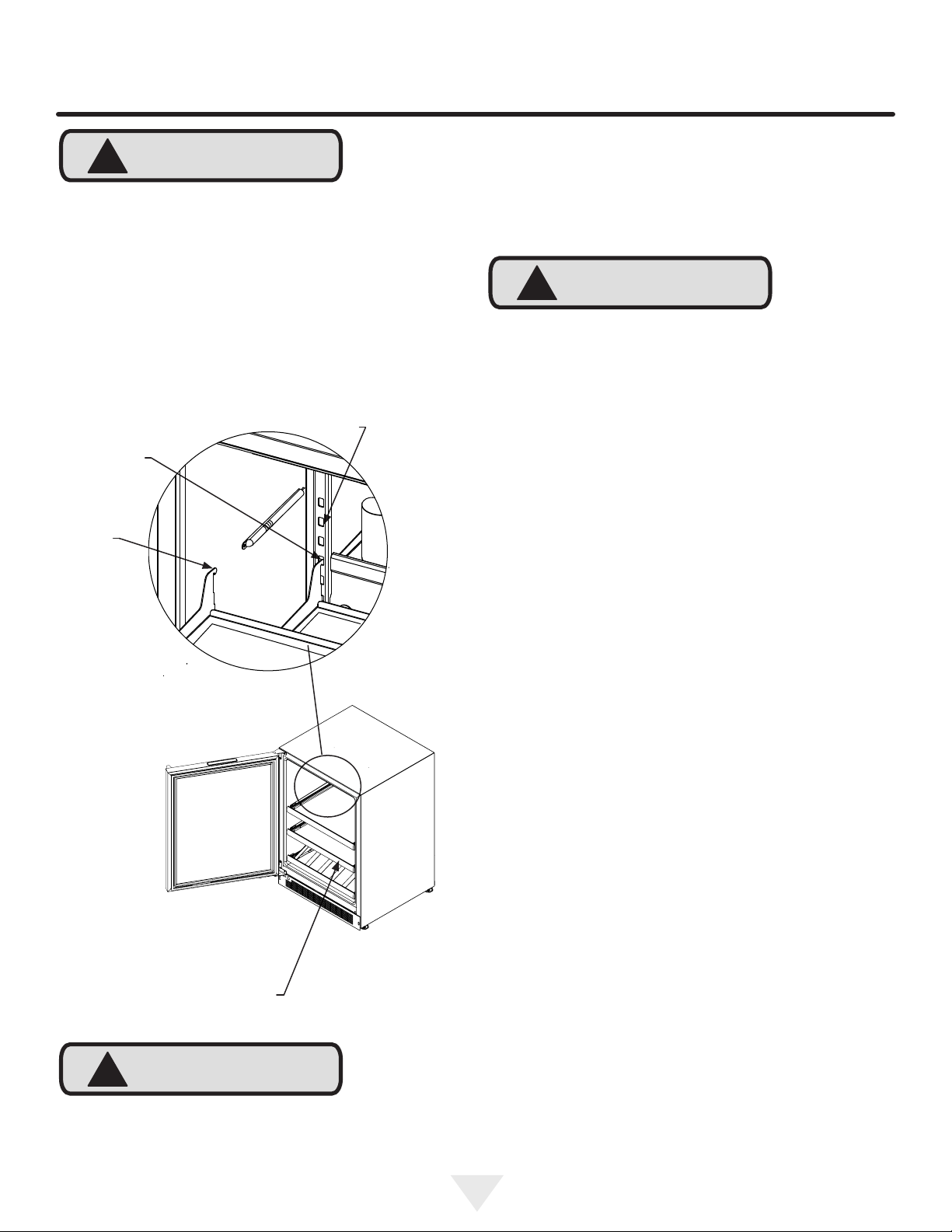

Figure 1
!
WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please follow the instructions below to help prevent acci­dents.
If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the ap­pliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.
Before you throw away your old refrigerator or freezer:
Take off the doors or remove the drawers.
Leave the shelves in place so children may not easily climb inside.
3
INSTALLING YOUR APPLIANCE
Select Location
The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specications, the recom­mended installation location temperature range is from 55 to 100°F (13 to 38°C).
Cabinet Clearance
Ventilation is required from the bottom front of the appli­ance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstruct­ed.
!
WARNING
An optional stacking kit is required to stack products. Failure to use a stacking kit could result in personal injury. Contact your dealer or Aga Marvel customer service at 800-223-3900 to order.
Front Grille, keep this area open.

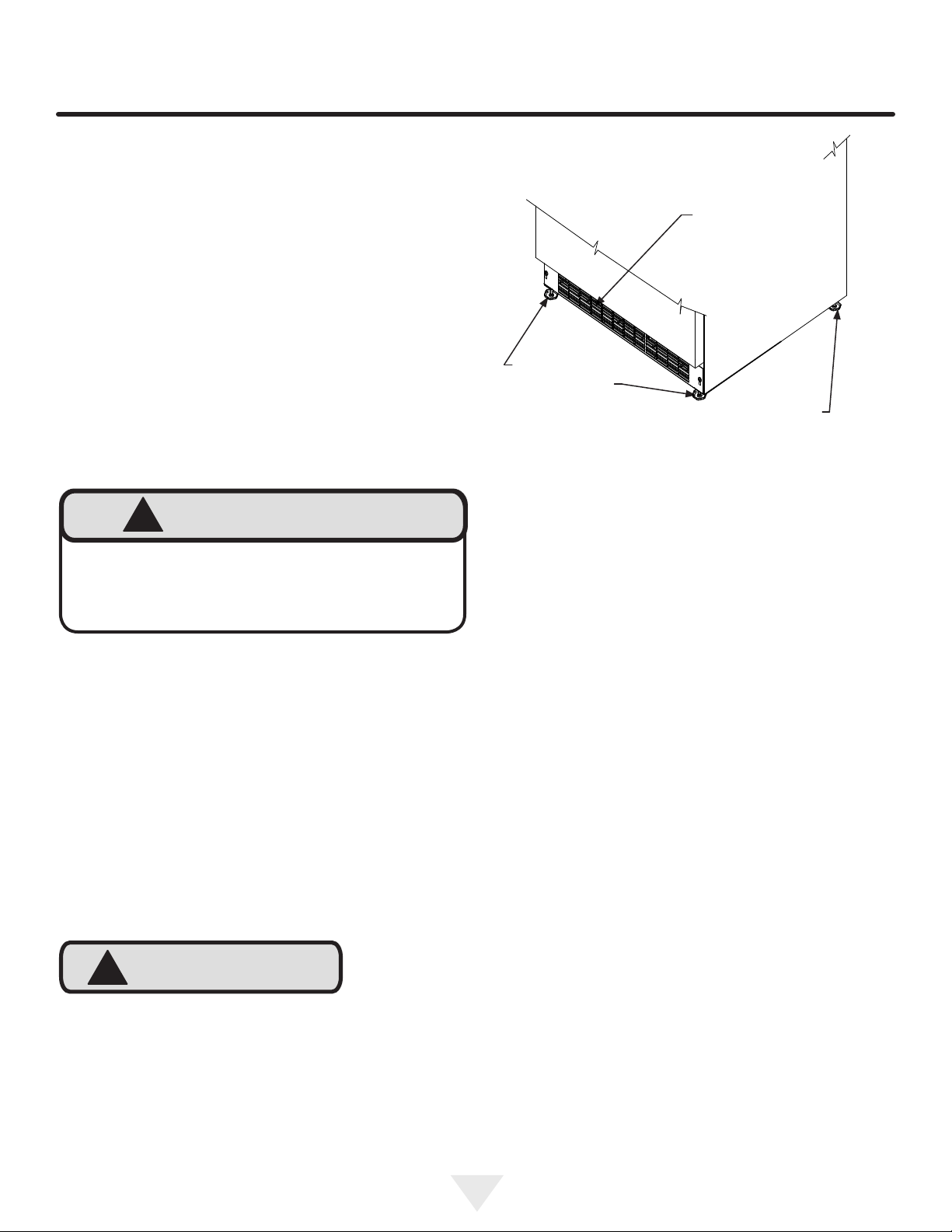

Front Leveling Legs

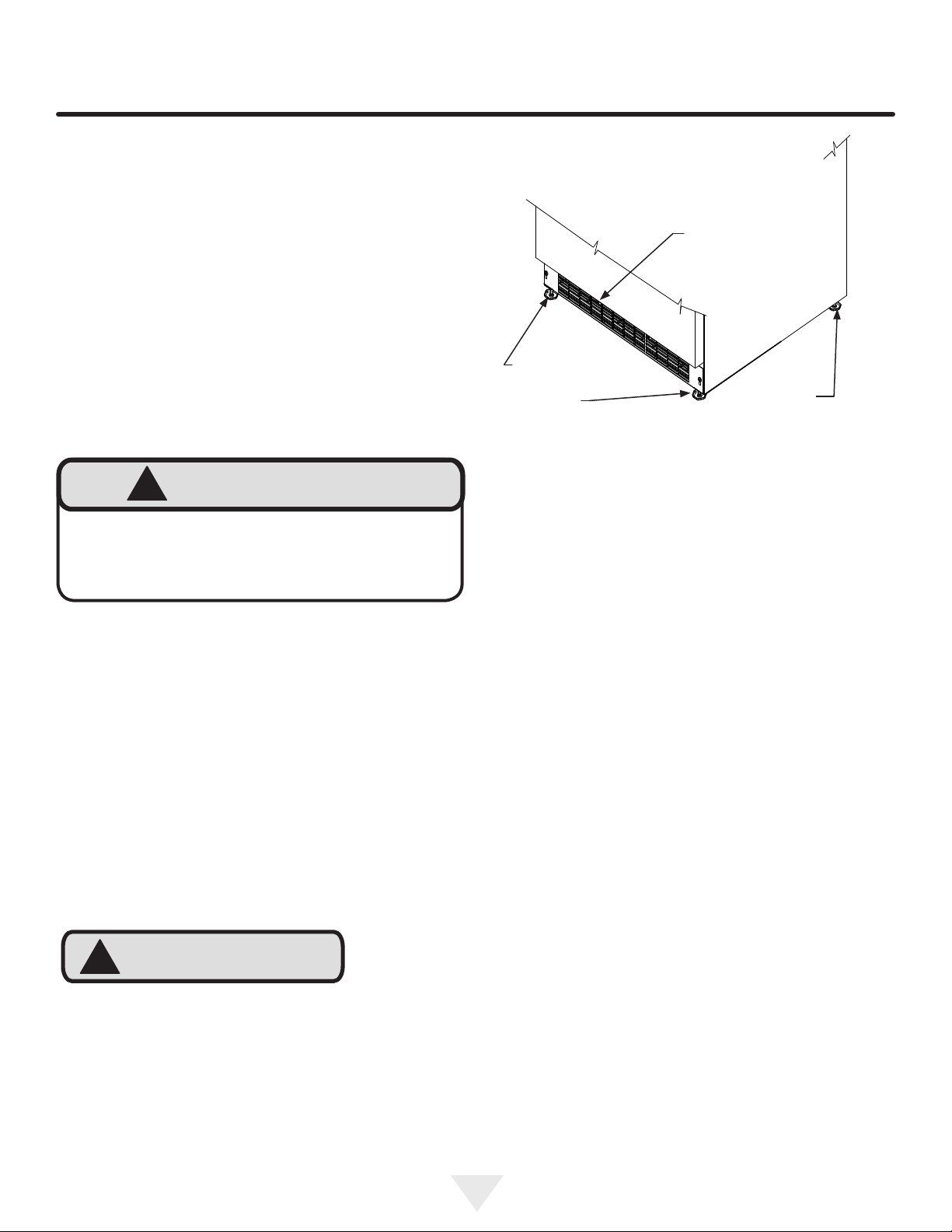

Figure 2
Rear
Leveling
Legs
Leveling Legs
Adjustable legs at the front and rear corners of the appli-
ance should be set so the unit is rmly positioned on the oor and level from side to side and front to back. The over-
all height of your Marvel appliance may be adjusted higher (by turning the leveling leg out, CCW) and lower (by turning the leveling leg in, CW).
To adjust the leveling legs, place the appliance on a solid
surface and protect the oor beneath the legs to avoid scratching the oor. With the assistance of another person,
lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appli­ance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.
!
CAUTION
Front Grille
Do not obstruct the front grille. The openings within the
front grille allow air to ow through the condenser heat ex­changer. Restrictions to this air ow will result in increased
energy usage and loss of cooling capacity. For this reason it is important this area to not be obstructed and the grille openings kept clean. AGA MARVEL does not recommend the use of a custom made grille as air ow may be restrict­ed. (See Figure 2).
The front grille screws may be loosened and the grille ad­justed to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5).
4
INSTALLING YOUR APPLIANCE
!
WARNING
Figure 3
Do not remove ground prong

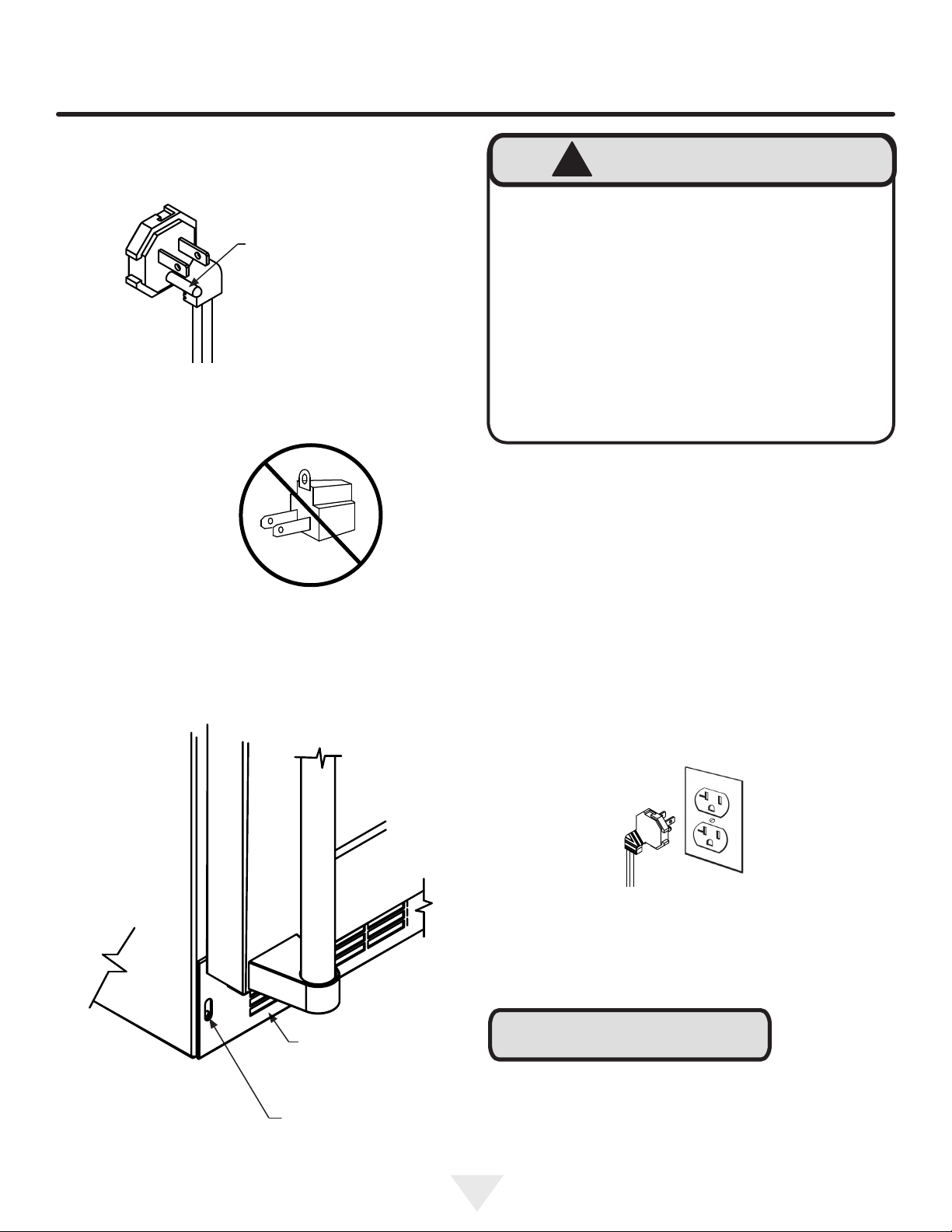

Figure 4
Electrical Shock Hazard

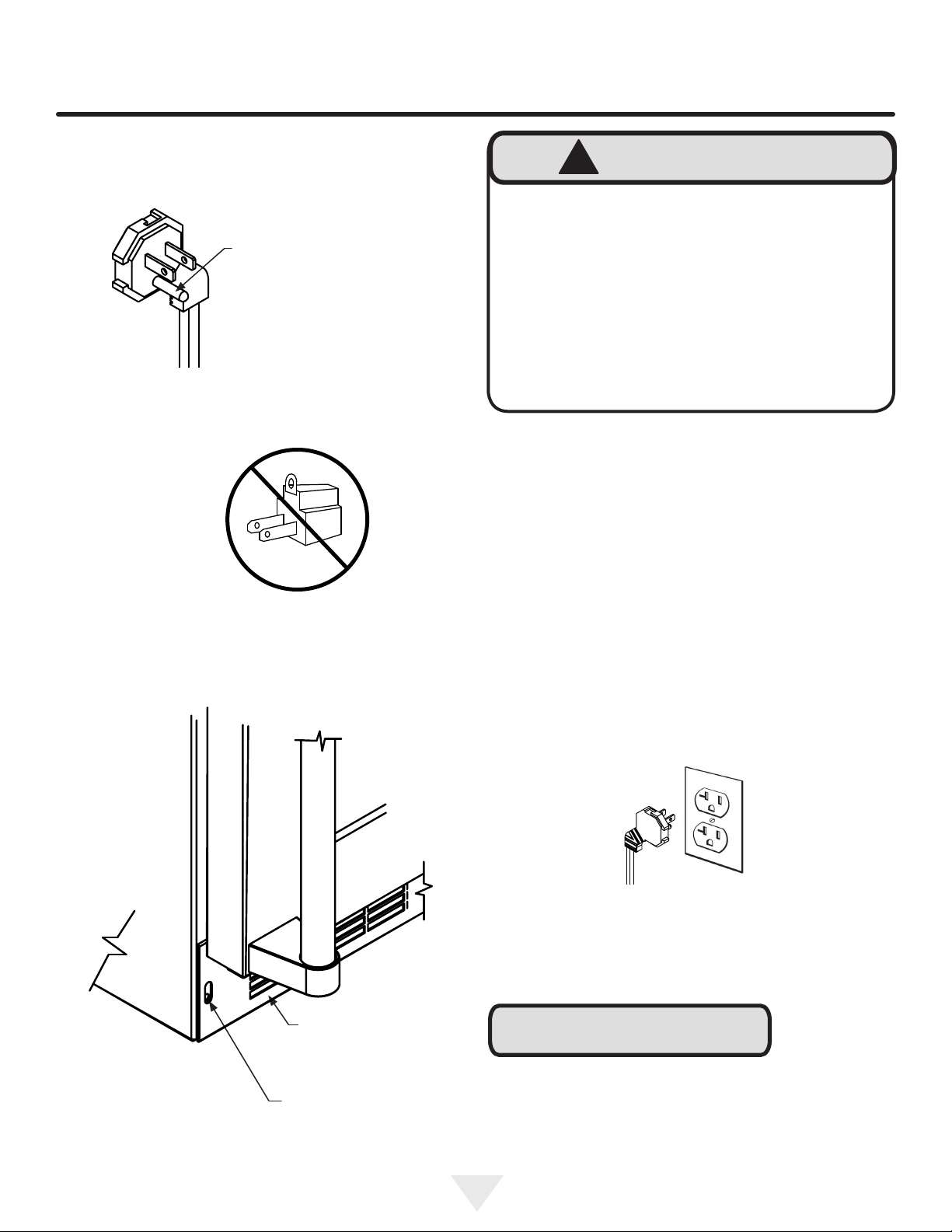

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.
• This appliance should not, under any circumstanc­es, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor­dance with the National Electrical Code and applicable lo­cal codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any cir­cumstances, be cut or removed.
Figure 5
Front grille
Front grille screw
Figure 6
Ground Fault Circuit Interrupters (GFCI) are prone to nui­sance tripping which will cause the appliance to shut down. GFCI’s are generally not used on circuits with power equip­ment that must run unattended for long periods of time, un­less required to meet local building codes and ordinances.
5

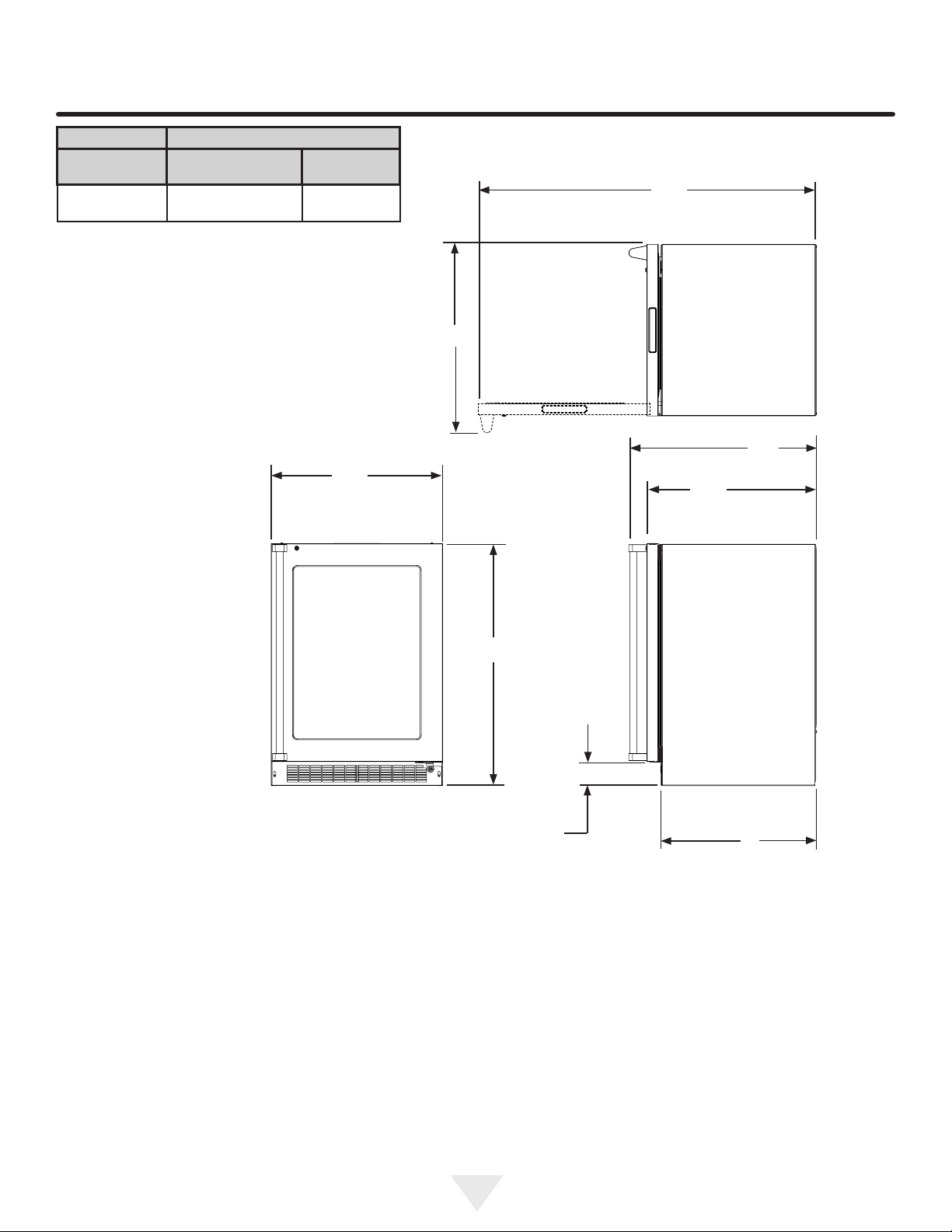

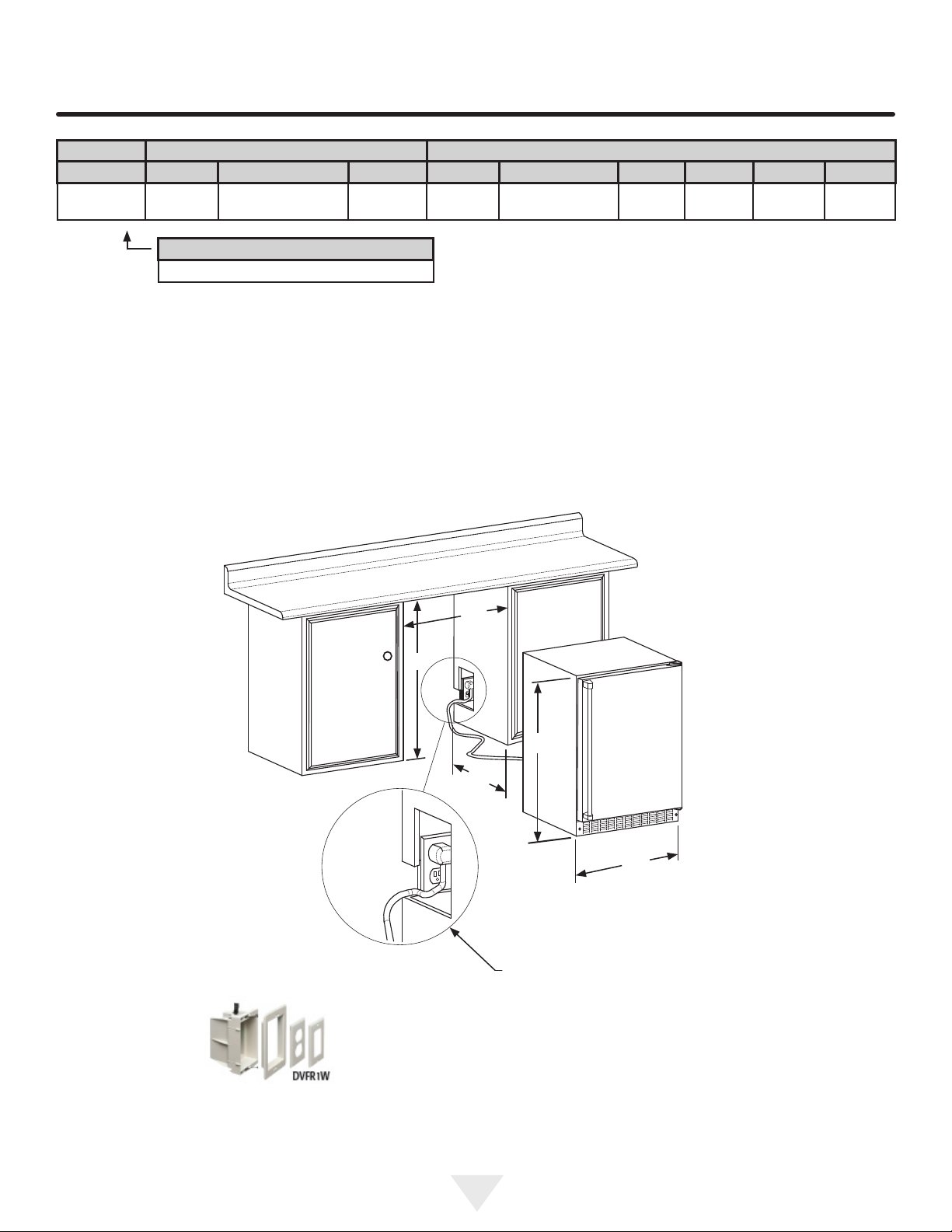

PRODUCT DIMENSIONS

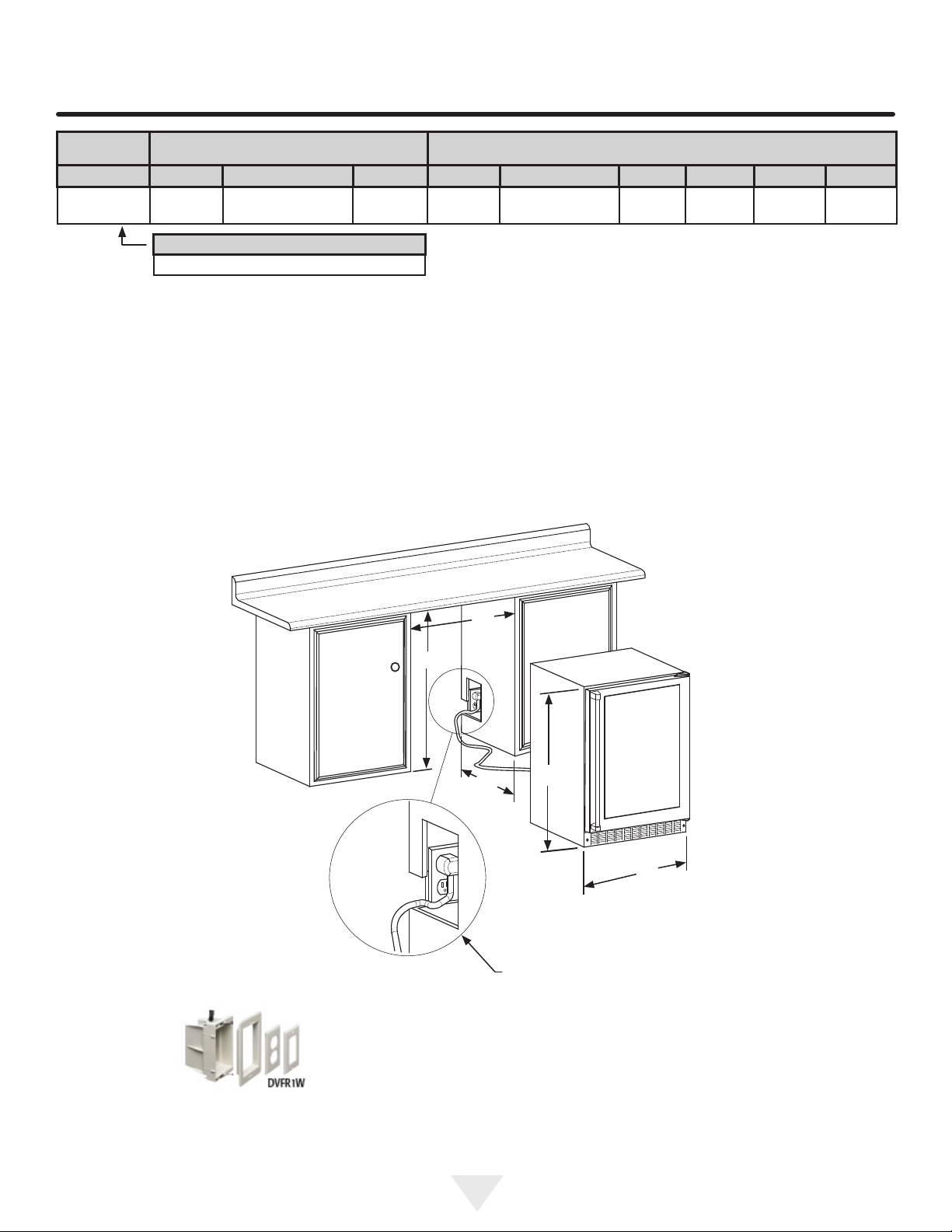

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
MP24BCG0
24"
(61 cm)
DOOR STYLE
(G) Glass Frame Door
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
267⁄32"
(66.6 cm)
4613⁄32"
(117.9 cm)
(67.2 cm)
267⁄16"
Figure 7a
Figure 8
"B"
"A"
Figure 7
"C"
"E"
"D"
If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabi­net and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this applica­tion as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 8).
6
PRODUCT DATA
MODEL
MP24BCG0 115V/60Hz/15A
ELECTRICAL
REQUIREMENTS #
PRODUCT DIMENSIONS
PRODUCT
WEIGHT
140 lbs
(63.6 kg)
"J"
"H"
"G"
"D"
Figure 9
"E"
31⁄2" (8.9 cm)
Minimum
"F"
211⁄2"
(54.6 cm)
** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appli­ance.
7
USING YOUR ELECTRONIC CONTROL
Temp
Minus
keypad
On/Off
keypad
Temp
Plus
keypad
Display Area

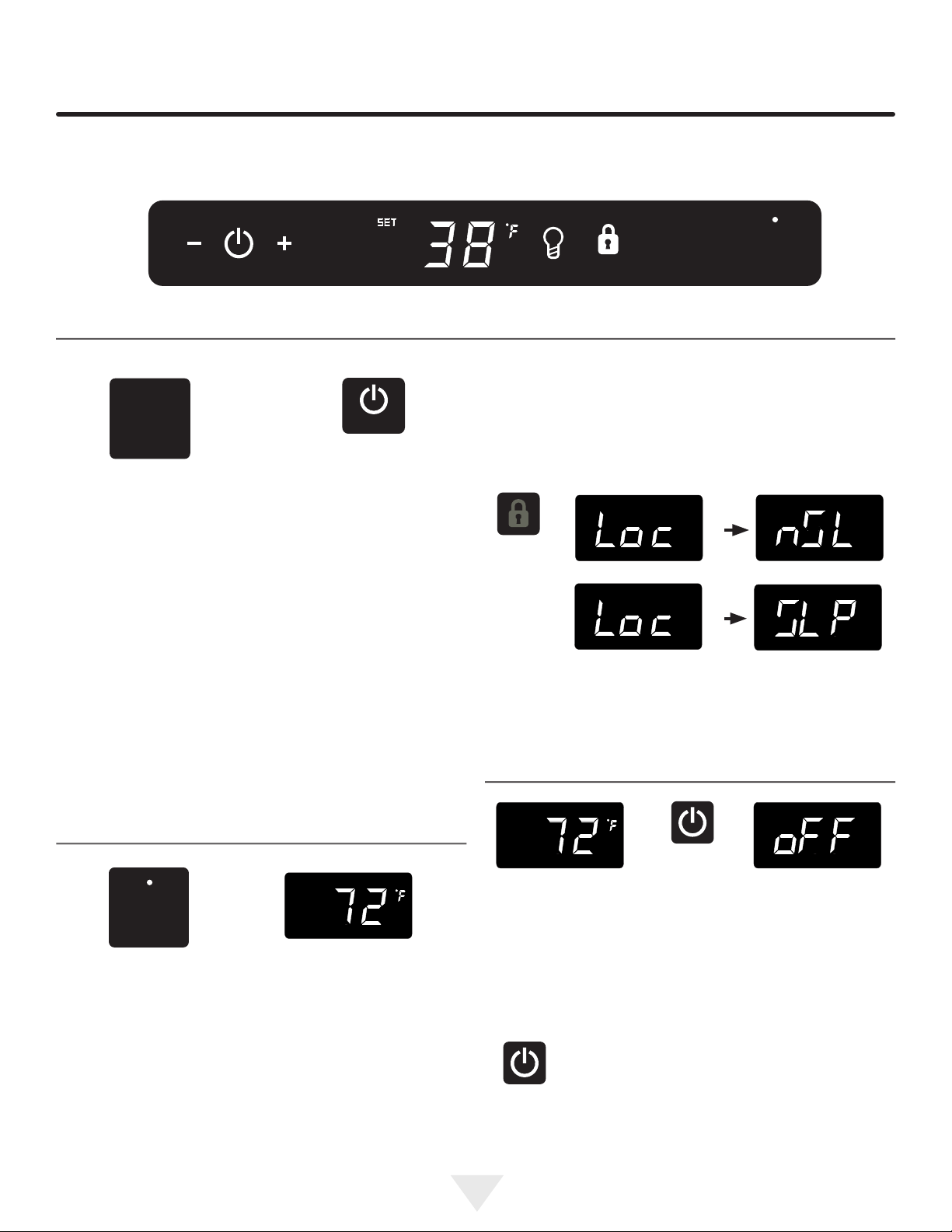

Figure 10 Electronic control
Power Failure
ALARM RESET
Starting your appliance:
Plug the appliance power cord into a 115 volt wall outlet. Your appliance is shipped from the factory in the "On" posi­tion and will begin start-up of cooling as soon as power is
supplied. If the appliance does not start, conrm that the
wall outlet has power, and that the control is in the "On" position, (See "Turning your appliance On and Off" below).
The control display is covered with a clear plastic lm. This lm may be removed by carefully lifting the lm at a corner.
Lights keypad
(glass door
only)
Lock
keypad
System Status
indicators
The sleep mode can be disabled if you prefer to have the display on continuously. Press and hold the "Lock" key­pad until the display goes past "Loc" and reads "nSL". To enable the sleep mode, repeat the instruction, again going past "Loc" until the display reads "SLP".
On initial power up, the control display will indicate a "Power Failure" alarm. This is a normal condition as the ap­pliance was powered-up at the factory for quality inspection and then removed from power. A momentary press of the "On/Off" keypad will reset this alarm condition. (See Alarms section on page 10).

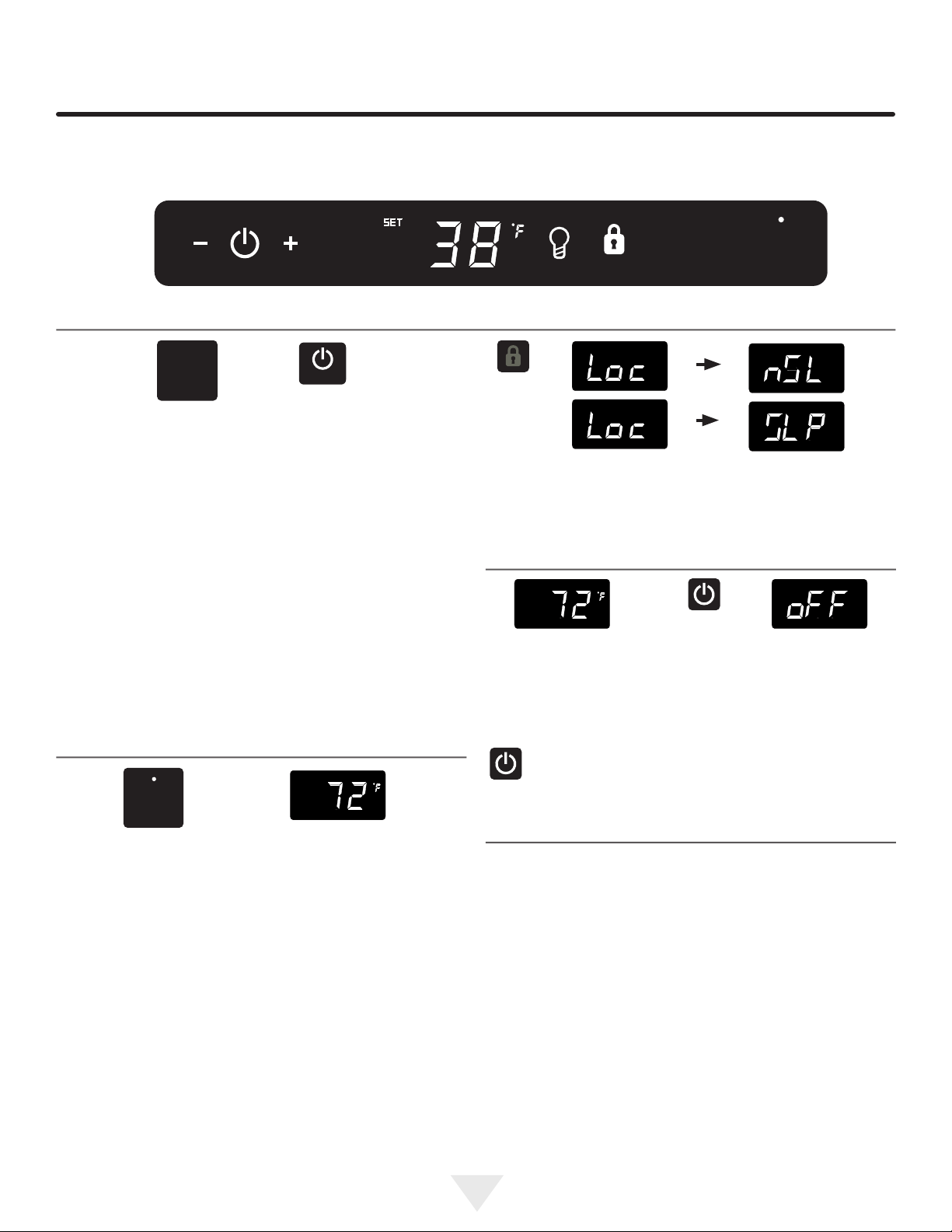

Sleep mode:
If no keypads are pressed for 60 seconds, the display will enter sleep mode to conserve power. The control panel will go dark with the exception of the system status "OK" indi­cator which will remain enabled. Alarm conditions will wake the display, (see alarms on page 10).
To make the following changes to the control settings (turning the appliance ON/OFF, adjusting the tempera­ture, changing the interior lights, and activating vaca­tion mode), the control must be awake.
To wake the display press any keypad. A conrm tone will
sound, and the current storage compartment temperature will be displayed.
Turning your appliance ON and OFF:
If the appliance is "On", (and out of sleep mode) the tem­perature will be shown in the display area of the control. To turn the appliance "Off", press and hold the "On/Off" keypad for 4-seconds. "OFF" will now be displayed on the control.
To turn the appliance "On", press and hold the "On/Off" keypad for 4-seconds.
Interior display lighting : (Glass door models only)
Your appliance is equipped with a dual light level display lighting feature. With the control out of sleep mode press the "Light" keypad once to activate the interior lighting
display feature at full illumination. A conrmation tone will
sound, and the light bulb "Icon" will illuminate. Pressing the "Light" keypad a 2nd time will dim the lighting to 50%. A 3rd press will deactivate the display lighting feature. The display lighting will automatically deactivate after 4-hours.
8
USING YOUR ELECTRONIC CONTROL

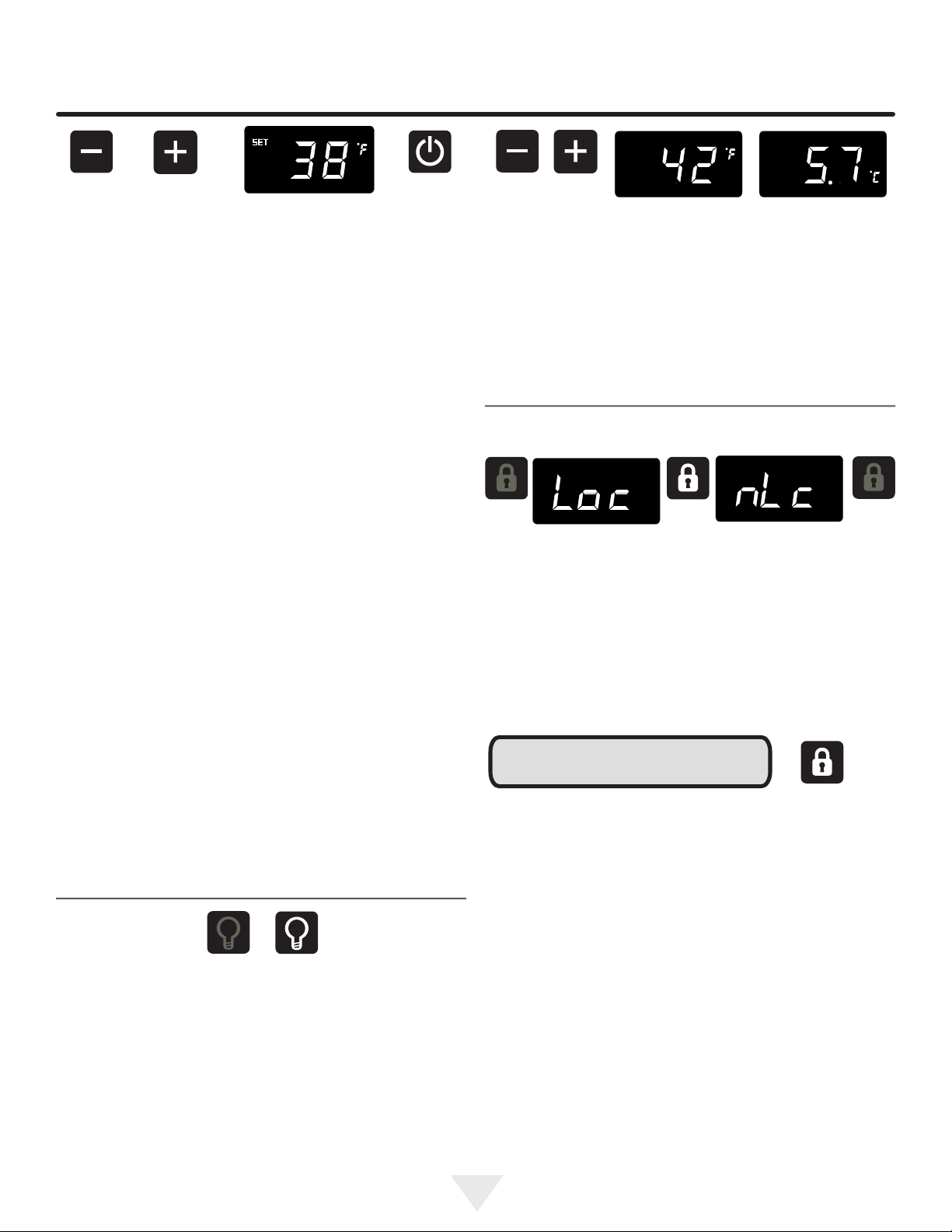

Adjusting the temperature:

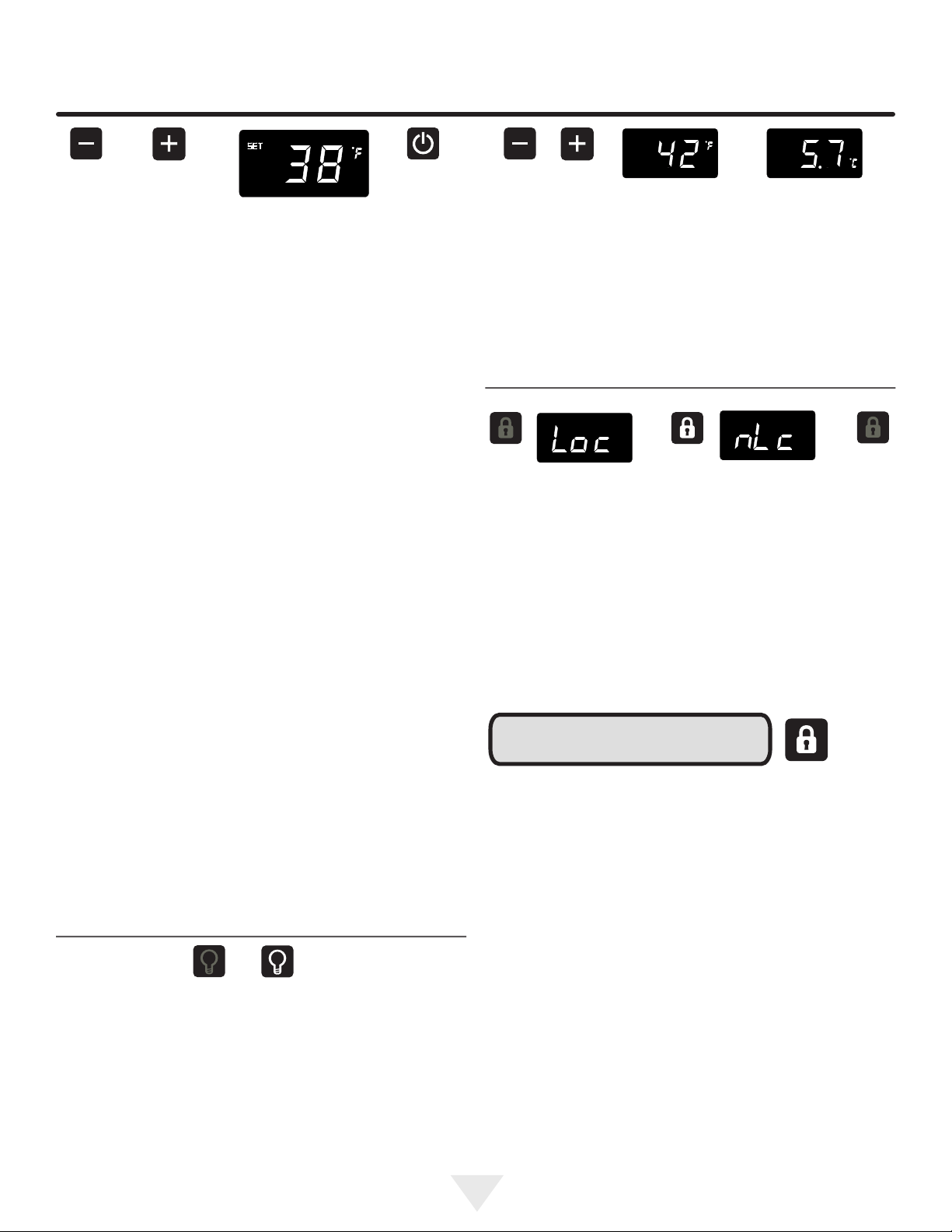

To set or check the set-point temperature (with the control out of sleep mode), press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current
set-point temperature will display and ash. Subsequent
presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" key­pad to accept, or do nothing and the "Set" mode will time­out in 10-seconds accepting the displayed temperature as the new set-point.
The available set-point temperature range for your ap­pliance is 34°F (1.2°C) to 42°F (5.7°C). If you attempt to adjust the temperature outside of this range you will receive
an audible notication.
Temperature mode:
The temperature mode is preset from the factory in Fahren­heit (°F) but you have the option to change it to Centigrade (°C). To change the mode, press and hold the "-" keypad, while pressing the "+" keypad, then release the "-" keypad. The temperature will now be displayed in Centigrade (°C). Repeat the procedure to change the temperature mode back to Fahrenheit (°F).
When initially loading your product with warm contents, it may take up to 48-hours for the storage compartment tem­perature to stabilize.
When making temperature set-point changes, it may take up to 24-hours for the stored contents to stabilize at your new set-point temperature.
Factors that affect the storage compartment stabilized temperature:
Changes to temperature setting.
Room temperature changes.
Temperature of stored contents.
- Loading warm contents.
- Cold content load will delay the change to a warmer set-point temperature.
- Warm content load will delay the change to a colder set-point temperature.
Usage, (number and duration of the door openings).
Use of the storage compartment display lighting, (glass door product only).
Installation of the appliance in direct sunlight or next to a heat source.

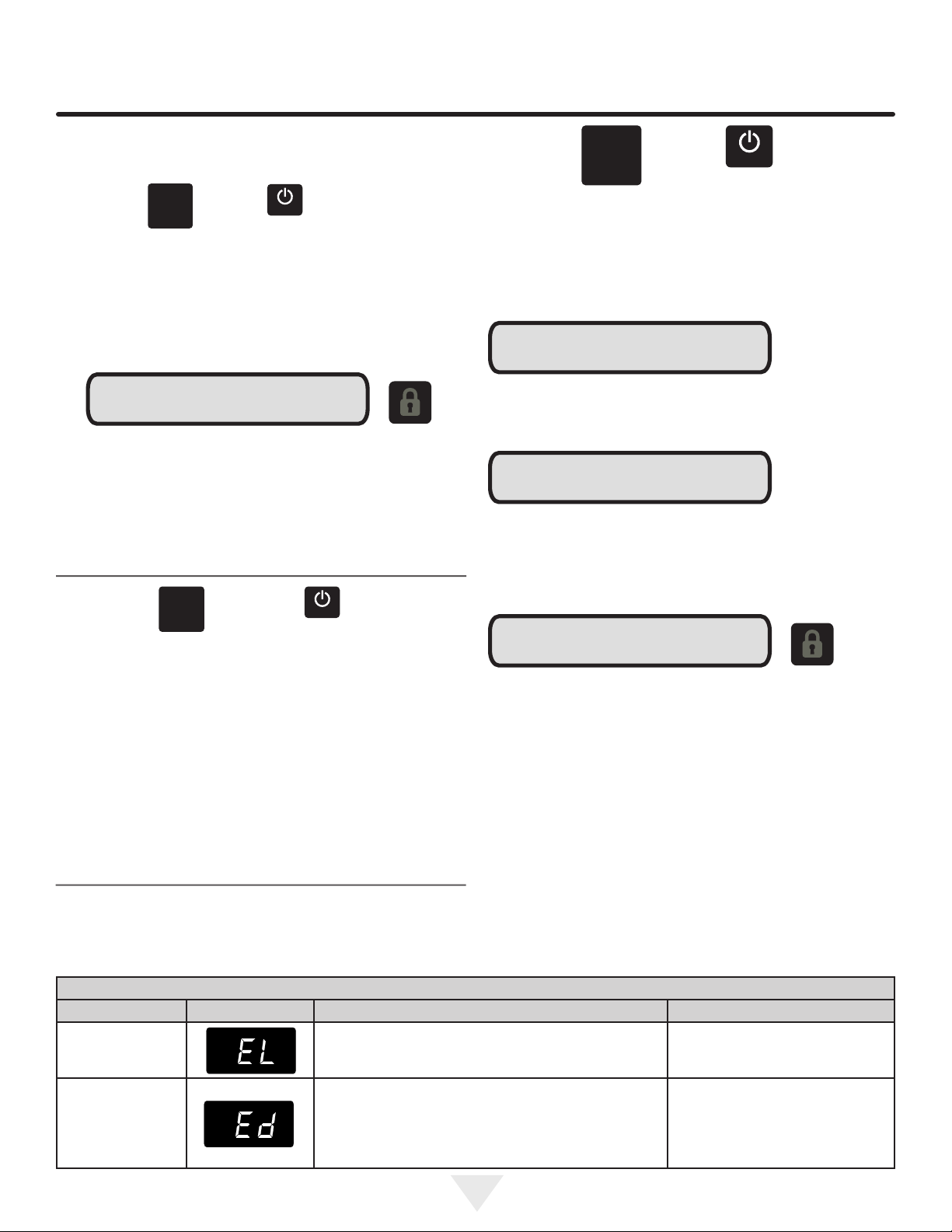

Temperature Sensor Error Codes

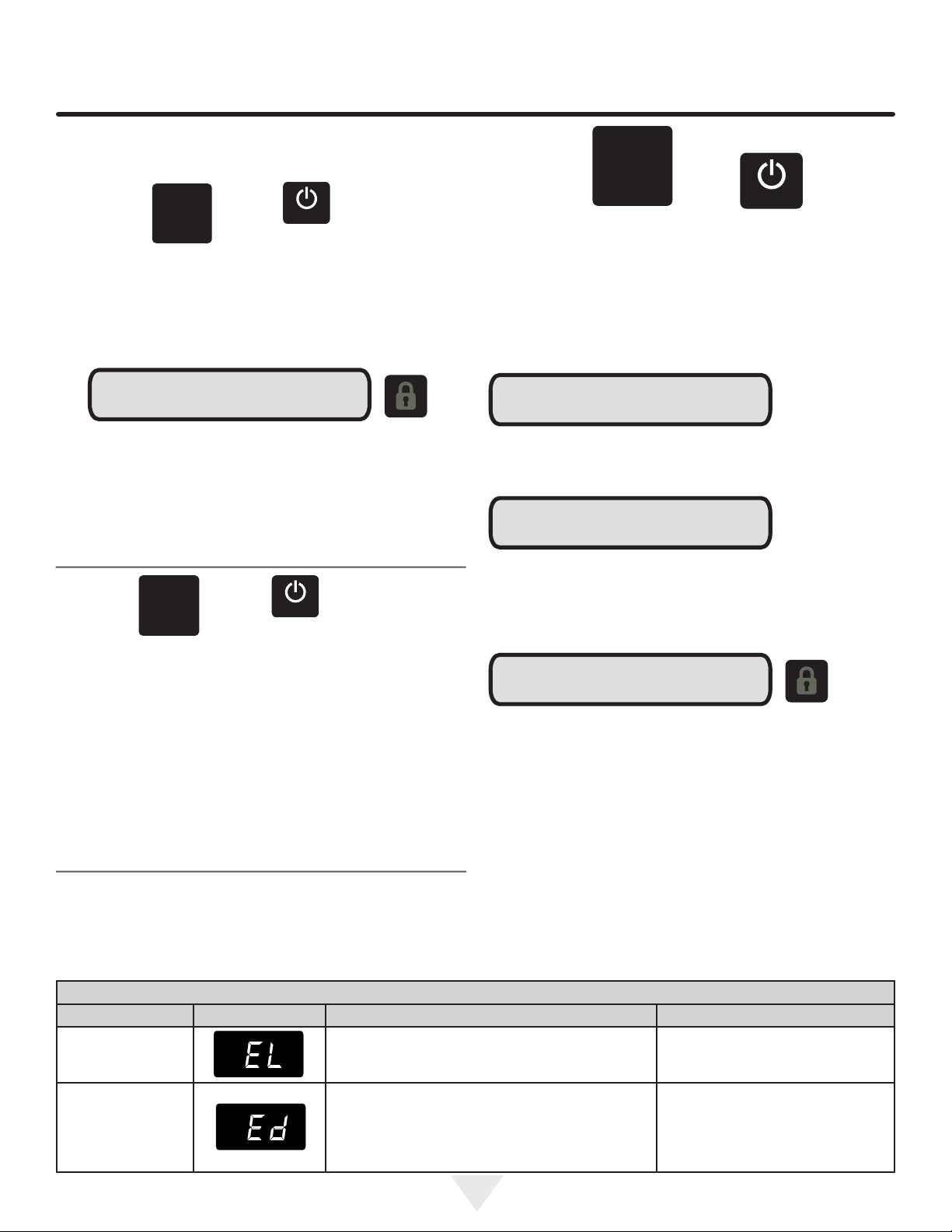

Sensor Displayed Code Error Description Action to Take
Single Zone
Temperature Sensor
Defrost Sensor
Failed temperature sensor in the single
zone compartment. Can lead to unwant-
ed storage temperatures.
Failed defrost temperature sensor.
Causes unit to not defrost properly and
can create large frost build-up. Can lead
to water damage to the unit and sur-
Control lock:
The control panel can be locked to avoid unintentional changes. To lock the control, press and hold the "Lock" key­pad until the display reads "Loc" then immediately release
your nger from the keypad. The lock icon will ash 3-times
and then continuously illuminate. When the control panel is locked, only the Lock keypad, System Status OK indicator , and the Alarm indicator are active. To un-lock the control panel, repeat this instruction until the display reads "nLc",
then immediately release your nger from the keypad.
If the control lock is active (illuminated lock icon) the control will have to be unlocked before using the keypad to reset an alarm condition. See page 9 (Control Lock) for instruc­tions for unlocking the control.
Temperature Sensor Error Codes
The temperature sensors are monitored continuously. Any OPEN or SHORTED circuit condition will initiate an ERROR CODE as listed below:
Call service to have the tem-
perature sensor replaced.
Unplug the power cord imme-
diately and call service to have
the defrost sensor replaced.
rounding oor.
9
USING YOUR ELECTRONIC CONTROL
Alarms:
The control will alert you to conditions that could adversely affect the performance of the appliance.
Door Ajar
ALARM RESET
Door ajar - If the door is open, or not closed prop-
erly, for more than 5-minutes the System Status OK
indicator will turn-off, the "Door Ajar" indicator will ash,
and a tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad.
The audible alarm can be muted, for each occurrence, by pressing the lock keypad.
Temp
ALARM RESET
Temperature alarm - If the storage compart-
ment temperature deviates excessively from your set-point temperature for an extended period of time,
the "TEMP" indicator will ash, and an audible tone
will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "ON/ OFF" keypad.
After a high temperature alarm condition, check all perish­ables to ensure they are safe for consumption.
This alarm condition can be reset by closing the door or momentarily pressing the "On/Off" keypad, (i.e.-if you are cleaning the storage compartment, etc.). The alarm will recur in 5-minutes if the alarm condition persists.
Power Failure
ALARM RESET
Power failure - If power to the appliance is inter-
rupted the System Status indicator will turn-off and
the "Power Failure" indicator will ash. Additionally, an
"ALARM RESET" indicator will be displayed below the "On/Off" keypad. No audible tone will sound. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs, it is recommend­ed that you check the condition of any perishables, even if the appliance is operating normally and the tem­perature has recovered, as prolonged power outages could result in excessive temperature excursions which may spoil perishables.
The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compart­ment. If the temperature alarm continues to occur, your unit may require service.
The audible alarm can be muted, for each occurrence, by pressing the lock keypad.
This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs it is recommended that you check the condition of your stored contents, even though the appliance is operating normally and the temper­ature has recovered, as prolonged temperature excursions could spoil perishables.
Door Ajar
Temp
Multiple alarms are possible, i.e.- "Door Ajar" for a pro­longed period may trigger a "Temp" alarm, in which case both "Door Ajar" and "Temp" indicators will activate.
10
USING YOUR ELECTRONIC CONTROL
SHELVING CONFIGURATIONS

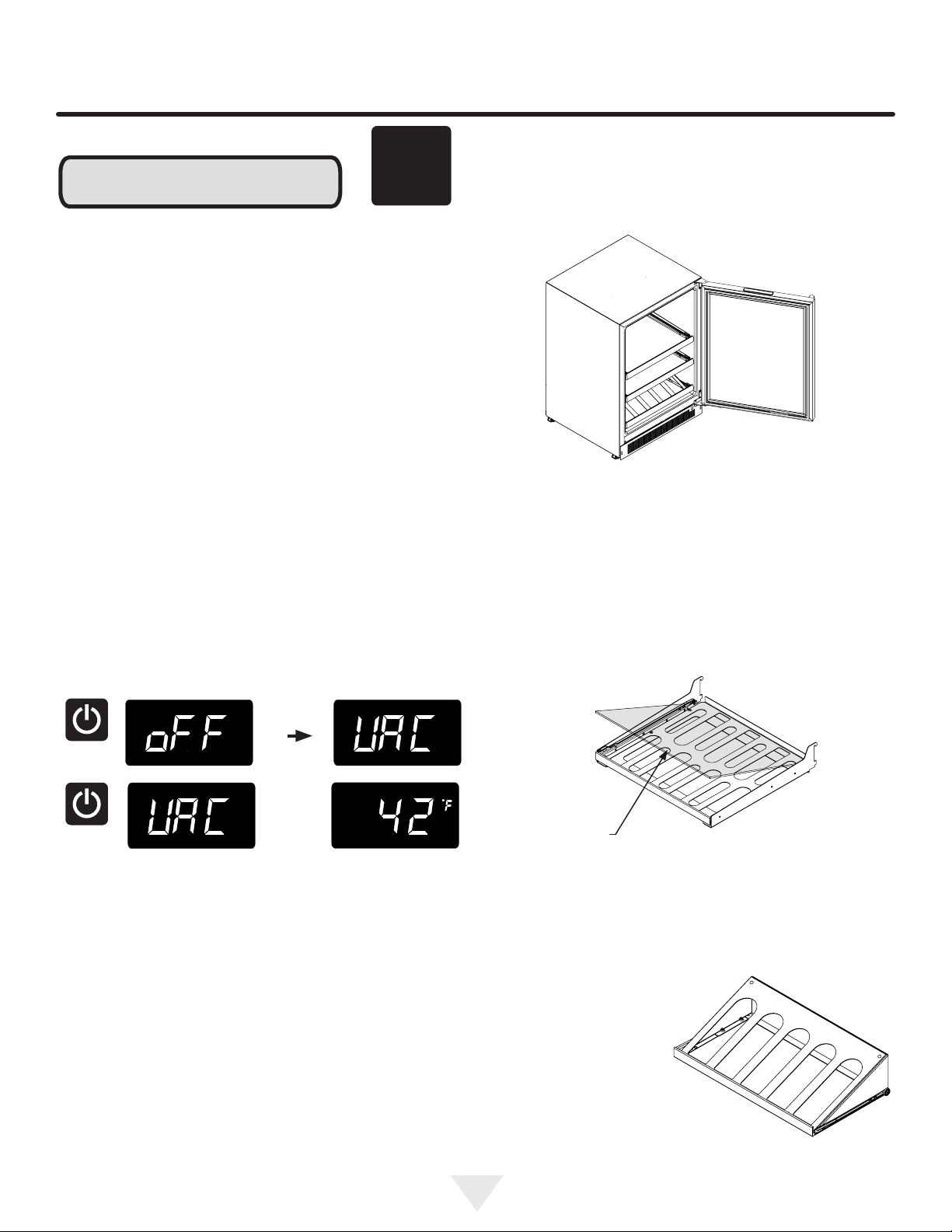

Vacation mode:
This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. Vacation mode also serves as a Sabbath mode, disabling functions and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community. When used as Sabbath mode, you may open or close the door at any time to access contents without concern of directly turning on or off any lights, digital read­outs, solenoids, fans, valves, compressor, icons, tones, or alarms.
When activated, the display, alarm indicators and tones, keypad touch tones, interior lights, and all options are dis­abled. All keypad functions are disabled, with the exception of the "On/Off" keypad which is required to exit Vacation­mode. Storage compartment temperatures are monitored and controlled at the settings prior to entering Vacation mode.
Loading Tips and Suggestions
Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below.
Figure 11
Beverage Center: 24" (61 cm) Wide Models:
Shown with a glass door. Figure 11.
(2) wine cutout and at glass cantilever shelf.
(See Figure 12). (1) Five bottle rollout display rack with vibration dampening mat (See Figure 13).
To enter Vacation Mode (with the control out of sleep mode), press and hold the "On/Off" keypad until the display
goes past "OFF" and reads "VAC". The display will ash
"VAC" 3-times to acknowledge your request, then will display "VAC" continuously until Vacation mode is exited. A power outage will not exit Vacation mode, exiting can only be accomplished manually. To exit Vacation mode and return to normal operation, press and hold the "On/Off" keypad until the control displays the temperature.
Wine shelf underneath glass
Figure 12
Wine cutout and at glass shelf with
vibration dampening mat, the glass can be removed for wine storage.
Figure 13 5 bottle rollout display rack with vibration dampening mat
11
SHELVING CONFIGURATIONS
CARE AND CLEANING
!
CAUTION
Make sure your cantilever shelf is secure on the shelf supports by pressing down on the shelf before loading the shelf.

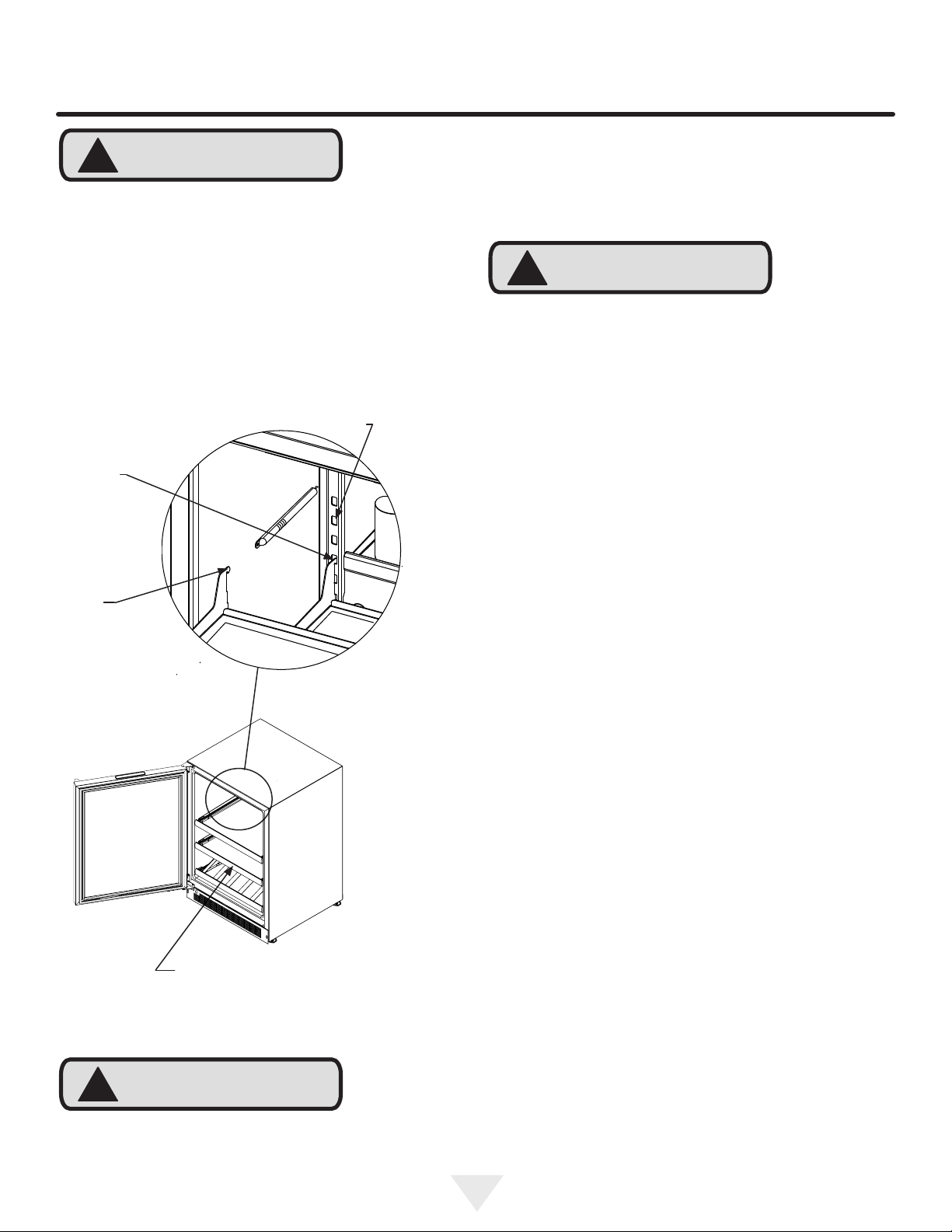

To Add or Remove a Shelf
Remove stored product from the shelf. Do not try to remove a loaded shelf from the appliance. Grasp the shelf front with both hands, rotate the front upward and lift out. (See Figure
14). To install a shelf insert the shelf in the appliance and
insert the top hooks into the shelf support slots and drop the shelf down so the hooks drop over the bottom of the slots.
Installed shelf tang
Shelf support slot
Front Grille
Be sure that nothing obstructs the required air ow open­ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).
!
CAUTION
SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.
Cabinet
The painted cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.
Rear tang (hook) on shelf
Figure 14a
Figure 14
Grasp the shelf by the front with both
hands and rotate the front of the shelf
up, then lift the shelf up and remove the
shelf from the shelf ladders.
Care of Appliance
1. Avoid leaning on the door, you may bend the door hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mop­ping near the front of the appliance. Damage to the grille can occur.
3. Periodically clean the interior of the appliance as needed.
4. Periodically check and/or clean the front grille as needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon as pos­sible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature.
Light assembly replacement
All models use an LED to illuminate the interior of the ap­pliance. This component is very reliable, but should it fail,
contact a qualied service technician for replacement of the
LED.
!
CAUTION
Never try to move a loaded shelf, remove everything from the shelf before moving. Use both hands when moving a shelf.
12
ENERGY SAVING TIPS
OBTAINING SERVICE
The following suggestions will minimize the cost of operating your refrigeration appliance.
1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance be­neath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not shared with other appliances).
5. When initially loading your new product, or whenever large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.
6. Maintaining a relatively full storage compartment will require less appliance run time than an empty compart­ment.
7. Ensure door closing is not obstructed by contents stored in your appliance.
8. Allow hot items to reach room temperature before plac­ing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents.
11. When on vacation or away from home for extended pe-
riods, set the appliance to warmest acceptable tem­ perature for the stored contents.
12. Set the control to the “off” position if cleaning the
appliance requires the door to be open for an extended period of time.
13. For wine storage products:
When serving temperatures are not required, return the compartment(s) set temperature to the ideal red and white wine long term storage tem­ perature of 13°C / 55°F.
If Service is Required:
If the product is within the rst year warranty period please contact your dealer or call AGA MARVEL Cus­tomer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area.
If the product is outside the rst year warranty period, AGA MARVEL Customer Service can provide recom­mendations of service centers in your area. A listing of authorized service centers is also available at www. agamarvel.com under the service and support section.
In all correspondence regarding service, be sure to give the service number, serial number, and proof of purchase.
Try to have information or description of nature of the problem, how long the appliance has been running, the room temperature, and any additional information that may be helpful in quickly solving the problem.
Table "A" is provided for recording pertinent information regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name Dealer’s Address Dealer’s City Dealer’s State Dealer’s Zip Code Appliance Serial Number Appliance Service Number Date Warranty Card Sent (Must
be within 10 days of purchase).
13
Table A
TROUBLESHOOTING
Before You Call for Service
If the appliance appears to be malfunctioning, read through this manual rst. If the problem persists, check the trouble­shooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required
to contact your dealer or a qualied service technician.
!
WARNING
Electrocution Hazard
• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the units wiring.
• Replace all parts and panels before operating.
!
CAUTION
In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call
a qualied service technician immediately. It is possible
that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.
Problem Possible Cause Remedy
Appliance not cold enough
(See “Adjusting the temperature" on page 9)
Appliance too cold
(See “Adjusting the Temperature” on page 9)
No interior light. Failed LED light assembly or light
Light will not go out when door is closed
Noise or Vibration Appliance not level
Appliance will not run. Appliance turned off
Control set too warm
Content temperature not stabi­lized.
Excessive usage or prolonged door openings.
Airow to front grille blocked.
Door gasket not sealing properly.
Control set too cold
Door gasket not sealing properly.
switch.
Display light is turned on. (Glass door models only.
Door not activating light switch.
Failed light switch
Fan hitting tube obstruction.
Power cord not plugged in.
No power at outlet.
Adjust temperature colder. Al­low 24 hours for temperature to stabilize.
Allow temperature to stabilize for at least 24 hours.
Airow must not be obstructed to front grille. See “clearances” on
page 4.
Check door alignment and/or replace door gasket.
Adjust temperature warmer.
Allow 24 hours for temperature to stabilize.
Check door alignment and/or replace door gasket.
Contact a qualied service techni­cian.
Turn off display light, shut door.
Appliance not level, level appli­ance, (See page 4, “leveling legs”)
Contact a qualied service techni­cian.
Level appliance, see “Leveling Legs” on page 4.
Contact a qualied service techni­cian.
Turn appliance on. See “Starting your appliance” on page 8.
Plug in power cord.
Check house circuit.
14
HOUSEHOLD PRODUCT WARRANTY
Entire Product Limited One Year Parts and Labor Warranty
AGA MARVEL warrants that it will supply all necessary parts and labor to repair or replace in the end user’s home
or ofce, any component which proves to be defective
in material or workmanship, subject to the condition and exclusions stated below, for a period of one year from the date of purchase by the end user.
Additional Second Through Fifth Year Limited Parts Only Warranty
During the four years following expiration of the one year limited warranty, AGA MARVEL will supply replacement parts for the hermetically sealed refrigeration system which consists of the compressor, condenser, drier, accumulator, bypass valve, connecting tubing and the evaporator that are proven to be defective due to workmanship or materials subject to the conditions and exclusions below.
The above warranties do not cover:
Shipping costs of replacement parts or returned defec­tive parts.
Customer education or instructions on how to use the appliance.
Any content loss due to product failure.
Removal or installation of product.
Nor do the above warranties cover failure of this product or its components due to:
Transportation or subsequent damages.
Commercial use or use other than normal household or
small ofce.
Improper installation, misuse, abuse, accident or altera­tion, use of wiring not conforming to electrical codes, low or high voltages, failure to provide necessary main­tenance, or other unreasonable use.
Parts or Service Not Supplied or Designated by AGA MARVEL
The above warranties also do not apply if:
The original bill of sale, deliver date, or serial number
cannot be veried.
Defective parts are not returned for inspection if so requested by AGA MARVEL.
The refrigeration equipment is not in the possession of the original end use purchaser.
The warranties set forth herein are the only warranties extended by AGA MARVEL. Any implied warranties, includ­ing the implied warranty of merchantability, are limited to the duration of these express warranties. In no event shall AGA MARVEL be liable for any consequential or incidental damages or expenses resulting from breach of these or any other warranties, whether express or implied.
Some states do not allow the exclusion or limitation of con­sequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specic legal rights
and you may have other rights that may vary from state to state.
No person, rm, or corporation is authorized to make any
other warranty or assume any other obligation for AGA MARVEL. These warranties apply only to products used in
any of the fty states of the United States and the District of
Columbia.
To obtain performance of this warranty, report any defects to:
1260 E. VanDeinse St. Greenville MI 48838
Phone: 800.223.3900
15
Loading...
+ 33 hidden pages
