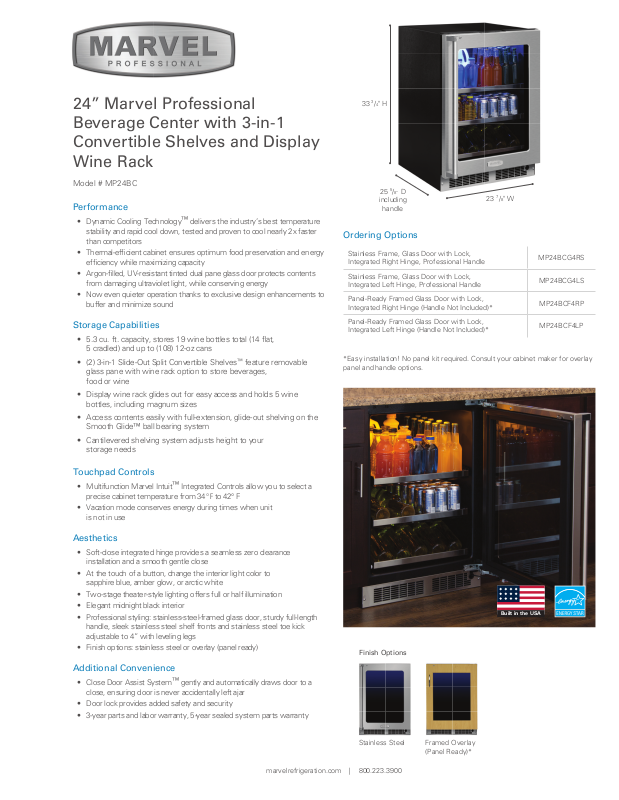

Marvel MP24BCF4LP Specifications
24” Marvel Professional
Beverage Center with 3-in-1
Convertible Shelves and Display
Wine Rack
33 3/4" H
Model # MP24BC
Performance
• Dynamic Cooling Technology™ delivers the industry’s best temperature
stability and rapid cool down, tested and proven to cool nearly 2x faster
than competitors
• Thermal-effi cient cabinet ensures optimum food preservation and energy
effi ciency while maximizing capacity
• Argon-fi lled, UV-resistant tinted dual pane glass door protects contents
from damaging ultraviolet light, while conserving energy
• Now even quieter operation thanks to exclusive design enhancements to
buffer and minimize sound
Storage Capabilities
• 5.3 cu. ft. capacity, stores 19 wine bottles total (14 fl at,
5 cradled) and up to (108) 12-oz cans
• (2) 3-in-1 Slide-Out Split Convertible Shelves
glass pane with wine rack option to store beverages,
food or wine
• Display wine rack glides out for easy access and holds 5 wine
bottles, including magnum sizes
• Access contents easily with full-extension, glide-out shelving on the
Smooth Glide™ ball bearing system
• Cantilevered shelving system adjusts height to your
storage needs
™
feature removable
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from 34° F to 42° F
• Vacation mode conserves energy during times when unit
is not in use
25 5/8” D
including
handle
23 7/8" W
Ordering Options
Stainless Frame, Glass Door with Lock,
Integrated Right Hinge, Professional Handle
Stainless Frame, Glass Door with Lock,
Integrated Left Hinge, Professional Handle
Panel-Ready Framed Glass Door with Lock,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Framed Glass Door with Lock,
Integrated Left Hinge (Handle Not Included)*
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
MP24BCG4RS
MP24BCG4LS
MP24BCF4RP
MP24BCF4LP
Aesthetics
• Soft-close integrated hinge provides a seamless zero clearance
installation and a smooth gentle close
• At the touch of a button, change the interior light color to
sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
• Elegant midnight black interior
• Professional styling: stainless-steel-framed glass door, sturdy full-length
handle, sleek stainless steel shelf fronts and stainless steel toe kick
adjustable to 4” with leveling legs
• Finish options: stainless steel or overlay (panel ready)
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Door lock provides added safety and security
• 3-year parts and labor warranty, 5-year sealed system parts warranty
marvelrefrigeration.com | 800.223.3900
Finish Options
Stainless Steel
Built in the USA
Framed Overlay
(Panel Ready)*
Clearance
Clearance for
cm)
24" (61 cm) wide appliance
Clearance for
"A"
"B"
"C"
"D"
"E"
"I"
"G"
"H"
"I"
"G"
"H"
"F"
"I"
"G"
"H"
Product Dimensions
"H"
"G"
Panel Overlay Dimensions
screw head,
4 places
Top of door
Left Hand Hinged Door
24" (61 cm) wide appliance
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
⁄16"
1
(3 cm)
327⁄32"
(9.8 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
to door
1
4
⁄8"
(10.5 cm)
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
Left Hand Hinged Door
31⁄8"
(7.9 cm)
3
(7.9 cm)
15⁄32"
(2.9 cm)
11
1
⁄16"
(4.3 cm)
1
(3.8 cm)
typical
47⁄8"
(12.4 cm)
1
⁄8"
1
⁄2"
"B"
Clearance
for hinge
at top and
bottom
Hinge side of door
1
⁄4"
(6 mm)
Deep
3
1
⁄4"
(4.4 cm)
1
3
⁄8"
(7.9 cm)
11
30
⁄32"
(77.1 cm)
2"
(5.1 cm)
11
⁄16"
3
(9.4 cm)
"A"
"C"
for hinge
at top and
bottom
Right Hand Hinged Door
24" (61 cm) wide appliance
1
⁄4"
(6 mm)
Deep
13⁄4"
(4.4 cm)
(7.9 cm)
3011⁄32"
(77.1 cm)
(5.1 cm)
(7.9 cm)
31⁄8"
2"
(9.4 cm)
"E"
"F"
"I"
Top of door
Hinge side of door
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
1
31⁄8"
11
3
⁄16"
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
to door
1" (2.5 cm) diameter
⁄16"
1
x
⁄4" (6 mm) deep
4 places
Right Hand Hinged Door
24" (61 cm) wide appliance
"D"
327⁄32"
(9.8 cm)
1
4
⁄8"
(10.5 cm)
screw head,
4 places
7
4
⁄8"
(12.4 cm)
(3.8 cm)
3
(7.9 cm)
15⁄32"
(2.9 cm)
1
⁄2"
1
typical
Rough-In Dimensions
A. Rough-In Width 24”
B. Rough-In Height 34 1/4” to 35 1/25”
C. Rough-In Depth 24”
Product Dimensions
D. Width 23 7/8”
E. Height 34” to 35”
F. Depth 21 1/2”
Solid Door 23 23/32”
G. Depth to Front of Door
Overlay Door
22 7/8”
Without
Handle
H. Depth to Handle 26 7/32” (Stainless Steel)
I. Depth with door at 90˚
Solid Door 46 13/32”
Overlay Door 46 1/2”
Product Features
Interior Cabinet Finish Black
Capacity
Shelving System Cantilever
Shelf Fronts Stainless Steel
Other Storage
Interior Lighting Tri-Color LED
Toe Grill Finish Stainless Steel
Hinge Soft Close Integrated Hinge
Handle
Control Type Intuit
Temperature Range 34° to 42° F
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 160 lbs
Finishes Stainless Steel, Overlay
Vacation Mode Yes
Agency Approvals CSA, ENERGY STAR
1
⁄8"
11
1
⁄16"
(4.3
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
Up to 19 wine bottles
Up to 108 12-oz cans
(2) 3-in-1 Slide-Out Split
Convertible Shelves™,
Display Wine Rack
Professional
(Panel Overlay Does Not
Include Handle)
™
marvelrefrigeration.com | 800.223.3900
