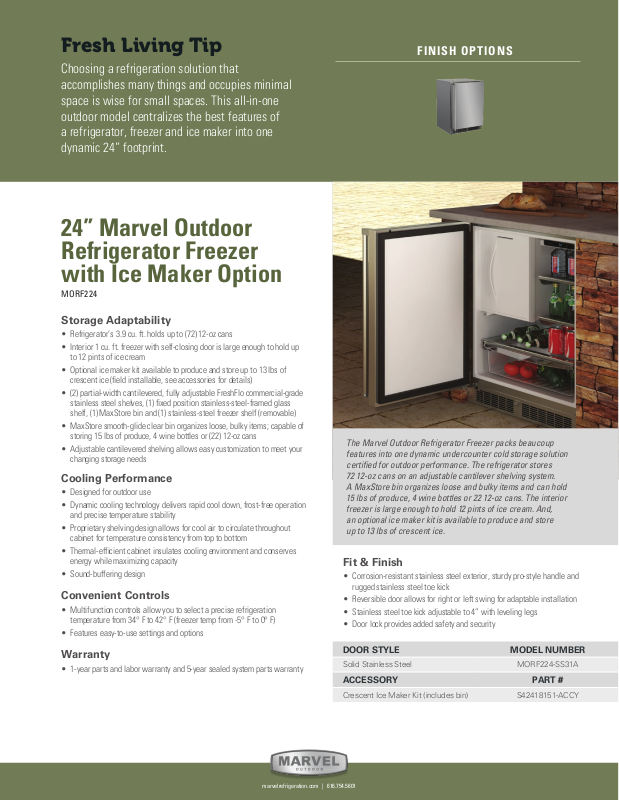

Marvel MORF224SS31A Specification Sheet
Fresh Living Tip
Choosing a refrigeration solution that
accomplishes many things and occupies minimal
space is wise for small spaces. This all-in-one
outdoor model centralizes the best features of
a refrigerator, freezer and ice maker into one
dynamic 24” footprint.
24” Marvel Outdoor
Refrigerator Freezer
with Ice Maker Option
MORF224
Storage Adaptability
• Refrigerator’s 3.9 cu. ft. holds up to (72) 12-oz cans
• Interior 1 cu. ft. freezer with self-closing door is large enough to hold up
to 12 pints of ice cream
• Optional ice maker kit available to produce and store up to 13 lbs of
crescent ice (eld installable, see accessories for details)
• (2) partial-width cantilevered, fully adjustable FreshFlo commercial-grade
stainless steel shelves, (1) xed position stainless-steel-framed glass
shelf, (1) MaxStore bin and (1) stainless-steel freezer shelf (removable)
• MaxStore smooth-glide clear bin organizes loose, bulky items; capable of
storing 15 lbs of produce, 4 wine bottles or (22) 12-oz cans
• Adjustable cantilevered shelving allows easy customization to meet your
changing storage needs
Cooling Performance
signed for outdoor use
• De
• Dynamic cooling technology delivers rapid cool down, frost-free operation
and precise temperature stability
• Proprietary shelving design allows for cool air to circulate throughout
cabinet for temperature consistency from top to bottom
• Thermal-efficient cabinet insulates cooling environment and conserves
energy while maximizing capacity
• Sound-buffering design
Convenient Controls
• Multifunction controls allow y
temperature from 34° F to 42° F (freezer temp from -5° F to 0° F)
• Features easy-to-use settings and options
Warranty
• 1-year parts and labor warranty and 5-year sealed system parts warranty
ou to select a precise refrigeration
FINISH OPTIONS
The Marvel Outdoor Refrigerator Freezer packs beaucoup
features into one dynamic undercounter cold storage solution
certied for outdoor performance. The refrigerator stores
72 12-oz cans on an adjustable cantilever shelving system.
A MaxStore bin organizes loose and bulky items and can hold
15 lbs of produce, 4 wine bottles or 22 12-oz cans. The interior
freezer is large enough to hold 12 pints of ice cream. And,
an optional ice maker kit is available to produce and store
up to 13 lbs of crescent ice.
Fit & Finish
• Corrosion-resistant stainless steel exterior, sturdy pro-style handle and
rugged stainless steel toe kick
• Reversible door allows for right or left swing for adaptable installation
• Stainless steel toe kick adjustable to 4” with leveling legs
• Door lock provides added safety and security
DOOR STYLE MODEL NUMBER
Solid Stainless Steel MORF224-SS31A
ACCESSORY PART #
Crescent Ice Maker Kit (includes bin) S42418151-ACCY
marvelrefrigeration.com | 616.754.5601
nished cabinet design
Precise temp
control
Thermal-efcient
Reversible
door
Arctic white
LED lighting
Corrosion-resistant
stainless steel
exterior
Cantilevered
shelving
H: 33 3/4" W: 23 7/8” D: 26 7/32” (with handle)
Freezer with
optional ice maker
MaxStore bin
Rough In Dimensions
“A” “B” “C”
24” 34-1/4” to 35-1/4” 24”
(61 CM) (87 CM to 89.5 CM) (61 CM)
Capacity
Control Type
Sabbath Mode
Temperature Range
Handle Style
Door Swing
Interior Lighting
Shelving System
Toe Grille Finish
4.9 CU. FT.
Electronic
Yes
Refrigerator: 34° F to 42° F, Freezer: -5° F to 0° F
Professional
Reversible
White LED
Cantilevered
Stainless Steel
Cabinet Dimensions
"D" "E" "F" "G" "H" "J"
23-7/8" 33-5/8" TO 34-5/8" 23-5/8" 26-1/8" 47-3/4" 26-1/2"
(60.7 CM) (85.4 CM TO 87.9 CM) (60 CM) (66.3 CM) (146.6 CM) (67.3 CM)
Lock
Electrical Requirements
Cord Length
Shipping Dimensions
Shipping Weight
Agency Approval
Refrigerant Type
For comprehensive installation instructions, please visit
marvelrefrigeration.com to access the owner’s guide.
marvelrefrigeration.com | 616.754.56 01
Yes
115V / 60 Hz / 15A
6 FT.
28” W x 31” D x 37” H
160 LBS
UL
R600a
