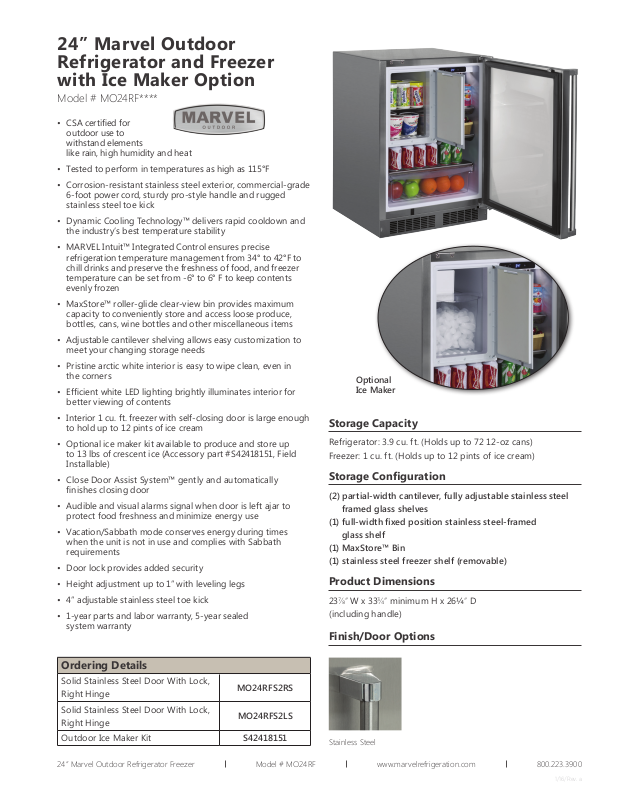

Marvel MO24RFS2RS Specifications
24” Marvel Outdoor
Refrigerator and Freezer
with Ice Maker Option
Model # MO24RF****
• CSA certied for
outdoor use to
withstand elements
like rain, high humidity and heat
• Tested to perform in temperatures as high as 115°F
• Corrosion-resistant stainless steel exterior, commercial-grade
6-foot power cord, sturdy pro-style handle and rugged
stainless steel toe kick
• Dynamic Cooling Technology™ delivers rapid cooldown and
the industry’s best temperature stability
• MARVEL Intuit™ Integrated Control ensures precise
refrigeration temperature management from 34° to 42°F to
chill drinks and preserve the freshness of food, and freezer
temperature can be set from -6° to 6° F to keep contents
evenly frozen
• MaxStore™ roller-glide clear-view bin provides maximum
capacity to conveniently store and access loose produce,
bottles, cans, wine bottles and other miscellaneous items
• Adjustable cantilever shelving allows easy customization to
meet your changing storage needs
• Pristine arctic white interior is easy to wipe clean, even in
the corners
• Efcient white LED lighting brightly illuminates interior for
better viewing of contents
• Interior 1 cu. ft. freezer with self-closing door is large enough
to hold up to 12 pints of ice cream
• Optional ice maker kit available to produce and store up
to 13 lbs of crescent ice (Accessory part #S42418151, Field
Installable)
• Close Door Assist System™ gently and automatically
nishes closing door
• Audible and visual alarms signal when door is left ajar to
protect food freshness and minimize energy use
• Vacation/Sabbath mode conserves energy during times
when the unit is not in use and complies with Sabbath
requirements
• Door lock provides added security
• Height adjustment up to 1” with leveling legs
• 4” adjustable stainless steel toe kick
• 1-year parts and labor warranty, 5-year sealed
system warranty
Optional
Ice Maker
Storage Capacity
Refrigerator: 3.9 cu. ft. (Holds up to 72 12-oz cans)
Freezer: 1 cu. ft. (Holds up to 12 pints of ice cream)
Storage Conguration
(2) partial-width cantilever, fully adjustable stainless steel
framed glass shelves
(1) full-width xed position stainless steel-framed
glass shelf
(1) MaxStore™ Bin
(1) stainless steel freezer shelf (removable)
Product Dimensions
23⅞” W x 33¾” minimum H x 26¼” D
(including handle)
Finish/Door Options
Ordering Details
Solid Stainless Steel Door With Lock,
Right Hinge
Solid Stainless Steel Door With Lock,
Right Hinge
Outdoor Ice Maker Kit S42418151
MO24RFS2RS
MO24RFS2LS
Stainless Steel
www.marvelrefrigeration.com24” Marvel Outdoor Refrigerator Freezer Model # MO24RF 800.223.3900
1/16/Rev. a
"H"
"J"
"B"
"F"
211⁄2"
(54.6 cm)
"H"
"G"
PRODUCT
WEIGHT
105 lbs
(47.7 kg)
140 lbs
(63.6 kg)
"D"
"E"
"H"
"J"
"G"
PRODUCT DIMENSIONS
"A"
Dynamic Cooling Technology
Rapidly cools and delivers the
industry’s best temperature stability
™
"C"
"D" "E" "F" "G" "H" "J"
23 ⅞"
(60.7 cm)
(85.7 to 88.3 cm)
33 ¾" to 34 ¾"
Cabinet Dimensions
23
⁄₃₂"
23
(60.2 cm)
24" Rough-In Dimensions
"A" "B" "C"
24"
(61 cm)
26 7⁄₃₂"
(66.6 cm)
34" to 35"
(86.4 cm to 88.9 cm)
46 13⁄₃₂"
(117.9 cm)
24"
(61 cm)
26 7⁄₁₆"
(67.2 cm)
Energy-
efcient
with precise
temperature
management
Certied for performance to
withstand the elements
Tested to
115° F
Corrosionresistant
stainless steel
exterior, sturdy
pro-style handle
and rugged toe
kicks
Security locks
standard
Width 23 ⅞"
Interior Finish Arctic White
Capacity
Shelving System Cantilever
Shelf Fronts Formed Metal
Other Storage Max Store™ Bin
Interior Lighting White LED Lighting
Refrigerator: 3.9 cu. ft.
Freezer: 1 cu. ft.
Handle Professional
Temperature Range
Lock Yes
Length of
Power Cord
Product Dimensions
without Door
23 ⅞" W x 33 ¾" H x 21 ½" D
Refrigerator: 34° to 42° F
Freezer: -6° to 6° F
6'
www.marvelrefrigeration.com24” Marvel Outdoor Refrigerator Freezer Model # MO24RF 800.223.3900
Depth to Front
of Door
Depth to Handle 26
Depth with door
at 90°
Shipping Weight 160 lbs
Depth with door
at 90°
Shipping Weight 160 lbs
23
46
46 ½”
23
7
/32"
13
/32"
/32"
1/16/Rev. a
