Marvel MO24BNS2RS Specs

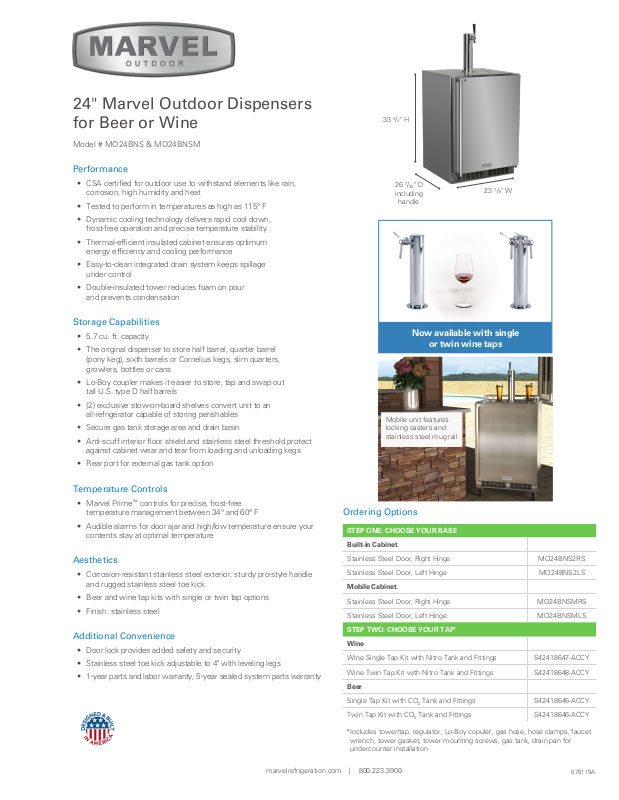

24" Marvel Outdoor Dispensers
for Beer or Wine
Model # MO24BNS & MO24BNSM
Performance
• CSA certied for outdoor use to withstand elements like rain,
corrosion, high humidity and heat
• Tested to perform in temperatures as high as 115° F
• Dynamic cooling technology delivers rapid cool down,
frost-free operation and precise temperature stability
• Thermal-efcient insulated cabinet ensures optimum
energy efciency and cooling performance
• Easy-to-clean integrated drain system keeps spillage
under control
• Double-insulated tower reduces foam on pour
and prevents condensation
Storage Capabilities
• 5.7 cu. ft. capacity
• The original dispenser to store half barrel, quarter barrel
(pony keg), sixth barrels or Cornelius kegs, slim quarters,
growlers, bottles or cans
• Lo-Boy coupler makes it easier to store, tap and swap out
tall U.S. type D half barrels
• (2) exclusive stow-on-board shelves convert unit to an
all-refrigerator capable of storing perishables
• Secure gas tank storage area and drain basin
• Anti-scuff interior oor shield and stainless steel threshold protect
against cabinet wear and tear from loading and unloading kegs
• Rear port for external gas tank option
33 3/4" H
26 7/32" D
including
handle
Now available with single
or twin wine taps
Mobile unit features
locking casters and
stainless steel mug rail
23 7/8" W
Temperature Controls
• Marvel Prime™ controls for precise, frost-free
temperature management between 34° and 60° F
• Audible alarms for door ajar and high/low temperature ensure your
contents stay at optimal temperature
Aesthetics
• Corrosion-resistant stainless steel exterior, sturdy pro-style handle
and rugged stainless steel toe kick
• Beer and wine tap kits with single or twin tap options
• Finish: stainless steel
Additional Convenience
• Door lock provides added safety and security
• Stainless steel toe kick adjustable to 4" with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
marvelrefrigeration.com | 800.223.3900
Ordering Options
STEP ONE: CHOOSE YOUR BASE
Built-in Cabinet
Stainless Steel Door, Right Hinge MO24BNS2RS
Stainless Steel Door, Left Hinge MO24BNS2LS
Mobile Cabinet
Stainless Steel Door, Right Hinge MO24BNSMRS
Stainless Steel Door, Left Hinge MO24BNSMLS
STEP TWO: CHOOSE YOUR TAP
Wine
Wine Single Tap Kit with Nitro Tank and Fittings S42418647-ACCY
Wine Twin Tap Kit with Nitro Tank and Fittings S42418648-ACCY
Beer
Single Tap Kit with CO2 Tank and Fittings S42418645-ACCY
Twin Tap Kit with CO2 Tank and Fittings S42418646-ACCY
* Includes tower/tap, regulator, Lo-Boy copuler, gas hose, hose clamps, faucet
wrench, tower gasket, tower mounting screws, gas tank, drain pan for
undercounter installation
*
070119A
"A"
"B"
"C"
"D"
"E"
"I"
"G"
"H"
"I"
"G"
"H"
"F"
"I"
"G"
"H"
Product Dimensions
Rough-In Dimensions
A. Rough-In Width 24"
B. Rough-In Height 34" to 35"
C. Rough-In Depth 24"
(31.1 cm)
(93.5 cm)
121⁄4"
3613⁄16"
"H"
"G"
1115⁄16"
(30.3 cm)
"A"
Product Dimensions
"B"
"E"
"C"
"F"
"I"
"D"
11"
(27.9 cm)
D. Width 23 7/8"
E. Height
F. Depth 21 1/2"
G. Depth to Front of Door 23 23/32"
H. Depth to Handle 26 1/4"
I. Depth with door at 90˚ 46 13/32"
33 3/4" to 34 3/4" (Built In)
36 13/16" (Mobile)
Product Features
Interior Cabinet Finish White
5.7 cu. ft.
Capacity
Shelving System Stow-on-Board
Shelf Fronts Stainless Steel
Other Storage
Interior Lighting NA
Toe Grill Finish Stainless Steel
Hinge Classic Hinge
Handle Professional
Control Type Prime™
Temperature Range 34° to 60° F
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 160 lbs
Finishes Stainless Steel
Vacation Mode No
Agency Approvals NA
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
Stores half barrel, quarter
barrel (pony keg), sixth barrels/
Cornelius kegs, slim quarters,
growlers, bottles or cans
Drain pan, CO2 tank, hoses, regulator,
oor shield
237⁄8"
(60.7 cm)
61⁄4"
(15.9 cm)
2323⁄32"
(60.2 cm)
261⁄4"
(66.7 cm)
marvelrefrigeration.com | 800.223.3900
070119A
