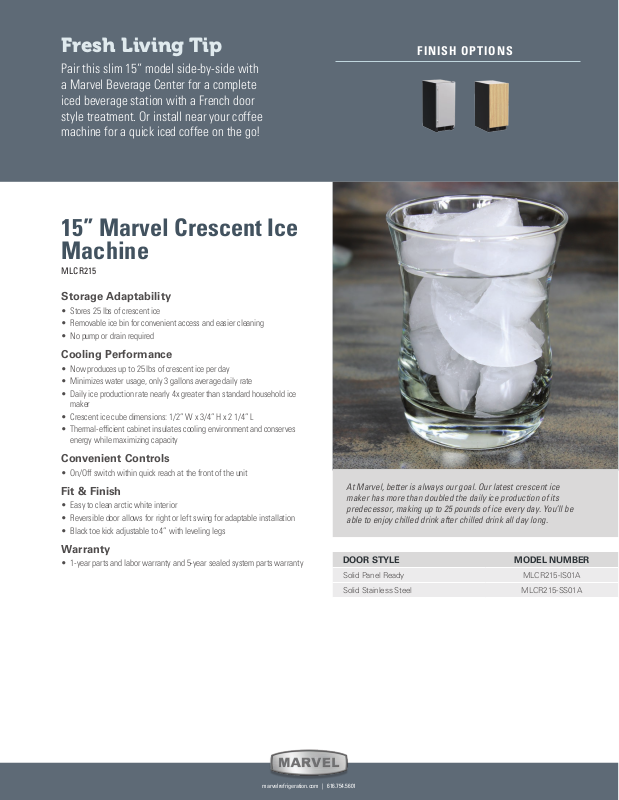

Marvel MLCR215-IS01A, MLCR215-SS01A Specification Sheet
Fresh Living Tip
Pair this slim 15” model side-by-side with
a Marvel Beverage Center for a complete
iced beverage station with a French door
style treatment. Or install near your coffee
machine for a quick iced coffee on the go!
15” Marvel Crescent Ice
Machine
MLCR215
Storage Adaptability
• Stores 25 lbs of crescent ice
• Removable ice bin for convenient access and easier cleaning
• No pump or drain required
FINISH OPTIONS
Cooling Performance
• Now produces up to 25 lbs of crescent ice per day
• Minimizes water usage, only 3 gallons average daily rate
• Daily ice production rate nearly 4x greater than standard household ice
maker
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 2 1/4” L
• Thermal-efcient cabinet insulates cooling environment and conserves
energy while maximizing capacity
Convenient Controls
• On/Off switch within quick reach at the front of the unit
Fit & Finish
• Easy to clean arctic white interior
• Reversible door allows for right or left swing for adaptable installation
• Black toe kick adjustable to 4” with leveling legs
Warranty
• 1-year parts and labor warranty and 5-year sealed system parts warranty
At Marvel, better is always our goal. Our latest crescent ice
maker has more than doubled the daily ice production of its
predecessor, making up to 25 pounds of ice every day. You’ll be
able to enjoy chilled drink after chilled drink all day long.
DOOR STYLE MODEL NUMBER
Solid Panel Ready MLCR215-IS01A
Solid Stainless Steel MLCR215-SS01A
marvelrefrigeration.com | 616.754.5601
Produces and stores
25 lbs crescent ice
Thermal-efcient
cabinet
No drain or pump
required
H: 33 3/4“ W: 14 7/8” D: 26 7/32” (with handle)
Reversible
door
Easy access
on/off switch
Removable ice bin
Line art not to scale.
Intended for general reference only.
Rough In Dimensions*
“A” “B” “C”
15" 34-1/4" TO 35-1/4" 24"
(38.1 CM) (87 CM TO 89.5 CM) (61 CM)
*Stainless steel model dimensions only. For panel-ready models, see the owner’s guide online at marvelrefrigeration.com.
Capacity
Control Type
Sabbath Mode
Temperature Range
Handle Style
Hinge Type
Interior Lighting
Shelving System
Toe Grille Finish
25 lbs
On/Off Switch
No
N/A
Slim (handle not included on panel-ready models)
Reversible
N/A
N/A
Black
Cabinet Dimensions*
"D" "E" "F" "G" "H" "J"
14-7/8" 33-5/8" TO 34-5/8" 23-5/8"* 25-3/8"* 38-3/4"* 17-1/2"*
(37.8 CM) (85.4 CM TO 87.9 CM) (60 CM) (64.4 CM) (98.4 CM) (44.4 CM)
Lock
Electrical Requirements
Cord Length
Shipping Dimensions
Shipping Weight
Agency Approval
Refrigerant Type
For comprehensive installation instructions, including panel overlay
details, please visit marvelrefrigeration.com to access the owner’s guide.
No
115V / 60 Hz / 15A
6 FT.
18” W x 29” D x 36” H
93 LBS
UL
R600a
marvelrefrigeration.com | 616.754.56 01
