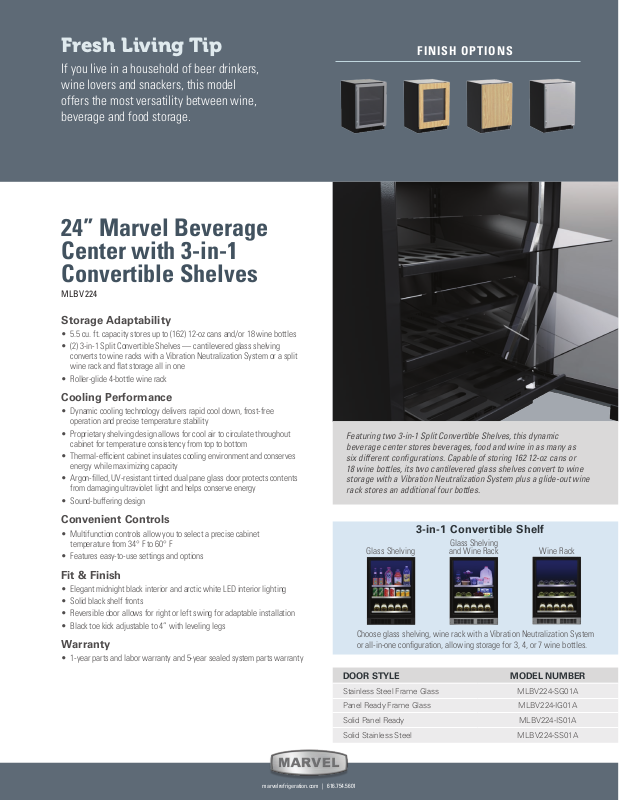

Marvel MLBV224-SG01A, MLBV224-IG01A, MLBV224-IS01A, MLBV224-SS01A Specification Sheet
Fresh Living Tip
If you live in a household of beer drinkers,
wine lovers and snackers, this model
offers the most versatility between wine,
beverage and food storage.
24” Marvel Beverage
Center with 3-in-1
Convertible Shelves
MLBV224
Storage Adaptability
• 5.5 cu. ft. capacity stores up to (162) 12-oz cans and/or 18 wine bottles
• (2) 3-in-1 Split Convertible Shelves — cantilevered glass shelving
converts to wine racks with a Vibration Neutralization System or a split
wine rack and at storage all in one
• Roller-glide 4-bottle wine rack
FINISH OPTIONS
Cooling Performance
• Dynamic cooling technology delivers rapid cool down, frost-free
operation and precise temperature stability
• Proprietary shelving design allows for cool air to circulate throughout
cabinet for temperature consistency from top to bottom
• Thermal-efcient cabinet insulates cooling environment and conserves
energy while maximizing capacity
• Argon-lled, UV-resistant tinted dual pane glass door protects contents
from damaging ultraviolet light and helps conserve energy
• Sound-buffering design
Convenient Controls
• Multifunction controls allow you to select a precise cabinet
temperature from 34° F to 60° F
• Features easy-to-use settings and options
Fit & Finish
• Elegant midnight black interior and arctic white LED interior lighting
• Solid black shelf fronts
• Reversible door allows for right or left swing for adaptable installation
• Black toe kick adjustable to 4” with leveling legs
Warranty
• 1-year parts and labor warranty and 5-year sealed system parts warranty
Featuring two 3-in-1 Split Convertible Shelves, this dynamic
beverage center stores beverages, food and wine in as many as
six different congurations. Capable of storing 162 12-oz cans or
18 wine bottles, its two cantilevered glass shelves convert to wine
storage with a Vibration Neutralization System plus a glide-out wine
rack stores an additional four bottles.
3-in-1 Convertible Shelf
Glass Shelving
and Wine Rack
Choose glass shelving, wine rack with a Vibration Neutralization System
or all-in-one conguration, allowing storage for 3, 4, or 7 wine bottles.
DOOR STYLE MODEL NUMBER
Stainless Steel Frame Glass
Panel Ready Frame Glass
Solid Panel Ready
Solid Stainless Steel
Wine RackGlass Shelving
LBV224-SG01A
M
LBV224-IG01A
M
LBV224-IS01A
M
LBV224-SS01A
M
marvelrefrigeration.com | 616.754.5601
Arctic
white lighting
Reversible door
Precise temp control
(2) Glide-out 3-in-1
Convertible Shelves
Thermal-efcient
nished cabinet design
H: 33 3/4" W: 23 7/8” D: 26 7/32” (with handle)
Adjustable
cantilever
shelving system
Glide-out
wine rack
Rough In Dimensions*
“A” “B” “C”
24” 34-1/4” to 35-1/4” 24”
(61 CM) (87 CM to 89.5 CM) (61 CM)
*Stainless steel model dimensions only. For panel-ready models, see the owner’s guide online at marvelrefrigeration.com.
Capacity
Control Type
Sabbath Mode
Temperature Range
Handle Style
Hinge Type
Interior Lighting
Shelving System
Toe Grille Finish
5.5 CU. FT.
Electronic
Yes
34°F to 60°F
Slim (handle not included on panel-ready models)
Reversible
White LED
Cantilevered
Black
Cabinet Dimensions*
"D" "E" "F" "G" "H" "J"
23-7/8" 33-5/8" TO 34-5/8" 23-5/8"* 26-1/8"* 47-3/4"* 26-1/2"*
(60.7 CM) (85.4 CM TO 87.9 CM) (60 CM) (66.3 CM) (146.6 CM) (67.3 CM)
Lock
Electrical Requirements
Cord Length
Shipping Dimensions
Shipping Weight
Agency Approval
Refrigerant Type
For comprehensive installation instructions, including panel overlay
details, please visit marvelrefrigeration.com to access the owner’s guide.
marvelrefrigeration.com | 616.754.56 01
No
115V / 60 Hz / 15A
6 FT.
28” W x 31” D x 37” H
160 LBS
UL
R600a
