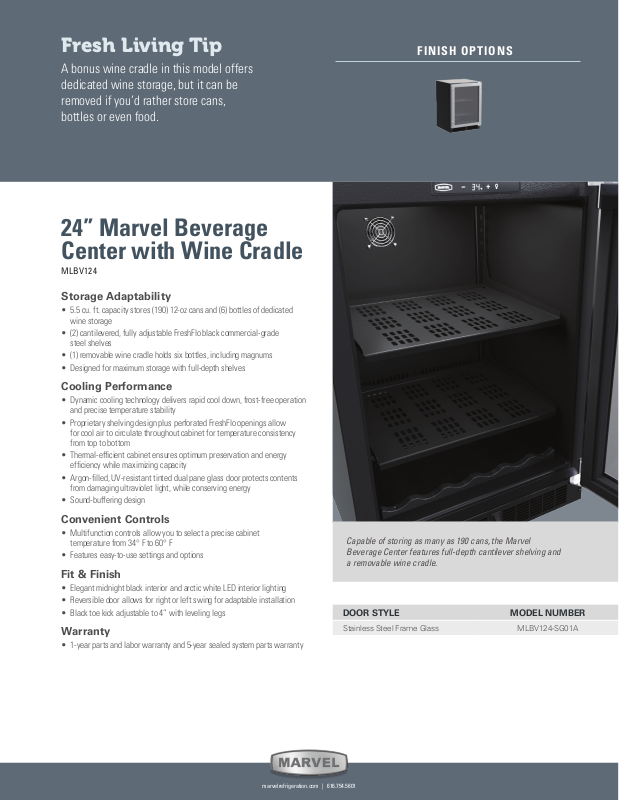

Marvel MLBV124SG01A Specification Sheet

Fresh Living Tip

A bonus wine cradle in this model offers dedicated wine storage, but it can be removed if you’d rather store cans, bottles or even food.

24” Marvel Beverage Center with Wine Cradle

MLBV124

Storage Adaptability

• 5.5 cu. ft. capacity stores (190) 12-oz cans and (6) bottles of dedicated wine storage

• (2) cantilevered, fully adjustable FreshFlo black commercial-grade steel shelves

• (1) removable wine cradle holds six bottles, including magnums

• Designed for maximum storage with full-depth shelves

FINISH OPTIONS

Cooling Performance

• Dynamic cooling technology delivers rapid cool down, frost-free operation and precise temperature stability

• Proprietary shelving design plus perforated FreshFlo openings allow for cool air to circulate throughout cabinet for temperature consistency from top to bottom

• Thermal-efcient cabinet ensures optimum preservation and energy

efciency while maximizing capacity

• Argon-lled, UV-resistant tinted dual pane glass door protects contents from damaging ultraviolet light, while conserving energy

• Sound-buffering design

Convenient Controls

• Multifunction controls allow you to select a precise cabinet temperature from 34° F to 60° F

• Features easy-to-use settings and options

Fit & Finish

• Elegant midnight black interior and arctic white LED interior lighting

• Reversible door allows for right or left swing for adaptable installation

• Black toe kick adjustable to 4” with leveling legs

Warranty

• 1-year parts and labor warranty and 5-year sealed system parts warranty

Capable of storing as many as 190 cans, the Marvel Beverage Center features full-depth cantilever shelving and a removable wine cradle.

DOOR STYLE MODEL NUMBER

Stainless Steel Frame Glass

LBV124-SG01A

marvelrefrigeration.com | 616.754.5601

Precise temp control

FreshFlo shelving design

Arctic white

lighting

Reversible door

Adjustable

cantilever

shelving system

Thermal-efcient nished cabinet design

H: 33 3/4" W: 23 7/8” D: 26 7/32” (with handle)

Removable

wine cradle

Rough In Dimensions

“A” “B” “C”

24” 34-1/4” to 35-1/4” 24”

(61 CM) (87 CM to 89.5 CM) (61 CM)

Capacity Control Type Sabbath Mode Temperature Range Handle Style Hinge Type Interior Lighting Shelving System Toe Grille Finish

5.5 CU. FT.

Electronic

Yes

34°F to 60°F

Slim

Reversible

White LED

Cantilevered

Black

Cabinet Dimensions

"D" "E" "F" "G" "H" "J"

23-7/8" 33-5/8" TO 34-5/8" 23-5/8"* 26-1/8"* 47-3/4"* 26-1/2"*

(60.7 CM) (85.4 CM TO 87.9 CM) (60 CM) (66.3 CM) (146.6 CM) (67.3 CM)

Lock Electrical Requirements Cord Length Shipping Dimensions Shipping Weight Agency Approval Refrigerant Type

For comprehensive installation instructions, please visit marvelrefrigeration.com to access the owner’s guide.

marvelrefrigeration.com | 616.754.56 01

115V / 60 Hz / 15A

6 FT.

28” W x 31” D x 37” H

160 LBS

R600a
