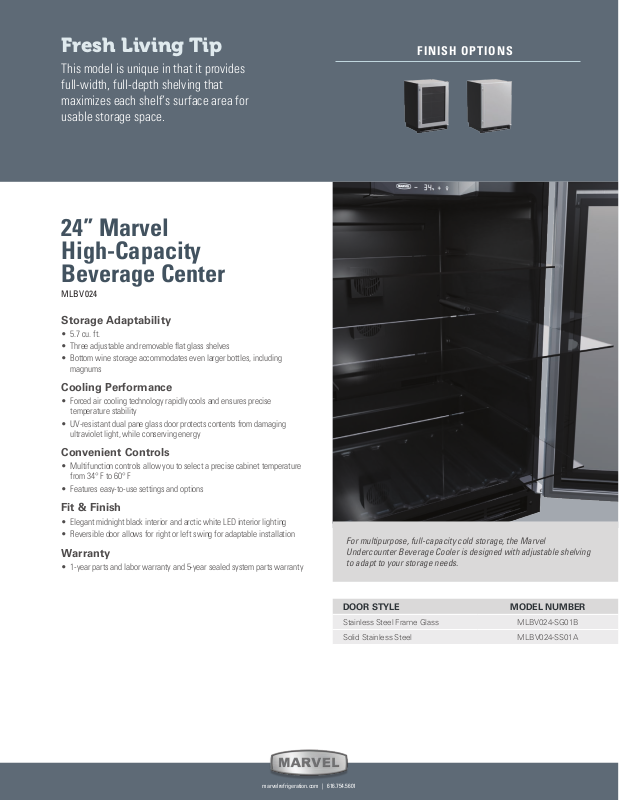

Marvel MLBV024 PRODUCT SPECIFICATIONS

Fresh Living Tip

This model is unique in that it provides
full-width, full-depth shelving that

maximizes each shelf’s surface area for

usable storage space.

24” Marvel
High-Capacity
Beverage Center

MLBV024

Storage Adaptability

• 5.7 cu. ft.

• Three adjustable and removable at glass shelves

• Bottom wine storage accommodates even larger bottles, including

magnums

FINISH OPTIONS

Cooling Performance

• Forced air cooling technology rapidly cools and ensures precise
temperature stability

• UV-resistant dual pane glass door protects contents from damaging
ultraviolet light, while conserving energy

Convenient Controls

• Multifunction controls allow you to select a precise cabinet temperature
from 34° F to 60° F

• Features easy-to-use settings and options

Fit & Finish

• Elegant midnight black interior and arctic white LED interior lighting

• Reversible door allows for right or left swing for adaptable installation

Warranty

• 1-year parts and labor warranty and 5-year sealed system parts warranty

For multipurpose, full-capacity cold storage, the Marvel
Undercounter Beverage Cooler is designed with adjustable shelving
to adapt to your storage needs.

DOOR STYLE MODEL NUMBER

Stainless Steel Frame Glass MLBV024-SG01B

Solid Stainless Steel MLBV024-SS01A

marvelrefrigeration.com | 616.754.5601

Reversible door

Precise temp
control

Adjustable full-width
shelving system

H: 33 3/4" W: 23 7/8” D: 26 7/32” (with handle)

Arctic

white lighting

Bottom

wine storage

Rough In Dimensions

“A” “B” “C”

24” 34-1/4” to 35-1/4” 24”

(61 CM) (87 CM to 89.5 CM) (61 CM)

Capacity
Control Type
Sabbath Mode
Temperature Range
Handle Style
Hinge Type
Interior Lighting
Shelving System
Toe Grille Finish

5.7 CU. FT.

Electronic

Yes

34°F to 60°F

Slim

Reversible

White LED

Cantilevered

Black

Cabinet Dimensions

"D" "E" "F" "G" "H" "J"

23-7/8" 33-5/8" TO 34-5/8" 23-5/8"* 26-1/8"* 47-3/4"* 26-1/2"*

(60.7 CM) (85.4 CM TO 87.9 CM) (60 CM) (66.3 CM) (146.6 CM) (67.3 CM)

Lock
Electrical Requirements
Cord Length
Shipping Dimensions
Shipping Weight
Agency Approval
Refrigerant Type

For comprehensive installation instructions, please visit
marvelrefrigeration.com to access the owner’s guide.

marvelrefrigeration.com | 616.754.56 01

No

115V / 60 Hz / 15A

6 FT.

28” W x 31” D x 37” H

123 LBS

UL

R600a
