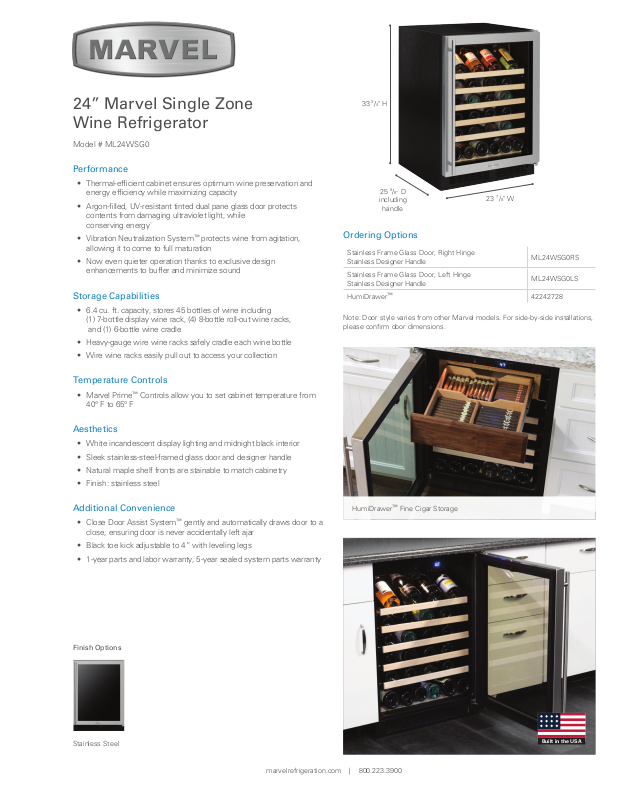

Marvel ML24WSG0LS Specifications
24” Marvel Single Zone
Wine Refrigerator
Model # ML24WSG0
Performance
• Thermal-efcient cabinet ensures optimum wine preservation and
energy efciency while maximizing capacity
• Argon-lled, UV-resistant tinted dual pane glass door protects
contents from damaging ultraviolet light, while
conserving energy`
• Vibration Neutralization System
allowing it to come to full maturation
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
Storage Capabilities
• 6.4 cu. ft. capacity, stores 45 bottles of wine including
(1) 7-bottle display wine rack, (4) 8-bottle roll-out wine racks,
and (1) 6-bottle wine cradle
• Heavy-gauge wire wine racks safely cradle each wine bottle
• Wire wine racks easily pull out to access your collection
Temperature Controls
• Marvel Prime™ Controls allow you to set cabinet temperature from
40° F to 65° F
™
protects wine from agitation,
33 3/4" H
25 5/8” D
including
handle
23 7/8" W
Ordering Options
Stainless Frame Glass Door, Right Hinge
Stainless Designer Handle
Stainless Frame Glass Door, Left Hinge
Stainless Designer Handle
HumiDrawer
Note: Door style varies from other Marvel models. For side-by-side installations,
please conrm door dimensions.
™
ML24WSG0RS
ML24WSG0LS
42242728
Aesthetics
• White incandescent display lighting and midnight black interior
• Sleek stainless-steel-framed glass door and designer handle
• Natural maple shelf fronts are stainable to match cabinetry
• Finish: stainless steel
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Black toe kick adjustable to 4” with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Finish Options
HumiDrawer™ Fine Cigar Storage
Stainless Steel
Built in the USA
marvelrefrigeration.com | 800.223.3900
"I"
"G"
"H"
Product Dimensions
"G"
"H"
"B"
"A"
"C"
Rough-In Dimensions
A. Rough-In Width 24”
B. Rough-In Height 34” to 35”
C. Rough-In Depth 24”
Product Dimensions
D. Width 23 7/8”
E. Height 33 3/4” to 34 3/4”
F. Depth 22”
"E"
G. Depth to Front of Door
Solid Door 24 1/16’
Overlay Door NA
H. Depth to Handle 26’ (Stainless Steel)
Solid Door 47”
Overlay Door NA
"F"
I. Depth with door at 90˚
"D"
Product Features
Interior Cabinet Finish Black
Capacity Up to 45 wine bottles
Shelving System Roller-Glide System
Shelf Fronts Natural Maple
"I"
Other Storage NA
Interior Lighting White Incandescent
Toe Grill Finish Black
Hinge Classic Hinge
Handle Slim Designer Handle
Control Type Prime
™
Temperature Range 40° to 65° F
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 145 lbs
Finishes Stainless Steel
Vacation Mode No
Agency Approvals CSA
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
marvelrefrigeration.com | 800.223.3900
