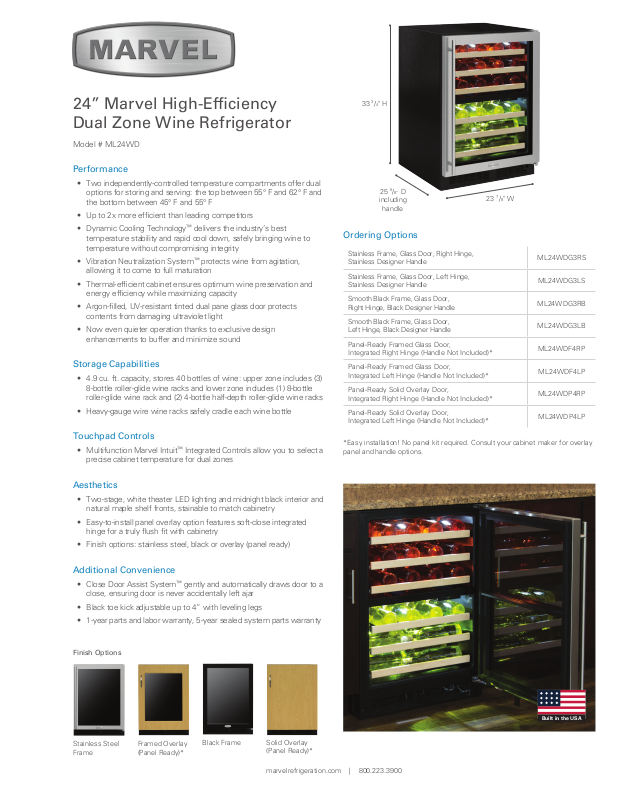

Marvel ML24WD PRODUCT SPECIFICATIONS
24” Marvel High-Efciency
Dual Zone Wine Refrigerator
Model # ML24WD
Performance
• Two independently-controlled temperature compartments offer dual
options for storing and serving: the top between 55° F and 62° F and
the bottom between 45° F and 55° F
• Up to 2x more efcient than leading competitors
• Dynamic Cooling Technology
temperature stability and rapid cool down, safely bringing wine to
temperature without compromising integrity
• Vibration Neutralization System
allowing it to come to full maturation
• Thermal-efcient cabinet ensures optimum wine preservation and
energy efciency while maximizing capacity
• Argon-lled, UV-resistant tinted dual pane glass door protects
contents from damaging ultraviolet light
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
Storage Capabilities
• 4.9 cu. ft. capacity, stores 40 bottles of wine: upper zone includes (3)
8-bottle roller-glide wine racks and lower zone includes (1) 8-bottle
roller-glide wine rack and (2) 4-bottle half-depth roller-glide wine racks
• Heavy-gauge wire wine racks safely cradle each wine bottle
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature for dual zones
™
delivers the industry’s best
™
protects wine from agitation,
33 3/4" H
25 5/8” D
including
handle
23 7/8" W
Ordering Options
Stainless Frame, Glass Door, Right Hinge,
Stainless Designer Handle
Stainless Frame, Glass Door, Left Hinge,
Stainless Designer Handle
Smooth Black Frame, Glass Door,
Right Hinge, Black Designer Handle
Smooth Black Frame, Glass Door,
Left Hinge, Black Designer Handle
Panel-Ready Framed Glass Door,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Framed Glass Door,
Integrated Left Hinge (Handle Not Included)*
Panel-Ready Solid Overlay Door,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Solid Overlay Door,
Integrated Left Hinge (Handle Not Included)*
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
ML24WDG3RS
ML24WDG3LS
ML24WDG3RB
ML24WDG3LB
ML24WDF4RP
ML24WDF4LP
ML24WDP4RP
ML24WDP4LP
Aesthetics
• Two-stage, white theater LED lighting and midnight black interior and
natural maple shelf fronts, stainable to match cabinetry
• Easy-to-install panel overlay option features soft-close integrated
hinge for a truly ush t with cabinetry
• Finish options: stainless steel, black or overlay (panel ready)
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Black toe kick adjustable up to 4” with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Finish Options
Stainless Steel
Frame
Framed Overlay
(Panel Ready)*
Black Frame
Solid Overlay
(Panel Ready)*
marvelrefrigeration.com | 800.223.3900
Built in the USA
Clearance
Clearance for
24" (61 cm) wide appliance
Clearance for
"I"
"G"
"H"
Product Dimensions
"A"
"B"
"C"
"H"
"G"
Panel Overlay Dimensions (Framed Door)
Hinge side of door
(4.4 cm)
1
3
⁄8"
(7.9 cm)
31⁄8"
11
⁄16"
3
(9.4 cm)
Clearance
for hinge
at top and
bottom
1
⁄4"
(6 mm)
Deep
3
1
⁄4"
30
(77.1 cm)
2"
(5.1 cm)
11
⁄32"
screw head,
47⁄8"
(12.4 cm)
1
⁄8"
3
(7.9 cm)
15⁄32"
(2.9 cm)
11
1
⁄16"
(4.3 cm)
1
⁄2"
1
(3.8 cm)
typical
4 places
327⁄32"
(9.8 cm)
1
4
⁄8"
(10.5 cm)
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
Top of door
1
⁄4" (6 mm)
radius is
permissible
Left Hand Hinged Door
24" (61 cm) wide appliance
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
⁄16"
1
(3 cm)
(7.9 cm)
This side
to door
Left Hand Hinged Door
"E"
"F"
"I"
for hinge
at top and
bottom
Hinge side of door
Right Hand Hinged Door
24" (61 cm) wide appliance
23
(6 mm)
(7.9 cm)
3011⁄32"
(77.1 cm)
(5.1 cm)
1
⁄4"
Deep
(4.4 cm)
31⁄8"
2"
13⁄4"
31⁄8"
(7.9 cm)
3
(9.4 cm)
(60.3 cm)
14"
(35.6 cm)
3
1
⁄16"
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
to door
11
1" (2.5 cm) diameter
⁄16"
1
x
⁄4" (6 mm) deep
Right Hand Hinged Door
24" (61 cm) wide appliance
Top of door
3
⁄4"
327⁄32"
(9.8 cm)
4
(10.5 cm)
4 places
"D"
(12.4 cm)
1
⁄8"
screw head,
4 places
7
4
⁄8"
(3.8 cm)
3
(7.9 cm)
15⁄32"
(2.9 cm)
1
⁄2"
1
typical
Rough-In Dimensions
A. Rough-In Width 24”
Solid Door 34” to 35”
B. Rough-In Height
Overlay Door
34” 1/4 to
35” 1/4
C. Rough-In Depth 24”
Product Dimensions
D. Width 23 7/8”
33 3/4” to
34 3/4”
E. Height
Solid Door
Overlay Door 34” to 35”
F. Depth 21 1/2
Solid Door 23 23/32”
G. Depth to Front of Door
Overlay Door
22 7/8”
Without
Handle
H. Depth to Handle 25 21/32” (Stainless Steel)
I. Depth with door at 90˚
Solid Door 46 13/32”
Overlay Door 46 1/2”
Product Features
Interior Cabinet Finish Black
Capacity
Shelving System Roller-Glide System
Shelf Fronts Natural Maple
Other Storage NA
Interior Lighting White LED
Toe Grill Finish Black
Hinge Classic Hinge
Handle
Control Type Intuit
Temperature Range
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 160 lbs
Finishes Stainless Steel, Overlay, Black
Vacation Mode Yes
Agency Approvals CSA
1
⁄8"
11
1
⁄16"
(4.3 cm)
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
Up to 40 wine bottles
24 Upper Zone
16 Lower Zone
Slim Designer Handle
(Panel Overlay Does
Not Include Handle)
™
Upper Zone: 55° to 62° F
Lower Zone: 45° to 55° F
marvelrefrigeration.com | 800.223.3900
