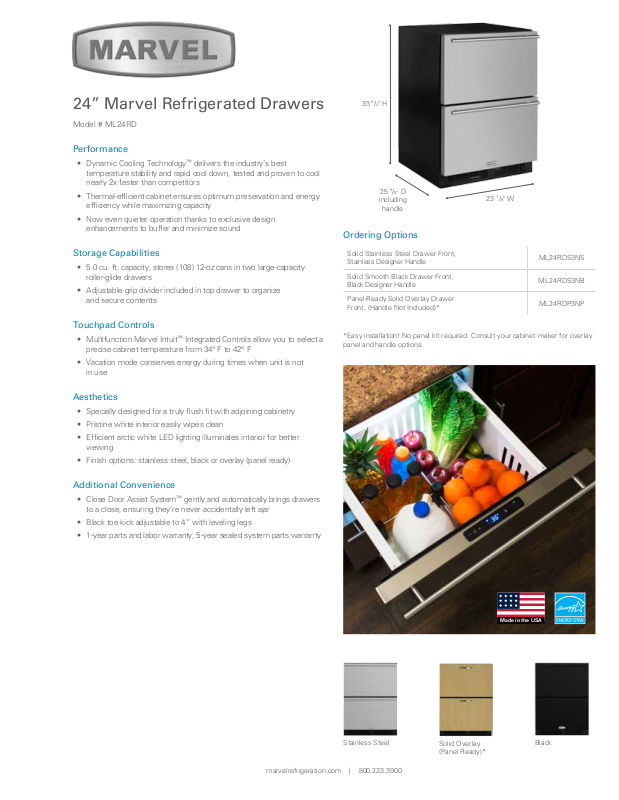

Marvel ML24RDP3NP Specifications
24” Marvel Refrigerated Drawers
Made in the USA
Model # ML24RD
Performance
• Dynamic Cooling Technology™ delivers the industry’s best
temperature stability and rapid cool down, tested and proven to cool
nearly 2x faster than competitors
• Thermal-efcient cabinet ensures optimum preservation and energy
efciency while maximizing capacity
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
33 3/4" H
25 5/8” D
including
handle
Ordering Options
23 7/8" W
Storage Capabilities
• 5.0 cu. ft. capacity, stores (108) 12-oz cans in two large-capacity
roller-glide drawers
• Adjustable grip divider included in top drawer to organize
and secure contents
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from 34° F to 42° F
• Vacation mode conserves energy during times when unit is not
in use
Aesthetics
• Specially designed for a truly ush t with adjoining cabinetry
• Pristine white interior easily wipes clean
• Efcient arctic white LED lighting illuminates interior for better
viewing
• Finish options: stainless steel, black or overlay (panel ready)
Additional Convenience
• Close Door Assist System™ gently and automatically brings drawers
to a close, ensuring they’re never accidentally left ajar
• Black toe kick adjustable to 4” with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Solid Stainless Steel Drawer Front,
Stainless Designer Handle
Solid Smooth Black Drawer Front,
Black Designer Handle
Panel-Ready Solid Overlay Drawer
Front, (Handle Not Included)*
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
ML24RDS3NS
ML24RDS3NB
ML24RDP3NP
Stainless Steel
marvelrefrigeration.com | 800.223.3900
Solid Overlay
(Panel Ready)*
Black
1"(25 mm) diameter counter
" (21 mm)
"I"
"H"
"G"
Product Dimensions
Panel Overlay Dimensions
117⁄8"
(302 mm)
3
23
⁄4"
(603 mm)
(8.8 mm)
11
⁄32"
1
⁄2" (12.7 mm)
diameter, top
drawer only
Panel
thickness
(379 mm)
"B"
"H"
"G"
"I"
1429⁄32"
"A"
"E"
"C"
"F"
bore 1⁄4" (6 mm) deep
2 places, top drawer only.
23⁄8"
(60 mm)
facing interior
This side
"D"
19"
(483 mm)
13
⁄16
counterbore
7
⁄16" (12 mm)
deep, top
drawer only
3
1
⁄16"
(30 mm)
Rough-In Dimensions
A. Rough-In Width 24”
Solid Door 34” to 35”
B. Rough-In Height
Overlay Door
34 1/4” to
35 1/4”
C. Rough-In Depth 24”
Product Dimensions
D. Width 23 7/8”
33 3/4” to
34 3/4”
E. Height
Solid Door
Overlay Door 34” to 35”
F. Depth 21 1/2
Solid Door 23 23/32”
G. Depth to Front of Door
Overlay Door
22 7/8”
Without
Handle
H. Depth to Handle 25 21/32” (Stainless Steel)
I. Depth with door at 90˚
Solid Door 46 13/32”
Overlay Door 46 1/2”
Product Features
Interior Cabinet Finish White
Capacity Up to 108 12-oz cans
Shelving System NA
Shelf Fronts NA
Other Storage (1) Quick-Grip Divider
Interior Lighting White LED
Toe Grill Finish Black
Hinge NA
Handle
Control Type Intuit
Temperature Range 34° to 42° F
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 160 lbs
Finishes Stainless Steel, Overlay, Black
Vacation Mode Yes
Agency Approvals CSA, ENERGY STAR
Slim Designer Handle
(Panel Overlay Does
Not Include Handle)
™
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
