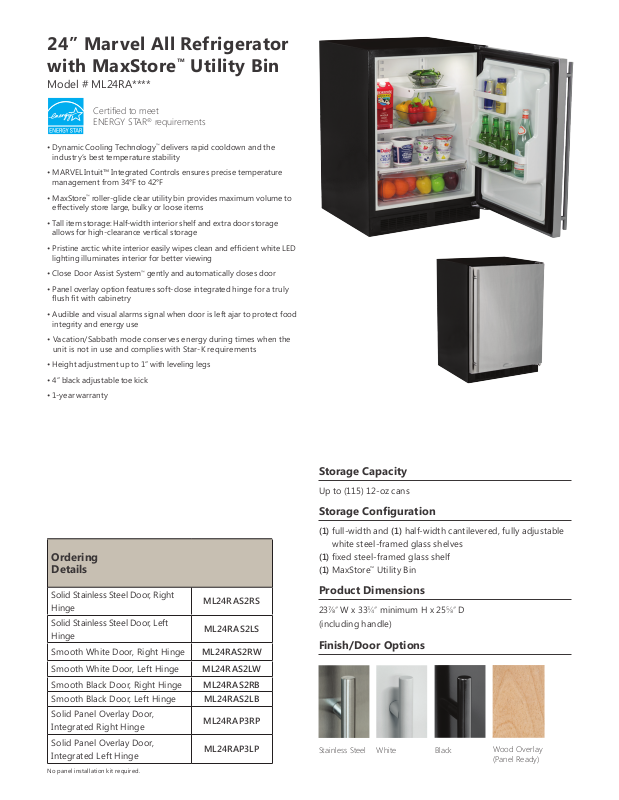

Marvel ML24RAP3RP Specifications
24” Marvel All Refrigerator
with MaxStore
Model # ML24RA****
Certied to meet
ENERGY STAR® requirements
• Dynamic Cooling Technology™ delivers rapid cooldown and the
industry’s best temperature stability
• MARVEL Intuit™ Integrated Controls ensures precise temperature
management from 34°F to 42°F
• MaxStore™ roller-glide clear utility bin provides maximum volume to
effectively store large, bulky or loose items
• Tall item storage: Half-width interior shelf and extra door storage
allows for high-clearance vertical storage
• Pristine arctic white interior easily wipes clean and efcient white LED
lighting illuminates interior for better viewing
• Close Door Assist System™ gently and automatically closes door
• Panel overlay option features soft-close integrated hinge for a truly
ush t with cabinetry
• Audible and visual alarms signal when door is lef t ajar to protect food
integrity and energy use
• Vacation/Sabbath mode conserves energy during times when the
unit is not in use and complies with Star-K requirements
• Height adjustment up to 1” with leveling legs
• 4” black adjustable toe kick
• 1-year warranty
™
Utility Bin
Ordering
Details
Solid Stainless Steel Door, Right
Hinge
Solid Stainless Steel Door, Left
Hinge
Smooth White Door, Right Hinge ML24RAS2RW
Smooth White Door, Left Hinge ML24RAS2LW
Smooth Black Door, Right Hinge ML24RAS2RB
Smooth Black Door, Left Hinge ML24RAS2LB
Solid Panel Overlay Door,
Integrated Right Hinge
Solid Panel Overlay Door,
Integrated Left Hinge
No panel installation kit required.
ML24RAS2RS
ML24RAS2LS
ML24R AP3RP
ML24R AP3LP
Storage Capacity
Up to (115) 12-oz cans
Storage Conguration
(1) full-width and (1) half-width cantilevered, fully adjustable
white steel-framed glass shelves
(1) xed steel-framed glass shelf
(1) MaxStore
™
Utility Bin
Product Dimensions
23⅞” W x 33¾” minimum H x 25⅝” D
(including handle)
Finish/Door Options
Stainless Steel
White
Black
Wood Overlay
(Panel Ready)
Side
Front
Side
Forced
Air Fan
Evaporator
Plate
Return
Air Intake
"F"
211⁄2"
(54.6 cm)
PRODUCT
WEIGHT
105 lbs
(47.7 kg)
105 lbs
(47.7 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
140 lbs
((63.6 kg)
"D"
"E"
"H"
"J"
"G"
PRODUCT DIMENSIONS
Figure 8
"B"
"A"
"C"
Cabinet Dimensions
"D" "E" " F"
23 7⁄8”
(60.7 cm)
“G” “H” “J”
25 21⁄32”
(65.2 cm)
33 3⁄4” to 34 3⁄4”
(85.7 to 88.3 cm)
46 13⁄32”
(117.9 cm)
23 23⁄ 32”
(60.2 cm)
25 11⁄16”
(65.2 cm)
24" Rough-In Dimensions
"A" "B" "C"
24”
(61 cm)
**34" to 35"
(86.4 to 88.9 cm)
24”
(61 cm)
Dynamic Cooling Technology™
delivers rapid cool down
and the industry’s best
temperature stability
The distinctive Marvel design features a
thermal-efcient cabinet and door combined
with Dynamic Cooling Technology™ for
superior temperature stability, faster cooling
times and speedy temperature recovery even
with high frequency.
Width 23 ⅞"
Interior Finish White
Capacity up to 100 12-oz cans
Shelving System Cantilever
Shelf Fronts Black painted maple
Other Storage MaxSto re™ Utility Bin
Interior Lighting 2 White LED Pods
Toe Grill Finish Black
Hinge Classic Hinge
Handle Designer
Contr ol Type Int uit™
Temperature Range 34° - 42° F
Lock NA
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 5'
Product Dimensions 23 ⅞" W x 33 ¾" H x 21 ½" D
Depth to Front of Door 23
Depth to Handle 25
Depth with door at 90° 46
Shipping Weight 160 lbs
Finishes SS, B, W, O
Vacation /
Sabba th Mode
Agency Approvals CSA
Energ y Star Ce rtied
23
/32"
21
/32"
13
/32"
Finishes Key
SS = Stainless Steel
Yes
B = Black
W = White
O = Overlay
