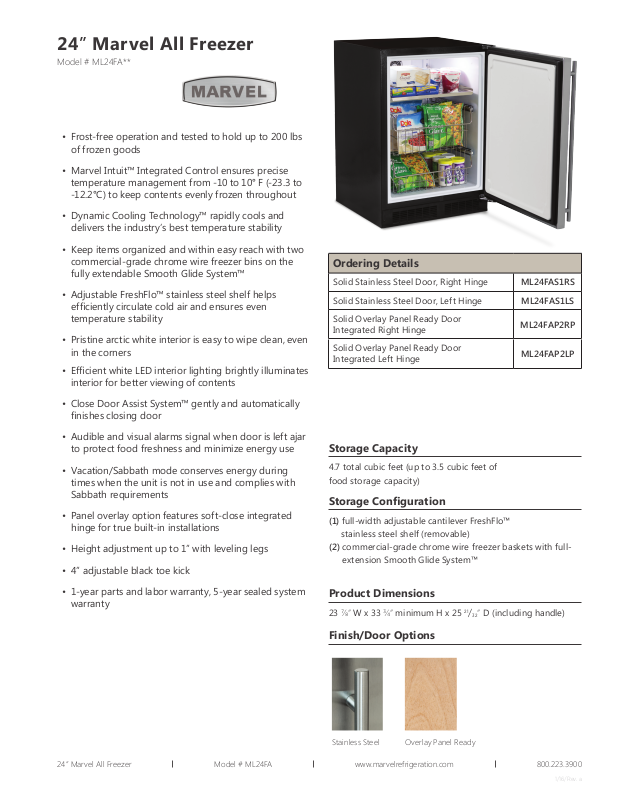

Marvel ML24FA PRODUCT SPECIFICATIONS
24” Marvel All Freezer
Model # ML24FA**
• Frost-free operation and tested to hold up to 200 lbs
of frozen goods
• Marvel Intuit™ Integrated Control ensures precise
temperature management from -10 to 10° F (-23.3 to
-12.2°C) to keep contents evenly frozen throughout
• Dynamic Cooling Technology™ rapidly cools and
delivers the industry’s best temperature stability
• Keep items organized and within easy reach with two
commercial-grade chrome wire freezer bins on the
fully extendable Smooth Glide System™
• Adjustable FreshFlo™ stainless steel shelf helps
efciently circulate cold air and ensures even
temperature stability
• Pristine arctic white interior is easy to wipe clean, even
in the corners
• Efcient white LED interior lighting brightly illuminates
interior for better viewing of contents
Ordering Details
Solid Stainless Steel Door, Right Hinge ML24FAS1RS
Solid Stainless Steel Door, Left Hinge ML24FAS1LS
Solid Overlay Panel Ready Door
Integrated Right Hinge
Solid Overlay Panel Ready Door
Integrated Left Hinge
ML24FAP2RP
ML24FAP2LP
• Close Door Assist System™ gently and automatically
nishes closing door
• Audible and visual alarms signal when door is left ajar
to protect food freshness and minimize energy use
• Vacation/Sabbath mode conserves energy during
times when the unit is not in use and complies with
Sabbath requirements
• Panel overlay option features soft-close integrated
hinge for true built-in installations
• Height adjustment up to 1” with leveling legs
• 4” adjustable black toe kick
• 1-year parts and labor warranty, 5-year sealed system
warranty
Storage Capacity
4.7 total cubic feet (up to 3.5 cubic feet of
food storage capacity)
Storage Conguration
(1) full-width adjustable cantilever FreshFlo™
stainless steel shelf (removable)
(2) commercial-grade chrome wire freezer baskets with full-
extension Smooth Glide System™
Product Dimensions
23 ⅞” W x 33 ¾” minimum H x 25 21/32” D (including handle)
Finish/Door Options
Stainless Steel
www.marvelrefrigeration.com24” Marvel All Freezer Model # ML24FA 800.223.3900
Overlay Panel Ready
1/16/Rev. a
Side
Front
Side
Forced
Air Fan
Evaporator
Plate
Return
Air Intake
"F"
211⁄2"
(54.6 cm)
PRODUCT
WEIGHT
105 lbs
(47.7 kg)
105 lbs
(47.7 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
140 lbs
((63.6 kg)
"D"
"E"
"H"
"J"
"G"
PRODUCT DIMENSIONS
Figure 8
"B"
"A"
"C"
Cabinet Dimensions
"D" "E" "F"
7
⁄8”
⁄32”
33 3⁄4” to 34 3⁄4”
(85.7 to 88.3 cm)
46 13⁄32”
(117.9 cm)
4.7 total cubic feet of food
full- extensi on chrome wire
23
(60.7 cm)
“G” “H” “J”
21
25
(65.2 cm)
Width 23 7/8”
Interior Finish Arctic White
Capacity
Shelving System Cantilever
Shelf Fronts Formed Metal
Other Storage
Interior Lighting White LED Lighting
Toe Grill Finish Black
23 23⁄32”
(60. 2 cm)
25 11⁄16”
(65.2 cm)
storage capacity
baskets
(2) smooth-glide
24" Rough-In Dimensions
"A" "B" "C"
24”
(61 cm)
Hinge
Handle Designer Handle
Contr ol Type
Temperature Range -10 to 10° F (-23.3 to -12.2°C)
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6 ft.
Product Dimensions
Depth to Front of Door 23
**34" to 35"
(86.4 to 88.9 cm)
Stainless Model: Classic Hinge
Panel Ready Model:
Integrated Hinge
Marvel Intuit™ Integrated
Controls
23⅞” W x 33¾” minimum H x
21
25
/32” D (including handle)
23
/32”
24”
(61 cm)
Dynamic Cooling Technology™
delivers rapid cool down
and the industry’s best
temperature stability
The distinctive Marvel design features a
thermal-efcient cabinet and door combined
with Dynamic Cooling Technology™ for
superior temperature stability, faster cooling
times and speedy temperature recovery even
with high usage.
Depth to Handle 25 21/32”
Depth with door at 90° 46
Shipping Weight 160 lbs
Finishes SS, B, W, O
Vacation /
Sabba th Mode
Agency Approvals CSA
Finishes Key
SS = Stainless Steel
B = Black
W = White
O = Overlay
Yes
13
/32”
www.marvelrefrigeration.com24” Marvel All Freezer Model # ML24FA 800.223.3900
1/16/Rev. a
