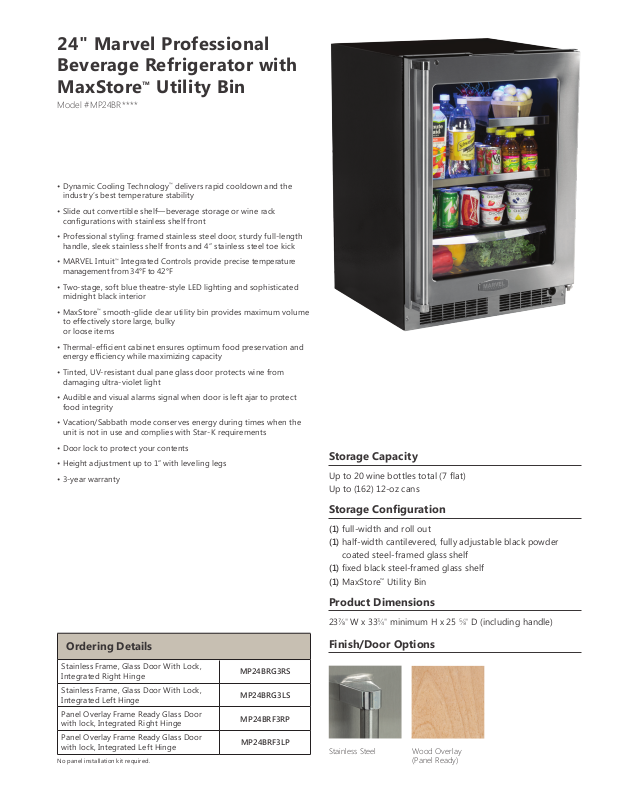

24" Marvel Professional
Beverage Refrigerator with
MaxStore™ Utility Bin
Model #MP24BR****
• Dynamic Cooling Technology™ delivers rapid cooldown and the
industry’s best temperature stability
• Slide out convertible shelf—beverage storage or wine rack
congurations with stainless shelf front
• Professional st yling: framed stainless steel door, sturdy full-length
handle, sleek stainless shelf fronts and 4” stainless steel toe kick
• MARVEL Intuit™ Integrated Controls provide precise temperature
management from 34°F to 42°F
• Two-stage, soft blue theatre-style LED lighting and sophisticated
midnight black interior
• MaxStore™ smooth-glide clear utility bin provides maximum volume
to effectively store large, bulky
or loose items
• Thermal-efcient cabinet ensures optimum food preservation and
energy efciency while maximizing capacity
• Tinted, UV-resistant dual pane glass door protects wine from
damaging ultra-violet light
• Audible and visual alarms signal when door is lef t ajar to protect
food integrity
• Vacation/Sabbath mode conserves energy during times when the
unit is not in use and complies with Star-K requirements
• Door lock to protect your contents
• Height adjustment up to 1” with leveling legs
• 3-year warranty
Storage Capacity
Up to 20 wine bottles total (7 at)
Up to (162) 12-oz cans
Ordering Details
Stainless Frame, Glass Door With Lock,
Integrated Right Hinge
Stainless Frame, Glass Door With Lock,
Integrated Left Hinge
Panel Overlay Frame Ready Glass Door
with lock, Integrated Right Hinge
Panel Overlay Frame Ready Glass Door
with lock, Integrated Left Hinge
No panel installation kit required.
MP24BRG3RS
MP24BRG3LS
MP24BRF3RP
MP24BRF3LP
Storage Conguration
(1) full-width and roll out
(1) half-width cantilevered, fully adjustable black powder
coated steel-framed glass shelf
(1) xed black steel-framed glass shelf
(1) MaxStore
™
Utility Bin
Product Dimensions
23⅞" W x 33¾" minimum H x 25 ⅝" D (including handle)
Finish/Door Options
Stainless Steel Wood Overlay
(Panel Ready)
Side
Front
Side
Forced
Air Fan
Evaporator
Plate
Return
Air Intake
"D"
"E"
"F"
"G"
"H"
"J"
PRODUCT DIMENSIONS
PRODUCT
WEIGHT
105 lbs
(47.6 kg)
105 lbs
(47.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
31⁄2" (8.9 cm)
Minimum
211⁄2"
(54.6 cm)
"B"
"A"
"C"
Cabinet Dimensions
"D" "E" "F"
23 7⁄8”
(60.7 cm)
“G” “H” “J”
26 7⁄32”
(66.6 cm)
33 3⁄4” to 34 3⁄4”
(85.7 to 88.3 cm)
461 3⁄ 32”
(117.9 cm)
23 23⁄ 32”
(60. 2 cm)
26 7⁄16”
(6 7.2 c m)
24" Rough-In Dimensions
"A" "B" "C"
24"
(61 cm)
34" to 35"
(86.4 cm to 88.9 cm)
24"
(61 cm)
Dynamic Cooling Technology™
delivers rapid cool down
and the industry’s best
temperature stability
The distinctive Marvel design features a
thermal-efcient cabinet and door combined
with Dynamic Cooling Technology™ for
superior temperature stability, faster cooling
times and speedy temperature recovery even
with high frequency.
Width 23 ⅞"
Interior Finish Black
Up to 20 wine bottles
Up to 162 12-oz cans
Bottle shape wire
Capacity
Shelving System
Shelf Fronts Stainless Steel
Other Storage MaxSto re™ Utility Bin
Interior Lighting 2 LED Pods
Toe Grill Finish Stainless Steel
Hinge Soft Cl ose Int egrated Hinge
Handle Professional
Side Mount
Contr ol Type Intuit™
Temperature Range 34° - 42° F
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 5'
Product Dimensions 23 ⅞" W x 33 ¾" H x 21 ½" D
Depth to Front of Door 23
Depth to Handle 26
Depth with door at 90° 46
Shipping Weight 160 lbs
Finishes SS, O
Vacation /
Sabba th Mode
Agency Approvals CSA
23
/32"
7
/32"
13
/32"
Finishes Key
SS = Stainless Steel
Yes
O = Overlay
Overlay Panels
!
CAUTION
Material Type #10 Wood Screw
Hardwood
1
⁄8" (3.2 mm) Diameter. Pilot Hole
Softwood
7
⁄64 (2.8 mm) Diameter. Pilot Hole
Table C
Weight of overlay door panel must not exceed 15
pounds (6.8 kg) for a solid door model or 10 pounds
(4.5 kg) for a glass door model.
!
CAUTION
Step 4: Assemble the panel to the door
The preferred method of attaching the panel to the door
is to clamp the panel to the door so it cannot move while
drilling the screw pilot holes. Use bar clamps or "C" clamps
with pads on the clamping surfaces that will not mar the
panel or the door. The custom overlay panel should be
ush with the top of the door and centered along the width
of the door. See Figure 10a. Drill holes through the gasket
extrusion using the 10 holes as pilot holes. Use the drill
size from the chart in Table "C", being careful not to drill
through the front surface of the panel, drill no deeper than
1
⁄2" (12.7 mm) deep. If the overlay panel is thinner than
5
⁄8" (16 mm) thick shorter screws will have to be obtained.
Fasten the panel to the door with the 10 screws provided in
the literature pack. (See Figure 19a). Remove the clamps
and replace the gasket in the gasket extrusion channels of
the door. Some force may be required to seat the gasket
into the channels. Be sure the gasket corners are seated
properly.
Material Type #10 Wood Screw
Hardwood
1
⁄8" (3.2 mm) Diameter. Pilot Hole
Softwood
7
⁄64 (2.8 mm) Diameter. Pilot Hole
Table C
Weight of overlay door panel must not exceed 15
pounds (6.8 kg) for a solid door model or 10 pounds
(4.5 kg) for a glass door model.
SECTION A-A
SCALE 1 : 1
LOCK
NUT
BRASS EXTENSION
CAM
PHILLIPS SCREW
13/16 COUNTER
BORE 7/16 DEEP
1/2 HOLE
3/4 INCH
WOOD PANEL
SPRING WASHER
INNER
DOOR
OVERLAY DOOR PANEL INSTALLATION
Figure 19
Step 5: Assemble lock parts
Two (2) lock extensions are provided with the lock. Use the
longer extension for 3⁄4" thick overlay panels and the shorter
one for 5⁄8" thick overlay panels. Assemble the lock exten-
sion, cam stop washer, spring washer, and set screw to the
lock as shown in Figure 20 and 21.
Install this lock assembly into the lock hole in the overlay
panel and secure with the retaining nut on the back side
with a 15 mm socket and ratchet. Make sure the key slot in
the front of the lock is vertical.
Step 6: Install lock cam
Attach the lock cam to the back of the lock assembly with
the phillips head screw provided. Orient the lock cam verti-
cally when installing on the lock.
3
1
⁄2"
(89 mm)
Counter bore
lock hole
on back side.
Figure 19a
#10 x
1
⁄2"
screw
1
⁄2" (13 mm) diameter drill
through door panel, from
other side (see detail
above) 13⁄16" (20.5 mm)
counter bore, 7⁄16" (11 mm)
deep.
17
⁄32"
(13.7 mm)
Figure 20
Hinge side of door
OVERLAY DOOR PANEL INSTALLATION
Overlay panel
ush with top
and side of
door.
Overlay panel to
be centered on
width of door.
Holes in
gasket
retainer.
Clearance for
screw head,
4 places
Figure 11
Left Hand Hinged Door
15" (38.1 cm) wide appliance
Hinge side of door
Figure 9
Press and hold this down
this tab on the wire connec-
tor and pull the connector
apart.
Clearance
for hinge
2 places
143⁄4"
(37.5 cm)
1
⁄4" (6 mm)
Deep
1" (25.4 mm) diameter
counter bore
1
⁄4" (6.4mm)
deep 4 places.
1
3
⁄4"
(4.4 cm)
Figure 10a
47⁄8"
(12.4 cm)
3
27
⁄32"
(9.7 cm)
5"
(12.7 cm)
1
3
⁄16"
(3 cm)
3
1
⁄8"
(7.9 cm)
1
⁄4" (6 mm)
radius is
Top of door
1
5
⁄32"
(2.9 cm)
Figure 16
Left Hand Hinged Door
24" (61 cm) wide appliance
Figure 15
Left Hand Hinged Door
24" (61 cm) wide appliance
Hinge side of door
Clearance
for hinge
at top and
bottom
Clearance for
screw head,
4 places
23
3
⁄4"
(60.3 cm)
1
3
⁄4"
(4.4 cm)
1
⁄4"
(6 mm)
Deep
1" (2.5 cm) diameter
x
1
⁄4" (6 mm) deep
4 places
3
1
⁄8"
(7.9 cm)
2"
(5.1 cm)
3
11
⁄16"
(9.4 cm)
1
1
⁄2"
(3.8 cm)
typical
1
11
⁄16"
(4.3 cm)
30
11
⁄32"
(77.1 cm)
14"
(35.6 cm)
1
3
⁄16"
(3 cm)
3
1
⁄8"
(7.9 cm)
47⁄8"
(12.4 cm)
4
1
⁄8"
(10.5 cm)
This side
to door
31⁄8"
(7.9 cm)
1
⁄4" (6 mm)
radius is
permissible
327⁄32"
(9.8 cm)
!
CAUTION
15⁄32"
(2.9 cm)
Figure 17
Right Hand Hinged Door
24" (61 cm) wide appliance
Figure 18
Right Hand Hinged Door
24" (61 cm) wide appliance
OVERLAY DOOR PANEL INSTALLATION
1" (2.5 cm) diameter
x 1⁄4" (6 mm) deep
4 places
Clearance
for hinge
at top and
bottom
2"
(5.1 cm)
3
11
⁄16"
(9.4 cm)
1
1
⁄2"
(3.8 cm)
typical
1
⁄4"
(6 mm)
Deep
Hinge side of door
Clearance for
screw head,
4 places
3011⁄32"
(77.1 cm)
1
11
⁄16"
(4.3 cm)
23
3
⁄4"
(60.3 cm)
3
1
⁄8"
(7.9 cm)
Top of door
Step 4: Assemble the panel to the door
The preferred method of attaching the panel to the door
is to clamp the panel to the door so it cannot move while
drilling the screw pilot holes. Use bar clamps or "C" clamps
with pads on the clamping surfaces that will not mar the
panel or the door. The custom overlay panel should be
ush with the top of the door and centered along the width
of the door. See Figure 10a. Drill holes through the gasket
extrusion using the 10 holes as pilot holes. Use the drill
size from the chart in Table "C", being careful not to drill
through the front surface of the panel, drill no deeper than
1
⁄2" (12.7 mm) deep. If the overlay panel is thinner than
5
⁄8" (16 mm) thick shorter screws will have to be obtained.
Fasten the panel to the door with the 10 screws provided in
the literature pack. (See Figure 19a). Remove the clamps
and replace the gasket in the gasket extrusion channels of
the door. Some force may be required to seat the gasket
into the channels. Be sure the gasket corners are seated
properly.
Material Type #10 Wood Screw
Hardwood
1
⁄8" (3.2 mm) Diameter. Pilot Hole
Softwood
7
⁄64 (2.8 mm) Diameter. Pilot Hole
Table C
Weight of overlay door panel must not exceed 15
pounds (6.8 kg) for a solid door model or 10 pounds
(4.5 kg) for a glass door model.
31⁄8"
(7.9 cm)
13⁄4"
(4.4 cm)
4
1
⁄8"
(10.5 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
to door
31⁄8"
(7.9 cm)
327⁄32"
(9.8 cm)
1
3
⁄16"
(3 cm)
14"
(35.6 cm)
4
7
⁄8"
(12.4 cm)
